基于物理的着色(PBR)基于物理的着色(PBR）是现代渲染引擎的标准配置，本文简单介绍了理论和展示了对应的着色器代码，最

基于物理的着色(PBR)

渲染方程

L_o(p,\omega_o) = \int\limits_{\Omega} f_r(p,\omega_i,\omega_o) L_i(p,\omega_i) n \cdot \omega_i d\omega_i

$p$ 为着色点的位置
$\omega_o$ 为出射方向(即观察方向 $v$ ，着色点到相机)
$\omega_i$ 为入射方向(即光源方向 $l$ ，着色点到光源)
$n$ 为着色点的法线方向
$L_o(p,\omega_o)$ 为着色点 $p$ 在 $\omega_o$ 方向上的出射辐射率
$L_i(p,\omega_i)$ 为着色点 $p$ 在 $\omega_i$ 方向上的入射辐射率
$f_r(p,\omega_i,\omega_o)$ 为双向反射分布函数(BRDF)
$\Omega$ 为法线方向 $n$ 所在的单位半球面

Cook-Torrance BRDF

f_r = k_d f_{lambert} + k_s f_{cook-torrance}

$k_d$ 为漫反射系数
$k_s$ 为镜面反射系数
$f_{lambert}$ 为Lambertian漫反射
$f_{cook-torrance}$ 为镜面反射

Lambertian漫反射

f_{lambert} = \frac{c}{\pi}

$c$ 为表面颜色

Cook-Torrance镜面反射

f_{cook-torrance} = \frac{DFG}{4(\omega_o \cdot n)(\omega_i \cdot n)}

$D$ 为法线分布函数
$F$ 为菲涅尔函数
$G$ 为几何函数

GGXTR法线分布函数

D_{GGXTR}(n, h, \alpha) = \frac{\alpha^2}{\pi((n \cdot h)^2 (\alpha^2 - 1) + 1)^2}

$h$ 为半程方向
$\alpha$ 为粗糙度

float DistributionGGX(vec3 N, vec3 H, float roughness)
{
    float a = roughness * roughness;
    float a2 = a * a;
    float NdotH = max(dot(N, H), 0.0);
    float NdotH2 = NdotH * NdotH;

    float num = a2;
    float denom = (NdotH2 * (a2 - 1.0) + 1.0);
    denom = PI * denom * denom;

    return num / denom;
}

Smith-Schlick-GGX几何函数

G_{Smith}(n, v, l, k) = G_{SchlickGGX}(n, v, k) G_{SchlickGGX}(n, l, k)

G_{SchlickGGX}(n, v, k) = \frac{n \cdot v}{(n \cdot v)(1 - k) + k }

k = \frac{(\alpha + 1)^2}{8}

float GeometrySchlickGGX(float NdotV, float roughness)
{
    float r = (roughness + 1.0);
    float k = (r * r) / 8.0;

    float num = NdotV;
    float denom = NdotV * (1.0 - k) + k;

    return num / denom;
}
float GeometrySmith(vec3 N, vec3 V, vec3 L, float roughness)
{
    float NdotV = max(dot(N, V), 0.0);
    float NdotL = max(dot(N, L), 0.0);
    float ggx2 = GeometrySchlickGGX(NdotV, roughness);
    float ggx1 = GeometrySchlickGGX(NdotL, roughness);

    return ggx1 * ggx2;
}

Fresnel-Schlic菲涅尔函数

F_{Schlick}(h, v, F_0) = F_0 + (1 - F_0) ( 1 - (h \cdot v))^5

F_0=(1-m)*0.04 + m*c

$m$ 为金属度

vec3 F0 = vec3(0.04);
F0 = mix(F0, surfaceColor.rgb, metalness);
cosTheta = max(dot(H, V), 0.0);
vec3 FresnelSchlick(float cosTheta, vec3 F0)
{
    return F0 + (1.0 - F0) * pow(1.0 - cosTheta, 5.0);
}

漫反射系数和镜面系数

vec3 kS = F;
vec3 kD = vec3(1.0) - kS;
kD *= 1.0 - metallic;

基于图像的光照(Image based lighting, IBL)

将渲染方程写为漫反射和镜面反射两部分：

L_o(p,\omega_o) = \int\limits_{\Omega} (k_d\frac{c}{\pi}) L_i(p,\omega_i) n \cdot \omega_i d\omega_i + \int\limits_{\Omega} (k_s\frac{DFG}{4(\omega_o \cdot n)(\omega_i \cdot n)}) L_i(p,\omega_i) n \cdot \omega_i d\omega_i

漫反射

将常数项移出积分

L_{o_d}(p,\omega_o) = k_d\frac{c}{\pi} \int\limits_{\Omega} L_i(p,\omega_i) n \cdot \omega_i d\omega_i

预计算

L_{o_d}(n) = k_d\frac{c}{\pi} \int\limits_{\Omega} L_i(p,\omega_i) n \cdot \omega_i d\omega_i

转为球坐标，积分区间是以着色点 $p$ 为球心，指向 $n$ 方向的上半球面，有：

d\omega_i=\sin(\theta)d\phi d\theta

n\cdot\omega_i=\cos(\theta)

L_{o_d}(n) = k_d\frac{c}{\pi} \int_{\phi = 0}^{2\pi} \int_{\theta = 0}^{\frac{1}{2}\pi} L_i(\omega_i(\phi,\theta,n)) \cos(\theta) \sin(\theta) d\phi d\theta

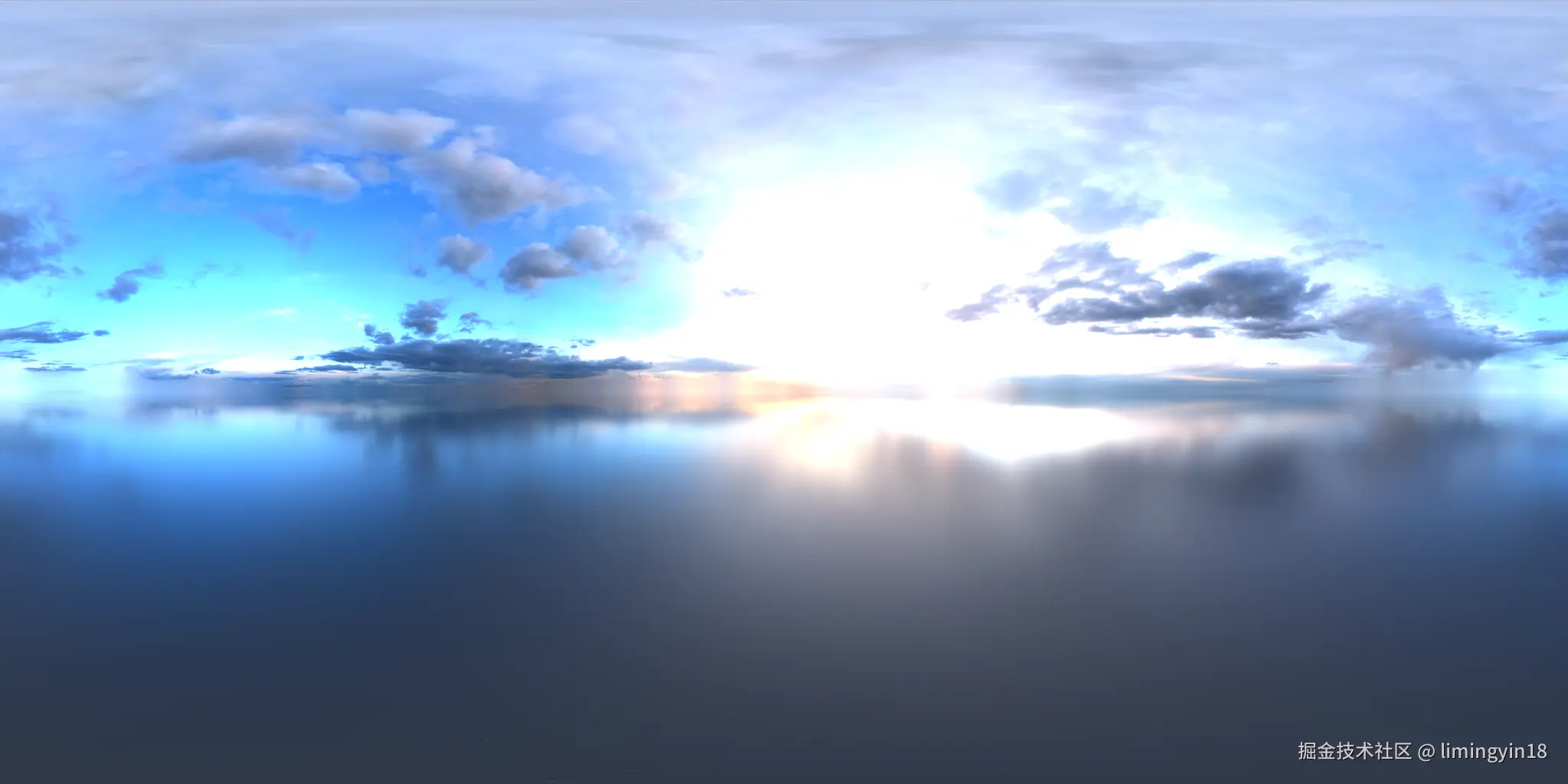

$L_i$ 由cubemap表示，转换 $\omega_i$
切线空间坐标轴

vec3 normal = n;
vec3 up = vec3(0.0, 1.0, 0.0);
vec3 right = cross(up, normal);
up = cross(normal, right);

切线空间中，球坐标转笛卡尔坐标

t = (\sin(\theta)*\cos(\phi), \sin(\theta)*\sin(\phi), \cos(\theta))

vec3 tangentSample = vec3(sin(theta) * cos(phi), sin(theta) * sin(phi), cos(theta));

切线空间转世界空间

\omega_i=t_x*right+t_y*up+t_z*n

vec3 sampleVec = tangentSample.x * right + tangentSample.y * up + tangentSample.z * normal;

环境光采样

vec3 Li = texture(environmentMap, sampleVec).rgb

离散化

L_{o_d}(n) = k_d\frac{c}{\pi} \frac{1}{n_1 n_2} \sum_{\phi = 0}^{n_1} \sum_{\theta = 0}^{n_2} L_i(\omega_i(\phi,\theta,n)) \cos(\theta) \sin(\theta) \Delta\phi \Delta\theta

    vec3 irradiance = vec3(0.0);

    vec3 up = vec3(0.0, 1.0, 0.0);
    vec3 right = normalize(cross(up, normal));
    up = normalize(cross(normal, right));

    float sampleDelta = 0.025;
    float nrSamples = 0.0;
    for (float phi = 0.0; phi < 2.0 * PI; phi += sampleDelta)
    {
        for (float theta = 0.0; theta < 0.5 * PI; theta += sampleDelta)
        {
            // spherical to cartesian (in tangent space)
            vec3 tangentSample = vec3(sin(theta) * cos(phi), sin(theta) * sin(phi), cos(theta));
            // tangent space to world
            vec3 sampleVec = tangentSample.x * right + tangentSample.y * up + tangentSample.z * normal;

            irradiance += texture(environmentMap, sampleVec).rgb * cos(theta) * sin(theta);
            nrSamples++;
        }
    }
    irradiance = PI * irradiance * (1.0 / float(nrSamples));

镜面反射

L_{o_s}(p,\omega_o) = \int\limits_{\Omega} (k_s\frac{DFG}{4(\omega_o \cdot n)(\omega_i \cdot n)} L_i(p,\omega_i) n \cdot \omega_i d\omega_i = \int\limits_{\Omega} f_r(p, \omega_i, \omega_o) L_i(p,\omega_i) n \cdot \omega_i d\omega_i

Epic提出分割求和近似

L_{o_s}(p,\omega_o) = \int\limits_{\Omega} L_i(p,\omega_i) d\omega_i * \int\limits_{\Omega} f_r(p, \omega_i, \omega_o) n \cdot \omega_i d\omega_i

第一部分的结果保存到预滤波环境贴图
第二部分的结果保存到BRDF积分贴图

预滤波环境贴图计算的着色器

#version 460 core

out vec4 FragColor;
in vec3 localPos;

layout(binding = 0) uniform samplerCube environmentMap;
uniform float roughness;

const float PI = 3.14159265359;

float DistributionGGX(vec3 N, vec3 H, float roughness);
float RadicalInverse_VdC(uint bits);
vec2 Hammersley(uint i, uint N);
vec3 ImportanceSampleGGX(vec2 Xi, vec3 N, float roughness);

void main()
{
    vec3 N = normalize(localPos);
    vec3 R = N;
    vec3 V = R;

    const uint SAMPLE_COUNT = 1024u;
    float totalWeight = 0.0;
    vec3 prefilteredColor = vec3(0.0);
    for (uint i = 0u; i < SAMPLE_COUNT; ++i)
    {
        vec2 Xi = Hammersley(i, SAMPLE_COUNT);
        vec3 H = ImportanceSampleGGX(Xi, N, roughness);
        vec3 L = normalize(2.0 * dot(V, H) * H - V);

        float NdotL = max(dot(N, L), 0.0);
        if (NdotL > 0.0)
        {
            // sample from the environment's mip level based on roughness/pdf
            float D = DistributionGGX(N, H, roughness);
            float NdotH = max(dot(N, H), 0.0);
            float HdotV = max(dot(H, V), 0.0);
            float pdf = D * NdotH / (4.0 * HdotV) + 0.0001;

            float resolution = 512.0; // resolution of source cubemap (per face)
            float saTexel = 4.0 * PI / (6.0 * resolution * resolution);
            float saSample = 1.0 / (float(SAMPLE_COUNT) * pdf + 0.0001);

            float mipLevel = roughness == 0.0 ? 0.0 : 0.5 * log2(saSample / saTexel);

            prefilteredColor += textureLod(environmentMap, L, mipLevel).rgb * NdotL;
            totalWeight += NdotL;
        }
    }
    prefilteredColor = prefilteredColor / totalWeight;

    FragColor = vec4(prefilteredColor, 1.0);
}

vec3 ImportanceSampleGGX(vec2 Xi, vec3 N, float roughness)
{
    float a = roughness * roughness;

    float phi = 2.0 * PI * Xi.x;
    float cosTheta = sqrt((1.0 - Xi.y) / (1.0 + (a * a - 1.0) * Xi.y));
    float sinTheta = sqrt(1.0 - cosTheta * cosTheta);

    // from spherical coordinates to cartesian coordinates
    vec3 H;
    H.x = cos(phi) * sinTheta;
    H.y = sin(phi) * sinTheta;
    H.z = cosTheta;

    // from tangent-space vector to world-space sample vector
    vec3 up = abs(N.z) < 0.999 ? vec3(0.0, 0.0, 1.0) : vec3(1.0, 0.0, 0.0);
    vec3 tangent = normalize(cross(up, N));
    vec3 bitangent = cross(N, tangent);

    vec3 sampleVec = tangent * H.x + bitangent * H.y + N * H.z;
    return normalize(sampleVec);
}

float RadicalInverse_VdC(uint bits)
{
    bits = (bits << 16u) | (bits >> 16u);
    bits = ((bits & 0x55555555u) << 1u) | ((bits & 0xAAAAAAAAu) >> 1u);
    bits = ((bits & 0x33333333u) << 2u) | ((bits & 0xCCCCCCCCu) >> 2u);
    bits = ((bits & 0x0F0F0F0Fu) << 4u) | ((bits & 0xF0F0F0F0u) >> 4u);
    bits = ((bits & 0x00FF00FFu) << 8u) | ((bits & 0xFF00FF00u) >> 8u);
    return float(bits) * 2.3283064365386963e-10; // / 0x100000000
}
// ----------------------------------------------------------------------------
vec2 Hammersley(uint i, uint N)
{
    return vec2(float(i) / float(N), RadicalInverse_VdC(i));
}

float DistributionGGX(vec3 N, vec3 H, float roughness)
{
    float a = roughness * roughness;
    float a2 = a * a;
    float NdotH = max(dot(N, H), 0.0);
    float NdotH2 = NdotH * NdotH;

    float nom = a2;
    float denom = (NdotH2 * (a2 - 1.0) + 1.0);
    denom = PI * denom * denom;

    return nom / denom;
}

BRDF积分贴图计算的着色器

#version 460

out vec2 FragColor;
in vec2 TexCoords;

const float PI = 3.14159265359;
// ----------------------------------------------------------------------------
// http://holger.dammertz.org/stuff/notes_HammersleyOnHemisphere.html
// efficient VanDerCorpus calculation.
float RadicalInverse_VdC(uint bits)
{
    bits = (bits << 16u) | (bits >> 16u);
    bits = ((bits & 0x55555555u) << 1u) | ((bits & 0xAAAAAAAAu) >> 1u);
    bits = ((bits & 0x33333333u) << 2u) | ((bits & 0xCCCCCCCCu) >> 2u);
    bits = ((bits & 0x0F0F0F0Fu) << 4u) | ((bits & 0xF0F0F0F0u) >> 4u);
    bits = ((bits & 0x00FF00FFu) << 8u) | ((bits & 0xFF00FF00u) >> 8u);
    return float(bits) * 2.3283064365386963e-10; // / 0x100000000
}
// ----------------------------------------------------------------------------
vec2 Hammersley(uint i, uint N)
{
    return vec2(float(i) / float(N), RadicalInverse_VdC(i));
}
// ----------------------------------------------------------------------------
vec3 ImportanceSampleGGX(vec2 Xi, vec3 N, float roughness)
{
    float a = roughness * roughness;

    float phi = 2.0 * PI * Xi.x;
    float cosTheta = sqrt((1.0 - Xi.y) / (1.0 + (a * a - 1.0) * Xi.y));
    float sinTheta = sqrt(1.0 - cosTheta * cosTheta);

    // from spherical coordinates to cartesian coordinates - halfway vector
    vec3 H;
    H.x = cos(phi) * sinTheta;
    H.y = sin(phi) * sinTheta;
    H.z = cosTheta;

    // from tangent-space H vector to world-space sample vector
    vec3 up = abs(N.z) < 0.999 ? vec3(0.0, 0.0, 1.0) : vec3(1.0, 0.0, 0.0);
    vec3 tangent = normalize(cross(up, N));
    vec3 bitangent = cross(N, tangent);

    vec3 sampleVec = tangent * H.x + bitangent * H.y + N * H.z;
    return normalize(sampleVec);
}
// ----------------------------------------------------------------------------
float GeometrySchlickGGX(float NdotV, float roughness)
{
    // note that we use a different k for IBL
    float a = roughness;
    float k = (a * a) / 2.0;

    float nom = NdotV;
    float denom = NdotV * (1.0 - k) + k;

    return nom / denom;
}
// ----------------------------------------------------------------------------
float GeometrySmith(vec3 N, vec3 V, vec3 L, float roughness)
{
    float NdotV = max(dot(N, V), 0.0);
    float NdotL = max(dot(N, L), 0.0);
    float ggx2 = GeometrySchlickGGX(NdotV, roughness);
    float ggx1 = GeometrySchlickGGX(NdotL, roughness);

    return ggx1 * ggx2;
}
// ----------------------------------------------------------------------------
vec2 IntegrateBRDF(float NdotV, float roughness)
{
    vec3 V;
    V.x = sqrt(1.0 - NdotV * NdotV);
    V.y = 0.0;
    V.z = NdotV;

    float A = 0.0;
    float B = 0.0;

    vec3 N = vec3(0.0, 0.0, 1.0);

    const uint SAMPLE_COUNT = 1024u;
    for (uint i = 0u; i < SAMPLE_COUNT; ++i)
    {
        // generates a sample vector that's biased towards the
        // preferred alignment direction (importance sampling).
        vec2 Xi = Hammersley(i, SAMPLE_COUNT);
        vec3 H = ImportanceSampleGGX(Xi, N, roughness);
        vec3 L = normalize(2.0 * dot(V, H) * H - V);

        float NdotL = max(L.z, 0.0);
        float NdotH = max(H.z, 0.0);
        float VdotH = max(dot(V, H), 0.0);

        if (NdotL > 0.0)
        {
            float G = GeometrySmith(N, V, L, roughness);
            float G_Vis = (G * VdotH) / (NdotH * NdotV);
            float Fc = pow(1.0 - VdotH, 5.0);

            A += (1.0 - Fc) * G_Vis;
            B += Fc * G_Vis;
        }
    }
    A /= float(SAMPLE_COUNT);
    B /= float(SAMPLE_COUNT);
    return vec2(A, B);
}
// ----------------------------------------------------------------------------
void main()
{
    vec2 integratedBRDF = IntegrateBRDF(TexCoords.x, TexCoords.y);
    FragColor = integratedBRDF;
}

PBR

#version 460 core

out vec4 FragColor;
in vec2 TexCoords;
in vec3 WorldPos;
in vec3 Normal;
in mat3 TBN;

layout(std140, binding = 0) uniform Camera
{
    mat4 projection;
    mat4 view;
    vec3 viewPos;
};

layout(std140, binding = 1) uniform Enviroment
{
    vec3 lightColor;
    vec3 lightDir;
};

layout(std140, binding = 2) uniform LightSpaceMatrices
{
    mat4 lightSpaceMatrices[16];
};
uniform float cascadePlaneDistances[16];
uniform int cascadeCount; // number of frusta - 1
uniform mat4 lightSpaceMatrix;

layout(binding = 0) uniform sampler2D albedoMap;
layout(binding = 1) uniform sampler2D normalMap;
layout(binding = 2) uniform sampler2D ormMap;
layout(binding = 3) uniform samplerCube irradianceMap;
layout(binding = 4) uniform samplerCube prefilterMap;
layout(binding = 5) uniform sampler2D brdfLUT;

layout(binding = 6) uniform sampler2DArray shadowMap;
// layout(binding = 6) uniform sampler2D shadowMap;

vec3 fresnelSchlick(float cosTheta, vec3 F0);
vec3 fresnelSchlickRoughness(float cosTheta, vec3 F0, float roughness);
float DistributionGGX(vec3 N, vec3 H, float roughness);
float GeometrySchlickGGX(float NdotV, float roughness);
float GeometrySmith(vec3 N, vec3 V, vec3 L, float roughness);
float ShadowCalculation(vec3 fragPosWorldSpace);

const float PI = 3.14159265359;

vec3 getNormalFromNormalMap();

void main()
{
    vec3 albedo = pow(texture(albedoMap, TexCoords).rgb, vec3(2.2f));
    vec3 normal = getNormalFromNormalMap();
    float ao = 1-texture(ormMap, TexCoords).r;
    float roughness = texture(ormMap, TexCoords).g;
    float metallic = texture(ormMap, TexCoords).b;

    vec3 N = normalize(normal);
    vec3 V = normalize(viewPos - WorldPos);
    vec3 R = reflect(-V, N);
    vec3 L = normalize(lightDir);
    vec3 H = normalize(V + L);

    vec3 Lo = vec3(0.0);
    vec3 radiance = lightColor;

    vec3 F0 = vec3(0.04);
    F0 = mix(F0, albedo, metallic);
    vec3 F = fresnelSchlick(max(dot(H, V), 0.0), F0);
    float NDF = DistributionGGX(N, H, roughness);
    float G = GeometrySmith(N, V, L, roughness);
    vec3 numerator = NDF * G * F;
    float denominator = 4.0 * max(dot(N, V), 0.0) * max(dot(N, L), 0.0) + 0.0001;
    vec3 specular = numerator / denominator;

    vec3 kS = F;
    vec3 kD = vec3(1.0) - kS;
    kD *= 1.0 - metallic;

    float NdotL = max(dot(N, L), 0.0);
    Lo += (kD * albedo / PI + specular) * radiance * NdotL;

    // indirect
    F = fresnelSchlickRoughness(max(dot(N, V), 0.0), F0, roughness);
    kS = F;
    kD = 1.0 - kS;
    kD *= 1.0 - metallic;
    vec3 irradiance = texture(irradianceMap, N).rgb;
    vec3 diffuse = irradiance * albedo;

    const float MAX_REFLECTION_LOD = 4.0;
    vec3 prefilteredColor = textureLod(prefilterMap, R, roughness * MAX_REFLECTION_LOD).rgb;
    vec2 brdf = texture(brdfLUT, vec2(max(dot(N, V), 0.0), roughness)).rg;
    specular = prefilteredColor * (F * brdf.x + brdf.y);

    vec3 ambient = (kD * diffuse + specular) * ao;

    float shadow = ShadowCalculation(WorldPos);
    vec3 color = ambient * max(0.5, 1.0 - shadow)+ Lo * (1.0 - shadow);
    // vec3 color = ambient * max(0.5, 1.0 - shadow);
    // vec3 color = Lo * (1.0 - ShadowCalculation(WorldPos));
    color = color / (color + vec3(1.0));
    color = pow(color, vec3(1.0 / 2.2));

    FragColor = vec4(color, 1.0);
}

vec3 fresnelSchlick(float cosTheta, vec3 F0)
{
    return F0 + (1.0 - F0) * pow(clamp(1.0 - cosTheta, 0.0, 1.0), 5.0);
}

vec3 fresnelSchlickRoughness(float cosTheta, vec3 F0, float roughness)
{
    return F0 + (max(vec3(1.0 - roughness), F0) - F0) * pow(clamp(1.0 - cosTheta, 0.0, 1.0), 5.0);
}

float DistributionGGX(vec3 N, vec3 H, float roughness)
{
    float a = roughness * roughness;
    float a2 = a * a;
    float NdotH = max(dot(N, H), 0.0);
    float NdotH2 = NdotH * NdotH;

    float num = a2;
    float denom = (NdotH2 * (a2 - 1.0) + 1.0);
    denom = PI * denom * denom;

    return num / denom;
}

float GeometrySchlickGGX(float NdotV, float roughness)
{
    float r = (roughness + 1.0);
    float k = (r * r) / 8.0;

    float num = NdotV;
    float denom = NdotV * (1.0 - k) + k;

    return num / denom;
}
float GeometrySmith(vec3 N, vec3 V, vec3 L, float roughness)
{
    float NdotV = max(dot(N, V), 0.0);
    float NdotL = max(dot(N, L), 0.0);
    float ggx2 = GeometrySchlickGGX(NdotV, roughness);
    float ggx1 = GeometrySchlickGGX(NdotL, roughness);

    return ggx1 * ggx2;
}

vec3 getNormalFromNormalMap()
{
    vec3 norm = texture(normalMap, TexCoords).rgb;
    norm = norm * 2.0 - 1.0;
    norm = normalize(TBN * norm);
    return norm;
}

float ShadowCalculation(vec3 fragPosWorldSpace)
{
    // select cascade layer
    vec4 fragPosViewSpace = view * vec4(fragPosWorldSpace, 1.0);
    float depthValue = abs(fragPosViewSpace.z);

    int layer = -1;
    for (int i = 0; i < cascadeCount; ++i)
    {
        if (depthValue < cascadePlaneDistances[i])
        {
            layer = i;
            break;
        }
    }
    if (layer == -1)
    {
        layer = cascadeCount;
    }

    vec4 fragPosLightSpace = lightSpaceMatrices[layer] * vec4(fragPosWorldSpace, 1.0);

    // fragPosLightSpace = lightSpaceMatrix * vec4(fragPosWorldSpace, 1.0);
    // perform perspective divide
    vec3 projCoords = fragPosLightSpace.xyz / fragPosLightSpace.w;
    // transform to [0,1] range
    projCoords = projCoords * 0.5 + 0.5;

    // get depth of current fragment from light's perspective
    float currentDepth = projCoords.z;

    // keep the shadow at 0.0 when outside the far_plane region of the light's frustum.
    if (currentDepth > 1.0)
    {
        return 0.f;
    }
    // calculate bias (based on depth map resolution and slope)
    vec3 normal = normalize(Normal);
    float bias = max(0.05 * (1.0 - dot(normal, lightDir)), 0.005);
    const float biasModifier = 0.5f;
    if (layer == cascadeCount)
    {
        bias *= 1 / (1000 * biasModifier);
    }
    else
    {
        bias *= 1 / (cascadePlaneDistances[layer] * biasModifier);
    }
    // bias = 0.f;

    // PCF
    float shadow = 0.0;
    vec2 texelSize = 1.0 / vec2(textureSize(shadowMap, 0));
    for (int x = -1; x <= 1; ++x)
    {
        for (int y = -1; y <= 1; ++y)
        {
            float pcfDepth = texture(shadowMap, vec3(projCoords.xy + vec2(x, y) * texelSize, layer)).r;
            // float pcfDepth = texture(shadowMap, vec2(projCoords.xy + vec2(x, y) * texelSize)).r;
            shadow += (currentDepth - bias) > pcfDepth ? 1.0 : 0.0;
        }
    }
    shadow /= 9.0;

    return shadow;
}

结果演示

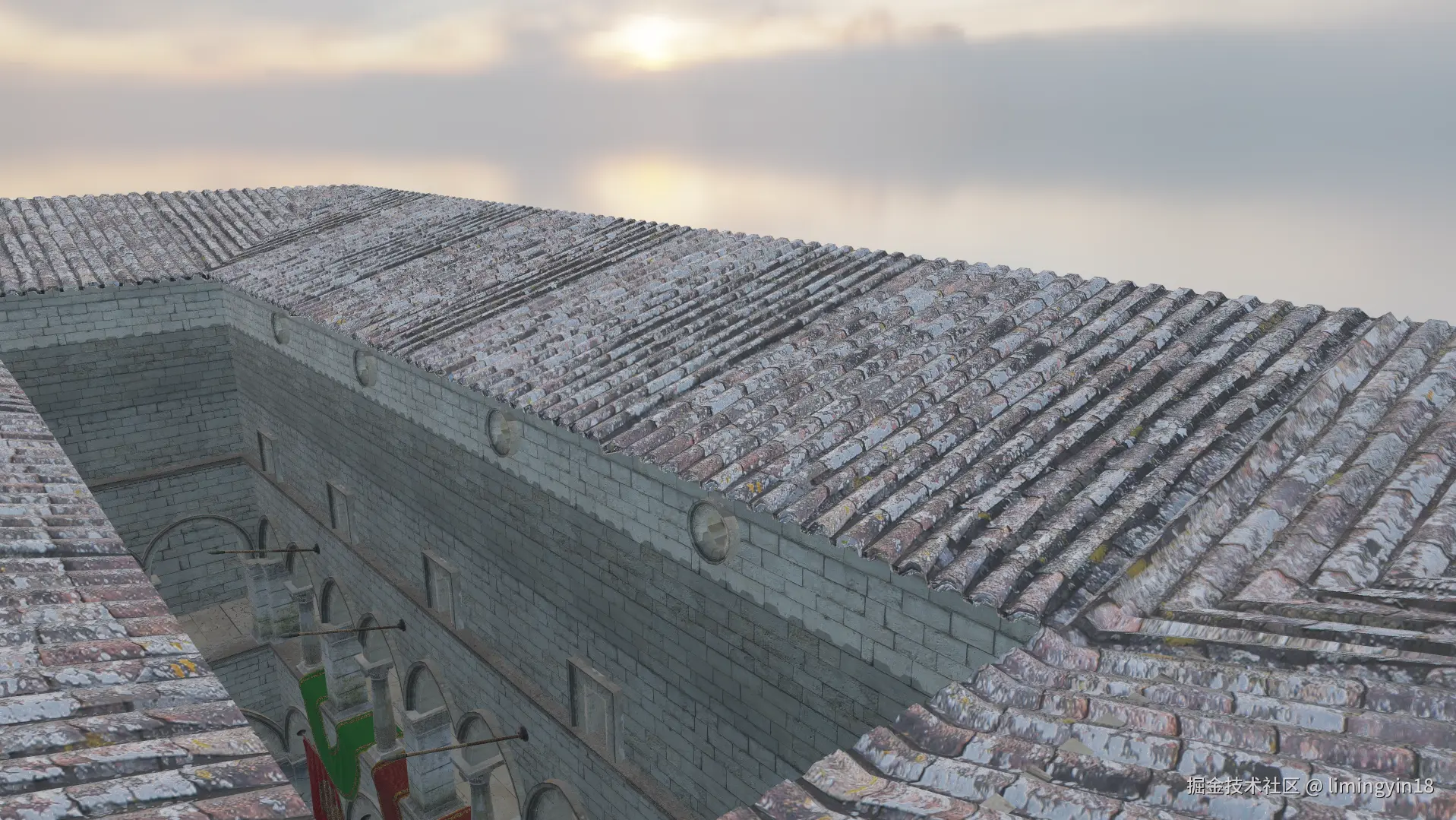

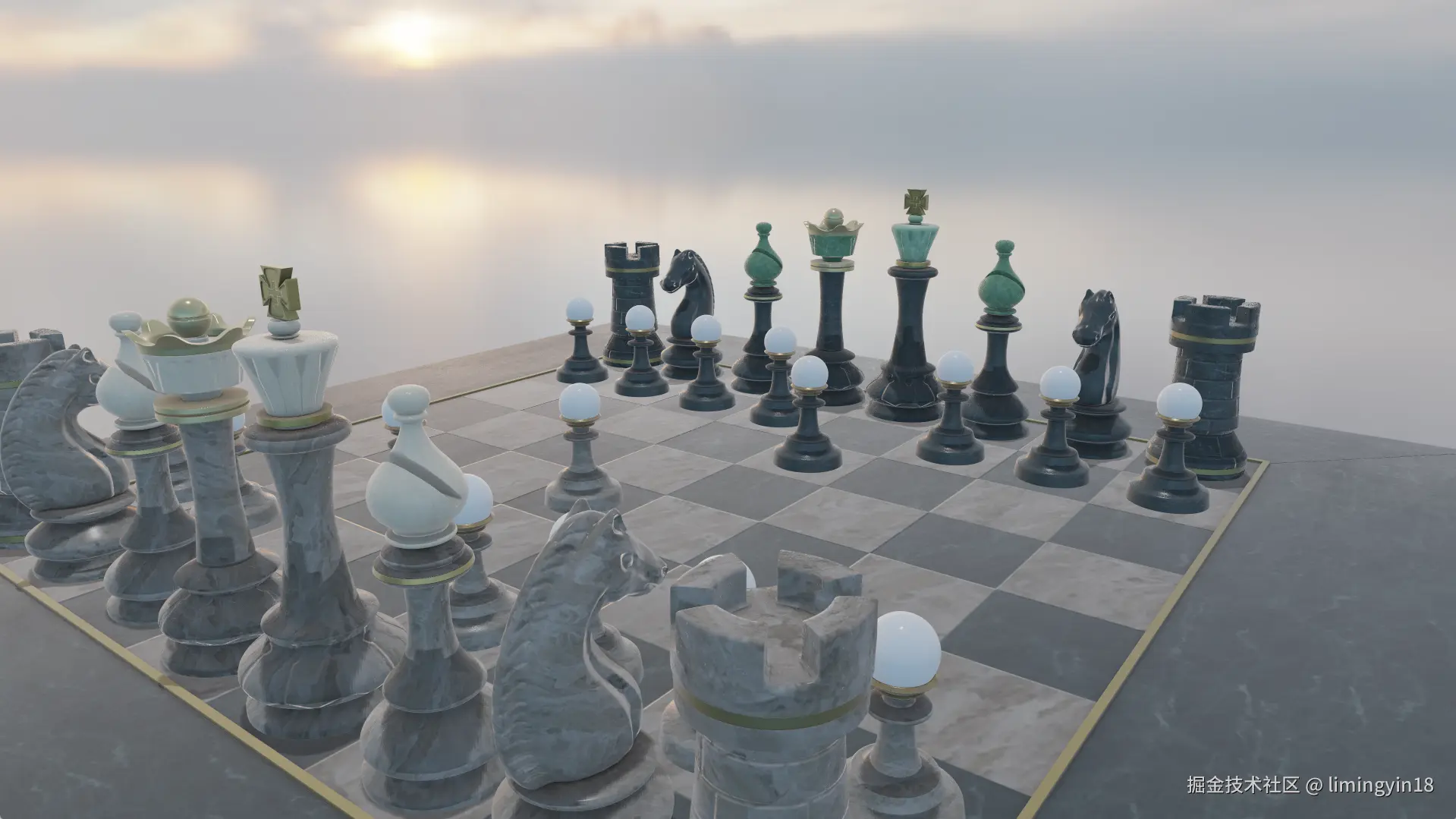

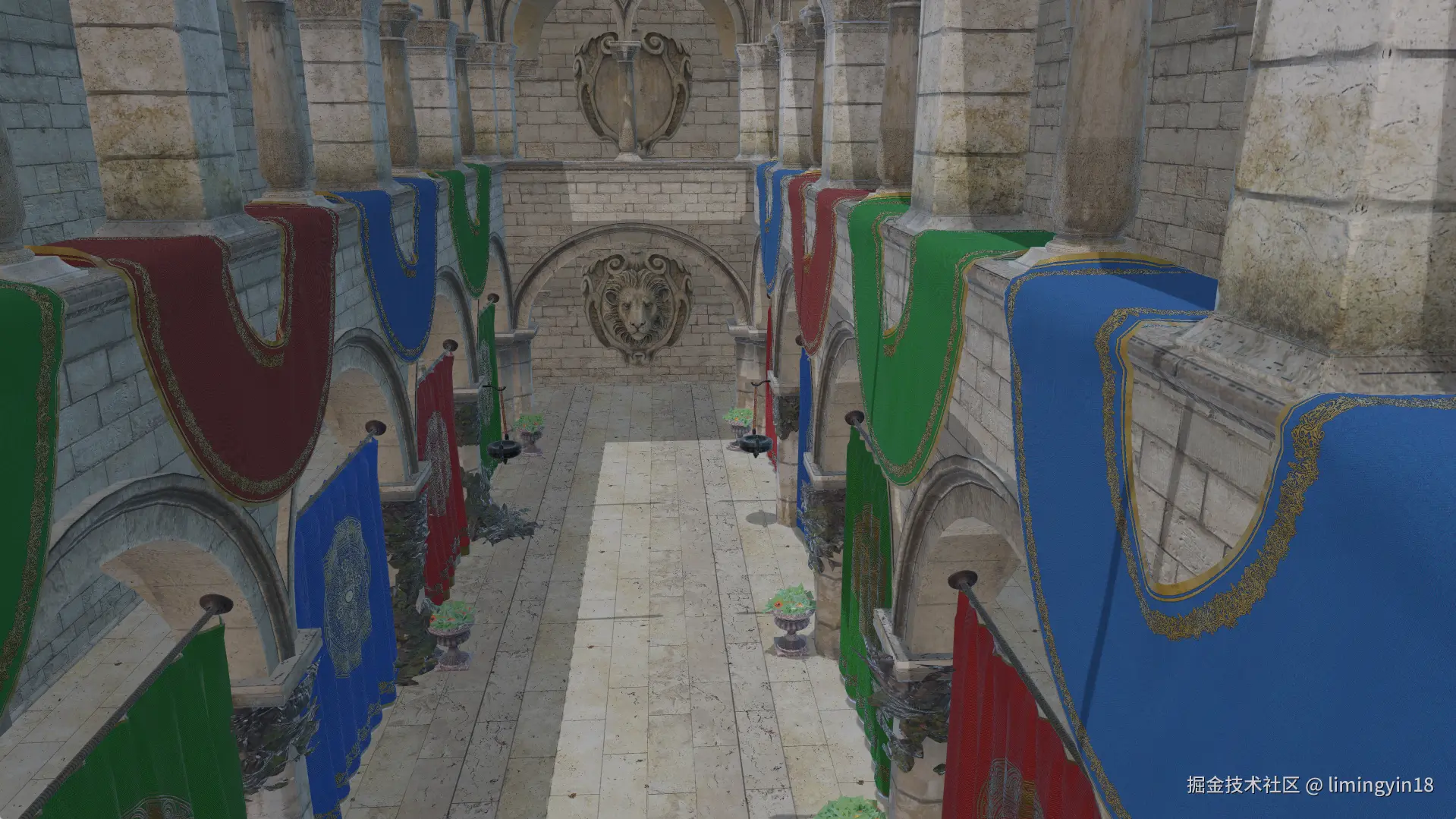

hdr Screenshot 2024-09-24 105002.png Screenshot 2024-09-24 104108.png Screenshot 2024-09-24 105439.png

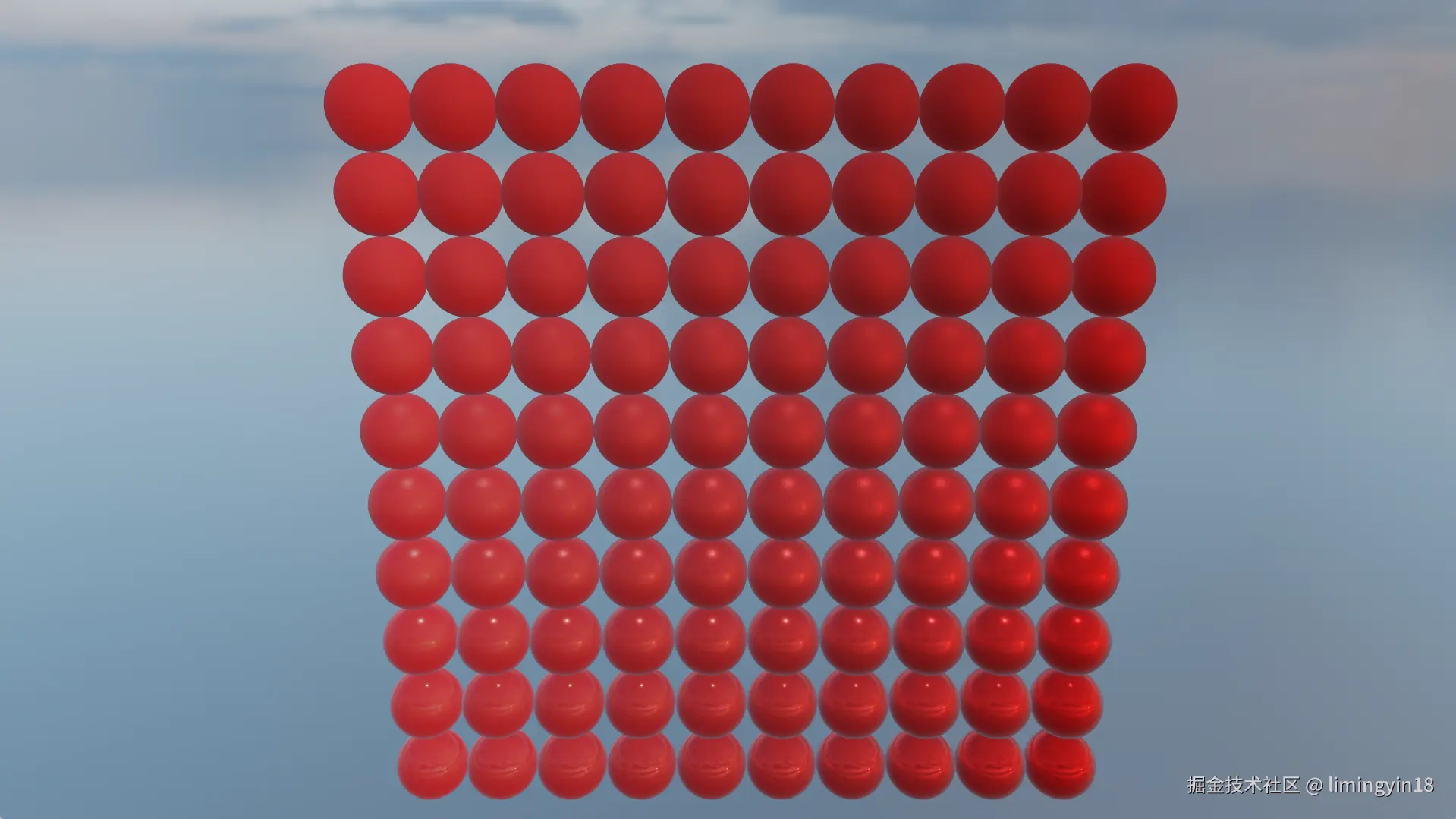

Screenshot 2024-09-24 105620.png

参考

LearnOpenGL - Theory
