CREATE TABLE `t\_user\_points` (
  `id` int(11) NOT NULL AUTO\_INCREMENT,
  `fk\_user\_id` int(11) DEFAULT NULL COMMENT '用户id',
  `points` int(11) DEFAULT NULL COMMENT '积分',
  `types` int(11) DEFAULT NULL COMMENT '积分类型：0=签到，1=关注好友，2=添加评论，3=点赞商户',
  `is\_valid` int(11) DEFAULT NULL COMMENT '是否有效 1=有效，0=无效',
  `create\_date` datetime DEFAULT NULL COMMENT '创建时间',
  `update\_date` datetime DEFAULT NULL COMMENT '更新时间',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4  COLLATE=utf8mb4_general_ci ROW_FORMAT=COMPACT;

创建 ms-points 积分微服务

pom文件引入相关依赖：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>redis-seckill</artifactId>
        <groupId>com.zjq</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>ms-points</artifactId>

    <dependencies>
        <!-- eureka client -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <!-- spring web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- mysql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!-- spring data redis -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!-- mybatis -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <!-- commons 公共项目 -->
        <dependency>
            <groupId>com.zjq</groupId>
            <artifactId>commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <!-- test 单元测试 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

yml配置文件：

server:
  port: 7006 # 端口

spring:
  application:
    name: ms-points # 应用名
  # 数据库
  # 数据库
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    username: root
    password: root
    url: jdbc:mysql://127.0.0.1:3306/seckill?serverTimezone=Asia/Shanghai&characterEncoding=utf8&useUnicode=true&useSSL=false
  # Redis
  redis:
    port: 6379
    host: localhost
    timeout: 3000
    password: 123456
    database: 2
  # Swagger
  swagger:
    base-package: com.zjq.points
    title: 积分功能微服务API接口文档

# 配置 Eureka Server 注册中心
eureka:
  instance:
    prefer-ip-address: true
    instance-id: ${spring.cloud.client.ip-address}:${server.port}
  client:
    service-url:
      defaultZone: http://localhost:7000/eureka/

service:
  name:
    ms-oauth-server: http://ms-oauth2-server/
    ms-users-server: http://ms-users/

mybatis:
  configuration:
    map-underscore-to-camel-case: true # 开启驼峰映射

logging:
  pattern:
    console: '%d{HH:mm:ss} [%thread] %-5level %logger{50} - %msg%n'

REST请求配置类和Redis配置类和全局异常处理：
RestTemplate 配置类：

package com.zjq.points.config;

import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.MediaType;
import org.springframework.http.converter.json.MappingJackson2HttpMessageConverter;
import org.springframework.web.client.RestTemplate;

import java.util.Collections;

/\*\*
 \* RestTemplate 配置类
 \* @author zjq
 \*
 \*/
@Configuration
public class RestTemplateConfiguration {

    @LoadBalanced
    @Bean
    public RestTemplate restTemplate() {
        RestTemplate restTemplate = new RestTemplate();
        MappingJackson2HttpMessageConverter converter = new MappingJackson2HttpMessageConverter();
        converter.setSupportedMediaTypes(Collections.singletonList(MediaType.TEXT\_PLAIN));
        restTemplate.getMessageConverters().add(converter);
        return restTemplate;
    }

}

RedisTemplate配置类：

package com.zjq.points.config;

import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

/\*\*
 \* RedisTemplate配置类
 \*
 \* @author zjq
 \*/
@Configuration
public class RedisTemplateConfiguration {

    /\*\*
 \* redisTemplate 序列化使用的jdkSerializeable, 存储二进制字节码, 所以自定义序列化类
 \*
 \* @param redisConnectionFactory
 \* @return
 \*/
    @Bean
    public RedisTemplate<Object, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) {
        RedisTemplate<Object, Object> redisTemplate = new RedisTemplate<>();
        redisTemplate.setConnectionFactory(redisConnectionFactory);

        // 使用Jackson2JsonRedisSerialize 替换默认序列化
        Jackson2JsonRedisSerializer jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer(Object.class);

        ObjectMapper objectMapper = new ObjectMapper();
        objectMapper.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        jackson2JsonRedisSerializer.setObjectMapper(objectMapper);

        // 设置key和value的序列化规则
        redisTemplate.setValueSerializer(jackson2JsonRedisSerializer);
        redisTemplate.setKeySerializer(new StringRedisSerializer());

        redisTemplate.setHashKeySerializer(new StringRedisSerializer());
        redisTemplate.setHashValueSerializer(jackson2JsonRedisSerializer);

        redisTemplate.afterPropertiesSet();
        return redisTemplate;
    }


}

新增用户积分功能

用户积分实体

/\*\*
 \* 用户积分实体
 \* @author zjq
 \*/
@Getter
@Setter
public class UserPoints extends BaseModel {

    @ApiModelProperty("关联userId")
    private Integer fkUserId;
    @ApiModelProperty("积分")
    private Integer points;
    @ApiModelProperty(name = "类型",example = "0=签到，1=关注好友，2=添加Feed，3=添加商户评论")
    private Integer types;

}

积分控制层

    /\*\*
 \* 添加积分
 \*
 \* @param userId 用户ID
 \* @param points 积分
 \* @param types 类型 0=签到，1=关注好友，2=添加Feed，3=添加商户评论
 \* @return
 \*/
    @PostMapping
    public ResultInfo<Integer> addPoints(@RequestParam(required = false) Integer userId,
                                         @RequestParam(required = false) Integer points,
                                         @RequestParam(required = false) Integer types) {
        userPointsService.addPoints(userId, points, types);
        return ResultInfoUtil.buildSuccess(request.getServletPath(), points);
    }

积分业务逻辑层

    /\*\*
 \* 添加积分
 \*
 \* @param userId 用户ID
 \* @param points 积分
 \* @param types 类型 0=签到，1=关注好友，2=添加Feed，3=添加商户评论
 \*/
    @Transactional(rollbackFor = Exception.class)
    public void addPoints(Integer userId, Integer points, Integer types) {
        // 基本参数校验
        AssertUtil.isTrue(userId == null || userId < 1, "用户不能为空");
        AssertUtil.isTrue(points == null || points < 1, "积分不能为空");
        AssertUtil.isTrue(types == null, "请选择对应的积分类型");

        // 插入数据库
        UserPoints userPoints = new UserPoints();
        userPoints.setFkUserId(userId);
        userPoints.setPoints(points);
        userPoints.setTypes(types);
        userPointsMapper.save(userPoints);
    }

数据交互mapper层

    /\*\*
 \* 添加积分
 \* @param userPoints 用户积分实体
 \*/
    @Insert("insert into t\_user\_points (fk\_user\_id, points, types, is\_valid, create\_date, update\_date) " +
            " values (#{fkUserId}, #{points}, #{types}, 1, now(), now())")
    void save(UserPoints userPoints);

网关 ms-gateway 服务添加积分微服务路由

spring:
  application:
    name: ms-gateway
  cloud:
    gateway:
      discovery:
        locator:
          enabled: true # 开启配置注册中心进行路由功能
          lower-case-service-id: true # 将服务名称转小写
      routes:
        # 积分服务路由
        - id: ms-points
          uri: lb://ms-points
          predicates:
            - Path=/points/\*\*
          filters:
            - StripPrefix=1

用户服务中添加用户积分逻辑

在用户服务中添加 ms-points 服务的地址：

service:
  name:
    # oauth2 服务地址
    ms-oauth-server: http://ms-oauth2-server/
    # 积分服务地址
    ms-points-server: http://ms-points/

积分类型枚举 :

/\*\*
 \* 积分类型
 \* @author zjq
 \*/
@Getter
public enum PointTypesConstant {

    sign(0),
    follow(1),
    feed(2),
    review(3)
    ;

    private int type;

    PointTypesConstant(int key) {
        this.type = key;
    }

}

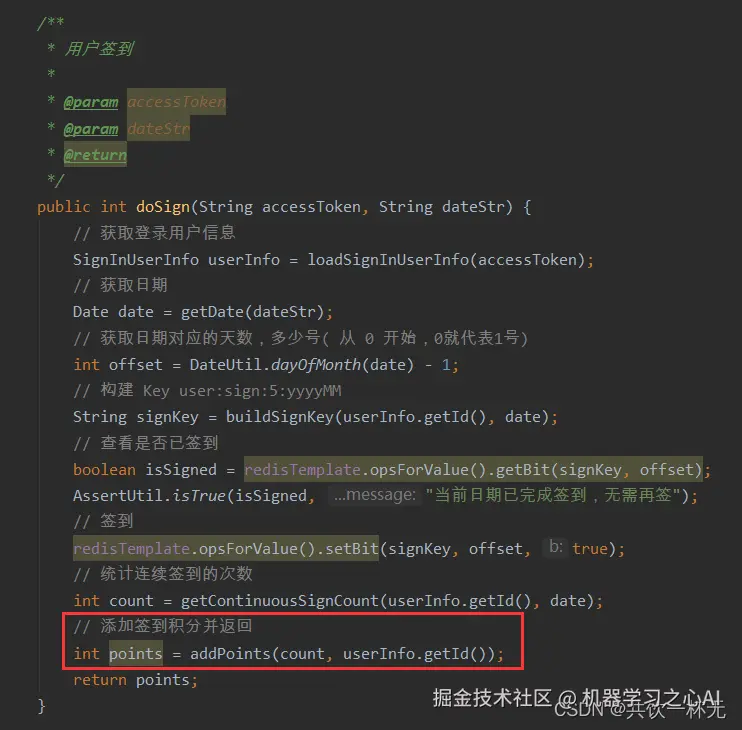

签到业务逻辑层调整，增加签到后积分变动：

    /\*\*
 \* 添加用户积分
 \*
 \* @param count 连续签到次数
 \* @param signInUserId 登录用户id
 \* @return 获取的积分
 \*/
    private int addPoints(int count, Integer signInUserId) {
        // 签到1天送10积分，连续签到2天送20积分，3天送30积分，4天以上均送50积分
        int points = 10;
        if (count == 2) {
            points = 20;
        } else if (count == 3) {
            points = 30;
        } else if (count >= 4) {
            points = 50;
        }
        // 调用积分接口添加积分
        // 构建请求头
        HttpHeaders headers = new HttpHeaders();
        headers.setContentType(MediaType.APPLICATION\_FORM\_URLENCODED);
        // 构建请求体（请求参数）
        MultiValueMap<String, Object> body = new LinkedMultiValueMap<>();
        body.add("userId", signInUserId);
        body.add("points", points);
        body.add("types", PointTypesConstant.sign.getType());
        HttpEntity<MultiValueMap<String, Object>> entity = new HttpEntity<>(body, headers);
        // 发送请求
        ResponseEntity<ResultInfo> result = restTemplate.postForEntity(pointsServerName,
                entity, ResultInfo.class);
        AssertUtil.isTrue(result.getStatusCode() != HttpStatus.OK, "登录失败！");
        ResultInfo resultInfo = result.getBody();
        if (resultInfo.getCode() != ApiConstant.SUCCESS\_CODE) {
            // 失败了, 事物要进行回滚
            throw new ParameterException(resultInfo.getCode(), resultInfo.getMessage());
        }
        return points;
    }

项目测试

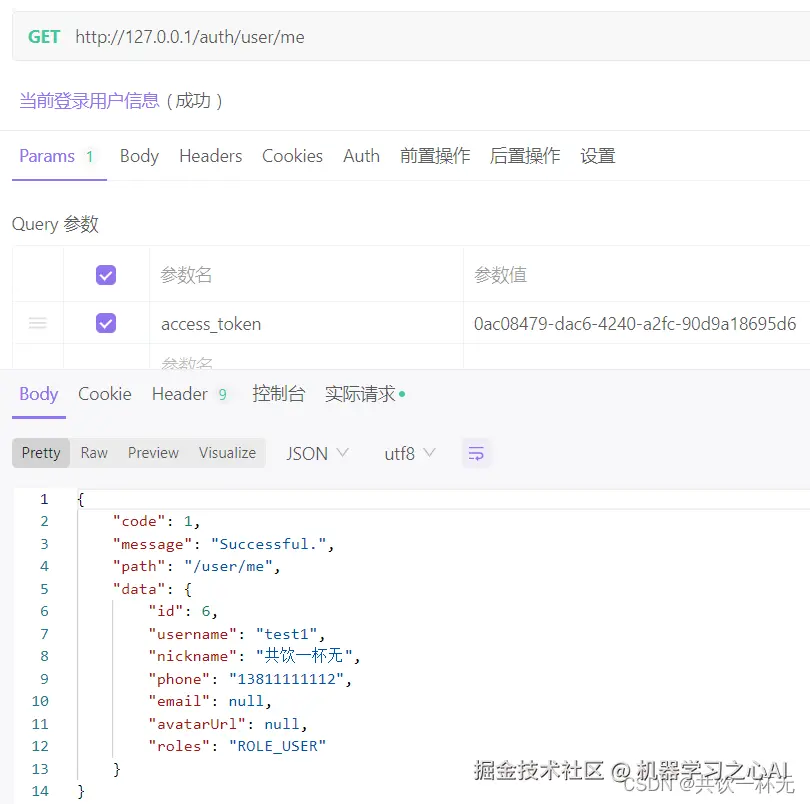

id为6的用户发起签到：

查看数据库和redis可以发现用户积分已经增加：

积分排行榜TopN(关系型数据库)

• 读取数据库中积分，排行榜取TopN，显示字段有：用户id、用户昵称、头像、总积分以及排行榜
• 需要标记当前登录用户的排行情况

构造数据

通过如下方法，初始化两万条积分和用户记录：

    // 初始化 2W 条积分记录
    @Test
    void addPoints() throws Exception {
        List<Map<Integer, Integer[]>> dinerInfos = Lists.newArrayList();
        for (int i = 1; i <= 2000; i++) {
            for (int j = 0; j < 10; j++) {
                super.mockMvc.perform(MockMvcRequestBuilders.post("/")
                        .contentType(MediaType.APPLICATION\_FORM\_URLENCODED)
                        .param("userId", i + "")
                        .param("points", RandomUtil.randomNumbers(2))
                        .param("types", "0")
                ).andExpect(MockMvcResultMatchers.status().isOk()).andReturn();
            }
        }
    }

其实这个类似于一张日志表，因此数据量是非常庞大的，当我们想要统计用户积分做排行榜的的时候，比如：获取积分排行榜Top20，显示字段有：用户id、用户昵称、头像、总积分以及排行榜
获取积分排行榜TOP20：

SELECT
	t1.fk_user_id AS id,
	sum( t1.points ) AS total,
	rank() over (ORDER BY sum( t1.points ) DESC) AS ranks,
	t2.nickname,
	t2.avatar_url
FROM
	t_user_points t1
	LEFT JOIN t_users t2 ON t1.fk_user_id = t2.id
WHERE
	t1.is_valid = 1
	AND t2.is_valid = 1
GROUP BY
	t1.fk_user_id
ORDER BY
	total DESC
	LIMIT 20

获取当前登录用户的排行情况：

SELECT id, total, ranks, nickname, avatar_url FROM (
SELECT t1.fk_user_id AS id,
sum( t1.points ) AS total,
rank () over ( ORDER BY sum( t1.points ) DESC ) AS ranks,
t2.nickname, t2.avatar_url
FROM t_user_points t1 LEFT JOIN t_users t2 ON t1.fk_user_id = t2.id
WHERE t1.is_valid = 1 AND t2.is_valid = 1
GROUP BY t1.fk_user_id
ORDER BY total DESC ) r
WHERE id = '6';

这种方式看上去比较简单，如果数据量小的话运行应该也没有什么大问题，但如果当数据量超过一定量以后，就会出现很大的延迟，毕竟MySQL查询是要消耗大量的IO的。我们后面可以测试一下。

用户积分排名对象

/\*\*
\* 用户积分总排行榜
\* @author zjq
\*/
@ApiModel(description = "用户积分总排行榜")
    @Getter
    @Setter
    public class UserPointsRankVO extends ShortUserInfo {

        @ApiModelProperty("总积分")
        private Integer total;
