大数据存储技术之ClickHouse入门学习（一），最新金九银十大数据开发面试合集4、关闭防火墙 service ipt

export LATEST_VERSION=curl https://api.github.com/repos/ClickHouse/ClickHouse/tags 2>/dev/null | grep -Eo '[0-9]+\.[0-9]+\.[0-9]+\.[0-9]+' | head -n 1

所有这里手动指定ClickHouse的版本为21.9.2.17（版本号去官网查）

生产环境建议指定最新的稳定版本，版本查看地址：Tags · ClickHouse/ClickHouse · GitHub

export LATEST_VERSION=21.9.2.17

curl -O repo.clickhouse.tech/tgz/clickho…

tar -xzvf clickhouse-common-static-$LATEST_VERSION.tgz

sudo clickhouse-common-static-$LATEST_VERSION/install/doinst.sh

tar -xzvf clickhouse-common-static-dbg-$LATEST_VERSION.tgz

sudo clickhouse-common-static-dbg-$LATEST_VERSION/install/doinst.sh

tar -xzvf clickhouse-server-$LATEST_VERSION.tgz

sudo clickhouse-server-$LATEST_VERSION/install/doinst.sh

sudo /etc/init.d/clickhouse-server start

tar -xzvf clickhouse-client-$LATEST_VERSION.tgz

sudo clickhouse-client-$LATEST_VERSION/install/doinst.sh

解压时发现官网提供的tgz包有问题（真坑），只能手动下载再上传安装了

Linux tgz package clickhouse-client-21.9.2.17.tgz

Linux tgz package clickhouse-common-static-21.9.2.17.tgz

Linux tgz package clickhouse-common-static-dbg-21.9.2.17.tgz

Linux tgz package clickhouse-server-21.9.2.17.tgz

Linux tgz package clickhouse-test-21.9.2.17.tgz

tar -xzvf clickhouse-common-static-$LATEST_VERSION.tgz

sudo clickhouse-common-static-$LATEST_VERSION/install/doinst.sh

tar -xzvf clickhouse-common-static-dbg-$LATEST_VERSION.tgz

sudo clickhouse-common-static-dbg-$LATEST_VERSION/install/doinst.sh

tar -xzvf clickhouse-server-$LATEST_VERSION.tgz

sudo clickhouse-server-$LATEST_VERSION/install/doinst.sh

sudo /etc/init.d/clickhouse-server start

tar -xzvf clickhouse-client-$LATEST_VERSION.tgz

sudo clickhouse-client-$LATEST_VERSION/install/doinst.sh

3、RPM离线安装

mkdir -p /home/software/clickhouse

cd /home/software/clickhouse

wget repo.red-soft.biz/repos/click…

rpm -qa | grep clickhouse

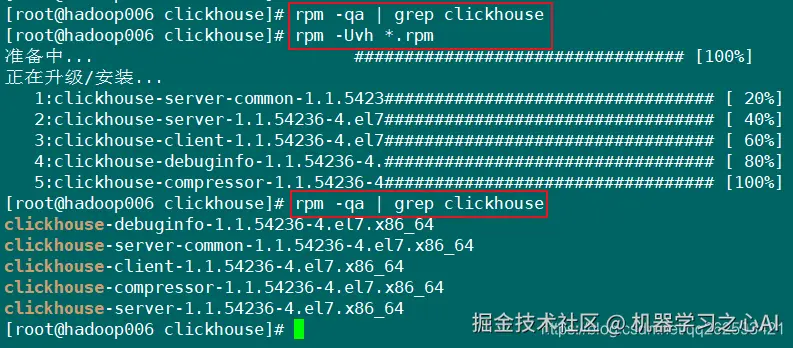

rpm -Uvh *.rpm

rpm -qa | grep clickhouse

nohup clickhouse-server --config-file=/etc/clickhouse-server/config.xml >null 2>&1 &

四、ClickHouse命令

centos7以上的系统只有 systemctl 命令有效

1、启动clickhouse服务

sudo /etc/init.d/clickhouse-server start

service clickhouse-server start

systemctl start clickhouse-server.service

2、关闭clickhouse服务

sudo /etc/init.d/clickhouse-server stop

service clickhouse-server stop

systemctl stop clickhouse-server.service

3、重启clickhouse服务

sudo /etc/init.d/clickhouse-server restart

service clickhouse-server restart

systemctl restart clickhouse-server.service

4、查看clickhouse服务

sudo /etc/init.d/clickhouse-server status

service clickhouse-server status

systemctl status clickhouse-server.service

5、启动clickhouse客户端

clickhouse-client

6、查看clickhouse进程

ps -ef | grep clickhouse

7、停止clickhouse相关服务

ps -ef | grep clickhouse | grep -v grep | awk '{print $2}' | xargs kill -9

8、查看clickhouse正常日志

tail -n 300 /var/log/clickhouse-server/clickhouse-server.log

9、查看clickhouse错误日志

tail -n 300 /var/log/clickhouse-server/clickhouse-server.err.log

10、关闭clickhouse开机自启（非生产环境）

sudo systemctl disable clickhouse-server

11、查看clickhouse集群配置

clickhouse-client -u default --password "" --query "SELECT * FROM system.clusters"

12、查看clickhouse所有表

echo "SELECT database,name,engine FROM system.tables WHERE database != 'system'" | clickhouse-client

13、查看系统用户内存用量

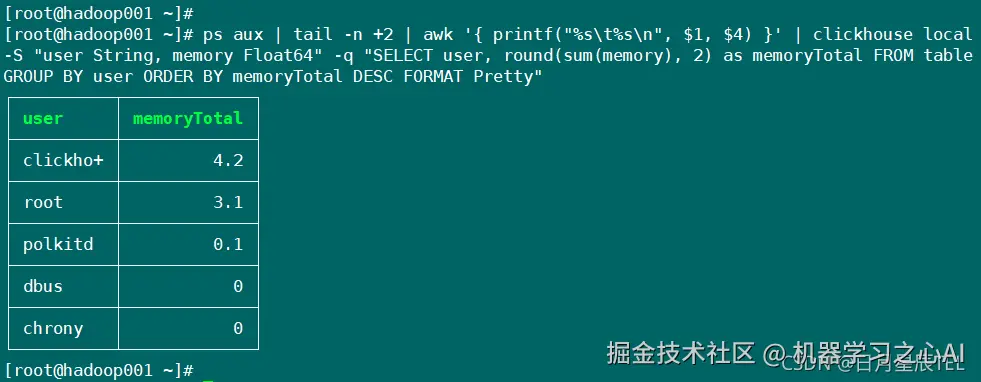

ps aux | tail -n +2 | awk '{ printf("%s\t%s\n", $1,$ 4) }' | clickhouse local -S "user String, memory Float64" -q "SELECT user, round(sum(memory), 2) as memoryTotal FROM table GROUP BY user ORDER BY memoryTotal DESC FORMAT Pretty"

14、查询clickhouse执行指标

echo "SELECT * FROM system.numbers LIMIT 1000" | clickhouse-benchmark -i 5 -h localhost -h localhost

15、修改clickhouse用户密码

①方法一：配置 /etc/clickhouse-server/users.xml 文件

vim /etc/clickhouse-server/users.xml

123456

②方法二：配置 /etc/clickhouse-client/config.xml 文件

vim /etc/clickhouse-client/config.xml

username

password

False

五、ClickHouse集群

ClickHouse集群部署：使用教程 | ClickHouse文档

ClickHouse集群配置：clickhouse.tech/docs/zh/ope…

ClickHouse副本引擎：数据副本 | ClickHouse文档

ClickHouse分布式配置：分布 | ClickHouse文档

该集群配置为分片副本集群， ClickHouse只有 MergeTree 系列里的表可支持副本

副本配置提供高可用，分片配置提供数据的横向扩展和容灾

ClickHouse在单个节点创建表，表只会创建在单个节点上。如果想要使用复制表，

在建表时必须指定带 Replicated 前缀的复制表引擎，然后在每个节点上创建相同表

副本只能同步数据，不能同步表结构，所以我们需要在每台机器上自己手动建表

每台机器都相同的配置文件：/etc/clickhouse-server/config.xml（不引入外部metrika.xml不相同）

每台机器不相同的配置文件：/etc/metrika.xml

1、 ClickHouse目录文件介绍

ClickHouse目录文件
数据存储目录	/var/lib/clickhouse
日志存储目录	/var/log/clickhouse-server
默认分片集群配置	/etc/metrika.xml
服务器配置文件	/etc/clickhouse-server/config.xml
客户端配置文件	/etc/clickhouse-client/config.xml
定时任务配置	/etc/cron.d/clickhouse-server
系统服务配置文件	/etc/systemd/system/clickhouse-server.service
文件句柄数量配置	/etc/security/limits.d/clickhouse.conf
主程序可执行文件	/var/lib/clickhouse
客户端连接可执行文件	/usr/bin/clickhouse-client
服务端可执行文件	/usr/bin/clickhouse-server
数据压缩可执行文件	/usr/bin/clickhouse-compressor
服务器正常日志文件	/var/log/clickhouse-server/clickhouse-server.log
服务端错误日志文件	/var/log/clickhouse-server/clickhouse-server.err.log

2、ClickHouse集群规划

ClickHouse集群规划
	zookeeper	clickhouse	分片	副本
hadoop001	√	√	shard01	replica_01_02
hadoop002	√	√	shard02	replica_02_02
hadoop003	√	√	shard03	replica_03_02
hadoop004		√	shard01	replica_01_01
hadoop005		√	shard02	replica_02_01
hadoop006		√	shard03	replica_03_01

3、ClickHouse核心配置

cp /etc/clickhouse-server/config.xml /etc/clickhouse-server/config.xml.init

chmod 664 /etc/clickhouse-server/config.xml

chown -R clickhouse:clickhouse /etc/clickhouse-server

vim /etc/clickhouse-server/config.xml

<listen_host>0.0.0.0</listen_host>

/home/clickhouse/data/

<tmp_path>/home/clickhouse/tmp/</tmp_path>

<user_files_path>/home/clickhouse/data/user_files/</user_files_path>

mkdir -p /home/clickhouse/data/

mkdir -p /home/clickhouse/tmp/

mkdir -p /home/clickhouse/data/user_files/

chown -R clickhouse:clickhouse /home/clickhouse/

4、ClickHouse集群配置（rpm版本）

**注意：**集群配置在创建分布式表时可以使用{shard}和{replac}方便创建表，在建表时也可以直接自定义shard和replac变量并且不局限于集群配置的变量，可由开发者灵活定义。集群定义的元数据在zookeeper中保存，如果修改了已定义好的集群表的集群配置可能会导致表变成只读状态，这时需要去zookeeper上查看clickhouse的元数据信息是否和当前表匹配。

在rmp安装的版本中，clickhouse服务端默认配置的 /etc/clickhouse-server/config.xml 中表明

会默认加载 /etc/metrika.xml 文件作为远程服务的替换文件，这里手动配置在其它目录

其中默认的集群服务名称为标签 incl 指定的 clickhouse_remote_servers

<remote_servers incl="clickhouse_remote_servers" />

在 /etc/clickhouse-server/config.d/ 目录下手动配置分片副本集群文件 metrika.xml

chmod 664 /etc/clickhouse-server/config.d/metrika.xml

chown clickhouse:clickhouse /etc/clickhouse-server/config.d/metrika.xml

vim /etc/clickhouse-server/config.d/metrika.xml

每台集群的配置文件都不一样，区别在于标签的和标签

详情查看上文 ClickHouse集群规划

<clickhouse_remote_servers>

<cluster_3shards_2replicas>

<internal_replication>true</internal_replication>

hadoop004

9000

hadoop001

9000

<internal_replication>true</internal_replication>

hadoop005

9000

hadoop002

9000

<internal_replication>true</internal_replication>

hadoop006

9000

hadoop003

9000

</cluster_3shards_2replicas>

</clickhouse_remote_servers>

hadoop001

2181

hadoop002

2181

hadoop003

2181

shard01

replica_01_02

::/0

<clickhouse_compression>

<min_part_size>10000000000</min_part_size>

<min_part_size_ratio>0.01</min_part_size_ratio>

lz4

</clickhouse_compression>

每台机器上只有标签不一样，这里配置的3分片2副本的不同节点参数如下

shard01

replica_01_02

shard02

replica_02_02

shard03

replica_03_02

shard01

replica_01_01

shard02

replica_02_01

shard03

replica_03_01

sed -n '78, 81p' /etc/clickhouse-server/config.d/metrika.xml

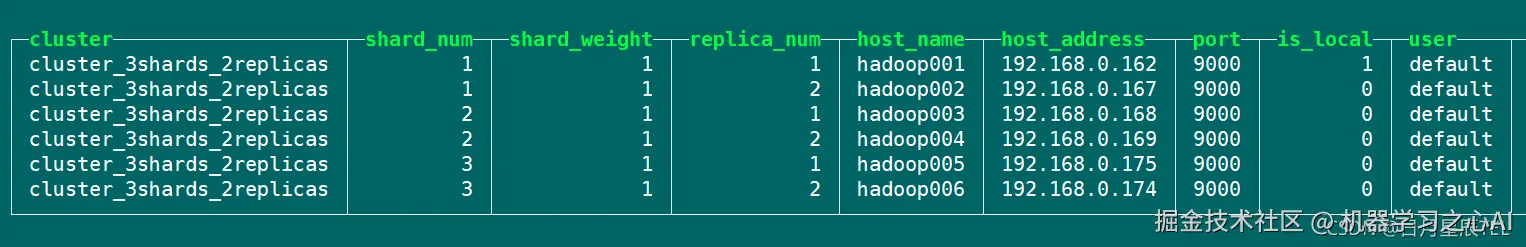

clickhouse-client -u default --password "" --query "SELECT * FROM system.clusters"

配置之后，使用过一次该集群，clickhouse会在根目录下将本机配置写入macros文件

cat /home/clickhouse/macros

[root@hadoop001 ~]# cat /home/clickhouse/macros

export shard=shard01

export replica=replica_01_02

..............................................

[root@hadoop006 ~]# cat /home/clickhouse/macros

export shard=shard03

export replica=replica_03_01

5、ClickHouse主集群配置（tgz版本）

在 tgz 安装的版本中，clickhouse服务端默认配置的 /etc/clickhouse-server/config.xml 中已经默认配置了三个本地测试的分片副本集群，分别为

本地分片测试集群：test_shard_localhost

本地两个分片测试集群：test_cluster_two_shards_localhost

两分片测试集群：test_cluster_two_shards

两分片内部复制测试集群：test_cluster_two_shards_internal_replication

本地分片安全集群：test_shard_localhost_secure

测试不推荐的分片集群：test_unavailable_shard

clickhouse-client -u default --password "" --query "SELECT * FROM system.clusters"

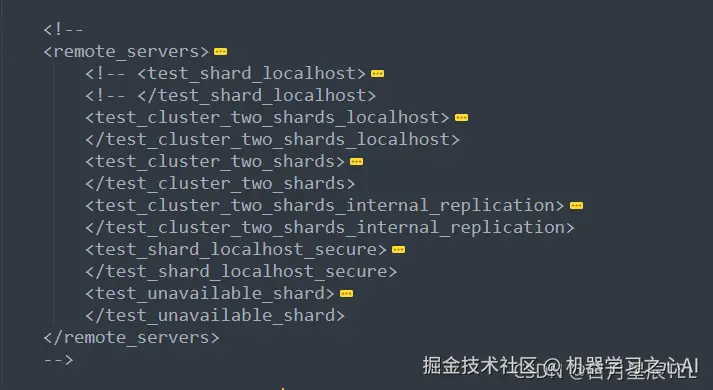

①修改 /etc/clickhouse-server/config.xml 文件，把 remote_servers 标签的默认配置注释掉

②在 /etc/clickhouse-server/config.xml 文件中添加以下配置，

<include_from>/etc/metrika.xml</include_from>

<remote_servers>

<cluster_3shards_2replicas>

<internal_replication>true</internal_replication>

hadoop004

9000

hadoop001

9000

<internal_replication>true</internal_replication>

hadoop005

9000

hadoop002

9000

<internal_replication>true</internal_replication>

hadoop006

9000

hadoop003

9000

</cluster_3shards_2replicas>

</remote_servers>

shard01

replica_01_02

hadoop001

2181

hadoop002

2181

hadoop003

2181

③查看标签配置

sed -n '751, 755p' /etc/clickhouse-server/config.xml

sed -n '78, 81p' /etc/clickhouse-server/config.d/metrika.xml

chmod 664 /etc/clickhouse-server/config.xml

chown clickhouse:clickhouse /etc/clickhouse-server/config.xml

ll /etc/clickhouse-server/config.xml

④添加 /etc/metrika.xml 文件，配置信息和4.1中的rpm安装的配置一致

chmod 664 /etc/metrika.xml

既有适合小白学习的零基础资料，也有适合3年以上经验的小伙伴深入学习提升的进阶课程，涵盖了95%以上大数据知识点，真正体系化！

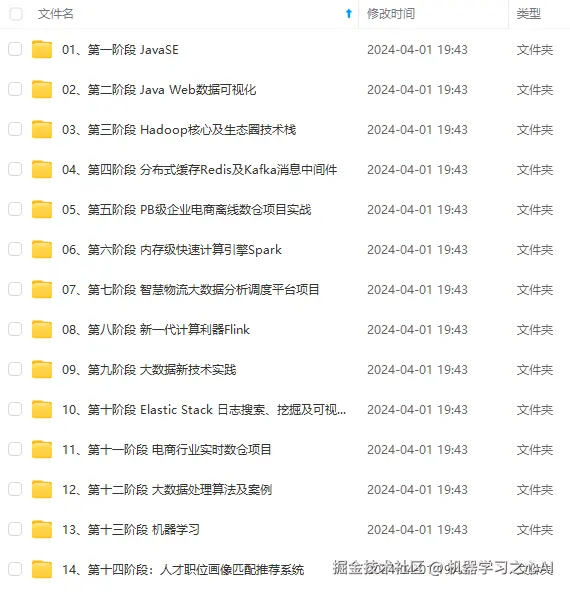

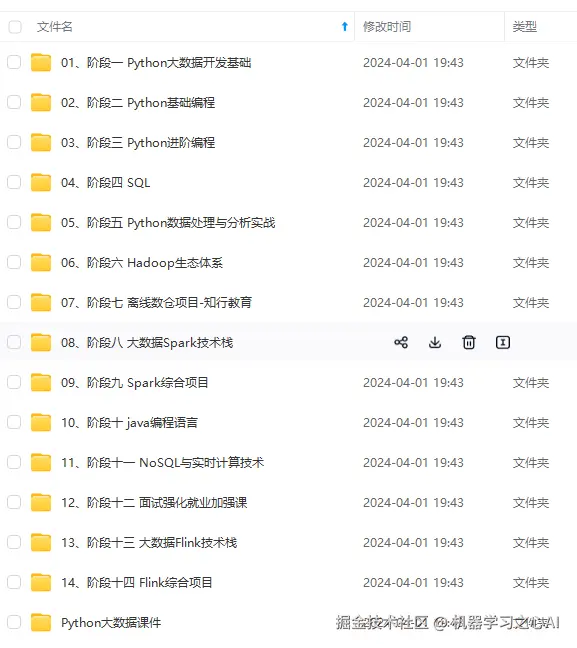

由于文件比较多，这里只是将部分目录截图出来，全套包含大厂面经、学习笔记、源码讲义、实战项目、大纲路线、讲解视频，并且后续会持续更新
