"name": "ohos.permission.WRITE_USER_STORAGE" } ]

此外还需要在OpenCamera的onStart()方法中向用户申请权限，代码示例如下：

private void requestPermission() { String[] permissions = { // 存储权限 SystemPermission.WRITE_USER_STORAGE, // 相机权限 SystemPermission.CAMERA }; List permissionFiltereds = Arrays.stream(permissions) .filter(permission -> verifySelfPermission(permission) != IBundleManager.PERMISSION_GRANTED) .collect(Collectors.toList()); if (permissionFiltereds.isEmpty()) { PermissionBridge.getHandler().sendEvent(EVENT_PERMISSION_GRANTED); return; } requestPermissionsFromUser(permissionFiltereds.toArray(new String[permissionFiltereds.size()]), PERMISSION_REQUEST_CODE); }

6. 人脸识别业务逻辑
在人脸识别页面（ability_main.xml）中，我们添加了开始人脸识别和取消人脸识别的Button，通过监听不同Button的点击事件，从而实现不同的业务逻辑。下面我们将分别介绍开始人脸识别和取消人脸识别的业务逻辑。

开始人脸识别业务逻辑
在开始人脸识别之前，我们需要校验当前设备（手机）是否具备人脸识别能力，代码示例如下：

private void createStartListener() { // 提示用户人脸识别时将人脸对准摄像头 getAndSetText(ResourceTable.Id_text_status, NO_FACE_RET, true); try { // 创建生物识别对象 mBiometricAuthentication =
BiometricAuthentication.getInstance(MainAbility.getMainAbility()); // 检验设备是否有人脸识别功能 int hasAuth = mBiometricAuthentication.checkAuthenticationAvailability( BiometricAuthentication.AuthType.AUTH_TYPE_BIOMETRIC_FACE_ONLY, BiometricAuthentication.SecureLevel.SECURE_LEVEL_S2, true); if (hasAuth == BiometricAuthentication.BA_CHECK_SUPPORTED) { // 如果支持人脸识别，则开启线程进行人脸识别
ThreadPoolExecutor pool = new ThreadPoolExecutor( POOL_CORE_SIZE, POOL_MAX_SIZE, KEEP_ALIVE_TIME, TimeUnit.SECONDS, new LinkedBlockingQueue<>(QUEUE_SIZE), new
ThreadPoolExecutor.DiscardOldestPolicy()); pool.submit(runnable); } else { // 人脸识别不支持或存在其他问题 ，直接在页面显示结果， // 在主线程不需要通过EventHandler发送回显任务 int retExcAuth = getRetExcAuth(hasAuth); getAndSetText(ResourceTable.Id_text_status, retExcAuth, true); } } catch (IllegalAccessException e) { LogUtils.error("createStartBtn", "IllegalAccessException when start auth"); } }

 🕮 说明

 ● checkAuthenticationAvailability方法参数说明：

        1.BiometricAuthentication.AuthType中有三个类别，分别为

        AUTH_TYPE_BIOMETRIC_FINGERPRINT_ONLY指纹识别，AUTH_TYPE_BIOMETRIC_FACE_ONLY脸部识别以及AUTH_TYPE_BIOMETRIC_ALL指纹和面部。
● BiometricAuthentication.SecureLevel验证级别，3D人脸识别支持S3及以下级别的验证；2D人脸识别支持S2及以下级别的验证

由于人脸识别是耗时操作，所以这里新起了线程去做认证，代码示例如下：

/**

  • 新建线程进行认证，避免阻塞其他任务 */ private Runnable runnable = new Runnable() { private void initHandler() { runner = EventRunner.getMainEventRunner(); if (runner == null) { return; } myEventHandle = new MyEventHandle(runner); }

@Override public void run() { // 初始化myEventHandle initHandler(); // 开始认证 startAuth(); } };

开始人脸识别，代码示例如下：

private void startAuth() { // retExcAuth 0认证成功 1：比对失败 2：取消认证 3：认证超时 4：打开相机失败 // 5：busy，可能上一个认证没有结束 6：入参错误 7：人脸认证锁定（达到错误认证次数了) // 8：没有录入人脸 100:其他错误。 int retExcAuth = mBiometricAuthentication.execAuthenticationAction( BiometricAuthentication.AuthType.AUTH_TYPE_BIOMETRIC_FACE_ONLY, BiometricAuthentication.SecureLevel.SECURE_LEVEL_S2, true, false, null); // 将认证结果发给主线程处理 myEventHandler.sendEvent(retExcAuth); }

由于我们在线程中执行的人脸识别操作，需要通过EventHandler将识别结果发送到主线程中，并将识别结果显示在页面中，代码示例如下：

/**

  • 事件分发器 */ private class MyEventHandle extends EventHandler { MyEventHandle(EventRunner runner) throws IllegalArgumentException { super(runner); }

@Override protected void processEvent(InnerEvent event) { super.processEvent(event); int eventId = event.eventId; getAndSetText(ResourceTable.Id_text_status, eventId, true); } }

取消人脸识别
点击取消人脸识别Button，触发取消人脸识别操作，代码示例如下：

private void createCancelBtn() { // 创建点击事件 Component component = findComponentById(ResourceTable.Id_button_cancel); // 创建按钮 Button cancelBtn = null; if (component != null && component instanceof Button) { cancelBtn = (Button) component; cancelBtn.setClickedListener(view -> { if (mBiometricAuthentication != null) { // 调用取消接口 int result = mBiometricAuthentication.cancelAuthenticationAction(); LogUtils.info("createCancelBtn:", result + ""); } }); } }

页面跳转
人脸识别成功后，跳转到模拟相机页面，代码示例如下：

private void toAuthAfterPage() { Intent secondIntent = new Intent(); // 指定待启动FA的bundleName和abilityName Operation operation = new Intent.OperationBuilder() .withDeviceId("") .withBundleName(getBundleName()) .withAbilityName(OpenCamera.class.getName()) .build(); secondIntent.setOperation(operation); // startAbility接口实现启动另一个页面 startAbility(secondIntent); }

7. 相机相关业务逻辑
在模拟相机页面（ability_open_camera.xml）中，包含打开相机和切换前后置摄像头的功能，我们下面将逐一介绍。

初始化SurfaceProvider
用户授权后，开始初始化SurfaceProvider，代码示例如下：

private void initSurface() { surfaceProvider = new SurfaceProvider(this); DirectionalLayout.LayoutConfig params = new DirectionalLayout.LayoutConfig( ComponentContainer.LayoutConfig.MATCH_PARENT, ComponentContainer.LayoutConfig.MATCH_PARENT); surfaceProvider.setLayoutConfig(params); surfaceProvider.pinToZTop(false); // 添加SurfaceCallBack回调 surfaceProvider.getSurfaceOps().get().addCallback(new SurfaceCallBack()); // 将SurfaceProvider加入到布局中 Component component = findComponentById(ResourceTable.Id_surface_container); if (component instanceof ComponentContainer) { ((ComponentContainer) component).addComponent(surfaceProvider); } }

实现SurfaceOps.Callback回调，当Surface创建时，执行打开相机的操作，代码示例如下：

/**

  • SurfaceCallBack，Surface回调 */ class SurfaceCallBack implements SurfaceOps.Callback { @Override public void surfaceCreated(SurfaceOps callbackSurfaceOps) { if (callbackSurfaceOps != null) { callbackSurfaceOps.setFixedSize(SCREEN_HEIGHT, SCREEN_WIDTH); } openCamera(); }

@Override public void surfaceChanged(SurfaceOps callbackSurfaceOps, int format, int width, int height) { }

@Override public void surfaceDestroyed(SurfaceOps callbackSurfaceOps) { } }

打开相机
创建surface后触发surfaceCreated回调，执行打开相机的操作。打开相机并添加相片接收的监听，代码示例如下：

private void openCamera() { CameraKit cameraKit = CameraKit.getInstance(getApplicationContext()); String[] cameraLists = cameraKit.getCameraIds(); String cameraId = cameraLists.length > 1 && isCameraRear ? cameraLists[1] : cameraLists[0]; CameraStateCallbackImpl cameraStateCallback = new CameraStateCallbackImpl(); cameraKit.createCamera(cameraId, cameraStateCallback, creamEventHandler); } /**

  • CameraStateCallbackImpl 相机状态回调 */ class CameraStateCallbackImpl extends CameraStateCallback { CameraStateCallbackImpl() { }

@Override public void onCreated(Camera camera) { // 获取预览 previewSurface = surfaceProvider.getSurfaceOps().get().getSurface(); if (previewSurface == null) { LogUtils.error(TAG, "create camera filed, preview surface is null"); return; } // Wait until the preview surface is created. try { Thread.sleep(SLEEP_TIME); } catch (InterruptedException exception) { LogUtils.warn(TAG, "Waiting to be interrupted"); } CameraConfig.Builder cameraConfigBuilder = camera.getCameraConfigBuilder(); // 配置预览 cameraConfigBuilder.addSurface(previewSurface);
camera.configure(cameraConfigBuilder.build()); cameraDevice = camera; enableImageGroup(); }

@Override public void onConfigured(Camera camera) { FrameConfig.Builder framePreviewConfigBuilder = camera.getFrameConfigBuilder(Camera.FrameConfigType.FRAME_CONFIG_PREVIEW); framePreviewConfigBuilder.addSurface(previewSurface); // 开启循环捕捉 camera.triggerLoopingCapture(framePreviewConfigBuilder.build()); }

private void enableImageGroup() { if (!exitImage.isEnabled()) { exitImage.setEnabled(true); switchCameraImage.setEnabled(true); } } }

切换前后置摄像头
点击切换摄像头图标后，执行切换前后置摄像头操作，代码示例如下：

private void switchClicked() { isCameraRear = !isCameraRear; openCamera(); }

8. 效果展示
人脸识别FA（MainAbilitySlice）完成了检验设备是否支持人脸识别，人脸识别，人脸识别结果显示，成功后跳转到打开相机的FA（OpenCameraSlice）；相机FA实现了相机的打开，拍照，相片存储，摄像头切换的功能。具体效果图如下：

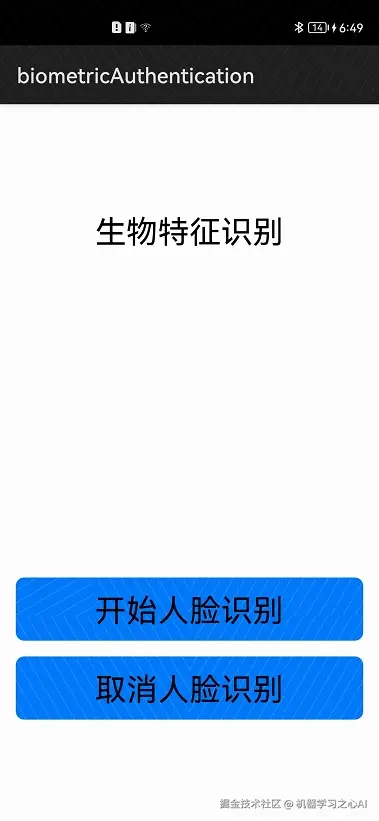

人脸识别初始页面：

如何使用HarmonyOS面部识别能力-鸿蒙开发者社区

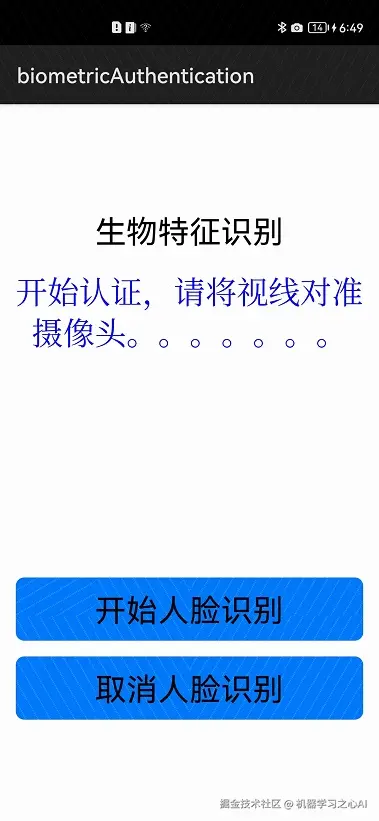

人脸识别结果显示：

如何使用HarmonyOS面部识别能力-鸿蒙开发者社区

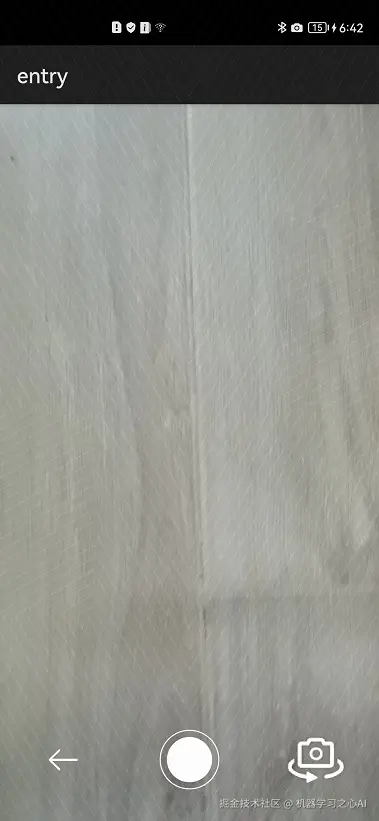

相机页面：

如何使用HarmonyOS面部识别能力-鸿蒙开发者社区

9. 完整代码示例
编写布局与样式
1.base/graphic/background_ability_main.xml

2.base/graphic/button_element.xml

3.base/layout/ability_main.xml

4.base/layout/ability_open_camera.xml

功能逻辑代码
1.com/huawei/cookbook/slice/MainAbilitySlice.java

package com.huawei.cookbook.slice;

import com.huawei.cookbook.MainAbility; import com.huawei.cookbook.OpenCamera; import com.huawei.cookbook.ResourceTable; import com.huawei.cookbook.util.FaceAuthResult; import com.huawei.cookbook.util.LogUtils;

import ohos.aafwk.ability.AbilitySlice; import ohos.aafwk.content.Intent; import ohos.aafwk.content.Operation; import ohos.agp.components.Button; import ohos.agp.components.Component; import ohos.agp.components.Text; import ohos.agp.utils.Color; import ohos.biometrics.authentication.BiometricAuthentication; import ohos.eventhandler.EventHandler; import ohos.eventhandler.EventRunner; import ohos.eventhandler.InnerEvent;

import java.util.concurrent.LinkedBlockingQueue; import java.util.concurrent.ThreadPoolExecutor; import java.util.concurrent.TimeUnit;

/**

  • MainAbilitySlice
  • @since 2021-04-12 / public class MainAbilitySlice extends AbilitySlice { private static final int POOL_CORE_SIZE = 2; private static final int POOL_MAX_SIZE = 5; private static final int NO_FACE_RET = -1; private static final int KEEP_ALIVE_TIME = 3; private static final int QUEUE_SIZE = 6; private static final int RET_NOT_SUPPORTED = 1; private static final int RET_SAFE_LEVEL_NOT_SUPPORTED = 2; private static final int RET_NOT_LOCAL = 3; private EventRunner runner; private MyEventHandle myEventHandle; private BiometricAuthentication mBiometricAuthentication; /*
  • 新建线程进行认证，避免阻塞其他任务 */ private Runnable runnable = new Runnable() { private void initHandler() { runner = EventRunner.getMainEventRunner(); if (runner == null) { return; } myEventHandle = new MyEventHandle(runner); }

@Override public void run() { // 初始化myEventHandle initHandler(); // 开始认证 startAuth(); } };

/**

  • onStart
  • @param intent intent */ @Override public void onStart(Intent intent) { super.onStart(intent); super.setUIContent(ResourceTable.Layout_ability_main); // 创建开始认证按钮，并添加点击事件 createStartBtn(); // 创建取消认证按钮，并添加点击事件 createCancelBtn(); }

/**

  • 创建取消按钮 */ private void createCancelBtn() { // 创建点击事件 Component component = findComponentById(ResourceTable.Id_button_cancel); // 创建按钮 Button cancelBtn = null; if (component != null && component instanceof Button) { cancelBtn = (Button) component; cancelBtn.setClickedListener(view -> { if (mBiometricAuthentication != null) { // 调用取消接口 int result = mBiometricAuthentication.cancelAuthenticationAction(); LogUtils.info("createCancelBtn:", result + ""); } }); } }

/**

  • 创建开始识别的按钮点击事件 */ private void createStartBtn() { // 创建点击事件 Component component = findComponentById(ResourceTable.Id_button_start); // 创建按钮 Button featureBtn = null; if (component != null && component instanceof Button) { featureBtn = (Button) component; featureBtn.setClickedListener(view -> { createStartListener(); }); } }

private void createStartListener() { // 提示用户人脸识别时将人脸对准摄像头 getAndSetText(ResourceTable.Id_text_status, NO_FACE_RET, true); try { // 创建生物识别对象 mBiometricAuthentication = BiometricAuthentication.getInstance(MainAbility.getMainAbility()); // 检验设备是否有人脸识别功能 // BiometricAuthentication.AuthType中有三个类别 // 分别为AUTH_TYPE_BIOMETRIC_FINGERPRINT_ONLY指纹识别 // AUTH_TYPE_BIOMETRIC_FACE_ONLY脸部识别 // AUTH_TYPE_BIOMETRIC_ALL指纹和面部 // BiometricAuthentication.SecureLevel 2D人脸识别建议使用SECURE_LEVEL_S2，3D人脸识别建议使用SECURE_LEVEL_S3 int hasAuth = mBiometricAuthentication.checkAuthenticationAvailability( BiometricAuthentication.AuthType.AUTH_TYPE_BIOMETRIC_FACE_ONLY, BiometricAuthentication.SecureLevel.SECURE_LEVEL_S2, true);

// hasAuth 0是支持，1是不支持，2安全级别不支持 3不是本地认证 4无人脸录入 if (hasAuth == 0) { ThreadPoolExecutor pool = new ThreadPoolExecutor( POOL_CORE_SIZE, POOL_MAX_SIZE, KEEP_ALIVE_TIME, TimeUnit.SECONDS, new LinkedBlockingQueue<>(QUEUE_SIZE), new ThreadPoolExecutor.DiscardOldestPolicy()); pool.submit(runnable); } else { // 人脸识别不支持或存在其他问题 ，直接回显页面， // 在主线程不需要通过EventHandler发送回显任务 int retExcAuth = getRetExcAuth(hasAuth); getAndSetText(ResourceTable.Id_text_status, retExcAuth, true); } } catch (IllegalAccessException e) { LogUtils.error("createStartBtn", "IllegalAccessException when start auth"); } }

/**

  • 开始认证 */ private void startAuth() { // retExcAuth 0认证成功 1：比对失败 2：取消认证 3认证超时 4：打开相机失败 // 5：busy，可能上一个认证没有结束 6：入参错误 7：人脸认证锁定（达到错误认证次数了) // 8：没有录入人脸 100:其他错误。 int retExcAuth = mBiometricAuthentication.execAuthenticationAction( BiometricAuthentication.AuthType.AUTH_TYPE_BIOMETRIC_FACE_ONLY, BiometricAuthentication.SecureLevel.SECURE_LEVEL_S2, true, false, null); // 将修改页面发送到主线程执行 myEventHandle.sendEvent(retExcAuth); }

/**

  • 根据检验是否支持认证返回值获取提示code
  • @param hasAuth 是否有认证能力
  • @return 返回认证码 */ private int getRetExcAuth(int hasAuth) { int retExcAuth; if (hasAuth == RET_NOT_SUPPORTED) { // 1是不支持2D人脸识别 retExcAuth = FaceAuthResult.AUTH_2D_NOT_SUPPORTED; } else if (hasAuth == RET_SAFE_LEVEL_NOT_SUPPORTED) { // 安全级别不支持 retExcAuth = FaceAuthResult.AUTH_SAFE_LEVEL_NOT_SUPPORTED; } else if (hasAuth == RET_NOT_LOCAL) { // 是不是本地认证 retExcAuth = FaceAuthResult.AUTH_NOT_LOCAL; } else { // 无人脸录入 retExcAuth = FaceAuthResult.AUTH_NO_FACE; } return retExcAuth; }

/**

  • 获取并设置text
  • @param textId 文本框id
  • @param retExcAuth 认证返回码
  • @param isVisible 是否显示 */ private void getAndSetText(int textId, int retExcAuth, boolean isVisible) { // 获取状态Text Component componentText = findComponentById(textId); if (componentText != null && componentText instanceof Text) { Text text = (Text) componentText; setTextValueAndColor(retExcAuth, text); if (isVisible) { text.setVisibility(Component.VISIBLE); } } }

/**

  • 设置文本提示信息
  • @param text 文本对象
  • @param textValue 文本值
  • @param color 文本颜色 */ private void setTextValueAndColor(Text text, String textValue, Color color) { text.setText(textValue); text.setTextColor(color); }

/**

  • 设置文本显示值和文本颜色
  • @param retExcAuth 认证返回值
  • @param text 文本对象 */ private void setTextValueAndColor(int retExcAuth, Text text) { switch (retExcAuth) { case FaceAuthResult.AUTH_SUCCESS: setTextValueAndColor(text, "认证成功", Color.GREEN); // 页面跳转 toAuthAfterPage(); break; case FaceAuthResult.AUTH_FAIL: setTextValueAndColor(text, "比对失败", Color.RED); break; case FaceAuthResult.AUTH_CANCLE: setTextValueAndColor(text, "取消认证", Color.RED); break; case FaceAuthResult.AUTH_TIME_OUT: setTextValueAndColor(text, "认证超时", Color.RED); break; case FaceAuthResult.AUTH_OPEN_CAMERA_FAIL: setTextValueAndColor(text, "打开相机失败", Color.RED); break; case FaceAuthResult.AUTH_BUSY: setTextValueAndColor(text, "busy，可能上一个认证没有结束", Color.RED); break; case FaceAuthResult.AUTH_PARAM_ERROR: setTextValueAndColor(text, "入参错误", Color.RED); break; case FaceAuthResult.AUTH_FACE_LOCKED: setTextValueAndColor(text, "人脸认证锁定（达到错误认证次数了)", Color.RED); break; case FaceAuthResult.AUTH_NO_FACE: setTextValueAndColor(text, "无人脸录入,请录入人脸。", Color.BLUE); break; case FaceAuthResult.AUTH_OTHER_ERROR: setTextValueAndColor(text, "其他错误。", Color.RED); break; case FaceAuthResult.AUTH_2D_NOT_SUPPORTED: setTextValueAndColor(text, "不支持2D人脸识别。", Color.BLUE); break; case FaceAuthResult.AUTH_SAFE_LEVEL_NOT_SUPPORTED: setTextValueAndColor(text, "安全级别不支持。", Color.BLUE); break; case FaceAuthResult.AUTH_NOT_LOCAL: setTextValueAndColor(text, "不是本地认证。", Color.BLUE); break; default: setTextValueAndColor(text, "开始认证，请将视线对准摄像头。。。。。。。", Color.BLUE); break; } }

private void toAuthAfterPage() { Intent secondIntent = new Intent(); // 指定待启动FA的bundleName和abilityName Operation operation = new Intent.OperationBuilder() .withDeviceId("") .withBundleName(getBundleName()) .withAbilityName(OpenCamera.class.getName()) .build(); secondIntent.setOperation(operation); // 通过AbilitySlice的startAbility接口实现启动另一个页面 startAbility(secondIntent); }

/**

  • 事件分发器
  • @since 2021-04-12 */ private class MyEventHandle extends EventHandler { MyEventHandle(EventRunner runner) throws IllegalArgumentException { super(runner); }

@Override protected void processEvent(InnerEvent event) { super.processEvent(event); int eventId = event.eventId; getAndSetText(ResourceTable.Id_text_status, eventId, true); } }

@Override public void onStop() { mBiometricAuthentication.cancelAuthenticationAction(); BiometricAuthentication.AuthenticationTips authenticationTips = mBiometricAuthentication.getAuthenticationTips(); String tips = authenticationTips.tipInfo; } }

2.com/huawei/cookbook/slice/OpenCameraSlice.java

package com.huawei.cookbook.slice;

import com.huawei.cookbook.ResourceTable; import com.huawei.cookbook.util.LogUtils; import com.huawei.cookbook.util.PermissionBridge;

import ohos.aafwk.ability.AbilitySlice; import ohos.aafwk.content.Intent; import ohos.agp.components.Component; import ohos.agp.components.ComponentContainer; import ohos.agp.components.DirectionalLayout; import ohos.agp.components.Image; import ohos.agp.components.surfaceprovider.SurfaceProvider; import ohos.agp.graphics.Surface; import ohos.agp.graphics.SurfaceOps; import ohos.agp.window.dialog.ToastDialog; import ohos.app.Context; import ohos.eventhandler.EventHandler; import ohos.eventhandler.EventRunner; import ohos.media.camera.CameraKit; import ohos.media.camera.device.Camera; import ohos.media.camera.device.CameraConfig; import ohos.media.camera.device.CameraStateCallback; import ohos.media.camera.device.FrameConfig;

/**

  • 打开相机slice */ public class OpenCameraSlice extends AbilitySlice implements PermissionBridge.OnPermissionStateListener { private static final String TAG = OpenCameraSlice.class.getName();

private static final int SCREEN_WIDTH = 1080;

private static final int SCREEN_HEIGHT = 1920;

private static final int SLEEP_TIME = 200;

private EventHandler creamEventHandler;

private Image exitImage;

private SurfaceProvider surfaceProvider;

private Image switchCameraImage;

private boolean isCameraRear;

private Camera cameraDevice;

private Surface previewSurface;

@Override public void onStart(Intent intent) { super.onStart(intent); super.setUIContent(ResourceTable.Layout_ability_open_camera); new PermissionBridge().setOnPermissionStateListener(this); }

private void initSurface() { surfaceProvider = new SurfaceProvider(this); DirectionalLayout.LayoutConfig params = new DirectionalLayout.LayoutConfig( ComponentContainer.LayoutConfig.MATCH_PARENT, ComponentContainer.LayoutConfig.MATCH_PARENT); surfaceProvider.setLayoutConfig(params); surfaceProvider.pinToZTop(false); // 添加SurfaceCallBack回调 surfaceProvider.getSurfaceOps().get().addCallback(new SurfaceCallBack()); // 将SurfaceProvider加入到布局中 Component component = findComponentById(ResourceTable.Id_surface_container); if (component instanceof ComponentContainer) { ((ComponentContainer) component).addComponent(surfaceProvider); } }

private void initControlComponents() { // 退出拍照页面图标 Component exitImageCom = findComponentById(ResourceTable.Id_exit); if (exitImageCom instanceof Image) { exitImage = (Image) exitImageCom; exitImage.setClickedListener(component -> terminate()); } // 切换前后置摄像头图标 Component switchCameraImageCom = findComponentById(ResourceTable.Id_switch_camera_btn); if (switchCameraImageCom instanceof Image) { switchCameraImage = (Image) switchCameraImageCom; switchCameraImage.setClickedListener(component -> switchClicked()); } }

private void switchClicked() { isCameraRear = !isCameraRear; openCamera(); }

private void openCamera() { CameraKit cameraKit = CameraKit.getInstance(getApplicationContext()); String[] cameraLists = cameraKit.getCameraIds(); String cameraId = cameraLists.length > 1 && isCameraRear ? cameraLists[1] : cameraLists[0]; CameraStateCallbackImpl cameraStateCallback = new CameraStateCallbackImpl(); cameraKit.createCamera(cameraId, cameraStateCallback, creamEventHandler); }

private void showTips(Context context, String message) { getUITaskDispatcher().asyncDispatch(() -> { ToastDialog toastDialog = new ToastDialog(context); toastDialog.setAutoClosable(false); toastDialog.setContentText(message); toastDialog.show(); }); }

@Override public void onPermissionGranted() { getWindow().setTransparent(true); initSurface(); initControlComponents(); creamEventHandler = new EventHandler(EventRunner.create("======CameraBackground")); }

@Override public void onPermissionDenied() { showTips(OpenCameraSlice.this, "=======No permission"); }

/**

  • CameraStateCallbackImpl */ class CameraStateCallbackImpl extends CameraStateCallback { CameraStateCallbackImpl() { }

@Override public void onCreated(Camera camera) { // 获取预览 previewSurface = surfaceProvider.getSurfaceOps().get().getSurface(); if (previewSurface == null) { LogUtils.error(TAG, "create camera filed, preview surface is null"); return; } // Wait until the preview surface is created. try { Thread.sleep(SLEEP_TIME); } catch (InterruptedException exception) { LogUtils.warn(TAG, "Waiting to be interrupted"); } CameraConfig.Builder cameraConfigBuilder = camera.getCameraConfigBuilder(); // 配置预览 cameraConfigBuilder.addSurface(previewSurface); camera.configure(cameraConfigBuilder.build()); cameraDevice = camera; enableImageGroup(); }

@Override public void onConfigured(Camera camera) { FrameConfig.Builder framePreviewConfigBuilder = camera.getFrameConfigBuilder(Camera.FrameConfigType.FRAME_CONFIG_PREVIEW); framePreviewConfigBuilder.addSurface(previewSurface); // 开启循环捕捉 camera.triggerLoopingCapture(framePreviewConfigBuilder.build()); }

private void enableImageGroup() { if (!exitImage.isEnabled()) { exitImage.setEnabled(true); switchCameraImage.setEnabled(true); } } }

/**

  • SurfaceCallBack */ class SurfaceCallBack implements SurfaceOps.Callback { @Override public void surfaceCreated(SurfaceOps callbackSurfaceOps) { if (callbackSurfaceOps != null) { callbackSurfaceOps.setFixedSize(SCREEN_HEIGHT, SCREEN_WIDTH); } openCamera(); }

@Override public void surfaceChanged(SurfaceOps callbackSurfaceOps, int format, int width, int height) { }

@Override public void surfaceDestroyed(SurfaceOps callbackSurfaceOps) { } }

@Override public void onStop() { cameraDevice.release(); } }

3.com/huawei/cookbook/util/FaceAuthResult.java

package com.huawei.cookbook.util;

/**

  • 人脸认证返回码
  • @since 2021-04-12 / public class FaceAuthResult { /*
  • 认证成功 / public static final int AUTH_SUCCESS = 0; /*
  • 认证失败 / public static final int AUTH_FAIL = 1; /*
  • 取消认证 / public static final int AUTH_CANCLE = 2; /*
  • 认证超时 / public static final int AUTH_TIME_OUT = 3; /*
  • 打开相机失败 / public static final int AUTH_OPEN_CAMERA_FAIL = 4; /*
  • busy，可能上一个认证没有结束 / public static final int AUTH_BUSY = 5; /*
  • 入参错误 / public static final int AUTH_PARAM_ERROR = 6; /*
  • 人脸认证锁定（达到错误认证次数了) / public static final int AUTH_FACE_LOCKED = 7; /*
  • 没有录入人脸 / public static final int AUTH_NO_FACE = 8; /*
  • 不支持2D人脸识别。 / public static final int AUTH_2D_NOT_SUPPORTED = 9; /*
  • 安全级别不支持 / public static final int AUTH_SAFE_LEVEL_NOT_SUPPORTED = 10; /*
  • 不是本地认证 / public static final int AUTH_NOT_LOCAL = 11; /*
  • 其他问题 */ public static final int AUTH_OTHER_ERROR = 100;

private FaceAuthResult() { super(); } }

4.com/huawei/cookbook/util/LogUtils.java

package com.huawei.cookbook.util;

import ohos.hiviewdfx.HiLog; import ohos.hiviewdfx.HiLogLabel;

/**

  • LogUtils
  • @since 2021-04-12 */ public class LogUtils { private static final String TAG_LOG = "LogUtil";

private static final HiLogLabel LABEL_LOG = new HiLogLabel(0, 0, LogUtils.TAG_LOG);

private static final String LOG_FORMAT = "%{public}s: %{public}s";

private LogUtils() { }

/**

  • Print debug log
  • @param tag log tag
  • @param msg log message */ public static void debug(String tag, String msg) { HiLog.debug(LABEL_LOG, LOG_FORMAT, tag, msg); }

/**

  • Print info log
  • @param tag log tag
  • @param msg log message */ public static void info(String tag, String msg) { HiLog.info(LABEL_LOG, LOG_FORMAT, tag, msg); }

/**

  • Print warn log
  • @param tag log tag
  • @param msg log message */ public static void warn(String tag, String msg) { HiLog.warn(LABEL_LOG, LOG_FORMAT, tag, msg); }

/**

  • Print error log
  • @param tag log tag
  • @param msg log message */ public static void error(String tag, String msg) { HiLog.error(LABEL_LOG, LOG_FORMAT, tag, msg); } }

5.com/huawei/cookbook/util/PermissionBridge.java

package com.huawei.cookbook.util;

import ohos.eventhandler.EventHandler; import ohos.eventhandler.EventRunner;
