Qtchart教程_qt+= chart，成功收获美团，小米offer

#any feature of Qt which has been marked as deprecated (the exact warnings #depend on your compiler). Please consult the documentation of the #deprecated API in order to know how to port your code away from it. DEFINES += QT_DEPRECATED_WARNINGS

#You can also make your code fail to compile if you use deprecated APIs. #In order to do so, uncomment the following line. #You can also select to disable deprecated APIs only up to a certain version of Qt. #DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000 #disables all the APIs deprecated before Qt 6.0.0

CONFIG += c++11

SOURCES +=
main.cpp
demo.cpp

HEADERS +=
demo.h

FORMS +=
demo.ui

demo.h文件

#ifndef DEMO_H #define DEMO_H #include using namespace QtCharts; #include #include <QtCore/QTimer> #include <qt_windows.h>

namespace Ui { class Demo; }

class Demo : public QMainWindow { Q_OBJECT

public: explicit Demo(QWidget *parent = nullptr); ~Demo();

private slots: void Data();

private: Ui::Demo *ui; QList mydata1; QLineSeries *series; double data[2000]; QValueAxis *axisX; QValueAxis *axisY; QTimer m_timer; //定时器指针

};

#endif // DEMO_H

demo.cpp文件

#include "demo.h" #include "ui_demo.h" #include //随机数

Demo::Demo(QWidget *parent) : QMainWindow(parent), ui(new Ui::Demo) { ui->setupUi(this); series = new QLineSeries(); //创建QLineSeries实例 Data();

QChart \*chart = new QChart();  //创建QChart实例,为图表框架,相当图画笔
chart -> legend() -> hide();  //隐藏图例
chart -> addSeries(series);  //加载数据
//chart -> createDefaultAxes(); //添加坐标轴

axisX = new QValueAxis;
axisX->setRange(0,2000);  //设置X坐标范围
axisX->setTitleText("t/ms"); //设置X坐标名字

axisY = new QValueAxis;
axisY->setRange(-5,5);  //设置Y坐标范围
axisY->setTitleText("au/mV");  //设置Y坐标名字

//别忘记把坐标轴添加到chart
chart->addAxis(axisX, Qt::AlignBottom);  //并且XY轴的位置是上和右
chart->addAxis(axisY, Qt::AlignLeft);

QChartView \*chartview = new QChartView(chart);  //用于显示曲线,相当于画布

this->setCentralWidget(chartview);  //将图表显示在整个窗口

QObject::connect(&m_timer, SIGNAL(timeout()), this, SLOT(Data()));  //连接定时器与数据更新槽函数
m_timer.setInterval(10);  //设置时间
m_timer.start();  //启动定时器

}

Demo::~Demo() { delete ui; }

void Demo::Data() { QFile file("D:\DATA\20180319\20180319-10-59-31.dat"); file.open(QIODevice::ReadOnly); qint16 t; series->clear(); qsrand(time(NULL)); double a = qrand() % 5; //产生5以内的随机数 for(int i=0;i<2000;i++) { mydata1.append(QPointF(i,a*sin(i))); } series->replace(mydata1); //replace添加数据比append快很多，2000个点append需要200ms，replace需要2ms mydata1.clear(); }

main.cpp

#include "demo.h" #include

int main(int argc, char *argv[]) { QApplication a(argc, argv); Demo w; w.show();

return a.exec();

}

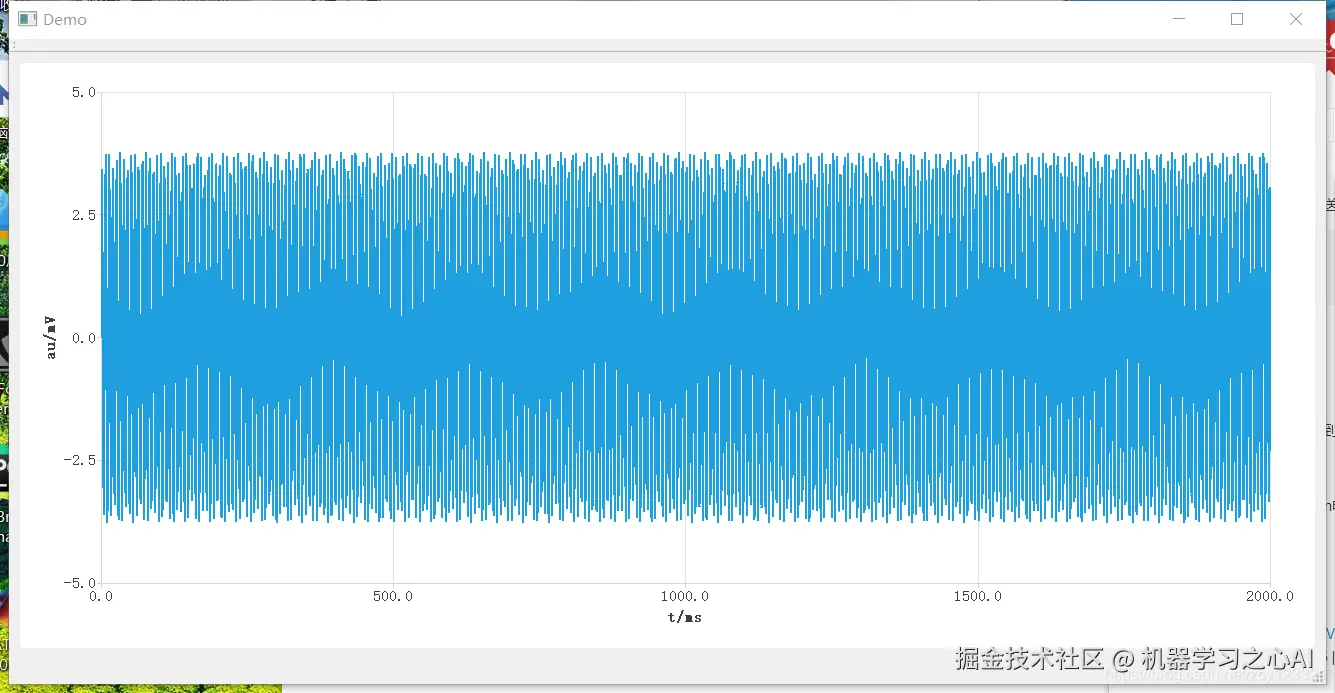

6. 运行结果
 ![在这里插入图片描述](https://p3-xtjj-sign.byteimg.com/tos-cn-i-73owjymdk6/babb46f8f2934c058a3fed0c5928d122~tplv-73owjymdk6-jj-mark-v1:0:0:0:0:5o6Y6YeR5oqA5pyv56S-5Yy6IEAg5py65Zmo5a2m5Lmg5LmL5b-DQUk=:q75.awebp?rk3s=f64ab15b&x-expires=1772467912&x-signature=aa6AX7fAC4CRI6Q77YfgshLVvEc%3D)
