Cisco配置SVI

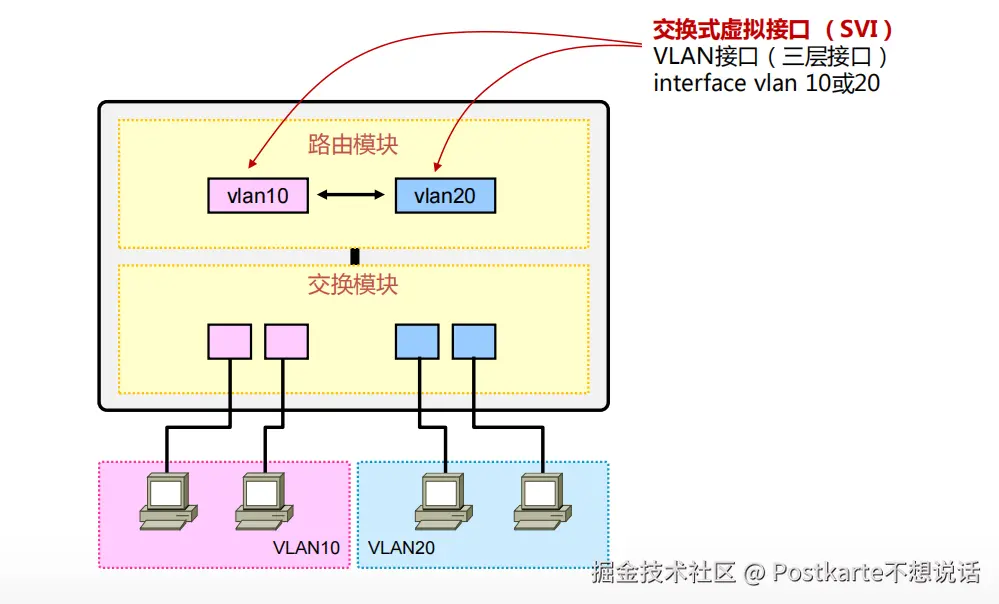

Switch Virtual Interfaces（SVI）

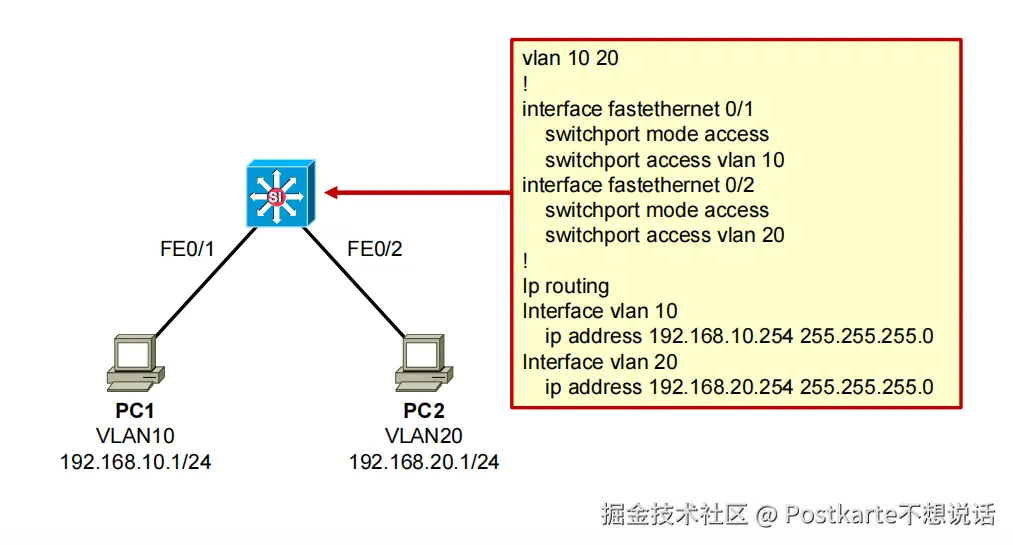

使用SVI实现VLAN间互访

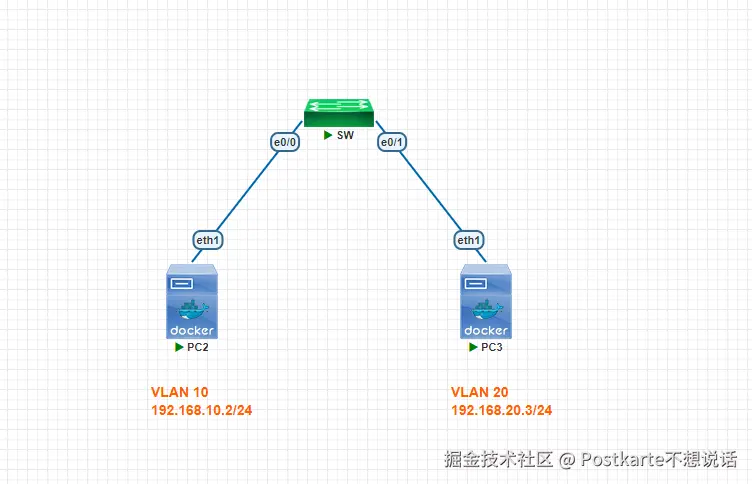

实验拓扑

配置交换机

Switch#configure
Switch(config)#interface e0/0
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 10
Switch(config-if)#exit

Switch(config)#interface e0/1
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 20

Switch(config)#ip routing
Switch(config)#interface vlan 10
Switch(config-if)#ip address 192.168.10.254 255.255.255.0
Switch(config-if)#no shutdown
Switch(config-if)#exit

Switch(config)#ip routing
Switch(config)#interface vlan 20
Switch(config-if)#ip address 192.168.20.254 255.255.255.0
Switch(config-if)#no shutdown

配置PC2和PC3

PC2

[root@PC2 /]# ip address add 192.168.10.2/24 dev eth1
[root@PC2 /]# ip route add default via 192.168.10.254 dev eth1

配置PC3

[root@PC3 /]# ip address add 192.168.20.3/24 dev eth1
[root@PC3 /]# ip route add default via 192.168.20.254 dev eth1

ping测试

[root@PC2 /]# ping 192.168.20.3
PING 192.168.20.3 (192.168.20.3) 56(84) bytes of data.
64 bytes from 192.168.20.3: icmp_seq=1 ttl=63 time=0.470 ms
64 bytes from 192.168.20.3: icmp_seq=2 ttl=63 time=0.509 ms
64 bytes from 192.168.20.3: icmp_seq=3 ttl=63 time=0.459 ms
64 bytes from 192.168.20.3: icmp_seq=4 ttl=63 time=0.473 ms
^C
--- 192.168.20.3 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3071ms
rtt min/avg/max/mdev = 0.459/0.477/0.509/0.032 ms
