其中Android 10的ActivityManagerInternal实现者是AMS
frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java（android10，11)
@Override public void startProcess(String processName, ApplicationInfo info, boolean knownToBeDead, boolean isTop, String hostingType, ComponentName hostingName) { try { ... synchronized (ActivityManagerService.this) { startProcessLocked(processName, info, knownToBeDead, 0 /* intentFlags /, new HostingRecord(hostingType, hostingName, isTop), ZYGOTE_POLICY_FLAG_LATENCY_SENSITIVE, false / allowWhileBooting /, false / isolated /, true / keepIfLarge */); } } finally { Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); } }
可以知道，应用程序由AMS的startProcessLocked方法启动
AMS发送启动应用程序进程请求

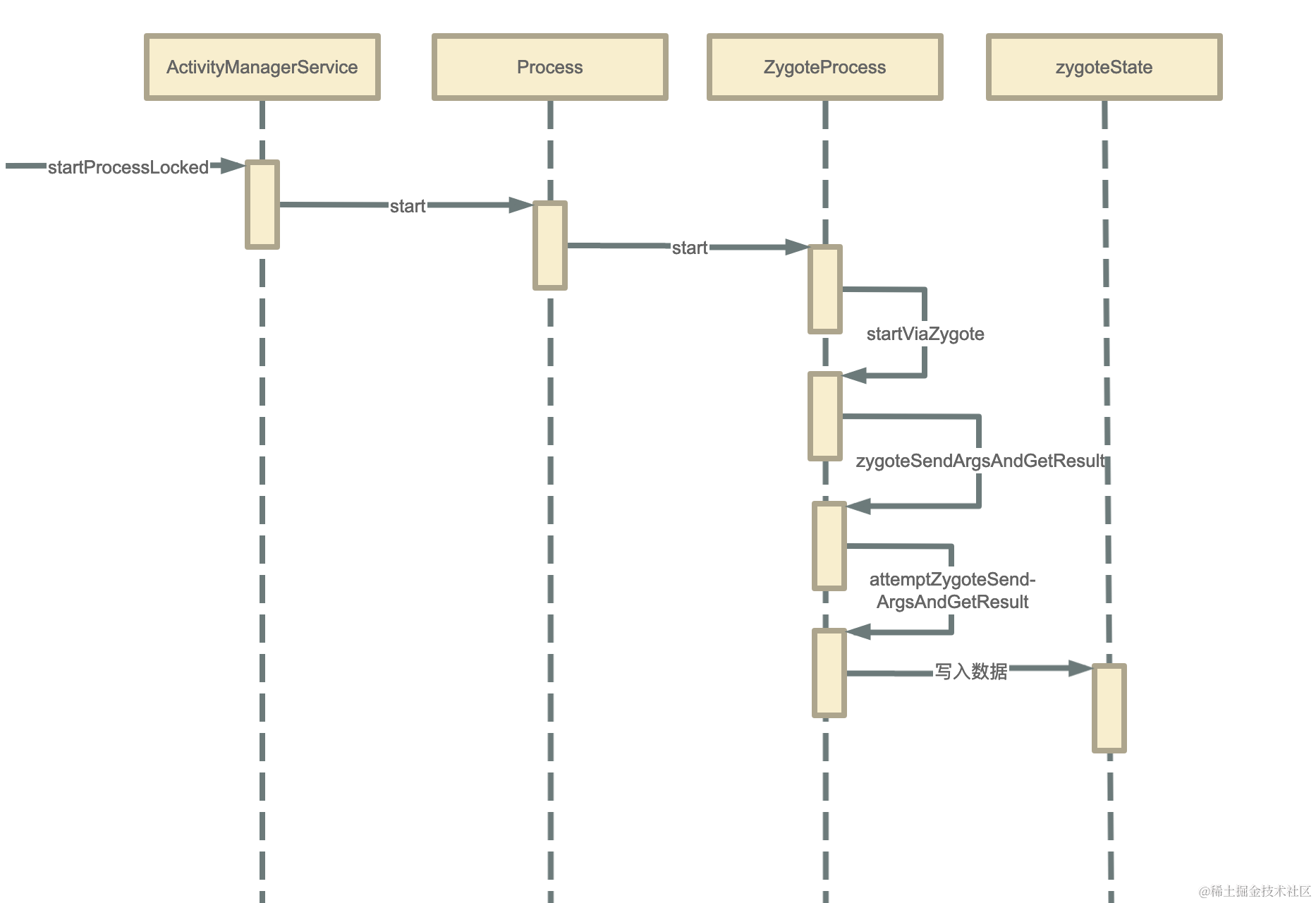

android 8-9时序图:

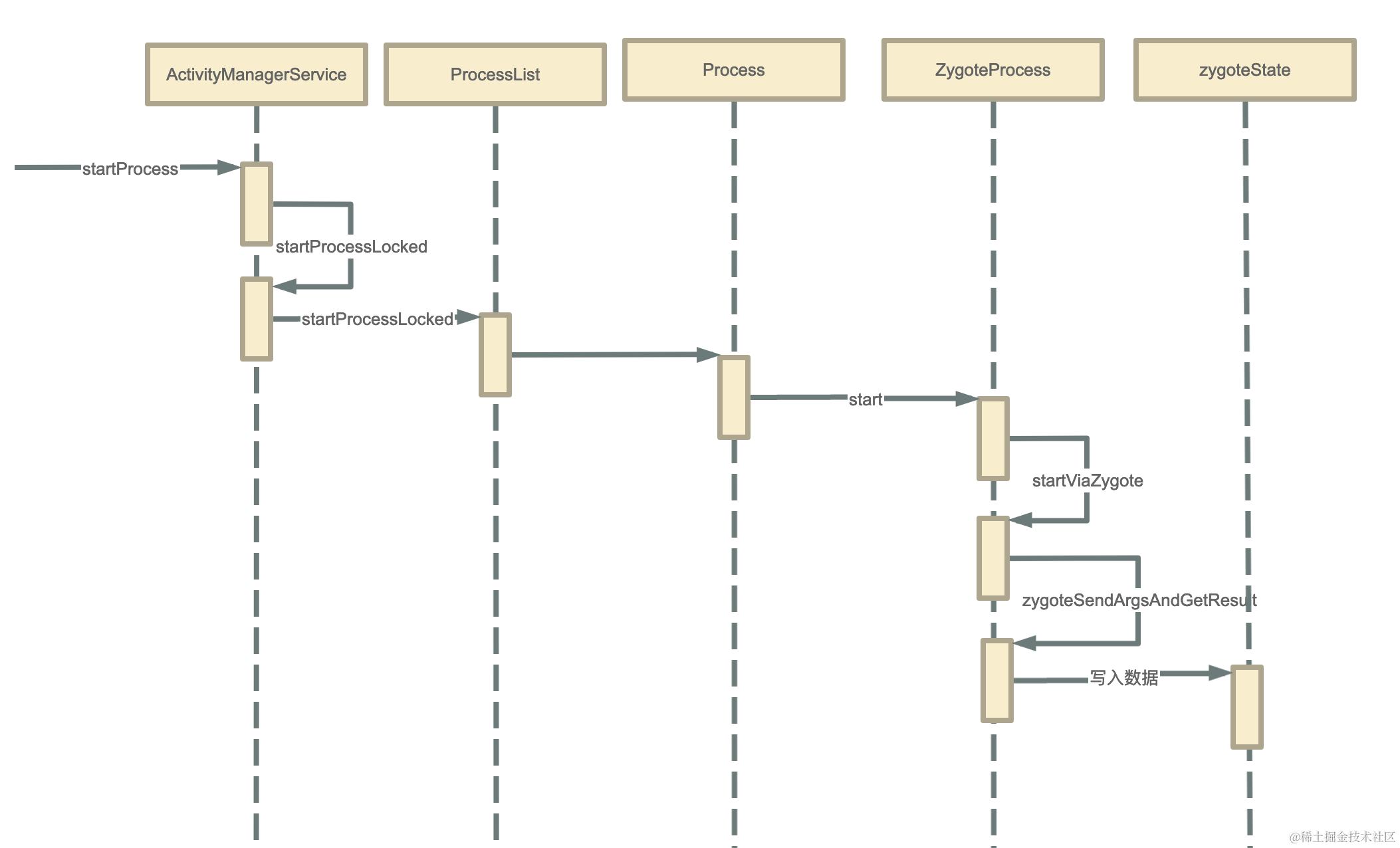

android 10-11时序图:
frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
private final void startProcessLocked(ProcessRecord app, String hostingType, String hostingNameStr, String abiOverride, String entryPoint, String[] entryPointArgs) { ...
try { try { final int userId = UserHandle.getUserId(app.uid); AppGlobals.getPackageManager().checkPackageStartable(app.info.packageName, userId); } catch (RemoteException e) { throw e.rethrowAsRuntimeException(); } //获取要创建的应用程序进程的用户ID int uid = app.uid; int[] gids = null; int mountExternal = Zygote.MOUNT_EXTERNAL_NONE; if (!app.isolated) { int[] permGids = null; try { checkTime(startTime, "startProcess: getting gids from package manager"); final IPackageManager pm = AppGlobals.getPackageManager(); permGids = pm.getPackageGids(app.info.packageName, MATCH_DEBUG_TRIAGED_MISSING, app.userId); StorageManagerInternal storageManagerInternal = LocalServices.getService( StorageManagerInternal.class); mountExternal = storageManagerInternal.getExternalStorageMountMode(uid, app.info.packageName); } catch (RemoteException e) { throw e.rethrowAsRuntimeException(); }
/*
- Add shared application and profile GIDs so applications can share some
- resources like shared libraries and access user-wide resources */ // 对gids进行创建和赋值 if (ArrayUtils.isEmpty(permGids)) { gids = new int[3]; } else { gids = new int[permGids.length + 3]; System.arraycopy(permGids, 0, gids, 3, permGids.length); } gids[0] = UserHandle.getSharedAppGid(UserHandle.getAppId(uid)); gids[1] = UserHandle.getCacheAppGid(UserHandle.getAppId(uid)); gids[2] = UserHandle.getUserGid(UserHandle.getUserId(uid)); }
.... if (entryPoint == null) entryPoint = "android.app.ActivityThread"; Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "Start proc: " + app.processName); checkTime(startTime, "startProcess: asking zygote to start proc"); ProcessStartResult startResult; if (hostingType.equals("webview_service")) { startResult = startWebView(entryPoint, app.processName, uid, uid, gids, debugFlags, mountExternal, app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet, app.info.dataDir, null, entryPointArgs); } else { //启动应用程序进程 startResult = Process.start(entryPoint, app.processName, uid, uid, gids, debugFlags, mountExternal, app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet, app.info.dataDir, invokeWith, entryPointArgs); } ... } catch (RuntimeException e) { Slog.e(TAG, "Failure starting process " + app.processName, e); forceStopPackageLocked(app.info.packageName, UserHandle.getAppId(app.uid), false, false, true, false, false, UserHandle.getUserId(app.userId), "start failure"); } }
若是android 10之后则通过ProcessList启动
@GuardedBy("this") final ProcessRecord startProcessLocked(String processName, ApplicationInfo info, boolean knownToBeDead, int intentFlags, HostingRecord hostingRecord, int zygotePolicyFlags, boolean allowWhileBooting, boolean isolated, boolean keepIfLarge) { return mProcessList.startProcessLocked(processName, info, knownToBeDead, intentFlags, hostingRecord, zygotePolicyFlags, allowWhileBooting, isolated, 0 /* isolatedUid /, keepIfLarge, null / ABI override /, null / entryPoint /, null / entryPointArgs /, null / crashHandler */); }
frameworks/base/services/core/java/com/android/server/am/ProcessList.java
@GuardedBy("mService") boolean startProcessLocked(ProcessRecord app, HostingRecord hostingRecord, int zygotePolicyFlags, boolean disableHiddenApiChecks, boolean disableTestApiChecks, boolean mountExtStorageFull, String abiOverride) { .... return startProcessLocked(hostingRecord, entryPoint, app, uid, gids, runtimeFlags, zygotePolicyFlags, mountExternal, seInfo, requiredAbi, instructionSet, invokeWith, startTime); } catch (RuntimeException e) { ... return false; } }
接下来使用Process->start()方法启动
frameworks/base/core/java/android/os/Process.java
public static final ProcessStartResult start(final String processClass, final String niceName, int uid, int gid, int[] gids, int debugFlags, int mountExternal, int targetSdkVersion, String seInfo, String abi, String instructionSet, String appDataDir, String invokeWith, String[] zygoteArgs) { return zygoteProcess.start(processClass, niceName, uid, gid, gids, debugFlags, mountExternal, targetSdkVersion, seInfo, abi, instructionSet, appDataDir, invokeWith, zygoteArgs); }
Process则是调用ZygoteProcess来启动
frameworks/base/core/java/android/os/ZygoteProcess.java
public final Process.ProcessStartResult start(final String processClass, final String niceName, int uid, int gid, int[] gids, int debugFlags, int mountExternal, int targetSdkVersion, String seInfo, String abi, String instructionSet, String appDataDir, String invokeWith, String[] zygoteArgs) { try { return startViaZygote(processClass, niceName, uid, gid, gids, debugFlags, mountExternal, targetSdkVersion, seInfo, abi, instructionSet, appDataDir, invokeWith, zygoteArgs); } catch (ZygoteStartFailedEx ex) { Log.e(LOG_TAG, "Starting VM process through Zygote failed"); throw new RuntimeException( "Starting VM process through Zygote failed", ex); } }
看下startViaZygote方法
private Process.ProcessStartResult startViaZygote(final String processClass, final String niceName, final int uid, final int gid, final int[] gids, int debugFlags, int mountExternal, int targetSdkVersion, String seInfo, String abi, String instructionSet, String appDataDir, String invokeWith, String[] extraArgs) throws ZygoteStartFailedEx { ArrayList argsForZygote = new ArrayList();
// --runtime-args, --setuid=, --setgid=, // and --setgroups= must go first argsForZygote.add("--runtime-args"); argsForZygote.add("--setuid=" + uid); argsForZygote.add("--setgid=" + gid); if ((debugFlags & Zygote.DEBUG_ENABLE_JNI_LOGGING) != 0) { argsForZygote.add("--enable-jni-logging"); } ...
synchronized(mLock) { return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi), argsForZygote); } }
这个方法把参数封成数组，并获取Zygote连接，一起发给了zygoteSendArgsAndGetResult方法
我们先看下获取Zygote连接的openZygoteSocketIfNeeded方法
/**
- Tries to open socket to Zygote process if not already open. If
- already open, does nothing. May block and retry. Requires that mLock be held. */ @GuardedBy("mLock") private ZygoteState openZygoteSocketIfNeeded(String abi) throws ZygoteStartFailedEx { Preconditions.checkState(Thread.holdsLock(mLock), "ZygoteProcess lock not held");
if (primaryZygoteState == null || primaryZygoteState.isClosed()) { try { // 与Zygote进程建立连接 primaryZygoteState = ZygoteState.connect(mSocket); } catch (IOException ioe) { throw new ZygoteStartFailedEx("Error connecting to primary zygote", ioe); } } // 判断abi是否匹配 if (primaryZygoteState.matches(abi)) { return primaryZygoteState; }
// 不匹配则尝试Zygote辅模式 if (secondaryZygoteState == null || secondaryZygoteState.isClosed()) { try { secondaryZygoteState = ZygoteState.connect(mSecondarySocket); } catch (IOException ioe) { throw new ZygoteStartFailedEx("Error connecting to secondary zygote", ioe); } }
if (secondaryZygoteState.matches(abi)) { return secondaryZygoteState; }
throw new ZygoteStartFailedEx("Unsupported zygote ABI: " + abi); }
然后看下zygoteSendArgsAndGetResult方法
@GuardedBy("mLock") private static Process.ProcessStartResult zygoteSendArgsAndGetResult( ZygoteState zygoteState, ArrayList args) throws ZygoteStartFailedEx { try {
int sz = args.size(); for (int i = 0; i < sz; i++) { if (args.get(i).indexOf('\n') >= 0) { throw new ZygoteStartFailedEx("embedded newlines not allowed"); } }
final BufferedWriter writer = zygoteState.writer; final DataInputStream inputStream = zygoteState.inputStream;
writer.write(Integer.toString(args.size())); writer.newLine();
for (int i = 0; i < sz; i++) { String arg = args.get(i); writer.write(arg); writer.newLine(); }
writer.flush();
// Should there be a timeout on this? Process.ProcessStartResult result = new Process.ProcessStartResult();
result.pid = inputStream.readInt(); result.usingWrapper = inputStream.readBoolean();
if (result.pid < 0) { throw new ZygoteStartFailedEx("fork() failed"); } return result; } catch (IOException ex) { zygoteState.close(); throw new ZygoteStartFailedEx(ex); } }
它会向ZygoteState写入数据
android 10之后则是在attemptZygoteSendArgsAndGetResult方法写入
@GuardedBy("mLock") private Process.ProcessStartResult zygoteSendArgsAndGetResult( ZygoteState zygoteState, int zygotePolicyFlags, @NonNull ArrayList args) throws ZygoteStartFailedEx { ... String msgStr = args.size() + "\n" + String.join("\n", args) + "\n";
if (shouldAttemptUsapLaunch(zygotePolicyFlags, args)) { try { return attemptUsapSendArgsAndGetResult(zygoteState, msgStr); } catch (IOException ex) { Log.e(LOG_TAG, "IO Exception while communicating with USAP pool - "
- ex.getMessage()); } }
return attemptZygoteSendArgsAndGetResult(zygoteState, msgStr); }
private Process.ProcessStartResult attemptZygoteSendArgsAndGetResult( ZygoteState zygoteState, String msgStr) throws ZygoteStartFailedEx { try { final BufferedWriter zygoteWriter = zygoteState.mZygoteOutputWriter; final DataInputStream zygoteInputStream = zygoteState.mZygoteInputStream;
zygoteWriter.write(msgStr); zygoteWriter.flush();
// Always read the entire result from the input stream to avoid leaving // bytes in the stream for future process starts to accidentally stumble // upon. Process.ProcessStartResult result = new Process.ProcessStartResult(); result.pid = zygoteInputStream.readInt(); result.usingWrapper = zygoteInputStream.readBoolean();
if (result.pid < 0) { throw new ZygoteStartFailedEx("fork() failed"); }
return result; } catch (IOException ex) { zygoteState.close(); Log.e(LOG_TAG, "IO Exception while communicating with Zygote - "
- ex.toString()); throw new ZygoteStartFailedEx(ex); } }
Zygote 接收请求并创建应用程序进程
然后我们分析下Zygote接收请求步骤
先看下时序图：
在系统启动一节我们分析了Zygote的启动，其中有个Runnable frameworks/base/core/java/com/android/internal/os/ZygoteInit.java
public static void main(String argv[]) { ZygoteServer zygoteServer = new ZygoteServer();
... final Runnable caller; try { ...
String socketName = "zygote";
// 等待AMS caller = zygoteServer.runSelectLoop(abiList); } catch (Throwable ex) { Log.e(TAG, "System zygote died with exception", ex); throw ex; } finally { zygoteServer.closeServerSocket(); }
if (caller != null) { caller.run(); } }
runSelectLoop方法是一个循环器，接收来自AMS的消息
frameworks/base/core/java/com/android/internal/os/ZygoteServer.java
Runnable runSelectLoop(String abiList) { ArrayList fds = new ArrayList(); ArrayList peers = new ArrayList();
fds.add(mServerSocket.getFileDescriptor()); peers.add(null);
while (true) { ... for (int i = pollFds.length - 1; i >= 0; --i) { if ((pollFds[i].revents & POLLIN) == 0) { continue; }
if (i == 0) { ZygoteConnection newPeer = acceptCommandPeer(abiList); peers.add(newPeer); fds.add(newPeer.getFileDesciptor()); } else { try { ZygoteConnection connection = peers.get(i); final Runnable command = connection.processOneCommand(this);
... } catch (Exception e) { ... } } } } }
收到命令时交由Zygote连接的processOneCommand方法（Android 8.0为runOnce）处理，其他版本代码细节有所不同，但流程一样
frameworks/base/core/java/com/android/internal/os/ZygoteConnection.java
Runnable processOneCommand(ZygoteServer zygoteServer) { String args[]; Arguments parsedArgs = null; FileDescriptor[] descriptors;
try { // 获取应用启动参数 args = readArgumentList(); // Android 10 之后的获取参数代码 //args = Zygote.readArgumentList(mSocketReader); descriptors = mSocket.getAncillaryFileDescriptors(); } catch (IOException ex) { throw new IllegalStateException("IOException on command socket", ex); }
... // fork创建应用程序进程 pid = Zygote.forkAndSpecialize(parsedArgs.uid, parsedArgs.gid, parsedArgs.gids, parsedArgs.debugFlags, rlimits, parsedArgs.mountExternal, parsedArgs.seInfo, parsedArgs.niceName, fdsToClose, fdsToIgnore, parsedArgs.instructionSet, parsedArgs.appDataDir);
try { if (pid == 0) { // 子进程 zygoteServer.setForkChild();
zygoteServer.closeServerSocket(); IoUtils.closeQuietly(serverPipeFd); serverPipeFd = null;
return handleChildProc(parsedArgs, descriptors, childPipeFd); } else { // 父进程 IoUtils.closeQuietly(childPipeFd); childPipeFd = null; handleParentProc(pid, descriptors, serverPipeFd); return null; } } finally { IoUtils.closeQuietly(childPipeFd); IoUtils.closeQuietly(serverPipeFd); } }
可以看到Zygote先获取启动参数，然后通过fork创建进程，然后若pi返回0，则开始处理应用程序进程。其中Android 10 之后通过Zygote类获取参数，其他没什么变化
private Runnable handleChildProc(Arguments parsedArgs, FileDescriptor[] descriptors, FileDescriptor pipeFd) { ...
// End of the postFork event. Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); if (parsedArgs.invokeWith != null) { WrapperInit.execApplication(parsedArgs.invokeWith, parsedArgs.niceName, parsedArgs.targetSdkVersion, VMRuntime.getCurrentInstructionSet(), pipeFd, parsedArgs.remainingArgs);
