Vue3 针对diff做了性能优化，来提高虚拟DOM高效更新，反复说到的双端比对，属性按需更新，来提高比对过程中的性能，那过程中是怎么样实现的呢？

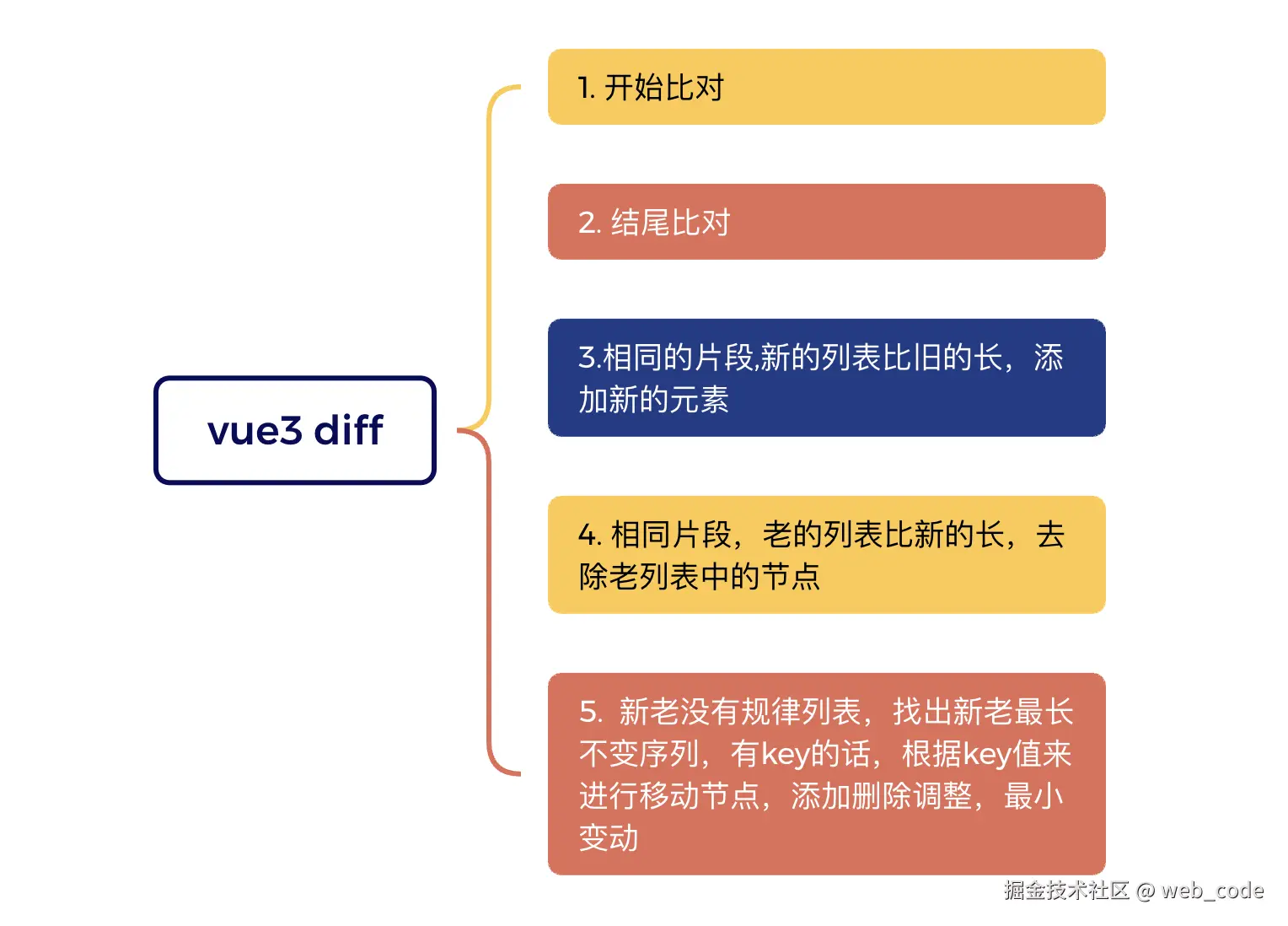

新旧VDOM diff——双端比对&最长递增序列

新旧VDOM树比对，最简单的暴力，直接卸载老的，添加新的，但是在频繁更新下，性能下降, web中的VDOM的更新，落实到业务，很多场景就像表格中新增列，所以针对这种场景，做一些常见场景的快递比对，有利于页面性能的；

1. 双端比对——比对开头

(a b) c

(a b) d e

  const patchKeyedChildren = (
    c1: VNode[],
    c2: VNodeArrayChildren,
    container: RendererElement,
    parentAnchor: RendererNode | null,
    parentComponent: ComponentInternalInstance | null,
    parentSuspense: SuspenseBoundary | null,
    namespace: ElementNamespace,
    slotScopeIds: string[] | null,
    optimized: boolean,
  ) => {
    let i = 0
    const l2 = c2.length
    let e1 = c1.length - 1 // prev ending index
    let e2 = l2 - 1 // next ending index
    // 1. sync from start
    // (a b) c
    // (a b) d e
    while (i <= e1 && i <= e2) {
      const n1 = c1[i]
      const n2 = c2[i]
      if (isSameVNodeType(n1, n2)) {
        patch(
          n1,
          n2,
          container,
          null,
          parentComponent,
          parentSuspense,
          namespace,
          slotScopeIds,
          optimized,
        )
      } else {
        break
      }
      // 自增变量i,来实现c1,c2的开头节点的遍历;
      i++
    }
  }

2. 双端比对——比对结尾

a (b c)

d e (b c)

  const patchKeyedChildren = (
    c1: VNode[],
    c2: VNodeArrayChildren,
    container: RendererElement,
    parentAnchor: RendererNode | null,
    parentComponent: ComponentInternalInstance | null,
    parentSuspense: SuspenseBoundary | null,
    namespace: ElementNamespace,
    slotScopeIds: string[] | null,
    optimized: boolean,
  ) => {
    let i = 0
    const l2 = c2.length
    let e1 = c1.length - 1 // prev ending index
    let e2 = l2 - 1 // next ending index
      // 2. sync from end
    // a (b c)
    // d e (b c)
    while (i <= e1 && i <= e2) {
      const n1 = c1[e1]
      const n2 = c2[e2]
      if (isSameVNodeType(n1, n2)) {
        patch(
          n1,
          n2,
          container,
          null,
          parentComponent,
          parentSuspense,
          namespace,
          slotScopeIds,
          optimized,
        )
      } else {
        break
      }
      // 通过递减c1,c2结尾节点索引，来进行结尾节点的比对
      e1--
      e2--
    }
  }

3. 有相同片段，新的VDOM list比旧的VDOM list长，直接添加新节点上去

(a b)

(a b) c

  const patchKeyedChildren = (
    c1: VNode[],
    c2: VNodeArrayChildren,
    container: RendererElement,
    parentAnchor: RendererNode | null,
    parentComponent: ComponentInternalInstance | null,
    parentSuspense: SuspenseBoundary | null,
    namespace: ElementNamespace,
    slotScopeIds: string[] | null,
    optimized: boolean,
  ) => {
    let i = 0
    const l2 = c2.length
    let e1 = c1.length - 1 // prev ending index
    let e2 = l2 - 1 // next ending index
    // 3. common sequence + mount
    // (a b)
    // (a b) c
    // i = 2, e1 = 1, e2 = 2
    // (a b)
    // c (a b)
    // i = 0, e1 = -1, e2 = 0
    if (i > e1) {
      if (i <= e2) {
        const nextPos = e2 + 1
        const anchor = nextPos < l2 ? (c2[nextPos] as VNode).el : parentAnchor
        while (i <= e2) {
          patch(
            null,
            (c2[i] = optimized
              ? cloneIfMounted(c2[i] as VNode)
              : normalizeVNode(c2[i])),
            container,
            anchor,
            parentComponent,
            parentSuspense,
            namespace,
            slotScopeIds,
            optimized,
          )
          i++
        }
      }
    }
  }

4. 有相同片段，旧的VDOM list比新的长，卸载旧的VDOM 节点

(a b) c

(a b)

  const patchKeyedChildren = (
    c1: VNode[],
    c2: VNodeArrayChildren,
    container: RendererElement,
    parentAnchor: RendererNode | null,
    parentComponent: ComponentInternalInstance | null,
    parentSuspense: SuspenseBoundary | null,
    namespace: ElementNamespace,
    slotScopeIds: string[] | null,
    optimized: boolean,
  ) => {
    let i = 0
    const l2 = c2.length
    let e1 = c1.length - 1 // prev ending index
    let e2 = l2 - 1 // next ending index
    // 4. common sequence + unmount
    // (a b) c
    // (a b)
    // i = 2, e1 = 2, e2 = 1
    // a (b c)
    // (b c)
    // i = 0, e1 = 0, e2 = -1
    else if (i > e2) {
      while (i <= e1) {
        unmount(c1[i], parentComponent, parentSuspense, true)
        i++
      }
    }
  }

5. 新旧VDOM list没有规律，找出新旧节点最长不变序列，其他通过移动节点，新增，删除来生成最新的list

  • 如下：最长递增序列，a b f g; 然后只需比对新旧节点通过key生成的map,移动&新增&卸载其他位置上节点，实现最少移动节点，性能最快
[i ... e1 + 1]: a b [c d e] f g
[i ... e2 + 1]: a b [e d c h] f g

// 实现：最长递增序列——贪心 + 二分
// https://en.wikipedia.org/wiki/Longest_increasing_subsequence
function getSequence(arr: number[]): number[] {
  const p = arr.slice()
  const result = [0]
  let i, j, u, v, c
  const len = arr.length
  for (i = 0; i < len; i++) {
    const arrI = arr[i]
    if (arrI !== 0) {
      j = result[result.length - 1]
      if (arr[j] < arrI) {
        p[i] = j
        result.push(i)
        continue
      }
      u = 0
      v = result.length - 1
      while (u < v) {
        c = (u + v) >> 1
        if (arr[result[c]] < arrI) {
          u = c + 1
        } else {
          v = c
        }
      }
      if (arrI < arr[result[u]]) {
        if (u > 0) {
          p[i] = result[u - 1]
        }
        result[u] = i
      }
    }
  }
  u = result.length
  v = result[u - 1]
  while (u-- > 0) {
    result[u] = v
    v = p[v]
  }
  return result
}

通过位运算，DOM属性动态按需更新

  1. 在编译阶段，vue对各个节点的属性做了patchFlag的标识，比如是text, style, class等属性；区分了动态和静态属性，在patchElement过程中，通过位运算（按位与），来针对特定属性做按需更新

patchFlag类型

patchFlag类型定义源码

export enum PatchFlags {
  TEXT = 1,
  CLASS = 1 << 1,

  STYLE = 1 << 2,
  PROPS = 1 << 3,
  FULL_PROPS = 1 << 4,
  NEED_HYDRATION = 1 << 5,
  STABLE_FRAGMENT = 1 << 6,
  KEYED_FRAGMENT = 1 << 7,
  UNKEYED_FRAGMENT = 1 << 8,
  NEED_PATCH = 1 << 9,
  DYNAMIC_SLOTS = 1 << 10,
  DEV_ROOT_FRAGMENT = 1 << 11,
  CACHED = -1,
  BAIL = -2,
}

/**
 * dev only flag -> name mapping
 */
export const PatchFlagNames: Record<PatchFlags, string> = {
  [PatchFlags.TEXT]: `TEXT`,
  [PatchFlags.CLASS]: `CLASS`,
  [PatchFlags.STYLE]: `STYLE`,
  [PatchFlags.PROPS]: `PROPS`,
  [PatchFlags.FULL_PROPS]: `FULL_PROPS`,
  [PatchFlags.NEED_HYDRATION]: `NEED_HYDRATION`,
  [PatchFlags.STABLE_FRAGMENT]: `STABLE_FRAGMENT`,
  [PatchFlags.KEYED_FRAGMENT]: `KEYED_FRAGMENT`,
  [PatchFlags.UNKEYED_FRAGMENT]: `UNKEYED_FRAGMENT`,
  [PatchFlags.NEED_PATCH]: `NEED_PATCH`,
  [PatchFlags.DYNAMIC_SLOTS]: `DYNAMIC_SLOTS`,
  [PatchFlags.DEV_ROOT_FRAGMENT]: `DEV_ROOT_FRAGMENT`,
  [PatchFlags.CACHED]: `HOISTED`,
  [PatchFlags.BAIL]: `BAIL`,
}

patchElement——按位与做按需更新


  const patchElement = (
    n1: VNode,
    n2: VNode,
    parentComponent: ComponentInternalInstance | null,
    parentSuspense: SuspenseBoundary | null,
    namespace: ElementNamespace,
    slotScopeIds: string[] | null,
    optimized: boolean,
  ) => {
    if (patchFlag > 0) {
      if (patchFlag & PatchFlags.FULL_PROPS) {
        patchProps(el, oldProps, newProps, parentComponent, namespace)
      } else {
        // class
        if (patchFlag & PatchFlags.CLASS) {
          if (oldProps.class !== newProps.class) {
            hostPatchProp(el, 'class', null, newProps.class, namespace)
          }
        }
        // style
        if (patchFlag & PatchFlags.STYLE) {
          hostPatchProp(el, 'style', oldProps.style, newProps.style, namespace)
        }

        // props
        if (patchFlag & PatchFlags.PROPS) {
          const propsToUpdate = n2.dynamicProps!
          for (let i = 0; i < propsToUpdate.length; i++) {
            const key = propsToUpdate[i]
            const prev = oldProps[key]
            const next = newProps[key]
            if (next !== prev || key === 'value') {
              hostPatchProp(el, key, prev, next, namespace, parentComponent)
            }
          }
        }
      }
      // text
      if (patchFlag & PatchFlags.TEXT) {
        if (n1.children !== n2.children) {
          hostSetElementText(el, n2.children as string)
        }
      }
    }
  }
