Paimon学习前序——Flink Catalog

Hiway
579 阅读7分钟

Paimon官方现在推荐使用Catalog的方式来使用和创建Paimon，所以先学习一下Flink Catalog的相关知识点

一、Catalog

1.1 默认Catalog

从StreamTableEnvironment.create入口一路跟下去，会在StreamTableEnvironmentImpl.create里，初始化一个

final CatalogManager catalogManager =
        CatalogManager.newBuilder()
                .classLoader(classLoader)
                .config(tableConfig)
                .defaultCatalog(
                        settings.getBuiltInCatalogName(),
                        new GenericInMemoryCatalog(
                                settings.getBuiltInCatalogName(), -- default_catalog
                                settings.getBuiltInDatabaseName()))  -- default_database
                .executionConfig(executionEnvironment.getConfig())
                .build();

所以当我们写flink sql的时候，比如

create table source_table(
)with(
)

其实是默认使用的default_catalog.default_database.source_table

1.2 Create Catalog

我们继续看CatalogManager类

public void createCatalog(String catalogName, CatalogDescriptor catalogDescriptor)
        throws CatalogException {
    checkArgument(
            !StringUtils.isNullOrWhitespaceOnly(catalogName),
            "Catalog name cannot be null or empty.");
    checkNotNull(catalogDescriptor, "Catalog descriptor cannot be null");

    if (catalogStoreHolder.catalogStore().contains(catalogName)) {
        throw new CatalogException(
                format("Catalog %s already exists in catalog store.", catalogName));
    }
    if (catalogs.containsKey(catalogName)) {
        throw new CatalogException(
                format("Catalog %s already exists in initialized catalogs.", catalogName));
    }

    //开始创建
    Catalog catalog = initCatalog(catalogName, catalogDescriptor);
    //用于初始化阶段所需的任何准备
    catalog.open();
    //初始化好了后放入缓存
    catalogs.put(catalogName, catalog);

    catalogStoreHolder.catalogStore().storeCatalog(catalogName, catalogDescriptor);
}

private Catalog initCatalog(String catalogName, CatalogDescriptor catalogDescriptor) {
        return FactoryUtil.createCatalog(
                catalogName,
                catalogDescriptor.getConfiguration().toMap(),
                catalogStoreHolder.config(),
                catalogStoreHolder.classLoader());
    }

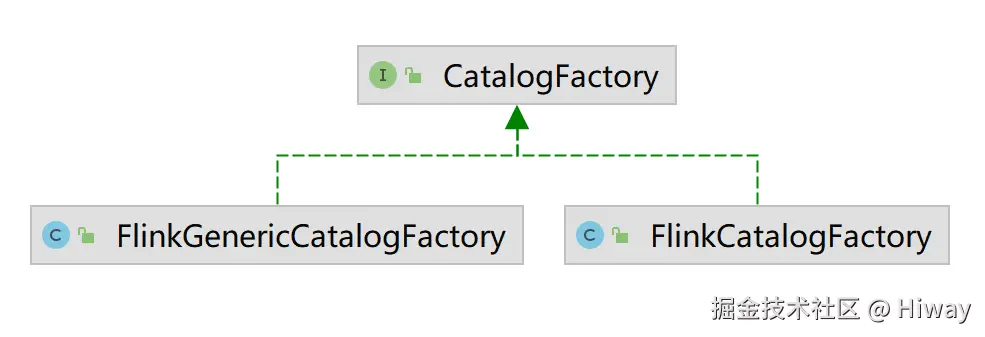

继续跟进FactoryUtil.createCatalog，可以看到是Flink常用的通过SPI找到对应的CatalogFactory，然后执行factory.createCatalog

public static Catalog createCatalog(
        String catalogName,
        Map<String, String> options,
        ReadableConfig configuration,
        ClassLoader classLoader) {
    // Use the legacy mechanism first for compatibility
    try {
        final CatalogFactory legacyFactory =
                TableFactoryService.find(CatalogFactory.class, options, classLoader);
        return legacyFactory.createCatalog(catalogName, options);
    } catch (NoMatchingTableFactoryException e) {
        // No matching legacy factory found, try using the new stack
        final DefaultCatalogContext discoveryContext =
                new DefaultCatalogContext(catalogName, options, configuration, classLoader);
        try {
            // 通过SPI找到对应的CatalogFactory，然后执行factory.createCatalog
            final CatalogFactory factory = getCatalogFactory(discoveryContext);

            // The type option is only used for discovery, we don't actually want to forward it
            // to the catalog factory itself.
            final Map<String, String> factoryOptions =
                    options.entrySet().stream()
                            .filter(
                                    entry ->
                                            !CommonCatalogOptions.CATALOG_TYPE
                                                    .key()
                                                    .equals(entry.getKey()))
                            .collect(Collectors.toMap(Map.Entry::getKey, Map.Entry::getValue));
            final DefaultCatalogContext context =
                    new DefaultCatalogContext(
                            catalogName, factoryOptions, configuration, classLoader);
            return factory.createCatalog(context);
        } catch (Throwable t) {
            throw new ValidationException(
                    String.format(
                            "Unable to create catalog '%s'.%n%nCatalog options are:%n%s",
                            catalogName,
                            options.entrySet().stream()
                                    .map(
                                            optionEntry ->
                                                    stringifyOption(
                                                            optionEntry.getKey(),
                                                            optionEntry.getValue()))
                                    .sorted()
                                    .collect(Collectors.joining("\n"))),
                    t);
        }
    }
}

1.3 Create Table

在前面创建初始化Catalog完成之后，会把Catalog放入缓存中catalogs.put(catalogName, catalog);

当sql执行create table的时候，会根据table的前缀（类似paimon_catalog.default.tableA），然后从CatalogManager.getCatalog中拿取对应的catalog类，调用catalog.createTable()方法，生成Table。

1.4 Get Table

执行sql比如（insert into paimon_catalog.default.tableA xxx），会调用CatalogManager.getTable，同前面一样，会根据table的前缀（类似paimon_catalog.default.tableA），拿到对应的catalog，然后从CatalogManager.getCatalog中拿取对应的catalog类，调用catalog.getTable()方法。

二、Paimon Catalog

前面我们已经了解了Flink Catalog的基础知识和创建流程。我们开始进入Paimon Catalog的创建学习，上一章节最后了解到通过SPI机制找到对应的flink.CatalogFactory，我们来看一下Paimon的flink.CatalogFactory有哪些：

请注意，这里的flink.CatalogFactory是指org.apache.flink.table.factories.CatalogFactory类，是Flink的原生类。

后面还有属于Paimon的org.apache.paimon.catalog.CatalogFactory类。

全文会通过flink.CatalogFactory和paimon.CatalogFactory来区分。


2.1 FlinkCatalogFactory

2.1.1 create Catalog

我们先看FlinkCatalogFactory类，通过SPI找到对应CatalogFactory后，执行factory.createCatalog方法：

public class FlinkCatalogFactory implements org.apache.flink.table.factories.CatalogFactory {

    public static final String IDENTIFIER = "paimon";

    public FlinkCatalog createCatalog(Context context) {
        return createCatalog(
                context.getName(),
                CatalogContext.create(
                        Options.fromMap(context.getOptions()), new FlinkFileIOLoader()),
                context.getClassLoader());
    }

    public static FlinkCatalog createCatalog(
            String catalogName, CatalogContext context, ClassLoader classLoader) {
        return new FlinkCatalog(
                //留意这里的这个CatalogFactory，这里对应paimon.CatalogFactory
                CatalogFactory.createCatalog(context, classLoader),
                catalogName,
                context.options().get(DEFAULT_DATABASE),
                classLoader,
                context.options());
    }
}

我们继续跟进FlinkCatalog类，可以看到其主要的方法，都是调用catalog.XXX，这里的catalog就是上面传入的CatalogFactory.createCatalog(context, classLoader)，可以得知FlinkCatalog其实只是一个包装类，真正进行 Catalog 操作的还是外面通过paimon.CatalogFactory创建出来的org.apache.paimon.catalog.Catalog。

public class FlinkCatalog extends AbstractCatalog {

    public FlinkCatalog(
            Catalog catalog,
            String name,
            String defaultDatabase,
            ClassLoader classLoader,
            Options options) {
    this.catalog = catalog;
    ...
    }


    public List<String> listTables(String databaseName)
            throws DatabaseNotExistException, CatalogException {
        try {
            return catalog.listTables(databaseName);
        } catch (Catalog.DatabaseNotExistException e) {
            throw new DatabaseNotExistException(getName(), e.database());
        }
    }

    ...
}

我们回到外层的CatalogFactory.createCatalog(context, classLoader)，这里的CatalogFactory是paimon.CatalogFactory类，继续跟进

static Catalog createCatalog(CatalogContext context, ClassLoader classLoader) {
    Options options = context.options();
    String metastore = options.get(METASTORE);
    //和前面一样，通过SPI机制发现对应CatalogFactory
    CatalogFactory catalogFactory =
            FactoryUtil.discoverFactory(classLoader, CatalogFactory.class, metastore);

    try {
        return catalogFactory.create(context);
    } catch (UnsupportedOperationException ignore) {
    }
 }

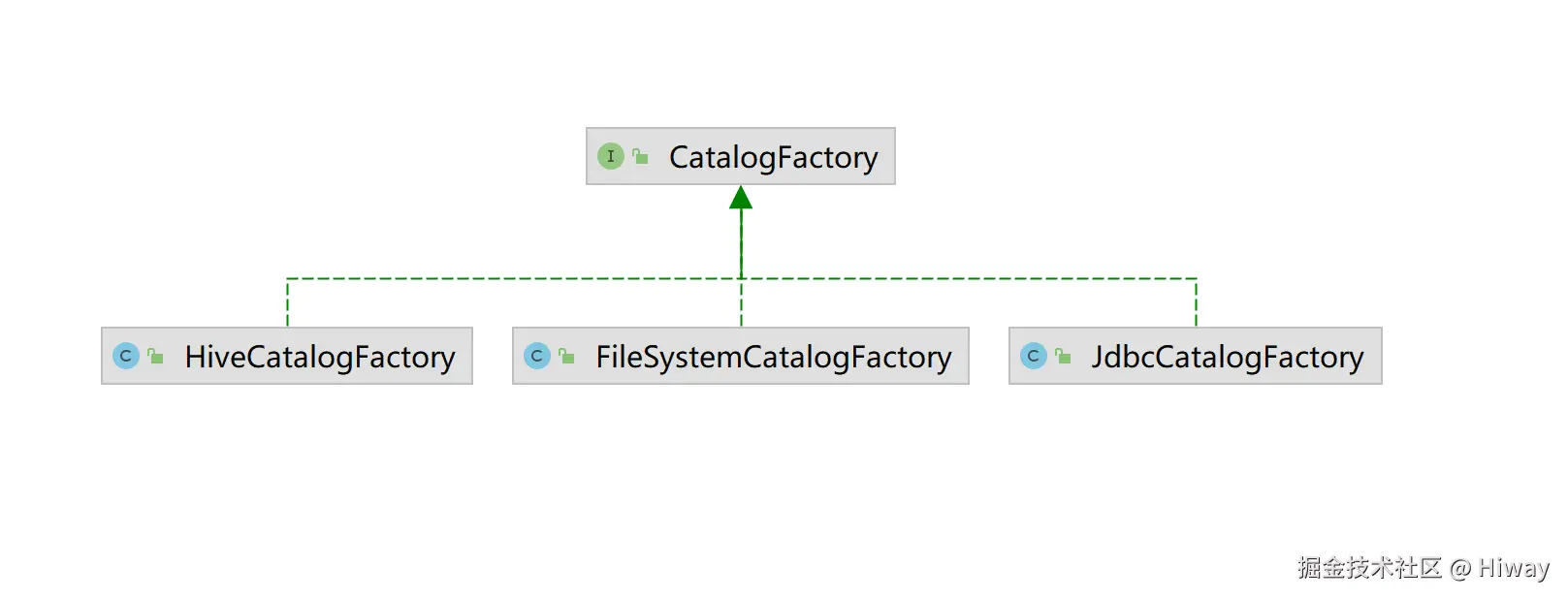

和前面的步骤一样，我们来看一下paimon.CatalogFactory有哪些子类： image.png

我们挑最常用的HiveCatalogFactory来看看它的实现，先看一下它的创建示例，然后再跟踪源码，并不复杂：

// 创建 org.apache.paimon.hive.HiveCatalog
CREATE CATALOG my_hive WITH (
'type' = 'paimon',
'metastore' = 'hive'
);

/** Factory to create {@link HiveCatalog}. */
public class HiveCatalogFactory implements CatalogFactory {

    public static final String IDENTIFIER = "hive";
    ...

    @Override
    public Catalog create(CatalogContext context) {
        //调用HiveCatalog.createHiveCatalog
        return HiveCatalog.createHiveCatalog(context);
    }
}

...

public static Catalog createHiveCatalog(CatalogContext context) {
    HiveConf hiveConf = createHiveConf(context);
    Options options = context.options();
    String warehouseStr = options.get(CatalogOptions.WAREHOUSE);
    if (warehouseStr == null) {
        warehouseStr =
                hiveConf.get(METASTOREWAREHOUSE.varname, METASTOREWAREHOUSE.defaultStrVal);
    }
    Path warehouse = new Path(warehouseStr);
    Path uri =
            warehouse.toUri().getScheme() == null
                    ? new Path(FileSystem.getDefaultUri(hiveConf))
                    : warehouse;
    FileIO fileIO;
    try {
        fileIO = FileIO.get(uri, context);
        fileIO.checkOrMkdirs(warehouse);
    } catch (IOException e) {
        throw new UncheckedIOException(e);
    }

    //在这里创建HiveCatalog
    Catalog catalog =
            new HiveCatalog(
                    fileIO,
                    hiveConf,
                    options.get(HiveCatalogFactory.METASTORE_CLIENT_CLASS),
                    options,
                    warehouse.toUri().toString());

    PrivilegeManager privilegeManager =
            new FileBasedPrivilegeManager(
                    warehouse.toString(),
                    fileIO,
                    context.options().get(PrivilegedCatalog.USER),
                    context.options().get(PrivilegedCatalog.PASSWORD));
    if (privilegeManager.privilegeEnabled()) {
        catalog = new PrivilegedCatalog(catalog, privilegeManager);
    }

    return catalog;
}

...

public HiveCatalog(
        FileIO fileIO,
        HiveConf hiveConf,
        String clientClassName,
        Options options,
        String warehouse) {
    super(fileIO, options);
    this.hiveConf = hiveConf;
    this.clientClassName = clientClassName;
    this.warehouse = warehouse;

    boolean needLocationInProperties =
            hiveConf.getBoolean(
                    LOCATION_IN_PROPERTIES.key(), LOCATION_IN_PROPERTIES.defaultValue());
    if (needLocationInProperties) {
        locationHelper = new TBPropertiesLocationHelper();
    } else {
        // set the warehouse location to the hiveConf
        hiveConf.set(HiveConf.ConfVars.METASTOREWAREHOUSE.varname, warehouse);
        locationHelper = new StorageLocationHelper();
    }

    //在创建HiveCatalog时，会生成一个client端，用于连接hive集群
    this.client = createClient(hiveConf, clientClassName);
}

...

public List<String> listDatabases() {
        try {
            //通过client调用访问hive集群
            return client.getAllDatabases();
        } catch (TException e) {
            throw new RuntimeException("Failed to list all databases", e);
        }
    }

到此我们整理一下，我们上面讲了两个很像的类，flink.CatalogFactory类和paimon.CatalogFactory类，以及对应创建出来的FlinkCatalog（继承org.apache.flink.table.catalog.Catalog）和HiveCatalog（继承org.apache.paimon.catalog.Catalog）。

FlinkCatalog是外层的包装类，其方法实际调用的是里面的paimon.HiveCatalog类。

后面还有属于Flink的org.apache.flink.table.catalog.hive.HiveCatalog类。

后文会通过flink.HiveCatalog和paimon.HiveCatalog来区分。

2.1.2 create table

从1.3可知，创建表会CatalogManager.getCatalog中拿取对应的catalog类，调用catalog.createTable()方法，生成Table。对应的就是调用FlinkCatalog.createTable()

@Override
public void createTable(ObjectPath tablePath, CatalogBaseTable table, boolean ignoreIfExists)
        throws TableAlreadyExistException, DatabaseNotExistException, CatalogException {

    Identifier identifier = toIdentifier(tablePath);
    Map<String, String> options = new HashMap<>(table.getOptions());
    //校验、构造Paimon参数。这里如果create的table不是paimon类型的表，会直接报错
    Schema paimonSchema = buildPaimonSchema(identifier, (CatalogTable) table, options);

    try {
        catalog.createTable(identifier, paimonSchema, ignoreIfExists);
    } catch (Catalog.TableAlreadyExistException e) {
        ...
    }
}

//paimon.AbstractCatalog
public void createTable(Identifier identifier, Schema schema, boolean ignoreIfExists)
            throws TableAlreadyExistException, DatabaseNotExistException {
        checkNotBranch(identifier, "createTable");
        checkNotSystemTable(identifier, "createTable");
        validateIdentifierNameCaseInsensitive(identifier);
        validateFieldNameCaseInsensitive(schema.rowType().getFieldNames());
        validateAutoCreateClose(schema.options());

        if (!databaseExists(identifier.getDatabaseName())) {
            throw new DatabaseNotExistException(identifier.getDatabaseName());
        }

        if (tableExists(identifier)) {
            if (ignoreIfExists) {
                return;
            }
            throw new TableAlreadyExistException(identifier);
        }

        copyTableDefaultOptions(schema.options());
        //这里会调用paimon.HiveCatalog的方法，基于hive metastore创建paimon表
        createTableImpl(identifier, schema);
    }

2.1.3 get table

同理，调用FlinkCatalog.getTable()

private CatalogTable getTable(ObjectPath tablePath, @Nullable Long timestamp)
        throws TableNotExistException {
    Table table;
    try {
        //
        table = catalog.getTable(toIdentifier(tablePath));
    } catch (Catalog.TableNotExistException e) {
        throw new TableNotExistException(getName(), tablePath);
    }

    ...

    if (table instanceof FileStoreTable) {
        return toCatalogTable(table);
    } else {
        return new SystemCatalogTable(table);
    }
}

//paimon.AbstractCatalog
public Table getTable(Identifier identifier) throws TableNotExistException {
    if (isSystemDatabase(identifier.getDatabaseName())) {
        ...
    } else if (isSpecifiedSystemTable(identifier)) {
        ..
    } else {
        try {
            return getDataTable(identifier);
        } catch (TableNotExistException e) {
            return getFormatTable(identifier);
        }
    }
}

private FileStoreTable getDataTable(Identifier identifier) throws TableNotExistException {
    Preconditions.checkArgument(identifier.getSystemTableName() == null);
    TableSchema tableSchema = getDataTableSchema(identifier);
    //构造table
    return FileStoreTableFactory.create(
            fileIO,
            getTableLocation(identifier),
            tableSchema,
            new CatalogEnvironment(
                    identifier,
                    Lock.factory(
                            lockFactory().orElse(null), lockContext().orElse(null), identifier),
                    metastoreClientFactory(identifier).orElse(null),
                    lineageMetaFactory));
}

...
//FileStoreTableFactory.create -> FileStoreTableFactory.createWithoutFallbackBranch
//一路流转最后根据是否有主键会创建 AppendOnlyFileStoreTable 或者 PrimaryKeyFileStoreTable
private static FileStoreTable createWithoutFallbackBranch(
        FileIO fileIO,
        Path tablePath,
        TableSchema tableSchema,
        Options dynamicOptions,
        CatalogEnvironment catalogEnvironment) {
    FileStoreTable table =
            tableSchema.primaryKeys().isEmpty()
                    ? new AppendOnlyFileStoreTable(
                            fileIO, tablePath, tableSchema, catalogEnvironment)
                    : new PrimaryKeyFileStoreTable(
                            fileIO, tablePath, tableSchema, catalogEnvironment);
    return table.copy(dynamicOptions.toMap());
}

FileStoreTable的细节我们下一章再聊

2.2 FlinkGenericCatalogFactory

为什么会有FlinkGenericCatalogFactory类呢？我们可以看一下这个ISSUE：
github.com/apache/paim…
github.com/apache/paim…

总结来说就是，上面的FlinkCatalog类在createTable的时候，会因为创建的表不是Paimon类型的表而报错抛出。那既然都是基于hive metastore创建构造的flink表，日常使用也确实会有Hive表和Paimon表在同一个任务里共用的情况，而且当前Paimon的FlinkCatalog不满足同时查询Hive&Paimon格式的表，为什么不创建一个类，既能够支持Hive表也能够支持Paimon表呢？

所以FlinkGenericCatalogFactory就应运而生了。

2.2.1 create Catalog

我们从FlinkGenericCatalogFactory.createCatalog()的创建开始

public FlinkGenericCatalog createCatalog(Context context) {
    //注意这里生成的HiveCatalogFactory和HiveCatalog，是flink.HiveCatalog，和上一章讲的paimon.HiveCatalog不是一个类
    CatalogFactory hiveFactory = createHiveCatalogFactory(context.getClassLoader());
    Context filteredContext = filterContextOptions(context, hiveFactory);
    Catalog catalog = hiveFactory.createCatalog(filteredContext);
    //将创建好的flink.HiveCatalog传入
    return createCatalog(
            context.getClassLoader(), context.getOptions(), context.getName(), catalog);
}

public static FlinkGenericCatalog createCatalog(
        ClassLoader cl, Map<String, String> optionMap, String name, Catalog flinkCatalog) {
    Options options = Options.fromMap(optionMap);
    //这里写死了metastore=hive，所以下面创建的会是paimon.HiveCatalog
    options.set(CatalogOptions.METASTORE, "hive");
    //FlinkCatalog里面的catalog是paimon.HiveCatalog
    FlinkCatalog paimon =
            new FlinkCatalog(
                    org.apache.paimon.catalog.CatalogFactory.createCatalog(
                            CatalogContext.create(options, new FlinkFileIOLoader()), cl),
                    name,
                    options.get(DEFAULT_DATABASE),
                    cl,
                    options);
    //这里传入的就是一个FlinkCatalog，一个flink.HiveCatalog
    return new FlinkGenericCatalog(paimon, flinkCatalog);
}

从 FlinkGenericCatalog 的实现来看，很多操作都会同时操作两个 catalog, 其中 HiveCatalog 是对 hive HMS 进行请求操作，FlinkCatalog 是对 paimon 进行操作，比如：

public class FlinkGenericCatalog extends AbstractCatalog {
    ...

    public void createTable(ObjectPath tablePath, CatalogBaseTable table, boolean ignoreIfExists)
            throws TableAlreadyExistException, DatabaseNotExistException, CatalogException {
        String connector = table.getOptions().get(CONNECTOR.key());
        if (connector == null) {
            throw new RuntimeException(
                    "FlinkGenericCatalog can not create table without 'connector' key.");
        }
        //如果connector=paimon，就走paimon.createTable
        if (FlinkCatalogFactory.IDENTIFIER.equals(connector)) {
            paimon.createTable(tablePath, table, ignoreIfExists);
        } else {
            flink.createTable(tablePath, table, ignoreIfExists);
        }
    }

    public CatalogBaseTable getTable(ObjectPath tablePath)
            throws TableNotExistException, CatalogException {
        //先尝试paimon.getTable，不行则flink.getTable
        try {
            return paimon.getTable(tablePath);
        } catch (TableNotExistException e) {
            return flink.getTable(tablePath);
        }
    }
    ...
}

三、总结

Paimon Catalog相关的知识我们就讲完了，总结一下：

  • flink.CatalogFactory有两个子类，两个类都是外层包装类：
    • FlinkCatalogFactory：只支持Paimon的表
    • FlinkGenericCatalogFactory：兼容Paimon、Hive 的表
  • paimon.CatalogFactory有三个子类，都是实际执行的catalog类：
    • HiveCatalogFactory
    • FileSystemCatalogFactory
    • JdbcCatalogFactory
  • FlinkCatalog在get table的时候会创建FileStoreTable，有两个子类
    • 没有主键会创建 AppendOnlyFileStoreTable
    • 有主键会创建 PrimaryKeyFileStoreTable
avatar
文章
阅读
粉丝
