使用Canvas实现简易的电子签名
我们项目的技术栈是 React+Mobx，想要做电子签名，这个也是百度到的方法，在此作为记录，为后续开发做准备
一、先看下效果：

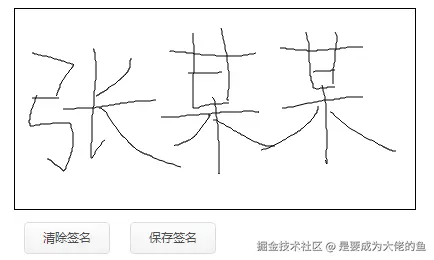

交互如下：

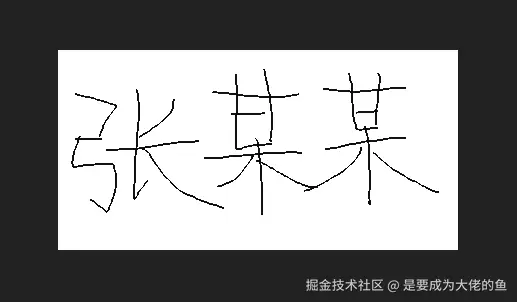

最终得到的是图片
二、具体代码实现：
html文件如下：
import store from './index-store.jsx';
import './index.less';
const XXX = observer(() => {
useEffect(() => {
store.init()
}, []);
return useObserver(() => (
<div>
<canvas id="signatureCanvas" width="400" height="200"></canvas>
<br />
<Button id="clearButton" onClick={store.clearCanvas}>清除签名</Button>
<Button id="saveButton" onClick={store.saveCanvas}>保存签名</Button>
</div>
));
});
export default XXX;
css文件如下：
canvas {
border: 1px solid black;
background-color: #fff;
}
button {
margin: 10px;
}
js文件如下：
@observable
isDrawing = false;
@observable
lastX = 0;
@observable
lastY = 0;
@observable
canvas = null;
@observable
ctx = null;
@action
init = () => {
this.canvas = document.getElementById("signatureCanvas");
console.log(22222)
this.ctx = this.canvas.getContext("2d");
this.canvas.addEventListener("mousedown", this.startDrawing);
this.canvas.addEventListener("mousemove", this.draw);
this.canvas.addEventListener("mouseup", this.stopDrawing);
this.canvas.addEventListener("mouseout", this.stopDrawing);
const clearButton = document.getElementById("clearButton");
clearButton.addEventListener("click", this.clearCanvas);
const saveButton = document.getElementById("saveButton");
saveButton.addEventListener("click", this.saveCanvas);
}
clearCanvas() {
const canvas = document.getElementById("signatureCanvas");
const ctx = canvas.getContext("2d");
ctx.clearRect(0, 0, canvas.width, canvas.height);
}
saveCanvas() {
const canvas = document.getElementById("signatureCanvas");
var imageData = canvas.getContext("2d").getImageData(0, 0, canvas.width, canvas.height);
for (var i = 0; i < imageData.data.length; i += 4) {
// 当该像素是透明的，则设置成白色
if (imageData.data[i + 3] == 0) {
imageData.data[i] = 255;
imageData.data[i + 1] = 255;
imageData.data[i + 2] = 255;
imageData.data[i + 3] = 255;
}
}
canvas.getContext("2d").putImageData(imageData, 0, 0);
const image = canvas.toDataURL("image/png");
const link = document.createElement("a");
link.download = "signature.png";
link.href = image;
link.click();
}
startDrawing(e) {
this.isDrawing = true;
[this.lastX, this.lastY] = [e.offsetX, e.offsetY];
}
draw(e) {
if (!this.isDrawing) return;
this.canvas = document.getElementById("signatureCanvas");
this.ctx = this.canvas.getContext("2d");
this.ctx.beginPath();
this.ctx.moveTo(this.lastX, this.lastY);
this.ctx.lineTo(e.offsetX, e.offsetY);
this.ctx.stroke();
[this.lastX, this.lastY] = [e.offsetX, e.offsetY];
}
stopDrawing() {
this.isDrawing = false;
}
