1. 引子
1.1 图层的概念

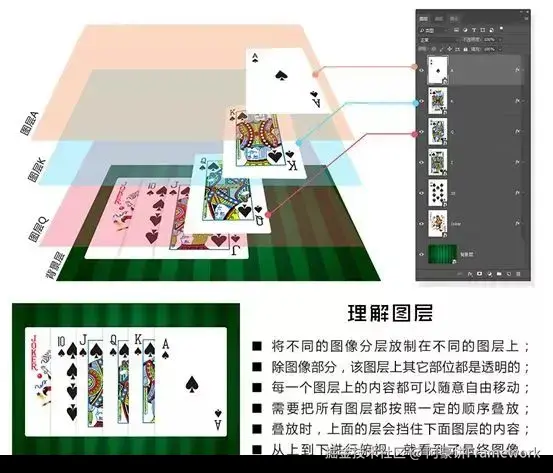

（图片来自 www.jianshu.com/p/b0ef7c044…
在很多的图形相关的软件中都有图层的概念，那什么是图层呢？
简单的说，可以将每个图层理解为一张透明的纸，将图像的各部分绘制在不同的透明纸（图层）上。透过这层纸，可以看到纸后面的东西，而且每层纸都是独立的，无论在这层纸上如何涂画，都不会影响到其他图层中的图像。也就是说，每个图层可以独立编辑或修改，最后将透明纸叠加起来，从上向下俯瞰，即可得到并实时改变最终的合成效果。
1.2 什么是图层合成
以 Android 原生版本的 Launcher 为例，这个场景下有四个图层，状态栏、导航栏由 SystemUI 绘制，壁纸由壁纸服务提供，图标由 Launcher 应用绘制，图层合成就是把这四个图层按既定的显示区域，展现到显示屏上。
图片来自：blog.csdn.net/jxt1234and2…
每一个图层对应一块 buffer，所谓合成，就是把多个 buffer 合并成一个，然后送显。
具体怎么合成是一个复杂的工作，现代嵌入式平台通常有两类合成方法：
- Client 合成，使用软件图形库合成，opengles skia 等，这些图形库通常会操作 GPU 来完成合成工作。
- Device 合成，使用特定的硬件合成图层。比如高通平台的 mdp。
Device 合成效率更高，但是能力有限，不支持复杂图形的合成。Client 合成消耗资源更多，但是能力强大，支持各种复杂效果。
2. 合成过程的发起
在 Vsync 章节我们说到，当 sf 收到 Vsync 信号后，会回调到 Scheduler::onFrameSignal 函数：
void Scheduler::onFrameSignal(ICompositor& compositor, VsyncId vsyncId,
TimePoint expectedVsyncTime) {
const TimePoint frameTime = SchedulerClock::now();
// 关注点1
if (!compositor.commit(frameTime, vsyncId, expectedVsyncTime)) {
return;
}
// 关注点2
compositor.composite(frameTime, vsyncId);
compositor.sample();
}
这里的 compositor 实际是 SurfaceFlinger，SurfaceFlinger 实现了 ICompositor 接口。
该函数就是 sf 合成的发起点。
其中：
- 关注点 1 commit，对所有 layer 的变化信息做一个预处理，
- 关注点 2 composite，发起 layer 的合成操作
3. 合成过程之前的准备工作
在具体分析 commit 和 composite 两个函数实现之前，我们先来看看 SurfaceFlinger 为了完成合成工作做了哪些准备。
合成过程会涉及到以下几个对象：
- RenderEngine 负责 Client 合成
- HWComposer，HWComposer HAL 的客户端包装类，负责 Device 合成
- BufferQueue 负责提供 buffer，buffer 用于保存合成后的结果，注意这里是图层合成阶段的 BufferQueue，不是 App 绘制阶段的 BufferQueue，不要混淆了
接下来我们来看看这几个对象的初始化过程。
在 SurfaceFlinger 的启动过程中会执行到 SurfaceFlinger::init() 函数：
// /frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp
void SurfaceFlinger::init() FTL_FAKE_GUARD(kMainThreadContext) {
// .....
// 关注点 1
// 构建 RenderEngine，用于 Client 合成
auto builder = renderengine::RenderEngineCreationArgs::Builder()
.setPixelFormat(static_cast<int32_t>(defaultCompositionPixelFormat))
.setImageCacheSize(maxFrameBufferAcquiredBuffers)
.setUseColorManagerment(useColorManagement)
.setEnableProtectedContext(enable_protected_contents(false))
.setPrecacheToneMapperShaderOnly(false)
.setSupportsBackgroundBlur(mSupportsBlur)
.setContextPriority(
useContextPriority
? renderengine::RenderEngine::ContextPriority::REALTIME
: renderengine::RenderEngine::ContextPriority::MEDIUM);
if (auto type = chooseRenderEngineTypeViaSysProp()) {
builder.setRenderEngineType(type.value());
}
mRenderEngine = renderengine::RenderEngine::create(builder.build());
mCompositionEngine->setRenderEngine(mRenderEngine.get());
// ......
// 关注点2
// 创建 HWComposer 对象并传入一个 name 属性，再通过 mCompositionEngine->setHwComposer 设置对象属性。
mCompositionEngine->setHwComposer(getFactory().createHWComposer(mHwcServiceName));
// 这里的 this 就是 SurfaceFlinger 对象本身，因为它实现了 HWC2::ComposerCallback 回调接口
mCompositionEngine->getHwComposer().setCallback(*this);
// ......
// Commit primary display.
sp<const DisplayDevice> display;
if (const auto indexOpt = mCurrentState.getDisplayIndex(getPrimaryDisplayIdLocked())) {
const auto& displays = mCurrentState.displays;
const auto& token = displays.keyAt(*indexOpt);
const auto& state = displays.valueAt(*indexOpt);
// 关注点3
processDisplayAdded(token, state);
mDrawingState.displays.add(token, state);
//
display = getDefaultDisplayDeviceLocked();
}
//......
initScheduler(display);
// ......
}
- 关注点 1，构建 RenderEngine 对象，该对象用于 GPU 合成，也叫 Client 合成
- 关注点 2，构建 HWComposer 对象，该对象是 HWC HAL 的客户端包装类，方便客户端使用 HWC HAL
- 关注点 3，初始化 Display 相关对象，我们主要关注 BufferQueue 及其相关类
3.1 RenderEngine 的初始化
关注点 1，初始化了一个 renderengine::RenderEngineCreationArgs::Builder 对象，接着将 builder 对象传入 create 函数构建一个 RenderEngine 对象，create 函数的实现如下：
std::unique_ptr<RenderEngine> RenderEngine::create(const RenderEngineCreationArgs& args) {
// 构建 builder 时，没有配置 renderEngineType 参数
// 使用默认值 RenderEngine::RenderEngineType::SKIA_GL_THREADED
switch (args.renderEngineType) {
case RenderEngineType::THREADED:
ALOGD("Threaded RenderEngine with GLES Backend");
return renderengine::threaded::RenderEngineThreaded::create(
[args]() { return android::renderengine::gl::GLESRenderEngine::create(args); },
args.renderEngineType);
case RenderEngineType::SKIA_GL:
ALOGD("RenderEngine with SkiaGL Backend");
return renderengine::skia::SkiaGLRenderEngine::create(args);
case RenderEngineType::SKIA_VK:
ALOGD("RenderEngine with SkiaVK Backend");
return renderengine::skia::SkiaVkRenderEngine::create(args);
case RenderEngineType::SKIA_GL_THREADED: { // 走这个分支
ALOGD("Threaded RenderEngine with SkiaGL Backend");
return renderengine::threaded::RenderEngineThreaded::create(
[args]() {
return android::renderengine::skia::SkiaGLRenderEngine::create(args);
},
args.renderEngineType);
}
case RenderEngineType::SKIA_VK_THREADED:
ALOGD("Threaded RenderEngine with SkiaVK Backend");
return renderengine::threaded::RenderEngineThreaded::create(
[args]() {
return android::renderengine::skia::SkiaVkRenderEngine::create(args);
},
args.renderEngineType);
case RenderEngineType::GLES:
default:
ALOGD("RenderEngine with GLES Backend");
return renderengine::gl::GLESRenderEngine::create(args);
}
}
create 函数会走到 SKIA_GL_THREADED 这个 case， create 一个 RenderEngineThreaded 对象返回：
std::unique_ptr<RenderEngineThreaded> RenderEngineThreaded::create(CreateInstanceFactory factory,
RenderEngineType type) {
return std::make_unique<RenderEngineThreaded>(std::move(factory), type);
}
实际就是 new 一个 RenderEngineThreaded，其构造函数如下：
RenderEngineThreaded::RenderEngineThreaded(CreateInstanceFactory factory, RenderEngineType type)
: RenderEngine(type) {
ATRACE_CALL();
std::lock_guard lockThread(mThreadMutex);
mThread = std::thread(&RenderEngineThreaded::threadMain, this, factory);
}
在构造函数中会启动一个线程，线程的主函数是 RenderEngineThreaded::threadMain：
void RenderEngineThreaded::threadMain(CreateInstanceFactory factory) NO_THREAD_SAFETY_ANALYSIS {
ATRACE_CALL();
if (!SetTaskProfiles(0, {"SFRenderEnginePolicy"})) {
ALOGW("Failed to set render-engine task profile!");
}
if (setSchedFifo(true) != NO_ERROR) {
ALOGW("Couldn't set SCHED_FIFO");
}
// SkiaGLRenderEngine 类型
mRenderEngine = factory();
pthread_setname_np(pthread_self(), mThreadName);
{
std::scoped_lock lock(mInitializedMutex);
mIsInitialized = true;
}
mInitializedCondition.notify_all();
while (mRunning) {
const auto getNextTask = [this]() -> std::optional<Work> {
std::scoped_lock lock(mThreadMutex);
if (!mFunctionCalls.empty()) {
Work task = mFunctionCalls.front();
mFunctionCalls.pop();
return std::make_optional<Work>(task);
}
return std::nullopt;
};
const auto task = getNextTask();
if (task) {
(*task)(*mRenderEngine);
}
std::unique_lock<std::mutex> lock(mThreadMutex);
mCondition.wait(lock, [this]() REQUIRES(mThreadMutex) {
return !mRunning || !mFunctionCalls.empty();
});
}
// we must release the RenderEngine on the thread that created it
mRenderEngine.reset();
}
完成基本的初始化，主要是使用传入的 factory（create 的时候传入的 lamda 表达式） 构建一个 SkiaGLRenderEngine 对象，然后进入一个无线循环，取 task，执行 task，然后 lock 到锁对象上，等待唤醒。
容易猜到，这里的 Task 应该就是图层的 GPU 合成工作。
最后会调用到 mCompositionEngine->setRenderEngine(mRenderEngine.get()); 把构建好的 RenderEngine 对象给到 CompositionEngine 的 mRenderEngine 成员.
// /frameworks/native/services/surfaceflinger/CompositionEngine/src/CompositionEngine.cpp
void CompositionEngine::setRenderEngine(renderengine::RenderEngine* renderEngine) {
mRenderEngine = renderEngine;
}

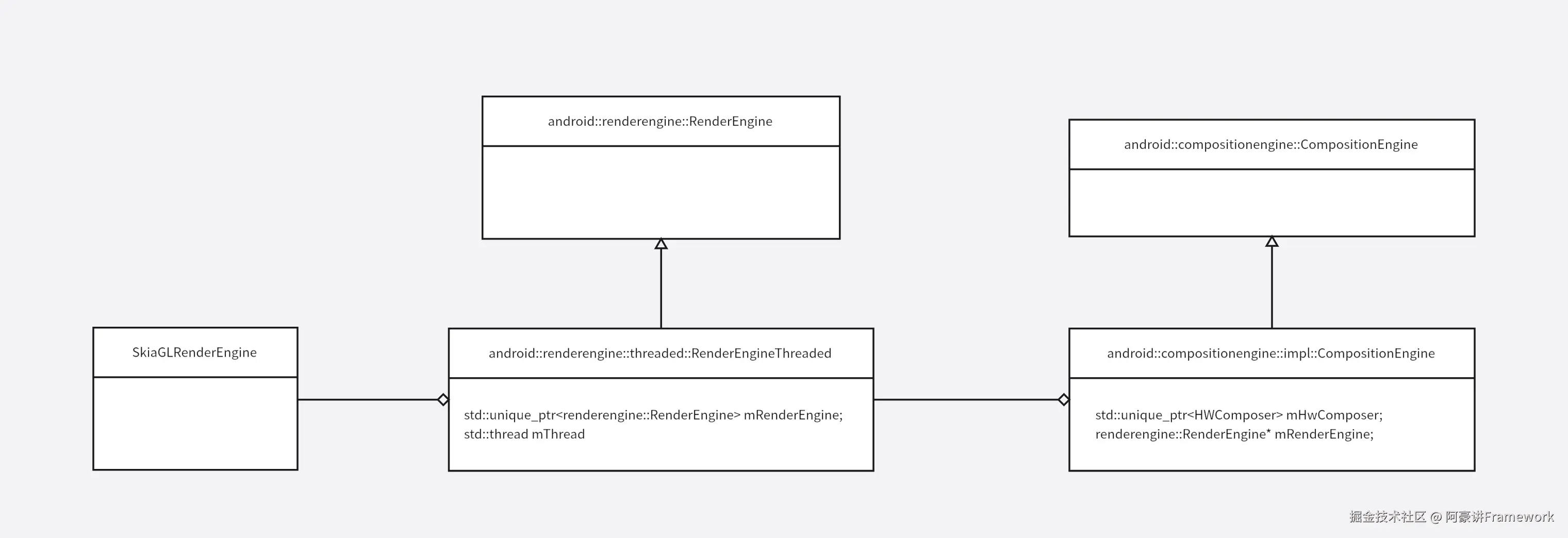

相关类的关系如下图所示：
3.2 HWComposer 的初始化
接着回到 init 函数中，我们来看看关注点 2 处：
// 关注点2
// 创建 HWComposer 对象并传入一个 name 属性，再通过 mCompositionEngine->setHwComposer 设置对象属性。
mCompositionEngine->setHwComposer(getFactory().createHWComposer(mHwcServiceName));
// 这里的 this 就是 SurfaceFlinger 对象本身，因为它实现了 HWC2::ComposerCallback 回调接口
mCompositionEngine->getHwComposer().setCallback(*this);
首先，明确一点，HardWare Composor hal 是以 Binder 服务的形式存在于系统中的，这里通过 DefaultFactory 构建一个 HwComposer 对象，根据我们以往的分析源码的经验，HwComposer 大概率是一个 Binder 代理端类的包装类。
接下来我们来分析 HwComposer 的初始化过程。
// /frameworks/native/services/surfaceflinger/SurfaceFlingerDefaultFactory.cpp
std::unique_ptr<HWComposer> DefaultFactory::createHWComposer(const std::string& serviceName) {
return std::make_unique<android::impl::HWComposer>(serviceName);
}
直接 new 一个 android::impl::HWComposer，其构造函数实现如下：
// /frameworks/native/services/surfaceflinger/DisplayHardware/HWComposer.cpp
HWComposer::HWComposer(const std::string& composerServiceName)
: HWComposer(Hwc2::Composer::create(composerServiceName)) {}
HWComposer::HWComposer(std::unique_ptr<Hwc2::Composer> composer)
: mComposer(std::move(composer)),
mMaxVirtualDisplayDimension(static_cast<size_t>(sysprop::max_virtual_display_dimension(0))),
mUpdateDeviceProductInfoOnHotplugReconnect(
sysprop::update_device_product_info_on_hotplug_reconnect(false)) {}
接着会调用 create 函数构造一个 AidlComposer 对象，然后调用另一个构造函数重载：
std::unique_ptr<Composer> Composer::create(const std::string& serviceName) {
if (AidlComposer::isDeclared(serviceName)) { // 新版本都会走该分支，使用 aidl hal
return std::make_unique<AidlComposer>(serviceName);
}
return std::make_unique<HidlComposer>(serviceName);
}
AidlComposer 是 IComposer 的包装类，IComposer 实际就是 HWComposer Hal Binder 服务的代理端对象，用于发起 Binder 远程过程调用。构造函数实现如下：
// /frameworks/native/services/surfaceflinger/DisplayHardware/AidlComposerHal.h
std::shared_ptr<AidlIComposer> mAidlComposer;
std::shared_ptr<AidlIComposerClient> mAidlComposerClient;
// /frameworks/native/services/surfaceflinger/DisplayHardware/AidlComposerHal.cpp
AidlComposer::AidlComposer(const std::string& serviceName) {
// This only waits if the service is actually declared
// 拿到代理端对象
mAidlComposer = AidlIComposer::fromBinder(
ndk::SpAIBinder(AServiceManager_waitForService(instance(serviceName).c_str())));
if (!mAidlComposer) {
LOG_ALWAYS_FATAL("Failed to get AIDL composer service");
return;
}
// 拿到匿名 Binder 服务的代理端对象 mAidlComposerClient
if (!mAidlComposer->createClient(&mAidlComposerClient).isOk()) {
LOG_ALWAYS_FATAL("Can't create AidlComposerClient, fallback to HIDL");
return;
}
addReader(translate<Display>(kSingleReaderKey));
// If unable to read interface version, then become backwards compatible.
int32_t version = 1;
const auto status = mAidlComposerClient->getInterfaceVersion(&version);
if (!status.isOk()) {
ALOGE("getInterfaceVersion for AidlComposer constructor failed %s",
status.getDescription().c_str());
}
mSupportsBufferSlotsToClear = version > 1;
if (!mSupportsBufferSlotsToClear) {
if (sysprop::clear_slots_with_set_layer_buffer(false)) {
mClearSlotBuffer = sp<GraphicBuffer>::make(1, 1, PIXEL_FORMAT_RGBX_8888,
GraphicBuffer::USAGE_HW_COMPOSER |
GraphicBuffer::USAGE_SW_READ_OFTEN |
GraphicBuffer::USAGE_SW_WRITE_OFTEN,
"AidlComposer");
if (!mClearSlotBuffer || mClearSlotBuffer->initCheck() != ::android::OK) {
LOG_ALWAYS_FATAL("Failed to allocate a buffer for clearing layer buffer slots");
return;
}
}
}
ALOGI("Loaded AIDL composer3 HAL service");
}
在构造函数中，首先通过 ServiceManager 获取到 HWComposer Hal 的代理端对象 mAidlComposer，接着通过 mAidlComposer 发起远程调用获取到匿名 Binder 服务的代理端对象 mAidlComposerClient。都是 Binder 的基本操作了。不在细说了。总而言之，AidlComposer 类包装了与 HWC Hal 交互的接口，让使用方更为方便地操作 HWC Hal。

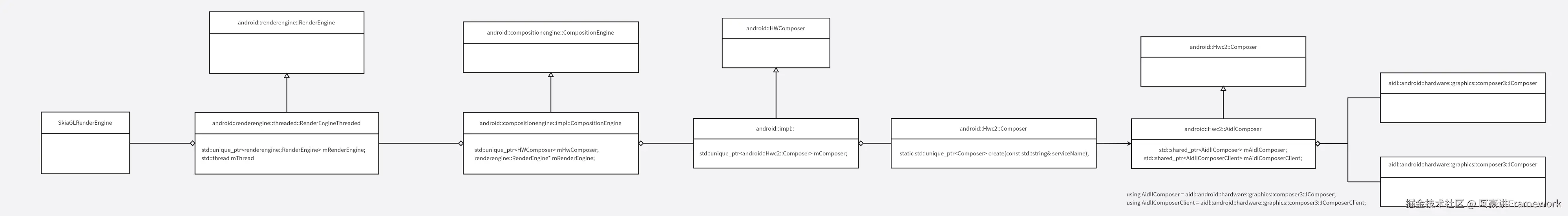

到这里呢，我们就梳理出了 CompositionEngine 相关类的关系图：
总之，CompositionEngine 是 SurfaceFlinger 与 RenderEngine 和 HWComposer 沟通的桥梁，RenderEngine 负责图层的 GPU 合成，HWComposer 负责图层的硬件合成。
HWComposer 中还有一个重要成员 mDisplayData，mDisplayData 中有一个重要成员 Display，他们都是什么初始化的呢？
本节开头的代码中：
mCompositionEngine->getHwComposer().setCallback(*this);
这里向 HwComposer 注册了一个回调，回调类型是 HWC2::ComposerCallback ，回调对象就是 SurfaceFlinger，SurfaceFlinger 实现了 HWC2::ComposerCallback 接口。
HWC2::ComposerCallback 接口的定义如下：
struct ComposerCallback {
virtual void onComposerHalHotplug(hal::HWDisplayId, hal::Connection) = 0;
virtual void onComposerHalRefresh(hal::HWDisplayId) = 0;
virtual void onComposerHalVsync(hal::HWDisplayId, nsecs_t timestamp,
std::optional<hal::VsyncPeriodNanos>) = 0;
virtual void onComposerHalVsyncPeriodTimingChanged(hal::HWDisplayId,
const hal::VsyncPeriodChangeTimeline&) = 0;
virtual void onComposerHalSeamlessPossible(hal::HWDisplayId) = 0;
virtual void onComposerHalVsyncIdle(hal::HWDisplayId) = 0;
virtual void onRefreshRateChangedDebug(const RefreshRateChangedDebugData&) = 0;
protected:
~ComposerCallback() = default;
};
当手机开机时或者有新的显示设备加入时，就会回调到这里的 onComposerHalHotplug 函数。SurfaceFlinger 中，该函数的实现如下：
void SurfaceFlinger::onComposerHalHotplug(hal::HWDisplayId hwcDisplayId,
hal::Connection connection) {
{
std::lock_guard<std::mutex> lock(mHotplugMutex);
mPendingHotplugEvents.push_back(HotplugEvent{hwcDisplayId, connection});
}
if (mScheduler) {
mScheduler->scheduleConfigure();
}
}
接着调用 mScheduler->scheduleConfigure();：
void MessageQueue::scheduleConfigure() {
struct ConfigureHandler : MessageHandler {
explicit ConfigureHandler(ICompositor& compositor) : compositor(compositor) {}
void handleMessage(const Message&) override { compositor.configure(); }
ICompositor& compositor;
};
// TODO(b/241285876): Batch configure tasks that happen within some duration.
postMessage(sp<ConfigureHandler>::make(mCompositor));
}
这里会 postMessage，对应的 Handler 回调函数 handleMessage 中会接着调用 compositor.configure()，这里的 compositor 实际类型是 SurfaceFligner。
void SurfaceFlinger::configure() FTL_FAKE_GUARD(kMainThreadContext) {
Mutex::Autolock lock(mStateLock);
if (configureLocked()) {
setTransactionFlags(eDisplayTransactionNeeded);
}
}
接着调用 configureLocked：
bool SurfaceFlinger::configureLocked() {
std::vector<HotplugEvent> events;
{
std::lock_guard<std::mutex> lock(mHotplugMutex);
events = std::move(mPendingHotplugEvents);
}
for (const auto [hwcDisplayId, connection] : events) {
if (auto info = getHwComposer().onHotplug(hwcDisplayId, connection)) {
const auto displayId = info->id;
const bool connected = connection == hal::Connection::CONNECTED;
if (const char* const log =
processHotplug(displayId, hwcDisplayId, connected, std::move(*info))) {
ALOGI("%s display %s (HAL ID %" PRIu64 ")", log, to_string(displayId).c_str(),
hwcDisplayId);
}
}
}
return !events.empty();
}
这里会接着调用到 getHwComposer().onHotplug：
std::optional<DisplayIdentificationInfo> HWComposer::onHotplug(hal::HWDisplayId hwcDisplayId,
hal::Connection connection) {
switch (connection) {
case hal::Connection::CONNECTED:
return onHotplugConnect(hwcDisplayId);
case hal::Connection::DISCONNECTED:
return onHotplugDisconnect(hwcDisplayId);
case hal::Connection::INVALID:
return {};
}
}
接着调用 onHotplugConnect：
std::optional<DisplayIdentificationInfo> HWComposer::onHotplugConnect(
hal::HWDisplayId hwcDisplayId) {
// ......
if (!isConnected(info->id)) {
allocatePhysicalDisplay(hwcDisplayId, info->id);
}
return info;
}
这里会调用到 allocatePhysicalDisplay：
void HWComposer::allocatePhysicalDisplay(hal::HWDisplayId hwcDisplayId,
PhysicalDisplayId displayId) {
mPhysicalDisplayIdMap[hwcDisplayId] = displayId;
if (!mPrimaryHwcDisplayId) {
mPrimaryHwcDisplayId = hwcDisplayId;
}
// unordered_map 如果当前容器中没有以 key 为键的键值对，则其会使用该键向当前容器中插入一个新键值对。
auto& displayData = mDisplayData[displayId];
auto newDisplay =
std::make_unique<HWC2::impl::Display>(*mComposer.get(), mCapabilities, hwcDisplayId,
hal::DisplayType::PHYSICAL);
newDisplay->setConnected(true);
displayData.hwcDisplay = std::move(newDisplay);
}
这里会向 mDisplayData 插入一组新的数据，同时初始化一个 HWC2::impl::Display 对象保存在 displayData.hwcDisplay 中。
HWC2::impl::Display 继承自 HWC2::Display，是显示设备的抽象：
class Display : public HWC2::Display {
//......
using Layers = std::unordered_map<hal::HWLayerId, std::weak_ptr<HWC2::impl::Layer>>;
Layers mLayers;
//......
}
有一个重要成员 mLayers，用于保存 HWC2::impl::Layer
Display 的构造函数实现如下：
Display::Display(android::Hwc2::Composer& composer,
const std::unordered_set<AidlCapability>& capabilities, HWDisplayId id,
DisplayType type)
: mComposer(composer), mCapabilities(capabilities), mId(id), mType(type) {
ALOGV("Created display %" PRIu64, id);
}
就是几个成员的赋值。
3.3 BufferQueue 的初始化
关注点 3，完成合成阶段 BufferQueue 及其相关类的初始化。
// /frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp
void SurfaceFlinger::init() FTL_FAKE_GUARD(kMainThreadContext) {
// ......
processDisplayAdded(token, state);
// ......
}
void SurfaceFlinger::processDisplayAdded(const wp<IBinder>& displayToken,
const DisplayDeviceState& state) {
// ......
// 关注点 1，创建 Display 对象
auto compositionDisplay = getCompositionEngine().createDisplay(builder.build());
compositionDisplay->setLayerCachingEnabled(mLayerCachingEnabled);
sp<compositionengine::DisplaySurface> displaySurface;
// 关注点 2 创建 BufferQueue 获取到生产者和消费者
sp<IGraphicBufferProducer> producer;
sp<IGraphicBufferProducer> bqProducer;
sp<IGraphicBufferConsumer> bqConsumer;
getFactory().createBufferQueue(&bqProducer, &bqConsumer, /*consumerIsSurfaceFlinger =*/false);
if (state.isVirtual()) { // 虚拟屏，不管
// ......
} else {
ALOGE_IF(state.surface != nullptr,
"adding a supported display, but rendering "
"surface is provided (%p), ignoring it",
state.surface.get());
const auto displayId = PhysicalDisplayId::tryCast(compositionDisplay->getId());
LOG_FATAL_IF(!displayId);
// 关注点 3
// 创建了 FramebufferSurface 对象，FramebufferSurface 继承自 compositionengine::DisplaySurface
// FramebufferSurface 是作为消费者的角色工作的，消费 SF GPU 合成后的图形数据
displaySurface =
sp<FramebufferSurface>::make(getHwComposer(), *displayId, bqConsumer,
state.physical->activeMode->getResolution(),
ui::Size(maxGraphicsWidth, maxGraphicsHeight));
producer = bqProducer;
}
LOG_FATAL_IF(!displaySurface);
// 关注点 4 创建 DisplayDevice，同时会创建 RenderSurface，作为生产者角色工作
auto display = setupNewDisplayDeviceInternal(displayToken, std::move(compositionDisplay), state,
displaySurface, producer);
if (mScheduler && !display->isVirtual()) {
const auto displayId = display->getPhysicalId();
{
// TODO(b/241285876): Annotate `processDisplayAdded` instead.
ftl::FakeGuard guard(kMainThreadContext);
// For hotplug reconnect, renew the registration since display modes have been reloaded.
mScheduler->registerDisplay(displayId, display->holdRefreshRateSelector());
}
dispatchDisplayHotplugEvent(displayId, true);
}
if (display->isVirtual()) {
display->adjustRefreshRate(mScheduler->getPacesetterRefreshRate());
}
mDisplays.try_emplace(displayToken, std::move(display));
}
关注点1，初始化 Display 对象过程，Display 对象是显示设备的抽象。
std::shared_ptr<compositionengine::Display> CompositionEngine::createDisplay(
const DisplayCreationArgs& args) {
return compositionengine::impl::createDisplay(*this, args);
}
namespace android::compositionengine::impl {
std::shared_ptr<Display> createDisplay(
const compositionengine::CompositionEngine& compositionEngine,
const compositionengine::DisplayCreationArgs& args) {
return createDisplayTemplated<Display>(compositionEngine, args);
}
//......
}
进一步调用到 createDisplayTemplated 函数：
// BaseDisplay -> android::compositionengine::impl::Display
// CompositionEngine -> compositionengine::CompositionEngine
template <typename BaseDisplay, typename CompositionEngine>
std::shared_ptr<BaseDisplay> createDisplayTemplated(
const CompositionEngine& compositionEngine,
const compositionengine::DisplayCreationArgs& args) {
auto display = createOutputTemplated<BaseDisplay>(compositionEngine);
display->setConfiguration(args);
return display;
}
接着调用模版函数：
// BaseOutput -> BaseDisplay -> android::compositionengine::impl::Display
// CompositionEngine -> compositionengine::CompositionEngine
template <typename BaseOutput, typename CompositionEngine, typename... Args>
std::shared_ptr<BaseOutput> createOutputTemplated(const CompositionEngine& compositionEngine,
Args... args) {
// 定义一个内部类
// 实际继承自 android::compositionengine::impl::Display
class Output final : public BaseOutput {
public:
// Clang incorrectly complains that these are unused.
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wunused-local-typedef"
// compositionengine::impl::OutputCompositionState
using OutputCompositionState = std::remove_const_t<
std::remove_reference_t<decltype(std::declval<BaseOutput>().getState())>>;
using OutputLayer = std::remove_pointer_t<decltype(
std::declval<BaseOutput>().getOutputLayerOrderedByZByIndex(0))>;
#pragma clang diagnostic pop
explicit Output(const CompositionEngine& compositionEngine, Args... args)
: BaseOutput(std::forward<Args>(args)...), mCompositionEngine(compositionEngine) {}
~Output() override = default;
private:
// compositionengine::Output overrides
const OutputCompositionState& getState() const override { return mState; }
OutputCompositionState& editState() override { return mState; }
size_t getOutputLayerCount() const override {
return mCurrentOutputLayersOrderedByZ.size();
}
OutputLayer* getOutputLayerOrderedByZByIndex(size_t index) const override {
if (index >= mCurrentOutputLayersOrderedByZ.size()) {
return nullptr;
}
return mCurrentOutputLayersOrderedByZ[index].get();
}
// compositionengine::impl::Output overrides
const CompositionEngine& getCompositionEngine() const override {
return mCompositionEngine;
};
OutputLayer* ensureOutputLayer(std::optional<size_t> prevIndex,
const sp<LayerFE>& layerFE) {
auto outputLayer = (prevIndex && *prevIndex <= mCurrentOutputLayersOrderedByZ.size())
? std::move(mCurrentOutputLayersOrderedByZ[*prevIndex])
: BaseOutput::createOutputLayer(layerFE);
auto result = outputLayer.get();
mPendingOutputLayersOrderedByZ.emplace_back(std::move(outputLayer));
return result;
}
void finalizePendingOutputLayers() override {
// The pending layers are added in reverse order. Reverse them to
// get the back-to-front ordered list of layers.
std::reverse(mPendingOutputLayersOrderedByZ.begin(),
mPendingOutputLayersOrderedByZ.end());
mCurrentOutputLayersOrderedByZ = std::move(mPendingOutputLayersOrderedByZ);
}
void dumpState(std::string& out) const override { mState.dump(out); }
OutputLayer* injectOutputLayerForTest(const sp<LayerFE>& layerFE) override {
auto outputLayer = BaseOutput::createOutputLayer(layerFE);
auto result = outputLayer.get();
mCurrentOutputLayersOrderedByZ.emplace_back(std::move(outputLayer));
return result;
}
// Note: This is declared as a private virtual non-override so it can be
// an override implementation in the unit tests, but otherwise is not an
// accessible override for the normal implementation.
virtual void injectOutputLayerForTest(std::unique_ptr<OutputLayer> outputLayer) {
mCurrentOutputLayersOrderedByZ.emplace_back(std::move(outputLayer));
}
void clearOutputLayers() override {
mCurrentOutputLayersOrderedByZ.clear();
mPendingOutputLayersOrderedByZ.clear();
}
const CompositionEngine& mCompositionEngine;
OutputCompositionState mState;
std::vector<std::unique_ptr<OutputLayer>> mCurrentOutputLayersOrderedByZ;
std::vector<std::unique_ptr<OutputLayer>> mPendingOutputLayersOrderedByZ;
};
// 构建一个内部类的对象
return std::make_shared<Output>(compositionEngine, std::forward<Args>(args)...);
}
定义了一个 Output 函数内部类，然后 new 一个对象返回。

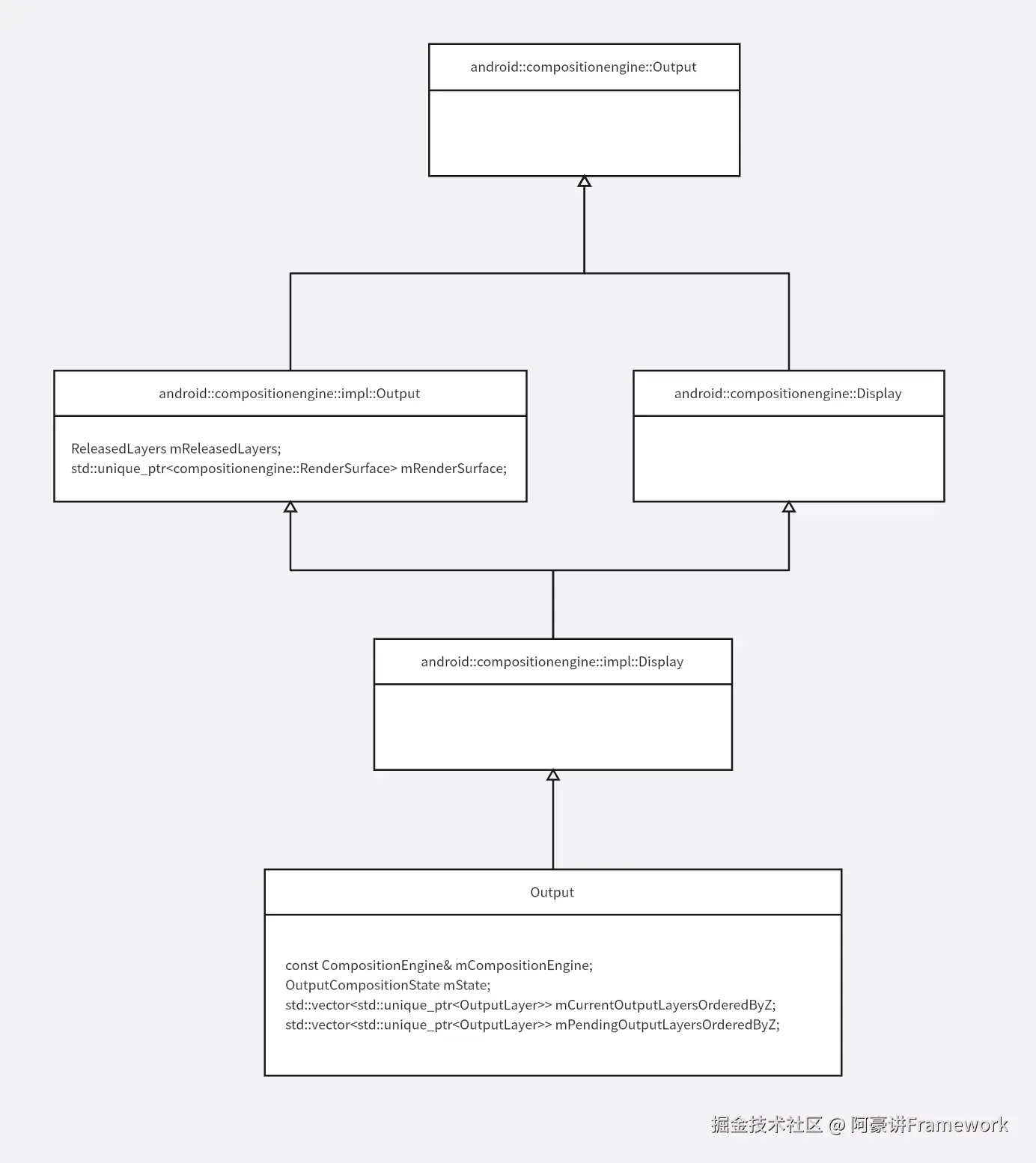

Output 是一个模版类，当前场景下 Output 相关类类图如下：
Outout 中的两个成员很重要：
std::vector<std::unique_ptr<OutputLayer>> mCurrentOutputLayersOrderedByZ;
std::vector<std::unique_ptr<OutputLayer>> mPendingOutputLayersOrderedByZ;
后续合成过程中就会构建新的 OutputLayer 对象并插入这两个 vector。
Display 对象到这里就初始化完成了。
关注点2 创建 BufferQueue：
// /frameworks/native/services/surfaceflinger/SurfaceFlingerDefaultFactory.cpp
void DefaultFactory::createBufferQueue(sp<IGraphicBufferProducer>* outProducer,
sp<IGraphicBufferConsumer>* outConsumer,
bool consumerIsSurfaceFlinger) {
BufferQueue::createBufferQueue(outProducer, outConsumer, consumerIsSurfaceFlinger);
}
// /frameworks/native/libs/gui/BufferQueue.cpp
void BufferQueue::createBufferQueue(sp<IGraphicBufferProducer>* outProducer,
sp<IGraphicBufferConsumer>* outConsumer,
bool consumerIsSurfaceFlinger) {
LOG_ALWAYS_FATAL_IF(outProducer == nullptr,
"BufferQueue: outProducer must not be NULL");
LOG_ALWAYS_FATAL_IF(outConsumer == nullptr,
"BufferQueue: outConsumer must not be NULL");
sp<BufferQueueCore> core(new BufferQueueCore());
LOG_ALWAYS_FATAL_IF(core == nullptr,
"BufferQueue: failed to create BufferQueueCore");
sp<IGraphicBufferProducer> producer(new BufferQueueProducer(core, consumerIsSurfaceFlinger));
LOG_ALWAYS_FATAL_IF(producer == nullptr,
"BufferQueue: failed to create BufferQueueProducer");
sp<IGraphicBufferConsumer> consumer(new BufferQueueConsumer(core));
LOG_ALWAYS_FATAL_IF(consumer == nullptr,
"BufferQueue: failed to create BufferQueueConsumer");
*outProducer = producer;
*outConsumer = consumer;
}
初始化一个 BufferQueueCore，然后通过 BufferQueueCore 初始化好 Producer，Consumer。Producer 不断的 dequeueBuffer & queueBuffer ; Consumer 不断的 acquireBuffer & releaseBuffer，这样 Buffer 就流转起来了。
不论是 Producer，还是 Consumer，都是和具体的类结合起来使用：
- RenderSurface 对象间接持有 producer，作为生产者
- FramebufferSurface 对象会持有 consumer，作为消费者
关注点 3，初始化一个 FramebufferSurface 对象，持有 consumer，是具体的消费者，其构造函数实现如下：
FramebufferSurface::FramebufferSurface(HWComposer& hwc, PhysicalDisplayId displayId,
const sp<IGraphicBufferConsumer>& consumer,
const ui::Size& size, const ui::Size& maxSize)
: ConsumerBase(consumer), // 持有 consumer
mDisplayId(displayId),
mMaxSize(maxSize),
mCurrentBufferSlot(-1),
mCurrentBuffer(),
mCurrentFence(Fence::NO_FENCE),
mHwc(hwc),
mHasPendingRelease(false),
mPreviousBufferSlot(BufferQueue::INVALID_BUFFER_SLOT),
mPreviousBuffer() {
ALOGV("Creating for display %s", to_string(displayId).c_str());
mName = "FramebufferSurface";
mConsumer->setConsumerName(mName);
mConsumer->setConsumerUsageBits(GRALLOC_USAGE_HW_FB |
GRALLOC_USAGE_HW_RENDER |
GRALLOC_USAGE_HW_COMPOSER);
const auto limitedSize = limitSize(size);
mConsumer->setDefaultBufferSize(limitedSize.width, limitedSize.height);
mConsumer->setMaxAcquiredBufferCount(
SurfaceFlinger::maxFrameBufferAcquiredBuffers - 1);
for (size_t i = 0; i < sizeof(mHwcBufferIds) / sizeof(mHwcBufferIds[0]); ++i) {
mHwcBufferIds[i] = UINT64_MAX;
}
}
主要是初始化和一些配置，FramebufferSurface 内部持有一个 consumer，是 GPU 合成后 Buffer 的消费端。
接下来看关注点 4，主要任务是初始化一个 DisplayDevice 对象，同时会构建生产者对象 RenderSurface
这里会调用 setupNewDisplayDeviceInternal 函数：
sp<DisplayDevice> SurfaceFlinger::setupNewDisplayDeviceInternal(
const wp<IBinder>& displayToken,
std::shared_ptr<compositionengine::Display> compositionDisplay,
const DisplayDeviceState& state,
const sp<compositionengine::DisplaySurface>& displaySurface,
const sp<IGraphicBufferProducer>& producer) {
// 构建 DisplayDevice 的参数
DisplayDeviceCreationArgs creationArgs(sp<SurfaceFlinger>::fromExisting(this), getHwComposer(),
displayToken, compositionDisplay);
creationArgs.sequenceId = state.sequenceId;
creationArgs.isSecure = state.isSecure;
creationArgs.displaySurface = displaySurface;
creationArgs.hasWideColorGamut = false;
creationArgs.supportedPerFrameMetadata = 0;
if (const auto& physical = state.physical) {
creationArgs.activeModeId = physical->activeMode->getId();
const auto [kernelIdleTimerController, idleTimerTimeoutMs] =
getKernelIdleTimerProperties(compositionDisplay->getId());
using Config = scheduler::RefreshRateSelector::Config;
const auto enableFrameRateOverride = sysprop::enable_frame_rate_override(true)
? Config::FrameRateOverride::Enabled
: Config::FrameRateOverride::Disabled;
Config config =
{.enableFrameRateOverride = enableFrameRateOverride,
.frameRateMultipleThreshold =
base::GetIntProperty("debug.sf.frame_rate_multiple_threshold", 0),
.idleTimerTimeout = idleTimerTimeoutMs,
.kernelIdleTimerController = kernelIdleTimerController};
creationArgs.refreshRateSelector =
mPhysicalDisplays.get(physical->id)
.transform(&PhysicalDisplay::snapshotRef)
.transform([&](const display::DisplaySnapshot& snapshot) {
return std::make_shared<
scheduler::RefreshRateSelector>(snapshot.displayModes(),
creationArgs.activeModeId,
config);
})
.value_or(nullptr);
creationArgs.isPrimary = physical->id == getPrimaryDisplayIdLocked();
if (useColorManagement) {
mPhysicalDisplays.get(physical->id)
.transform(&PhysicalDisplay::snapshotRef)
.transform(ftl::unit_fn([&](const display::DisplaySnapshot& snapshot) {
for (const auto mode : snapshot.colorModes()) {
creationArgs.hasWideColorGamut |= ui::isWideColorMode(mode);
creationArgs.hwcColorModes
.emplace(mode,
getHwComposer().getRenderIntents(physical->id, mode));
}
}));
}
}
if (const auto id = HalDisplayId::tryCast(compositionDisplay->getId())) {
getHwComposer().getHdrCapabilities(*id, &creationArgs.hdrCapabilities);
creationArgs.supportedPerFrameMetadata = getHwComposer().getSupportedPerFrameMetadata(*id);
}
// 关注点 1，构建 NativeWindowSurface 对象
auto nativeWindowSurface = getFactory().createNativeWindowSurface(producer);
auto nativeWindow = nativeWindowSurface->getNativeWindow();
creationArgs.nativeWindow = nativeWindow;
// Make sure that composition can never be stalled by a virtual display
// consumer that isn't processing buffers fast enough. We have to do this
// here, in case the display is composed entirely by HWC.
if (state.isVirtual()) {
nativeWindow->setSwapInterval(nativeWindow.get(), 0);
}
creationArgs.physicalOrientation =
getPhysicalDisplayOrientation(compositionDisplay->getId(), creationArgs.isPrimary);
ALOGV("Display Orientation: %s", toCString(creationArgs.physicalOrientation));
// virtual displays are always considered enabled
creationArgs.initialPowerMode =
state.isVirtual() ? std::make_optional(hal::PowerMode::ON) : std::nullopt;
creationArgs.requestedRefreshRate = state.requestedRefreshRate;
// 前面的代码都是准备 creationArgs
// 关注点2
// Factory 类型是 DefaultFactory，实际就是 new 一个 DisplayDevice
sp<DisplayDevice> display = getFactory().createDisplayDevice(creationArgs);
nativeWindowSurface->preallocateBuffers();
ui::ColorMode defaultColorMode = ui::ColorMode::NATIVE;
Dataspace defaultDataSpace = Dataspace::UNKNOWN;
if (display->hasWideColorGamut()) {
defaultColorMode = ui::ColorMode::SRGB;
defaultDataSpace = Dataspace::V0_SRGB;
}
display->getCompositionDisplay()->setColorProfile(
compositionengine::Output::ColorProfile{defaultColorMode, defaultDataSpace,
RenderIntent::COLORIMETRIC,
Dataspace::UNKNOWN});
if (const auto& physical = state.physical) {
mPhysicalDisplays.get(physical->id)
.transform(&PhysicalDisplay::snapshotRef)
.transform(ftl::unit_fn([&](const display::DisplaySnapshot& snapshot) {
FTL_FAKE_GUARD(kMainThreadContext,
display->setActiveMode(physical->activeMode->getId(),
physical->activeMode->getFps(),
physical->activeMode->getFps()));
}));
}
display->setLayerFilter(makeLayerFilterForDisplay(display->getId(), state.layerStack));
display->setProjection(state.orientation, state.layerStackSpaceRect,
state.orientedDisplaySpaceRect);
display->setDisplayName(state.displayName);
display->setFlags(state.flags);
return display;
}
关注点1：
开始的一大堆代码都是用来准备 DisplayDeviceCreationArgs 参数，我们主要关注一下其中的 nativeWindow，它通过 createNativeWindowSurface 函数初始化：
// /frameworks/native/services/surfaceflinger/SurfaceFlingerDefaultFactory.cpp
std::unique_ptr<surfaceflinger::NativeWindowSurface> DefaultFactory::createNativeWindowSurface(
const sp<IGraphicBufferProducer>& producer) {
return surfaceflinger::impl::createNativeWindowSurface(producer);
}
接着调用 impl::createNativeWindowSurface：
// /frameworks/native/services/surfaceflinger/NativeWindowSurface.cpp
std::unique_ptr<surfaceflinger::NativeWindoANativeWindowwSurface> createNativeWindowSurface(
const sp<IGraphicBufferProducer>& producer) {
class NativeWindowSurface final : public surfaceflinger::NativeWindowSurface {
public:
explicit NativeWindowSurface(const sp<IGraphicBufferProducer>& producer)
: mSurface(sp<Surface>::make(producer, /* controlledByApp */ false)) {}
~NativeWindowSurface() override = default;
sp<ANativeWindow> getNativeWindow() const override { return mSurface; }
void preallocateBuffers() override { mSurface->allocateBuffers(); }
private:
sp<Surface> mSurface;
};
return std::make_unique<NativeWindowSurface>(producer);
}
NativeWindowSurface 是一个函数内部类（自己写代码就没用过），继承自 surfaceflinger::NativeWindowSurface。有一个重要成员 mSurface，Surface 是 Producer 的具体持有者，这里会初始化一个 Surface 对象然后赋值给 mSurface 成员，其构造函数实现如下：
Surface::Surface(const sp<IGraphicBufferProducer>& bufferProducer, bool controlledByApp,
const sp<IBinder>& surfaceControlHandle)
: mGraphicBufferProducer(bufferProducer),
mCrop(Rect::EMPTY_RECT),
mBufferAge(0),
mGenerationNumber(0),
mSharedBufferMode(false),
mAutoRefresh(false),
mAutoPrerotation(false),
mSharedBufferSlot(BufferItem::INVALID_BUFFER_SLOT),
mSharedBufferHasBeenQueued(false),
mQueriedSupportedTimestamps(false),
mFrameTimestampsSupportsPresent(false),
mEnableFrameTimestamps(false),
mFrameEventHistory(std::make_unique<ProducerFrameEventHistory>()) {
// Initialize the ANativeWindow function pointers.
ANativeWindow::setSwapInterval = hook_setSwapInterval;
ANativeWindow::dequeueBuffer = hook_dequeueBuffer;
ANativeWindow::cancelBuffer = hook_cancelBuffer;
ANativeWindow::queueBuffer = hook_queueBuffer;
ANativeWindow::query = hook_query;
ANativeWindow::perform = hook_perform;
ANativeWindow::dequeueBuffer_DEPRECATED = hook_dequeueBuffer_DEPRECATED;
ANativeWindow::cancelBuffer_DEPRECATED = hook_cancelBuffer_DEPRECATED;
ANativeWindow::lockBuffer_DEPRECATED = hook_lockBuffer_DEPRECATED;
ANativeWindow::queueBuffer_DEPRECATED = hook_queueBuffer_DEPRECATED;
const_cast<int&>(ANativeWindow::minSwapInterval) = 0;
const_cast<int&>(ANativeWindow::maxSwapInterval) = 1;
mReqWidth = 0;
mReqHeight = 0;
mReqFormat = 0;
mReqUsage = 0;
mTimestamp = NATIVE_WINDOW_TIMESTAMP_AUTO;
mDataSpace = Dataspace::UNKNOWN;
mScalingMode = NATIVE_WINDOW_SCALING_MODE_FREEZE;
mTransform = 0;
mStickyTransform = 0;
mDefaultWidth = 0;
mDefaultHeight = 0;
mUserWidth = 0;
mUserHeight = 0;
mTransformHint = 0;
mConsumerRunningBehind = false;
mConnectedToCpu = false;
mProducerControlledByApp = controlledByApp;
mSwapIntervalZero = false;
mMaxBufferCount = NUM_BUFFER_SLOTS;
mSurfaceControlHandle = surfaceControlHandle;
}
Surface 的构造函数就是一堆赋值。
关注点2，会通过工厂模式构建一个 DisplayDevice 对象：
sp<DisplayDevice> DefaultFactory::createDisplayDevice(DisplayDeviceCreationArgs& creationArgs) {
return sp<DisplayDevice>::make(creationArgs);
}
实际就是 new 一个 DisplayDevice 对象：
DisplayDevice::DisplayDevice(DisplayDeviceCreationArgs& args)
: mFlinger(args.flinger),
mHwComposer(args.hwComposer),
mDisplayToken(args.displayToken),
mSequenceId(args.sequenceId),
mCompositionDisplay{args.compositionDisplay}, // Display 成员
mActiveModeFPSTrace("ActiveModeFPS -" + to_string(getId())),
mActiveModeFPSHwcTrace("ActiveModeFPS_HWC -" + to_string(getId())),
mRenderFrameRateFPSTrace("RenderRateFPS -" + to_string(getId())),
mPhysicalOrientation(args.physicalOrientation),
mIsPrimary(args.isPrimary),
mRequestedRefreshRate(args.requestedRefreshRate),
mRefreshRateSelector(std::move(args.refreshRateSelector)) {
mCompositionDisplay->editState().isSecure = args.isSecure;
// 初始化 Display 成员的 mRenderSurface 成员
mCompositionDisplay->createRenderSurface(
compositionengine::RenderSurfaceCreationArgsBuilder()
.setDisplayWidth(ANativeWindow_getWidth(args.nativeWindow.get()))
.setDisplayHeight(ANativeWindow_getHeight(args.nativeWindow.get()))
.setNativeWindow(std::move(args.nativeWindow))
.setDisplaySurface(std::move(args.displaySurface))
.setMaxTextureCacheSize(
static_cast<size_t>(SurfaceFlinger::maxFrameBufferAcquiredBuffers))
.build());
if (!mFlinger->mDisableClientCompositionCache &&
SurfaceFlinger::maxFrameBufferAcquiredBuffers > 0) {
mCompositionDisplay->createClientCompositionCache(
static_cast<uint32_t>(SurfaceFlinger::maxFrameBufferAcquiredBuffers));
}
mCompositionDisplay->setPredictCompositionStrategy(mFlinger->mPredictCompositionStrategy);
mCompositionDisplay->setTreat170mAsSrgb(mFlinger->mTreat170mAsSrgb);
mCompositionDisplay->createDisplayColorProfile(
compositionengine::DisplayColorProfileCreationArgsBuilder()
.setHasWideColorGamut(args.hasWideColorGamut)
.setHdrCapabilities(std::move(args.hdrCapabilities))
.setSupportedPerFrameMetadata(args.supportedPerFrameMetadata)
.setHwcColorModes(std::move(args.hwcColorModes))
.Build());
if (!mCompositionDisplay->isValid()) {
ALOGE("Composition Display did not validate!");
}
mCompositionDisplay->getRenderSurface()->initialize();
if (const auto powerModeOpt = args.initialPowerMode) {
setPowerMode(*powerModeOpt);
}
// initialize the display orientation transform.
setProjection(ui::ROTATION_0, Rect::INVALID_RECT, Rect::INVALID_RECT);
}
构造函数中会调用 createRenderSurface 去构造一个 RenderSurface 对象，调用方是前面构造的 Display 对象：
void Display::createRenderSurface(const RenderSurfaceCreationArgs& args) {
setRenderSurface(
compositionengine::impl::createRenderSurface(getCompositionEngine(), *this, args));
}
std::unique_ptr<compositionengine::RenderSurface> createRenderSurface(
const compositionengine::CompositionEngine& compositionEngine,
compositionengine::Display& display,
const compositionengine::RenderSurfaceCreationArgs& args) {
return std::make_unique<RenderSurface>(compositionEngine, display, args);
}
void Output::setRenderSurface(std::unique_ptr<compositionengine::RenderSurface> surface) {
mRenderSurface = std::move(surface);
const auto size = mRenderSurface->getSize();
editState().framebufferSpace.setBounds(size);
if (mPlanner) {
mPlanner->setDisplaySize(size);
}
dirtyEntireOutput();
}
RenderSurface 构造函数如下：
RenderSurface::RenderSurface(const CompositionEngine& compositionEngine, Display& display,
const RenderSurfaceCreationArgs& args)
: mCompositionEngine(compositionEngine),
mDisplay(display),
mNativeWindow(args.nativeWindow), // 这里是前面初始化好的 NativeWindowSurface
mDisplaySurface(args.displaySurface),
mSize(args.displayWidth, args.displayHeight),
mMaxTextureCacheSize(args.maxTextureCacheSize) {
LOG_ALWAYS_FATAL_IF(!mNativeWindow);
}
RenderSurface 会持有前面初始化好的 NativeWindowSurface 对象，NativeWindowSurface 持有 Surface 对象，Surface 对象持有 Producer 对象。所以 RenderSurface 间接持有了 Producer.
client 合成时（先了解一下，后面有分析）：
- RenderSurface 间接持有 producer 对象，作为生产者的角色工作，申请 buffer，然后 client 合成 layer，然后把合成结果存在 buffer 中，最后提交 buffer，
- FramebufferSurface 持有 comsumer，作为消费者，acquireBuffer 拿到合成好的 buffer，然后通过 setClientTarget 把这个 buffer 传递给 HWC 做处理显示。
