Android14 显示系统剖 10 ———— SurfaceFlinger 图层合成过程分析下

掘金限制单篇的字符数，本文不完整，完整文章请移步：ahaoframework.tech/008.%E6%98%…

7. 合成实施阶段

前面都是准备工作，present 发起图层合成过程：

using LayerFESet = std::unordered_set<sp<LayerFE>, LayerFESpHash>;

void CompositionEngine::present(CompositionRefreshArgs& args) {

    // 调用 args.layers 所有 layerFE 的 onPreComposition，这个方法里只是更新了 layerFE 的 mCompositionResult.refreshStartTime，记录了一下合成开始的时间
    preComposition(args);
    {
        LayerFESet latchedLayers;
        // 关注点 1
        // 这里的 output 前面介绍过是 Display 对象
        for (const auto& output : args.outputs) {
            output->prepare(args, latchedLayers);
        }
    }

    // 关注点 2
    for (const auto& output : args.outputs) {
        // 对每一个屏幕调用 present
        output->present(args);
    }
}

• 关注点1，主要是构建 OutputLayer 以及 HwcLayer
• 关注点2，合成图层，包含了 device 合成和 client 合成

7.1 Output::prepare 最后的准备

关注点 1

void Output::prepare(const compositionengine::CompositionRefreshArgs& refreshArgs,
                    LayerFESet& geomSnapshots) {
    rebuildLayerStacks(refreshArgs, geomSnapshots);
    uncacheBuffers(refreshArgs.bufferIdsToUncache);
}

调用 rebuildLayerStacks，最后的数据准备:

void Output::rebuildLayerStacks(const compositionengine::CompositionRefreshArgs& refreshArgs,
                                LayerFESet& layerFESet) {

    auto& outputState = editState();

    if (!outputState.isEnabled || CC_LIKELY(!refreshArgs.updatingOutputGeometryThisFrame)) {
        return;
    }

    compositionengine::Output::CoverageState coverage{layerFESet};

    coverage.aboveCoveredLayersExcludingOverlays = refreshArgs.hasTrustedPresentationListener
            ? std::make_optional<Region>()
            : std::nullopt;

    // 构建 OutputLayer，同时会计算每个 layer 的脏区
    collectVisibleLayers(refreshArgs, coverage);
    // 把所有 layer 最终的区域信息合集（相当于这个屏幕的区域信息合集）存到 OutputState 内。
    const ui::Transform& tr = outputState.transform;
    Region undefinedRegion{outputState.displaySpace.getBoundsAsRect()};
    undefinedRegion.subtractSelf(tr.transform(coverage.aboveOpaqueLayers));

    outputState.undefinedRegion = undefinedRegion;
    outputState.dirtyRegion.orSelf(coverage.dirtyRegion);
}

Output 代表了一个显示设备，OutputLayer 代表一个图层

这里会构建 OutputLayer，计算各个区域大小。

OutputLayer，这个是一个合成的中间产物，相比于LayerFE，他记录了更多在合成过程中计算出来的信息，比如一些区域信息，比如脏区等。

调用 collectVisibleLayers：

void Output::collectVisibleLayers(const compositionengine::CompositionRefreshArgs& refreshArgs,
                                compositionengine::Output::CoverageState& coverage) {
    for (auto layer : reversed(refreshArgs.layers)) {
        // 遍历所有 layerFE，调用 ensureOutputLayerIfVisible,构建 OutputLayer，这些 OutputLayer 会暂时存在 mPendingOutputLayersOrderedByZ 里
        ensureOutputLayerIfVisible(layer, coverage);
    }
    // 把 buffer 有变化的 layer 存到 mReleasedLayers
    setReleasedLayers(refreshArgs);
    // 将 mPendingOutputLayersOrderedByZ 到数据转移到 mCurrentOutputLayersOrderedByZ
    finalizePendingOutputLayers();
}

给每个 layer 构建 OutputLayer，并且计算每个 layer 脏区等区域信息，最后把所有 layer 区域信息合集存到 OutputLayerCompositionState 作为屏幕的区域信息合集，以便后面合成使用。

void Output::ensureOutputLayerIfVisible(sp<compositionengine::LayerFE>& layerFE,
                                        compositionengine::Output::CoverageState& coverage) {
    // latchedLayer 存储 layerFE
    if (!coverage.latchedLayers.count(layerFE)) {
        coverage.latchedLayers.insert(layerFE);
    }

    // layerStack 标志每个 layerFE 所在 output，如果 layerFE 不在当前Output（即当前屏幕），就直接返回
    if (!includesLayer(layerFE)) {
        return;
    }

    // Obtain a read-only pointer to the front-end layer state
    // 返回的 LayerSnapshot
    const auto* layerFEState = layerFE->getCompositionState();
    if (CC_UNLIKELY(!layerFEState)) {
        return;
    }

    // ......

    bool computeAboveCoveredExcludingOverlays = coverage.aboveCoveredLayersExcludingOverlays &&
            !layerFEState->outputFilter.toInternalDisplay;

    // 不透明区域
    Region opaqueRegion;
    // 可见区域
    Region visibleRegion;
    // 所有被覆盖的区域
    Region coveredRegion;
    // 透明区域
    Region transparentRegion;
    // 阴影区域
    Region shadowRegion;

    // 上面的覆盖区域，不包括显示器覆盖层
    std::optional<Region> coveredRegionExcludingDisplayOverlays = std::nullopt;

    // 下面的逻辑都是计算这几个区域的。
    const ui::Transform& tr = layerFEState->geomLayerTransform;
    // 将layer的边界通过Transform转换，作为初始化的值（就是整个layer显示的区域）
    const Rect visibleRect(tr.transform(layerFEState->geomLayerBounds));
    visibleRegion.set(visibleRect);
    // 如果有配置阴影，半透明可见区域需要减去阴影的区域
    if (layerFEState->shadowRadius > 0.0f) {
        const auto inset = static_cast<int32_t>(ceilf(layerFEState->shadowRadius) * -1.0f);
        Rect visibleRectWithShadows(visibleRect);
        visibleRectWithShadows.inset(inset, inset, inset, inset);
        visibleRegion.set(visibleRectWithShadows);
        shadowRegion = visibleRegion.subtract(visibleRect);
    }

    if (visibleRegion.isEmpty()) {
        return;
    }

    // 如果layer是透明的，计算全透明区域，如果计算逻辑过于复杂则不计算，因为这里本来计算出来也只是用于合成的优化
    if (!layerFEState->isOpaque) {
        // 判断Transform里面旋转的flag是否是ROT_INVALID，是的话计算太复杂.如果是其他的旋转90，180这种，可以比较容易计算。
        if (tr.preserveRects()) {
            // 透明区域和边界交集就是计算出来的透明区域
            const Region clippedTransparentRegionHint =
                    layerFEState->transparentRegionHint.intersect(
                            Rect(layerFEState->geomLayerBounds));

            if (clippedTransparentRegionHint.isEmpty()) {
                // 没有透明区域
                transparentRegion.clear();
            } else {
                // 还需要做transform才是最终结果。
                transparentRegion = tr.transform(clippedTransparentRegionHint);
            }
        } else {
            // 计算复杂，不计算透明区域
            transparentRegion.clear();
        }
    }

    const auto layerOrientation = tr.getOrientation();
    // 如果页面不透明，切旋转变换也是常规的变换，不透明区域就是visibleRect，否则我们也不计算不透明区域
    if (layerFEState->isOpaque && ((layerOrientation & ui::Transform::ROT_INVALID) == 0)) {
        opaqueRegion.set(visibleRect);
    }

    // aboveCoveredLayers是之前layer的合集，这里的visible还没有剪去，所以是这个layer全部的可见区域
    // 交上上层所有可见区域集合，就是被覆盖的集合。
    coveredRegion = coverage.aboveCoveredLayers.intersect(visibleRegion);

    // 更新aboveCoveredLayers，就是加上当前layer的可见区域，
    coverage.aboveCoveredLayers.orSelf(visibleRegion);

    if (CC_UNLIKELY(computeAboveCoveredExcludingOverlays)) {
        coveredRegionExcludingDisplayOverlays =
                coverage.aboveCoveredLayersExcludingOverlays->intersect(visibleRegion);
        coverage.aboveCoveredLayersExcludingOverlays->orSelf(visibleRegion);
    }

    // 可见区域要剪去上层的不透明区域（就是被上层遮挡）
    visibleRegion.subtractSelf(coverage.aboveOpaqueLayers);

    if (visibleRegion.isEmpty()) {
        return;
    }

    // 这里获取上一次的这个 layerFE 对应的 OutputLayer，获取上一次的可见区域，用于计算脏区
    auto prevOutputLayerIndex = findCurrentOutputLayerForLayer(layerFE);
    auto prevOutputLayer =
            prevOutputLayerIndex ? getOutputLayerOrderedByZByIndex(*prevOutputLayerIndex) : nullptr;

    const Region kEmptyRegion;
    const Region& oldVisibleRegion =
            prevOutputLayer ? prevOutputLayer->getState().visibleRegion : kEmptyRegion;
    const Region& oldCoveredRegion =
            prevOutputLayer ? prevOutputLayer->getState().coveredRegion : kEmptyRegion;

    // compute this layer's dirty region
    Region dirty;
    // 如果 buffer 内容有更新， 那这次的可见区域加上上一次的可见区域都是脏区
    if (layerFEState->contentDirty) {
        dirty = visibleRegion;
        dirty.orSelf(oldVisibleRegion);
    } else {
        // Exposed是暴露区域，可见区剪去被覆盖的区域就是暴露的区域
        // 脏区 = 这次的可见区域和上次被覆盖的区域交集（就是上次没有显示出来的，但是这次可能会被显示出来，是比较保守的估计）+ 这次暴露出来的-上次暴露出来的（因为内容没有变化，上次暴露出来的部分不需要再管了）
        const Region newExposed = visibleRegion - coveredRegion;
        const Region oldExposed = oldVisibleRegion - oldCoveredRegion;
        dirty = (visibleRegion & oldCoveredRegion) | (newExposed - oldExposed);
    }
    // 脏区域再剪去上层不透明的区域（上层不透明看不见，所以也不需要重新渲染计算）
    dirty.subtractSelf(coverage.aboveOpaqueLayers);

    // dirtyRegion 是所有 layer  脏区域的合集
    coverage.dirtyRegion.orSelf(dirty);

    // 更新 aboveOpaqueLayers（之前所有layer的不透明区域）
    coverage.aboveOpaqueLayers.orSelf(opaqueRegion);

    Region visibleNonTransparentRegion = visibleRegion.subtract(transparentRegion);

    const auto& outputState = getState();
    Region drawRegion(outputState.transform.transform(visibleNonTransparentRegion));
    drawRegion.andSelf(outputState.displaySpace.getBoundsAsRect());
    if (drawRegion.isEmpty()) {
        return;
    }

    Region visibleNonShadowRegion = visibleRegion.subtract(shadowRegion);

    // 关注点 根据 layerFE 构建 OutputLayer
    auto result = ensureOutputLayer(prevOutputLayerIndex, layerFE);

    // 关注点 更新 OutputLayerCompositionState 内的变量
    auto& outputLayerState = result->editState();
    outputLayerState.visibleRegion = visibleRegion;
    outputLayerState.visibleNonTransparentRegion = visibleNonTransparentRegion;
    outputLayerState.coveredRegion = coveredRegion;
    outputLayerState.outputSpaceVisibleRegion = outputState.transform.transform(
            visibleNonShadowRegion.intersect(outputState.layerStackSpace.getContent()));
    outputLayerState.shadowRegion = shadowRegion;
    outputLayerState.outputSpaceBlockingRegionHint =
            layerFEState->compositionType == Composition::DISPLAY_DECORATION
            ? outputState.transform.transform(
                    transparentRegion.intersect(outputState.layerStackSpace.getContent()))
            : Region();
    if (CC_UNLIKELY(computeAboveCoveredExcludingOverlays)) {
        outputLayerState.coveredRegionExcludingDisplayOverlays =
                std::move(coveredRegionExcludingDisplayOverlays);
    }
}

这个方法用于计算 layer 的脏区，经过循环遍历，对每个 layer 都调用了这个方法后，就可以得到所有 layer 的脏区，保存在 coverage，同时附带的产物还有所有 layer 不透明区域，可见区域等。

同时构建 OutputLayer，将每个 layer 这些区域信息存入 OutputLayerState。

ensureOutputLayer 构建 OutputLayer 的过程：

OutputLayer* ensureOutputLayer(std::optional<size_t> prevIndex,
                            const sp<LayerFE>& layerFE) {
    auto outputLayer = (prevIndex && *prevIndex <= mCurrentOutputLayersOrderedByZ.size())
            ? std::move(mCurrentOutputLayersOrderedByZ[*prevIndex])
            : BaseOutput::createOutputLayer(layerFE);
    auto result = outputLayer.get();
    // 构造的 outputLayer 存放在 mPendingOutputLayersOrderedByZ
    mPendingOutputLayersOrderedByZ.emplace_back(std::move(outputLayer));
    return result;
}

BaseOutput 实际类型是 android::compositionengine::impl::Display。

接着调用 createOutputLayer：

// frameworks/native/services/surfaceflinger/CompositionEngine/src/Display.cpp
std::unique_ptr<compositionengine::OutputLayer> Display::createOutputLayer(
        const sp<compositionengine::LayerFE>& layerFE) const {

    // 关注点1 构造一个 OutputLayer
    // android::compositionengine::impl::createOutputLayer
    auto outputLayer = impl::createOutputLayer(*this, layerFE);

    if (const auto halDisplayId = HalDisplayId::tryCast(mId);
        outputLayer && !mIsDisconnected && halDisplayId) {

        auto& hwc = getCompositionEngine().getHwComposer();
        // 关注点2
        // 创建 hwclayer
        auto hwcLayer = hwc.createLayer(*halDisplayId);
        ALOGE_IF(!hwcLayer, "Failed to create a HWC layer for a HWC supported display %s",
                 getName().c_str());
        outputLayer->setHwcLayer(std::move(hwcLayer));
    }
    return outputLayer;
}

关注点1，调用 android::compositionengine::impl::createOutputLayer 构建 OutputLayer 对象：

// frameworks/native/services/surfaceflinger/CompositionEngine/src/OutputLayer.cpp
std::unique_ptr<compositionengine::OutputLayer> Output::createOutputLayer(
    const sp<LayerFE>& layerFE) const {
    return impl::createOutputLayer(*this, layerFE);
}

std::unique_ptr<OutputLayer> createOutputLayer(const compositionengine::Output& output,
                                           const sp<compositionengine::LayerFE>& layerFE) {
    // 模板函数，构造一个 OutputLayer
    return createOutputLayerTemplated<OutputLayer>(output, layerFE);
}

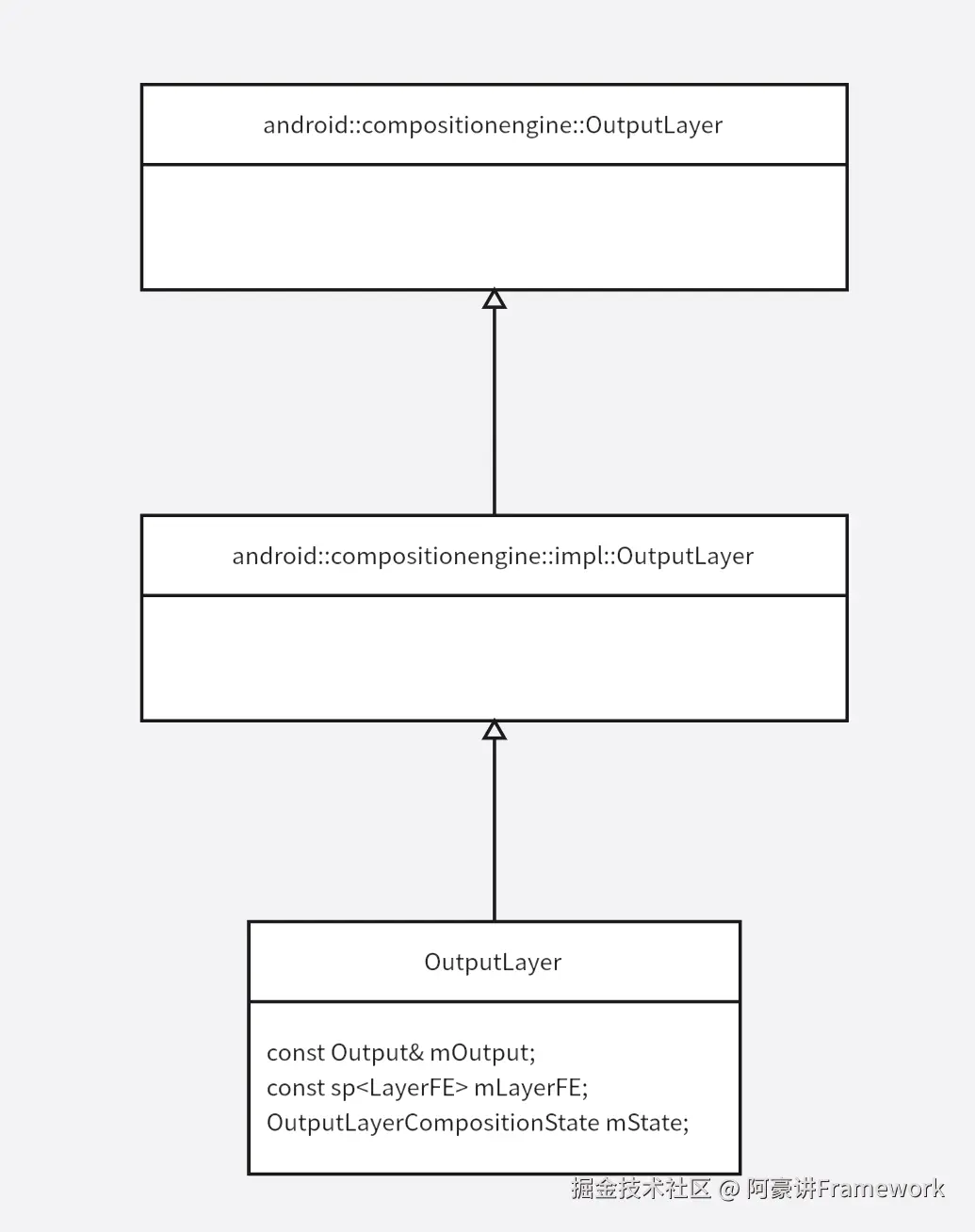

template <typename BaseOutputLayer>
std::unique_ptr<BaseOutputLayer> createOutputLayerTemplated(const Output& output,
                                                            sp<LayerFE> layerFE) {
    class OutputLayer final : public BaseOutputLayer {
    public:
// Clang incorrectly complains that these are unused.
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wunused-local-typedef"

        using OutputLayerCompositionState = std::remove_const_t<
                std::remove_reference_t<decltype(std::declval<BaseOutputLayer>().getState())>>;
        using Output = std::remove_const_t<
                std::remove_reference_t<decltype(std::declval<BaseOutputLayer>().getOutput())>>;
        using LayerFE =
                std::remove_reference_t<decltype(std::declval<BaseOutputLayer>().getLayerFE())>;

#pragma clang diagnostic pop

        OutputLayer(const Output& output, const sp<LayerFE>& layerFE)
              : mOutput(output), mLayerFE(layerFE) {}
        ~OutputLayer() override = default;

    private:
        // compositionengine::OutputLayer overrides
        const Output& getOutput() const override { return mOutput; }
        LayerFE& getLayerFE() const override { return *mLayerFE; }
        const OutputLayerCompositionState& getState() const override { return mState; }
        OutputLayerCompositionState& editState() override { return mState; }

        // compositionengine::impl::OutputLayer overrides
        void dumpState(std::string& out) const override { mState.dump(out); }

        const Output& mOutput;
        const sp<LayerFE> mLayerFE;
        OutputLayerCompositionState mState;
    };

    return std::make_unique<OutputLayer>(output, layerFE);
}

这里构建了一个内部类 OutputLayer 的对象，其继承关系如下：

关注点2，创建 hwcLayer：

std::shared_ptr<HWC2::Layer> HWComposer::createLayer(HalDisplayId displayId) {
    RETURN_IF_INVALID_DISPLAY(displayId, nullptr);

    auto expected = mDisplayData[displayId].hwcDisplay->createLayer();
    if (!expected.has_value()) {
        auto error = std::move(expected).error();
        RETURN_IF_HWC_ERROR(error, displayId, nullptr);
    }
    return std::move(expected).value();
}

mDisplayData 以及 hwcDisplay 的初始化过程在第三节已经分析过了。

base::expected<std::shared_ptr<HWC2::Layer>, hal::Error> Display::createLayer() {
    HWLayerId layerId = 0;
    // 拿到 ID
    auto intError = mComposer.createLayer(mId, &layerId);
    auto error = static_cast<Error>(intError);
    if (error != Error::NONE) {
        return base::unexpected(error);
    }

    // 再构建一个 Layer 对象
    auto layer = std::make_shared<impl::Layer>(mComposer, mCapabilities, *this, layerId);
    // 保存到 mLayers 成员中
    mLayers.emplace(layerId, layer);
    return layer;
}

最后调用到 AidlComposer::createLayer：

Error AidlComposer::createLayer(Display display, Layer* outLayer) {
    int64_t layer;
    // binder 远程调用
    const auto status = mAidlComposerClient->createLayer(translate<int64_t>(display),
                                                         kMaxLayerBufferCount, &layer);
    if (!status.isOk()) {
        ALOGE("createLayer failed %s", status.getDescription().c_str());
        return static_cast<Error>(status.getServiceSpecificError());
    }

    *outLayer = translate<Layer>(layer);
    return Error::NONE;
}

binder 远程调用 composer hal，返回一个 layer 的 id，然后使用这个 id，构建一个 Layer 对象。

这个 id 在两侧起了索引的作用。

hwcLayer，这个是和 HWC HAL 通信使用的结构，代表 HWC 层的 Layer，只有需要通过 HWC 合成的 Layer 才会有这个。

android::HWC2::impl::Layer 的定义如下

class Layer : public HWC2::Layer {
public:
    Layer(android::Hwc2::Composer& composer,
          const std::unordered_set<aidl::android::hardware::graphics::composer3::Capability>&
                  capabilities,
          HWC2::Display& display, hal::HWLayerId layerId);
    ~Layer() override;

    void onOwningDisplayDestroyed();

    hal::HWLayerId getId() const override { return mId; }

    hal::Error setCursorPosition(int32_t x, int32_t y) override;
    hal::Error setBuffer(uint32_t slot, const android::sp<android::GraphicBuffer>& buffer,
                         const android::sp<android::Fence>& acquireFence) override;
    hal::Error setBufferSlotsToClear(const std::vector<uint32_t>& slotsToClear,
                                     uint32_t activeBufferSlot) override;
    hal::Error setSurfaceDamage(const android::Region& damage) override;

    hal::Error setBlendMode(hal::BlendMode mode) override;
    hal::Error setColor(aidl::android::hardware::graphics::composer3::Color color) override;
    hal::Error setCompositionType(
            aidl::android::hardware::graphics::composer3::Composition type) override;
    hal::Error setDataspace(hal::Dataspace dataspace) override;
    hal::Error setPerFrameMetadata(const int32_t supportedPerFrameMetadata,
                                   const android::HdrMetadata& metadata) override;
    hal::Error setDisplayFrame(const android::Rect& frame) override;
    hal::Error setPlaneAlpha(float alpha) override;
    hal::Error setSidebandStream(const native_handle_t* stream) override;
    hal::Error setSourceCrop(const android::FloatRect& crop) override;
    hal::Error setTransform(hal::Transform transform) override;
    hal::Error setVisibleRegion(const android::Region& region) override;
    hal::Error setZOrder(uint32_t z) override;

    // Composer HAL 2.3
    hal::Error setColorTransform(const android::mat4& matrix) override;

    // Composer HAL 2.4
    hal::Error setLayerGenericMetadata(const std::string& name, bool mandatory,
                                       const std::vector<uint8_t>& value) override;

    // AIDL HAL
    hal::Error setBrightness(float brightness) override;
    hal::Error setBlockingRegion(const android::Region& region) override;

private:
    // These are references to data owned by HWComposer, which will outlive
    // this HWC2::Layer, so these references are guaranteed to be valid for
    // the lifetime of this object.
    android::Hwc2::Composer& mComposer;
    const std::unordered_set<aidl::android::hardware::graphics::composer3::Capability>&
            mCapabilities;

    HWC2::Display* mDisplay;
    hal::HWLayerId mId;

    // Cached HWC2 data, to ensure the same commands aren't sent to the HWC
    // multiple times.
    android::Region mVisibleRegion = android::Region::INVALID_REGION;
    android::Region mDamageRegion = android::Region::INVALID_REGION;
    android::Region mBlockingRegion = android::Region::INVALID_REGION;
    hal::Dataspace mDataSpace = hal::Dataspace::UNKNOWN;
    android::HdrMetadata mHdrMetadata;
    android::mat4 mColorMatrix;
    uint32_t mBufferSlot;
};

impl::Layer 的构造函数如下：

// /frameworks/native/services/surfaceflinger/DisplayHardware/HWC2.cpp
Layer::Layer(android::Hwc2::Composer& composer,
             const std::unordered_set<AidlCapability>& capabilities, HWC2::Display& display,
             HWLayerId layerId)
      : mComposer(composer),
        mCapabilities(capabilities),
        mDisplay(&display),
        mId(layerId),
        mColorMatrix(android::mat4()) {
    ALOGV("Created layer %" PRIu64 " on display %" PRIu64, layerId, display.getId());
}

hwcLayer 构造完成后还有调用 setHwcLayer 方法：

void OutputLayer::setHwcLayer(std::shared_ptr<HWC2::Layer> hwcLayer) {
    auto& state = editState();
    if (hwcLayer) {
        state.hwc.emplace(std::move(hwcLayer));
    } else {
        state.hwc.reset();
    }
}

这里会把 hwcLayer 保存到 OutputLayer 的 OutputLayerCompositionState 成员的 hwc 成员的 hwcLayer 成员中，方便后续的合成操作

OutputLayer 创建完成后，接着调用 setReleasedLayers，把 buffer 有变化的 layer 存到 mReleasedLayers

void Display::setReleasedLayers(const compositionengine::CompositionRefreshArgs& refreshArgs) {

    Output::setReleasedLayers(refreshArgs);

    if (mIsDisconnected || GpuVirtualDisplayId::tryCast(mId) ||
        refreshArgs.layersWithQueuedFrames.empty()) {
        return;
    }

    // For layers that are being removed from a HWC display, and that have
    // queued frames, add them to a a list of released layers so we can properly
    // set a fence.
    compositionengine::Output::ReleasedLayers releasedLayers;

    // Any non-null entries in the current list of layers are layers that are no
    // longer going to be visible
    for (auto* outputLayer : getOutputLayersOrderedByZ()) {
        if (!outputLayer) {
            continue;
        }

        compositionengine::LayerFE* layerFE = &outputLayer->getLayerFE();
        const bool hasQueuedFrames =
                std::any_of(refreshArgs.layersWithQueuedFrames.cbegin(),
                            refreshArgs.layersWithQueuedFrames.cend(),
                            [layerFE](sp<compositionengine::LayerFE> layerWithQueuedFrames) {
                                return layerFE == layerWithQueuedFrames.get();
                            });

        if (hasQueuedFrames) {
            releasedLayers.emplace_back(wp<LayerFE>::fromExisting(layerFE));
        }
    }

    setReleasedLayers(std::move(releasedLayers));
}

以上是最后的准备阶段。

7.2 Output::present 开始合成

前面可以说都是准备，接下来的 present 函数才是合成的重头戏：

void Output::present(const compositionengine::CompositionRefreshArgs& refreshArgs) {
    // 根据 refresh 里面的参数更新颜色空间等（像素点表示颜色的编码方式），存储在 OutputState
    updateColorProfile(refreshArgs);
    // 关注点1 调用所有 OutputLayer 的 updateCompositionState
    updateCompositionState(refreshArgs);
    planComposition();
    // 关注点2 将一部分合成状态写到 hwc，这里通过 HWCLayer，将状态同步到HWC侧，也是通过aidl的binder
    writeCompositionState(refreshArgs);
    // 更新颜色转换矩阵，类似于layer的Transform，只是这里是针对于颜色的。同时会更新state里面的脏区
    setColorTransform(refreshArgs);

    // 这里会调用RenderSurface的beginFrame，后会调用DisplaySurface的beginFrame，如果是虚拟屏则会有一些刷新hwc的buffer相关的处理，如果不是虚拟盘什么也没做
    beginFrame();

    GpuCompositionResult result;
    // 判断是否同步进行
    const bool predictCompositionStrategy = canPredictCompositionStrategy(refreshArgs);
    // 无论是否同步最后都会走到 finishPrepareFrame，然后也是调用 renderSurface 的 prepareFrame，再调用 DisplaySurface 的 prepareFrame。如果是主屏这里也什么都没做
    // 如果是 prepareFrameAsync，会调用 dequeueRenderBuffer 和 composeSurfaces 进行合成操作，如果是 prepareFrame，合成操作在 finishFrame
    // 合成操作就在 finishFrame 里再介绍

    if (predictCompositionStrategy) {
        result = prepareFrameAsync();
    } else {
         // 关注点3 看 else 的逻辑
        prepareFrame();
    }

    devOptRepaintFlash(refreshArgs);
    // 关注点4
    // 如果之前走的是 prepareFrame，会在这里进行合成操作，调用 dequeueRenderBuffer 和 composeSurfaces
    finishFrame(std::move(result));
    // 关注点5
    // 主要调用了 presentAndGetFrameFences 将剩余的 layer 提交给 HWC，让 HWC 进行硬件合成。除此之外会处理一些 buffer 的释放相关工作。
    postFramebuffer();
    renderCachedSets(refreshArgs);
}

• 关注点1，调用所有 OutputLayer 的 updateCompositionState，更新 OutputLayer 的 state 的部分成员
• 关注点2，将一部分合成状态写到 writer 中
• 关注点3，prepareFrame 完成部分 OutputLayer device 合成的同时从 HWC HAL 中获取到 OutputLayer 们的合成方式
• 关注点4，finishFrame，如果需要，完成 OutputLayer 的 client 合成
• 关注点5，postFramebuffer 完成后续所有 OutputLayer 的 device 合成

7.2.1 AidlComposer 的设计

预备知识点：所有的图层合成操作都需要通过 AidlComposer 这个中介与 hwc hal 通信完成，所有我们需要了解 AidlComposer 的设计与实现。

AidlComposer 是 hwc hal 的客户端包装类，方便客户端使用 binder 服务。系统源码很多这种实现。

AidlComposer 的定义如下：

// /frameworks/native/services/surfaceflinger/DisplayHardware/AidlComposerHal.h
// Composer is a wrapper to IComposer, a proxy to server-side composer.
class AidlComposer final : public Hwc2::Composer {
public:
    static bool isDeclared(const std::string& serviceName);

    explicit AidlComposer(const std::string& serviceName);
    ~AidlComposer() override;

    bool isSupported(OptionalFeature) const;

    std::vector<aidl::android::hardware::graphics::composer3::Capability> getCapabilities()
            override;
    std::string dumpDebugInfo() override;

    void registerCallback(HWC2::ComposerCallback& callback) override;

    // .......
    // 定义了一堆的函数，省略了，遇到我们直接看实现

    // 64KiB minus a small space for metadata such as read/write pointers
    static constexpr size_t kWriterInitialSize = 64 * 1024 / sizeof(uint32_t) - 16;
    // Max number of buffers that may be cached for a given layer
    // We obtain this number by:
    // 1. Tightly coupling this cache to the max size of BufferQueue
    // 2. Adding an additional slot for the layer caching feature in SurfaceFlinger (see: Planner.h)
    static const constexpr uint32_t kMaxLayerBufferCount = BufferQueue::NUM_BUFFER_SLOTS + 1;

    // Without DisplayCapability::MULTI_THREADED_PRESENT, we use a single reader
    // for all displays. With the capability, we use a separate reader for each
    // display.
    bool mSingleReader = true;
    // Invalid displayId used as a key to mReaders when mSingleReader is true.
    static constexpr int64_t kSingleReaderKey = 0;

    // TODO (b/256881188): Use display::PhysicalDisplayMap instead of hard-coded `3`
    ftl::SmallMap<Display, ComposerClientWriter, 3> mWriters GUARDED_BY(mMutex);
    ftl::SmallMap<Display, ComposerClientReader, 3> mReaders GUARDED_BY(mMutex);
    // Protect access to mWriters and mReaders with a shared_mutex. Adding and
    // removing a display require exclusive access, since the iterator or the
    // writer/reader may be invalidated. Other calls need shared access while
    // using the writer/reader, so they can use their display's writer/reader
    // without it being deleted or the iterator being invalidated.
    // TODO (b/257958323): Use std::shared_mutex and RAII once they support
    // threading annotations.
    ftl::SharedMutex mMutex;

    // Whether or not explicitly clearing buffer slots is supported.
    bool mSupportsBufferSlotsToClear;
    // Buffer slots for layers are cleared by setting the slot buffer to this buffer.
    sp<GraphicBuffer> mClearSlotBuffer;

    // Aidl interface
    using AidlIComposer = aidl::android::hardware::graphics::composer3::IComposer;
    using AidlIComposerClient = aidl::android::hardware::graphics::composer3::IComposerClient;
    // binder 客户端类
    std::shared_ptr<AidlIComposer> mAidlComposer;
    std::shared_ptr<AidlIComposerClient> mAidlComposerClient;
    std::shared_ptr<AidlIComposerCallbackWrapper> mAidlComposerCallback;
};

两个重要的成员 mWriters mReaders，mWriters 用于暂存数据，远程调用时，使用这些数据，mReaders 用于读取远程调用后返回的数据。

mAidlComposer 和 mAidlComposerClient 是 binder 客户端对象，用于发起远程调用。

ComposerClientWriter 实现如下：

class ComposerClientWriter final {
  public:
    static constexpr std::optional<ClockMonotonicTimestamp> kNoTimestamp = std::nullopt;

    explicit ComposerClientWriter(int64_t display) : mDisplay(display) { reset(); }

    ~ComposerClientWriter() { reset(); }

    ComposerClientWriter(ComposerClientWriter&&) = default;

    ComposerClientWriter(const ComposerClientWriter&) = delete;
    ComposerClientWriter& operator=(const ComposerClientWriter&) = delete;

    void setColorTransform(int64_t display, const float* matrix) {
        std::vector<float> matVec;
        matVec.reserve(16);
        matVec.assign(matrix, matrix + 16);
        getDisplayCommand(display).colorTransformMatrix.emplace(std::move(matVec));
    }

    void setDisplayBrightness(int64_t display, float brightness, float brightnessNits) {
        getDisplayCommand(display).brightness.emplace(
                DisplayBrightness{.brightness = brightness, .brightnessNits = brightnessNits});
    }

    void setClientTarget(int64_t display, uint32_t slot, const native_handle_t* target,
                         int acquireFence, Dataspace dataspace, const std::vector<Rect>& damage) {
        ClientTarget clientTargetCommand;
        clientTargetCommand.buffer = getBufferCommand(slot, target, acquireFence);
        clientTargetCommand.dataspace = dataspace;
        clientTargetCommand.damage.assign(damage.begin(), damage.end());
        getDisplayCommand(display).clientTarget.emplace(std::move(clientTargetCommand));
    }

    void setOutputBuffer(int64_t display, uint32_t slot, const native_handle_t* buffer,
                         int releaseFence) {
        getDisplayCommand(display).virtualDisplayOutputBuffer.emplace(
                getBufferCommand(slot, buffer, releaseFence));
    }

    void validateDisplay(int64_t display,
                         std::optional<ClockMonotonicTimestamp> expectedPresentTime) {
        auto& command = getDisplayCommand(display);
        command.expectedPresentTime = expectedPresentTime;
        command.validateDisplay = true;
    }

    // 关注点
    void presentOrvalidateDisplay(int64_t display,
                                  std::optional<ClockMonotonicTimestamp> expectedPresentTime) {
        auto& command = getDisplayCommand(display);
        command.expectedPresentTime = expectedPresentTime;
        command.presentOrValidateDisplay = true;
    }

    void acceptDisplayChanges(int64_t display) {
        getDisplayCommand(display).acceptDisplayChanges = true;
    }

    void presentDisplay(int64_t display) { getDisplayCommand(display).presentDisplay = true; }

    void setLayerCursorPosition(int64_t display, int64_t layer, int32_t x, int32_t y) {
        common::Point cursorPosition;
        cursorPosition.x = x;
        cursorPosition.y = y;
        getLayerCommand(display, layer).cursorPosition.emplace(std::move(cursorPosition));
    }

    void setLayerBuffer(int64_t display, int64_t layer, uint32_t slot,
                        const native_handle_t* buffer, int acquireFence) {
        getLayerCommand(display, layer).buffer = getBufferCommand(slot, buffer, acquireFence);
    }

    void setLayerBufferWithNewCommand(int64_t display, int64_t layer, uint32_t slot,
                                      const native_handle_t* buffer, int acquireFence) {
        flushLayerCommand();
        getLayerCommand(display, layer).buffer = getBufferCommand(slot, buffer, acquireFence);
        flushLayerCommand();
    }

    void setLayerBufferSlotsToClear(int64_t display, int64_t layer,
                                    const std::vector<uint32_t>& slotsToClear) {
        getLayerCommand(display, layer)
                .bufferSlotsToClear.emplace(slotsToClear.begin(), slotsToClear.end());
    }

    void setLayerSurfaceDamage(int64_t display, int64_t layer, const std::vector<Rect>& damage) {
        getLayerCommand(display, layer).damage.emplace(damage.begin(), damage.end());
    }

    void setLayerBlendMode(int64_t display, int64_t layer, BlendMode mode) {
        ParcelableBlendMode parcelableBlendMode;
        parcelableBlendMode.blendMode = mode;
        getLayerCommand(display, layer).blendMode.emplace(std::move(parcelableBlendMode));
    }

    void setLayerColor(int64_t display, int64_t layer, Color color) {
        getLayerCommand(display, layer).color.emplace(std::move(color));
    }

    void setLayerCompositionType(int64_t display, int64_t layer, Composition type) {
        ParcelableComposition compositionPayload;
        compositionPayload.composition = type;
        getLayerCommand(display, layer).composition.emplace(std::move(compositionPayload));
    }

    void setLayerDataspace(int64_t display, int64_t layer, Dataspace dataspace) {
        ParcelableDataspace dataspacePayload;
        dataspacePayload.dataspace = dataspace;
        getLayerCommand(display, layer).dataspace.emplace(std::move(dataspacePayload));
    }

    void setLayerDisplayFrame(int64_t display, int64_t layer, const Rect& frame) {
        getLayerCommand(display, layer).displayFrame.emplace(frame);
    }

    void setLayerPlaneAlpha(int64_t display, int64_t layer, float alpha) {
        PlaneAlpha planeAlpha;
        planeAlpha.alpha = alpha;
        getLayerCommand(display, layer).planeAlpha.emplace(std::move(planeAlpha));
    }

    void setLayerSidebandStream(int64_t display, int64_t layer, const native_handle_t* stream) {
        NativeHandle handle;
        if (stream) handle = ::android::dupToAidl(stream);
        getLayerCommand(display, layer).sidebandStream.emplace(std::move(handle));
    }

    void setLayerSourceCrop(int64_t display, int64_t layer, const FRect& crop) {
        getLayerCommand(display, layer).sourceCrop.emplace(crop);
    }

    void setLayerTransform(int64_t display, int64_t layer, Transform transform) {
        ParcelableTransform transformPayload;
        transformPayload.transform = transform;
        getLayerCommand(display, layer).transform.emplace(std::move(transformPayload));
    }

    void setLayerVisibleRegion(int64_t display, int64_t layer, const std::vector<Rect>& visible) {
        getLayerCommand(display, layer).visibleRegion.emplace(visible.begin(), visible.end());
    }

    void setLayerZOrder(int64_t display, int64_t layer, uint32_t z) {
        ZOrder zorder;
        zorder.z = static_cast<int32_t>(z);
        getLayerCommand(display, layer).z.emplace(std::move(zorder));
    }

    void setLayerPerFrameMetadata(int64_t display, int64_t layer,
                                  const std::vector<PerFrameMetadata>& metadataVec) {
        getLayerCommand(display, layer)
                .perFrameMetadata.emplace(metadataVec.begin(), metadataVec.end());
    }

    void setLayerColorTransform(int64_t display, int64_t layer, const float* matrix) {
        getLayerCommand(display, layer).colorTransform.emplace(matrix, matrix + 16);
    }

    void setLayerPerFrameMetadataBlobs(int64_t display, int64_t layer,
                                       const std::vector<PerFrameMetadataBlob>& metadata) {
        getLayerCommand(display, layer)
                .perFrameMetadataBlob.emplace(metadata.begin(), metadata.end());
    }

    void setLayerBrightness(int64_t display, int64_t layer, float brightness) {
        getLayerCommand(display, layer)
                .brightness.emplace(LayerBrightness{.brightness = brightness});
    }

    void setLayerBlockingRegion(int64_t display, int64_t layer, const std::vector<Rect>& blocking) {
        getLayerCommand(display, layer).blockingRegion.emplace(blocking.begin(), blocking.end());
    }

    std::vector<DisplayCommand> takePendingCommands() {
        flushLayerCommand();
        flushDisplayCommand();
        std::vector<DisplayCommand> moved = std::move(mCommands);
        mCommands.clear();
        return moved;
    }

  private:
    std::optional<DisplayCommand> mDisplayCommand;
    std::optional<LayerCommand> mLayerCommand;
    std::vector<DisplayCommand> mCommands;
    const int64_t mDisplay;

    Buffer getBufferCommand(uint32_t slot, const native_handle_t* bufferHandle, int fence) {
        Buffer bufferCommand;
        bufferCommand.slot = static_cast<int32_t>(slot);
        if (bufferHandle) bufferCommand.handle.emplace(::android::dupToAidl(bufferHandle));
        if (fence > 0) bufferCommand.fence = ::ndk::ScopedFileDescriptor(fence);
        return bufferCommand;
    }

    void flushLayerCommand() {
        if (mLayerCommand.has_value()) {
            mDisplayCommand->layers.emplace_back(std::move(*mLayerCommand));
            mLayerCommand.reset();
        }
    }

    void flushDisplayCommand() {
        if (mDisplayCommand.has_value()) {
            mCommands.emplace_back(std::move(*mDisplayCommand));
            mDisplayCommand.reset();
        }
    }

    DisplayCommand& getDisplayCommand(int64_t display) {
        if (!mDisplayCommand.has_value() || mDisplayCommand->display != display) {
            LOG_ALWAYS_FATAL_IF(display != mDisplay);
            flushLayerCommand();
            flushDisplayCommand();
            mDisplayCommand.emplace();
            mDisplayCommand->display = display;
        }
        return *mDisplayCommand;
    }

    LayerCommand& getLayerCommand(int64_t display, int64_t layer) {
        getDisplayCommand(display);
        if (!mLayerCommand.has_value() || mLayerCommand->layer != layer) {
            flushLayerCommand();
            mLayerCommand.emplace();
            mLayerCommand->layer = layer;
        }
        return *mLayerCommand;
    }

    void reset() {
        mDisplayCommand.reset();
        mLayerCommand.reset();
        mCommands.clear();
    }
};

方法一大堆，实际关注三个参数：

    std::optional<DisplayCommand> mDisplayCommand;
    std::optional<LayerCommand> mLayerCommand;
    std::vector<DisplayCommand> mCommands;

其中 LayerCommand 的实现如下：

class LayerCommand {
public:
  typedef std::false_type fixed_size;
  static const char* descriptor;

  int64_t layer = 0L;
  // 数据部分
  std::optional<::aidl::android::hardware::graphics::common::Point> cursorPosition;
  std::optional<::aidl::android::hardware::graphics::composer3::Buffer> buffer;
  std::optional<std::vector<std::optional<::aidl::android::hardware::graphics::common::Rect>>> damage;
  std::optional<::aidl::android::hardware::graphics::composer3::ParcelableBlendMode> blendMode;
  std::optional<::aidl::android::hardware::graphics::composer3::Color> color;
  std::optional<::aidl::android::hardware::graphics::composer3::ParcelableComposition> composition;
  std::optional<::aidl::android::hardware::graphics::composer3::ParcelableDataspace> dataspace;
  std::optional<::aidl::android::hardware::graphics::common::Rect> displayFrame;
  std::optional<::aidl::android::hardware::graphics::composer3::PlaneAlpha> planeAlpha;
  std::optional<::aidl::android::hardware::common::NativeHandle> sidebandStream;
  std::optional<::aidl::android::hardware::graphics::common::FRect> sourceCrop;
  std::optional<::aidl::android::hardware::graphics::composer3::ParcelableTransform> transform;
  std::optional<std::vector<std::optional<::aidl::android::hardware::graphics::common::Rect>>> visibleRegion;
  std::optional<::aidl::android::hardware::graphics::composer3::ZOrder> z;
  std::optional<std::vector<float>> colorTransform;
  std::optional<::aidl::android::hardware::graphics::composer3::LayerBrightness> brightness;
  std::optional<std::vector<std::optional<::aidl::android::hardware::graphics::composer3::PerFrameMetadata>>> perFrameMetadata;
  std::optional<std::vector<std::optional<::aidl::android::hardware::graphics::composer3::PerFrameMetadataBlob>>> perFrameMetadataBlob;
  std::optional<std::vector<std::optional<::aidl::android::hardware::graphics::common::Rect>>> blockingRegion;
  std::optional<std::vector<int32_t>> bufferSlotsToClear;

  binder_status_t readFromParcel(const AParcel* parcel);
  binder_status_t writeToParcel(AParcel* parcel) const;

  inline bool operator!=(const LayerCommand& rhs) const {
    return std::tie(layer, cursorPosition, buffer, damage, blendMode, color, composition, dataspace, displayFrame, planeAlpha, sidebandStream, sourceCrop, transform, visibleRegion, z, colorTransform, brightness, perFrameMetadata, perFrameMetadataBlob, blockingRegion, bufferSlotsToClear) != std::tie(rhs.layer, rhs.cursorPosition, rhs.buffer, rhs.damage, rhs.blendMode, rhs.color, rhs.composition, rhs.dataspace, rhs.displayFrame, rhs.planeAlpha, rhs.sidebandStream, rhs.sourceCrop, rhs.transform, rhs.visibleRegion, rhs.z, rhs.colorTransform, rhs.brightness, rhs.perFrameMetadata, rhs.perFrameMetadataBlob, rhs.blockingRegion, rhs.bufferSlotsToClear);
  }
  inline bool operator<(const LayerCommand& rhs) const {
    return std::tie(layer, cursorPosition, buffer, damage, blendMode, color, composition, dataspace, displayFrame, planeAlpha, sidebandStream, sourceCrop, transform, visibleRegion, z, colorTransform, brightness, perFrameMetadata, perFrameMetadataBlob, blockingRegion, bufferSlotsToClear) < std::tie(rhs.layer, rhs.cursorPosition, rhs.buffer, rhs.damage, rhs.blendMode, rhs.color, rhs.composition, rhs.dataspace, rhs.displayFrame, rhs.planeAlpha, rhs.sidebandStream, rhs.sourceCrop, rhs.transform, rhs.visibleRegion, rhs.z, rhs.colorTransform, rhs.brightness, rhs.perFrameMetadata, rhs.perFrameMetadataBlob, rhs.blockingRegion, rhs.bufferSlotsToClear);
  }
  inline bool operator<=(const LayerCommand& rhs) const {
    return std::tie(layer, cursorPosition, buffer, damage, blendMode, color, composition, dataspace, displayFrame, planeAlpha, sidebandStream, sourceCrop, transform, visibleRegion, z, colorTransform, brightness, perFrameMetadata, perFrameMetadataBlob, blockingRegion, bufferSlotsToClear) <= std::tie(rhs.layer, rhs.cursorPosition, rhs.buffer, rhs.damage, rhs.blendMode, rhs.color, rhs.composition, rhs.dataspace, rhs.displayFrame, rhs.planeAlpha, rhs.sidebandStream, rhs.sourceCrop, rhs.transform, rhs.visibleRegion, rhs.z, rhs.colorTransform, rhs.brightness, rhs.perFrameMetadata, rhs.perFrameMetadataBlob, rhs.blockingRegion, rhs.bufferSlotsToClear);
  }
  inline bool operator==(const LayerCommand& rhs) const {
    return std::tie(layer, cursorPosition, buffer, damage, blendMode, color, composition, dataspace, displayFrame, planeAlpha, sidebandStream, sourceCrop, transform, visibleRegion, z, colorTransform, brightness, perFrameMetadata, perFrameMetadataBlob, blockingRegion, bufferSlotsToClear) == std::tie(rhs.layer, rhs.cursorPosition, rhs.buffer, rhs.damage, rhs.blendMode, rhs.color, rhs.composition, rhs.dataspace, rhs.displayFrame, rhs.planeAlpha, rhs.sidebandStream, rhs.sourceCrop, rhs.transform, rhs.visibleRegion, rhs.z, rhs.colorTransform, rhs.brightness, rhs.perFrameMetadata, rhs.perFrameMetadataBlob, rhs.blockingRegion, rhs.bufferSlotsToClear);
  }
  inline bool operator>(const LayerCommand& rhs) const {
    return std::tie(layer, cursorPosition, buffer, damage, blendMode, color, composition, dataspace, displayFrame, planeAlpha, sidebandStream, sourceCrop, transform, visibleRegion, z, colorTransform, brightness, perFrameMetadata, perFrameMetadataBlob, blockingRegion, bufferSlotsToClear) > std::tie(rhs.layer, rhs.cursorPosition, rhs.buffer, rhs.damage, rhs.blendMode, rhs.color, rhs.composition, rhs.dataspace, rhs.displayFrame, rhs.planeAlpha, rhs.sidebandStream, rhs.sourceCrop, rhs.transform, rhs.visibleRegion, rhs.z, rhs.colorTransform, rhs.brightness, rhs.perFrameMetadata, rhs.perFrameMetadataBlob, rhs.blockingRegion, rhs.bufferSlotsToClear);
  }
  inline bool operator>=(const LayerCommand& rhs) const {
    return std::tie(layer, cursorPosition, buffer, damage, blendMode, color, composition, dataspace, displayFrame, planeAlpha, sidebandStream, sourceCrop, transform, visibleRegion, z, colorTransform, brightness, perFrameMetadata, perFrameMetadataBlob, blockingRegion, bufferSlotsToClear) >= std::tie(rhs.layer, rhs.cursorPosition, rhs.buffer, rhs.damage, rhs.blendMode, rhs.color, rhs.composition, rhs.dataspace, rhs.displayFrame, rhs.planeAlpha, rhs.sidebandStream, rhs.sourceCrop, rhs.transform, rhs.visibleRegion, rhs.z, rhs.colorTransform, rhs.brightness, rhs.perFrameMetadata, rhs.perFrameMetadataBlob, rhs.blockingRegion, rhs.bufferSlotsToClear);
  }

  static const ::ndk::parcelable_stability_t _aidl_stability = ::ndk::STABILITY_VINTF;
  inline std::string toString() const {
    std::ostringstream os;
    os << "LayerCommand{";
    os << "layer: " << ::android::internal::ToString(layer);
    os << ", cursorPosition: " << ::android::internal::ToString(cursorPosition);
    os << ", buffer: " << ::android::internal::ToString(buffer);
    os << ", damage: " << ::android::internal::ToString(damage);
    os << ", blendMode: " << ::android::internal::ToString(blendMode);
    os << ", color: " << ::android::internal::ToString(color);
    os << ", composition: " << ::android::internal::ToString(composition);
    os << ", dataspace: " << ::android::internal::ToString(dataspace);
    os << ", displayFrame: " << ::android::internal::ToString(displayFrame);
    os << ", planeAlpha: " << ::android::internal::ToString(planeAlpha);
    os << ", sidebandStream: " << ::android::internal::ToString(sidebandStream);
    os << ", sourceCrop: " << ::android::internal::ToString(sourceCrop);
    os << ", transform: " << ::android::internal::ToString(transform);
    os << ", visibleRegion: " << ::android::internal::ToString(visibleRegion);
    os << ", z: " << ::android::internal::ToString(z);
    os << ", colorTransform: " << ::android::internal::ToString(colorTransform);
    os << ", brightness: " << ::android::internal::ToString(brightness);
    os << ", perFrameMetadata: " << ::android::internal::ToString(perFrameMetadata);
    os << ", perFrameMetadataBlob: " << ::android::internal::ToString(perFrameMetadataBlob);
    os << ", blockingRegion: " << ::android::internal::ToString(blockingRegion);
    os << ", bufferSlotsToClear: " << ::android::internal::ToString(bufferSlotsToClear);
    os << "}";
    return os.str();
  }
};

DisplayCommand 的实现如下：

class DisplayCommand {
public:
  typedef std::false_type fixed_size;
  static const char* descriptor;

  int64_t display = 0L;
  // 数据部分
  std::vector<::aidl::android::hardware::graphics::composer3::LayerCommand> layers;
  std::optional<std::vector<float>> colorTransformMatrix;
  std::optional<::aidl::android::hardware::graphics::composer3::DisplayBrightness> brightness;
  std::optional<::aidl::android::hardware::graphics::composer3::ClientTarget> clientTarget;
  std::optional<::aidl::android::hardware::graphics::composer3::Buffer> virtualDisplayOutputBuffer;
  std::optional<::aidl::android::hardware::graphics::composer3::ClockMonotonicTimestamp> expectedPresentTime;
  bool validateDisplay = false;
  bool acceptDisplayChanges = false;
  bool presentDisplay = false;
  bool presentOrValidateDisplay = false;

  binder_status_t readFromParcel(const AParcel* parcel);
  binder_status_t writeToParcel(AParcel* parcel) const;

  inline bool operator!=(const DisplayCommand& rhs) const {
    return std::tie(display, layers, colorTransformMatrix, brightness, clientTarget, virtualDisplayOutputBuffer, expectedPresentTime, validateDisplay, acceptDisplayChanges, presentDisplay, presentOrValidateDisplay) != std::tie(rhs.display, rhs.layers, rhs.colorTransformMatrix, rhs.brightness, rhs.clientTarget, rhs.virtualDisplayOutputBuffer, rhs.expectedPresentTime, rhs.validateDisplay, rhs.acceptDisplayChanges, rhs.presentDisplay, rhs.presentOrValidateDisplay);
  }
  inline bool operator<(const DisplayCommand& rhs) const {
    return std::tie(display, layers, colorTransformMatrix, brightness, clientTarget, virtualDisplayOutputBuffer, expectedPresentTime, validateDisplay, acceptDisplayChanges, presentDisplay, presentOrValidateDisplay) < std::tie(rhs.display, rhs.layers, rhs.colorTransformMatrix, rhs.brightness, rhs.clientTarget, rhs.virtualDisplayOutputBuffer, rhs.expectedPresentTime, rhs.validateDisplay, rhs.acceptDisplayChanges, rhs.presentDisplay, rhs.presentOrValidateDisplay);
  }
  inline bool operator<=(const DisplayCommand& rhs) const {
    return std::tie(display, layers, colorTransformMatrix, brightness, clientTarget, virtualDisplayOutputBuffer, expectedPresentTime, validateDisplay, acceptDisplayChanges, presentDisplay, presentOrValidateDisplay) <= std::tie(rhs.display, rhs.layers, rhs.colorTransformMatrix, rhs.brightness, rhs.clientTarget, rhs.virtualDisplayOutputBuffer, rhs.expectedPresentTime, rhs.validateDisplay, rhs.acceptDisplayChanges, rhs.presentDisplay, rhs.presentOrValidateDisplay);
  }
  inline bool operator==(const DisplayCommand& rhs) const {
    return std::tie(display, layers, colorTransformMatrix, brightness, clientTarget, virtualDisplayOutputBuffer, expectedPresentTime, validateDisplay, acceptDisplayChanges, presentDisplay, presentOrValidateDisplay) == std::tie(rhs.display, rhs.layers, rhs.colorTransformMatrix, rhs.brightness, rhs.clientTarget, rhs.virtualDisplayOutputBuffer, rhs.expectedPresentTime, rhs.validateDisplay, rhs.acceptDisplayChanges, rhs.presentDisplay, rhs.presentOrValidateDisplay);
  }
  inline bool operator>(const DisplayCommand& rhs) const {
    return std::tie(display, layers, colorTransformMatrix, brightness, clientTarget, virtualDisplayOutputBuffer, expectedPresentTime, validateDisplay, acceptDisplayChanges, presentDisplay, presentOrValidateDisplay) > std::tie(rhs.display, rhs.layers, rhs.colorTransformMatrix, rhs.brightness, rhs.clientTarget, rhs.virtualDisplayOutputBuffer, rhs.expectedPresentTime, rhs.validateDisplay, rhs.acceptDisplayChanges, rhs.presentDisplay, rhs.presentOrValidateDisplay);
  }
  inline bool operator>=(const DisplayCommand& rhs) const {
    return std::tie(display, layers, colorTransformMatrix, brightness, clientTarget, virtualDisplayOutputBuffer, expectedPresentTime, validateDisplay, acceptDisplayChanges, presentDisplay, presentOrValidateDisplay) >= std::tie(rhs.display, rhs.layers, rhs.colorTransformMatrix, rhs.brightness, rhs.clientTarget, rhs.virtualDisplayOutputBuffer, rhs.expectedPresentTime, rhs.validateDisplay, rhs.acceptDisplayChanges, rhs.presentDisplay, rhs.presentOrValidateDisplay);
  }

  static const ::ndk::parcelable_stability_t _aidl_stability = ::ndk::STABILITY_VINTF;
  inline std::string toString() const {
    std::ostringstream os;
    os << "DisplayCommand{";
    os << "display: " << ::android::internal::ToString(display);
    os << ", layers: " << ::android::internal::ToString(layers);
    os << ", colorTransformMatrix: " << ::android::internal::ToString(colorTransformMatrix);
    os << ", brightness: " << ::android::internal::ToString(brightness);
    os << ", clientTarget: " << ::android::internal::ToString(clientTarget);
    os << ", virtualDisplayOutputBuffer: " << ::android::internal::ToString(virtualDisplayOutputBuffer);
    os << ", expectedPresentTime: " << ::android::internal::ToString(expectedPresentTime);
    os << ", validateDisplay: " << ::android::internal::ToString(validateDisplay);
    os << ", acceptDisplayChanges: " << ::android::internal::ToString(acceptDisplayChanges);
    os << ", presentDisplay: " << ::android::internal::ToString(presentDisplay);
    os << ", presentOrValidateDisplay: " << ::android::internal::ToString(presentOrValidateDisplay);
    os << "}";
    return os.str();
  }
};

一堆的设置方法，都是在配置 mDisplayCommand 和 mLayerCommand。当要发起远程调用时，调用两个 flush 函数，mLayerCommand 插入到 mDisplayCommand->layers 中，mDisplayCommand 插入到 mCommands 中。当执行 aidlComposer::execute 时，会发起 binder 远程调用，使用 mCommands 作为参数：

Error AidlComposer::execute(Display display) {
    auto writer = getWriter(display);
    auto reader = getReader(display);
    if (!writer || !reader) {
        return Error::BAD_DISPLAY;
    }

    // 这里就是返回的 mCommands 中存储的内容
    auto commands = writer->get().takePendingCommands();
    if (commands.empty()) {
        return Error::NONE;
    }

    { // scope for results
        // 远程调用返回的结果
        std::vector<CommandResultPayload> results;
        // 发起远程调用，传入了 commands
        auto status = mAidlComposerClient->executeCommands(commands, &results);
        if (!status.isOk()) {
            ALOGE("executeCommands failed %s", status.getDescription().c_str());
            return static_cast<Error>(status.getServiceSpecificError());
        }

        // 通过 reader 解析结果
        reader->get().parse(std::move(results));
    }
    const auto commandErrors = reader->get().takeErrors();
    Error error = Error::NONE;
    for (const auto& cmdErr : commandErrors) {
        const auto index = static_cast<size_t>(cmdErr.commandIndex);
        if (index < 0 || index >= commands.size()) {
            ALOGE("invalid command index %zu", index);
            return Error::BAD_PARAMETER;
        }

        const auto& command = commands[index];
        if (command.validateDisplay || command.presentDisplay || command.presentOrValidateDisplay) {
            error = translate<Error>(cmdErr.errorCode);
        } else {
            ALOGW("command '%s' generated error %" PRId32, command.toString().c_str(),
                  cmdErr.errorCode);
        }
    }

    return error;
}

返回结果 CommandResultPayload 的定义如下：

class CommandResultPayload {
public:
  typedef std::false_type fixed_size;
  static const char* descriptor;

  enum class Tag : int32_t {
    error = 0,
    changedCompositionTypes = 1,
    displayRequest = 2,
    presentFence = 3,
    releaseFences = 4,
    presentOrValidateResult = 5,
    clientTargetProperty = 6,
  };

  // Expose tag symbols for legacy code
  static const inline Tag error = Tag::error;
  static const inline Tag changedCompositionTypes = Tag::changedCompositionTypes;
  static const inline Tag displayRequest = Tag::displayRequest;
  static const inline Tag presentFence = Tag::presentFence;
  static const inline Tag releaseFences = Tag::releaseFences;
  static const inline Tag presentOrValidateResult = Tag::presentOrValidateResult;
  static const inline Tag clientTargetProperty = Tag::clientTargetProperty;

  template<typename _Tp>
  static constexpr bool _not_self = !std::is_same_v<std::remove_cv_t<std::remove_reference_t<_Tp>>, CommandResultPayload>;

  CommandResultPayload() : _value(std::in_place_index<static_cast<size_t>(error)>, ::aidl::android::hardware::graphics::composer3::CommandError()) { }

  template <typename _Tp, typename = std::enable_if_t<_not_self<_Tp>>>
  // NOLINTNEXTLINE(google-explicit-constructor)
  constexpr CommandResultPayload(_Tp&& _arg)
      : _value(std::forward<_Tp>(_arg)) {}

  template <size_t _Np, typename... _Tp>
  constexpr explicit CommandResultPayload(std::in_place_index_t<_Np>, _Tp&&... _args)
      : _value(std::in_place_index<_Np>, std::forward<_Tp>(_args)...) {}

  template <Tag _tag, typename... _Tp>
  static CommandResultPayload make(_Tp&&... _args) {
    return CommandResultPayload(std::in_place_index<static_cast<size_t>(_tag)>, std::forward<_Tp>(_args)...);
  }

  template <Tag _tag, typename _Tp, typename... _Up>
  static CommandResultPayload make(std::initializer_list<_Tp> _il, _Up&&... _args) {
    return CommandResultPayload(std::in_place_index<static_cast<size_t>(_tag)>, std::move(_il), std::forward<_Up>(_args)...);
  }

  Tag getTag() const {
    return static_cast<Tag>(_value.index());
  }

  template <Tag _tag>
  const auto& get() const {
    if (getTag() != _tag) { __assert2(__FILE__, __LINE__, __PRETTY_FUNCTION__, "bad access: a wrong tag"); }
    return std::get<static_cast<size_t>(_tag)>(_value);
  }

  template <Tag _tag>
  auto& get() {
    if (getTag() != _tag) { __assert2(__FILE__, __LINE__, __PRETTY_FUNCTION__, "bad access: a wrong tag"); }
    return std::get<static_cast<size_t>(_tag)>(_value);
  }

  template <Tag _tag, typename... _Tp>
  void set(_Tp&&... _args) {
    _value.emplace<static_cast<size_t>(_tag)>(std::forward<_Tp>(_args)...);
  }

  binder_status_t readFromParcel(const AParcel* _parcel);
  binder_status_t writeToParcel(AParcel* _parcel) const;

  inline bool operator!=(const CommandResultPayload& rhs) const {
    return _value != rhs._value;
  }
  inline bool operator<(const CommandResultPayload& rhs) const {
    return _value < rhs._value;
  }
  inline bool operator<=(const CommandResultPayload& rhs) const {
    return _value <= rhs._value;
  }
  inline bool operator==(const CommandResultPayload& rhs) const {
    return _value == rhs._value;
  }
  inline bool operator>(const CommandResultPayload& rhs) const {
    return _value > rhs._value;
  }
  inline bool operator>=(const CommandResultPayload& rhs) const {
    return _value >= rhs._value;
  }

  static const ::ndk::parcelable_stability_t _aidl_stability = ::ndk::STABILITY_VINTF;
  inline std::string toString() const {
    std::ostringstream os;
    os << "CommandResultPayload{";
    switch (getTag()) {
    case error: os << "error: " << ::android::internal::ToString(get<error>()); break;
    case changedCompositionTypes: os << "changedCompositionTypes: " << ::android::internal::ToString(get<changedCompositionTypes>()); break;
    case displayRequest: os << "displayRequest: " << ::android::internal::ToString(get<displayRequest>()); break;
    case presentFence: os << "presentFence: " << ::android::internal::ToString(get<presentFence>()); break;
    case releaseFences: os << "releaseFences: " << ::android::internal::ToString(get<releaseFences>()); break;
    case presentOrValidateResult: os << "presentOrValidateResult: " << ::android::internal::ToString(get<presentOrValidateResult>()); break;
    case clientTargetProperty: os << "clientTargetProperty: " << ::android::internal::ToString(get<clientTargetProperty>()); break;
    }
    os << "}";
    return os.str();
  }
private:
  std::variant<::aidl::android::hardware::graphics::composer3::CommandError, ::aidl::android::hardware::graphics::composer3::ChangedCompositionTypes, ::aidl::android::hardware::graphics::composer3::DisplayRequest, ::aidl::android::hardware::graphics::composer3::PresentFence, ::aidl::android::hardware::graphics::composer3::ReleaseFences, ::aidl::android::hardware::graphics::composer3::PresentOrValidate, ::aidl::android::hardware::graphics::composer3::ClientTargetPropertyWithBrightness> _value;
};

主要的数据就是最后的 variant 变量。

我们来看 reader 是如何解析的。

ComposerClientReader 的定义如下，主要看下 parse 的实现：

class ComposerClientReader {
  public:
    explicit ComposerClientReader(std::optional<int64_t> display = {}) : mDisplay(display) {}

    ~ComposerClientReader() { resetData(); }

    ComposerClientReader(ComposerClientReader&&) = default;

    ComposerClientReader(const ComposerClientReader&) = delete;
    ComposerClientReader& operator=(const ComposerClientReader&) = delete;

    // Parse and execute commands from the command queue.  The commands are
    // actually return values from the server and will be saved in ReturnData.
    void parse(std::vector<CommandResultPayload>&& results) {
        resetData();

        for (auto& result : results) {
            // 根据不同的 tag，调用不同的方法解析
            switch (result.getTag()) {
                case CommandResultPayload::Tag::error:
                    parseSetError(std::move(result.get<CommandResultPayload::Tag::error>()));
                    break;
                case CommandResultPayload::Tag::changedCompositionTypes:
                    parseSetChangedCompositionTypes(std::move(
                            result.get<CommandResultPayload::Tag::changedCompositionTypes>()));
                    break;
                case CommandResultPayload::Tag::displayRequest:
                    parseSetDisplayRequests(
                            std::move(result.get<CommandResultPayload::Tag::displayRequest>()));
                    break;
                case CommandResultPayload::Tag::presentFence:
                    parseSetPresentFence(
                            std::move(result.get<CommandResultPayload::Tag::presentFence>()));
                    break;
                case CommandResultPayload::Tag::releaseFences:
                    parseSetReleaseFences(
                            std::move(result.get<CommandResultPayload::Tag::releaseFences>()));
                    break;
                case CommandResultPayload::Tag::presentOrValidateResult:
                    parseSetPresentOrValidateDisplayResult(std::move(
                            result.get<CommandResultPayload::Tag::presentOrValidateResult>()));
                    break;
                case CommandResultPayload::Tag::clientTargetProperty:
                    parseSetClientTargetProperty(std::move(
                            result.get<CommandResultPayload::Tag::clientTargetProperty>()));
                    break;
            }
        }
    }

    std::vector<CommandError> takeErrors() { return std::move(mErrors); }

    void hasChanges(int64_t display, uint32_t* outNumChangedCompositionTypes,
                    uint32_t* outNumLayerRequestMasks) const {
        LOG_ALWAYS_FATAL_IF(mDisplay && display != *mDisplay);
        auto found = mReturnData.find(display);
        if (found == mReturnData.end()) {
            *outNumChangedCompositionTypes = 0;
            *outNumLayerRequestMasks = 0;
            return;
        }

        const ReturnData& data = found->second;

        *outNumChangedCompositionTypes = static_cast<uint32_t>(data.changedLayers.size());
        *outNumLayerRequestMasks = static_cast<uint32_t>(data.displayRequests.layerRequests.size());
    }

    // Get and clear saved changed composition types.
    std::vector<ChangedCompositionLayer> takeChangedCompositionTypes(int64_t display) {
        LOG_ALWAYS_FATAL_IF(mDisplay && display != *mDisplay);
        auto found = mReturnData.find(display);
        if (found == mReturnData.end()) {
            return {};
        }

        ReturnData& data = found->second;
        return std::move(data.changedLayers);
    }

    // Get and clear saved display requests.
    DisplayRequest takeDisplayRequests(int64_t display) {
        LOG_ALWAYS_FATAL_IF(mDisplay && display != *mDisplay);
        auto found = mReturnData.find(display);
        if (found == mReturnData.end()) {
            return {};
        }

        ReturnData& data = found->second;
        return std::move(data.displayRequests);
    }

    // Get and clear saved release fences.
    std::vector<ReleaseFences::Layer> takeReleaseFences(int64_t display) {
        LOG_ALWAYS_FATAL_IF(mDisplay && display != *mDisplay);
        auto found = mReturnData.find(display);
        if (found == mReturnData.end()) {
            return {};
        }

        ReturnData& data = found->second;
        return std::move(data.releasedLayers);
    }

    // Get and clear saved present fence.
    ndk::ScopedFileDescriptor takePresentFence(int64_t display) {
        LOG_ALWAYS_FATAL_IF(mDisplay && display != *mDisplay);
        auto found = mReturnData.find(display);
        if (found == mReturnData.end()) {
            return {};
        }

        ReturnData& data = found->second;
        return std::move(data.presentFence);
    }

    // Get what stage succeeded during PresentOrValidate: Present or Validate
    std::optional<PresentOrValidate::Result> takePresentOrValidateStage(int64_t display) {
        LOG_ALWAYS_FATAL_IF(mDisplay && display != *mDisplay);
        auto found = mReturnData.find(display);
        if (found == mReturnData.end()) {
            return std::nullopt;
        }
        ReturnData& data = found->second;
        return data.presentOrValidateState;
    }

    // Get the client target properties requested by hardware composer.
    ClientTargetPropertyWithBrightness takeClientTargetProperty(int64_t display) {
        LOG_ALWAYS_FATAL_IF(mDisplay && display != *mDisplay);
        auto found = mReturnData.find(display);

        // If not found, return the default values.
        if (found == mReturnData.end()) {
            return ClientTargetPropertyWithBrightness{
                    .clientTargetProperty = {common::PixelFormat::RGBA_8888, Dataspace::UNKNOWN},
                    .brightness = 1.f,
            };
        }

        ReturnData& data = found->second;
        return std::move(data.clientTargetProperty);
    }

  private:
    void resetData() {
        mErrors.clear();
        mReturnData.clear();
    }

    void parseSetError(CommandError&& error) { mErrors.emplace_back(error); }

    void parseSetChangedCompositionTypes(ChangedCompositionTypes&& changedCompositionTypes) {
        LOG_ALWAYS_FATAL_IF(mDisplay && changedCompositionTypes.display != *mDisplay);
        auto& data = mReturnData[changedCompositionTypes.display];
        data.changedLayers = std::move(changedCompositionTypes.layers);
    }

    void parseSetDisplayRequests(DisplayRequest&& displayRequest) {
        LOG_ALWAYS_FATAL_IF(mDisplay && displayRequest.display != *mDisplay);
        auto& data = mReturnData[displayRequest.display];
        data.displayRequests = std::move(displayRequest);
    }

    void parseSetPresentFence(PresentFence&& presentFence) {
        LOG_ALWAYS_FATAL_IF(mDisplay && presentFence.display != *mDisplay);
        auto& data = mReturnData[presentFence.display];
        data.presentFence = std::move(presentFence.fence);
    }

    void parseSetReleaseFences(ReleaseFences&& releaseFences) {
        LOG_ALWAYS_FATAL_IF(mDisplay && releaseFences.display != *mDisplay);
        auto& data = mReturnData[releaseFences.display];
        data.releasedLayers = std::move(releaseFences.layers);
    }

    void parseSetPresentOrValidateDisplayResult(const PresentOrValidate&& presentOrValidate) {
        LOG_ALWAYS_FATAL_IF(mDisplay && presentOrValidate.display != *mDisplay);
        auto& data = mReturnData[presentOrValidate.display];
        data.presentOrValidateState = std::move(presentOrValidate.result);
    }

    void parseSetClientTargetProperty(
            const ClientTargetPropertyWithBrightness&& clientTargetProperty) {
        LOG_ALWAYS_FATAL_IF(mDisplay && clientTargetProperty.display != *mDisplay);
        auto& data = mReturnData[clientTargetProperty.display];
        data.clientTargetProperty = std::move(clientTargetProperty);
    }

    struct ReturnData {
        DisplayRequest displayRequests;
        std::vector<ChangedCompositionLayer> changedLayers;
        ndk::ScopedFileDescriptor presentFence;
        std::vector<ReleaseFences::Layer> releasedLayers;
        PresentOrValidate::Result presentOrValidateState;

        ClientTargetPropertyWithBrightness clientTargetProperty = {
                .clientTargetProperty = {common::PixelFormat::RGBA_8888, Dataspace::UNKNOWN},
                .brightness = 1.f,
        };
    };

    std::vector<CommandError> mErrors;
    std::unordered_map<int64_t, ReturnData> mReturnData;
    const std::optional<int64_t> mDisplay;
};

Reader 用于解析远程调用返回的数据。

问题，mWriters 和 mReader 什么时候添加数据的？

看下 AidlComposer 构造函数：

// /frameworks/native/services/surfaceflinger/DisplayHardware/AidlComposerHal.cpp
AidlComposer::AidlComposer(const std::string& serviceName) {
    // This only waits if the service is actually declared
    mAidlComposer = AidlIComposer::fromBinder(
            ndk::SpAIBinder(AServiceManager_waitForService(instance(serviceName).c_str())));
    if (!mAidlComposer) {
        LOG_ALWAYS_FATAL("Failed to get AIDL composer service");
        return;
    }

    if (!mAidlComposer->createClient(&mAidlComposerClient).isOk()) {
        LOG_ALWAYS_FATAL("Can't create AidlComposerClient, fallback to HIDL");
        return;
    }

    // 是不是添加 reader ？
    addReader(translate<Display>(kSingleReaderKey));

    // If unable to read interface version, then become backwards compatible.
    int32_t version = 1;
    const auto status = mAidlComposerClient->getInterfaceVersion(&version);
    if (!status.isOk()) {
        ALOGE("getInterfaceVersion for AidlComposer constructor failed %s",
              status.getDescription().c_str());
    }
    mSupportsBufferSlotsToClear = version > 1;
    if (!mSupportsBufferSlotsToClear) {
        if (sysprop::clear_slots_with_set_layer_buffer(false)) {
            mClearSlotBuffer = sp<GraphicBuffer>::make(1, 1, PIXEL_FORMAT_RGBX_8888,
                                                       GraphicBuffer::USAGE_HW_COMPOSER |
                                                               GraphicBuffer::USAGE_SW_READ_OFTEN |
                                                               GraphicBuffer::USAGE_SW_WRITE_OFTEN,
                                                       "AidlComposer");
            if (!mClearSlotBuffer || mClearSlotBuffer->initCheck() != ::android::OK) {
                LOG_ALWAYS_FATAL("Failed to allocate a buffer for clearing layer buffer slots");
                return;
            }
        }
    }

    ALOGI("Loaded AIDL composer3 HAL service");
}

void AidlComposer::addReader(Display display) {
    const auto displayId = translate<int64_t>(display);
    std::optional<int64_t> displayOpt;
    if (displayId != kSingleReaderKey) {
        displayOpt.emplace(displayId);
    }

    // 添加 reader
    auto [it, added] = mReaders.try_emplace(display, std::move(displayOpt));
    ALOGW_IF(!added, "Attempting to add writer for display %" PRId64 " which is already connected",
             displayId);
}

热插拔，or 初始化时：

void AidlComposer::onHotplugConnect(Display display) {
    addDisplay(display);
}

//
void AidlComposer::addDisplay(Display display) {
    const auto displayId = translate<int64_t>(display);
    mMutex.lock();
    // 添加 writer
    auto [it, added] = mWriters.try_emplace(display, displayId);
    ALOGW_IF(!added, "Attempting to add writer for display %" PRId64 " which is already connected",
             displayId);
    if (mSingleReader) {
        if (hasMultiThreadedPresentSupport(display)) {
            mSingleReader = false;
            removeReader(translate<Display>(kSingleReaderKey));
            // Note that this includes the new display.
            for (const auto& [existingDisplay, _] : mWriters) {
                addReader(existingDisplay);
            }
        }
    } else {
        addReader(display);
    }
    mMutex.unlock();
}

7.2.2 关注点1，updateCompositionState

关注点1，updateCompositionState 会调用所有 OutputLayer 的 updateCompositionState 来更新数据：

void Output::updateCompositionState(const compositionengine::CompositionRefreshArgs& refreshArgs) {
    ATRACE_CALL();
    ALOGV(__FUNCTION__);

    if (!getState().isEnabled) {
        return;
    }

    mLayerRequestingBackgroundBlur = findLayerRequestingBackgroundComposition();
    bool forceClientComposition = mLayerRequestingBackgroundBlur != nullptr;

    for (auto* layer : getOutputLayersOrderedByZ()) {
        layer->updateCompositionState(refreshArgs.updatingGeometryThisFrame,
                                      refreshArgs.devOptForceClientComposition ||
                                              forceClientComposition,
                                      refreshArgs.internalDisplayRotationFlags);

        if (mLayerRequestingBackgroundBlur == layer) {
            forceClientComposition = false;
        }
    }

    updateCompositionStateForBorder(refreshArgs);
}

遍历调用每个 OutputLayer 的 updateCompositionState，更新每个 OutputLayer 的 state 的一些信息。然后还调用 updateCompositionStateForBorder 同步参数内每个 layer 的同步信息。我们的 Demo 涉及不到，具体细节我们就不看了。

void Output::updateCompositionState(const compositionengine::CompositionRefreshArgs& refreshArgs) {

    if (!getState().isEnabled) {
        return;
    }
    // forceClientComposition代表是否需要gpu合成，有模糊的layer这里返回就不为空，forceClientComposition为true
    mLayerRequestingBackgroundBlur = findLayerRequestingBackgroundComposition();
    bool forceClientComposition = mLayerRequestingBackgroundBlur != nullptr;

    for (auto* layer : getOutputLayersOrderedByZ()) {
        // 遍历素有 OutputLayer,调用 updateCompositionState
        layer->updateCompositionState(refreshArgs.updatingGeometryThisFrame,
                                    refreshArgs.devOptForceClientComposition ||
                                            forceClientComposition,
                                    refreshArgs.internalDisplayRotationFlags);
        // 当layer == mLayerRequestingBackgroundBlur，表示后面的layer已经没有模糊的layer，就不需要强制gpu合成。
        if (mLayerRequestingBackgroundBlur == layer) {
            forceClientComposition = false;
        }
    }
    // 将refreshArgs里面layer的边界信息同步到OutputCompositionState的borderInfoList列表里。
    updateCompositionStateForBorder(refreshArgs);
}

7.2.3 writeCompositionState

关注点 2 writeCompositionState：

void Output::writeCompositionState(const compositionengine::CompositionRefreshArgs& refreshArgs) {
    ATRACE_CALL();
    ALOGV(__FUNCTION__);

    if (!getState().isEnabled) {
        return;
    }

    editState().earliestPresentTime = refreshArgs.earliestPresentTime;
    editState().expectedPresentTime = refreshArgs.expectedPresentTime;

    compositionengine::OutputLayer* peekThroughLayer = nullptr;
    sp<GraphicBuffer> previousOverride = nullptr;
    bool includeGeometry = refreshArgs.updatingGeometryThisFrame;
    uint32_t z = 0;
    bool overrideZ = false;
    uint64_t outputLayerHash = 0;
    // 遍历所有的 OutputLayer
    for (auto* layer : getOutputLayersOrderedByZ()) {
        if (layer == peekThroughLayer) {
            // No longer needed, although it should not show up again, so
            // resetting it is not truly needed either.
            peekThroughLayer = nullptr;

            // peekThroughLayer was already drawn ahead of its z order.
            continue;
        }
        bool skipLayer = false;
        const auto& overrideInfo = layer->getState().overrideInfo;
        if (overrideInfo.buffer != nullptr) {
            if (previousOverride && overrideInfo.buffer->getBuffer() == previousOverride) {
                ALOGV("Skipping redundant buffer");
                skipLayer = true;
            } else {
                // First layer with the override buffer.
                if (overrideInfo.peekThroughLayer) {
                    peekThroughLayer = overrideInfo.peekThroughLayer;

                    // Draw peekThroughLayer first.
                    overrideZ = true;
                    includeGeometry = true;
                    constexpr bool isPeekingThrough = true;
                    peekThroughLayer->writeStateToHWC(includeGeometry, false, z++, overrideZ,
                                                      isPeekingThrough);
                    outputLayerHash ^= android::hashCombine(
                            reinterpret_cast<uint64_t>(&peekThroughLayer->getLayerFE()),
                            z, includeGeometry, overrideZ, isPeekingThrough,
                            peekThroughLayer->requiresClientComposition());
                }

                previousOverride = overrideInfo.buffer->getBuffer();
            }
        }

        constexpr bool isPeekingThrough = false;
        // 关注点
        layer->writeStateToHWC(includeGeometry, skipLayer, z++, overrideZ, isPeekingThrough);
        if (!skipLayer) {
            outputLayerHash ^= android::hashCombine(
                    reinterpret_cast<uint64_t>(&layer->getLayerFE()),
                    z, includeGeometry, overrideZ, isPeekingThrough,
                    layer->requiresClientComposition());
        }
    }
    editState().outputLayerHash = outputLayerHash;
}

遍历所有的 OutputLayer，然后调用每一个 OutputLayer 的 writeStateToHWC 函数：

void OutputLayer::writeStateToHWC(bool includeGeometry, bool skipLayer, uint32_t z,
                                  bool zIsOverridden, bool isPeekingThrough) {
    const auto& state = getState();
    // Skip doing this if there is no HWC interface
    if (!state.hwc) {
        return;
    }

    //拿到 OutputLayer 对应的 hwclayer
    auto& hwcLayer = (*state.hwc).hwcLayer;
    if (!hwcLayer) {
        ALOGE("[%s] failed to write composition state to HWC -- no hwcLayer for output %s",
              getLayerFE().getDebugName(), getOutput().getName().c_str());
        return;
    }

    const auto* outputIndependentState = getLayerFE().getCompositionState();
    if (!outputIndependentState) {
        return;
    }

    auto requestedCompositionType = outputIndependentState->compositionType;

    if (requestedCompositionType == Composition::SOLID_COLOR && state.overrideInfo.buffer) {
        // this should never happen, as SOLID_COLOR is skipped from caching, b/230073351
        requestedCompositionType = Composition::DEVICE;
    }

    // TODO(b/181172795): We now update geometry for all flattened layers. We should update it
    // only when the geometry actually changes
    const bool isOverridden =
            state.overrideInfo.buffer != nullptr || isPeekingThrough || zIsOverridden;
    const bool prevOverridden = state.hwc->stateOverridden;
    if (isOverridden || prevOverridden || skipLayer || includeGeometry) {
        writeOutputDependentGeometryStateToHWC(hwcLayer.get(), requestedCompositionType, z);
        writeOutputIndependentGeometryStateToHWC(hwcLayer.get(), *outputIndependentState,
                                                 skipLayer);
    }

    // 写数据到 hwc
    writeOutputDependentPerFrameStateToHWC(hwcLayer.get());

    writeOutputIndependentPerFrameStateToHWC(hwcLayer.get(), *outputIndependentState,
                                             requestedCompositionType, skipLayer);

    writeCompositionTypeToHWC(hwcLayer.get(), requestedCompositionType, isPeekingThrough,
                              skipLayer);

    if (requestedCompositionType == Composition::SOLID_COLOR) {
        writeSolidColorStateToHWC(hwcLayer.get(), *outputIndependentState);
    }

    editState().hwc->stateOverridden = isOverridden;
    editState().hwc->layerSkipped = skipLayer;
}

writeOutputDependentPerFrameStateToHWC、writeOutputIndependentPerFrameStateToHWC、writeCompositionTypeToHWC、writeSolidColorStateToHWC 四个函数都是用于写数据到 hwc，逻辑大体一样，我们一个个看：

void OutputLayer::writeOutputDependentPerFrameStateToHWC(HWC2::Layer* hwcLayer) {
    const auto& outputDependentState = getState();

    // TODO(lpique): b/121291683 outputSpaceVisibleRegion is output-dependent geometry
    // state and should not change every frame.
    Region visibleRegion = outputDependentState.overrideInfo.buffer
            ? Region(outputDependentState.overrideInfo.visibleRegion)
            : outputDependentState.outputSpaceVisibleRegion;

    // 关注点
    if (auto error = hwcLayer->setVisibleRegion(visibleRegion); error != hal::Error::NONE) {
        ALOGE("[%s] Failed to set visible region: %s (%d)", getLayerFE().getDebugName(),
              to_string(error).c_str(), static_cast<int32_t>(error));
        visibleRegion.dump(LOG_TAG);
    }

    // 关注点
    if (auto error =
                hwcLayer->setBlockingRegion(outputDependentState.outputSpaceBlockingRegionHint);
        error != hal::Error::NONE) {
        ALOGE("[%s] Failed to set blocking region: %s (%d)", getLayerFE().getDebugName(),
              to_string(error).c_str(), static_cast<int32_t>(error));
        outputDependentState.outputSpaceBlockingRegionHint.dump(LOG_TAG);
    }

    const auto dataspace = outputDependentState.overrideInfo.buffer
            ? outputDependentState.overrideInfo.dataspace
            : outputDependentState.dataspace;

    // 关注点
    if (auto error = hwcLayer->setDataspace(dataspace); error != hal::Error::NONE) {
        ALOGE("[%s] Failed to set dataspace %d: %s (%d)", getLayerFE().getDebugName(), dataspace,
              to_string(error).c_str(), static_cast<int32_t>(error));
    }

    // Cached layers are not dimmed, which means that composer should attempt to dim.
    // Note that if the dimming ratio is large, then this may cause the cached layer
    // to kick back into GPU composition :(
    // Also note that this assumes that there are no HDR layers that are able to be cached.
    // Otherwise, this could cause HDR layers to be dimmed twice.
    const auto dimmingRatio = outputDependentState.overrideInfo.buffer
            ? (getOutput().getState().displayBrightnessNits != 0.f
                       ? std::clamp(getOutput().getState().sdrWhitePointNits /
                                            getOutput().getState().displayBrightnessNits,
                                    0.f, 1.f)
                       : 1.f)
            : outputDependentState.dimmingRatio;

    // 关注点
    if (auto error = hwcLayer->setBrightness(dimmingRatio); error != hal::Error::NONE) {
        ALOGE("[%s] Failed to set brightness %f: %s (%d)", getLayerFE().getDebugName(),
              dimmingRatio, to_string(error).c_str(), static_cast<int32_t>(error));
    }
}

• hwcLayer->setVisibleRegion：设置到 writer 中的 LayerCommand 的 visibleRegion
• hwcLayer->setBlockingRegion：设置到 writer 中的 LayerCommand 的 blockingRegion
• hwcLayer->setDataspace：设置到 writer 中的 LayerCommand 的 dataspace
• hwcLayer->setBrightness：设置到 writer 中的 LayerCommand 的 brightness

逻辑都是一样的，我们就看一个：

Error Layer::setVisibleRegion(const Region& region)
{
    if (CC_UNLIKELY(!mDisplay)) {
        return Error::BAD_DISPLAY;
    }

    if (region.isRect() && mVisibleRegion.isRect() &&
        (region.getBounds() == mVisibleRegion.getBounds())) {
        return Error::NONE;
    }
    mVisibleRegion = region;
    const auto hwcRects = convertRegionToHwcRects(region);
    auto intError = mComposer.setLayerVisibleRegion(mDisplay->getId(), mId, hwcRects);
    return static_cast<Error>(intError);
}

接着调用 mComposer.setLayerVisibleRegion：

Error AidlComposer::setLayerVisibleRegion(Display display, Layer layer,
                                          const std::vector<IComposerClient::Rect>& visible) {
    Error error = Error::NONE;
    mMutex.lock_shared();
    if (auto writer = getWriter(display)) {
        writer->get().setLayerVisibleRegion(translate<int64_t>(display), translate<int64_t>(layer),
                                            translate<AidlRect>(visible));
    } else {
        error = Error::BAD_DISPLAY;
    }
    mMutex.unlock_shared();
    return error;
}

    void setLayerVisibleRegion(int64_t display, int64_t layer, const std::vector<Rect>& visible) {
        getLayerCommand(display, layer).visibleRegion.emplace(visible.begin(), visible.end());
    }

接下来看 writeOutputIndependentPerFrameStateToHWC 的实现：

void OutputLayer::writeOutputIndependentPerFrameStateToHWC(
        HWC2::Layer* hwcLayer, const LayerFECompositionState& outputIndependentState,
        Composition compositionType, bool skipLayer) {
    // 关注点
    switch (auto error = hwcLayer->setColorTransform(outputIndependentState.colorTransform)) {
        case hal::Error::NONE:
            break;
        case hal::Error::UNSUPPORTED:
            editState().forceClientComposition = true;
            break;
        default:
            ALOGE("[%s] Failed to set color transform: %s (%d)", getLayerFE().getDebugName(),
                  to_string(error).c_str(), static_cast<int32_t>(error));
    }

    const Region& surfaceDamage = getState().overrideInfo.buffer
            ? getState().overrideInfo.damageRegion
            : (getState().hwc->stateOverridden ? Region::INVALID_REGION
                                               : outputIndependentState.surfaceDamage);

    // 关注点
    if (auto error = hwcLayer->setSurfaceDamage(surfaceDamage); error != hal::Error::NONE) {
        ALOGE("[%s] Failed to set surface damage: %s (%d)", getLayerFE().getDebugName(),
              to_string(error).c_str(), static_cast<int32_t>(error));
        outputIndependentState.surfaceDamage.dump(LOG_TAG);
    }

    // Content-specific per-frame state
    switch (compositionType) {
        case Composition::SOLID_COLOR:
            // For compatibility, should be written AFTER the composition type.
            break;
        case Composition::SIDEBAND:
            writeSidebandStateToHWC(hwcLayer, outputIndependentState);
            break;
        case Composition::CURSOR:
        case Composition::DEVICE:  // device 合成走这里
        case Composition::DISPLAY_DECORATION:
        case Composition::REFRESH_RATE_INDICATOR:
            // 关注点
            writeBufferStateToHWC(hwcLayer, outputIndependentState, skipLayer);
            break;
        case Composition::INVALID:
        case Composition::CLIENT:
            // Ignored
            break;
    }
}

• hwcLayer->setColorTransform
• hwcLayer->setSurfaceDamage
• writeSidebandStateToHWC
• writeBufferStateToHWC

写数据到 hwc，逻辑类似，挑 writeBufferStateToHWC 看看：

// /frameworks/native/services/surfaceflinger/CompositionEngine/src/OutputLayer.cpp
void OutputLayer::writeBufferStateToHWC(HWC2::Layer* hwcLayer,
                                        const LayerFECompositionState& outputIndependentState,
                                        bool skipLayer) {
    auto supportedPerFrameMetadata =
            getOutput().getDisplayColorProfile()->getSupportedPerFrameMetadata();
    if (auto error = hwcLayer->setPerFrameMetadata(supportedPerFrameMetadata,
                                                   outputIndependentState.hdrMetadata);
        error != hal::Error::NONE && error != hal::Error::UNSUPPORTED) {
        ALOGE("[%s] Failed to set hdrMetadata: %s (%d)", getLayerFE().getDebugName(),
              to_string(error).c_str(), static_cast<int32_t>(error));
    }

    // 关注点 buffrer 的获取过程
    HwcSlotAndBuffer hwcSlotAndBuffer;
    sp<Fence> hwcFence;
    {
        // Editing the state only because we update the HWC buffer cache and active buffer.
        auto& state = editState();
        // Override buffers use a special cache slot so that they don't evict client buffers.
        if (state.overrideInfo.buffer != nullptr && !skipLayer) {
            hwcSlotAndBuffer = state.hwc->hwcBufferCache.getOverrideHwcSlotAndBuffer(
                    state.overrideInfo.buffer->getBuffer());
            hwcFence = state.overrideInfo.acquireFence;
            // Keep track of the active buffer ID so when it's discarded we uncache it last so its
            // slot will be used first, allowing the memory to be freed as soon as possible.
            state.hwc->activeBufferId = state.overrideInfo.buffer->getBuffer()->getId();
        } else {
            // hwcBufferCache 用于缓存优化，实际的 buffer 来自 outputIndependentState
            hwcSlotAndBuffer =
                    state.hwc->hwcBufferCache.getHwcSlotAndBuffer(outputIndependentState.buffer);
            hwcFence = outputIndependentState.acquireFence;
            // Keep track of the active buffer ID so when it's discarded we uncache it last so its
            // slot will be used first, allowing the memory to be freed as soon as possible.
            state.hwc->activeBufferId = outputIndependentState.buffer->getId();
        }
        // Keep track of the active buffer slot, so we can restore it after clearing other buffer
        // slots.
        state.hwc->activeBufferSlot = hwcSlotAndBuffer.slot;
    }

    // 关注点
    if (auto error = hwcLayer->setBuffer(hwcSlotAndBuffer.slot, hwcSlotAndBuffer.buffer, hwcFence);
        error != hal::Error::NONE) {
        ALOGE("[%s] Failed to set buffer %p: %s (%d)", getLayerFE().getDebugName(),
              hwcSlotAndBuffer.buffer->handle, to_string(error).c_str(),
              static_cast<int32_t>(error));
    }
}

setBuffer 的实现如下：

Error Layer::setBuffer(uint32_t slot, const sp<GraphicBuffer>& buffer,
        const sp<Fence>& acquireFence)
{
    if (CC_UNLIKELY(!mDisplay)) {aidl
        return Error::BAD_DISPLAY;
    }

    if (buffer == nullptr && mBufferSlot == slot) {
        return Error::NONE;
    }
    mBufferSlot = slot;

    int32_t fenceFd = acquireFence->dup();
    auto intError = mComposer.setLayerBuffer(mDisplay->getId(), mId, slot, buffer, fenceFd);
    return static_cast<Error>(intError);
}

接着调用到 mComposer.setLayerBuffer：

Error AidlComposer::setLayerBuffer(Display display, Layer layer, uint32_t slot,
                                   const sp<GraphicBuffer>& buffer, int acquireFence) {
    const native_handle_t* handle = nullptr;
    if (buffer.get()) {
        handle = buffer->getNativeBuffer()->handle;
    }

    Error error = Error::NONE;
    mMutex.lock_shared();
    if (auto writer = getWriter(display)) {
        writer->get().setLayerBuffer(translate<int64_t>(display), translate<int64_t>(layer), slot,
                                     handle, acquireFence);
    } else {
        error = Error::BAD_DISPLAY;
    }
    mMutex.unlock_shared();
    return error;
}

看下 writer 的 setLayerBuffer：

    void setLayerBuffer(int64_t display, int64_t layer, uint32_t slot,
                        const native_handle_t* buffer, int acquireFence) {
        getLayerCommand(display, layer).buffer = getBufferCommand(slot, buffer, acquireFence);
    }

    Buffer getBufferCommand(uint32_t slot, const native_handle_t* bufferHandle, int fence) {
        Buffer bufferCommand;
        bufferCommand.slot = static_cast<int32_t>(slot);
        if (bufferHandle) bufferCommand.handle.emplace(::android::dupToAidl(bufferHandle));
        if (fence > 0) bufferCommand.fence = ::ndk::ScopedFileDescriptor(fence);
        return bufferCommand;
    }

    LayerCommand& getLayerCommand(int64_t display, int64_t layer) {
        getDisplayCommand(display);
        if (!mLayerCommand.has_value() || mLayerCommand->layer != layer) {
            flushLayerCommand();
            mLayerCommand.emplace();
            mLayerCommand->layer = layer;
        }
        return *mLayerCommand;
    }

实际就是把 buffer 保存到了 mLayerCommand 的 buffer 成员的 handle 成员中。

其他的设置都大体类似。

接着再来看 writeCompositionTypeToHWC 的实现：

void OutputLayer::writeCompositionTypeToHWC(HWC2::Layer* hwcLayer,
                                            Composition requestedCompositionType,
                                            bool isPeekingThrough, bool skipLayer) {
    auto& outputDependentState = editState();

    if (isClientCompositionForced(isPeekingThrough)) {
        // If we are forcing client composition, we need to tell the HWC
        requestedCompositionType = Composition::CLIENT;
    }

    // Set the requested composition type with the HWC whenever it changes
    // We also resend the composition type when this layer was previously skipped, to ensure that
    // the composition type is up-to-date.
    if (outputDependentState.hwc->hwcCompositionType != requestedCompositionType ||
        (outputDependentState.hwc->layerSkipped && !skipLayer)) {
        outputDependentState.hwc->hwcCompositionType = requestedCompositionType;

        // 关注点
        if (auto error = hwcLayer->setCompositionType(requestedCompositionType);
            error != hal::Error::NONE) {
            ALOGE("[%s] Failed to set composition type %s: %s (%d)", getLayerFE().getDebugName(),
                  to_string(requestedCompositionType).c_str(), to_string(error).c_str(),
                  static_cast<int32_t>(error));
        }
    }
}

hwcLayer->setCompositionType，设置到 writer 中的 LayerCommand 的 composition。和前面一样，就不细看。

最后一个 writeSolidColorStateToHWC 和前面三个函数逻辑相同，就留给读者分析了。
