【Datawhale X 李宏毅苹果书 AI夏令营】Task3：机器学习框架

xio
187 阅读7分钟

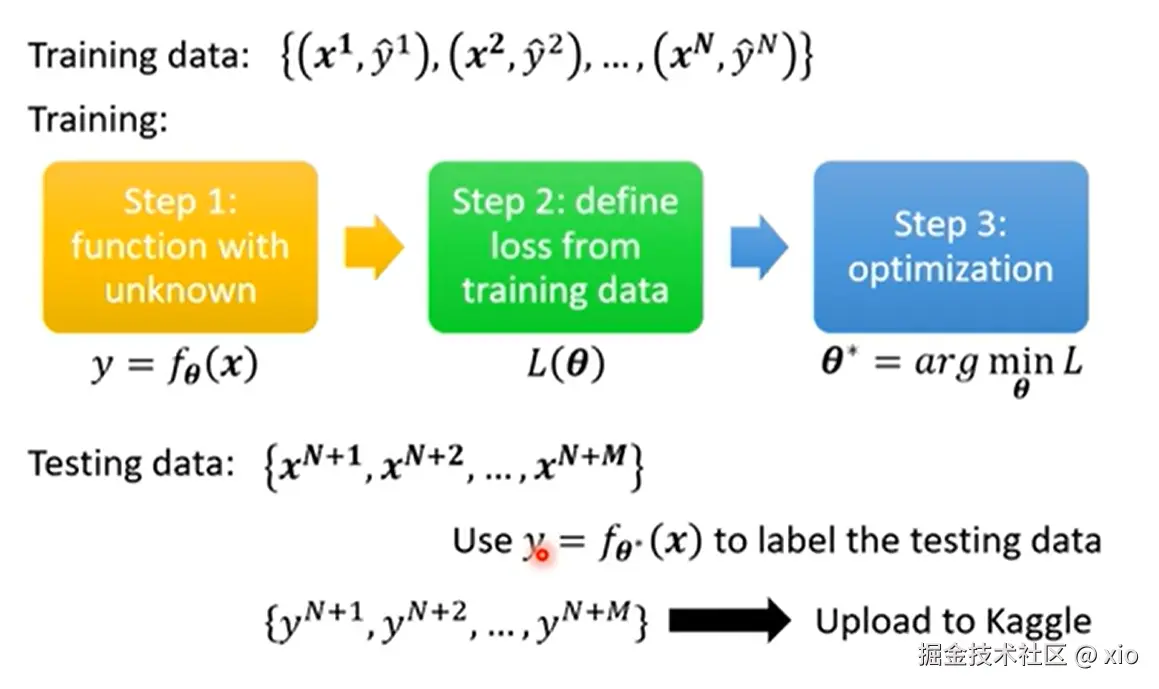

机器学习框架

  1. 建立函数
  2. 定义损失函数
  3. 优化（使损失函数最小） image.png

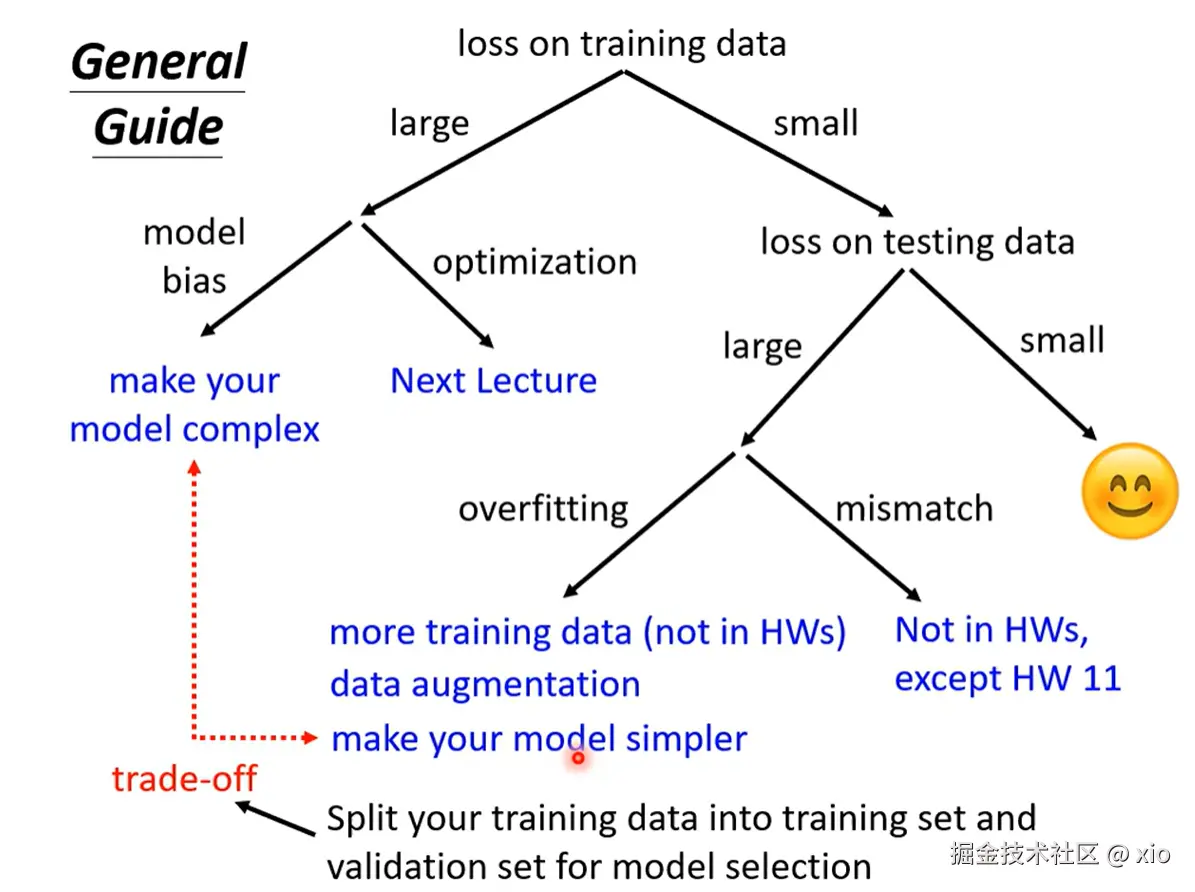

训练攻略~


1. 检查 training data 的 loss

如果loss很大，说明training data没有学好，原因有以下两种：

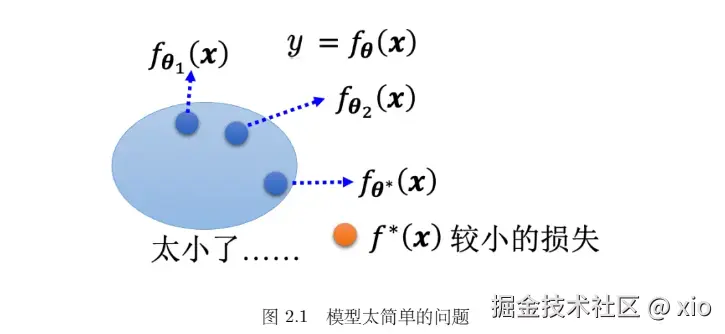

1、model bias

模型太简单了，最好的结果不一定在function里面【大海捞针但针不在海里】

解决方案：设计更加复杂的模型。

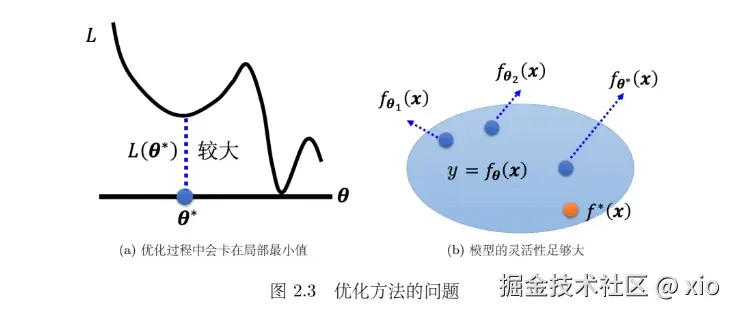

2、optimization

无法找出损失最低的那个函数【针在海里，但是捞不上来】


3、model bias VS optimization

（1）运行简单的模型

（2）比较模型和简单模型的loss，如果模型loss＞简单模型loss，说明是optimization出现了问题

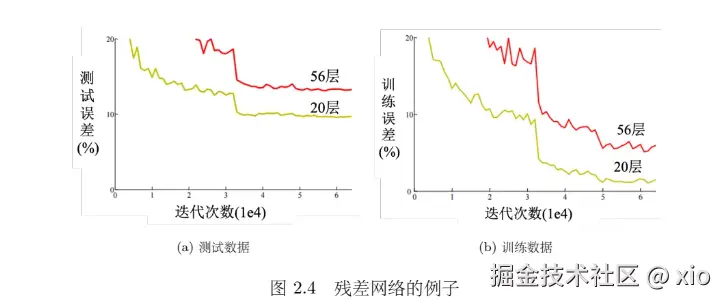

参考文献：arxiv.org/pdf/1512.03… image.png 20层的弹性小，但是能达到更低的loss；56层的弹性大，但是loss反而更高了。说明是optimization出现了问题，不能找到最优解，即不能保证后面的信息都是有用的。

2. 检查 testing data 的 loss

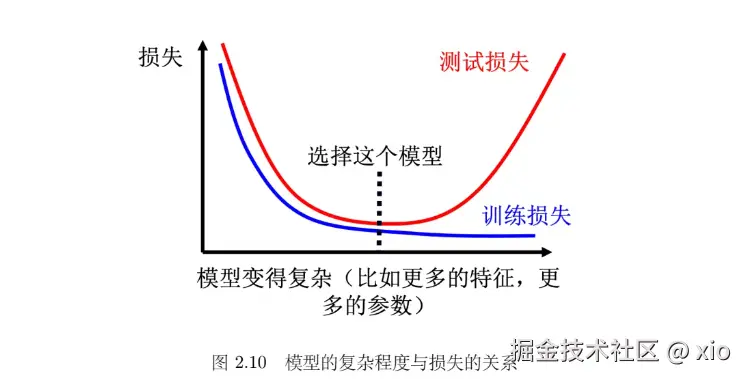

1、overfitting

产生原因： image.png

解决方案：

a、增加 training data

  • 直接增加：搜集更多data

  • data augmentation：根据对题目的理解创造出新data（一定要合理！！！）

    例如在影像处理时，对图片进行翻转可以使data翻倍。

b、增加 限制条件

  • 减少参数、共享参数（例如：CNN）

  • 更少特征

  • 早停Early stopping

  • 正则化Reguarization

  • 丢弃法Dropout

交叉验证


2、mismatch

训练资料和测试资料的分布不一样。

分类

1、分类与回归

将分类问题视为回归问题，有时可行，有时不可行 如：判断根据身高是哪个年级的学生，二年级的身高和一年级的身高比较接近，而三年级的身高和一年级的身高就会比较远；但如果类别之间没有关联，就会出现问题。 -->用独热向量表示类。 image.png

2、softmax

a、为什么用softmax

一个比较简单的解释是，y是独热向量，所以其里面的值只有0跟1，但是 y^\widehat{y} 里面有任何值。既然目标只有0跟1，但 y^\widehat{y} 有任何值，可以先把它归一化到0到1之间这样才能跟标签的计算相似度。

exp(yi)∑jexp(yi)\frac{exp(y_i)}{\sum_{j}^{}exp(y_i)}

其中，1>yi>01>y_i>0 , ∑jexp(yi)=1\sum_{j}^{}exp(y_i)=1

当只有两个类的时候，sigmoid 和 softmax 是等价的。 image.png

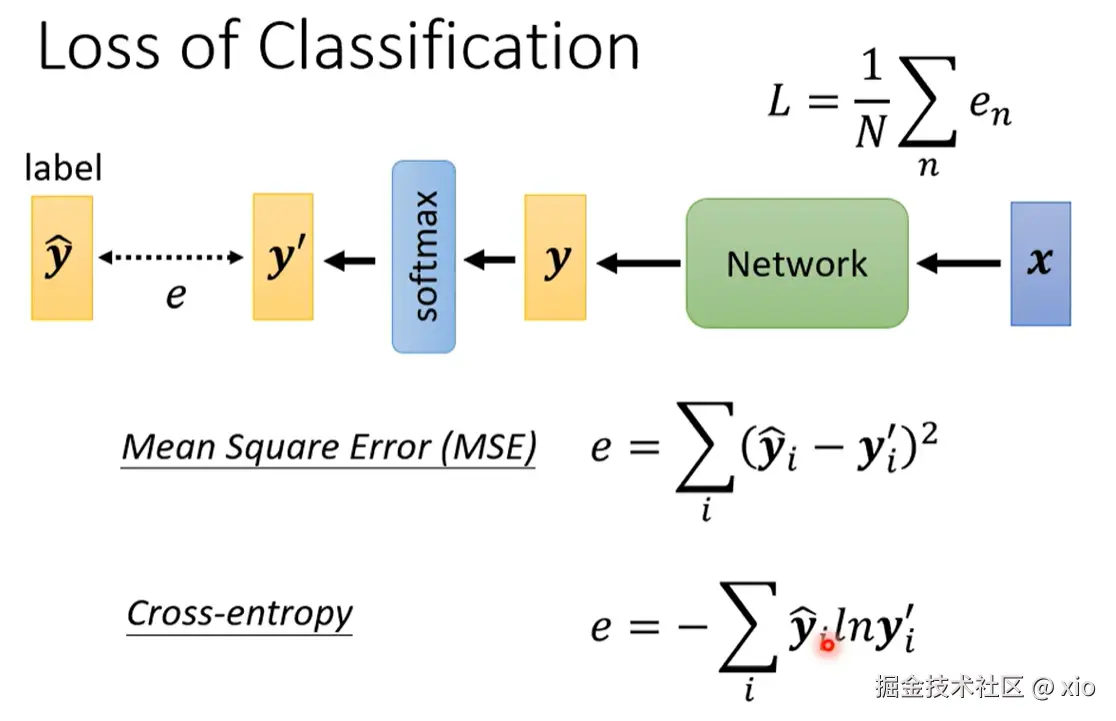

b、损失函数

最小化交叉熵其实就是最大化似然（maximize likelihood）。 image.png

Cross-entropy的好处

Cross-entropy可以通过梯度下降使loss降低。

但MSE会卡住，无法通过梯度下降找到loss最小值。 image.png

实践作业 HW2

1、下载数据集并解压

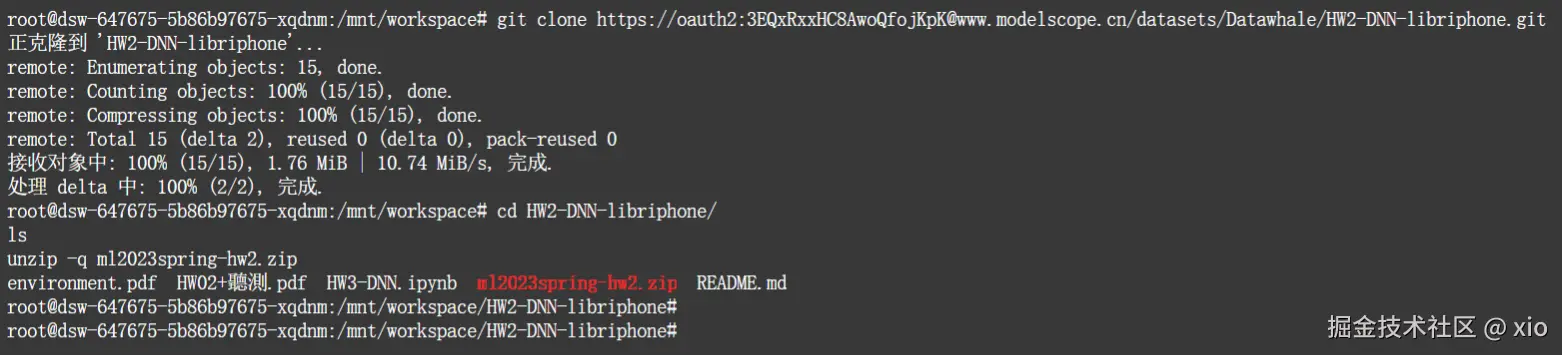

（1） 打开terminal

（2） 下载代码：

git clone https://oauth2:3EQxRxxHC8AwoQfojKpK@www.modelscope.cn/datasets/Datawhale/HW2-DNN-libriphone.git

（3） 解压代码：

cd HW2-DNN-libriphone/ ls unzip -q ml2023spring-hw2.zip


2、运行baseline

准确率 image.png


3、精读代码

datawhaler.feishu.cn/wiki/M7tqwI…

  1. 导入库；
  2. 数据准备与预处理；
  3. 定义模型；
  4. 定义损失函数和优化器等其他配置；
  5. 训练模型与评估模型；
  6. 进行预测。

01 设置随机数种子（seed），使得实验结果可以复现

import numpy as np
import torch
import random
def same_seeds(seed):
    random.seed(seed)
    np.random.seed(seed)
    torch.manual_seed(seed)
    if torch.cuda.is_available():
        torch.cuda.manual_seed(seed)
        torch.cuda.manual_seed_all(seed)
    torch.backends.cudnn.benchmark = False
    torch.backends.cudnn.deterministic = True

02 定义了一系列用于处理音频特征数据集的功能，包括加载特征、数据偏移、特征拼接以及数据预处理

import os
import torch
from tqdm import tqdm

def load_feat(path):
    feat = torch.load(path)
    return feat

def shift(x, n):
    if n < 0:
        left = x[0].repeat(-n, 1)
        right = x[:n]
    elif n > 0:
        right = x[-1].repeat(n, 1)
        left = x[n:]
    else:
        return x

    return torch.cat((left, right), dim=0)

def concat_feat(x, concat_n):
    assert concat_n % 2 == 1 # n must be odd
    if concat_n < 2:
        return x
    seq_len, feature_dim = x.size(0), x.size(1)
    x = x.repeat(1, concat_n)
    x = x.view(seq_len, concat_n, feature_dim).permute(1, 0, 2) # concat_n, seq_len, feature_dim
    mid = (concat_n // 2)
    for r_idx in range(1, mid+1):
        x[mid + r_idx, :] = shift(x[mid + r_idx], r_idx)
        x[mid - r_idx, :] = shift(x[mid - r_idx], -r_idx)

    return x.permute(1, 0, 2).view(seq_len, concat_n * feature_dim)

def preprocess_data(split, feat_dir, phone_path, concat_nframes, train_ratio=0.8, random_seed=1213):
    class_num = 41 # NOTE: pre-computed, should not need change

    if split == 'train' or split == 'val':
        mode = 'train'
    elif split == 'test':
        mode = 'test'
    else:
        raise ValueError('Invalid \'split\' argument for dataset: PhoneDataset!')

    label_dict = {}
    if mode == 'train':
        for line in open(os.path.join(phone_path, f'{mode}_labels.txt')).readlines():
            line = line.strip('\n').split(' ')
            label_dict[line[0]] = [int(p) for p in line[1:]]

        # split training and validation data
        usage_list = open(os.path.join(phone_path, 'train_split.txt')).readlines()
        random.seed(random_seed)
        random.shuffle(usage_list)
        train_len = int(len(usage_list) * train_ratio)
        usage_list = usage_list[:train_len] if split == 'train' else usage_list[train_len:]

    elif mode == 'test':
        usage_list = open(os.path.join(phone_path, 'test_split.txt')).readlines()

    usage_list = [line.strip('\n') for line in usage_list]
    print('[Dataset] - # phone classes: ' + str(class_num) + ', number of utterances for ' + split + ': ' + str(len(usage_list)))

    max_len = 3000000
    X = torch.empty(max_len, 39 * concat_nframes)
    if mode == 'train':
        y = torch.empty(max_len, dtype=torch.long)

    idx = 0
    for i, fname in tqdm(enumerate(usage_list)):
        feat = load_feat(os.path.join(feat_dir, mode, f'{fname}.pt'))
        cur_len = len(feat)
        feat = concat_feat(feat, concat_nframes)
        if mode == 'train':
            label = torch.LongTensor(label_dict[fname])

        X[idx: idx + cur_len, :] = feat
        if mode == 'train':
            y[idx: idx + cur_len] = label

        idx += cur_len

    X = X[:idx, :]
    if mode == 'train':
        y = y[:idx]

    print(f'[INFO] {split} set')
    print(X.shape)
    if mode == 'train':
        print(y.shape)
        return X, y
    else:
        return X

03 创建一个自定义的数据集，适用于PyTorch框架中的数据加载和批处理

import torch
from torch.utils.data import Dataset

class LibriDataset(Dataset):
    def __init__(self, X, y=None):
        self.data = X
        if y is not None:
            self.label = torch.LongTensor(y)
        else:
            self.label = None

    def __getitem__(self, idx):
        if self.label is not None:
            return self.data[idx], self.label[idx]
        else:
            return self.data[idx]

    def __len__(self):
        return len(self.data)

04 构建神经网络模型的基础类

import torch.nn as nn

class BasicBlock(nn.Module):
    def __init__(self, input_dim, output_dim):
        super(BasicBlock, self).__init__()

        # TODO: apply batch normalization and dropout for strong baseline.
        # Reference: https://pytorch.org/docs/stable/generated/torch.nn.BatchNorm1d.html (batch normalization)
        #       https://pytorch.org/docs/stable/generated/torch.nn.Dropout.html (dropout)
        self.block = nn.Sequential(
            nn.Linear(input_dim, output_dim),
            nn.ReLU(),
        )

    def forward(self, x):
        x = self.block(x)
        return x


class Classifier(nn.Module):
    def __init__(self, input_dim, output_dim=41, hidden_layers=1, hidden_dim=256):
        super(Classifier, self).__init__()

        self.fc = nn.Sequential(
            BasicBlock(input_dim, hidden_dim),
            *[BasicBlock(hidden_dim, hidden_dim) for _ in range(hidden_layers)],
            nn.Linear(hidden_dim, output_dim)
        )

    def forward(self, x):
        x = self.fc(x)
        return x

05 定义了一些数据处理和模型训练所需的参数

# data prarameters
# TODO: change the value of "concat_nframes" for medium baseline
concat_nframes = 3   # the number of frames to concat with, n must be odd (total 2k+1 = n frames)
train_ratio = 0.75   # the ratio of data used for training, the rest will be used for validation

# training parameters
seed = 1213          # random seed
batch_size = 512        # batch size
num_epoch = 10         # the number of training epoch
learning_rate = 1e-4      # learning rate
model_path = './model.ckpt'  # the path where the checkpoint will be saved

# model parameters
# TODO: change the value of "hidden_layers" or "hidden_dim" for medium baseline
input_dim = 39 * concat_nframes  # the input dim of the model, you should not change the value
hidden_layers = 2          # the number of hidden layers
hidden_dim = 64           # the hidden dim

06 使用PyTorch框架准备数据加载器（DataLoader）以供模型训练和验证使用

from torch.utils.data import DataLoader
import gc

same_seeds(seed)
device = 'cuda' if torch.cuda.is_available() else 'cpu'
print(f'DEVICE: {device}')

# preprocess data
train_X, train_y = preprocess_data(split='train', feat_dir='./libriphone/feat', phone_path='./libriphone', concat_nframes=concat_nframes, train_ratio=train_ratio, random_seed=seed)
val_X, val_y = preprocess_data(split='val', feat_dir='./libriphone/feat', phone_path='./libriphone', concat_nframes=concat_nframes, train_ratio=train_ratio, random_seed=seed)

# get dataset
train_set = LibriDataset(train_X, train_y)
val_set = LibriDataset(val_X, val_y)

# remove raw feature to save memory
del train_X, train_y, val_X, val_y
gc.collect()

# get dataloader
train_loader = DataLoader(train_set, batch_size=batch_size, shuffle=True)
val_loader = DataLoader(val_set, batch_size=batch_size, shuffle=False)

07 实现了模型的训练和验证流程，包括创建模型、定义损失函数、设置优化器，并执行训练和验证的迭代过程

# create model, define a loss function, and optimizer
model = Classifier(input_dim=input_dim, hidden_layers=hidden_layers, hidden_dim=hidden_dim).to(device)
criterion = nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(model.parameters(), lr=learning_rate)

best_acc = 0.0
for epoch in range(num_epoch):
    train_acc = 0.0
    train_loss = 0.0
    val_acc = 0.0
    val_loss = 0.0

    # training
    model.train() # set the model to training mode
    for i, batch in enumerate(tqdm(train_loader)):
        features, labels = batch
        features = features.to(device)
        labels = labels.to(device)

        optimizer.zero_grad()
        outputs = model(features)

        loss = criterion(outputs, labels)
        loss.backward()
        optimizer.step()

        _, train_pred = torch.max(outputs, 1) # get the index of the class with the highest probability
        train_acc += (train_pred.detach() == labels.detach()).sum().item()
        train_loss += loss.item()

    # validation
    model.eval() # set the model to evaluation mode
    with torch.no_grad():
        for i, batch in enumerate(tqdm(val_loader)):
            features, labels = batch
            features = features.to(device)
            labels = labels.to(device)
            outputs = model(features)

            loss = criterion(outputs, labels)

            _, val_pred = torch.max(outputs, 1)
            val_acc += (val_pred.cpu() == labels.cpu()).sum().item() # get the index of the class with the highest probability
            val_loss += loss.item()

    print(f'[{epoch+1:03d}/{num_epoch:03d}] Train Acc: {train_acc/len(train_set):3.5f} Loss: {train_loss/len(train_loader):3.5f} | Val Acc: {val_acc/len(val_set):3.5f} loss: {val_loss/len(val_loader):3.5f}')

    # if the model improves, save a checkpoint at this epoch
    if val_acc > best_acc:
        best_acc = val_acc
        torch.save(model.state_dict(), model_path)
        print(f'saving model with acc {best_acc/len(val_set):.5f}')

08 释放Python中不再需要的对象所占用的内存

del train_set, val_set
del train_loader, val_loader
gc.collect()

09 加载测试数据并创建数据加载器，以便在模型训练完成后对测试数据进行预测

# load data
test_X = preprocess_data(split='test', feat_dir='./libriphone/feat', phone_path='./libriphone', concat_nframes=concat_nframes)
test_set = LibriDataset(test_X, None)
test_loader = DataLoader(test_set, batch_size=batch_size, shuffle=False)

10 加载之前训练好的模型，并将其准备好用于测试

# load model
model = Classifier(input_dim=input_dim, hidden_layers=hidden_layers, hidden_dim=hidden_dim).to(device)
model.load_state_dict(torch.load(model_path))

11 在测试集上进行预测，并收集所有的预测结果

pred = np.array([], dtype=np.int32)

model.eval()
with torch.no_grad():
    for i, batch in enumerate(tqdm(test_loader)):
        features = batch
        features = features.to(device)

        outputs = model(features)

        _, test_pred = torch.max(outputs, 1) # get the index of the class with the highest probability
        pred = np.concatenate((pred, test_pred.cpu().numpy()), axis=0)

12 将预测结果写入CSV文件中，以便于后续分析或提交

with open('prediction.csv', 'w') as f:
    f.write('Id,Class\n')
    for i, y in enumerate(pred):
        f.write('{},{}\n'.format(i, y))
