HarmonyOS Next小练习

凉_橙
170 阅读3分钟

点赞案例

@Entry
@Component
struct Index {
  @State myCount: number = 8888;
  @State myColor: string = '7e7e7e';

  build() {
    Column() {
      // 点赞效果
      Row({ space: 10 }) {
        Text(this.myCount.toString())
          .fontColor(this.myColor)
        Image($r('app.media.bz_msg'))
          .width(20)
          .fillColor(this.myColor)
          .onClick(() => {
            this.myCount++;
            this.myColor = '#ff0000';
          })
      }.margin({
        top: 50
      })
    }
    .width('100%').height('100%')
    .backgroundColor('#f6f6f6')
  }
}

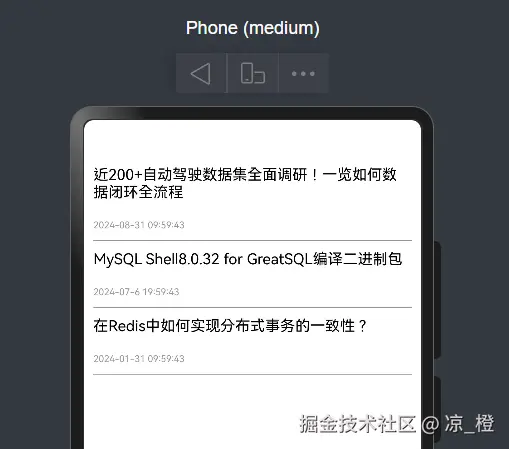

循环渲染视图案例

interface Info {
  title: string,
  date: string
}

@Entry
@Component
struct Index {
  @State messageInfo: Info[] = [{
    title: '近200+自动驾驶数据集全面调研！一览如何数据闭环全流程',
    date: '2024-08-31 09:59:43'
  }, {
    title: 'MySQL Shell8.0.32 for GreatSQL编译二进制包',
    date: '2024-07-6 19:59:43'
  }, {
    title: '在Redis中如何实现分布式事务的一致性？',
    date: '2024-01-31 09:59:43'
  }];

  build() {
    Column({ space: 10 }) {
      ForEach(this.messageInfo, (item: Info, index: number) => {
        Row() {
          Column({ space: 10 }) {
            Text(item.title)
              .width('100%')
              .fontColor(Color.Black)
              .fontSize(16)
            Text(item.date)
              .width('100%')
              .margin({ top: 10, bottom: 10 })
              .fontColor('#999')
              .fontSize(10)
          }
        }
        .width('100%')
        .border({
          width: { bottom: 1 },
          color: '#999'
        })
      })

    }
    .width('100%')
    .padding(10)
  }
}


美团购物车

@Entry
@Component
struct Index {
  @State count: number = 1;
  @State oldPrice: number = 40.1;
  @State newPrice: number = 20.1;

  build() {
    Stack({ alignContent: Alignment.Bottom }) {
      // 内容区域
      Scroll() {
        Flex({
          direction: FlexDirection.Column,
          justifyContent: FlexAlign.Start
        }) {
          Row({ space: 10 }) {
            Image($r('app.media.image1'))
              .width(120)
              .borderRadius(15)
            Column({ space: 10 }) {
              Text('冲榜小妹妹,干就完了')
                .fontSize(14).fontColor(Color.Black)
              Text(`含${this.count}份折扣商品`)
                .fontSize(12).fontColor('#999')
              Row() {
                Row() {
                  Text(`￥${this.newPrice}`).fontSize(14).fontColor(Color.Red)
                  Text(`￥${this.oldPrice}`).fontSize(12).fontColor('#999').margin({
                    left: 5
                  })
                }

                Row() {
                  Text('-')
                    .width(12)
                    .textAlign(TextAlign.Center)
                    .lineHeight(10)
                    .fontSize(10)
                    .onClick(() => {
                      this.count >= 1 ? this.count-- : this.count = 0
                    })
                  Text(this.count.toString())
                    .width(25)
                    .textAlign(TextAlign.Center)
                    .lineHeight(10)
                    .fontSize(10)
                    .border({
                      width: { left: 1, right: 1 },
                      color: '#ccc'
                    })
                  Text('+')
                    .width(12)
                    .textAlign(TextAlign.Center)
                    .lineHeight(10)
                    .fontSize(10)
                    .onClick(() => {
                      this.count++
                    })
                }
                .height(15)
                .borderRadius(3)
                .border({
                  width: 1,
                  color: '#ccc'
                })
              }
              .width('100%').justifyContent(FlexAlign.SpaceBetween)
            }.layoutWeight(1)
            .alignItems(HorizontalAlign.Start)
          }
          .width('100%')
          .padding(10)
          .justifyContent(FlexAlign.SpaceBetween)

        }
        .padding({ bottom: 60 })
      }
      .width('100%')
      .height('100%')

      // 底部结算区域
      Row({ space: 15 }) {
        Column({ space: 5 }) {
          Text() {
            Span(`已选${this.count}件，`)
              .fontSize(12)
              .fontColor('#999')
            Span('合计:')
            Span(`￥${(this.count * this.newPrice).toFixed(2)}`)
          }

          Text(`共减￥${(this.oldPrice - this.newPrice) * this.count}`)
            .fontSize(12)
            .fontColor(Color.Red)
        }.alignItems(HorizontalAlign.End)

        Button('结算外卖')
          .fontColor(Color.Black)
          .backgroundColor('#ffd441')
      }
      .width('100%')
      .height(60)
      .padding(10)
      .justifyContent(FlexAlign.End)
      .backgroundColor(Color.White)
    }

    .width('100%').height('100%')
    .backgroundColor('#f6f6f6')
    .border({
      width: 1
    })
  }
}


抽卡小游戏

interface ImageItem {
  url: string,
  count: number
}

@Entry
@Component
struct Index {
  @State Images: ImageItem[] = [
    { url: 'bg_00', count: 0 },
    { url: 'bg_01', count: 0 },
    { url: 'bg_02', count: 0 },
    { url: 'bg_03', count: 0 },
    { url: 'bg_04', count: 0 },
    { url: 'bg_05', count: 0 }
  ]
  // 控制遮罩层透明度和层级
  @State stackOpcity: number = 0
  @State stackZIndex: number = -1
  // 控制遮罩层图标缩放
  @State imageState: number = 0
  // 随机出现生肖的索引
  @State chooseIndex: number = -1;
  // 控制大奖出现的标志位
  @State bigPrizeBtn: boolean = false;
  @State bigPrizeFlag: boolean = false;
  @State prizePool: string[] = ['xm', 'pg', 'hw']
  @State randomPrizeIndex: number = -1;

  build() {
    Stack() {
      // 主体部分
      Column() {
        Grid() {
          ForEach(this.Images, (item: ImageItem, index: number) => {
            GridItem() {
              Badge({
                count: item.count,
                style: { fontSize: 14, badgeSize: 20, badgeColor: '#fa2a2d' },
                position: BadgePosition.RightTop,
              }) {
                Image($r(`app.media.${item.url}`))
                  .width(80)
              }
            }
          })
        }
        .columnsTemplate('1fr 1fr 1fr')
        .rowsTemplate('1fr 1fr')
        .columnsGap(10)
        .rowsGap(10)
        .width('100%')
        .height(300)
        .margin({ top: 100 })

        Button(this.bigPrizeBtn ? '抽取奖励' : '立即抽卡')
          .width(150)
          .margin({ top: 50 })
          .fontColor('#f5ebcf')
          .backgroundColor('#fb7299')
          .onClick(() => {
            // 如果获得集齐直接弹出大奖
            if (this.bigPrizeBtn) {
              this.randomPrizeIndex = Math.floor(Math.random() * 4)
              this.bigPrizeFlag = this.bigPrizeBtn
              return;
            }
            // 先计算随机弹出某个生肖
            this.chooseIndex = Math.floor(Math.random() * 6);
            this.stackOpcity = 1
            this.stackZIndex = 99
            this.imageState = 1
          })
      }.width('100%').height('100%')

      // 抽卡遮罩层
      Column({ space: 30 }) {
        Text('获得生肖卡')
          .fontColor('#f5ebcf')
          .fontSize(25)
          .fontWeight(FontWeight.Bold)
        Image($r(`app.media.img_0${this.chooseIndex}`))
          .width(200)
          .scale({
            x: this.imageState,
            y: this.imageState
          })
          .animation({ duration: 400 })
        Button('立即收下')
          .width(200)
          .height(50)
          .backgroundColor(Color.Transparent)
          .border({ width: 2, color: '#fff9e0' })
          .onClick(() => {
            // 立即收下后需要对应的生肖位置发生改变
            this.Images[this.chooseIndex] = {
              url: `img_0${this.chooseIndex}`,
              count: this.Images[this.chooseIndex].count + 1
            }
            // 判断卡片是否集齐集齐可抽大奖
            this.bigPrizeBtn = this.Images.every(item => item.count !== 0)
            this.stackOpcity = 0
            this.stackZIndex = -1
            this.imageState = 0
            this.chooseIndex = -1;
          })
      }
      .justifyContent(FlexAlign.Center)
      .width('100%')
      .height('100%')
      .backgroundColor('#cc000000')
      .opacity(this.stackOpcity)
      .zIndex(this.stackZIndex)
      .animation({
        duration: 500
      })

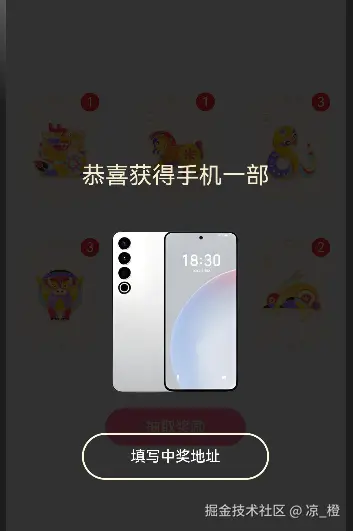

      // 大奖遮罩层
      if (this.bigPrizeFlag) {
        Column({ space: 30 }) {
          Text('恭喜获得手机一部')
            .fontColor('#f5ebcf')
            .fontSize(25)
          Image($r(`app.media.${this.prizePool[this.randomPrizeIndex]}`))
            .width(200)
          Button('填写中奖地址')
            .width(200)
            .height(50)
            .backgroundColor(Color.Transparent)
            .border({ width: 2, color: '#fff9e0' })
            .onClick(() => {
              this.bigPrizeBtn = false;
              this.bigPrizeFlag = false;
              this.randomPrizeIndex = -1
              this.Images.forEach((item, index) => item.count - 1 === 0 ? this.Images[index] = {
                url: `bg_0${index}`,
                count: 0
              } : this.Images[index] = {
                url: `img_0${index}`,
                count: item.count - 1
              })
            })

        }
        .justifyContent(FlexAlign.Center)
        .width('100%')
        .width('100%')
        .height('100%')
        .backgroundColor('#cc000000')
      }

    }
    .width('100%').height('100%')
    .backgroundColor('#f6f6f6')
  }
}

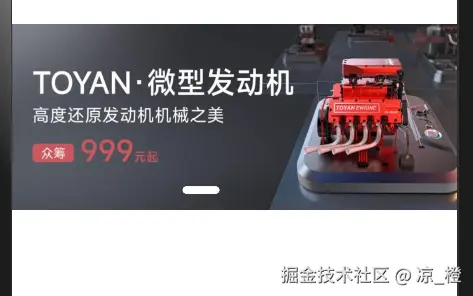

轮播图

@Entry
@Component
struct Index {
  @State message: string = 'Hello World';

  build() {
    Column() {
      Swiper() {
        ForEach([1, 2, 3, 4], (item: number) => {
          Image($r(`app.media.ic_swiper_xmyp0${item}`))
        })
      }
      .width('100%')
      .aspectRatio(2.4) //自动适配等比例宽高
      .autoPlay(true)
      .interval(5000)
      .indicator(
        Indicator.dot()
          .itemWidth(10)
          .selectedItemWidth(30)
          .selectedColor(Color.White)
      )
    }
    .width('100%')
    .height('100%')
  }
}


京东的滚动到头部

@Entry
@Component
struct Index {
  myScroller: Scroller = new Scroller();
  @State rocketFlag: boolean = false;

  build() {
    Column({ space: 10 }) {
      Stack({ alignContent: Alignment.BottomEnd }) {
        Scroll(this.myScroller) {
          Column({ space: 5 }) {
            Image($r('app.media.ic_jd_scroll_01'))
            Image($r('app.media.ic_jd_scroll_02'))
            Image($r('app.media.ic_jd_scroll_03'))
          }
          .width('100%')
        }
        .width('100%')
        .height('100%')
        .scrollBar(BarState.Off) //设置滚动条显示状态,是否显示或者是滑动时才显示(Auto)
        .onScrollEdge(() => {
          const y = this.myScroller.currentOffset().yOffset;
          this.rocketFlag = y >= 400 ? true : false;
        })

        //jd小火箭
        if (this.rocketFlag) {
          Image($r('app.media.ic_jd_rocket'))
            .width(40)
            .backgroundColor(Color.White)
            .borderRadius(20)
            .padding(5)
            .margin({ right: 10, bottom: 80 })
            .onClick(() => {
              this.myScroller.scrollEdge(Edge.Top)
            })
        }

        // jstab栏
        Image($r('app.media.ic_jd_tab'))
          .width('100%')
      }
    }
    .width('100%')
    .height('100%')
  }
}

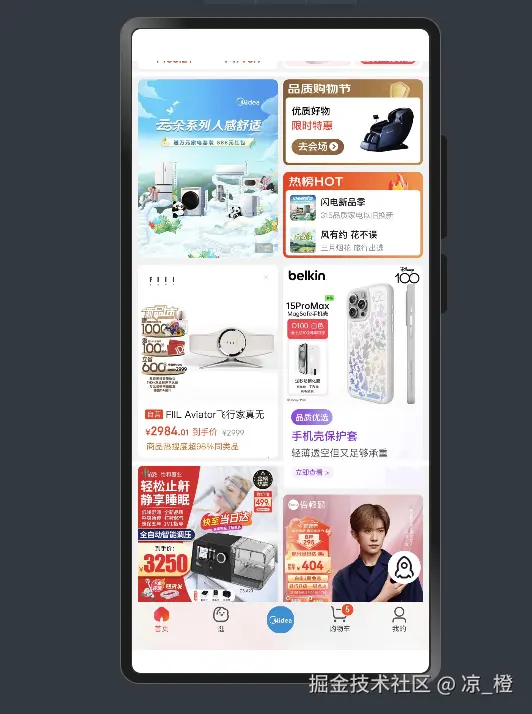

小米优品tabbar

@Entry
@Component
struct Index {
  @State activeIndex: number = 0;

  @Builder
  tabItem(titile: string, itemIndex: number, spacial?: boolean) {
    if (spacial) {
      Column() {
        Image($r('app.media.ic_reuse_03'))
          .width(40)
      }
      .width('100%')
      .height('100%')
      .backgroundColor('#ccc')
    } else {
      Column({ space: 5 }) {
        Image(itemIndex === this.activeIndex ? $r(`app.media.ic_tabbar_icon_${itemIndex}_selected`) :
        $r(`app.media.ic_tabbar_icon_${itemIndex}`))
          .width(30)
        Text(titile)
          .fontColor(itemIndex === this.activeIndex ? Color.Blue : Color.Black)
      }
      .width('100%')
      .height('100%')
      .backgroundColor('#ccc')
    }
  }

  build() {
    Tabs({ barPosition: BarPosition.End }) {
      TabContent() {
        Column() {
          Text('首页内容')
        }
        .width('100%').height('100%')
        .backgroundColor(Color.Pink)
      }
      .tabBar(this.tabItem('首页', 0))

      TabContent() {
        Column() {
          Text('发现内容')
        }
      }
      .tabBar(this.tabItem('发现', 1))

      TabContent() {
        Column() {
          Text('热门活动页面')
        }
      }
      .tabBar(this.tabItem('', 2, true))

      TabContent() {
        Column() {
          Text('购物车内容')
        }
      }
      .tabBar(this.tabItem('购物车', 3))

      TabContent() {
        Column() {
          Text('我的内容')
        }
      }
      .tabBar(this.tabItem('我的', 4))
    }
    .scrollable(false)
    .animationDuration(0)
    .onChange((index) => {
      this.activeIndex = index;
    })
  }
}

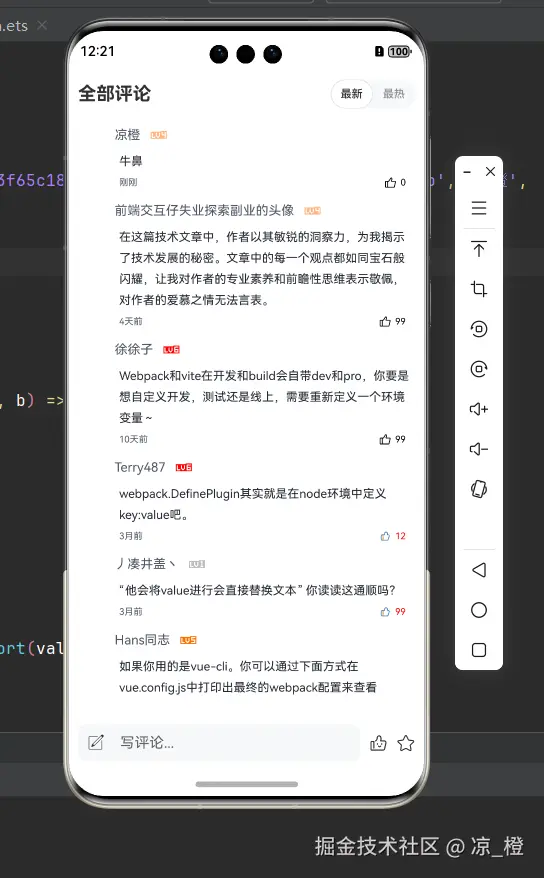

掘金综合练习

Entry

import { HeaderInfo } from '../components/HeaderInfo';
import { ItemInfo } from '../components/ItemInfo';
import { FooterInfo } from '../components/FooterInfo';

// 注册图标库
import font from '@ohos.font';
import { Comment, createCommentList } from '../data/comment';

@Entry
@Component
struct Index {
  @State CommentList: Comment[] = createCommentList();
  @State chooseFlag: number = 0

  aboutToAppear(): void {
    // 组件一加载自动执行
    // 注册组件
    font.registerFont({
      familyName: 'myFonts',
      familySrc: '/fonts/iconfont.ttf'
    })
  }

  handleSubmitComment(text: string) {
    const newInfo: Comment = new Comment(
      'https://p9-passport.byteacctimg.com/img/user-avatar/5a3f65c1808beb286a51c56d7a0903b4~100x100.awebp', '凉橙',
      Math.ceil(Math.random() * 6),
      text, new Date().valueOf(), false, 0)
    this.CommentList = [newInfo, ...this.CommentList];
  }

  handleSort(value: number) {
    this.chooseFlag = value;
    this.CommentList = value === 0 ? this.CommentList.sort((a, b) => b.time - a.time) :
    this.CommentList.sort((a, b) => b.likeNum - a.likeNum)

  }

  build() {
    Column() {
      Text('\ue8c3')
        .fontFamily('myFonts')
        .fontSize(20)
        .fontColor(Color.Red)
      Row() {
        HeaderInfo({
          onHandleSort: (value: number): void => this.handleSort(value)
        })
      }
      .width('100%').height(60)

      List({ space: 10 }) {
        ForEach(this.CommentList, (item: Comment, index: number) => {
          ListItem() {
            ItemInfo({ itemInfo: item })
          }
        })
      }
      .width('100%')
      .padding({ left: 10, right: 10, bottom: 20 })
      .scrollBar(BarState.Off) //按需显示滚动条
      .edgeEffect(EdgeEffect.Spring)
      .layoutWeight(1)

      FooterInfo({
        onSubmitComment: (text: string): void => this.handleSubmitComment(text)
      })
        .width('100%').height(60)
    }
    .width('100%').height('100%')
  }
}

HeaderInfo

@Extend(Button)
function tabButton(isOn: boolean) {
  .width(46)
  .height(32)
  .fontSize(12)
  .padding({ left: 5, right: 5 })
  .fontColor(isOn ? '#2f2e33' : '#8e9298')
  .backgroundColor(isOn ? '#fff' : '#F7F8FA')
  .border({ width: isOn ? 1 : 0, color: isOn ? '#e4e5e6' : '#F7F8FA' })
}

@Component
export struct HeaderInfo {
  @State isOn: boolean = true;
  onHandleSort = (value: number) => {
  }

  build() {
    Row() {
      Text('全部评论')
        .fontSize(20)
        .fontWeight(FontWeight.Bold)
      Row() {
        Button('最新')
          .tabButton(this.isOn)
          .onClick(() => {
            this.isOn = true
            this.onHandleSort(0)
          })

        Button('最热')
          .tabButton(!this.isOn)
          .onClick(() => {
            this.isOn = false
            this.onHandleSort(1)
          })
      }
      .backgroundColor('#F7F8FA')
      .borderRadius(20)
    }
    .width('100%')
    .padding({ left: 10, right: 10 })
    .justifyContent(FlexAlign.SpaceBetween)

  }
}

ItemInfo

import { LengthMetrics } from '@kit.ArkUI'
import { Comment } from '../data/comment'

@Component
export struct ItemInfo {
  @ObjectLink itemInfo: Comment

  build() {
    Column() {
      Row() {
        Image(this.itemInfo.avatar)
          .width(30)
          .borderRadius(15)
          .aspectRatio(1)
        Text(this.itemInfo.name)
          .margin({ left: 10, right: 10 })
          .fontSize(14)
          .fontColor('#515767')
        Image($r(this.itemInfo.levelIcon))
          .width(20)
      }
      .width('100%')

      Row() {
        Text(this.itemInfo.commentText)
          .margin({ left: 45 })
          .fontSize(13)
          .fontColor('#252933')
          .lineSpacing(LengthMetrics.vp(10))
      }
      .width('100%')
      .justifyContent(FlexAlign.Start)

      Row() {
        Text(this.itemInfo.timeStr)
          .fontSize(10)
          .fontColor('#515767')
        Row() {
          Image($r(this.itemInfo.isLike ? 'app.media.ic_like_selected' : 'app.media.ic_like')).width(12)
          Text(this.itemInfo.likeNum.toString())
            .margin({ left: 5, right: 10 })
            .fontSize(10)
            .fontColor(this.itemInfo.isLike ? Color.Red : Color.Black)
        }
        .onClick(() => {
          this.itemInfo.likeNum = this.itemInfo.isLike ? this.itemInfo.likeNum - 1 : this.itemInfo.likeNum + 1
          this.itemInfo.isLike = !this.itemInfo.isLike
        })
      }
      .width('100%')
      .justifyContent(FlexAlign.SpaceBetween)
      .margin({ top: 8 })
      .padding({ left: 45 })

    }
  }
}

FooterInfo

@Component
export struct FooterInfo {
  @State inputText: string = ''
  onSubmitComment = (value: string) => {
  }

  build() {
    Row() {
      Row() {
        Text('\ue62e')
          .margin({ left: 10 })
          .fontFamily('myFonts')
          .fontSize(20)
        TextInput({ placeholder: '写评论...', text: $$this.inputText })
          .fontSize(18)
          .backgroundColor(Color.Transparent)
          .onSubmit(() => {
            if (this.inputText.trim().length > 0) {
              this.onSubmitComment(this.inputText)
              this.inputText = ''
            }
          })
      }
      .layoutWeight(1)
      .backgroundColor('#F7F8FA')
      .borderRadius(10)

      Text('\ue651')
        .margin({ left: 10, right: 10 })
        .fontFamily('myFonts')
        .fontSize(20)
      Text('\ue7d1')
        .fontFamily('myFonts')
        .fontSize(20)
    }
    .width('100%')
    .padding(10)
  }
}

Data

@Observed
export class Comment {
  avatar: string
  name: string
  level: number
  levelIcon: string
  commentText: string
  time: number
  timeStr: string
  isLike: boolean
  likeNum: number

  constructor(avatar: string, name: string, level: number,
    commentText: string, time: number, isLike: boolean, likeNum: number) {
    this.avatar = avatar
    this.name = name
    this.level = level
    this.levelIcon = this.formatLevel(level)
    this.commentText = commentText
    this.time = time
    this.timeStr = this.formatTime(time)
    this.isLike = isLike
    this.likeNum = likeNum
  }

  // 处理传入的等级生成对应的路径
  formatLevel(level: number) {
    return `app.media.level_${level}`
  }

  // 处理时间戳获得距离今日时间
  formatTime(time: number) {
    let str = ''
    const datatime: number = (new Date().valueOf() - time) / 1000
    if (datatime < 10000) {
      str = '刚刚'
    } else if (datatime / 60 < 60) {
      str = `${Math.floor(datatime / 60)}分钟前`
    } else if (datatime / 60 / 60 < 24) {
      str = `${Math.floor(datatime / 60 / 60)}小时前`
    } else if (datatime / 60 / 60 / 24 < 30) {
      str = `${Math.floor(datatime / 60 / 60 / 24)}天前`
    } else if (datatime / 60 / 60 / 24 / 30 < 12) {
      str = `${Math.floor(datatime / 60 / 60 / 24 / 30)}月前`
    } else {
      str = `${Math.floor(datatime / 60 / 60 / 24 / 30 / 12)}年前`
    }
    return str;
  }
}

export const createCommentList: () => Comment[] = () => {
  let result: Comment[] = [];
  result = [
    new Comment(
      'https://p6-passport.byteacctimg.com/img/user-avatar/22b614f56f006a051a528c916ac0f3ec~50x50.awebp', '剑指苍穹',
      Math.ceil(Math.random() * 6),
      'electron应用的process.env.NODE_ENV会不会被篡改，导致软件被破解', 1649692800000, true, 99),
    new Comment(
      'https://p9-passport.byteacctimg.com/img/user-avatar/bc2edd700aa5550cc6993fe4e0f29120~50x50.awebp',
      '独立干饭队长', Math.ceil(Math.random() * 6),
      ' 如果是vue脚手架构架的话需要在node_module找，如果是自己通过webpack构建的话会有这个文件', 1713283200000, false,
      89),
    new Comment(
      'https://p6-passport.byteacctimg.com/img/user-avatar/22b614f56f006a051a528c916ac0f3ec~50x50.awebp', 'Hans同志',
      Math.ceil(Math.random() * 6),
      '如果你用的是vue-cli。你可以通过下面方式在vue.config.js中打印出最终的webpack配置来查看', 1716998400000, true, 18),
    new Comment(
      'https://p9-passport.byteacctimg.com/img/user-avatar/a881555cd49106df4e6e536955303232~50x50.awebp', '汤姆丁',
      Math.ceil(Math.random() * 6),
      '加油大佬', 1716134400000, false, 7),
    new Comment(
      'https://p6-passport.byteacctimg.com/img/user-avatar/22b614f56f006a051a528c916ac0f3ec~50x50.awebp', '虽',
      Math.ceil(Math.random() * 6),
      '我悟了', 1520956800000, true, 9),
    new Comment(
      'https://p26-passport.byteacctimg.com/img/user-avatar/6f9f9126ecc432252400fceabe8c481e~50x50.awebp',
      '前端交互仔失业探索副业的头像',
      Math.ceil(Math.random() * 6),
      '在这篇技术文章中，作者以其敏锐的洞察力，为我揭示了技术发展的秘密。文章中的每一个观点都如同宝石般闪耀，让我对作者的专业素养和前瞻性思维表示敬佩，对作者的爱慕之情无法言表。',
      1725811200000, false, 99),
    new Comment(
      'https://p6-passport.byteacctimg.com/img/user-avatar/22b614f56f006a051a528c916ac0f3ec~50x50.awebp', '震撼',
      Math.ceil(Math.random() * 6),
      'webpack在编译的时候塞进去的吧', 1710864000000, true, 99),
    new Comment(
      'https://p3-passport.byteacctimg.com/img/user-avatar/90e98b983fd08f66a8dcf98ebc489d67~50x50.awebp', '徐徐子',
      Math.ceil(Math.random() * 6),
      'Webpack和vite在开发和build会自带dev和pro，你要是想自定义开发，测试还是线上，需要重新定义一个环境变量～',
      1725292800000, false, 99),
    new Comment(
      'https://p9-passport.byteacctimg.com/img/user-avatar/7a14fc23d4fd92efa0f51accf2d83fcd~50x50.awebp', '丿凑井盖丶',
      Math.ceil(Math.random() * 6),
      '“他会将value进行会直接替换文本” 你读读这通顺吗？', 1717516800000, true, 99),
    new Comment(
      'https://p3-passport.byteacctimg.com/img/user-avatar/2674479e02aa075bd928fd13a1027672~50x50.awebp', 'Terry487',
      Math.ceil(Math.random() * 6),
      'webpack.DefinePlugin其实就是在node环境中定义key:value吧。', 1717567380000, true, 12),

  ]
  return result;
}


Canvas使用

@Entry
@Component
export default struct canvas {
  setting: RenderingContextSettings = new RenderingContextSettings(true);
  context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.setting);

  build() {
    Canvas(this.context)
      .width('100%')
      .height('100%')
      .onReady(() => {
        // this.context.fillRect(0, 0, 150, 150)
        this.context.beginPath();
        // this.context.moveTo(10, 10);
        // this.context.lineTo(30, 20);
        // this.context.lineTo(60, 10);
        // this.context.lineTo(70, 10);
        // this.context.strokeStyle = 'red';
        // this.context.lineWidth = 1;
        // let gradient = this.context.createLinearGradient(10, 10, 70, 20);
        let gradient = this.context.createRadialGradient(50, 50, 10, 50, 50, 50);
        gradient.addColorStop(0, '#e23d31')
        gradient.addColorStop(0.5, '#f7bb10')
        gradient.addColorStop(0.7, '#2e7fd6')
        gradient.addColorStop(1, '#339933')
        // gradient.addColorStop(0, 'red')
        // gradient.addColorStop(0.5, 'yellow')
        // gradient.addColorStop(0.7, 'blue')
        // gradient.addColorStop(1, 'green')
        // this.context.strokeStyle = gradient;
        this.context.fillStyle = gradient
        this.context.fillRect(10, 10, 80, 80)
        // this.context.stroke();
      })
  }
}


avatar
文章
阅读
粉丝
