ActivityManagerService服务是Android系统核心服务，负责Android管理系统Activity，Service，ContentProvider和BroadcastReceiver 四大组件，同时还负责Android系统中的进程管理。由此可见ActivityManagerService服务对于Android系统来讲非常重要，我们就从以下几个方面来了解下AMS服务。
- AMS服务的启动和初始化过程
- AMS如何启动和管理Activity
- AMS如何启动和管理Service
- AMS如何管理BroadCastReceiver
- AMS如何管理ContentProvider 此篇文章就来总结下Ams服务的启动和初始化过程
系统进程运行环境的初始化
在分析AMS服务之前需要先来了解下什么是Context.
一、Context是什么?
Context是一个抽象类，其通用实现在ContextImpl类中。是一个访问application环境全局信息的接口，通过它可以访问application的资源和相关的类，其主要功能如下：
• 启动Activity • 启动和停止Service • 发送广播消息(Intent) • 注册广播消息(Intent)接收者 • 可以访问APK中各种资源(如Resources和AssetManager等) • 可以访问Package的相关信息 • APK的各种权限管理

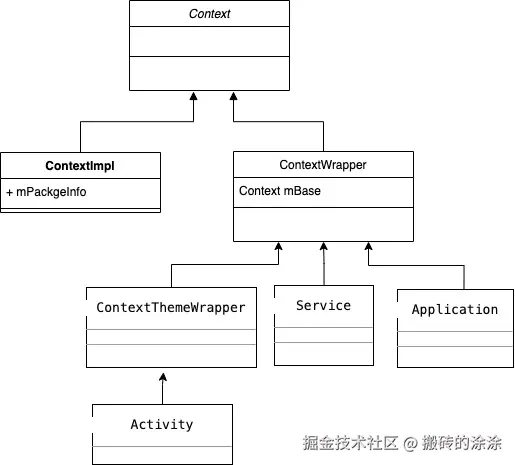

context实现
Context的类关系图可知，ContextImpl最终实现了Context相关方法，ContextWrapper只是一个代理类，Activity，Service，Application都是实现了ContextWrapper,所以在Activity，Service和Application中调用的context的相关方法，最终都有ContextImpl来实现。
Android系统中的进程分为两种，应用进程和系统进程。而ActivityThread就是应用进程的主线程，Android系统的应用进程启动后首先运行ActivityThread的main函数，ActivityThread和AMS进行通信，调度和执行应用进程的四大组件。 SystemServer是Android的系统进程，由于系统进程中也有一些Activity和系统资源，为了保证调用方式统一，系统进程也需要ActivityThread和Context等Android运行环境。所以SystemServer也是一个特殊的应用进行，对Android而言系统进程而言，SysrtemServer也是一个特别的应用程序，也有自己的Context上下文环境，而系统的Context又是
系统的Context是SystemServer启动之后，在createSystemContext方法中创建的。
private void createSystemContext() {
ActivityThread activityThread = ActivityThread.systemMain();
mSystemContext = activityThread.getSystemContext(); ////【SystemServer】的此处创建
mSystemContext.setTheme(DEFAULT_SYSTEM_THEME);
final Context systemUiContext = activityThread.getSystemUiContext();
systemUiContext.setTheme(DEFAULT_SYSTEM_THEME);
}
第一步ActivityThread.systemMain方法，该方法生成了一个ActivityThread对象。
public static ActivityThread systemMain() {
// The system process on low-memory devices do not get to use hardware
// accelerated drawing, since this can add too much overhead to the
// process.
if (!ActivityManager.isHighEndGfx()) {
ThreadedRenderer.disable(true);
} else {
ThreadedRenderer.enableForegroundTrimming();
}
ActivityThread thread = new ActivityThread();// 【ActivityThread】 的此处创建
thread.attach(true);
return thread;
}
首先创建了一个ActivityThread对象，然后调用attach方法。 ActivityThread的构造方法很简单就是创建了一个ResourcesManager对象，用于管理应用程序中的资源文件
2118 ActivityThread() {
2119 mResourcesManager = ResourcesManager.getInstance();
2120 }
那就接着看ActivityThread的Attach方法。
private void attach(boolean system) {
6316 sCurrentActivityThread = this;
6317 mSystemThread = system;
6318 if (!system) {
6319 ViewRootImpl.addFirstDrawHandler(new Runnable() {
6320 @Override
6321 public void run() {
6322 ensureJitEnabled();
6323 }
6324 });
6325 android.ddm.DdmHandleAppName.setAppName("<pre-initialized>",
6326 UserHandle.myUserId());
6327 RuntimeInit.setApplicationObject(mAppThread.asBinder());
6328 final IActivityManager mgr = ActivityManager.getService();
6329 try {
6330 mgr.attachApplication(mAppThread);
6331 } catch (RemoteException ex) {
6332 throw ex.rethrowFromSystemServer();
6333 }
6334 // Watch for getting close to heap limit.
6335 BinderInternal.addGcWatcher(new Runnable() {
6336 @Override public void run() {
6337 if (!mSomeActivitiesChanged) {
6338 return;
6339 }
6340 Runtime runtime = Runtime.getRuntime();
6341 long dalvikMax = runtime.maxMemory();
6342 long dalvikUsed = runtime.totalMemory() - runtime.freeMemory();
6343 if (dalvikUsed > ((3*dalvikMax)/4)) {
6344 if (DEBUG_MEMORY_TRIM) Slog.d(TAG, "Dalvik max=" + (dalvikMax/1024)
6345 + " total=" + (runtime.totalMemory()/1024)
6346 + " used=" + (dalvikUsed/1024));
6347 mSomeActivitiesChanged = false;
6348 try {
6349 mgr.releaseSomeActivities(mAppThread);
6350 } catch (RemoteException e) {
6351 throw e.rethrowFromSystemServer();
6352 }
6353 }
6354 }
6355 });
6356 } else {
6357 // Don't set application object here -- if the system crashes,
6358 // we can't display an alert, we just want to die die die.
6359 android.ddm.DdmHandleAppName.setAppName("system_process",
6360 UserHandle.myUserId()); // 【修改系统进程的名称】为system_process
6361 try {
6362 mInstrumentation = new Instrumentation();//【工具类】AMS的指令创建和调度交互都由它来执行
6363 ContextImpl context = ContextImpl.createAppContext(// 【创建】一个该进程相关的【context】对象
6364 this, getSystemContext().mPackageInfo);
6365 mInitialApplication = context.mPackageInfo.makeApplication(true, null);
6366 mInitialApplication.onCreate();
6367 } catch (Exception e) {
6368 throw new RuntimeException(
6369 "Unable to instantiate Application():" + e.toString(), e);
6370 }
6371 }
6372
6373 // add dropbox logging to libcore
6374 DropBox.setReporter(new DropBoxReporter());
6375
6376 ViewRootImpl.ConfigChangedCallback configChangedCallback
6377 = (Configuration globalConfig) -> {
6378 synchronized (mResourcesManager) {
6379 // We need to apply this change to the resources immediately, because upon returning
6380 // the view hierarchy will be informed about it.
6381 if (mResourcesManager.applyConfigurationToResourcesLocked(globalConfig,
6382 null /* compat */)) {
6383 updateLocaleListFromAppContext(mInitialApplication.getApplicationContext(),
6384 mResourcesManager.getConfiguration().getLocales());
6385
6386 // This actually changed the resources! Tell everyone about it.
6387 if (mPendingConfiguration == null
6388 || mPendingConfiguration.isOtherSeqNewer(globalConfig)) {
6389 mPendingConfiguration = globalConfig;
6390 sendMessage(H.CONFIGURATION_CHANGED, globalConfig);
6391 }
6392 }
6393 }
6394 };
6395 ViewRootImpl.addConfigCallback(configChangedCallback);
6396 }
attach方法传进来的参数为true,代表该进程为系统进程，所以直接看else中的方法实现。 首先调用setAppName将系统应用的名称改为system_process,调试的时候我们可以看到系统的进程名称为system_process. 然后创建了一个Instrumentation类，该类是一个工具类，ActivityThread接收到AMS的指令创建和调度交互都由它来执行。 然后调用createAppContext来创建一个系统的ContextImpl的大管家，传入的关键参数为系统进程的apk相关信息。后面再分析getSystemContext方法，然后创建了一个android,app.application，并调用了它的onCreate方法。
getSystemContext方法
public ContextImpl getSystemContext() {
2154 synchronized (this) {
2155 if (mSystemContext == null) {
2156 mSystemContext = ContextImpl.createSystemContext(this);
2157 }
2158 return mSystemContext;
2159 }
2160 }
systemContext最终由ContextImpl.createSystemContext方法来创建。
static ContextImpl createSystemContext(ActivityThread mainThread) {
2244 LoadedApk packageInfo = new LoadedApk(mainThread);
2245 ContextImpl context = new ContextImpl(null, mainThread, packageInfo, null, null, null, 0,
2246 null);
2247 context.setResources(packageInfo.getResources());
2248 context.mResources.updateConfiguration(context.mResourcesManager.getConfiguration(),
2249 context.mResourcesManager.getDisplayMetrics());
2250 return context;
2251 }
首先创建了一个LoadedApk对象，然后根据LoadedApk对象创建了一个ContextImpl对象。 LoadedApk代表一个加载到系统中的APK。 其中保存了apk的基本信息
/**
181 * Create information about the system package.
182 * Must call {@link #installSystemApplicationInfo} later.
183 */
184 LoadedApk(ActivityThread activityThread) {
185 mActivityThread = activityThread;
186 mApplicationInfo = new ApplicationInfo();【 【该applicationInfo并没有指向任何一个应用 】】
187 mApplicationInfo.packageName = "android";
188 mPackageName = "android";
189 mAppDir = null;
190 mResDir = null;
191 mSplitAppDirs = null;
192 mSplitResDirs = null;
193 mSplitClassLoaderNames = null;
194 mOverlayDirs = null;
195 mDataDir = null;
196 mDataDirFile = null;
197 mDeviceProtectedDataDirFile = null;
198 mCredentialProtectedDataDirFile = null;
199 mLibDir = null;
200 mBaseClassLoader = null;
201 mSecurityViolation = false;
202 mIncludeCode = true;
203 mRegisterPackage = false;
204 mClassLoader = ClassLoader.getSystemClassLoader();
205 mResources = Resources.getSystem();
206 }
LoadedAPK的这个构造方法只有系统进程创建的时候可以调用。它代表一个系统进程的apk，它里面存储着资源文件的位置，jni包的位置等信息，包名为android。其实代表的就是就是framework-res.apk。该apk仅供systemServer使用。
ContextImpl的构造方法
private ContextImpl(@Nullable ContextImpl container, @NonNull ActivityThread mainThread,
2324 @NonNull LoadedApk packageInfo, @Nullable String splitName,
2325 @Nullable IBinder activityToken, @Nullable UserHandle user, int flags,
2326 @Nullable ClassLoader classLoader) {
2327 mOuterContext = this;
2328
2329 // If creator didn't specify which storage to use, use the default
2330 // location for application.
2331 if ((flags & (Context.CONTEXT_CREDENTIAL_PROTECTED_STORAGE
2332 | Context.CONTEXT_DEVICE_PROTECTED_STORAGE)) == 0) {
2333 final File dataDir = packageInfo.getDataDirFile();
2334 if (Objects.equals(dataDir, packageInfo.getCredentialProtectedDataDirFile())) {
2335 flags |= Context.CONTEXT_CREDENTIAL_PROTECTED_STORAGE;
2336 } else if (Objects.equals(dataDir, packageInfo.getDeviceProtectedDataDirFile())) {
2337 flags |= Context.CONTEXT_DEVICE_PROTECTED_STORAGE;
2338 }
2339 }
2340//framework-res.apk的【主进程】为当前的【ActivityThread】
2341 mMainThread = mainThread;
2342 mActivityToken = activityToken;
2343 mFlags = flags;
2344
2345 if (user == null) {
2346 user = Process.myUserHandle();
2347 }
2348 mUser = user;
2349 // 【packageinfo的信息】
2350 mPackageInfo = packageInfo;
2351 mSplitName = splitName;
2352 mClassLoader = classLoader;
2353 mResourcesManager = ResourcesManager.getInstance(); //【初始化资源管理器】
2354
2355 if (container != null) {
2356 mBasePackageName = container.mBasePackageName;
2357 mOpPackageName = container.mOpPackageName;
2358 setResources(container.mResources);
2359 mDisplay = container.mDisplay;
2360 } else {
2361 mBasePackageName = packageInfo.mPackageName;
2362 ApplicationInfo ainfo = packageInfo.getApplicationInfo();
2363 if (ainfo.uid == Process.SYSTEM_UID && ainfo.uid != Process.myUid()) {
2364 // Special case: system components allow themselves to be loaded in to other
2365 // processes. For purposes of app ops, we must then consider the context as
2366 // belonging to the package of this process, not the system itself, otherwise
2367 // the package+uid verifications in app ops will fail.
2368 mOpPackageName = ActivityThread.currentPackageName();
2369 } else {
2370 mOpPackageName = mBasePackageName;
2371 }
2372 }
2373 // 【初始化系统的contentResolver】
2374 mContentResolver = new ApplicationContentResolver(this, mainThread, user);
2375 }
调用ContextImpl的构造方法生成了一个ContextImpl。该构造方法主要就是初始化了ContextImpl中的一些信息，如ResourManager等。同时将刚才创建的LoadAPK的package信息保存到的Context中，最终生成了一个和系统进程相关的Context。因为它保存了系统相关的信息
调用systemMain函数结束后，首先生成了一个ActivityThread对象，它代表应用进程的主线程。得到一个Context对象，它背后所指向的Application环境与framework-res.apk有关。 这两样东西就构成了Android程序的运行环境。我们自己写的apk的代码最终在ActivityThread线程上运行,通过Context应用程序的大管家，可以调用进程所用到的资源和方法。 为什么要为系统进程设置应用的运行环境呢，因为系统进程中包含了一个framewrok-res.apk的应用进程，这个apk也需要一个运行环境。 在SystemServer进程中也创建了一个Android运行环境，说明SystemServer系统进程也被看做一个特殊的应用程序。因为系统进程中也会有Activity界面和资源，所以也为他创建了一个运行环境，这样做它就可以和普通应用进程一样使用统一的接口和系统交互了。

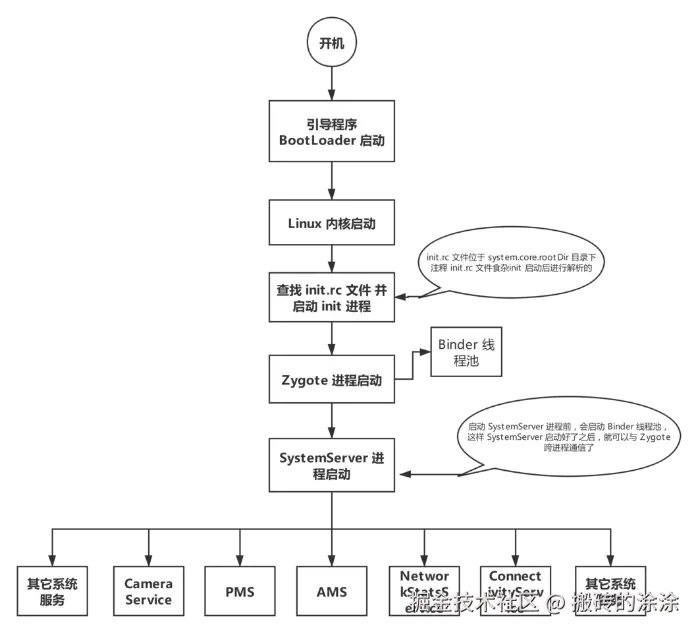

启动AMS服务过程。

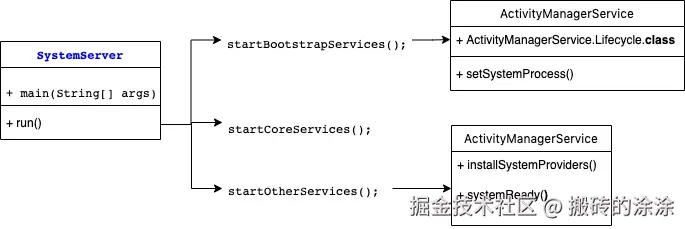

AMS服务的启动过程和其他系统服务的启动过程一样，也是在SystemServer.run()服务中启动起来的。
/**
264 * The main entry point from zygote.
265 */
266 public static void main(String[] args) {
267 new SystemServer().run();
268 }
private void run() {
278 try {
279 traceBeginAndSlog("InitBeforeStartServices");
280 // If a device's clock is before 1970 (before 0), a lot of
281 // APIs crash dealing with negative numbers, notably
282 // java.io.File#setLastModified, so instead we fake it and
283 // hope that time from cell towers or NTP fixes it shortly.
284 if (System.currentTimeMillis() < EARLIEST_SUPPORTED_TIME) {
285 Slog.w(TAG, "System clock is before 1970; setting to 1970.");
286 SystemClock.setCurrentTimeMillis(EARLIEST_SUPPORTED_TIME);
287 }
288
289 //
290 // Default the timezone property to GMT if not set.
291 //
292 String timezoneProperty = SystemProperties.get("persist.sys.timezone");
293 if (timezoneProperty == null || timezoneProperty.isEmpty()) {
294 Slog.w(TAG, "Timezone not set; setting to GMT.");
295 SystemProperties.set("persist.sys.timezone", "GMT");
296 }
297
298 // If the system has "persist.sys.language" and friends set, replace them with
299 // "persist.sys.locale". Note that the default locale at this point is calculated
300 // using the "-Duser.locale" command line flag. That flag is usually populated by
301 // AndroidRuntime using the same set of system properties, but only the system_server
302 // and system apps are allowed to set them.
303 //
304 // NOTE: Most changes made here will need an equivalent change to
305 // core/jni/AndroidRuntime.cpp
306 if (!SystemProperties.get("persist.sys.language").isEmpty()) {
307 final String languageTag = Locale.getDefault().toLanguageTag();
308
309 SystemProperties.set("persist.sys.locale", languageTag);
310 SystemProperties.set("persist.sys.language", "");
311 SystemProperties.set("persist.sys.country", "");
312 SystemProperties.set("persist.sys.localevar", "");
313 }
314
315 // The system server should never make non-oneway calls
316 Binder.setWarnOnBlocking(true);
317
318 // Here we go!
319 Slog.i(TAG, "Entered the Android system server!");
320 int uptimeMillis = (int) SystemClock.elapsedRealtime();
321 EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_SYSTEM_RUN, uptimeMillis);
322 if (!mRuntimeRestart) {
323 MetricsLogger.histogram(null, "boot_system_server_init", uptimeMillis);
324 }
325
326 // In case the runtime switched since last boot (such as when
327 // the old runtime was removed in an OTA), set the system
328 // property so that it is in sync. We can | xq oqi't do this in
329 // libnativehelper's JniInvocation::Init code where we already
330 // had to fallback to a different runtime because it is
331 // running as root and we need to be the system user to set
332 // the property. http://b/11463182
333 SystemProperties.set("persist.sys.dalvik.vm.lib.2", VMRuntime.getRuntime().vmLibrary());
334
335 // Mmmmmm... more memory!
336 VMRuntime.getRuntime().clearGrowthLimit();
337
338 // The system server has to run all of the time, so it needs to be
339 // as efficient as possible with its memory usage.
340 VMRuntime.getRuntime().setTargetHeapUtilization(0.8f);
341
342 // Some devices rely on runtime fingerprint generation, so make sure
343 // we've defined it before booting further.
344 Build.ensureFingerprintProperty();
345
346 // Within the system server, it is an error to access Environment paths without
347 // explicitly specifying a user.
348 Environment.setUserRequired(true);
349
350 // Within the system server, any incoming Bundles should be defused
351 // to avoid throwing BadParcelableException.
352 BaseBundle.setShouldDefuse(true);
353
354 // Ensure binder calls into the system always run at foreground priority.
355 BinderInternal.disableBackgroundScheduling(true);
356
357 // Increase the number of binder threads in system_server
358 BinderInternal.setMaxThreads(sMaxBinderThreads);
359
360 // Prepare the main looper thread (this thread).
361 android.os.Process.setThreadPriority(
362 android.os.Process.THREAD_PRIORITY_FOREGROUND);
363 android.os.Process.setCanSelfBackground(false);
364 Looper.prepareMainLooper();
365
366 // Initialize native services.
367 System.loadLibrary("android_servers");
368
369 // Check whether we failed to shut down last time we tried.
370 // This call may not return.
371 performPendingShutdown();
372
373 // Initialize the system context.
374 createSystemContext();
375
376 // Create the system service manager.
377 mSystemServiceManager = new SystemServiceManager(mSystemContext);
378 mSystemServiceManager.setRuntimeRestarted(mRuntimeRestart);
379 LocalServices.addService(SystemServiceManager.class, mSystemServiceManager);
380 // Prepare the thread pool for init tasks that can be parallelized
381 SystemServerInitThreadPool.get();
382 } finally {
383 traceEnd(); // InitBeforeStartServices【启动服务前初始化】
384 }
385
386 // Start services.
387 try {
388 traceBeginAndSlog("StartServices");
389 startBootstrapServices();【AMS 这里面创建】
390 startCoreServices();
391 startOtherServices();
392 SystemServerInitThreadPool.shutdown();
393 } catch (Throwable ex) {
394 Slog.e("System", "******************************************");
395 Slog.e("System", "************ Failure starting system services", ex);
396 throw ex;
397 } finally {
398 traceEnd();
399 }
400
401 // For debug builds, log event loop stalls to dropbox for analysis.
402 if (StrictMode.conditionallyEnableDebugLogging()) {
403 Slog.i(TAG, "Enabled StrictMode for system server main thread.");
404 }
405 if (!mRuntimeRestart && !isFirstBootOrUpgrade()) {
406 int uptimeMillis = (int) SystemClock.elapsedRealtime();
407 MetricsLogger.histogram(null, "boot_system_server_ready", uptimeMillis);
408 final int MAX_UPTIME_MILLIS = 60 * 1000;
409 if (uptimeMillis > MAX_UPTIME_MILLIS) {
410 Slog.wtf(SYSTEM_SERVER_TIMING_TAG,
411 "SystemServer init took too long. uptimeMillis=" + uptimeMillis);
412 }
413 }
414
415 // Loop forever.
416 Looper.loop();
417 throw new RuntimeException("Main thread loop unexpectedly exited");
418 }
首先来看SystemServer中关于ActivityManagerService的一些相关的方法。
SystemServer的startBootstrapServices函数
/**
1047 * Starts the small tangle of critical services that are needed to get the system off the
1048 * ground. These services have complex mutual dependencies which is why we initialize them all
1049 * in one place here. Unless your service is also entwined in these dependencies, it should be
1050 * initialized in one of the other functions.
1051 */
1052 private void startBootstrapServices(@NonNull TimingsTraceAndSlog t) {
1053 t.traceBegin("startBootstrapServices");
1054
1055 // Start the watchdog as early as possible so we can crash the system server
1056 // if we deadlock during early boot
1057 t.traceBegin("StartWatchdog");
1058 final Watchdog watchdog = Watchdog.getInstance();
1059 watchdog.start();
1060 mDumper.addDumpable(watchdog);
1061 t.traceEnd();
1062
1063 Slog.i(TAG, "Reading configuration...");
1064 final String TAG_SYSTEM_CONFIG = "ReadingSystemConfig";
1065 t.traceBegin(TAG_SYSTEM_CONFIG);
1066 SystemServerInitThreadPool.submit(SystemConfig::getInstance, TAG_SYSTEM_CONFIG);
1067 t.traceEnd();
1068
1069 // Platform compat service is used by ActivityManagerService, PackageManagerService, and
1070 // possibly others in the future. b/135010838.
1071 t.traceBegin("PlatformCompat");
1072 PlatformCompat platformCompat = new PlatformCompat(mSystemContext);
1073 ServiceManager.addService(Context.PLATFORM_COMPAT_SERVICE, platformCompat);
1074 ServiceManager.addService(Context.PLATFORM_COMPAT_NATIVE_SERVICE,
1075 new PlatformCompatNative(platformCompat));
1076 AppCompatCallbacks.install(new long[0]);
1077 t.traceEnd();
1078
1079 // FileIntegrityService responds to requests from apps and the system. It needs to run after
1080 // the source (i.e. keystore) is ready, and before the apps (or the first customer in the
1081 // system) run.
1082 t.traceBegin("StartFileIntegrityService");
1083 mSystemServiceManager.startService(FileIntegrityService.class);
1084 t.traceEnd();
1085
1086 // Wait for installd to finish starting up so that it has a chance to
1087 // create critical directories such as /data/user with the appropriate
1088 // permissions. We need this to complete before we initialize other services.
1089 t.traceBegin("StartInstaller");
1090 Installer installer = mSystemServiceManager.startService(Installer.class);
1091 t.traceEnd();
1092
1093 // In some cases after launching an app we need to access device identifiers,
1094 // therefore register the device identifier policy before the activity manager.
1095 t.traceBegin("DeviceIdentifiersPolicyService");
1096 mSystemServiceManager.startService(DeviceIdentifiersPolicyService.class);
1097 t.traceEnd();
1098
1099 // Uri Grants Manager.
1100 t.traceBegin("UriGrantsManagerService");
1101 mSystemServiceManager.startService(UriGrantsManagerService.Lifecycle.class);
1102 t.traceEnd();
1103
1104 t.traceBegin("StartPowerStatsService");
1105 // Tracks rail data to be used for power statistics.
1106 mSystemServiceManager.startService(PowerStatsService.class);
1107 t.traceEnd();
1108
1109 t.traceBegin("StartIStatsService");
1110 startIStatsService();
1111 t.traceEnd();
1112
1113 // Start MemtrackProxyService before ActivityManager, so that early calls
1114 // to Memtrack::getMemory() don't fail.
1115 t.traceBegin("MemtrackProxyService");
1116 startMemtrackProxyService();
1117 t.traceEnd();
1118
1119 // Activity manager runs the show.【AMS开始运行】
1120 t.traceBegin("StartActivityManager");
1121 // TODO: Might need to move after migration to WM.
1122 ActivityTaskManagerService atm = mSystemServiceManager.startService(
1123 ActivityTaskManagerService.Lifecycle.class).getService();// 【1. 创建AMS对象，并启动服务 】
1124 mActivityManagerService = ActivityManagerService.Lifecycle.startService(
1125 mSystemServiceManager, atm);
1126 mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
1127 mActivityManagerService.setInstaller(installer);
1128 mWindowManagerGlobalLock = atm.getGlobalLock();
1129 t.traceEnd();
1130
1131 // Data loader manager service needs to be started before package manager
1132 t.traceBegin("StartDataLoaderManagerService");
1133 mDataLoaderManagerService = mSystemServiceManager.startService(
1134 DataLoaderManagerService.class);
1135 t.traceEnd();
1136
1137 // Incremental service needs to be started before package manager
1138 t.traceBegin("StartIncrementalService");
1139 mIncrementalServiceHandle = startIncrementalService();
1140 t.traceEnd();
1141
1142 // Power manager needs to be started early because other services need it.
1143 // Native daemons may be watching for it to be registered so it must be ready
1144 // to handle incoming binder calls immediately (including being able to verify
1145 // the permissions for those calls).
1146 t.traceBegin("StartPowerManager");
1147 mPowerManagerService = mSystemServiceManager.startService(PowerManagerService.class);
1148 t.traceEnd();
1149
1150 t.traceBegin("StartThermalManager");
1151 mSystemServiceManager.startService(ThermalManagerService.class);
1152 t.traceEnd();
1153
1154 t.traceBegin("StartHintManager");
1155 mSystemServiceManager.startService(HintManagerService.class);
1156 t.traceEnd();
1157
1158 // Now that the power manager has been started, let the activity manager
1159 // initialize power management features.
1160 t.traceBegin("InitPowerManagement");
1161 mActivityManagerService.initPowerManagement();
1162 t.traceEnd();
1163
1164 // Bring up recovery system in case a rescue party needs a reboot
1165 t.traceBegin("StartRecoverySystemService");
1166 mSystemServiceManager.startService(RecoverySystemService.Lifecycle.class);
1167 t.traceEnd();
1168
1169 // Now that we have the bare essentials of the OS up and running, take
1170 // note that we just booted, which might send out a rescue party if
1171 // we're stuck in a runtime restart loop.
1172 RescueParty.registerHealthObserver(mSystemContext);
1173 PackageWatchdog.getInstance(mSystemContext).noteBoot();
1174
1175 // Manages LEDs and display backlight so we need it to bring up the display.
1176 t.traceBegin("StartLightsService");
1177 mSystemServiceManager.startService(LightsService.class);
1178 t.traceEnd();
1179
1180 t.traceBegin("StartDisplayOffloadService");
1181 // Package manager isn't started yet; need to use SysProp not hardware feature
1182 if (SystemProperties.getBoolean("config.enable_display_offload", false)) {
1183 mSystemServiceManager.startService(WEAR_DISPLAYOFFLOAD_SERVICE_CLASS);
1184 }
1185 t.traceEnd();
1186
1187 t.traceBegin("StartSidekickService");
1188 // Package manager isn't started yet; need to use SysProp not hardware feature
1189 if (SystemProperties.getBoolean("config.enable_sidekick_graphics", false)) {
1190 mSystemServiceManager.startService(WEAR_SIDEKICK_SERVICE_CLASS);
1191 }
1192 t.traceEnd();
1193
1194 // Display manager is needed to provide display metrics before package manager
1195 // starts up.
1196 t.traceBegin("StartDisplayManager");
1197 mDisplayManagerService = mSystemServiceManager.startService(DisplayManagerService.class);
1198 t.traceEnd();
1199
1200 // We need the default display before we can initialize the package manager.
1201 t.traceBegin("WaitForDisplay");
1202 mSystemServiceManager.startBootPhase(t, SystemService.PHASE_WAIT_FOR_DEFAULT_DISPLAY);
1203 t.traceEnd();
1204
1205 // Only run "core" apps if we're encrypting the device.
1206 String cryptState = VoldProperties.decrypt().orElse("");
1207 if (ENCRYPTING_STATE.equals(cryptState)) {
1208 Slog.w(TAG, "Detected encryption in progress - only parsing core apps");
1209 mOnlyCore = true;
1210 } else if (ENCRYPTED_STATE.equals(cryptState)) {
1211 Slog.w(TAG, "Device encrypted - only parsing core apps");
1212 mOnlyCore = true;
1213 }
1214
1215 // Start the package manager.
1216 if (!mRuntimeRestart) {
1217 FrameworkStatsLog.write(FrameworkStatsLog.BOOT_TIME_EVENT_ELAPSED_TIME_REPORTED,
1218 FrameworkStatsLog
1219 .BOOT_TIME_EVENT_ELAPSED_TIME__EVENT__PACKAGE_MANAGER_INIT_START,
1220 SystemClock.elapsedRealtime());
1221 }
1222
1223 t.traceBegin("StartDomainVerificationService");
1224 DomainVerificationService domainVerificationService = new DomainVerificationService(
1225 mSystemContext, SystemConfig.getInstance(), platformCompat);
1226 mSystemServiceManager.startService(domainVerificationService);
1227 t.traceEnd();
1228
1229 IPackageManager iPackageManager;
1230 t.traceBegin("StartPackageManagerService");
1231 try {
1232 Watchdog.getInstance().pauseWatchingCurrentThread("packagemanagermain");
1233 Pair<PackageManagerService, IPackageManager> pmsPair = PackageManagerService.main(
1234 mSystemContext, installer, domainVerificationService,
1235 mFactoryTestMode != FactoryTest.FACTORY_TEST_OFF, mOnlyCore);
1236 mPackageManagerService = pmsPair.first;
1237 iPackageManager = pmsPair.second;
1238 } finally {
1239 Watchdog.getInstance().resumeWatchingCurrentThread("packagemanagermain");
1240 }
1241
1242 // Now that the package manager has started, register the dex load reporter to capture any
1243 // dex files loaded by system server.
1244 // These dex files will be optimized by the BackgroundDexOptService.
1245 SystemServerDexLoadReporter.configureSystemServerDexReporter(iPackageManager);
1246
1247 mFirstBoot = mPackageManagerService.isFirstBoot();
1248 mPackageManager = mSystemContext.getPackageManager();
1249 t.traceEnd();
1250 if (!mRuntimeRestart && !isFirstBootOrUpgrade()) {
1251 FrameworkStatsLog.write(FrameworkStatsLog.BOOT_TIME_EVENT_ELAPSED_TIME_REPORTED,
1252 FrameworkStatsLog
1253 .BOOT_TIME_EVENT_ELAPSED_TIME__EVENT__PACKAGE_MANAGER_INIT_READY,
1254 SystemClock.elapsedRealtime());
1255 }
1256 // Manages A/B OTA dexopting. This is a bootstrap service as we need it to rename
1257 // A/B artifacts after boot, before anything else might touch/need them.
1258 // Note: this isn't needed during decryption (we don't have /data anyways).
1259 if (!mOnlyCore) {
1260 boolean disableOtaDexopt = SystemProperties.getBoolean("config.disable_otadexopt",
1261 false);
1262 if (!disableOtaDexopt) {
1263 t.traceBegin("StartOtaDexOptService");
1264 try {
1265 Watchdog.getInstance().pauseWatchingCurrentThread("moveab");
1266 OtaDexoptService.main(mSystemContext, mPackageManagerService);
1267 } catch (Throwable e) {
1268 reportWtf("starting OtaDexOptService", e);
1269 } finally {
1270 Watchdog.getInstance().resumeWatchingCurrentThread("moveab");
1271 t.traceEnd();
1272 }
1273 }
1274 }
1275
1276 t.traceBegin("StartUserManagerService");
1277 mSystemServiceManager.startService(UserManagerService.LifeCycle.class);
1278 t.traceEnd();
1279
1280 // Initialize attribute cache used to cache resources from packages.
1281 t.traceBegin("InitAttributerCache");
1282 AttributeCache.init(mSystemContext);
1283 t.traceEnd();
1284
1285 // Set up the Application instance for the system process and get started.
【为系统进程设置应用程序实例并开始操作。】
1286 t.traceBegin("SetSystemProcess");
1287 mActivityManagerService.setSystemProcess();// 【 2.将AMS所在的系统进程，添加到进程管理中去】
1288 t.traceEnd();
1289
1290 // The package receiver depends on the activity service in order to get registered.
1291 platformCompat.registerPackageReceiver(mSystemContext);
1292
1293 // Complete the watchdog setup with an ActivityManager instance and listen for reboots
1294 // Do this only after the ActivityManagerService is properly started as a system process
1295 t.traceBegin("InitWatchdog");
1296 watchdog.init(mSystemContext, mActivityManagerService);
1297 t.traceEnd();
1298
1299 // DisplayManagerService needs to setup android.display scheduling related policies
1300 // since setSystemProcess() would have overridden policies due to setProcessGroup
1301 mDisplayManagerService.setupSchedulerPolicies();
1302
1303 // Manages Overlay packages
1304 t.traceBegin("StartOverlayManagerService");
1305 mSystemServiceManager.startService(new OverlayManagerService(mSystemContext));
1306 t.traceEnd();
1307
1308 // Manages Resources packages
1309 t.traceBegin("StartResourcesManagerService");
1310 ResourcesManagerService resourcesService = new ResourcesManagerService(mSystemContext);
1311 resourcesService.setActivityManagerService(mActivityManagerService);
1312 mSystemServiceManager.startService(resourcesService);
1313 t.traceEnd();
1314
1315 t.traceBegin("StartSensorPrivacyService");
1316 mSystemServiceManager.startService(new SensorPrivacyService(mSystemContext));
1317 t.traceEnd();
1318
1319 if (SystemProperties.getInt("persist.sys.displayinset.top", 0) > 0) {
1320 // DisplayManager needs the overlay immediately.
1321 mActivityManagerService.updateSystemUiContext();
1322 LocalServices.getService(DisplayManagerInternal.class).onOverlayChanged();
1323 }
1324
1325 // The sensor service needs access to package manager service, app ops
1326 // service, and permissions service, therefore we start it after them.
1327 t.traceBegin("StartSensorService");
1328 mSystemServiceManager.startService(SensorService.class);
1329 t.traceEnd();
1330 t.traceEnd(); // startBootstrapServices
1331 }
startOtherServices函数
/**
676 * Starts a miscellaneous grab bag of stuff that has yet to be refactored
677 * and organized.
678 */
679 private void startOtherServices() {
.......
// The AccountManager must come before the ContentService
779 traceBeginAndSlog("StartAccountManagerService");
780 mSystemServiceManager.startService(ACCOUNT_SERVICE_CLASS);
781 traceEnd();
782
783 traceBeginAndSlog("StartContentService");
784 mSystemServiceManager.startService(CONTENT_SERVICE_CLASS);
785 traceEnd();
786
787 traceBeginAndSlog("InstallSystemProviders");
788 mActivityManagerService.installSystemProviders();// 【3.为系统进程安装ContentProvider对象】
789 traceEnd();
790
791 traceBeginAndSlog("StartVibratorService");
792 vibrator = new VibratorService(context);
793 ServiceManager.addService("vibrator", vibrator);
794 traceEnd();
......
1667 // We now tell the activity manager it is okay to run third party
1668 // code. It will call back into us once it has gotten to the state
1669 // where third party code can really run (but before it has actually
1670 // started launching the initial applications), for us to complete our
1671 // initialization.
1672 mActivityManagerService.systemReady(() -> {// 【4.在systemReady方法中做善后操作】
1673 Slog.i(TAG, "Making services ready");
1674 traceBeginAndSlog("StartActivityManagerReadyPhase");
1675 mSystemServiceManager.startBootPhase(
1676 SystemService.PHASE_ACTIVITY_MANAGER_READY);
1677 traceEnd();
1678 traceBeginAndSlog("StartObservingNativeCrashes");
1679 try {
1680 mActivityManagerService.startObservingNativeCrashes();// 【4.1在systemReady方法中做善后操作】
1681 } catch (Throwable e) {
1682 reportWtf("observing native crashes", e);
1683 }
1684 traceEnd();
}
上面的的几个方法就是SystemServer中关于AMS启动时的几个关键方法，主要分为4个步骤
1：创建AMS对象，并启动服务 2：将AMS所在的系统进程，添加到进程管理中去 3：为系统进程安装ContentProvider对象 4：在systemReady方法中做善后操作
一个一个的来看先这些方法的作用，这些方法就是AMS的启动和初始化过程。
启动ActivityManagerService的方法
mActivityManagerService = mSystemServiceManager.startService(
522 ActivityManagerService.Lifecycle.class).getService();
AMS服务同样是通过SystemServiceManager来启动的。那我们首先来看ActivityManagerService.Lifecycle的构造方法，然后在来看它的Start函数。
Lifecycle的构造方法中很简单就是构造一个AMS的对象
public Lifecycle(Context context) {
2651 super(context);
2652 mService = new ActivityManagerService(context);
2653 }
创建AMS对象的时候需要传递一个Context作为参数，就是上面创建这个mSystemContext它是系统Context。
接着看AMS的构造方法。
// Note: This method is invoked on the main thread but may need to attach various
2702 // handlers to other threads. So take care to be explicit about the looper.
2703 public ActivityManagerService(Context systemContext) {
2704 LockGuard.installLock(this, LockGuard.INDEX_ACTIVITY);
2705 mInjector = new Injector();
2706 mContext = systemContext;// 【系统的context】
2707
2708 mFactoryTest = FactoryTest.getMode();
2709 mSystemThread = ActivityThread.currentActivityThread();//【获得系统的ActivityThread】
2710 mUiContext = mSystemThread.getSystemUiContext();
2711
2712 Slog.i(TAG, "Memory class: " + ActivityManager.staticGetMemoryClass());
2713
2714 mPermissionReviewRequired = mContext.getResources().getBoolean(
2715 com.android.internal.R.bool.config_permissionReviewRequired);
2716
2717 mHandlerThread = new ServiceThread(TAG, //【创建一个HandlerThread用来处理AMS接收的命令】
2718 THREAD_PRIORITY_FOREGROUND, false /*allowIo*/);
2719 mHandlerThread.start();
2720 mHandler = new MainHandler(mHandlerThread.getLooper());
2721 mUiHandler = mInjector.getUiHandler(this);
2722
2723 mConstants = new ActivityManagerConstants(this, mHandler);
2724
2725 /* static; one-time init here */
2726 if (sKillHandler == null) {
2727 sKillThread = new ServiceThread(TAG + ":kill",
2728 THREAD_PRIORITY_BACKGROUND, true /* allowIo */);
2729 sKillThread.start();
2730 sKillHandler = new KillHandler(sKillThread.getLooper());
2731 }
2732
2733 mFgBroadcastQueue = new BroadcastQueue(this, mHandler,// 【初始化广播的队列】
2734 "foreground", BROADCAST_FG_TIMEOUT, false);
2735 mBgBroadcastQueue = new BroadcastQueue(this, mHandler,
2736 "background", BROADCAST_BG_TIMEOUT, true);
2737 mBroadcastQueues[0] = mFgBroadcastQueue;
2738 mBroadcastQueues[1] = mBgBroadcastQueue;
2739
2740 mServices = new ActiveServices(this);// 【初始化Service相关的容器】
2741 mProviderMap = new ProviderMap(this);//【初始化Provider相关的Map，用于保存注册的ContentProvider】
2742 mAppErrors = new AppErrors(mUiContext, this);
2743
2744 // TODO: Move creation of battery stats service outside of activity manager service.
2745 File dataDir = Environment.getDataDirectory();//【初始化并创建 data/system/ 目录】
2746 File systemDir = new File(dataDir, "system");
2747 systemDir.mkdirs();
//初始化电量统计服务相关的信息
2748 mBatteryStatsService = new BatteryStatsService(systemContext, systemDir, mHandler);//【电源管理服务】
2749 mBatteryStatsService.getActiveStatistics().readLocked();
2750 mBatteryStatsService.scheduleWriteToDisk();
2751 mOnBattery = DEBUG_POWER ? true
2752 : mBatteryStatsService.getActiveStatistics().getIsOnBattery();
2753 mBatteryStatsService.getActiveStatistics().setCallback(this);
2754 //【初始化系统统计服务，用于统计系统的运行信息】
2755 mProcessStats = new ProcessStatsService(this, new File(systemDir, "procstats"));
2756
2757 mAppOpsService = mInjector.getAppOpsService(new File(systemDir, "appops.xml"), mHandler);
2758 mAppOpsService.startWatchingMode(AppOpsManager.OP_RUN_IN_BACKGROUND, null,
2759 new IAppOpsCallback.Stub() {
2760 @Override public void opChanged(int op, int uid, String packageName) {
2761 if (op == AppOpsManager.OP_RUN_IN_BACKGROUND && packageName != null) {
2762 if (mAppOpsService.checkOperation(op, uid, packageName)
2763 != AppOpsManager.MODE_ALLOWED) {
2764 runInBackgroundDisabled(uid);
2765 }
2766 }
2767 }
2768 });
2769
2770 mGrantFile = new AtomicFile(new File(systemDir, "urigrants.xml"));
2771
2772 mUserController = new UserController(this);// 【创建系统的第一个user,userID为0，该用户具有管理员权限】
2773
2774 mVrController = new VrController(this);
2775 // 【获取opengle的版本】
2776 GL_ES_VERSION = SystemProperties.getInt("ro.opengles.version",
2777 ConfigurationInfo.GL_ES_VERSION_UNDEFINED);
2778
2779 if (SystemProperties.getInt("sys.use_fifo_ui", 0) != 0) {
2780 mUseFifoUiScheduling = true;
2781 }
2782
2783 mTrackingAssociations = "1".equals(SystemProperties.get("debug.track-associations"));
2784 mTempConfig.setToDefaults();
2785 mTempConfig.setLocales(LocaleList.getDefault()); //【初始化字体语言等配置信息】
2786 mConfigurationSeq = mTempConfig.seq = 1;
2787 mStackSupervisor = createStackSupervisor();
2788 mStackSupervisor.onConfigurationChanged(mTempConfig);
2789 mKeyguardController = mStackSupervisor.mKeyguardController;
2790 mCompatModePackages = new CompatModePackages(this, systemDir, mHandler);
2791 mIntentFirewall = new IntentFirewall(new IntentFirewallInterface(), mHandler);
2792 mTaskChangeNotificationController =
2793 new TaskChangeNotificationController(this, mStackSupervisor, mHandler);
2794 mActivityStarter = new ActivityStarter(this, mStackSupervisor); //【初始化ActivityStarter,该类是Activity启动和调度的核心类】
2795 mRecentTasks = new RecentTasks(this, mStackSupervisor);
2796
2797 mProcessCpuThread = new Thread("CpuTracker") {
2798 @Override
2799 public void run() {
2800 synchronized (mProcessCpuTracker) {
2801 mProcessCpuInitLatch.countDown();
2802 mProcessCpuTracker.init();
2803 }
2804 while (true) {
2805 try {
2806 try {
2807 synchronized(this) {
2808 final long now = SystemClock.uptimeMillis();
2809 long nextCpuDelay = (mLastCpuTime.get()+MONITOR_CPU_MAX_TIME)-now;
2810 long nextWriteDelay = (mLastWriteTime+BATTERY_STATS_TIME)-now;
2811 //Slog.i(TAG, "Cpu delay=" + nextCpuDelay
2812 // + ", write delay=" + nextWriteDelay);
2813 if (nextWriteDelay < nextCpuDelay) {
2814 nextCpuDelay = nextWriteDelay;
2815 }
2816 if (nextCpuDelay > 0) {
2817 mProcessCpuMutexFree.set(true);
2818 this.wait(nextCpuDelay);
2819 }
2820 }
2821 } catch (InterruptedException e) {
2822 }
2823 updateCpuStatsNow();
2824 } catch (Exception e) {
2825 Slog.e(TAG, "Unexpected exception collecting process stats", e);
2826 }
2827 }
2828 }
2829 };
2830
2831 Watchdog.getInstance().addMonitor(this);
2832 Watchdog.getInstance().addThread(mHandler);
2833 }
从代码中可以看出，AMS的构造方法主要是在做一些初始化的先关操作。先保存了自己的运行环境的Context和ActivityThread。AMS负责调度四大组件，所以会初始化broadcast,service和contentProvider相关的变量，接着初始化了电量统计服务，创建了系统的第一个用户，初始化了基本的配置信息，还创建了Activity调度的核心类，因为Activity调度比较复杂，Activity相关的信息初始化会在ActivityStackSupervisor中。
private void start() {
2848 removeAllProcessGroups();
2849 mProcessCpuThread.start();
2850
2851 mBatteryStatsService.publish();
2852 mAppOpsService.publish(mContext);
2853 Slog.d("AppOps", "AppOpsService published");
2854 LocalServices.addService(ActivityManagerInternal.class, new LocalService());//【AMS服务保存到localService中】
2855 // Wait for the synchronized block started in mProcessCpuThread,
2856 // so that any other acccess to mProcessCpuTracker from main thread
2857 // will be blocked during mProcessCpuTracker initialization.
//等待mProcessCpuThread中启动的同步块，
//以便任何其他从主线程访问mProcessCpuTracker
//将在mProcessCpuTracker初始化期间被阻止。
2858 try {
2859 mProcessCpuInitLatch.await();
2860 } catch (InterruptedException e) {
2861 Slog.wtf(TAG, "Interrupted wait during start", e);
2862 Thread.currentThread().interrupt();
2863 throw new IllegalStateException("Interrupted wait during start");
2864 }
2865 }
AMS的start方法很简单，只是启动了几个服务，并把AMS服务自己保存到localService中供程序内部调用。 AMS的构造方法和start方法中做了AMS服务一些变量的初始化和相关服务的初始化。接着看下一个重要的方法setSystemProcess
ActivityManagerService的setSystemProcess方法
public void setSystemProcess() {
2534 try {
//【将AMS注册到ServiceManager中】
2535 ServiceManager.addService(Context.ACTIVITY_SERVICE, this, true);
2536 ServiceManager.addService(ProcessStats.SERVICE_NAME, mProcessStats);//【注册其他服务到ServiceMananger中】
2537 ServiceManager.addService("meminfo", new MemBinder(this));
2538 ServiceManager.addService("gfxinfo", new GraphicsBinder(this));
2539 ServiceManager.addService("dbinfo", new DbBinder(this));
2540 if (MONITOR_CPU_USAGE) {
2541 ServiceManager.addService("cpuinfo", new CpuBinder(this));
2542 }
2543 ServiceManager.addService("permission", new PermissionController(this));//【注册权限服务到ServiceMananger中】
2544 ServiceManager.addService("processinfo", new ProcessInfoService(this));
2545
2546 ApplicationInfo info = mContext.getPackageManager().getApplicationInfo(
2547 "android", STOCK_PM_FLAGS | MATCH_SYSTEM_ONLY);/【从PMS中查询包名为android的application信息】,即framework-res的Application信息
2548 mSystemThread.installSystemApplicationInfo(info, getClass().getClassLoader());//【将application信息配置到开始创建的activityThread中】
2549
2550 synchronized (this) {//创建了一个ProcessRecord对象，该对象中保存着系统服务的进程信息
2551 ProcessRecord app = newProcessRecordLocked(info, info.processName, false, 0);
2552 app.persistent = true;
2553 app.pid = MY_PID;
2554 app.maxAdj = ProcessList.SYSTEM_ADJ;
2555 app.makeActive(mSystemThread.getApplicationThread(), mProcessStats);
2556 synchronized (mPidsSelfLocked) {// 【然后将系统进程的processRecord对象也添加到mPidsSelfLocked集合中，和普通应用的进程一样，接收AMS的管理调度】
2557 mPidsSelfLocked.put(app.pid, app);
2558 }
2559 updateLruProcessLocked(app, false, null);//【更新进程管理的调度信息】
2560 updateOomAdjLocked();
2561 }
2562 } catch (PackageManager.NameNotFoundException e) {
2563 throw new RuntimeException(
2564 "Unable to find android system package", e);
2565 }
2566 }
在setSystemProcess方法中，首先将自己AMS服务注册到了ServiceManager中，然后又注册了权限服务等其他的系统服务。通过先前创建的Context，得到PMS服务，检索framework-res的Application信息，然后将它配置到系统的ActivityThread中。 为了能让AMS同样可以管理调度系统进程，也创建了一个关于系统进程的ProcessRecord对象，ProcessRecord对象保存一个进程的相关信息。然后将它保存到mPidsSelfLocked集合中方便管理。
AMS具体是如何将检索到的framework-res的application信息，配置到ActivityThread中的，需要继续分析ActivityThread的installSystemApplicationInfo方法。
ActivityThread的 installSystemApplicationInfo函数
public void installSystemApplicationInfo(ApplicationInfo info, ClassLoader classLoader) {
2172 synchronized (this) {
2173 getSystemContext().installSystemApplicationInfo(info, classLoader);
2174 getSystemUiContext().installSystemApplicationInfo(info, classLoader);
2175
2176 // give ourselves a default profiler
2177 mProfiler = new Profiler();
2178 }
2179 }
方法中最终调用上面创建的SystemContext的installSystemApplication方法，那就接着看ConxtextImpl的
installSystemApplication方法。
ConxtextImpl 的 installSystemApplication函数
void installSystemApplicationInfo(ApplicationInfo info, ClassLoader classLoader) {
2385 mPackageInfo.installSystemApplicationInfo(info, classLoader);
2386 }
最终调用了mPackageInfo的installSystemApplication方法，mPackageInfo就是在创建Context对象的时候传进来的LoadedApk，里面保存了一个应用程序的基本信息
LoadedApk的installSystemApplicationInfo函数、构造方法
/**
209 * Sets application info about the system package.
210 */
211 void installSystemApplicationInfo(ApplicationInfo info, ClassLoader classLoader) {
212 assert info.packageName.equals("android");
213 mApplicationInfo = info;
214 mClassLoader = classLoader;
215 }
/**
183 * Create information about the system package.
184 * Must call {@link #installSystemApplicationInfo} later.
185 */
186 LoadedApk(ActivityThread activityThread) {
187 mActivityThread = activityThread;
188 mApplicationInfo = new ApplicationInfo();
189 mApplicationInfo.packageName = "android";
190 mPackageName = "android";
191 mAppDir = null;
192 mResDir = null;
193 mSplitAppDirs = null;
194 mSplitResDirs = null;
195 mOverlayDirs = null;
196 mSharedLibraries = null;
197 mDataDir = null;
198 mDataDirFile = null;
199 mDeviceProtectedDataDirFile = null;
200 mCredentialProtectedDataDirFile = null;
201 mLibDir = null;
202 mBaseClassLoader = null;
203 mSecurityViolation = false;
204 mIncludeCode = true;
205 mRegisterPackage = false;
206 mClassLoader = ClassLoader.getSystemClassLoader();
207 mResources = Resources.getSystem();
208 }
209

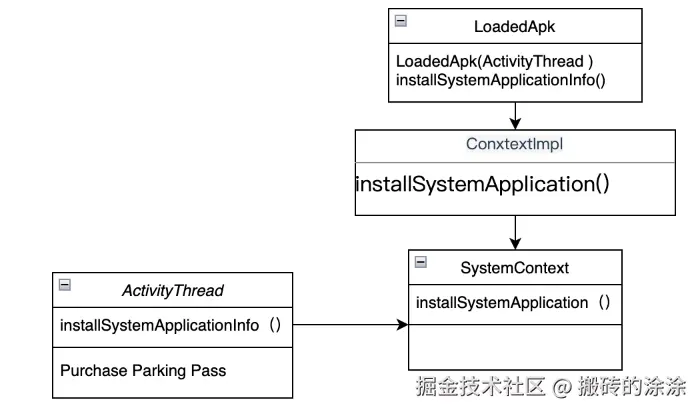

将framework-res.apk的application信息保存到了mApplication变量中。 我们返回去看下第一次创建LoadedApk的时候,使用了一个参数的构造方法，该构造方法中mApplication变量是直接new了一个ApplicationInfo的对象，该applicationInfo并没有指向任何一个应用，为什么开始的时候不直接指定，反而到现在再来重新做一次呢？ 这个是因为创建系统进程的context的时候AMS和PMS都还没有起来，那时候没有办法指定它的application,现在AMS,PMS都起来之后再来赋值就可以了。 setSystemProcess主要就是设置系统集成的一些信息，在这里设置了系统进程的Application信息，创建了系统进程的ProcessRecord对象将其保存在进程集合中，方便AMS管理调度。
ActivityManagerService的installSystemProvider方法 Android系统中有很多配置信息都需要保存，这些信息是保存在SettingsProvider中，而这个SettingsProvider也是运行在SystemServer进程中的，由于SystemServer进程依赖SettingsProvider，放在一个进程中可以减少进程间通信的效率损失。
分析下如何将SettingsProvider.apk也加载到SystemServer进程中。
ActivityManagerService的installSystemProvider函数
public final void installSystemProviders() {
12131 List<ProviderInfo> providers;
12132 synchronized (this) {//【找到名称为”System”的进程，就是上一步创建的processRecord对象】
12133 ProcessRecord app = mProcessNames.get("system", SYSTEM_UID);
12134 providers = generateApplicationProvidersLocked(app);//【找到所有和system进程相关的ContentProvider】
12135 if (providers != null) {
12136 for (int i=providers.size()-1; i>=0; i--) {
12137 ProviderInfo pi = (ProviderInfo)providers.get(i);
12138 if ((pi.applicationInfo.flags&ApplicationInfo.FLAG_SYSTEM) == 0) {//【再次确认进程为system的provider,把不是该进程Provider移除】
12139 Slog.w(TAG, "Not installing system proc provider " + pi.name
12140 + ": not system .apk");
12141 providers.remove(i);
12142 }
12143 }
12144 }
12145 }
12146 if (providers != null) {
12147 mSystemThread.installSystemProviders(providers);//【把Provider安装到系统的ActivityThread中】
12148 }
12149
12150 mConstants.start(mContext.getContentResolver());
12151 mCoreSettingsObserver = new CoreSettingsObserver(this);
12152 mFontScaleSettingObserver = new FontScaleSettingObserver();
12153
12154 // Now that the settings provider is published we can consider sending
12155 // in a rescue party.
12156 RescueParty.onSettingsProviderPublished(mContext);
12157
12158 //mUsageStatsService.monitorPackages();
12159 }
找到名称为system的进程对象，就是SystemServer进程，然后根据进程对象去查询所有有关的ContentProvider，调用系统进程的主线程ActivityThread安装所有相关的ContentProvider,
installSystemProviders函数中是如何查找相关的contentProvider和如何安装ContentProvider到系统主线程的。需要分析generateApplicationProvidersLocked与installContentProviders方法。
ActivityManagerService的 generateApplicationProvidersLocked函数
private final List<ProviderInfo> generateApplicationProvidersLocked(ProcessRecord app) {
11120 List<ProviderInfo> providers = null;
11121 try {//【调用PMS根据进程ID和进程名称来查询Provider】得到Provider
11122 providers = AppGlobals.getPackageManager()
11123 .queryContentProviders(app.processName, app.uid,
11124 STOCK_PM_FLAGS | PackageManager.GET_URI_PERMISSION_PATTERNS
11125 | MATCH_DEBUG_TRIAGED_MISSING, /*metadastaKey=*/ null)
11126 .getList();
11127 } catch (RemoteException ex) {
11128 }
11129 if (DEBUG_MU) Slog.v(TAG_MU,
11130 "generateApplicationProvidersLocked, app.info.uid = " + app.uid);
11131 int userId = app.userId;
11132 if (providers != null) {
11133 int N = providers.size();
11134 app.pubProviders.ensureCapacity(N + app.pubProviders.size());
11135 for (int i=0; i<N; i++) {
11136 // TODO: keep logic in sync with installEncryptionUnawareProviders
11137 ProviderInfo cpi =
11138 (ProviderInfo)providers.get(i);
11139 boolean singleton = isSingleton(cpi.processName, cpi.applicationInfo,
11140 cpi.name, cpi.flags);
11141 if (singleton && UserHandle.getUserId(app.uid) != UserHandle.USER_SYSTEM) {
11142 // This is a singleton provider, but a user besides the
11143 // default user is asking to initialize a process it runs
11144 // in... well, no, it doesn't actually run in this process,
11145 // it runs in the process of the default user. Get rid of it.
11146 providers.remove(i);
11147 N--;
11148 i--;
11149 continue;
11150 }
11151
11152 ComponentName comp = new ComponentName(cpi.packageName, cpi.name);
11153 ContentProviderRecord cpr = mProviderMap.getProviderByClass(comp, userId);
11154 if (cpr == null) {//【从AMS管理的contentProvider列表中查询对应的】Provider
11155 cpr = new ContentProviderRecord(this, cpi, app.info, comp, singleton); //【如果AMS的Provider列表中没有对应的Provider实例，就根据查询的provider信息，创建一个对象保存到队列中】
11156 mProviderMap.putProviderByClass(comp, cpr);
11157 }
11158 if (DEBUG_MU) Slog.v(TAG_MU,
11159 "generateApplicationProvidersLocked, cpi.uid = " + cpr.uid);
11160 app.pubProviders.put(cpi.name, cpr);//【同时将provider保存到processRecord对象的pubProviders列表中】
11161 if (!cpi.multiprocess || !"android".equals(cpi.packageName)) {
11162 // Don't add this if it is a platform component that is marked
11163 // to run in multiple processes, because this is actually
11164 // part of the framework so doesn't make sense to track as a
11165 // separate apk in the process.
11166 app.addPackage(cpi.applicationInfo.packageName, cpi.applicationInfo.versionCode,
11167 mProcessStats);
11168 }
11169 notifyPackageUse(cpi.applicationInfo.packageName,
11170 PackageManager.NOTIFY_PACKAGE_USE_CONTENT_PROVIDER);
11171 }
11172 }
11173 return providers;
11174 }
这个方法就是从PMS中查询和SystemServer进程相关的Provider，也就是SettingsProvder，然后将它保存到AMS的contentProvider列表中，管理所有的ContentProvder。同时也将它保存到系统进程对象ProcessRecord的变量pubProviders列表中，每个ContentProvider都需要对应到一个进程中去。
如何将SettingsProvider安装到系统的主进程中去。
ActivityThread的installContentProviders函数
private void installContentProviders(
5793 Context context, List<ProviderInfo> providers) {
5794 final ArrayList<ContentProviderHolder> results = new ArrayList<>();
5795
5796 for (ProviderInfo cpi : providers) {
5797 if (DEBUG_PROVIDER) {
5798 StringBuilder buf = new StringBuilder(128);
5799 buf.append("Pub ");
5800 buf.append(cpi.authority);
5801 buf.append(": ");
5802 buf.append(cpi.name);
5803 Log.i(TAG, buf.toString());
5804 }//【通过installProvider方法把provider封装成一个ContentProviderHolder对象，有利于进程间传输】
5805 ContentProviderHolder cph = installProvider(context, null, cpi,
5806 false /*noisy*/, true /*noReleaseNeeded*/, true /*stable*/);
5807 if (cph != null) {
5808 cph.noReleaseNeeded = true;
5809 results.add(cph);
5810 }
5811 }
5812
5813 try {//【将上面得到的contentProviderHolder对象发布到AMS服务，getApplicationThread代表本地进程的一个binder对象，binder对象可跨进程传输，它在AMS中对应一个ProcessRecord.】
5814 ActivityManager.getService().publishContentProviders(
5815 getApplicationThread(), results);
5816 } catch (RemoteException ex) {
5817 throw ex.rethrowFromSystemServer();
5818 }
5819 }
该方法将得到的contentProvider对象封装成了contentProviderHolder对象，其实就是Binder对象，这样就可以进程间传输了，然后跨进程调用AMS服务注册Provider。AMS负责管理ContentProvider，只有将ContentProvider注册到AMS服务其他进程才能访问。
AMS如何注册Provider。
ActivityManagerService的 publishContentProviders函数
public final void publishContentProviders(IApplicationThread caller,
11939 List<ContentProviderHolder> providers) {
11940 if (providers == null) {
11941 return;
11942 }
11943
11944 enforceNotIsolatedCaller("publishContentProviders");
11945 synchronized (this) {
11946 final ProcessRecord r = getRecordForAppLocked(caller);//【根据调用者的进程得到相应的processRecord对象，就是系统进程的ProcessRecord】
11947 if (DEBUG_MU) Slog.v(TAG_MU, "ProcessRecord uid = " + r.uid);
11948 if (r == null) {
11949 throw new SecurityException(
11950 "Unable to find app for caller " + caller
11951 + " (pid=" + Binder.getCallingPid()
11952 + ") when publishing content providers");
11953 }
11954
11955 final long origId = Binder.clearCallingIdentity();
11956
11957 final int N = providers.size();
11958 for (int i = 0; i < N; i++) {
11959 ContentProviderHolder src = providers.get(i); //【ActivityThread客户端传过来的provider src（holer）】
11960 if (src == null || src.info == null || src.provider == null) {
11961 continue;
11962 }
11963 ContentProviderRecord dst = r.pubProviders.get(src.info.name);//根据src provider name得到一开始保存的进程中保存的 【ProciderRecord】
11964 if (DEBUG_MU) Slog.v(TAG_MU, "ContentProviderRecord uid = " + dst.uid);
11965 if (dst != null) {
11966 ComponentName comp = new ComponentName(dst.info.packageName, dst.info.name);
11967 mProviderMap.putProviderByClass(comp, dst);//【按类将它保存在mProviderMap中】
11968 String names[] = dst.info.authority.split(";");
11969 for (int j = 0; j < names.length; j++) {
11970 mProviderMap.putProviderByName(names[j], dst);//【按authority保存在mProviderMap中】
11971 }
11972
11973 int launchingCount = mLaunchingProviders.size();
11974 int j;
11975 boolean wasInLaunchingProviders = false;
11976 for (j = 0; j < launchingCount; j++) {
11977 if (mLaunchingProviders.get(j) == dst) {
11978 mLaunchingProviders.remove(j);
11979 wasInLaunchingProviders = true;
11980 j--;
11981 launchingCount--;
11982 }
11983 }
11984 if (wasInLaunchingProviders) {
11985 mHandler.removeMessages(CONTENT_PROVIDER_PUBLISH_TIMEOUT_MSG, r);
11986 }
11987 synchronized (dst) {
11988 dst.provider = src.provider;
11989 dst.proc = r;
11990 dst.notifyAll();
11991 }
11992 updateOomAdjLocked(r, true);
11993 maybeUpdateProviderUsageStatsLocked(r, src.info.packageName,
11994 src.info.authority);
11995 }
11996 }
11998 Binder.restoreCallingIdentity(origId);
11999 }
12000 }
AMS的注册服务就是根据参数传过来的provider信息，找到原先进程中pubProviders列表中保存的ContentProviderRecord，然后将它分别以类为key保存在mProviderMap中，和以authority为key保存在mProviderMap中。即AMS提供了多种方案来查找一个ContentProvider，一种是通过authority来查找，一种是指明CompomentName来查找。
installSystemProvider方法的主要工作就是按照普通进程类似的方式，将SettingsProvider注册到系统进程中，方便系统进程对settings的配置数据进行调用
ActivityManagerService的systemReady函数
public void systemReady(final Runnable goingCallback, TimingsTraceLog traceLog) {
14149 traceLog.traceBegin("PhaseActivityManagerReady");
14150 synchronized(this) {
14151 if (mSystemReady) {
14152 // If we're done calling all the receivers, run the next "boot phase" passed in
14153 // by the SystemServer
14154 if (goingCallback != null) {
14155 goingCallback.run();
14156 }
14157 return;
14158 }
14159//【初始化Doze模式的controller】
14160 mLocalDeviceIdleController
14161 = LocalServices.getService(DeviceIdleController.LocalService.class);
14162 mAssistUtils = new AssistUtils(mContext);
14163 mVrController.onSystemReady();
14164 // Make sure we have the current profile info, since it is needed for security checks.
14165 mUserController.onSystemReady();
14166 mRecentTasks.onSystemReadyLocked();//【onSystemReadyLocked中 重置RecentTasks】
14167 mAppOpsService.systemReady();
14168 mSystemReady = true;//【设置systemReady为true】
14169 }
14170
14171 try {
14172 sTheRealBuildSerial = IDeviceIdentifiersPolicyService.Stub.asInterface(
14173 ServiceManager.getService(Context.DEVICE_IDENTIFIERS_SERVICE))
14174 .getSerial();
14175 } catch (RemoteException e) {}
14176
14177 ArrayList<ProcessRecord> procsToKill = null;
14178 synchronized(mPidsSelfLocked) {//【收集那些在AMS之前启动的进程】
14179 for (int i=mPidsSelfLocked.size()-1; i>=0; i--) {
14180 ProcessRecord proc = mPidsSelfLocked.valueAt(i);
14181 if (!isAllowedWhileBooting(proc.info)){
14182 if (procsToKill == null) {
14183 procsToKill = new ArrayList<ProcessRecord>();
14184 }
14185 procsToKill.add(proc);
14186 }
14187 }
14188 }
14189
14190 synchronized(this) {//【将那些在AMS之前启动的进程杀死，有的进程不能再AMS之前启动】
14191 if (procsToKill != null) {
14192 for (int i=procsToKill.size()-1; i>=0; i--) {
14193 ProcessRecord proc = procsToKill.get(i);
14194 Slog.i(TAG, "Removing system update proc: " + proc);
14195 removeProcessLocked(proc, true, false, "system update done");
14196 }
14197 }
14198
14199 // Now that we have cleaned up any update processes, we
14200 // are ready to start launching real processes and know that
14201 // we won't trample on them any more.
14202 mProcessesReady = true;
14203 }
14204
14205 Slog.i(TAG, "System now ready");
14206 EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_AMS_READY,
14207 SystemClock.uptimeMillis());
14208
14209 synchronized(this) {
14210 // Make sure we have no pre-ready processes sitting around.
14211
14212 if (mFactoryTest == FactoryTest.FACTORY_TEST_LOW_LEVEL) {
14213 ResolveInfo ri = mContext.getPackageManager()
14214 .resolveActivity(new Intent(Intent.ACTION_FACTORY_TEST),
14215 STOCK_PM_FLAGS);
14216 CharSequence errorMsg = null;
14217 if (ri != null) {
14218 ActivityInfo ai = ri.activityInfo;
14219 ApplicationInfo app = ai.applicationInfo;
14220 if ((app.flags&ApplicationInfo.FLAG_SYSTEM) != 0) {
14221 mTopAction = Intent.ACTION_FACTORY_TEST;
14222 mTopData = null;
14223 mTopComponent = new ComponentName(app.packageName,
14224 ai.name);
14225 } else {
14226 errorMsg = mContext.getResources().getText(
14227 com.android.internal.R.string.factorytest_not_system);
14228 }
14229 } else {
14230 errorMsg = mContext.getResources().getText(
14231 com.android.internal.R.string.factorytest_no_action);
14232 }
14233 if (errorMsg != null) {
14234 mTopAction = null;
14235 mTopData = null;
14236 mTopComponent = null;
14237 Message msg = Message.obtain();
14238 msg.what = SHOW_FACTORY_ERROR_UI_MSG;
14239 msg.getData().putCharSequence("msg", errorMsg);
14240 mUiHandler.sendMessage(msg);
14241 }
14242 }
14243 }
14244
14245 retrieveSettings();//【从settingsProvider的设置总初始化部分变量】
14246 final int currentUserId;
14247 synchronized (this) {
14248 currentUserId = mUserController.getCurrentUserIdLocked();
14249 readGrantedUriPermissionsLocked();
14250 }
14251
14252 if (goingCallback != null) goingCallback.run();//【调用callback方法，该方法在systemServer代码中实现】
14253 traceLog.traceBegin("ActivityManagerStartApps");
14254 mBatteryStatsService.noteEvent(BatteryStats.HistoryItem.EVENT_USER_RUNNING_START,
14255 Integer.toString(currentUserId), currentUserId);
14256 mBatteryStatsService.noteEvent(BatteryStats.HistoryItem.EVENT_USER_FOREGROUND_START,
14257 Integer.toString(currentUserId), currentUserId);
14258 mSystemServiceManager.startUser(currentUserId);
14259
14260 synchronized (this) {
14261 // Only start up encryption-aware persistent apps; once user is
14262 // unlocked we'll come back around and start unaware apps
14263 startPersistentApps(PackageManager.MATCH_DIRECT_BOOT_AWARE);
14264
14265 // Start up initial activity.
14266 mBooting = true;
14267 // Enable home activity for system user, so that the system can always boot. We don't
14268 // do this when the system user is not setup since the setup wizard should be the one
14269 // to handle home activity in this case.
14270 if (UserManager.isSplitSystemUser() &&
14271 Settings.Secure.getInt(mContext.getContentResolver(),
14272 Settings.Secure.USER_SETUP_COMPLETE, 0) != 0) {
14273 ComponentName cName = new ComponentName(mContext, SystemUserHomeActivity.class);
14274 try {//【查询那些persistent为1的application,并启动他们所在的进程】
14275 AppGlobals.getPackageManager().setComponentEnabledSetting(cName,
14276 PackageManager.COMPONENT_ENABLED_STATE_ENABLED, 0,
14277 UserHandle.USER_SYSTEM);
14278 } catch (RemoteException e) {
14279 throw e.rethrowAsRuntimeException();
14280 }
14281 }
14282 startHomeActivityLocked(currentUserId, "systemReady");//【启动HomeActivity，也就是launcher程序】
14283
14284 try {
14285 if (AppGlobals.getPackageManager().hasSystemUidErrors()) {
14286 Slog.e(TAG, "UIDs on the system are inconsistent, you need to wipe your"
14287 + " data partition or your device will be unstable.");
14288 mUiHandler.obtainMessage(SHOW_UID_ERROR_UI_MSG).sendToTarget();
14289 }
14290 } catch (RemoteException e) {
14291 }
14292
14293 if (!Build.isBuildConsistent()) {
14294 Slog.e(TAG, "Build fingerprint is not consistent, warning user");
14295 mUiHandler.obtainMessage(SHOW_FINGERPRINT_ERROR_UI_MSG).sendToTarget();
14296 }
14297
14298 long ident = Binder.clearCallingIdentity();
14299 try {
14300 Intent intent = new Intent(Intent.ACTION_USER_STARTED);
14301 intent.addFlags(Intent.FLAG_RECEIVER_REGISTERED_ONLY
14302 | Intent.FLAG_RECEIVER_FOREGROUND);
14303 intent.putExtra(Intent.EXTRA_USER_HANDLE, currentUserId);
14304 broadcastIntentLocked(null, null, intent,
14305 null, null, 0, null, null, null, AppOpsManager.OP_NONE,
14306 null, false, false, MY_PID, SYSTEM_UID,
14307 currentUserId);
14308 intent = new Intent(Intent.ACTION_USER_STARTING);
14309 intent.addFlags(Intent.FLAG_RECEIVER_REGISTERED_ONLY);
14310 intent.putExtra(Intent.EXTRA_USER_HANDLE, currentUserId);
14311 broadcastIntentLocked(null, null, intent,
14312 null, new IIntentReceiver.Stub() {
14313 @Override
14314 public void performReceive(Intent intent, int resultCode, String data,
14315 Bundle extras, boolean ordered, boolean sticky, int sendingUser)
14316 throws RemoteException {
14317 }
14318 }, 0, null, null,
14319 new String[] {INTERACT_ACROSS_USERS}, AppOpsManager.OP_NONE,
14320 null, true, false, MY_PID, SYSTEM_UID, UserHandle.USER_ALL);
14321 } catch (Throwable t) {
14322 Slog.wtf(TAG, "Failed sending first user broadcasts", t);
14323 } finally {
14324 Binder.restoreCallingIdentity(ident);
14325 }
14326 mStackSupervisor.resumeFocusedStackTopActivityLocked();
14327 mUserController.sendUserSwitchBroadcastsLocked(-1, currentUserId);
14328 traceLog.traceEnd(); // ActivityManagerStartApps
14329 traceLog.traceEnd(); // PhaseActivityManagerReady
14330 }
14331 }
SystemReady方法也是比较长，大致可以分为四个部分 第一：在systemReady的时候初始化了deviceIdleController等对象 第二：移除并杀死了那些不该在AMS之前启动的进程 第三：执行了参数传入的回调函数 第四：启动了Launcer界面 第五：启动那些persistent配置为1的进程。
systemReady参数的回调函数做了什么工作.
try {
//ams开始监听native层的crash信息
mActivityManagerService.startObservingNativeCrashes();
} catch (Throwable e) {
reportWtf("observing native crashes", e);
}
//初始化webVew
WebViewFactory.prepareWebViewInSystemServer();
try {
//启动systemUI
startSystemUi(context);
} catch (Throwable e) {
reportWtf("starting System UI", e);
}
try {
//调用其他服务的systemready方法
if (networkScoreF != null) networkScoreF.systemReady();
} catch (Throwable e) {
reportWtf("making Network Score Service ready", e);
}
……
这个回调函数中主要工作就是启动systemUI并调用其他服务的systemReady方法，SystemReady函数完成了系统就绪的必要的工作，启动了HomeActivity和SystemUI，然后Android系统就全部启动了。 AMS服务启动主要分为几个步骤。
- 创建了SystemServer进程的运行环境，包括一个ActivityThread主线程，一个和系统进程相关的Context对象。
- 调用AMS的构造方法和start方法，对AMS必要的内容进行初始化
- 将函数AMS注册到ServiceManager中，同时对systemServer进程也创建了一个ProcessRecord对象，并设置Context的appliation为framework-res的application对象
- 将settingsProvider加载到系统进程systemServer中
- 调用systemReady方法做一些启动前的就绪工作，并启动了HomeActivity和SystemUI
·································继续中~~~~~~~~~~~~~~~~~
