ArcGIS Maps SDK for JavaScript 从 4.29 开始增加 RenderNode 类，可以添加数据以及操作 FBO（ManagedFBO）；
通过操作 FBO，可以通过后处理实现很多效果，官方提供了几个示例，感兴趣可以看看。

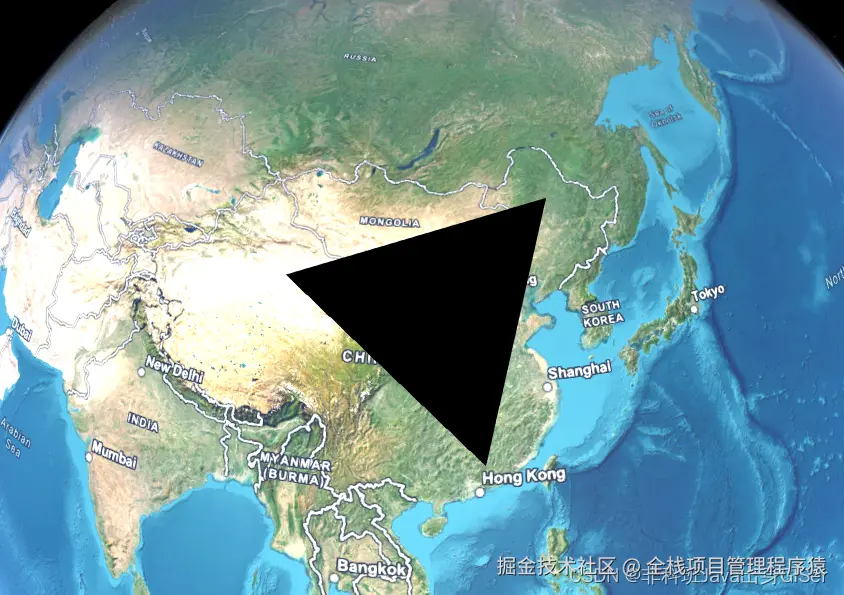

本文介绍一下通过 FBO，实现自定义范围后处理效果（自定义三角形范围）。
本文包括==核心代码、完整代码以及在线示例==。
核心代码
首先介绍一下原理：通过地图构建三角形数据，转为 WebGL 内部坐标，即世界坐标；
顶点着色器中，传递顶点数据；
片元着色器中，根据顶点数据以及三角形顶点数据，判断是否在三角形内，三角形内外显示不同的颜色。
// The vertex shader program
// Sets position from 0..1 for fragment shader
// Forwards texture coordinates to fragment shader
const vshader = `#version 300 es
// 绘制顶点
in vec2 position;
// 传入片元着色器
out vec4 position_out;
// uv 取样
out vec2 uv;
void main() {
// 绘制顶点
gl_Position = vec4(position, 0.0, 1.0);
position_out = gl_Position;
// uv 调整中心
uv = position * 0.5 + vec2(0.5);
}`;
// The fragment shader program applying a greyscsale conversion
const fshader = `#version 300 es
precision mediump float;
out mediump vec4 fragColor;
// 相机矩阵
uniform mat4 u_viewMatrix;
uniform mat4 u_projectionMatrix;
// 三角形顶点
uniform vec3 u_triangle_out[3];
in vec2 uv;
// 当前片元位置
in vec4 position_out;
// 颜色纹理
uniform sampler2D colorTex;
// 判断是否在三角形中
bool isPointInTriangle(vec3 a, vec3 b, vec3 c, vec3 p) {
float signOfTrig = (b.x - a.x)*(c.y - a.y) - (b.y - a.y)*(c.x - a.x);
float signOfAB = (b.x - a.x)*(p.y - a.y) - (b.y - a.y)*(p.x - a.x);
float signOfCA = (a.x - c.x)*(p.y - c.y) - (a.y - c.y)*(p.x - c.x);
float signOfBC = (c.x - b.x)*(p.y - c.y) - (c.y - b.y)*(p.x - c.x);
bool d1 = (signOfAB<=0.0&&signOfTrig<=0.0) || (signOfAB>=0.0&&signOfTrig>=0.0);
bool d2 = (signOfCA<=0.0&&signOfTrig<=0.0) || (signOfCA>=0.0&&signOfTrig>=0.0);
bool d3 = (signOfBC<=0.0&&signOfTrig<=0.0) || (signOfBC>=0.0&&signOfTrig>=0.0);
return d1 && d2 && d3;
}
void main() {
vec4 color = texture(colorTex, uv);
// 调整亮度
color = color * 1.7;
vec4 triangle_out1 = vec4(u_triangle_out[0], 1.0);
vec4 triangle_out2 = vec4(u_triangle_out[1], 1.0);
vec4 triangle_out3 = vec4(u_triangle_out[2], 1.0);
// 转换三角形顶点数据
vec4 temp1 = u_projectionMatrix * u_viewMatrix * triangle_out1;
triangle_out1 = vec4(temp1.xyz/temp1.w, 1.0);
vec4 temp2 = u_projectionMatrix * u_viewMatrix * triangle_out2;
triangle_out2 = vec4(temp2.xyz/temp2.w, 1.0);
vec4 temp3 = u_projectionMatrix * u_viewMatrix * triangle_out3;
triangle_out3 = vec4(temp3.xyz/temp3.w, 1.0);
// 三个点都在地球背面，则不显示
if (
triangle_out1.z/triangle_out1.w < 0.99911
|| triangle_out2.z/triangle_out2.w < 0.99911
|| triangle_out3.z/triangle_out3.w < 0.99911
)
{
// 三角形范围
if (!isPointInTriangle(
triangle_out1.xyz,
triangle_out2.xyz,
triangle_out3.xyz,
position_out.xyz
)){
fragColor = color;
} else {
fragColor = vec4(vec3(dot(color.rgb, vec3(0.2126, 0.7152, 0.0722))), color.a);
}
} else {
fragColor = color;
}
}
`;
完整代码
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8"/>
<meta name="viewport" content="initial-scale=1, maximum-scale=1,user-scalable=no"/>
<title>Custom RenderNode - 自定义范围后处理 | Sample | ArcGIS Maps SDK for JavaScript 4.29</title>
<link rel="stylesheet" href="./4.29/esri/themes/light/main.css"/>
<script src="./4.29/init.js"></script>
<script src="./renderCommon.js"></script>
<script type="module" src="https://js.arcgis.com/calcite-components/2.5.1/calcite.esm.js"></script>
<link rel="stylesheet" type="text/css" href="https://js.arcgis.com/calcite-components/2.5.1/calcite.css"/>
<style>
html,
body,
#viewDiv {
padding: 0;
margin: 0;
height: 100%;
width: 100%;
}
</style>
<script>
require(["esri/Map", "esri/views/SceneView", "esri/views/3d/webgl/RenderNode",
"esri/Graphic", "esri/views/3d/webgl",
"esri/geometry/SpatialReference",
"esri/widgets/Home",
], function (
Map,
SceneView,
RenderNode,
Graphic,
webgl,
SpatialReference,
Home
) {
const {map, view} = initMap({Map, SceneView, Home});
// Create a polygon geometry
const polygon = {
type: "polygon", // autocasts as new Polygon()
hasZ: false,
rings: [
[91.70200480682539, 40.50378397539653, 0],
[124.54786035613671, 48.316773528052515, 0],
[114.78476104211637, 24.59876952891829, 0],
[91.70200480682539, 40.50378397539653, 0]
]
};
// Add the geometry and symbol to a new graphic
const polygonGraphic = new Graphic({
geometry: polygon,
});
const points = polygonGraphic.geometry.rings[0].flat();
let localOriginRender;
view.when(() => {
// Calculate local origin in render coordinates with 32bit precision
// 经纬度坐标转为世界坐标
localOriginRender = webgl.toRenderCoordinates(
view,
points,
0,
SpatialReference.WGS84,
new Float32Array(points.length - 3),
0,
(points.length - 3) / 3,
);
// Derive a new subclass from RenderNode called LuminanceRenderNode
const LuminanceRenderNode = RenderNode.createSubclass({
constructor: function () {
// consumes and produces define the location of the the render node in the render pipeline
this.consumes = {required: ["composite-color"]};
this.produces = "composite-color";
},
// Ensure resources are cleaned up when render node is removed
destroy() {
this.shaderProgram && this.gl?.deleteProgram(this.shaderProgram);
this.positionBuffer && this.gl?.deleteBuffer(this.positionBuffer);
this.vao && this.gl?.deleteVertexArray(this.vao);
},
properties: {
// Define getter and setter for class member enabled
enabled: {
get: function () {
return this.produces != null;
},
set: function (value) {
// Setting produces to null disables the render node
this.produces = value ? "composite-color" : null;
this.requestRender();
}
}
},
render(inputs) {
// The field input contains all available framebuffer objects
// We need color texture from the composite render target
const input = inputs.find(({name}) => name === "composite-color");
const color = input.getTexture();
// Acquire the composite framebuffer object, and bind framebuffer as current target
const output = this.acquireOutputFramebuffer();
const gl = this.gl;
// Clear newly acquired framebuffer
gl.clearColor(0, 0, 0, 1);
gl.colorMask(true, true, true, true);
gl.clear(gl.COLOR_BUFFER_BIT);
// gl.disable(gl.CULL_FACE); // 禁用面剔除
// Prepare custom shaders and geometry for screenspace rendering
// 初始化着色器
this.ensureShader(gl);
// 初始化屏幕数据
this.ensureScreenSpacePass(gl);
// Bind custom program
gl.useProgram(this.shaderProgram);
// Use composite-color render target to be modified in the shader
// 激活一号纹理
gl.activeTexture(gl.TEXTURE0);
// 绑定一号纹理
gl.bindTexture(gl.TEXTURE_2D, color.glName);
// 传入着色器
gl.uniform1i(this.textureUniformLocation, 0);
// 传入三角形顶点
gl.uniform3fv(this.textureUniformTriangleExtent,localOriginRender);
// 激活相机矩阵
activeMatrix(this);
// Issue the render call for a screen space render pass
gl.bindVertexArray(this.vao);
// 绘制
gl.drawArrays(gl.TRIANGLES, 0, 3);
// use depth from input on output framebuffer
// output.attachDepth(input.getAttachment(gl.DEPTH_STENCIL_ATTACHMENT));
this.requestRender();
return output;
},
// 着色器程序
shaderProgram: null,
// 纹理
textureUniformLocation: null,
// 顶点位置
positionLocation: null,
// 顶点数组
vao: null,
// 顶点缓冲区
positionBuffer: null,
// used to avoid allocating objects in each frame.
// Setup screen space filling triangle
ensureScreenSpacePass(gl) {
if (this.vao) {
return;
}
this.vao = gl.createVertexArray();
gl.bindVertexArray(this.vao);
this.positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, this.positionBuffer);
const vertices = new Float32Array([-1.0, -1.0, 3.0, -1.0, -1.0, 3.0]);
gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW);
gl.vertexAttribPointer(this.positionLocation, 2, gl.FLOAT, false, 0, 0);
gl.enableVertexAttribArray(this.positionLocation);
gl.bindVertexArray(null);
},
// Setup custom shader programs
ensureShader(gl) {
if (this.shaderProgram != null) {
return;
}
// The vertex shader program
// Sets position from 0..1 for fragment shader
// Forwards texture coordinates to fragment shader
const vshader = `#version 300 es
// 绘制顶点
in vec2 position;
// 传入片元着色器
out vec4 position_out;
// uv 取样
out vec2 uv;
void main() {
// 绘制顶点
gl_Position = vec4(position, 0.0, 1.0);
position_out = gl_Position;
// uv 调整中心
uv = position * 0.5 + vec2(0.5);
}`;
// The fragment shader program applying a greyscsale conversion
const fshader = `#version 300 es
precision mediump float;
out mediump vec4 fragColor;
// 相机矩阵
uniform mat4 u_viewMatrix;
uniform mat4 u_projectionMatrix;
// 三角形顶点
uniform vec3 u_triangle_out[3];
in vec2 uv;
// 当前片元位置
in vec4 position_out;
// 颜色纹理
uniform sampler2D colorTex;
// 判断是否在三角形中
bool isPointInTriangle(vec3 a, vec3 b, vec3 c, vec3 p) {
float signOfTrig = (b.x - a.x)*(c.y - a.y) - (b.y - a.y)*(c.x - a.x);
float signOfAB = (b.x - a.x)*(p.y - a.y) - (b.y - a.y)*(p.x - a.x);
float signOfCA = (a.x - c.x)*(p.y - c.y) - (a.y - c.y)*(p.x - c.x);
float signOfBC = (c.x - b.x)*(p.y - c.y) - (c.y - b.y)*(p.x - c.x);
bool d1 = (signOfAB<=0.0&&signOfTrig<=0.0) || (signOfAB>=0.0&&signOfTrig>=0.0);
bool d2 = (signOfCA<=0.0&&signOfTrig<=0.0) || (signOfCA>=0.0&&signOfTrig>=0.0);
bool d3 = (signOfBC<=0.0&&signOfTrig<=0.0) || (signOfBC>=0.0&&signOfTrig>=0.0);
return d1 && d2 && d3;
}
void main() {
vec4 color = texture(colorTex, uv);
// 调整亮度
color = color * 1.7;
vec4 triangle_out1 = vec4(u_triangle_out[0], 1.0);
vec4 triangle_out2 = vec4(u_triangle_out[1], 1.0);
vec4 triangle_out3 = vec4(u_triangle_out[2], 1.0);
// 转换三角形顶点数据
vec4 temp1 = u_projectionMatrix * u_viewMatrix * triangle_out1;
triangle_out1 = vec4(temp1.xyz/temp1.w, 1.0);
vec4 temp2 = u_projectionMatrix * u_viewMatrix * triangle_out2;
triangle_out2 = vec4(temp2.xyz/temp2.w, 1.0);
vec4 temp3 = u_projectionMatrix * u_viewMatrix * triangle_out3;
triangle_out3 = vec4(temp3.xyz/temp3.w, 1.0);
// 三个点都在地球背面，则不显示
if (
triangle_out1.z/triangle_out1.w < 0.99911
|| triangle_out2.z/triangle_out2.w < 0.99911
|| triangle_out3.z/triangle_out3.w < 0.99911
)
{
// 三角形范围
if (!isPointInTriangle(
triangle_out1.xyz,
triangle_out2.xyz,
triangle_out3.xyz,
position_out.xyz
)){
fragColor = color;
} else {
fragColor = vec4(vec3(dot(color.rgb, vec3(0.2126, 0.7152, 0.0722))), color.a);
}
} else {
fragColor = color;
}
}
`;
this.shaderProgram = initWebgl2Shaders(gl, vshader, fshader);
this.textureUniformLocation = gl.getUniformLocation(this.shaderProgram, "colorTex");
// 三角形顶点位置
this.textureUniformTriangleExtent = gl.getUniformLocation(
this.shaderProgram, "u_triangle_out");
this.positionLocation = gl.getAttribLocation(this.shaderProgram, "position");
}
});
// Initializes the new custom render node and connects to SceneView
const luminanceRenderNode = new LuminanceRenderNode({view});
// Toggle button to enable/disable the custom render node
const renderNodeToggle = document.getElementById("renderNodeToggle");
renderNodeToggle.addEventListener("calciteSwitchChange", () => {
luminanceRenderNode.enabled = !luminanceRenderNode.enabled;
});
});
});
</script>
</head>
<body>
<calcite-block open heading="Toggle Render Node" id="renderNodeUI">
<calcite-label layout="inline">
Color
<calcite-switch id="renderNodeToggle" checked></calcite-switch>
Grayscale
</calcite-label>
</calcite-block>
<div id="viewDiv"></div>
</body>
</html>
在线示例
ArcGIS Maps SDK for JavaScript 在线示例：自定义范围后处理效果
