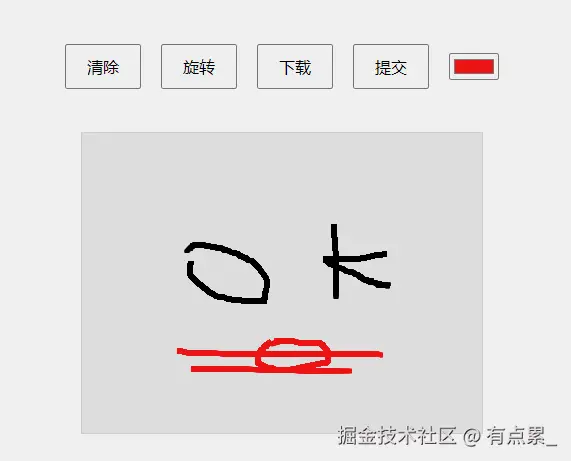

前端canvas实现一个手写签名![签名.png](tos-cn-i-73owjymdk6/6ff79dad1e3f47

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>手写签名</title>
    <style>
        body {
            margin: 0;
            height: 100vh;
            display: flex;
            justify-content: center;
            align-items: center;
            flex-direction: column;
            background-color: #f0f0f0;
        }
        .btn_all {
            display: flex;
            justify-content: center;
            align-items: center;
            height: 10vh;
            background-color: #f0f0f0;
        }
        #cvs {
            background-color: #dddddd;
            border: 1px solid #ccc;
            margin-top: 20px;
        }
        button {
            margin: 10px;
            padding: 10px 20px;
            font-size: 16px;
            cursor: pointer;
        }
        #signatureImage {
            display: none;
            border: 1px orange solid;
            margin-top: 20px;
        }
        #colorPicker {
            margin: 10px;
        }
    </style>
</head>
<body>
    <div class="btn_all">
        <button onclick="onClear()">清除</button>
        <button onclick="onRotate()">旋转</button>
        <button onclick="onDownload()">下载</button>
        <button onclick="onSubmit()">提交</button>
        <input type="color" id="colorPicker" value="#000000" />
    </div>
    <canvas id="cvs" width="400" height="300"></canvas>
    <img id="signatureImage" alt="Signature Image" />

    <script>
        const cvs = document.getElementById('cvs');
        const ctx = cvs.getContext('2d');
        let isDrawing = false;

        // 设置初始颜色
        ctx.strokeStyle = document.getElementById('colorPicker').value;

        // 绘制签名的事件
        const addEvents = (cvs, name, call) => {
            const isMobile = navigator.userAgent.match(/Mobile/);
            const mobileNameObj = {
                'mousedown': 'touchstart',
                'mousemove': 'touchmove',
                'mouseup': 'touchend'
            };
            if (isMobile) {
                cvs.addEventListener(mobileNameObj[name], e => {
                    call(e.touches[0]);
                });
            } else {
                cvs.addEventListener(name, e => {
                    call(e);
                });
            }
        };

        addEvents(cvs, 'mousedown', e => {
            isDrawing = true;
            ctx.beginPath();  // 重置路径，防止之前的路径被重复使用
            ctx.moveTo(e.pageX - cvs.offsetLeft, e.pageY - cvs.offsetTop);
        });

        addEvents(cvs, 'mousemove', e => {
            if (isDrawing) {
                ctx.lineWidth = 5;
                ctx.lineTo(e.pageX - cvs.offsetLeft, e.pageY - cvs.offsetTop);
                ctx.stroke();
            }
        });

        addEvents(cvs, 'mouseup', () => {
            isDrawing = false;
        });

        // 清除画布
        const onClear = () => {
            // 清除画布内容
            ctx.clearRect(0, 0, cvs.width, cvs.height);
            // 重新填充背景颜色
            ctx.fillStyle = '#dddddd';
            ctx.fillRect(0, 0, cvs.width, cvs.height);
            // 隐藏签名图像
            document.getElementById('signatureImage').style.display = 'none';
        };

        // 旋转画布
        const onRotate = () => {
            const img = new Image();
            img.src = cvs.toDataURL('image/png');
            img.onload = () => {
                const { width, height } = cvs;
                cvs.width = height;
                cvs.height = width;
                ctx.translate(cvs.width / 2, cvs.height / 2);
                ctx.rotate(Math.PI / 2);
                ctx.drawImage(img, -height / 2, -width / 2);
                ctx.resetTransform();
            };
        };

        // 下载签名
        const onDownload = async () => {
            const a = document.createElement('a');
            a.setAttribute('download', 'signature.png');
            a.href = cvs.toDataURL('image/png');
            a.click();
        };

        // 提交签名
        const onSubmit = async () => {
            const signatureData = cvs.toDataURL('image/png');

            // 显示签名图像
            const signatureImage = document.getElementById('signatureImage');
            signatureImage.src = signatureData;
            signatureImage.style.display = 'block';

            // 提交签名数据到服务器
            try {
                const response = await fetch('/submit-signature', {
                    method: 'POST',
                    headers: {
                        'Content-Type': 'application/json'
                    },
                    body: JSON.stringify({ signature: signatureData })
                });
                const result = await response.json();
                alert('签名提交成功！');
                console.log('Server response:', result);
            } catch (error) {
                alert('提交失败。');
                console.error('Error:', error);
            }
        };

        // 颜色选择器事件
        document.getElementById('colorPicker').addEventListener('input', (e) => {
            ctx.strokeStyle = e.target.value;
        });

        // 初始化画布背景色
        ctx.fillStyle = '#dddddd';
        ctx.fillRect(0, 0, cvs.width, cvs.height);
    </script>
</body>
</html>
