设置BottomSheetDialogFragment固定高度

174 阅读1分钟

背景

dialog根据当前页的内容的多少来适配高度。

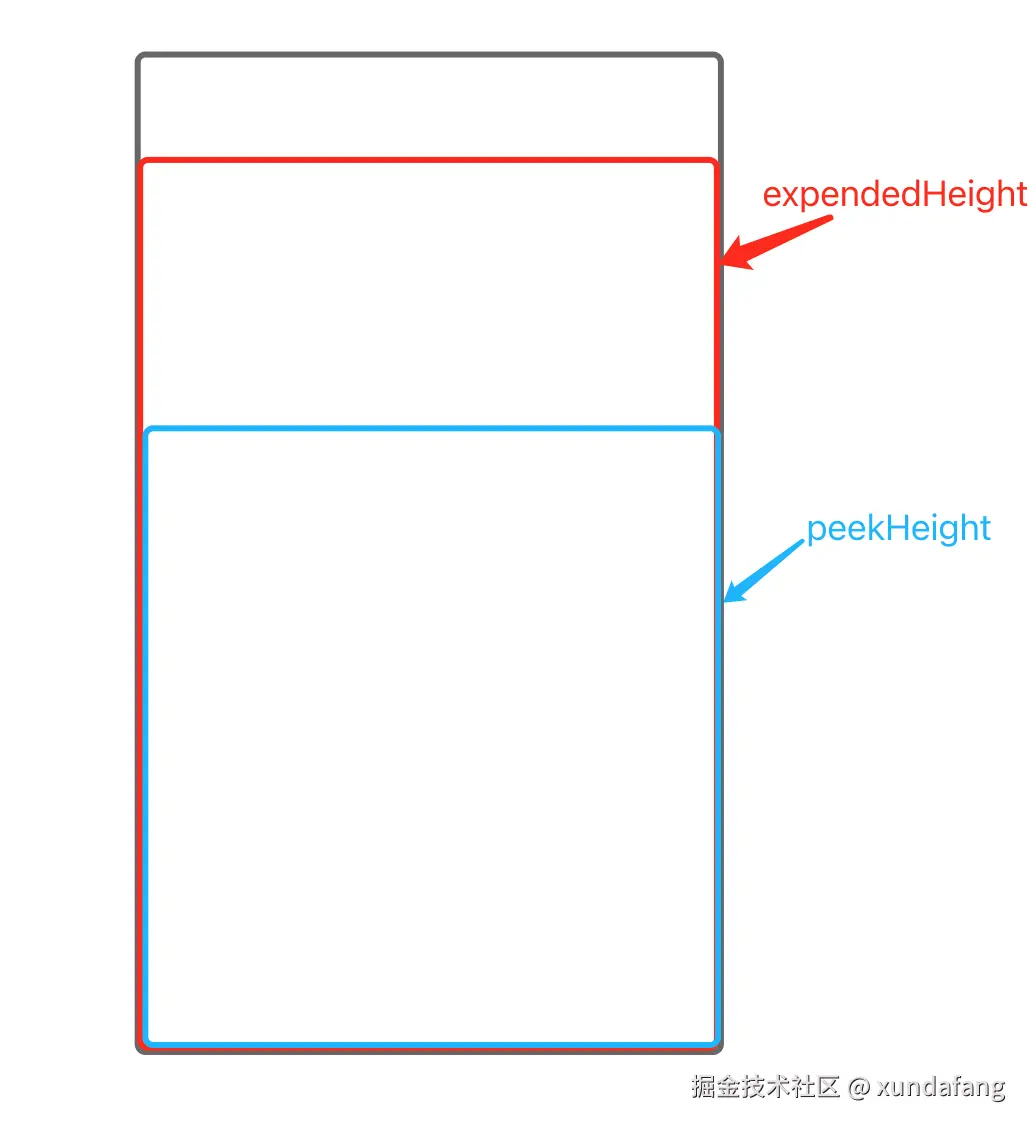

image.png 红色是expandedHeight表示展开高度,吸顶高度,蓝色peekHeight是弹出高度,大概是在屏幕高度的60%,假设dialog中的内容高度为contentHeight,那么dialog高度会根据contentHeight的大小出现以下几种情况:

  • contentHeight > expandedHeight:dialog的高度会在peekHeight位置,上划会达到expandedHeight。
  • expandedHeight > contentHeight > peekHeight:dialog高度会在peekHeight,上划后不会达到expandedHeight位置,而是完全显示内容(也就是到达contentHeight位置)。
  • peekHeight > contentHeight:dialog高度就是内容高度(contentHeight),这个时候由于内容已经全部显示出来了,所以上划是没有效果的,这个位置即是它的弹出高度(peekHeight),也是它的“展开高度”。

所以dialog高度不固定,是因为:如果内容足够多,那么既可以达到弹出高度,上划也可以达到展开高度。如果内容不够多,则以展示全部内容为主。

解决方案

在dialog的onStart中加入以下代码:

override fun onStart() {
    super.onStart()
    val dialog = dialog

    if (dialog != null) {
        val bottomSheet =
            dialog.findViewById<View>(com.google.android.material.R.id.design_bottom_sheet)
        bottomSheet.layoutParams.height = ViewGroup.LayoutParams.MATCH_PARENT
    }
    val view = view
    view?.post {
        val parent = view.parent as View
        val params = parent.layoutParams as CoordinatorLayout.LayoutParams
        val behavior = params.behavior
        val bottomSheetBehavior = behavior as BottomSheetBehavior<View>?
        val display = activity!!.windowManager.defaultDisplay
        val height = display.height * 7 / 10
        bottomSheetBehavior!!.maxHeight = height
    }
}
