从0到1搭建一个SpringCloud项目从0到1搭建一个SpringCloud项目，从0到1搭建一个SpringClo

准备工作

JDK 版本17
MAVEN 版本3.9.8
idea 版本2023.3.4
Apifox 用来接口测试
spring-cloud-alibaba.version 2022.0.0.0-RC2
spring-cloud.version 2022.0.0
spring-boot.version 3.0.2

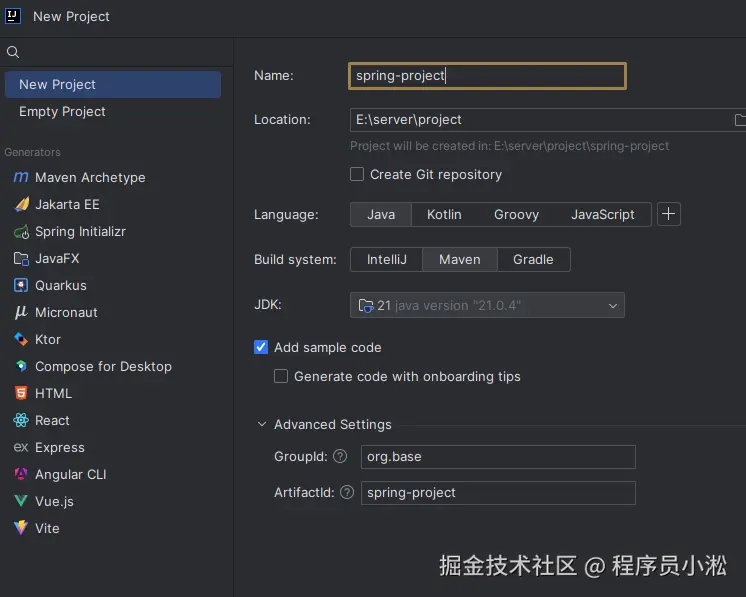

创建父项目

idea配置好maven和jdk后，new - project

//pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.base</groupId>
    <artifactId>spring-project</artifactId>
    <!--    修改打包方式-->
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>

    <!--    引入其他服务-->
    <modules>

    </modules>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring-boot.version>3.0.2</spring-boot.version>
        <spring-cloud.version>2022.0.0</spring-cloud.version>
        <spring-cloud-alibaba.version>2022.0.0.0-RC2</spring-cloud-alibaba.version>
        <lombok.version>1.18.10</lombok.version>
        <log4j.version>1.2.17</log4j.version>
        <mysql.version>8.0.29</mysql.version>
        <druid.version>1.2.11</druid.version>
        <mybatisPlus.spring.boot.version>3.5.3</mybatisPlus.spring.boot.version>
        <amqp.version>2.3.9.RELEASE</amqp.version>
        <junit.version>4.12</junit.version>
        <test-version>2.3.9.RELEASE</test-version>
        <jackson-version>2.11.4</jackson-version>
        <aop.version>2.4.5</aop.version>
        <commons-collections.version>3.2.2</commons-collections.version>
        <fastjson.version>2.0.12</fastjson.version>
        <pagehelper.boot.version>1.4.3</pagehelper.boot.version>
        <lombok.version>1.18.24</lombok.version>
        <hutool.core.version>5.8.20</hutool.core.version>
        <hutool.all.version>5.8.20</hutool.all.version>
        <bootstrap.version>3.0.1</bootstrap.version>
    </properties>

    <!--  因为是总项目,所以用dependencyManagement来管理，子项目不用管理版本了，可以直接引用 子模块继承之后，提供作用：锁定版本+子module不用写groupId和version -->
    <dependencyManagement>
        <dependencies>

            <!-- SpringCloud 依赖 -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!-- SpringBoot 依赖 -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!-- SpringCloud-Alibaba 依赖 -->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!-- lombok -->
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
            </dependency>

            <!--mysql-->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
                <scope>runtime</scope>
            </dependency>

            <!-- druid-->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>${druid.version}</version>
            </dependency>

            <!-- MybatisPlus -->
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>${mybatisPlus.spring.boot.version}</version>
            </dependency>

            <!--junit-->
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
            </dependency>
            <!--log4j-->
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>${log4j.version}</version>
            </dependency>

            <!--单元测试-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
                <version>${test-version}</version>
            </dependency>

            <!-- Collection 增强Java集合框架 -->
            <dependency>
                <groupId>commons-collections</groupId>
                <artifactId>commons-collections</artifactId>
                <version>${commons-collections.version}</version>
            </dependency>

            <!-- JSON 解析器和生成器 -->
            <dependency>
                <groupId>com.alibaba.fastjson2</groupId>
                <artifactId>fastjson2</artifactId>
                <version>${fastjson.version}</version>
            </dependency>

            <!-- pagehelper 分页插件 -->
            <dependency>
                <groupId>com.github.pagehelper</groupId>
                <artifactId>pagehelper-spring-boot-starter</artifactId>
                <version>${pagehelper.boot.version}</version>
            </dependency>

            <!-- Spring boot aop 拦截器 -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-aop</artifactId>
                <version>${aop.version}</version>
            </dependency>

            <!-- https://mvnrepository.com/artifact/cn.hutool/hutool-core -->
            <dependency>
                <groupId>cn.hutool</groupId>
                <artifactId>hutool-core</artifactId>
                <version>${hutool.core.version}</version>
            </dependency>

            <!-- hutool 工具 -->
            <dependency>
                <groupId>cn.hutool</groupId>
                <artifactId>hutool-all</artifactId>
                <version>${hutool.all.version}</version>
            </dependency>

            <!--bootstrap 启动器加载上下文-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-starter-bootstrap</artifactId>
                <version>${bootstrap.version}</version>
            </dependency>

        </dependencies>
    </dependencyManagement>

</project>

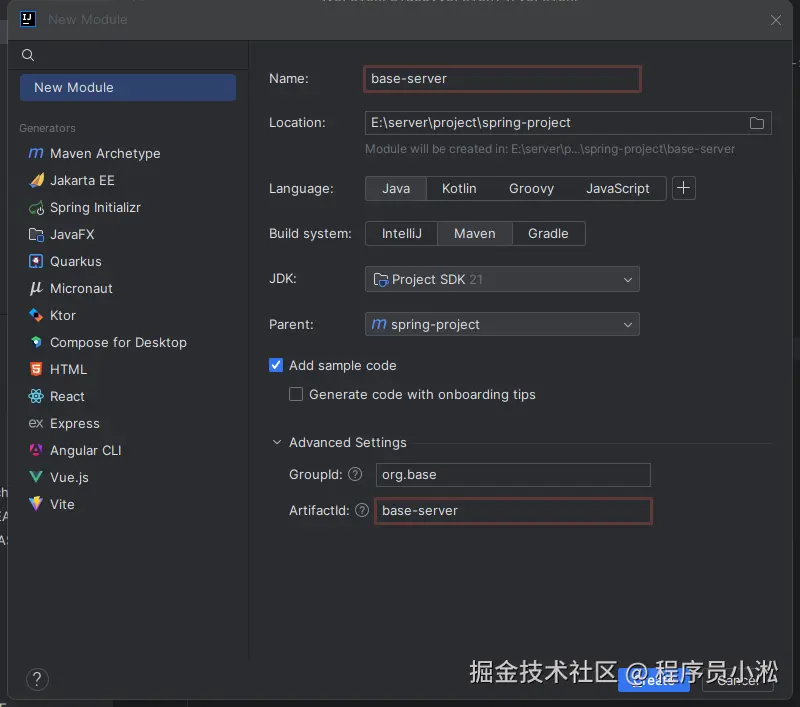

创建子工程

删除父工程下的src文件夹，new - module

//pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.base</groupId>
        <artifactId>spring-project</artifactId>
        <version>1.0-SNAPSHOT</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>org.base</groupId>
    <artifactId>base-server</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>base-server</name>
    <description>base-server</description>
    <url/>
    <licenses>
        <license/>
    </licenses>
    <developers>
        <developer/>
    </developers>
    <scm>
        <connection/>
        <developerConnection/>
        <tag/>
        <url/>
    </scm>
    <properties>
        <java.version>17</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

因为父项目中的pom.xml中指定dependencyManagement标签来管理，子项目就不用写版本号了

//base-server application.properties文件配置
spring.application.name=base-server
server.port=8080

测试

新建OrgController.java

package org.base.baseserver.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping(value = "/org")
public class OrgController {

    @GetMapping(value = "/test")
    public String test(){
        return "测试";
    }
}

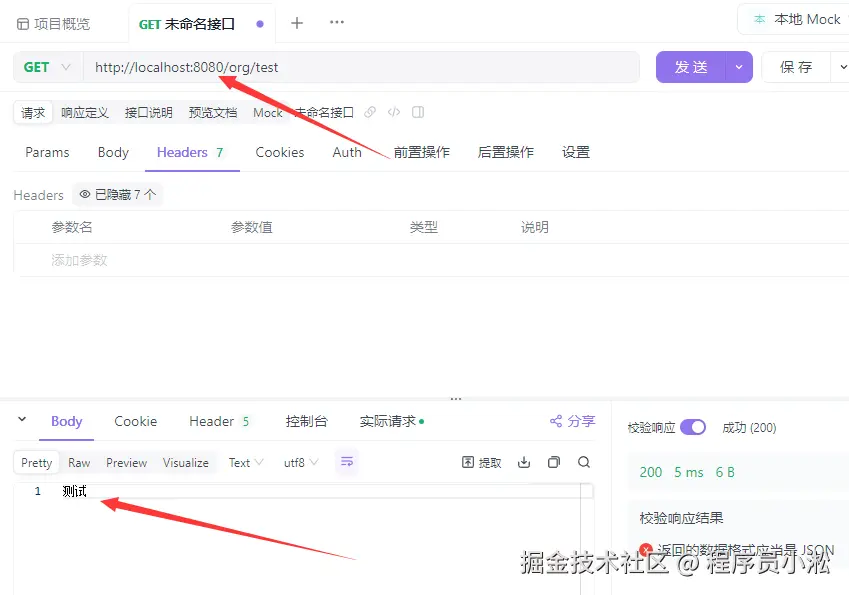

启动项目，打开Apifoxc测试接口

测试成功

一个简单的SpringCloud项目就搭建好了
