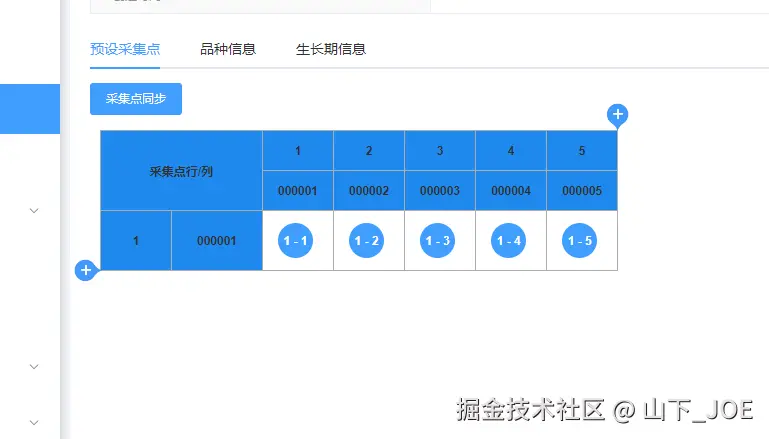

效果图，通过点击“+”号来实现表格动态添加，动态添加行列序号
图片是从iconfont下载：www.iconfont.cn/search/inde…
代码如下（随便写的代码重复较多可自行优化）
<template>
<div>
<div class="search_for">
<div class="seach_but">
<el-button type="primary" @click="gatherSynchronous()"
>采集点同步</el-button
>
<!-- <el-button @click="addTable('hang')">加一行</el-button>
<el-button @click="addTable('lie')">加一列</el-button> -->
</div>
</div>
<div class="content" ref="contentRef">
<div
class="iamgeIcon"
:style="{ left: `${setWidth}px` }"
@click="addTable('lie')"
>
<div class="iconJia">+</div>
<el-image
style="width: 100%; height: 100%"
src="/img/shuiDi.png"
></el-image>
</div>
<div
class="iamgeLieIcon"
:style="{ top: `${setHeight}px` }"
@click="addTable('hang')"
>
<div class="iconJia">+</div>
<el-image
style="width: 100%; height: 100%"
src="/img/lieDi.png"
></el-image>
</div>
<div class="table" :style="{ width: `calc(100vw - ${widthEl})` }">
<el-checkbox-group v-model="checkList" @change="checkBoxChange">
<table ref="myTable">
<thead>
<tr>
<td rowspan="2" colspan="2">采集点行/列</td>
<td
v-for="(item, index) in tableData[0]"
:key="'header-' + index"
>
{{ index + 1 }}
</td>
</tr>
<tr>
<td
v-for="(item, index) in tableData[0]"
:key="'header-' + (index + tableData[0].length)"
>
{{ `00000${index + 1} ` }}
</td>
</tr>
</thead>
<tbody>
<tr
v-for="(row, rowIndex) in tableData"
:key="'data-row-' + rowIndex"
>
<td class="tableTd">
<div style="width: 40px">{{ +rowIndex + 1 }}</div>
</td>
<td class="tableTd">
<div style="width: 60px">{{ "00000" + (+rowIndex + 1) }}</div>
</td>
<td v-for="(item, index) in row" :key="'data-item-' + index">
<el-checkbox :label="`${item.x}-${item.y}`" v-if="checkboxEl">
<p
style="
display: flex;
justify-content: center;
align-items: center;
width: 35px;
height: 35px;
background: #409eff;
border-radius: 50%;
color: #fff;
"
>
{{ item.x }} - {{ item.y }}
</p>
</el-checkbox>
<p
v-else
style="
display: flex;
justify-content: center;
align-items: center;
width: 35px;
height: 35px;
background: #409eff;
border-radius: 50%;
color: #fff;
"
>
{{ item.x }} - {{ item.y }}
</p>
</td>
</tr>
</tbody>
</table>
</el-checkbox-group>
</div>
</div>
<div style="display: flex; justify-content: center" v-if="checkboxEl">
<el-button @click="cancel">取 消</el-button>
<el-button type="primary" @click="submitGatherInfoForm()"
>确 定</el-button
>
</div>
</div>
</template>
<script>
export default {
name: "",
props: {
plantRow: Object,
widthEl: {
type: String,
default: "16vw",
},
checkboxEl: {
type: Boolean,
default: false,
},
gatherInfoVisible: {
type: Boolean,
default: false,
},
},
data() {
return {
plantId: "",
tableData: [
[
{ x: 1, y: 1 },
{ x: 1, y: 2 },
{ x: 1, y: 3 },
{ x: 1, y: 4 },
{ x: 1, y: 5 },
],
],
checkList: [],
setWidth: "0",
setHeight: "0",
};
},
computed: {},
watch: {},
created() {},
mounted() {
this.checkList = [];
this.$nextTick(() => {
this.liePosition();
this.hangPosition();
});
},
methods: {
liePosition() {
this.setWidth =
+this.$refs.myTable.offsetWidth - 8 < +this.$refs.contentRef.offsetWidth
? +this.$refs.myTable.offsetWidth - 8
: +this.$refs.contentRef.offsetWidth - 15;
},
hangPosition() {
this.setHeight =
+this.$refs.myTable.offsetHeight - 18 <
+this.$refs.contentRef.offsetHeight
? +this.$refs.myTable.offsetHeight - 18
: +this.$refs.contentRef.offsetHeight - 18;
},
checkBoxChange(value) {
console.log(value);
},
addTable(type) {
if (type == "lie") {
this.tableData.forEach((item, index) => {
item.push({ x: item[0].x, y: item.length + 1 });
});
this.$nextTick(() => {
this.liePosition();
});
} else {
let arr = [];
this.tableData[this.tableData.length - 1].forEach((item) => {
arr.push({ x: this.tableData.length + 1, y: item.y });
});
this.$set(this.tableData, this.tableData.length, arr);
this.$nextTick(() => {
this.hangPosition();
});
}
},
// 采集点同步
gatherSynchronous() {},
// 取消
cancel() {
this.$emit("update:gatherInfoVisible", false);
},
submitGatherInfoForm() {
this.$emit("checkboxList", this.checkList);
this.cancel();
},
},
};
</script>
<style lang="less" scoped>
.content {
display: flex;
flex-direction: column;
position: relative;
.iamgeIcon {
width: 35px;
height: 35px;
position: absolute;
top: -28px;
z-index: 99999;
cursor: pointer;
.iconJia {
position: absolute;
z-index: 99999;
color: #fff;
top: 1px;
left: 12px;
font-size: 20px;
}
}
.iamgeLieIcon {
width: 35px;
height: 35px;
position: absolute;
left: -17px;
z-index: 99999;
cursor: pointer;
.iconJia {
position: absolute;
z-index: 99999;
color: #fff;
top: 6px;
left: 7px;
font-size: 20px;
}
}
.table {
margin: 0px 10px;
height: 465px;
overflow: auto;
text-align: center;
background-color: white;
position: relative;
}
.table table {
border-right: 1px solid #acacac;
border-bottom: 1px solid #acacac;
border-spacing: 0;
width: 40px;
border-collapse: collapse;
position: relative;
}
.table table td {
border-left: 1px solid #acacac;
border-top: 1px solid #acacac;
text-align: center;
font-size: 12px;
font-weight: bold;
border-right: 1px solid #acacac;
}
.table table tr td {
height: 40px;
padding: 0 15px;
border-top: 1px solid #acacac;
}
.table table thead tr:first-child {
background-color: #1f89ee;
}
.table table thead {
position: sticky;
}
.table table thead tr:nth-child(2) {
background-color: #1f89ee;
}
.tableTd {
background-color: #1f89ee;
}
}
</style>
