分析Android Activity的启动过程，发现Android 在Android9.0中引入了ClientTransaction这一系列的对象，来简化system_server与App进程中处理Activity启动相关的任务。这里就来分析一下。

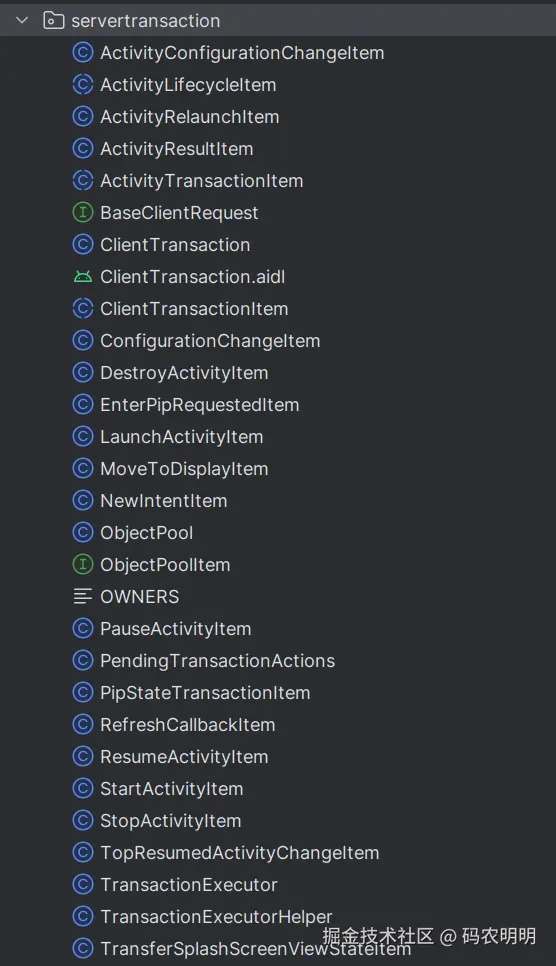

在服务端（system_server进程）主要有上面这些类,我们首先需要关注的就是ClientTransaction类，这个类在使用的时候主要是有以下几个成员：
private List<ClientTransactionItem> mActivityCallbacks;
private ActivityLifecycleItem mLifecycleStateRequest;
private IApplicationThread mClient;
private IBinder mActivityToken;
mClient是对应的app的ApplicationThread，他是一个Binder对象，mActivityToken则是Activity的Binder Token,这两个在很多地方都会看到。而mActivityCallbacks为ClientTransactionItem对象，比如说LaunchActivityItem和NewIntentItem这些都是它的子类，同一个ClientTransactionItem中是可以有多个的。mLifecycleStateRequest为ActivityLifecycleItem，它的子类是PauseActivityItem、StopActivityItem这些，每一个是希望Activity执行到的一个状态。相关的类的类图如下：
classDiagram
class Parcelable
class BaseClientRequest
class ClientTransactionItem
BaseClientRequest <|-- ClientTransactionItem
Parcelable <.. ClientTransactionItem
BaseClientRequest: void preExecute(ClientTransactionHandler client, IBinder token)
BaseClientRequest: void execute(ClientTransactionHandler client, IBinder token, PendingTransactionActions pendingActions)
BaseClientRequest: void postExecute(ClientTransactionHandler client, IBinder token, PendingTransactionActions pendingActions)
ClientTransactionItem: public int getPostExecutionState()
ClientTransactionItem: boolean shouldHaveDefinedPreExecutionState()
class ActivityTransactionItem
ClientTransactionItem <|-- ActivityTransactionItem
ActivityTransactionItem: ActivityClientRecord getActivityClientRecord(ClientTransactionHandler client, IBinder token)
ActivityTransactionItem <|-- LaunchActivityItem
ActivityTransactionItem <|-- NewIntentItem
ActivityTransactionItem <|-- ActivityResultItem
ActivityTransactionItem <|-- `..`
class ActivityLifecycleItem
ActivityTransactionItem <|-- ActivityLifecycleItem
ActivityLifecycleItem: public abstract int getTargetState()
ActivityLifecycleItem <|-- ResumeActivityItem
ActivityLifecycleItem <|-- PauseActivityItem
ActivityLifecycleItem <|-- StartActivityItem
ActivityLifecycleItem <|-- StopActivityItem
ActivityLifecycleItem <|-- DestroyActivityItem
启动Activity时候的代码调用在ActivityTaskSupervisor这个类的realStartActivityLocked方法中，代码如下：
final ClientTransaction clientTransaction = ClientTransaction.obtain(
proc.getThread(), r.token);
clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),
System.identityHashCode(r), r.info,
// TODO: Have this take the merged configuration instead of separate global
// and override configs.
mergedConfiguration.getGlobalConfiguration(),
mergedConfiguration.getOverrideConfiguration(), r.compat,
r.getFilteredReferrer(r.launchedFromPackage), task.voiceInteractor,
proc.getReportedProcState(), r.getSavedState(), r.getPersistentSavedState(),
results, newIntents, r.takeOptions(), isTransitionForward,
proc.createProfilerInfoIfNeeded(), r.assistToken, activityClientController,
r.shareableActivityToken, r.getLaunchedFromBubble(), fragmentToken));
final ActivityLifecycleItem lifecycleItem;
if (andResume) {
lifecycleItem = ResumeActivityItem.obtain(isTransitionForward,
r.shouldSendCompatFakeFocus());
} else {
lifecycleItem = PauseActivityItem.obtain();
}
clientTransaction.setLifecycleStateRequest(lifecycleItem);
mService.getLifecycleManager().scheduleTransaction(clientTransaction);
从上面的代码我们看到ClientTransaction以及其他的一些使用到的比较多的对象，Android系统中都做了对象池，内部基本上都是数组维护，我们这里不分析了。
启动Activity就是创建了一个LaunchActivityItem并且设置了对应的LifecycleStateRequest，最后是通过LifecycleManager调用scheduleTransaction来执行。这里的mService为ActivityTaskManagerService的实例，lifecycleManager为ClientLifecycleManager的实例，方法代码如下：
void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
final IApplicationThread client = transaction.getClient();
transaction.schedule();
if (!(client instanceof Binder)) {
transaction.recycle();
}
}
这里ClientTransaction会获取Client，也就是IApplicationThread,system_server这一端是ApplicationThread的客户端，因此schedule和recycle方法都会执行。主要看一下schedule方法：
public void schedule() throws RemoteException {
mClient.scheduleTransaction(this);
}
又调用了Client的scheduleTransaction方法，参数为我们的ClientTransaction方法，这是在客户端调用，那我们需要去服务端看这个方法的执行，实现也就是在ApplicationThread类当中。
public void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
ActivityThread.this.scheduleTransaction(transaction);
}
ActivityThread是ClientTransactionHandler的子类，这个scheduleTransaction就在ClientTransaction当中，代码如下：
void scheduleTransaction(ClientTransaction transaction) {
transaction.preExecute(this);
sendMessage(ActivityThread.H.EXECUTE_TRANSACTION, transaction);
}
其中的preExecute方法就是直接调用了，内部实现就是分别调用所有的activityCallback的preExecute方法，以及mLifecycleStateRequest的preExecute方法，而execute没有直接调用，而是通过消息发出去了，实现就是ActivityThread的sendMessage，我们也都知道是用它的H这个Handler，可以在它的handleMessage中找到如下代码：
case EXECUTE_TRANSACTION:
final ClientTransaction transaction = (ClientTransaction) msg.obj;
mTransactionExecutor.execute(transaction);
if (isSystem()) {
transaction.recycle();
}
可以看到这里是通过TransactionExecutor来调用execute，代码如下：
public void execute(ClientTransaction transaction) {
final IBinder token = transaction.getActivityToken();
if (token != null) {
final Map<IBinder, ClientTransactionItem> activitiesToBeDestroyed =
mTransactionHandler.getActivitiesToBeDestroyed();
final ClientTransactionItem destroyItem = activitiesToBeDestroyed.get(token);
if (destroyItem != null) {
if (transaction.getLifecycleStateRequest() == destroyItem) {
activitiesToBeDestroyed.remove(token);
}
if (mTransactionHandler.getActivityClient(token) == null) {
return;
}
}
}
executeCallbacks(transaction);
executeLifecycleState(transaction);
mPendingActions.clear();
}
public void executeCallbacks(ClientTransaction transaction) {
final List<ClientTransactionItem> callbacks = transaction.getCallbacks();
if (callbacks == null || callbacks.isEmpty()) {
return;
}
final IBinder token = transaction.getActivityToken();
ActivityClientRecord r = mTransactionHandler.getActivityClient(token);
final ActivityLifecycleItem finalStateRequest = transaction.getLifecycleStateRequest();
final int finalState = finalStateRequest != null ? finalStateRequest.getTargetState()
: UNDEFINED;
final int lastCallbackRequestingState = lastCallbackRequestingState(transaction);
final int size = callbacks.size();
for (int i = 0; i < size; ++i) {
final ClientTransactionItem item = callbacks.get(i);
final int postExecutionState = item.getPostExecutionState();
if (item.shouldHaveDefinedPreExecutionState()) {
final int closestPreExecutionState = mHelper.getClosestPreExecutionState(r,
item.getPostExecutionState());
if (closestPreExecutionState != UNDEFINED) {
cycleToPath(r, closestPreExecutionState, transaction);
}
}
item.execute(mTransactionHandler, token, mPendingActions);
item.postExecute(mTransactionHandler, token, mPendingActions);
if (r == null) {
r = mTransactionHandler.getActivityClient(token);
}
if (postExecutionState != UNDEFINED && r != null) {
// Skip the very last transition and perform it by explicit state request instead.
final boolean shouldExcludeLastTransition =
i == lastCallbackRequestingState && finalState == postExecutionState;
cycleToPath(r, postExecutionState, shouldExcludeLastTransition, transaction);
}
}
}
execute中调用了executeCallbacks和executeLifecycleState这两个方法，我们上面贴出了前一个方法的代码，这里先来分析。
首先来介绍一下TransactionExecutor的一个成员变量mTransactionHandler我们可以发现TransactionExecutor的初始化是在ActivityThread中，这个的mTransactionHandler就是ActivityThread。
这里首先会先判断Activity是否需要执行到某一个状态，也就是通过getPostExecutionState来设置，比如NewItentItem中是有设置的，而LaunchActivityItem则不需要。如果Activity需要进入指定的状态，则会调用cycleToPath来执行到对应的状态，我们后面再分析。
随后就会调用item的execute方法和postExecute方法。我们就来看一下LaunchActivityItem的代码：
public void execute(ClientTransactionHandler client, IBinder token,
PendingTransactionActions pendingActions) {
Trace.traceBegin(TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
ActivityClientRecord r = new ActivityClientRecord(token, mIntent, mIdent, mInfo,
mOverrideConfig, mCompatInfo, mReferrer, mVoiceInteractor, mState, mPersistentState,
mPendingResults, mPendingNewIntents, mActivityOptions, mIsForward, mProfilerInfo,
client, mAssistToken, mShareableActivityToken, mLaunchedFromBubble,
mTaskFragmentToken);
client.handleLaunchActivity(r, pendingActions, null /* customIntent */);
Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
}
我们知道这里的client就是我们的ActivityThread，而这个handleLaunchActivity的实现也是在ActivityThread中实现，而启动Activity的参数都是在这个LaunchActivityItem里面的，他们通过Binder跨进程从system_server传到了app进程。这样一来原来放在ApplicationThread当中的handleLaunchActivity方法就抽离到LaunchActivity中了，ActivityThread这个文件中的很多代码就抽出去了。Activity启动的流程这里就不分析了，继续去看看后面的代码。
这里执行完了还是会检查是否需要把Activity推进到某一个状态，如果是LaunchActivityItem还是不需要的。我们继续去看executeLifecycleState的代码：
private void executeLifecycleState(ClientTransaction transaction) {
final ActivityLifecycleItem lifecycleItem = transaction.getLifecycleStateRequest();
if (lifecycleItem == null) {
// No lifecycle request, return early.
return;
}
final IBinder token = transaction.getActivityToken();
final ActivityClientRecord r = mTransactionHandler.getActivityClient(token);
if (r == null) {
// Ignore requests for non-existent client records for now.
return;
}
// Cycle to the state right before the final requested state.
cycleToPath(r, lifecycleItem.getTargetState(), true /* excludeLastState */, transaction);
// Execute the final transition with proper parameters.
lifecycleItem.execute(mTransactionHandler, token, mPendingActions);
lifecycleItem.postExecute(mTransactionHandler, token, mPendingActions);
}
可以看到其中还是首先调用了cycleToPath这个方法，但是我们需要注意这里这个方法的调用，excludeLastState这个值传的是true，也就是说如果我们设置的LifecycleState为ResumeActivityItem那么它会把状态设置为ON_START而不是ON_RESUME。为什么这样做呢，因为后面还会调用lifecycleItem.execute，在其中我们会自行把状态推进到我们需要的状态，ResumeActivityItem的代码如下：
public void execute(ClientTransactionHandler client, ActivityClientRecord r,
PendingTransactionActions pendingActions) {
Trace.traceBegin(TRACE_TAG_ACTIVITY_MANAGER, "activityResume");
client.handleResumeActivity(r, true /* finalStateRequest */, mIsForward,
mShouldSendCompatFakeFocus, "RESUME_ACTIVITY");
Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
}
@Override
public void postExecute(ClientTransactionHandler client, IBinder token,
PendingTransactionActions pendingActions) {
ActivityClient.getInstance().activityResumed(token, client.isHandleSplashScreenExit(token));
}
上面的代码中可以看到execute中是调用的ActivityThread的handleResumeActivity方法，从而让Activity执行resume并且进入ON_RESUME状态。
我们再来看一下cycleToPath方法：
private void cycleToPath(ActivityClientRecord r, int finish, boolean excludeLastState,
ClientTransaction transaction) {
final int start = r.getLifecycleState();
final IntArray path = mHelper.getLifecyclePath(start, finish, excludeLastState);
performLifecycleSequence(r, path, transaction);
}
其中首先是拿到Activity当前的状态，再通过mHelper拿到我们需要执行的所有状态，代码如下(异常判断代码移除了，这里关注重点)：
public IntArray getLifecyclePath(int start, int finish, boolean excludeLastState) {
mLifecycleSequence.clear();
if (finish >= start) {
if (start == ON_START && finish == ON_STOP) {
mLifecycleSequence.add(ON_STOP);
} else {
// just go there
for (int i = start + 1; i <= finish; i++) {
mLifecycleSequence.add(i);
}
}
} else { // finish < start, can't just cycle down
if (start == ON_PAUSE && finish == ON_RESUME) {
// Special case when we can just directly go to resumed state.
mLifecycleSequence.add(ON_RESUME);
} else if (start <= ON_STOP && finish >= ON_START) {
// Restart and go to required state.
// Go to stopped state first. for (int i = start + 1; i <= ON_STOP; i++) {
mLifecycleSequence.add(i);
}
// Restart
mLifecycleSequence.add(ON_RESTART);
// Go to required state
for (int i = ON_START; i <= finish; i++) {
mLifecycleSequence.add(i);
}
} else {
// Relaunch and go to required state
// Go to destroyed state first. for (int i = start + 1; i <= ON_DESTROY; i++) {
mLifecycleSequence.add(i);
}
// Go to required state
for (int i = ON_CREATE; i <= finish; i++) {
mLifecycleSequence.add(i);
}
}
}
// Remove last transition in case we want to perform it with some specific params.
if (excludeLastState && mLifecycleSequence.size() != 0) {
mLifecycleSequence.remove(mLifecycleSequence.size() - 1);
}
return mLifecycleSequence;
}
可以看到以上代码还是比较简单的，就是按照顺序把Android Activity生命周期状态，按照当前的状态和需要执行结束的状态，把需要执行的放到数组中，最后再看看最后的那个状态要不要移除掉。我们继续看performLifecycleSequence的代码：
private void performLifecycleSequence(ActivityClientRecord r, IntArray path,
ClientTransaction transaction) {
final int size = path.size();
for (int i = 0, state; i < size; i++) {
state = path.get(i);
switch (state) {
case ON_CREATE:
mTransactionHandler.handleLaunchActivity(r, mPendingActions,
null /* customIntent */);
break;
case ON_START:
mTransactionHandler.handleStartActivity(r, mPendingActions,
null /* activityOptions */);
break;
case ON_RESUME:
mTransactionHandler.handleResumeActivity(r, false /* finalStateRequest */,
r.isForward, false /* shouldSendCompatFakeFocus */,
"LIFECYCLER_RESUME_ACTIVITY");
break;
case ON_PAUSE:
mTransactionHandler.handlePauseActivity(r, false /* finished */,
false /* userLeaving */, 0 /* configChanges */,
false /* autoEnteringPip */, mPendingActions,
"LIFECYCLER_PAUSE_ACTIVITY");
break;
case ON_STOP:
mTransactionHandler.handleStopActivity(r, 0 /* configChanges */,
mPendingActions, false /* finalStateRequest */,
"LIFECYCLER_STOP_ACTIVITY");
break;
case ON_DESTROY:
mTransactionHandler.handleDestroyActivity(r, false /* finishing */,
0 /* configChanges */, false /* getNonConfigInstance */,
"performLifecycleSequence. cycling to:" + path.get(size - 1));
break;
case ON_RESTART:
mTransactionHandler.performRestartActivity(r, false /* start */);
break;
default:
throw new IllegalArgumentException("Unexpected lifecycle state: " + state);
}
}
}
这里可以看到代码其实很简单，就是按照顺序调用mTransactionHandler也就是ActivityThread的各个生命周期需要执行的方法。
ActivityThread和TransactionExecutor的关系如下图：
classDiagram
class ActivityThread
class TransactionExecutor
class ClientTransactionHandler
ClientTransactionHandler <|-- ActivityThread
TransactionExecutor .. ClientTransactionHandler
ActivityThread *-- TransactionExecutor
ActivityThread: TransactionExecutor mTransactionExecutor
TransactionExecutor: ClientTransactionHandler mTransactionHandler
TransactionExecutor: execute(ClientTransaction transaction)
这里也画一下时序图方便看代码，发送端的代码比较简单，这里只画一下接收和执行端的图
sequenceDiagram
autonumber
ApplicationThread->>ActivityThread: scheduleTransaction
ActivityThread->>ClientTransaction: preExecute
ActivityThread->>ActivityThread: sendMessage:EXECUTE_TRANSACTION
ActivityThread->>TransactionExecutor: execute
TransactionExecutor->>TransactionExecutor: executeCallbacks
TransactionExecutor->>ClientTransaction: execute
TransactionExecutor->>ClientTransaction:postExecute
TransactionExecutor->>TransactionExecutor: executeLifecycleState
TransactionExecutor->>TransactionExecutor: cycleToPath
TransactionExecutor->>ActivityThread: handleToTargetStatus
上面的分析是system_server调用，当然App进程也是可以自己调用的，比如下面的代码：
private void scheduleResume(ActivityClientRecord r) {
final ClientTransaction transaction = ClientTransaction.obtain(this.mAppThread, r.token);
transaction.setLifecycleStateRequest(ResumeActivityItem.obtain(/* isForward */ false,
/* shouldSendCompatFakeFocus */ false));
executeTransaction(transaction);
}
可以看到，在app进程中就直接调用TransactionExecutor的execut去执行了。
以上就是ClientTransaction的全部分析了。我也是在分析Android Activity启动的过程发现这些代码的，Activity的启动代码量巨大，在Android 9的时候把一部分代码抽离到ClientTransaction中去，在Android 10以后启动的相当一部分代码抽离到ActivityTaskManagerService中去了，让代码逻辑更清晰一点，不过绕来绕去的看代码也是很麻烦。
因此，这里先试试水，把其中的一小部分也就是ClientTransaction相关的先拿出来写一写。从我的角度看，为什么要抽出来ClientTransaction这个机制，原先所有的代码都需要在ApplicationThread中定义binder接口，而android随着各种屏幕的出现，小窗模式等等，这样的化每次有新功能都需要增加新的binder方法，而用了ClientTransaction则都可以通过scheduleTransaction来调用，同时ActivityThread内的代码也会有所减少，代码功能更加独立。
Android系统因为功能的代码，代码也更加复杂，很多地方因为许多的新功能多了很多逻辑判断，为我们看代码增加了难度。但是只要我们记住我们看的主线，关注我们一路传过来的值，关注我们自己会执行的那个分支，这样一路下来就可以把整个逻辑理清楚。
本文以Android13的代码分析，如果读者对照最好也是以同样版本的代码看。以上是本人关于Android代码阅读的一点分享，由于个人可能存在一些误区，难免会有理解错误，或者笔误，如有发现，欢迎指正，也欢迎读者与我交流Android技术。
