证书申请及签署步骤：
1、生成证书申请请求
2、RA核验
3、CA签署
4、获取证书
格式说明
35 ####################################################################
36 [ ca ]
37 default_ca = CA_default # 默认ca
38
42 dir = /etc/pki/CA # ca机构的总目录
43 certs = $dir/certs # 存放证书
44 crl_dir = $dir/crl # 证书吊销列表
45 database = $dir/index.txt # 所有用户的证书的数据库索引， 存放用户证书的 相关信息 默认文件不存在，需要手动新建，单内容不用管
new_certs_dir = $dir/newcerts # 存放新证书的
50 certificate = $dir/cacert.pem # The CA certificate ca的自签名证书
51 serial = $dir/serial # The current serial number 证书编号
52 crlnumber = $dir/crlnumber # the current crl number 吊销证书的编号
54 crl = $dir/crl.pem # The current CRL
55 private_key = $dir/private/cakey.pem # The private key 私钥位置
73 default_days = 365 # how long to certify for 证书的有效期
74 default_crl_days= 30 # how long before next CRL
75 default_md = sha256 # use SHA-256 by default
76 preserve = no # keep passed DN ordering

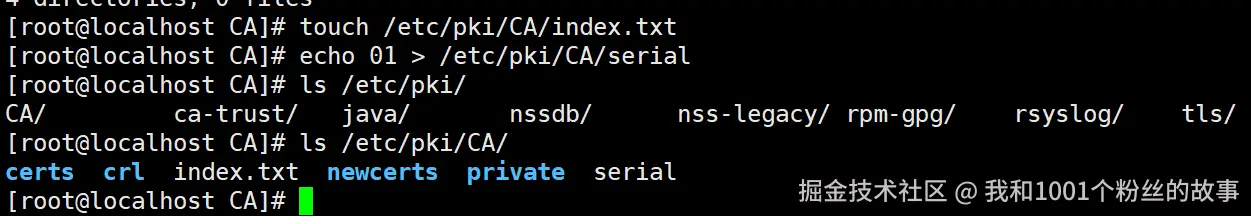

创建CA所需要的文件及文件夹
生成CA私钥
cd /etc/pki/CA/
(umask 066; openssl genrsa -out private/cakey.pem 2048)
#设置文件权限掩码为`066`（以确保新创建的文件具有`600`权限），然后使用`openssl`生成一个2048位的RSA私钥，并将该私钥保存到`private/cakey.pem`文件中。
[root@localhost CA]#openssl genrsa -out private/cakey.pem 2048
Generating RSA private key, 2048 bit long modulus
....................................................+++
.......................................................................+++
e is 65537 (0x10001)
[root@localhost private]# ll
总用量 4
-rw-------. 1 root root 1679 8月 10 10:43 cakey.pem

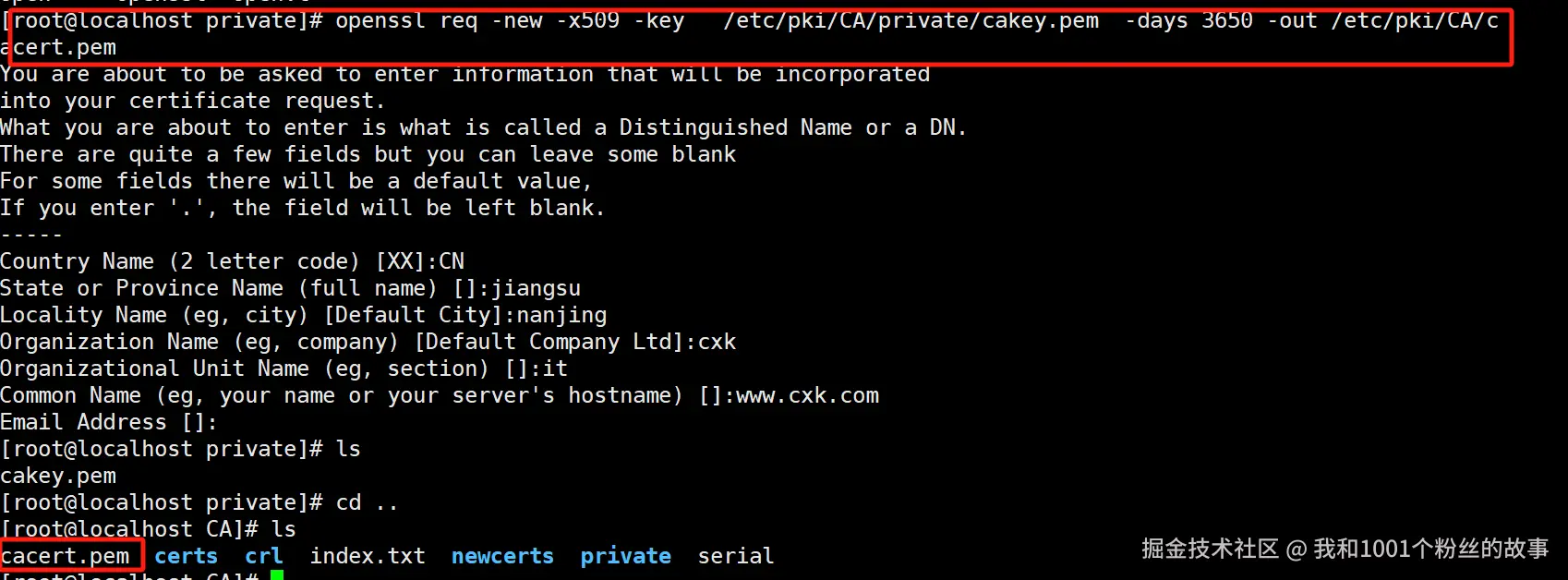

生成CA自签名证书
[root@localhost CA]#openssl req -new -x509 -key /etc/pki/CA/private/cakey.pem -days 3650 -out /etc/pki/CA/cacert.pem
选项说明：
-new：生成新证书签署请求
-x509：专用于CA生成自签证书 协议x509
-key：生成请求时用到的私钥文件
-days n：证书的有效期限
-out /PATH/TO/SOMECERTFILE: 证书的保存路径
用户申请证书
- 生成私钥 （一般以key结尾） 私钥
- 利用生成的私钥 生成 证书申请文件（一般csr文件） csr
- 生成证书文件（一般以crt结尾） crt

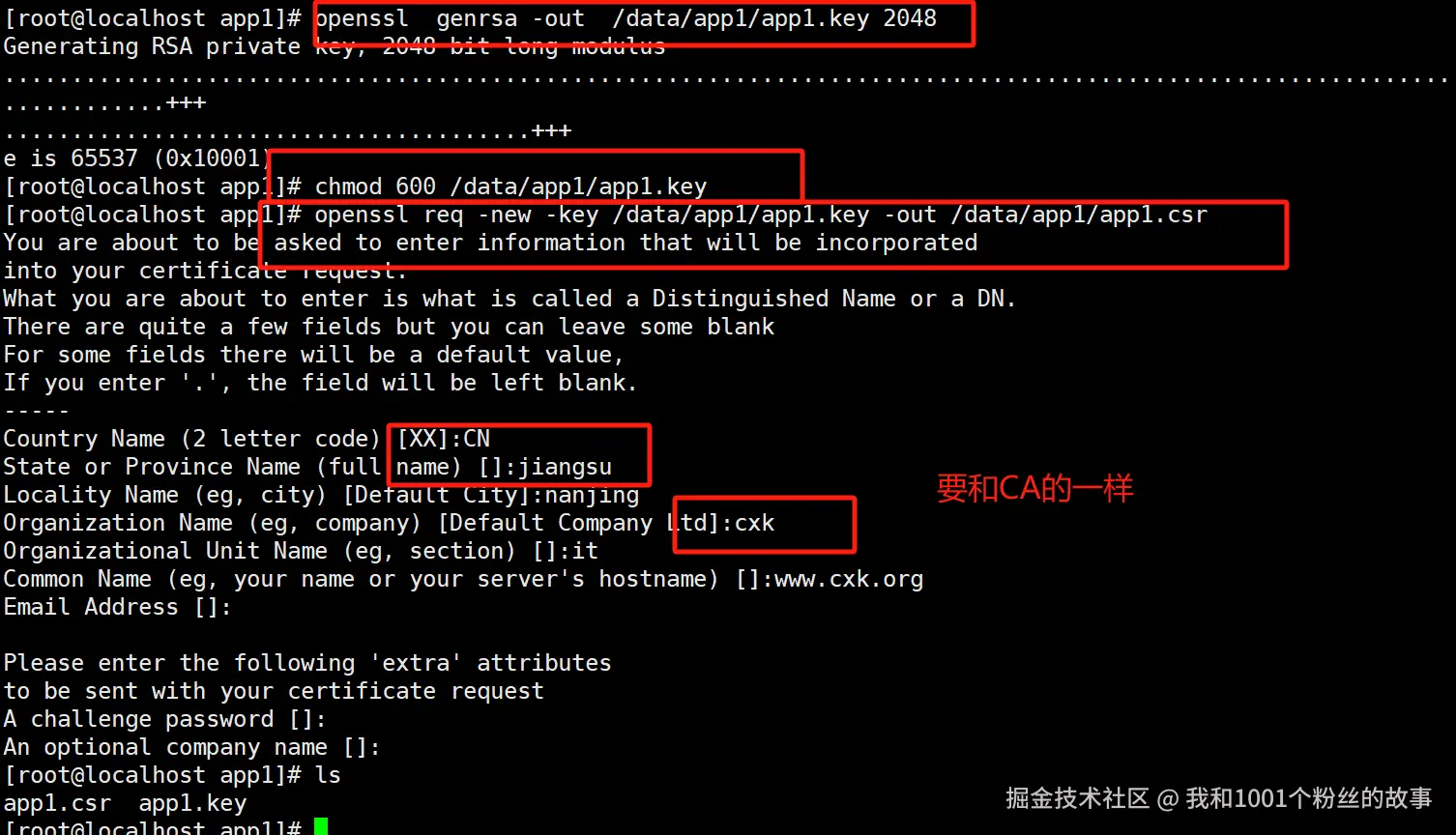

建立私钥
[root@localhost data]#mkdir /data/app1
[root@localhost data]#openssl genrsa -out /data/app1/app1.key 2048
Generating RSA private key, 2048 bit long modulus
...........................................+++
...............................................................................................................................................................................................................+++
e is 65537 (0x10001)
[root@localhost data]#chmod 600 /data/app1/app1.key
生成证书申请文件
[root@localhost data]#openssl req -new -key /data/app1/app1.key -out /data/app1/app1.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:jiangsu
Locality Name (eg, city) [Default City]:suzhou
Organization Name (eg, company) [Default Company Ltd]:kgc
Organizational Unit Name (eg, section) []:it
Common Name (eg, your name or your server's hostname) []:www.kgc.cn
Email Address []:
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:

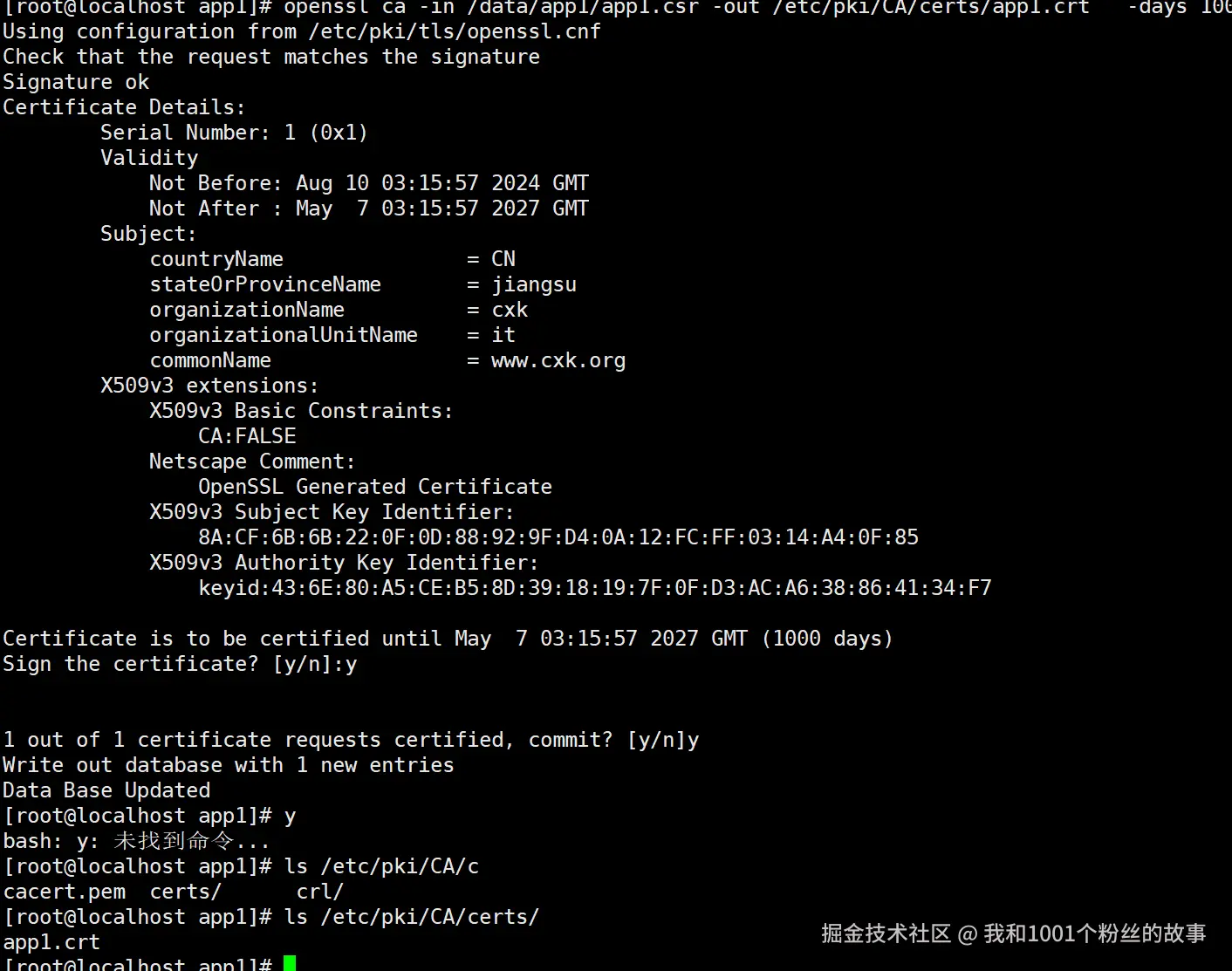

颁发证书
[root@localhost data]#openssl ca -in /data/app1/app1.csr -out /etc/pki/CA/certs/app1.crt -days 1000
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
Serial Number: 1 (0x1)
Validity
Not Before: Aug 8 16:58:52 2024 GMT
Not After : May 5 16:58:52 2027 GMT
Subject:
countryName = CN
stateOrProvinceName = jiangsu
organizationName = kgc
organizationalUnitName = it
commonName = www.kgc.cn
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
Netscape Comment:
OpenSSL Generated Certificate
X509v3 Subject Key Identifier:
FB:49:A4:0C:16:C6:FF:AC:86:BB:7E:21:99:BE:3E:69:2C:B9:B8:41
X509v3 Authority Key Identifier:
keyid:1F:DD:EC:E0:8E:A8:CB:C5:66:45:5D:AE:67:B5:69:6A:1A:08:5C:13
Certificate is to be certified until May 5 16:58:52 2027 GMT (1000 days)
Sign the certificate? [y/n]:
1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
[root@localhost data]#cat /etc/pki/CA/index.txt
V 270505165852Z 01 unknown /C=CN/ST=jiangsu/O=kgc/OU=it/CN=www.kgc.cn
[root@localhost data]#cat /etc/pki/CA/serial
02
验证证书是否有效
[root@localhost data]#openssl ca -status 01
Using configuration from /etc/pki/tls/openssl.cnf
01=Valid (V)
V 有效
01 证书编号
[root@localhost data]#openssl ca -status 2
Using configuration from /etc/pki/tls/openssl.cnf
Serial 02 not present in db.
Error verifying serial 2!
[root@localhost data]#sz /etc/pki/CA/certs/app1.crt
一键脚本
CA_SUBJECT="/O=kgc/CN=ca.kgc.com"
SUBJECT="/C=CN/ST=js/L=nj/O=kgc/CN=www.kgc.com"
SERIAL=34
EXPIRE=202002
FILE=kgc.com
openssl req -x509 -newkey rsa:2048 -subj $CA_SUBJECT -keyout ca.key -nodes -days 202002 -out ca.crt
openssl req -newkey rsa:2048 -nodes -keyout ${FILE}.key -subj $SUBJECT -out ${FILE}.csr
openssl x509 -req -in ${FILE}.csr -CA ca.crt -CAkey ca.key -set_serial $SERIAL -days $EXPIRE -out ${FILE}.crt
chmod 600 ${FILE}.key ca.key

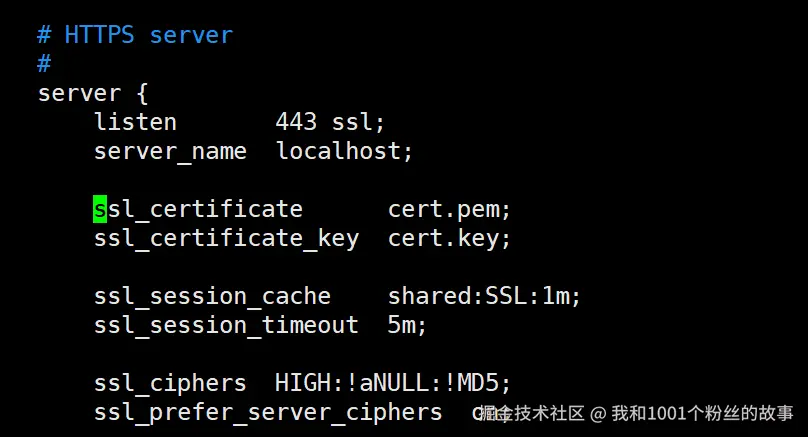

准备nginx的测试文件
将证书放在指定的目录下
mv /etc/pki/CA/certs/app1.crt /apps/nginx/conf/cert.pem #证书
mv app1.key /apps/nginx/conf/cert.key #密钥

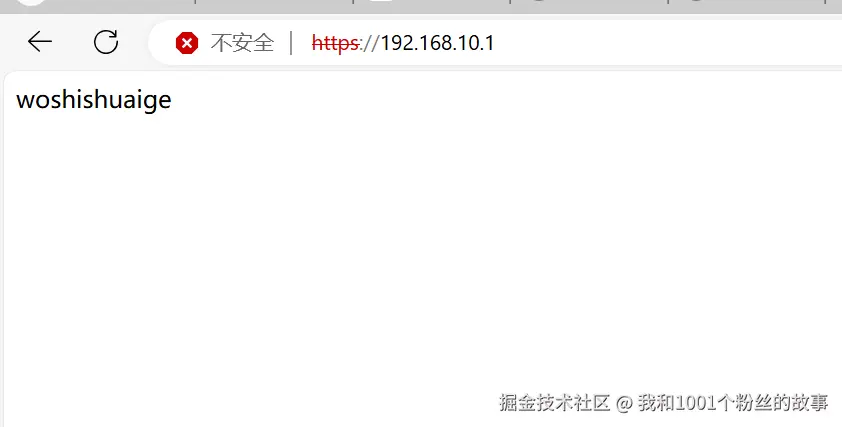

重启访问
