Android嵌套滚动机制：从Recyclerview的onTouchEvent出发！Android嵌套滚动机制，以Re

以Recyclerview(v) -> (ViewPager2(h) -> LinearLayout(v)) -> NestScrollView(v)为例

为什么从Recyclerview出发呢？因为在嵌套滚动机制中，是由支持嵌套滚动的子View控制的，先看一段代码，Recyclerview默认是支持嵌套滚动

public RecyclerView(@NonNull Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
	boolean nestedScrollingEnabled = true;
    // ……是否更改nestedScrollingEnabled的值，默认不修改 -> true
    setNestedScrollingEnabled(nestedScrollingEnabled);
}

`Recyclerview`#`onTouchEvent()`

`Down`

从Down事件开始就在向上查找和当前子View支持滚动方向一致的父View了 -> vertical

public boolean onTouchEvent(MotionEvent e) {
	switch (action) {
        case MotionEvent.ACTION_DOWN: {
            mScrollPointerId = e.getPointerId(0);
            mInitialTouchX = mLastTouchX = (int) (e.getX() + 0.5f);
            mInitialTouchY = mLastTouchY = (int) (e.getY() + 0.5f);
            // 可滚动方向：RecyclerView -> LayoutMager -> 此处以竖向为例 -> 0010
            int nestedScrollAxis = ViewCompat.SCROLL_AXIS_NONE; // 0000
            if (canScrollHorizontally) {
                nestedScrollAxis |= ViewCompat.SCROLL_AXIS_HORIZONTAL; // 0001
            }
            if (canScrollVertically) {
                nestedScrollAxis |= ViewCompat.SCROLL_AXIS_VERTICAL; // 0010
            }
            startNestedScroll(nestedScrollAxis, TYPE_TOUCH); //看这里！看这里！看这里！
        } break;
}

开始阶段

Recyclerview#startNestedScroll()

return getScrollingChildHelper().startNestedScroll(axes, type);

查找

NestedScrollingChildHelper#startNestedScroll()

在这个方法中向上查找，注意：1.支持嵌套滚动 2.方向一致

public boolean startNestedScroll(@ScrollAxis int axes, @NestedScrollType int type) {
    // 判断是否已经找到了处理滚动事件的父View：return mNestedScrollingParentTouch != null
    if (hasNestedScrollingParent(type)) {
        // Already in progress
        return true;
    }

    if (isNestedScrollingEnabled()) {
        ViewParent p = mView.getParent();
        View child = mView;

        // 向上查找到支持嵌套滚动的父View：RecyclerView -> ViewPager2 -> LinearLayout -> NestedScrollView
        while (p != null) {
            if (ViewParentCompat.onStartNestedScroll(p, child, mView, axes, type)) {
                // 设置处理滚动事件的父View：mNestedScrollingParentTouch = p;
                setNestedScrollingParentForType(type, p);
                ViewParentCompat.onNestedScrollAccepted(p, child, mView, axes, type);
                return true;
            }
            if (p instanceof View) {
                child = (View) p;
            }
            p = p.getParent();
        }
    }
    return false;
}

标记

ViewParentCompat#onStartNestedScroll()

不同接口实现的兼容处理（Compat），后面会逐渐省略这部分

NestedScrollView接口NestedScrollingParent3，NestedScrollingParent3继承自NestedScrollingParent2，由NestedScrollView实现。其实是

public static boolean onStartNestedScroll(@NonNull ViewParent parent, @NonNull View child,
        @NonNull View target, int nestedScrollAxes, int type) {
    if (parent instanceof NestedScrollingParent2) {
        // First try the NestedScrollingParent2 API
        return ((NestedScrollingParent2) parent).onStartNestedScroll(child, target,
                nestedScrollAxes, type);
    } else if (type == ViewCompat.TYPE_TOUCH) {
        // Else if the type is the default (touch), try the NestedScrollingParent API
        if (Build.VERSION.SDK_INT >= 21) {
            try {
                return Api21Impl.onStartNestedScroll(parent, child, target, nestedScrollAxes);
            } catch (AbstractMethodError e) {
                Log.e(TAG, "ViewParent " + parent + " does not implement interface "
                        + "method onStartNestedScroll", e);
            }
        } else if (parent instanceof NestedScrollingParent) {
            return ((NestedScrollingParent) parent).onStartNestedScroll(child, target,
                    nestedScrollAxes);
        }
    }
    return false;
}

(NestedScrollingParent2)NestedScrollView#onStartNestedScroll()

看咱滚的方向一致不一致，一致就你了

@Override
public boolean onStartNestedScroll(@NonNull View child, @NonNull View target, int axes,
        int type) {
    // 纵向：SCROLL_AXIS_VERTICAL = 1 << 1 = 2 横向：1。本例中 0010 & 0010 = 0010 = 2 != 0
    return (axes & ViewCompat.SCROLL_AXIS_VERTICAL) != 0;
}

ViewParentCompat#onNestedScrollAccepted()

后面好多这样的ViewCompat兼容处理，之后就省略掉了

public static void onNestedScrollAccepted(@NonNull ViewParent parent, @NonNull View child,
        @NonNull View target, int nestedScrollAxes, int type) {
    if (parent instanceof NestedScrollingParent2) {
        // First try the NestedScrollingParent2 API
        ((NestedScrollingParent2) parent).onNestedScrollAccepted(child, target,
                nestedScrollAxes, type);
    }
    //……省略其它兼容处理(parent instanceof NestedScrollingParent)
}

(NestedScrollingParent2)NestedScrollView#onNestedScrollAccepted()

NestedScrollView可以接收竖向滚动事件，实现类NestedScrollingParentHelper记录滚动方向

@Override
public void onNestedScrollAccepted(@NonNull View child, @NonNull View target, int axes,
        int type) {
    mParentHelper.onNestedScrollAccepted(child, target, axes, type); // 标记可滚动方向
    startNestedScroll(ViewCompat.SCROLL_AXIS_VERTICAL, type); // return true
}

`Move`

在Move事件中处理嵌套滚动的2种情况（if中的方法）：1.子View消费前 2.子View消费后

public boolean onTouchEvent(MotionEvent e) {
	switch (action) {
        case MotionEvent.ACTION_MOVE: {
            if (mScrollState == SCROLL_STATE_DRAGGING) {
                mReusableIntPair[0] = 0;
                mReusableIntPair[1] = 0;

                // 这里！这里！这里！1.子View消费前 -> 父View消费滚动事件
                if (dispatchNestedPreScroll(
                        canScrollHorizontally ? dx : 0,
                        canScrollVertically ? dy : 0,
                        mReusableIntPair, mScrollOffset, TYPE_TOUCH
                )) {
                    // 根据父View消费的多少consumed[]计算还剩多少dx、dy
                    dx -= mReusableIntPair[0];
                    dy -= mReusableIntPair[1];
                    // Updated the nested offsets
                    mNestedOffsets[0] += mScrollOffset[0];
                    mNestedOffsets[1] += mScrollOffset[1];
                    // Scroll has initiated, prevent parents from intercepting
                    getParent().requestDisallowInterceptTouchEvent(true);
                }

                mLastTouchX = x - mScrollOffset[0];
                mLastTouchY = y - mScrollOffset[1];

                // 还有这里！这里！2.先子View消费 -> 询问父View是否消费剩余部分
                if (scrollByInternal(
                        canScrollHorizontally ? dx : 0,
                        canScrollVertically ? dy : 0,
                        e)) { // -> dispatchNestedScroll()
                    getParent().requestDisallowInterceptTouchEvent(true);
                }
                if (mGapWorker != null && (dx != 0 || dy != 0)) {
                    mGapWorker.postFromTraversal(this, dx, dy);
                }
            }
        } break;
}

滚动阶段

阶段一：子View消费前

NestedScrollingChildHelper#dispatchNestedPreScroll()

子View将Move事件分发给Down事件中找到的parent

public boolean dispatchNestedPreScroll(int dx, int dy, @Nullable int[] consumed,
        @Nullable int[] offsetInWindow, @NestedScrollType int type) {
    if (isNestedScrollingEnabled()) { // 判断是否可以滚动
        final ViewParent parent = getNestedScrollingParentForType(type); // parent = NestedScrollView
        if (parent == null) {
            return false;
        }

        // 有滚动
        if (dx != 0 || dy != 0) {
            int startX = 0;
            int startY = 0;
            if (offsetInWindow != null) {
                mView.getLocationInWindow(offsetInWindow); // 获取当前View在父View中的坐标
                startX = offsetInWindow[0];
                startY = offsetInWindow[1];
            }

            if (consumed == null) {
                consumed = getTempNestedScrollConsumed();
            }
            consumed[0] = 0;
            consumed[1] = 0;

            // 重写下面的方法处理滚动事件
            ViewParentCompat.onNestedPreScroll(parent, mView, dx, dy, consumed, type);

            if (offsetInWindow != null) {
                mView.getLocationInWindow(offsetInWindow);
                offsetInWindow[0] -= startX;
                offsetInWindow[1] -= startY;
            }
            return consumed[0] != 0 || consumed[1] != 0;
        // 无滚动
        } else if (offsetInWindow != null) {
            offsetInWindow[0] = 0;
            offsetInWindow[1] = 0;
        }
    }
    return false;
}

NestScrollView#onNestedPreScroll()

重写这个方法处理滚动逻辑，不重写的话，为啥我感觉会有问题呢😂

@Override
public void onNestedPreScroll(@NonNull View target, int dx, int dy, @NonNull int[] consumed,
        int type) {
    dispatchNestedPreScroll(dx, dy, consumed, null, type);
}

@Override
public boolean dispatchNestedPreScroll(
        int dx,
        int dy,
        @Nullable int[] consumed,
        @Nullable int[] offsetInWindow,
        int type
) {
    return mChildHelper.dispatchNestedPreScroll(dx, dy, consumed, offsetInWindow, type);
}

阶段二：子View消费后

Recyclerview#scrollByInternal()

这一段是Recyclerview先进行消费，剩余的部分再交给NestedScrollView消费

boolean scrollByInternal(int x, int y, MotionEvent ev) {
    int unconsumedX = 0;
    int unconsumedY = 0;
    int consumedX = 0;
    int consumedY = 0;

    consumePendingUpdateOperations();
    // 子View(RecyclerView)消费滚动事件
    if (mAdapter != null) {
        mReusableIntPair[0] = 0;
        mReusableIntPair[1] = 0;
        scrollStep(x, y, mReusableIntPair);
        consumedX = mReusableIntPair[0];
        consumedY = mReusableIntPair[1];
        unconsumedX = x - consumedX;
        unconsumedY = y - consumedY;
    }
    if (!mItemDecorations.isEmpty()) {
        invalidate();
    }

    mReusableIntPair[0] = 0;
    mReusableIntPair[1] = 0;
    // 子View再次询问父View是否要消费滚动事件
    dispatchNestedScroll(consumedX, consumedY, unconsumedX, unconsumedY, mScrollOffset,
            TYPE_TOUCH, mReusableIntPair);
    unconsumedX -= mReusableIntPair[0];
    unconsumedY -= mReusableIntPair[1];
    boolean consumedNestedScroll = mReusableIntPair[0] != 0 || mReusableIntPair[1] != 0;

    // Update the last touch co-ords, taking any scroll offset into account
    mLastTouchX -= mScrollOffset[0];
    mLastTouchY -= mScrollOffset[1];
    mNestedOffsets[0] += mScrollOffset[0];
    mNestedOffsets[1] += mScrollOffset[1];

    // 处理过度滚动效果
    if (getOverScrollMode() != View.OVER_SCROLL_NEVER) {
        if (ev != null && !MotionEventCompat.isFromSource(ev, InputDevice.SOURCE_MOUSE)) {
            pullGlows(ev.getX(), unconsumedX, ev.getY(), unconsumedY);
        }
        considerReleasingGlowsOnScroll(x, y);
    }

    // 分发滚动事件给相应的监听器 -> 同步滑动效果实现
    if (consumedX != 0 || consumedY != 0) {
        dispatchOnScrolled(consumedX, consumedY);
    }
    if (!awakenScrollBars()) {
        invalidate();
    }
    return consumedNestedScroll || consumedX != 0 || consumedY != 0;
}

NestedScrollingChildHelper#dispatchNestedScroll()

这块除了部分判断条件不同，和阶段一dispatchNestedPreScroll()的实现大体一致

public void dispatchNestedScroll(int dxConsumed, int dyConsumed, int dxUnconsumed,
        int dyUnconsumed, @Nullable int[] offsetInWindow, @NestedScrollType int type,
        @Nullable int[] consumed) {
    dispatchNestedScrollInternal(dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed,
            offsetInWindow, type, consumed);
}
// 实现和预滚动分发区别不大
private boolean dispatchNestedScrollInternal(int dxConsumed, int dyConsumed,
        int dxUnconsumed, int dyUnconsumed, @Nullable int[] offsetInWindow,
        @NestedScrollType int type, @Nullable int[] consumed) {
    if (isNestedScrollingEnabled()) {
        final ViewParent parent = getNestedScrollingParentForType(type);
        if (parent == null) {
            return false;
        }

        if (dxConsumed != 0 || dyConsumed != 0 || dxUnconsumed != 0 || dyUnconsumed != 0) {
            int startX = 0;
            int startY = 0;
            if (offsetInWindow != null) {
                mView.getLocationInWindow(offsetInWindow);
                startX = offsetInWindow[0];
                startY = offsetInWindow[1];
            }

            if (consumed == null) {
                consumed = getTempNestedScrollConsumed();
                consumed[0] = 0;
                consumed[1] = 0;
            }

            // 还是重写这个方法，看！是不是和阶段一差不多
            ViewParentCompat.onNestedScroll(parent, mView,
                    dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed, type, consumed);

            if (offsetInWindow != null) {
                mView.getLocationInWindow(offsetInWindow);
                offsetInWindow[0] -= startX;
                offsetInWindow[1] -= startY;
            }
            return true;
        } else if (offsetInWindow != null) {
            // No motion, no dispatch. Keep offsetInWindow up to date.
            offsetInWindow[0] = 0;
            offsetInWindow[1] = 0;
        }
    }
    return false;
}

NestScrollView#onNestedScroll()

这里NestScrollView提供了部分实现

public void onNestedScroll(@NonNull View target, int dxConsumed, int dyConsumed,
        int dxUnconsumed, int dyUnconsumed, int type, @NonNull int[] consumed) {
    onNestedScrollInternal(dyUnconsumed, type, consumed);
}

private void onNestedScrollInternal(int dyUnconsumed, int type, @Nullable int[] consumed) {
    final int oldScrollY = getScrollY();
    scrollBy(0, dyUnconsumed); // 消费没有被消费掉的滚动距离
    final int myConsumed = getScrollY() - oldScrollY;

    if (consumed != null) {
        consumed[1] += myConsumed;
    }
    final int myUnconsumed = dyUnconsumed - myConsumed;

    mChildHelper.dispatchNestedScroll(0, myConsumed, 0, myUnconsumed, null, type, consumed);
}

总结

滚动阶段需要重写的方法：onNestedPreScroll()和onNestedScroll()

`Up`

public boolean onTouchEvent(MotionEvent e) {
    switch (action) {
        case MotionEvent.ACTION_UP: {
            mVelocityTracker.addMovement(vtev);
            eventAddedToVelocityTracker = true;
            mVelocityTracker.computeCurrentVelocity(1000, mMaxFlingVelocity);
            final float xvel = canScrollHorizontally
                    ? -mVelocityTracker.getXVelocity(mScrollPointerId) : 0;
            final float yvel = canScrollVertically
                    ? -mVelocityTracker.getYVelocity(mScrollPointerId) : 0;
            // 看这里！看这里！看这里！ -> fling()
            if (!((xvel != 0 || yvel != 0) && fling((int) xvel, (int) yvel))) { // 惯性滑动`fling`
                setScrollState(SCROLL_STATE_IDLE);
            }
            resetScroll(); // 还有这里！这里！结束阶段 -> stopNestedScroll(TYPE_TOUCH)
        } break;
    }
}

惯性阶段

这一块建议多想一想，真的很绕😟，其实有点没搞明白，希望能有位大佬指点迷津(☆▽☆)

Recyclerview#fling()

public boolean fling(int velocityX, int velocityY) {
    // ……
    if (!dispatchNestedPreFling(velocityX, velocityY)) {
        // 父View没有消费(完)惯性滑动距离velocityY -> false
        final boolean canScroll = canScrollHorizontal || canScrollVertical; // Recyclerview的可滚动方向
        dispatchNestedFling(velocityX, velocityY, canScroll); // 通知NestedScrollView 惯性滑动距离和方向

        // 如果有监听器 -> 监听器处理
        if (mOnFlingListener != null && mOnFlingListener.onFling(velocityX, velocityY)) {
            return true;
        }

        if (canScroll) {
            int nestedScrollAxis = ViewCompat.SCROLL_AXIS_NONE;
            if (canScrollHorizontal) {
                nestedScrollAxis |= ViewCompat.SCROLL_AXIS_HORIZONTAL;
            }
            if (canScrollVertical) {
                nestedScrollAxis |= ViewCompat.SCROLL_AXIS_VERTICAL;
            }
            startNestedScroll(nestedScrollAxis, TYPE_NON_TOUCH); // 再次启用嵌套滚动

            velocityX = Math.max(-mMaxFlingVelocity, Math.min(velocityX, mMaxFlingVelocity));
            velocityY = Math.max(-mMaxFlingVelocity, Math.min(velocityY, mMaxFlingVelocity));
            mViewFlinger.fling(velocityX, velocityY); // 启动惯性滚动，当作给了Recyclerview一组`Move`
            return true;
        }
    }
    // 父View消费完惯性滑动距离velocityY -> true
    return false;
}

情况一：在子View前响应

NestedScrollingChildHelper#dispatchNestedPreFling()

public boolean dispatchNestedPreFling(float velocityX, float velocityY) {
    if (isNestedScrollingEnabled()) {
        ViewParent parent = getNestedScrollingParentForType(TYPE_TOUCH);
        if (parent != null) {
            return ViewParentCompat.onNestedPreFling(parent, mView, velocityX,
                    velocityY);
        }
    }
    return false;
}

NestedScrollView#onNestedPreFling()

@Override // 重写此方法
public boolean onNestedPreFling(@NonNull View target, float velocityX, float velocityY) {
    return dispatchNestedPreFling(velocityX, velocityY);
}

@Override
public boolean dispatchNestedPreFling(float velocityX, float velocityY) {
    return mChildHelper.dispatchNestedPreFling(velocityX, velocityY);
}

情况二：在子View后响应

NestedScrollingChildHelper#dispatchNestedFling()

public boolean dispatchNestedFling(float velocityX, float velocityY, boolean consumed) {
    if (isNestedScrollingEnabled()) {
        ViewParent parent = getNestedScrollingParentForType(TYPE_TOUCH);
        if (parent != null) {
            return ViewParentCompat.onNestedFling(parent, mView, velocityX,
                    velocityY, consumed);
        }
    }
    return false;
}

NestedScrollView#onNestedFling()

public boolean onNestedFling(
        @NonNull View target, float velocityX, float velocityY, boolean consumed) {
    if (!consumed) {
        dispatchNestedFling(0, velocityY, true);
        fling((int) velocityY);
        return true;
    }
    return false;
}

结束阶段

Recyclerview#resetScroll()

private void resetScroll() {
    if (mVelocityTracker != null) {
        mVelocityTracker.clear();
    }
    stopNestedScroll(TYPE_TOUCH); // getScrollingChildHelper().stopNestedScroll(type);
    releaseGlows();
}

NestedScrollingChildHelper#stopNestedScroll()

还记得在开始阶段做了什么嘛？1.parent = p 2.实现类NestedScrollingParentHelper记录了滚动方向

public void stopNestedScroll(@NestedScrollType int type) {
    ViewParent parent = getNestedScrollingParentForType(type);
    if (parent != null) {
        ViewParentCompat.onStopNestedScroll(parent, mView, type);
        setNestedScrollingParentForType(type, null);  // parent = null 看这里！
    }
}

NestedScrollView#onStopNestedScroll()

@Override
public void onStopNestedScroll(@NonNull View target, int type) {
    mParentHelper.onStopNestedScroll(target, type);
    stopNestedScroll(type); // mChildHelper.stopNestedScroll(type); 就上面那个
}

NestedScrollingParentHelper#onStopNestedScroll()

这里相当于清掉了开始阶段记录的滚动方向

public void onStopNestedScroll(@NonNull View target, @NestedScrollType int type) {
    if (type == ViewCompat.TYPE_NON_TOUCH) {
        mNestedScrollAxesNonTouch = ViewGroup.SCROLL_AXIS_NONE;
    } else {
        mNestedScrollAxesTouch = ViewGroup.SCROLL_AXIS_NONE;
    }
}

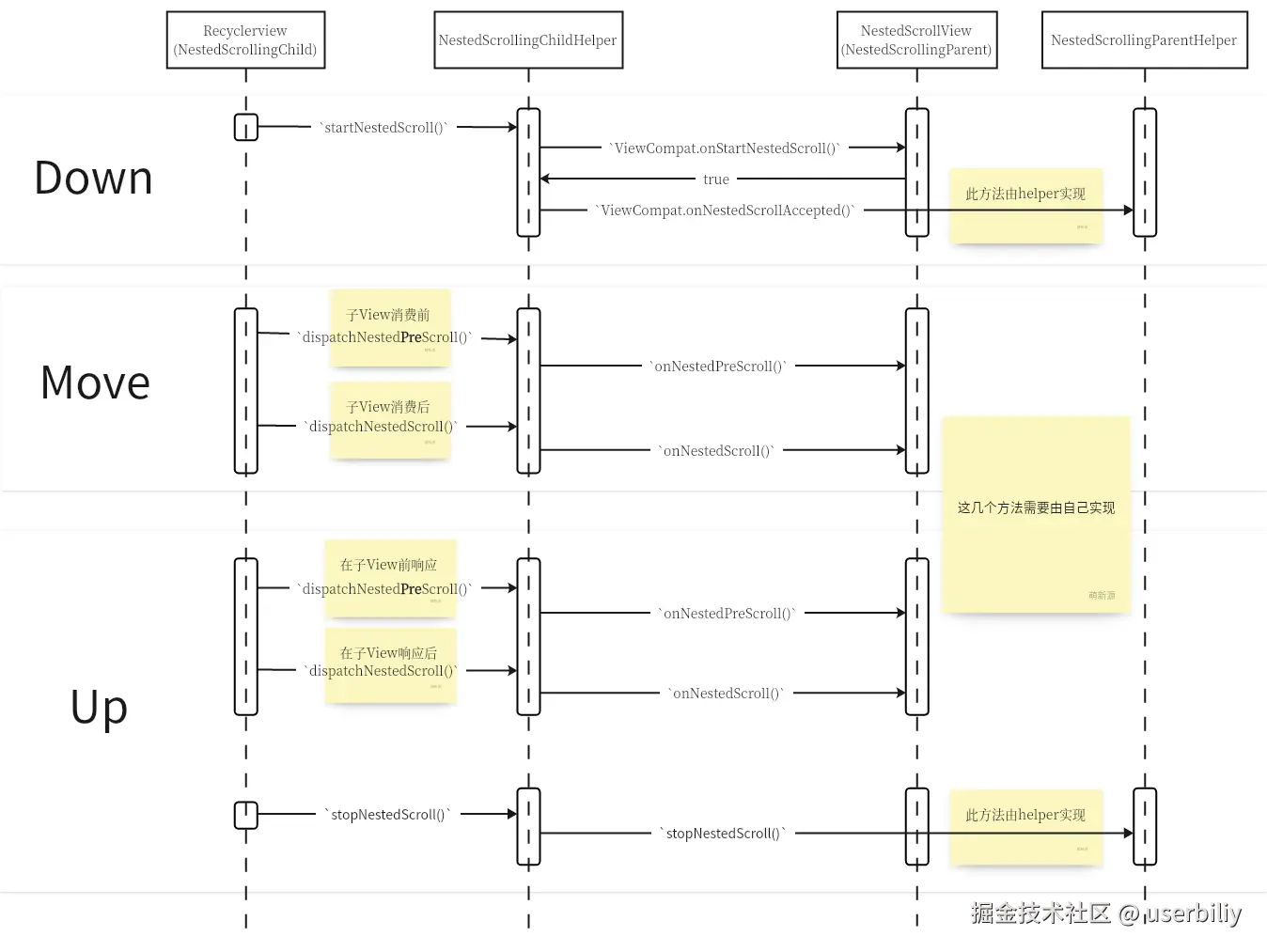

嵌套滑动机制流程图(自绘)

关于滚动和惯性

可以在手机APP：哔哩哔哩视频暂停或者放完、小红书个人主页、米游社首页来回滑动感受一下

简单的嵌套实现

github.com/userbiliy/N… 自己写了一点，并不完善，快速滚动惯性效果会出问题

Android嵌套滚动机制：从Recyclerview的onTouchEvent出发！

Recyclerview#onTouchEvent()

Down
