介绍
端到端测试
端到端测试（End-to-End Testing，简称E2E测试）是一种测试方法，旨在验证一个应用程序的整体流程和功能是否按预期工作。它模拟用户从开始到结束的使用场景，比单元测试更加完整。
cypress
cypress是基于js编写的e2e工具，非常适合web测试，而且api简单，容易上手。由于是基于web请求的测试，所以访问任意外部的网址多测试，能实现类似按键精灵或者抢票软件的效果。
安装
利用npm create vue@latest 快速搭建
npm create vue@latest
# 全部选择是 ： 选择 ts(是) -> jsx(是) -> vue router(是) -> pinia(是) -> vitest (是) -> -> e2e (是) -> eslint(是) -> Vue DevTools(是)
✔ 请输入项目名称： … my-cypress
✔ 是否使用 TypeScript 语法？ … 否 / 是(是)
✔ 是否启用 JSX 支持？ … 否 / 是(是)
✔ 是否引入 Vue Router 进行单页面应用开发？ … 否 / 是(是)
✔ 是否引入 Pinia 用于状态管理？ … 否 / 是(是)
✔ 是否引入 Vitest 用于单元测试？ … 否 / 是(是)
✔ 是否要引入一款端到端（End to End）测试工具？ › 不需要(是)
✔ 是否引入 ESLint 用于代码质量检测？ … 否 / 是(是)
✔ 是否引入 Vue DevTools 7 扩展用于调试? (试验阶段) … 否 / 是(是)
# 安装
npm i

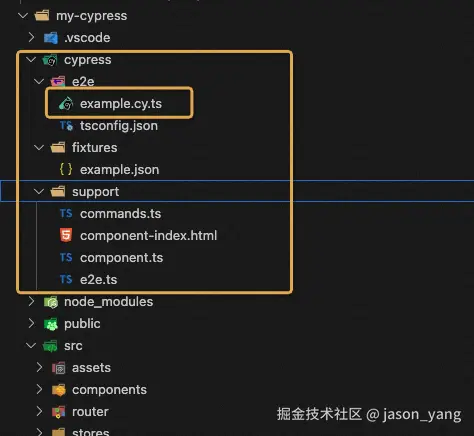

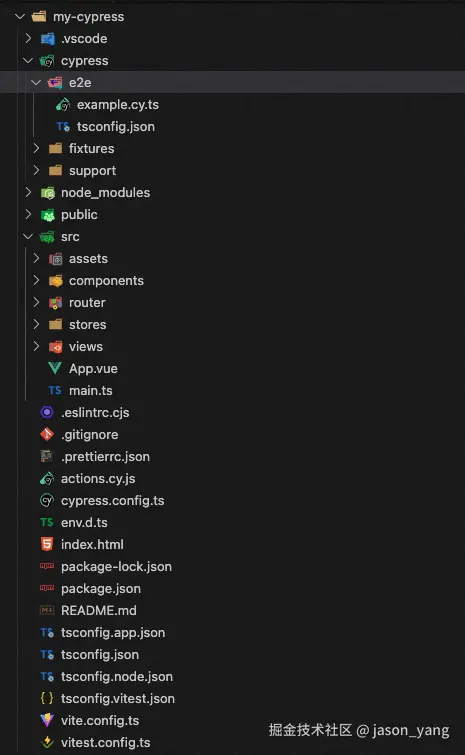

代码结构
配置
cypress.config.ts
import { defineConfig } from "cypress";
export default defineConfig({
e2e: {
specPattern: "cypress/e2e/**/*.{cy,spec}.{js,jsx,ts,tsx}",
baseUrl: "http://localhost:4173",
},
component: {
devServer: {
framework: "vue",
bundler: "vite",
},
},
});
生成的用例代码
cypress/e2e/example.cy.ts
xxx.cy.ts 文件用于执行端到端的测试用例
// https://on.cypress.io/api
describe('My First Test', () => {
it('visits the app root url', () => {
cy.visit('/') // 先访问一个地址
cy.contains('h1', 'You did it!')//判断此时h1的内容是否为You did it!
})
})
运行
npm run test:e2e:dev
默认会运行的系统应用

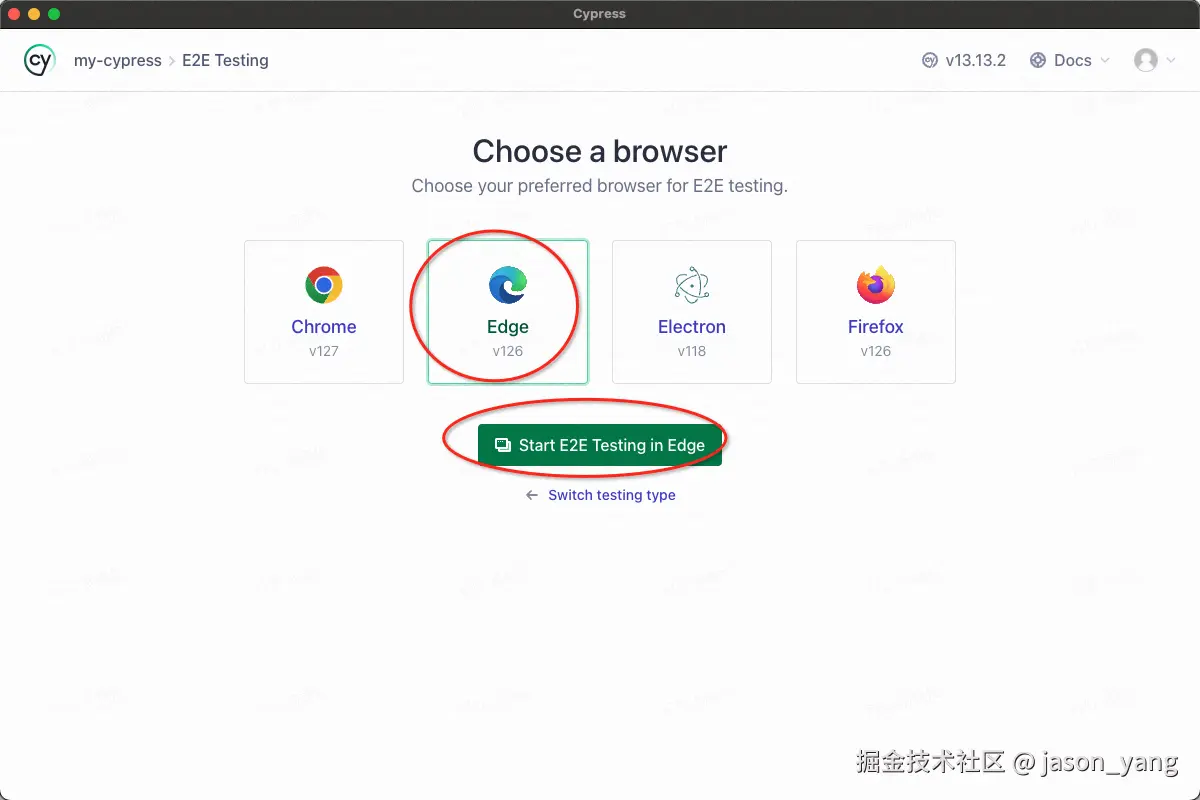

然后选择适合自己的浏览器测试，会针对选择独立启动一个调试web页面

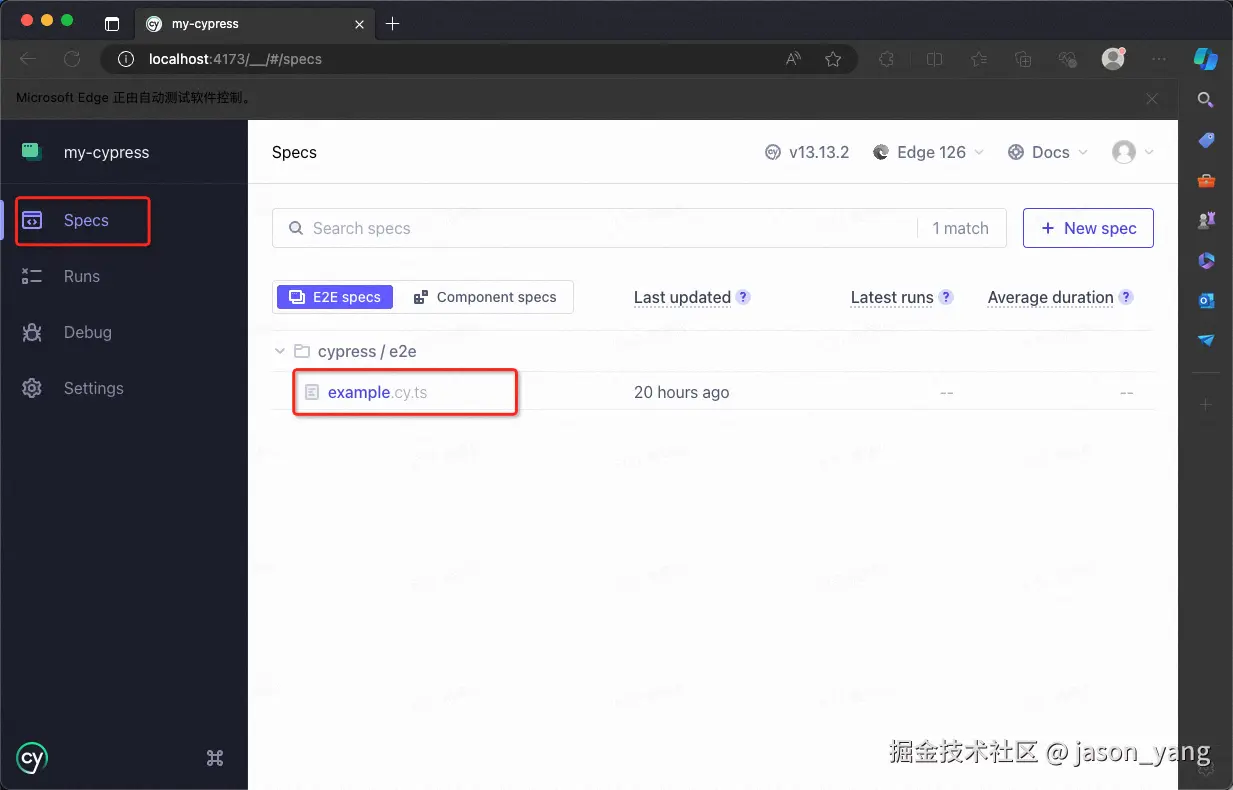

cypress主界面，左边对应的文件夹，右边是具体的测试用例。

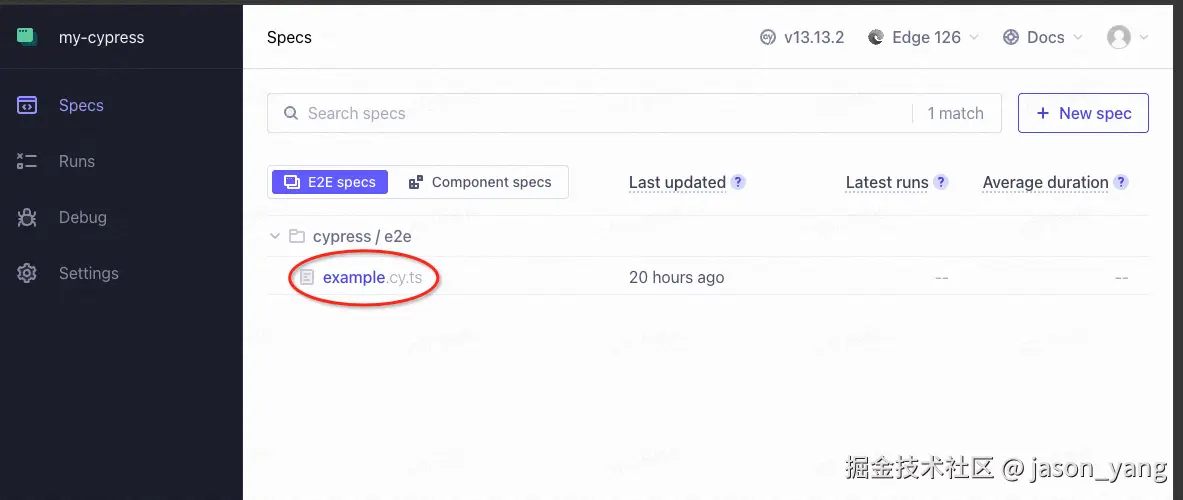

点击其中一个用例，进行具体用例页面

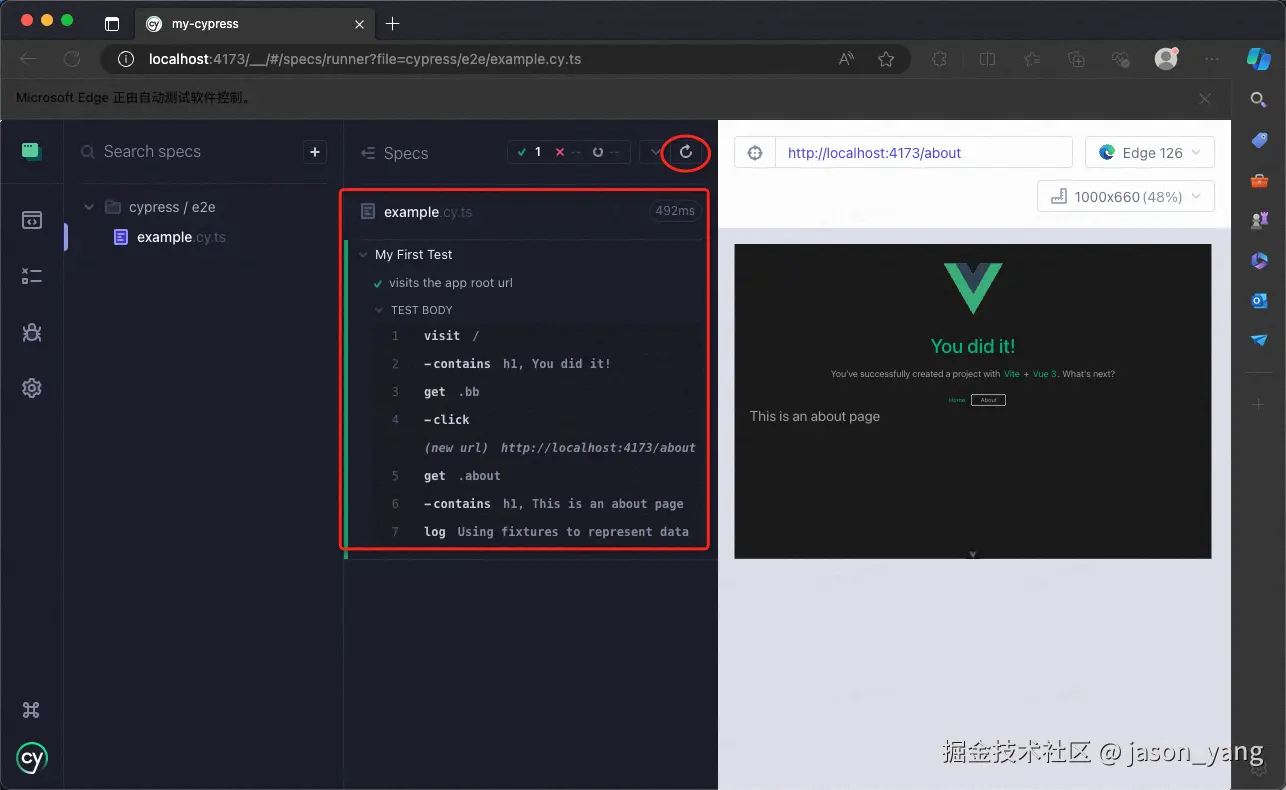

进入后会自动执行用例，并输出结果，点击刷新能重新执行。
实例
用户登录
新增一个登录模块 src/views/LoginView.vue
<template>
<div id="app">
<h1>Login Form</h1>
<p class="msg">登录的信息：{{ msg }}</p>
<form @submit.prevent="handleSubmit">
<label for="username">Username:</label>
<input type="text" id="username" v-model="username" >
<br>
<label for="password">Password:</label>
<input type="password" id="password" v-model="password" >
<br>
<button type="submit">Login</button>
</form>
</div>
</template>
<script setup lang="ts">
import { ref } from 'vue'
const username = ref('')
const password = ref('')
const msg = ref('')
const handleSubmit = () => {
if (username.value === '' && password.value === '') {
msg.value = '请输入'
}else if (username.value === 'testuser' && password.value === 'password123') {
console.log(`Logging in as ${username.value}`);
msg.value = '登录成功'
} else {
msg.value = '登录失败'
}
}
</script>
src/App.vue 添加login入口
<template>
<header>
<img alt="Vue logo" class="logo" src="@/assets/logo.svg" width="125" height="125" />
<div class="wrapper">
<HelloWorld msg="You did it!" />
<nav>
<RouterLink to="/" class="aa">Home</RouterLink>
<RouterLink to="/about" class="bb">About</RouterLink>
<RouterLink to="/login" class="login">login</RouterLink>
</nav>
</div>
</header>
<RouterView />
</template>
...
import { createRouter, createWebHistory } from 'vue-router'
import HomeView from '../views/HomeView.vue'
const router = createRouter({
history: createWebHistory(import.meta.env.BASE_URL),
routes: [
{
path: '/',
name: 'home',
component: HomeView
},
{
path: '/about',
name: 'about',
component: () => import('../views/AboutView.vue')
},
{
path: '/login',
name: 'login',
component: () => import('../views/LoginView.vue') //添加路由
}
]
})
export default router
修改用例 cypress/e2e/example.cy.ts
// https://on.cypress.io/api
describe('My First Test', () => {
it('visits the app root url', () => {
cy.visit('/')
cy.contains('h1', 'You did it!')
})
it('should log in a user success', () => {
cy.visit('/')
cy.get('.login').click()
cy.get('#username').type('testuser')
cy.get('#password').type('password123')
cy.get('button[type="submit"]').click()
cy.get('.msg').contains('p', '登录成功')
})
it('should log in a user fail', () => {
cy.visit('/')
cy.get('.login').click()
cy.get('#username').type('1111')
cy.get('#password').type('2222')
cy.get('button[type="submit"]').click()
cy.get('.msg').contains('p', '登录失败')
})
it('should log in a user empty', () => {
cy.visit('/')
cy.get('.login').click()
cy.get('button[type="submit"]').click()
cy.get('.msg').contains('p', '请输入')
})
})
用例主要3种不同场景判断
- 成功
- 失败
- 为空

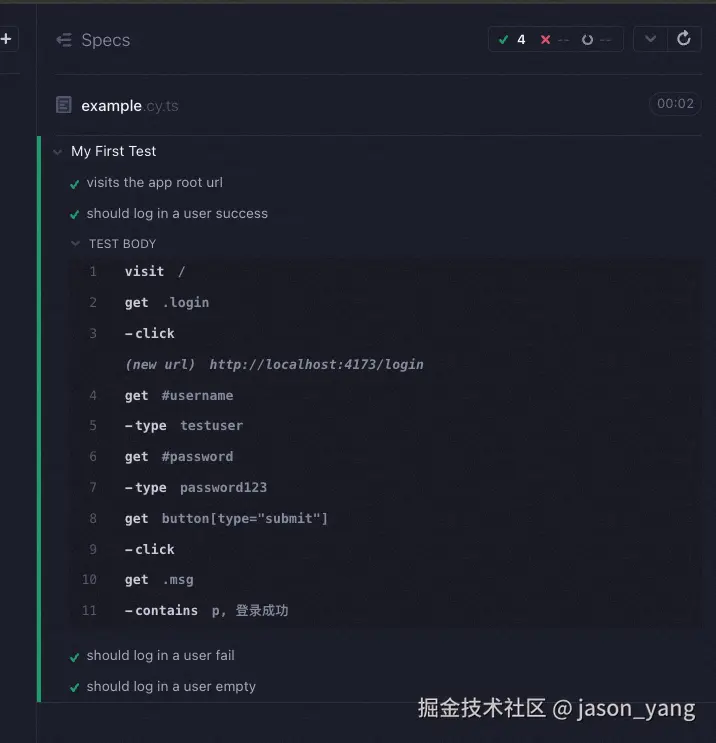

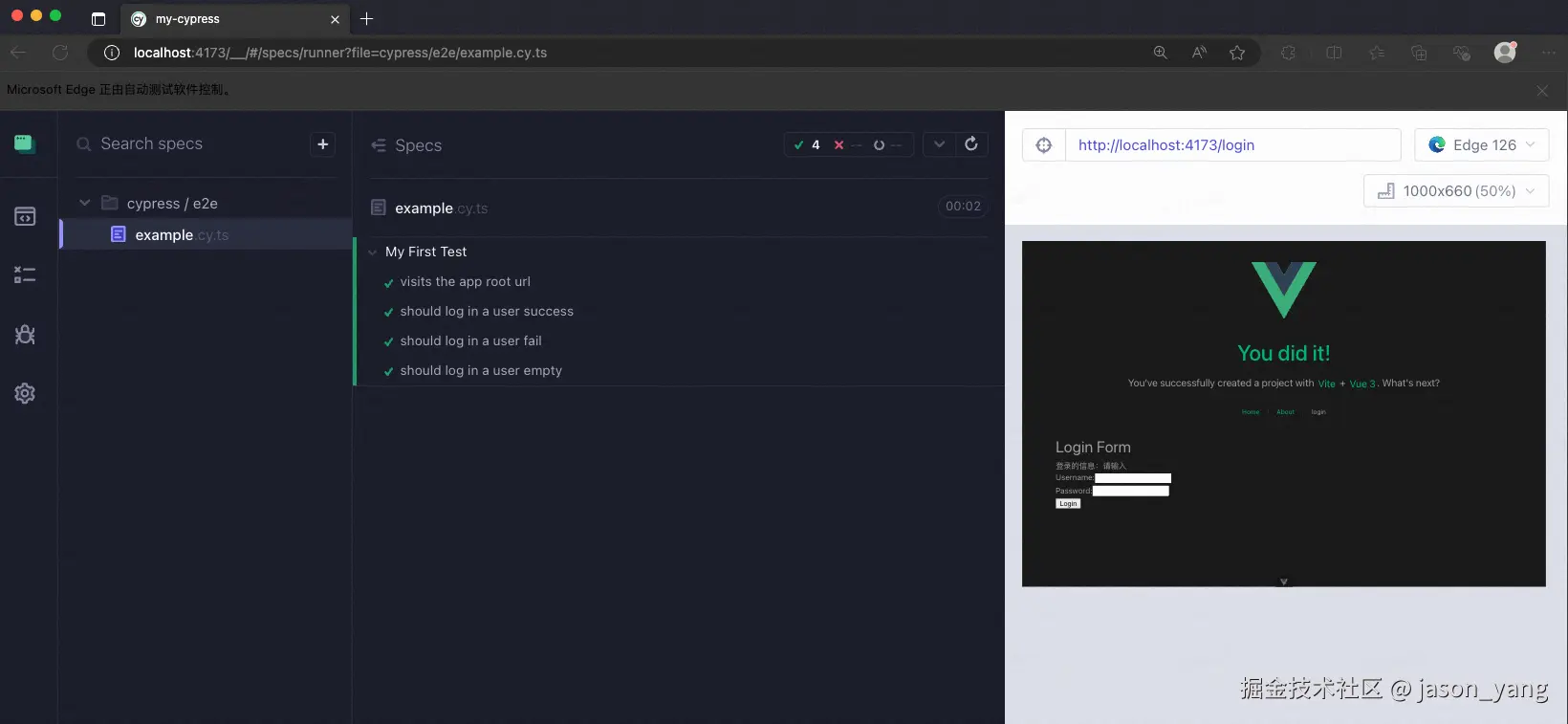

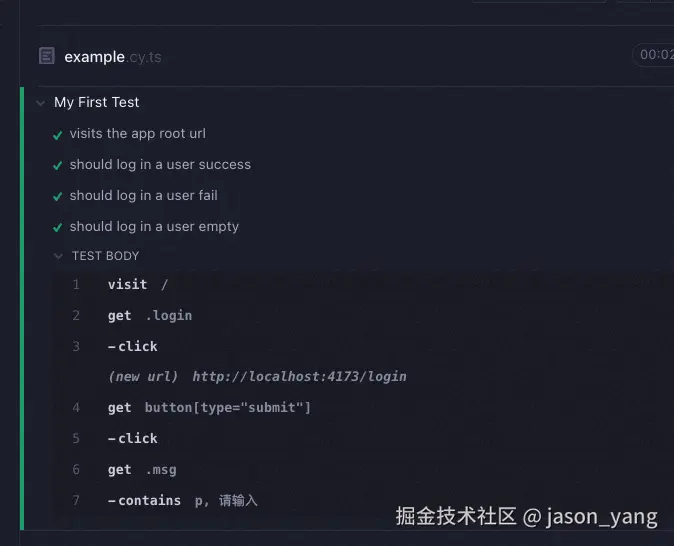

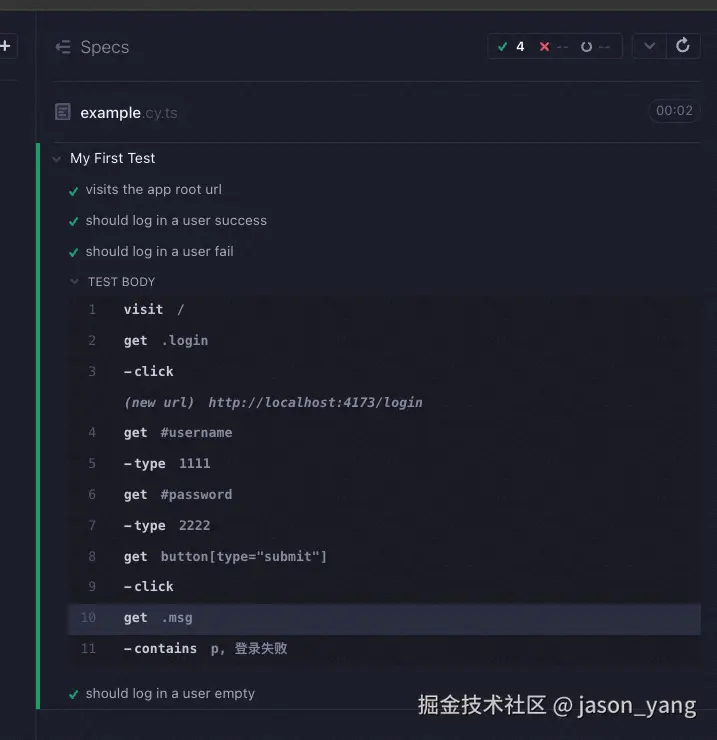

测试
npm run test:e2e:dev
进阶
官方例子1 todolist
/// <reference types="cypress" />
// Welcome to Cypress!
//
// This spec file contains a variety of sample tests
// for a todo list app that are designed to demonstrate
// the power of writing tests in Cypress.
//
// To learn more about how Cypress works and
// what makes it such an awesome testing tool,
// please read our getting started guide:
// https://on.cypress.io/introduction-to-cypress
describe('example to-do app', () => {
beforeEach(() => {
// Cypress starts out with a blank slate for each test
// so we must tell it to visit our website with the `cy.visit()` command.
// Since we want to visit the same URL at the start of all our tests,
// we include it in our beforeEach function so that it runs before each test
cy.visit('https://example.cypress.io/todo')
})
it('can add new todo items', () => {
// We'll store our item text in a variable so we can reuse it
const newItem = 'Feed the cat'
// Let's get the input element and use the `type` command to
// input our new list item. After typing the content of our item,
// we need to type the enter key as well in order to submit the input.
// This input has a data-test attribute so we'll use that to select the
// element in accordance with best practices:
// https://on.cypress.io/selecting-elements
cy.get('[data-test=new-todo]').type(`${newItem}{enter}`)
// Now that we've typed our new item, let's check that it actually was added to the list.
// Since it's the newest item, it should exist as the last element in the list.
// In addition, with the two default items, we should have a total of 3 elements in the list.
// Since assertions yield the element that was asserted on,
// we can chain both of these assertions together into a single statement.
cy.get('.todo-list li')
.should('have.length', 3)
.last()
.should('have.text', newItem)
})
it('can check off an item as completed', () => {
// In addition to using the `get` command to get an element by selector,
// we can also use the `contains` command to get an element by its contents.
// However, this will yield the <label>, which is lowest-level element that contains the text.
// In order to check the item, we'll find the <input> element for this <label>
// by traversing up the dom to the parent element. From there, we can `find`
// the child checkbox <input> element and use the `check` command to check it.
cy.contains('Pay electric bill')
.parent()
.find('input[type=checkbox]')
.check()
// Now that we've checked the button, we can go ahead and make sure
// that the list element is now marked as completed.
// Again we'll use `contains` to find the <label> element and then use the `parents` command
// to traverse multiple levels up the dom until we find the corresponding <li> element.
// Once we get that element, we can assert that it has the completed class.
cy.contains('Pay electric bill')
.parents('li')
.should('have.class', 'completed')
})
context('with a checked task', () => {
beforeEach(() => {
// We'll take the command we used above to check off an element
// Since we want to perform multiple tests that start with checking
// one element, we put it in the beforeEach hook
// so that it runs at the start of every test.
cy.contains('Pay electric bill')
.parent()
.find('input[type=checkbox]')
.check()
})
it('can filter for uncompleted tasks', () => {
// We'll click on the "active" button in order to
// display only incomplete items
cy.contains('Active').click()
// After filtering, we can assert that there is only the one
// incomplete item in the list.
cy.get('.todo-list li')
.should('have.length', 1)
.first()
.should('have.text', 'Walk the dog')
// For good measure, let's also assert that the task we checked off
// does not exist on the page.
cy.contains('Pay electric bill').should('not.exist')
})
it('can filter for completed tasks', () => {
// We can perform similar steps as the test above to ensure
// that only completed tasks are shown
cy.contains('Completed').click()
cy.get('.todo-list li')
.should('have.length', 1)
.first()
.should('have.text', 'Pay electric bill')
cy.contains('Walk the dog').should('not.exist')
})
it('can delete all completed tasks', () => {
// First, let's click the "Clear completed" button
// `contains` is actually serving two purposes here.
// First, it's ensuring that the button exists within the dom.
// This button only appears when at least one task is checked
// so this command is implicitly verifying that it does exist.
// Second, it selects the button so we can click it.
cy.contains('Clear completed').click()
// Then we can make sure that there is only one element
// in the list and our element does not exist
cy.get('.todo-list li')
.should('have.length', 1)
.should('not.have.text', 'Pay electric bill')
// Finally, make sure that the clear button no longer exists.
cy.contains('Clear completed').should('not.exist')
})
})
})
官方例子2:常用action
2-advanced-examples/actions.cy.js
/// <reference types="cypress" />
context('Actions', () => {
beforeEach(() => {
cy.visit('https://example.cypress.io/commands/actions')
})
// https://on.cypress.io/interacting-with-elements
it('.type() - type into a DOM element', () => {
// https://on.cypress.io/type
cy.get('.action-email').type('fake@email.com')
cy.get('.action-email').should('have.value', 'fake@email.com')
// .type() with special character sequences
cy.get('.action-email').type('{leftarrow}{rightarrow}{uparrow}{downarrow}')
cy.get('.action-email').type('{del}{selectall}{backspace}')
// .type() with key modifiers
cy.get('.action-email').type('{alt}{option}') //these are equivalent
cy.get('.action-email').type('{ctrl}{control}') //these are equivalent
cy.get('.action-email').type('{meta}{command}{cmd}') //these are equivalent
cy.get('.action-email').type('{shift}')
// Delay each keypress by 0.1 sec
cy.get('.action-email').type('slow.typing@email.com', { delay: 100 })
cy.get('.action-email').should('have.value', 'slow.typing@email.com')
cy.get('.action-disabled')
// Ignore error checking prior to type
// like whether the input is visible or disabled
.type('disabled error checking', { force: true })
cy.get('.action-disabled').should('have.value', 'disabled error checking')
})
it('.focus() - focus on a DOM element', () => {
// https://on.cypress.io/focus
cy.get('.action-focus').focus()
cy.get('.action-focus').should('have.class', 'focus')
.prev().should('have.attr', 'style', 'color: orange;')
})
it('.blur() - blur off a DOM element', () => {
// https://on.cypress.io/blur
cy.get('.action-blur').type('About to blur')
cy.get('.action-blur').blur()
cy.get('.action-blur').should('have.class', 'error')
.prev().should('have.attr', 'style', 'color: red;')
})
it('.clear() - clears an input or textarea element', () => {
// https://on.cypress.io/clear
cy.get('.action-clear').type('Clear this text')
cy.get('.action-clear').should('have.value', 'Clear this text')
cy.get('.action-clear').clear()
cy.get('.action-clear').should('have.value', '')
})
it('.submit() - submit a form', () => {
// https://on.cypress.io/submit
cy.get('.action-form')
.find('[type="text"]').type('HALFOFF')
cy.get('.action-form').submit()
cy.get('.action-form').next().should('contain', 'Your form has been submitted!')
})
it('.click() - click on a DOM element', () => {
// https://on.cypress.io/click
cy.get('.action-btn').click()
// You can click on 9 specific positions of an element:
// -----------------------------------
// | topLeft top topRight |
// | |
// | |
// | |
// | left center right |
// | |
// | |
// | |
// | bottomLeft bottom bottomRight |
// -----------------------------------
// clicking in the center of the element is the default
cy.get('#action-canvas').click()
cy.get('#action-canvas').click('topLeft')
cy.get('#action-canvas').click('top')
cy.get('#action-canvas').click('topRight')
cy.get('#action-canvas').click('left')
cy.get('#action-canvas').click('right')
cy.get('#action-canvas').click('bottomLeft')
cy.get('#action-canvas').click('bottom')
cy.get('#action-canvas').click('bottomRight')
// .click() accepts an x and y coordinate
// that controls where the click occurs :)
cy.get('#action-canvas')
cy.get('#action-canvas').click(80, 75) // click 80px on x coord and 75px on y coord
cy.get('#action-canvas').click(170, 75)
cy.get('#action-canvas').click(80, 165)
cy.get('#action-canvas').click(100, 185)
cy.get('#action-canvas').click(125, 190)
cy.get('#action-canvas').click(150, 185)
cy.get('#action-canvas').click(170, 165)
// click multiple elements by passing multiple: true
cy.get('.action-labels>.label').click({ multiple: true })
// Ignore error checking prior to clicking
cy.get('.action-opacity>.btn').click({ force: true })
})
it('.dblclick() - double click on a DOM element', () => {
// https://on.cypress.io/dblclick
// Our app has a listener on 'dblclick' event in our 'scripts.js'
// that hides the div and shows an input on double click
cy.get('.action-div').dblclick()
cy.get('.action-div').should('not.be.visible')
cy.get('.action-input-hidden').should('be.visible')
})
it('.rightclick() - right click on a DOM element', () => {
// https://on.cypress.io/rightclick
// Our app has a listener on 'contextmenu' event in our 'scripts.js'
// that hides the div and shows an input on right click
cy.get('.rightclick-action-div').rightclick()
cy.get('.rightclick-action-div').should('not.be.visible')
cy.get('.rightclick-action-input-hidden').should('be.visible')
})
it('.check() - check a checkbox or radio element', () => {
// https://on.cypress.io/check
// By default, .check() will check all
// matching checkbox or radio elements in succession, one after another
cy.get('.action-checkboxes [type="checkbox"]').not('[disabled]').check()
cy.get('.action-checkboxes [type="checkbox"]').not('[disabled]').should('be.checked')
cy.get('.action-radios [type="radio"]').not('[disabled]').check()
cy.get('.action-radios [type="radio"]').not('[disabled]').should('be.checked')
// .check() accepts a value argument
cy.get('.action-radios [type="radio"]').check('radio1')
cy.get('.action-radios [type="radio"]').should('be.checked')
// .check() accepts an array of values
cy.get('.action-multiple-checkboxes [type="checkbox"]').check(['checkbox1', 'checkbox2'])
cy.get('.action-multiple-checkboxes [type="checkbox"]').should('be.checked')
// Ignore error checking prior to checking
cy.get('.action-checkboxes [disabled]').check({ force: true })
cy.get('.action-checkboxes [disabled]').should('be.checked')
cy.get('.action-radios [type="radio"]').check('radio3', { force: true })
cy.get('.action-radios [type="radio"]').should('be.checked')
})
it('.uncheck() - uncheck a checkbox element', () => {
// https://on.cypress.io/uncheck
// By default, .uncheck() will uncheck all matching
// checkbox elements in succession, one after another
cy.get('.action-check [type="checkbox"]')
.not('[disabled]')
.uncheck()
cy.get('.action-check [type="checkbox"]')
.not('[disabled]')
.should('not.be.checked')
// .uncheck() accepts a value argument
cy.get('.action-check [type="checkbox"]')
.check('checkbox1')
cy.get('.action-check [type="checkbox"]')
.uncheck('checkbox1')
cy.get('.action-check [type="checkbox"][value="checkbox1"]')
.should('not.be.checked')
// .uncheck() accepts an array of values
cy.get('.action-check [type="checkbox"]')
.check(['checkbox1', 'checkbox3'])
cy.get('.action-check [type="checkbox"]')
.uncheck(['checkbox1', 'checkbox3'])
cy.get('.action-check [type="checkbox"][value="checkbox1"]')
.should('not.be.checked')
cy.get('.action-check [type="checkbox"][value="checkbox3"]')
.should('not.be.checked')
// Ignore error checking prior to unchecking
cy.get('.action-check [disabled]').uncheck({ force: true })
cy.get('.action-check [disabled]').should('not.be.checked')
})
it('.select() - select an option in a <select> element', () => {
// https://on.cypress.io/select
// at first, no option should be selected
cy.get('.action-select')
.should('have.value', '--Select a fruit--')
// Select option(s) with matching text content
cy.get('.action-select').select('apples')
// confirm the apples were selected
// note that each value starts with "fr-" in our HTML
cy.get('.action-select').should('have.value', 'fr-apples')
cy.get('.action-select-multiple')
.select(['apples', 'oranges', 'bananas'])
cy.get('.action-select-multiple')
// when getting multiple values, invoke "val" method first
.invoke('val')
.should('deep.equal', ['fr-apples', 'fr-oranges', 'fr-bananas'])
// Select option(s) with matching value
cy.get('.action-select').select('fr-bananas')
cy.get('.action-select')
// can attach an assertion right away to the element
.should('have.value', 'fr-bananas')
cy.get('.action-select-multiple')
.select(['fr-apples', 'fr-oranges', 'fr-bananas'])
cy.get('.action-select-multiple')
.invoke('val')
.should('deep.equal', ['fr-apples', 'fr-oranges', 'fr-bananas'])
// assert the selected values include oranges
cy.get('.action-select-multiple')
.invoke('val').should('include', 'fr-oranges')
})
it('.scrollIntoView() - scroll an element into view', () => {
// https://on.cypress.io/scrollintoview
// normally all of these buttons are hidden,
// because they're not within
// the viewable area of their parent
// (we need to scroll to see them)
cy.get('#scroll-horizontal button')
.should('not.be.visible')
// scroll the button into view, as if the user had scrolled
cy.get('#scroll-horizontal button').scrollIntoView()
cy.get('#scroll-horizontal button')
.should('be.visible')
cy.get('#scroll-vertical button')
.should('not.be.visible')
// Cypress handles the scroll direction needed
cy.get('#scroll-vertical button').scrollIntoView()
cy.get('#scroll-vertical button')
.should('be.visible')
cy.get('#scroll-both button')
.should('not.be.visible')
// Cypress knows to scroll to the right and down
cy.get('#scroll-both button').scrollIntoView()
cy.get('#scroll-both button')
.should('be.visible')
})
it('.trigger() - trigger an event on a DOM element', () => {
// https://on.cypress.io/trigger
// To interact with a range input (slider)
// we need to set its value & trigger the
// event to signal it changed
// Here, we invoke jQuery's val() method to set
// the value and trigger the 'change' event
cy.get('.trigger-input-range')
.invoke('val', 25)
cy.get('.trigger-input-range')
.trigger('change')
cy.get('.trigger-input-range')
.get('input[type=range]').siblings('p')
.should('have.text', '25')
})
it('cy.scrollTo() - scroll the window or element to a position', () => {
// https://on.cypress.io/scrollto
// You can scroll to 9 specific positions of an element:
// -----------------------------------
// | topLeft top topRight |
// | |
// | |
// | |
// | left center right |
// | |
// | |
// | |
// | bottomLeft bottom bottomRight |
// -----------------------------------
// if you chain .scrollTo() off of cy, we will
// scroll the entire window
cy.scrollTo('bottom')
cy.get('#scrollable-horizontal').scrollTo('right')
// or you can scroll to a specific coordinate:
// (x axis, y axis) in pixels
cy.get('#scrollable-vertical').scrollTo(250, 250)
// or you can scroll to a specific percentage
// of the (width, height) of the element
cy.get('#scrollable-both').scrollTo('75%', '25%')
// control the easing of the scroll (default is 'swing')
cy.get('#scrollable-vertical').scrollTo('center', { easing: 'linear' })
// control the duration of the scroll (in ms)
cy.get('#scrollable-both').scrollTo('center', { duration: 2000 })
})
})
