SpringBoot Security+JWT简单搭建

现在没有牛仔了
1,155 阅读5分钟

SpringBoot Security是Spring官方提供的一个安全框架，他的核心功能是对系统用户进行认证和鉴权，也经常在项目中被使用到，本文不介绍其太过深入的内容，只介绍如何实现并完成认证和鉴权的测试。主要分三步来实现：

  1. 配置JWT
  2. 配置Security
  3. 编写测试相关代码

首先创建一个springboot项目，我的版本是2.6.13，依然是java8，整合Security+JWT需要用到的Maven依赖如下：

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-security</artifactId>
</dependency>
<!--jwt-->
<dependency>
    <groupId>io.jsonwebtoken</groupId>
    <artifactId>jjwt</artifactId>
    <version>0.9.1</version>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
</dependency>

配置JWT

  1. 先在yml配置文件中添加jwt相关配置
    jwt:
    expiration: 3600000 //token过期时间，1个小时
    tokenHeader: Authorization //token在header中的属性名
    secret: jwt-token-secret  //生成token的密钥
  2. 创建jwt工具类，方便实现根据用户信息生成token，以及通过token中获取用户信息
    @Component
@Data
public class JwtTokenUtil implements Serializable {
    private static final long serialVersionUID = -3301605591108950415L;
    @Value("${jwt.secret}")
    private  String secret;
    @Value("${jwt.expiration}")
    private Long expiration;

    private Clock clock = DefaultClock.INSTANCE;
    //根据用户信息生成token
    public String generateToken(UserDetails userDetails) {
        Map<String, Object> claims = new HashMap<>();
        return doGenerateToken(claims, userDetails.getUsername());
    }

    private String doGenerateToken(Map<String, Object> claims, String subject) {
        final Date createdDate = clock.now();
        final Date expirationDate = calculateExpirationDate(createdDate);

        return Jwts.builder()
                .setClaims(claims)
                .setSubject(subject)
                .setIssuedAt(createdDate)
                .setExpiration(expirationDate)
                .signWith(SignatureAlgorithm.HS512, secret)
                .compact();
    }

    private Date calculateExpirationDate(Date createdDate) {
        return new Date(createdDate.getTime() + expiration);
    }

    public Boolean validateToken(String token, UserDetails userDetails) {
        SecurityUserDetails user = (SecurityUserDetails) userDetails;
        final String username = getUsernameFromToken(token);
        return (username.equals(user.getUsername())
                && !isTokenExpired(token)
        );
    }
    //通过token获取用户名username
    public String getUsernameFromToken(String token) {
        return getClaimFromToken(token, Claims::getSubject);
    }

    public <T> T getClaimFromToken(String token, Function<Claims, T> claimsResolver) {
        final Claims claims = getAllClaimsFromToken(token);
        return claimsResolver.apply(claims);
    }

    private Claims getAllClaimsFromToken(String token) {
        return Jwts.parser()
                .setSigningKey(secret)
                .parseClaimsJws(token)
                .getBody();
    }


    private Boolean isTokenExpired(String token) {
        final Date expiration = getExpirationDateFromToken(token);
        return expiration.before(clock.now());
    }

    public Date getExpirationDateFromToken(String token) {
        return getClaimFromToken(token, Claims::getExpiration);
    }

}

配置Security

  1. 编写一个存储用户信息的UserDetails的实现类

    @Data
public class SysUser {
    private Integer id;
    private String username;
    private String password;
}

    @Data
@EqualsAndHashCode
@Accessors(chain = true) //实现链式set方法
public class SecurityUserDetails extends SysUser implements UserDetails {
    //权限列表
    private Collection<? extends GrantedAuthority> authorities;
    public SecurityUserDetails(String userName,Collection<? extends GrantedAuthority> authorities){
        this.setUsername(userName);
        String encode = new BCryptPasswordEncoder().encode("123456");
        this.setPassword(encode);
        this.setAuthorities(authorities);
    }
    /**
     * 下面这些都返回true
     * @return
     */
    @Override
    public boolean isAccountNonExpired() {
        return true;
    }
    @Override
    public boolean isAccountNonLocked() {
        return true;
    }
    @Override
    public boolean isCredentialsNonExpired() {
        return true;
    }
    @Override
    public boolean isEnabled() {
        return true;
    }
}

    提示
    因为只是记录一下如何实现security+jwt，所以没有从数据库中读取真实的用户信息，而是直接将用户信息和权限信息写死测试。

  2. 重写UserDetailsService的loadUserByUsername方法实现具体的认证授权逻辑

    @Service
public class JwtUserDetailsServiceImpl implements UserDetailsService {
    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        List<GrantedAuthority> authorityList = new ArrayList<>();
        authorityList.add(new SimpleGrantedAuthority("ROLE_USER"));
        return new SecurityUserDetails(username,authorityList);
    }
}

    提示
    这里直接把用户的权限写死，ROLE_USER表示用户拥有USER权限，因为权限都是以ROLE_开头的。

  3. 紧接着创建一个用户请求的过滤器，用来拦截用户请求，分析用户有没有该请求的权限

    @Component
public class JwtAuthorizationTokenFilter extends OncePerRequestFilter {
    private final UserDetailsService userDetailsService;
    private final JwtTokenUtil jwtTokenUtil;
    private final String tokenHeader;

    public JwtAuthorizationTokenFilter(@Qualifier("jwtUserDetailsServiceImpl") UserDetailsService userDetailsService,
                                       JwtTokenUtil jwtTokenUtil,
                                       @Value("${jwt.tokenHeader}") String tokenHeader){
        this.userDetailsService = userDetailsService;
        this.jwtTokenUtil = jwtTokenUtil;
        this.tokenHeader = tokenHeader;
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
        final String requestHeader = request.getHeader(this.tokenHeader);
        String username = null;
        String authToken = null;
        if(requestHeader != null && requestHeader.startsWith("Bearer ")){
            authToken = requestHeader.substring(7);
            try {
                username = jwtTokenUtil.getUsernameFromToken(authToken);
            }catch (ExpiredJwtException e){
                e.printStackTrace();
            }
        }

        if(username!=null&& SecurityContextHolder.getContext().getAuthentication() == null){
            UserDetails userDetails = this.userDetailsService.loadUserByUsername(username);
            if(jwtTokenUtil.validateToken(authToken,userDetails)){
                UsernamePasswordAuthenticationToken authentication = new UsernamePasswordAuthenticationToken(userDetails,null,userDetails.getAuthorities());
                SecurityContextHolder.getContext().setAuthentication(authentication);
            }
        }
        filterChain.doFilter(request,response);
    }
}

    提示
    Bearer 必须带空格，第二个if判断就是为了加载到用户的信息，并且在Security上下文中存储用户及用户的权限的信息

  4. 实现AuthenticationEntryPoint接口的commence方法，当请求没有携带认证信息或者说认证失败时，使用我们自己编写的处理逻辑。

    @Component
public class JwtAuthenticationEntryPoint implements AuthenticationEntryPoint {
    @Override
    public void commence(HttpServletRequest request, HttpServletResponse response, AuthenticationException authException) throws IOException, ServletException {
        response.sendError(HttpServletResponse.SC_UNAUTHORIZED);
    }
}

    提示
    如果请求没有携带认证信息或者说认证失败时，会返回给客户端401，如果不重写commence方法，默认返回403

  5. 接下来编写Security的核心配置类，重写WebSecurityConfigurerAdapter中的configure方法

    @Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    JwtAuthenticationEntryPoint jwtAuthenticationEntryPoint;
    @Autowired
    JwtUserDetailsServiceImpl jwtUserDetailsService;
    @Autowired
    JwtAuthorizationTokenFilter authenticationTokenFilter;
    @Autowired
    @Lazy
    PasswordEncoder passwordEncoder;

    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
                .exceptionHandling().authenticationEntryPoint(jwtAuthenticationEntryPoint)
                .and()
                .authorizeRequests()
                .antMatchers("/login").permitAll()
                .antMatchers(HttpMethod.OPTIONS, "/**").anonymous()
                .anyRequest().authenticated() //除上面以外的都拦截
                .and()
                .csrf().disable() //禁用security自带的跨域处理
                //让Security不使用session
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS);
        http.addFilterBefore(authenticationTokenFilter, UsernamePasswordAuthenticationFilter.class);

    }

    @Bean
    public PasswordEncoder passwordEncoderBean() {
        return new BCryptPasswordEncoder();
    }

    /**
     * 认证逻辑配置
     */
    @Autowired
    public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
        auth.userDetailsService(jwtUserDetailsService).passwordEncoder(passwordEncoder);
    }
}

    提示
    上面的代码中，.exceptionHandling().authenticationEntryPoint(jwtAuthenticationEntryPoint)表示使用自定义的认证失败处理逻辑。并且配置类中，自定义了用户密码的加密方式，configureGlobal方法设置自定义的loadUserByUsername方法实现和校验密码校验的加密方式。

编写测试相关代码

  1. 编写一个不需要认证授权就能访问的登录接口/login
    @RestController
public class LoginController {
    @Autowired
    @Qualifier("jwtUserDetailsServiceImpl")
    private UserDetailsService userDetailsService;
    @Autowired
    private JwtTokenUtil jwtTokenUtil;

    @PostMapping("/login")
    public String login(@RequestBody SysUser sysUser, HttpServletRequest request){
        final UserDetails userDetails = userDetailsService.loadUserByUsername(sysUser.getUsername());
        final String token = jwtTokenUtil.generateToken(userDetails);
        return token;
    }
}
  2. 编写一个需要USER权限的接口/sys/testUser
    @RestController
@RequestMapping("/sys")
public class SysUserController {
    @PreAuthorize("hasAnyRole('USER')")
    @PostMapping(value = "/testUser")
    public String testNeed() {
        return "hello world";
    }
}

测试

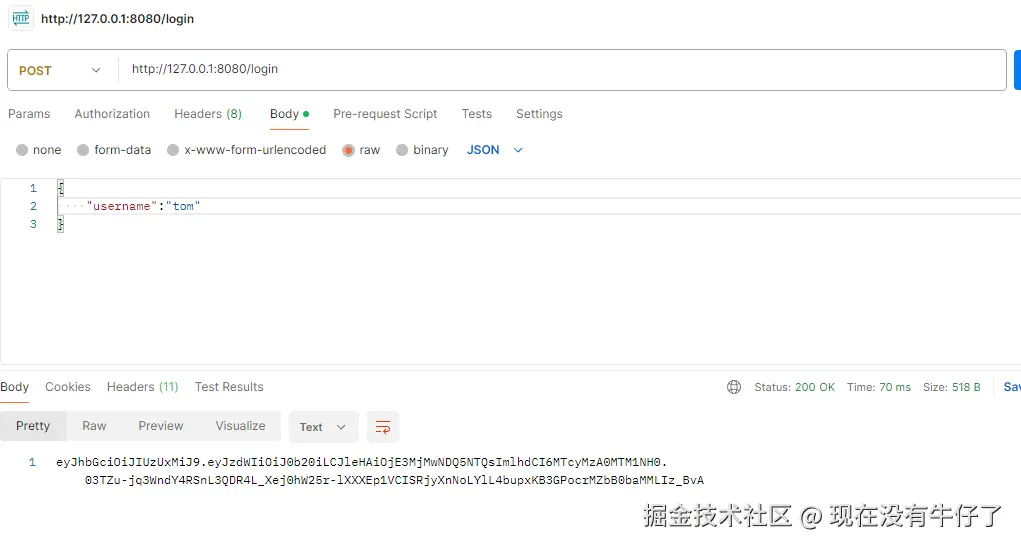

启动SpringBoot项目，对上面的接口进行测试，首先调用/login接口登录并获取token

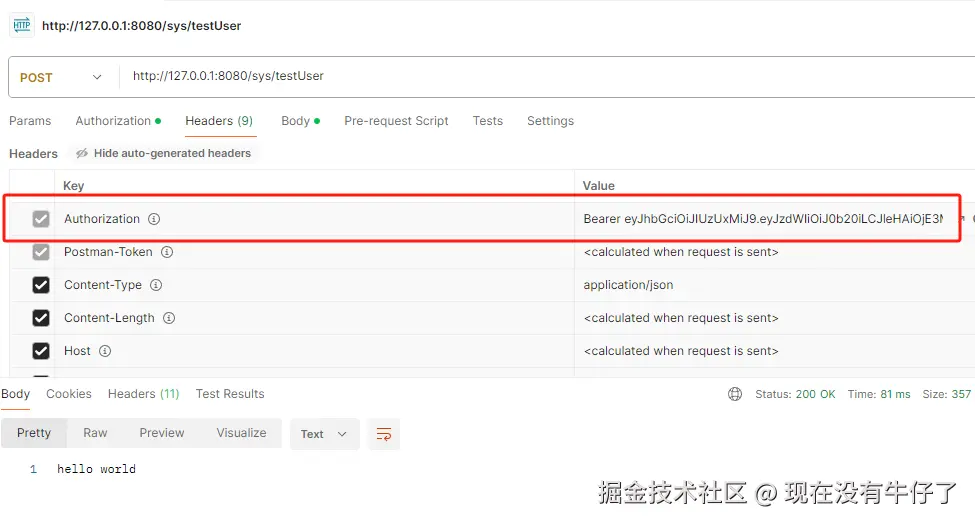

image.png 请求成功并获取到jwt生成的token。紧接着调用需要USER权限的/testUser，请求时要在请求头里面携带token

image.png 请求成功！

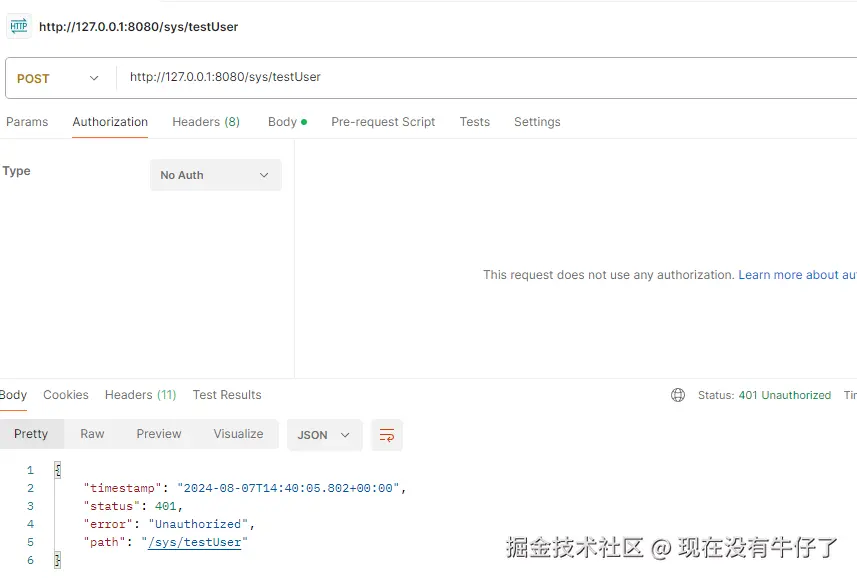

现在来测试一下失败的情况，不传token直接请求

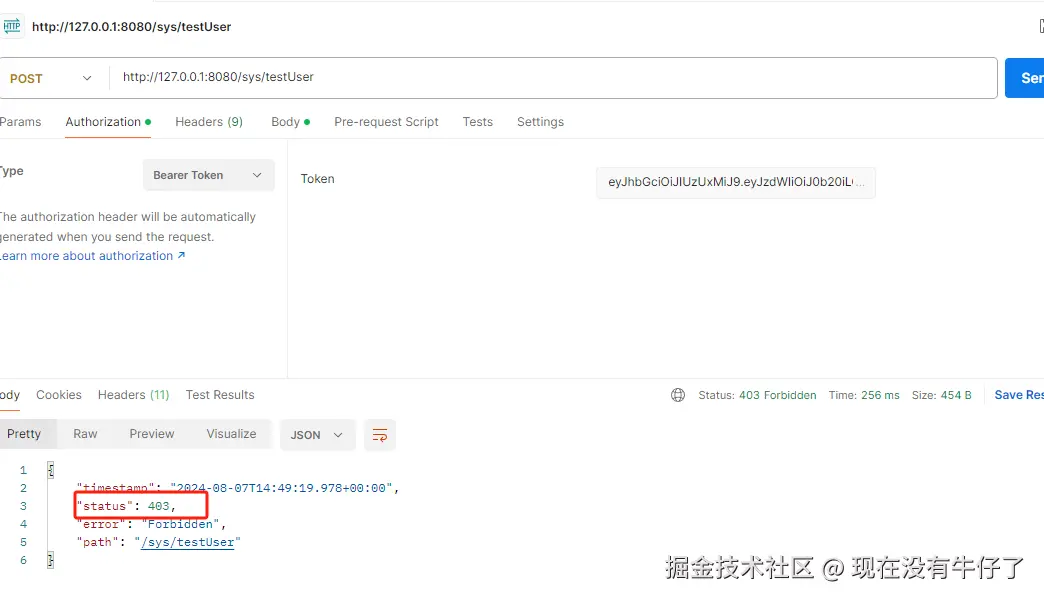

image.png 请求失败，返回401，表示没有认证。再来测试一下如果将@PreAuthorize("hasAnyRole('USER')")中的权限改为Admin，然后用刚刚生成的token去请求

@PreAuthorize("hasAnyRole('Admin')")
@PostMapping(value = "/testUser")
public String testNeed() {
    return "hello world";
}

image.png 由于token中包含的授权信息是USER，所以将@PreAuthorize("hasAnyRole('USER')")中的USER改为Admin后，返回了403，表示没有这个权限。
