Zygote&SystemServer启动流程

Zygote启动脚本

init.rc是以import方式来引入各个模块的rc的

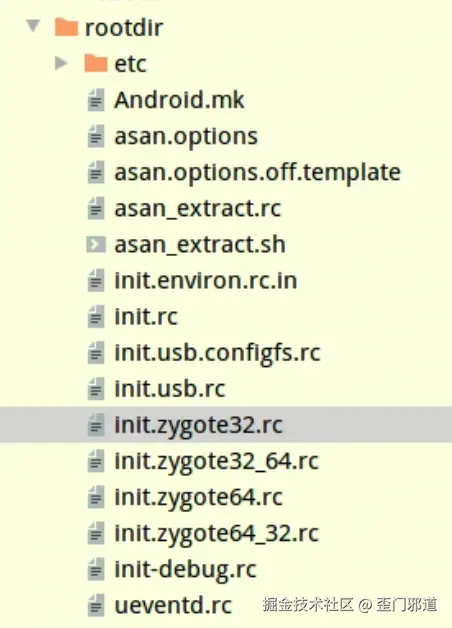

路径：system/core/rootdir/init.zygote32.rc

init.rc也在这个目录，还有64位的init.zygote64.rc，安卓支持32位和64位

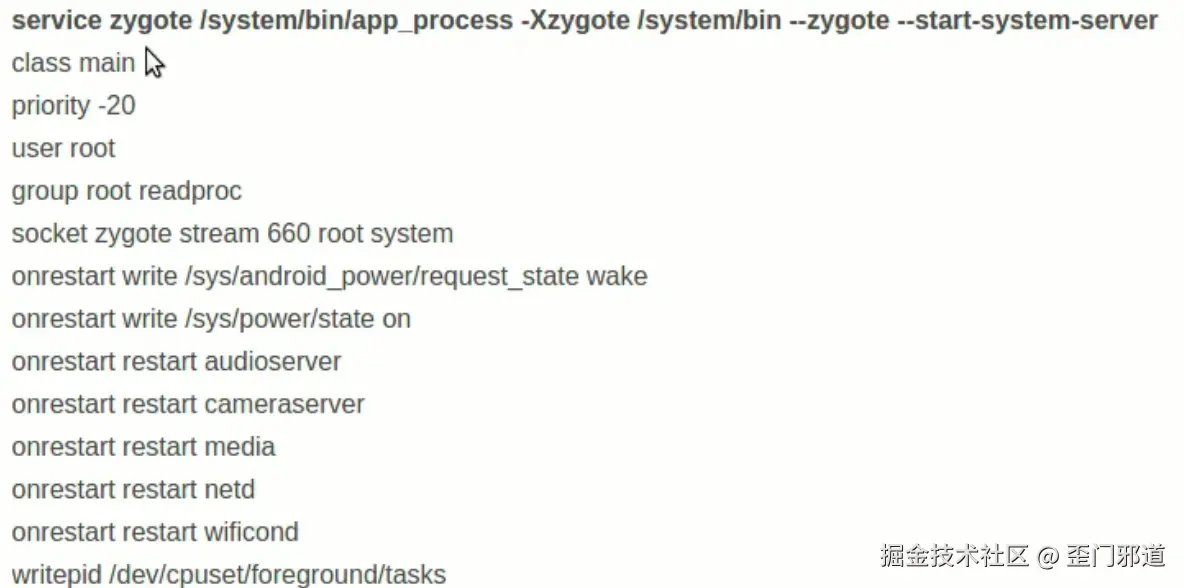

rc中的内容：

main入口

frameworks/base/cmds/app_process/app_main.cpp

main方法中，最终执行frameworks/base/core/jni/AndroidRuntime.cpp的start方法

if (zygote) {
        runtime.start("com.android.internal.os.ZygoteInit", args, zygote);
    } else if (className) {
        runtime.start("com.android.internal.os.RuntimeInit", args, zygote);
    } else {
        fprintf(stderr, "Error: no class name or --zygote supplied.\n");
        app_usage();
        LOG_ALWAYS_FATAL("app_process: no class name or --zygote supplied.");
    }

AndroidRuntime::start()中会调用startVm, 这里启动了虚拟机

/* * Start VM.  This thread becomes the main thread of the VM, and will * not return until the VM exits. */
char* slashClassName = toSlashClassName(className != NULL ? className : "");
jclass startClass = env->FindClass(slashClassName);
if (startClass == NULL) {
 ALOGE("JavaVM unable to locate class '%s'\n", slashClassName);
 /* keep going */}
else {
jmethodID startMeth = env->GetStaticMethodID(startClass, "main",
"([Ljava/lang/String;)V");
if (startMeth == NULL) {
ALOGE("JavaVM unable to find main() in '%s'\n", className);
  /* keep going */
} else {
env->CallStaticVoidMethod(startClass, startMeth, strArray);
}

执行完startVm，通过调用JNIEnv调用ZygoteInit的main，这时候就回到的java层

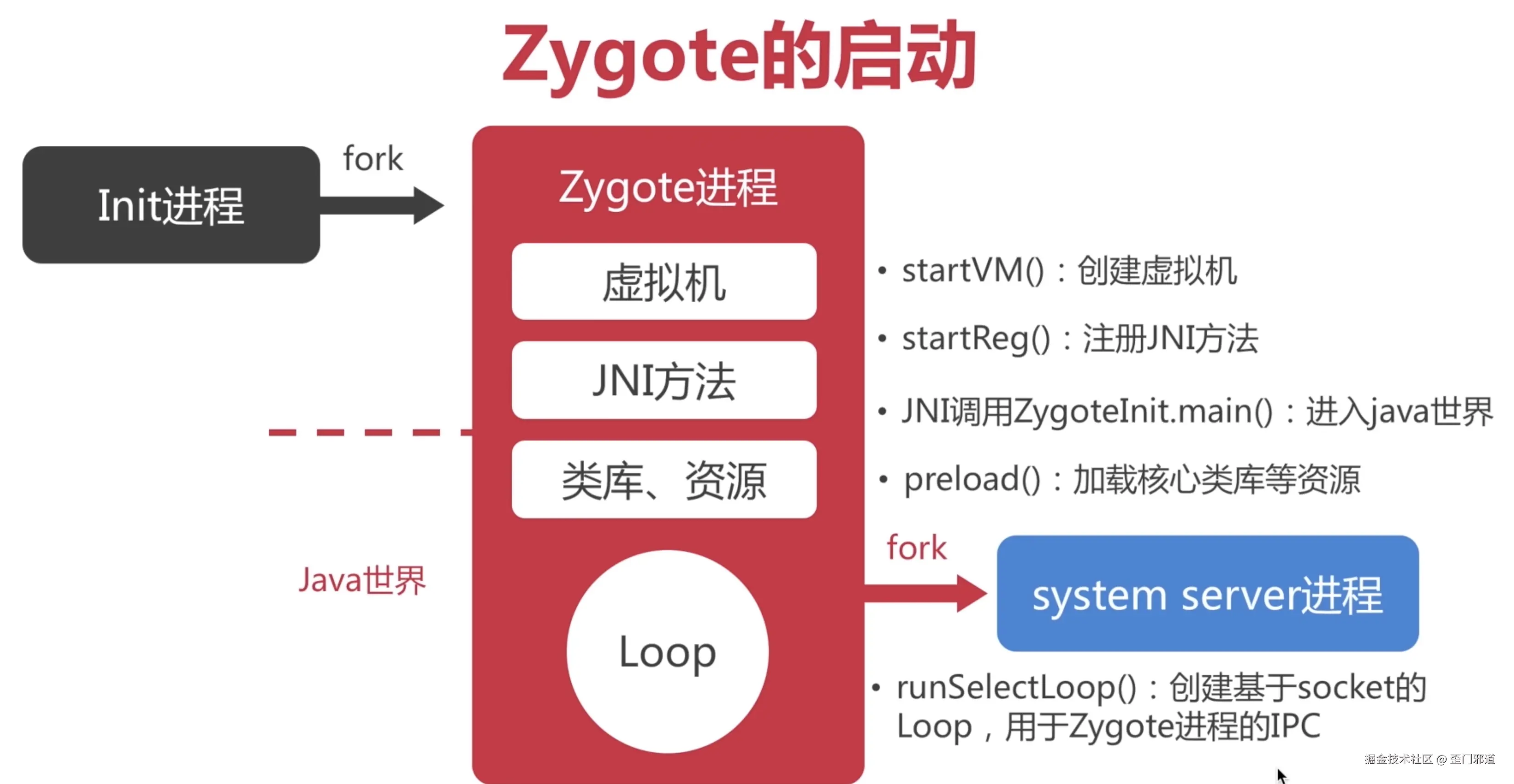

ZygoteInit主要流程：

1. 开启socket , ZygoteInit.java::main

•   zygoteServer = new ZygoteServer(isPrimaryZygote);
• Zygote.createManagedSocketFromInitSocket
• new LocalServerSocket(fd);

2. preloadClasser:预加载android的一些核心类，/system/etc/preloaded-classes
3. preloadResources
4. 启动fork出systemServer

• zygote.java::nativeForkSystemServer

• com_android_internal_os_Zygote.cpp::com_android_internal_os_Zygote_nativeForkSystemServer

• zygote::ForkCommon

• pid_t pid = fork(); //最终fork进程 ，通过unistd.h中的方法访问操作系统核心功能的接口

5. 启动socket循环，接受socket消息, ZygoteServer.java ->

zygoteServer::runSelectLoop(abiList);

6. ZygoteServer的runSelectLoop方法中，会不断的获取Socket消息，如果是创建进程消息，就fork出进程

if (pollIndex == 0) {
// Zygote server socket
ZygoteConnection newPeer = acceptCommandPeer(abiList);
 peers.add(newPeer);
socketFDs.add(newPeer.getFileDescriptor());}
 else if (pollIndex < usapPoolEventFDIndex) {
  // Session socket accepted from the Zygote server socket
   try {
    ZygoteConnection connection = peers.get(pollIndex);
    boolean multipleForksOK = !isUsapPoolEnabled()&& ZygoteHooks.isIndefiniteThreadSuspensionSafe();
    final Runnable command =  connection.processCommand(this, multipleForksOK);
....

1.acceptCommandPeer中创建ZygoteConnection，接受消息

2.processCommand 中调用Zygote.forkAndSpecialize孵化出普通app进程

7. 接着执行Zygoteinit::handleSystemServerProcess

8. 调用ZygoteInit.zygoteInit，方法中执行ZygoteInit.nativeZygoteInit();会启动binder线程池，调用AndroidRuntime.cpp中的JNI方法com_android_internal_os_ZygoteInit_nativeZygoteInit

gCurRuntime->onZygoteInit();调用到app_main.cpp
virtual void onZygoteInit(){
sp<ProcessState> proc = ProcessState::self();
ALOGV("App process: starting thread pool.\n");
 proc->startThreadPool(); //开启binger线程池
}

9.回到ZygoteInit, 启动完binder线程池，执行

RuntimeInit.applicationInit(targetSdkVersion, disabledCompatChanges, argv, classLoader);

10.applicationInit中findStaticMain(args.startClass, args.startArgs, classLoader)，找到SystemServer的main方法，执行，然后进入SystemServer的启动流程

args.startClass是从前面中层层传递过来，就是com.android.server.SystemServer

/* Hardcoded command line to start the system server */
String[] args = {
 "--setuid=1000",
"--setgid=1000",
"--setgroups=1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1018,1021,1023,"
+ "1024,1032,1065,3001,3002,3003,3006,3007,3009,3010,3011",
"--capabilities=" + capabilities + "," + capabilities,
"--nice-name=system_server",        "--runtime-args",
"--target-sdk-version=" + VMRuntime.SDK_VERSION_CUR_DEVELOPMENT,
"com.android.server.SystemServer",};
ZygoteArguments parsedArgs;

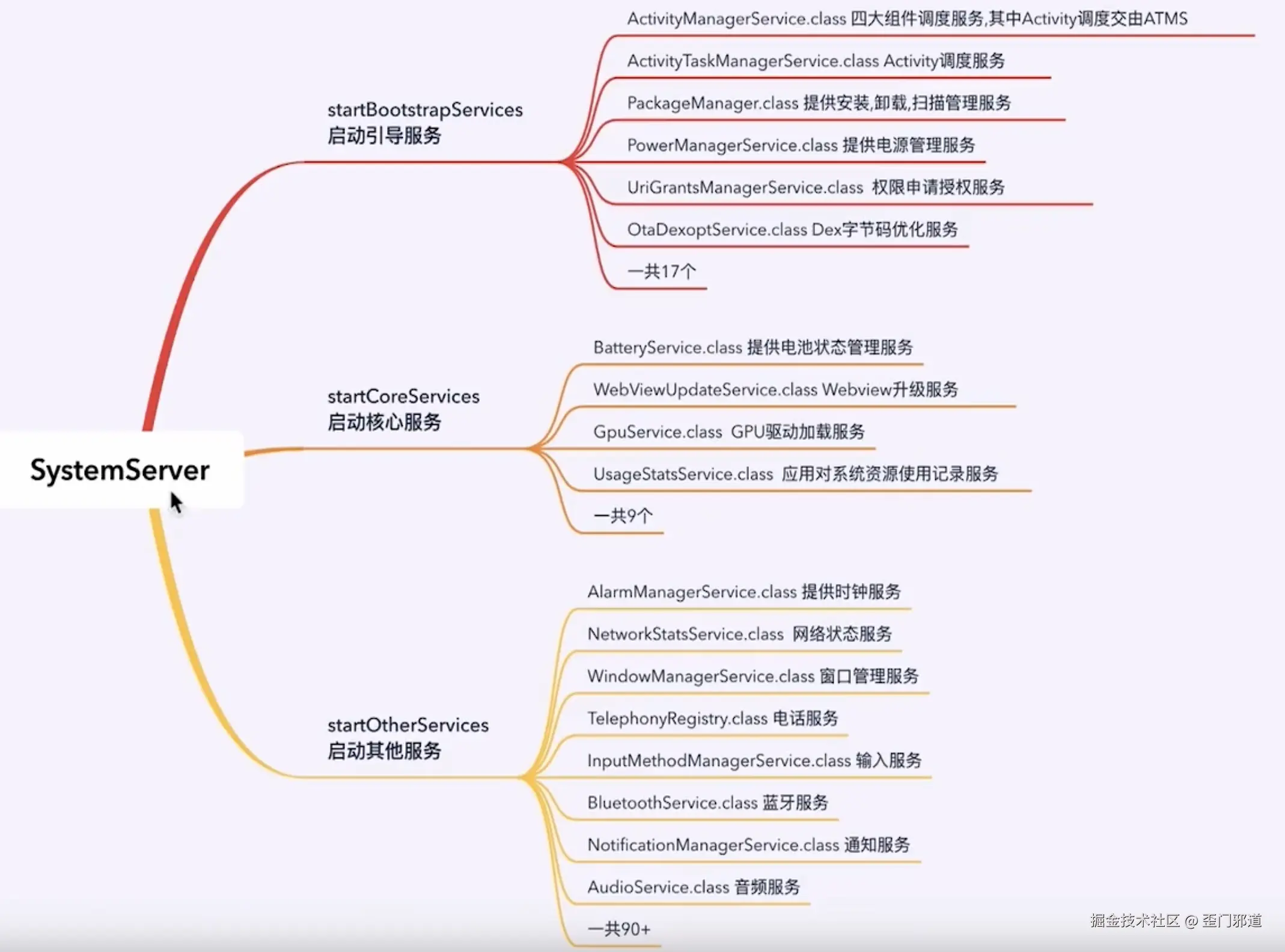

SystemServer启动

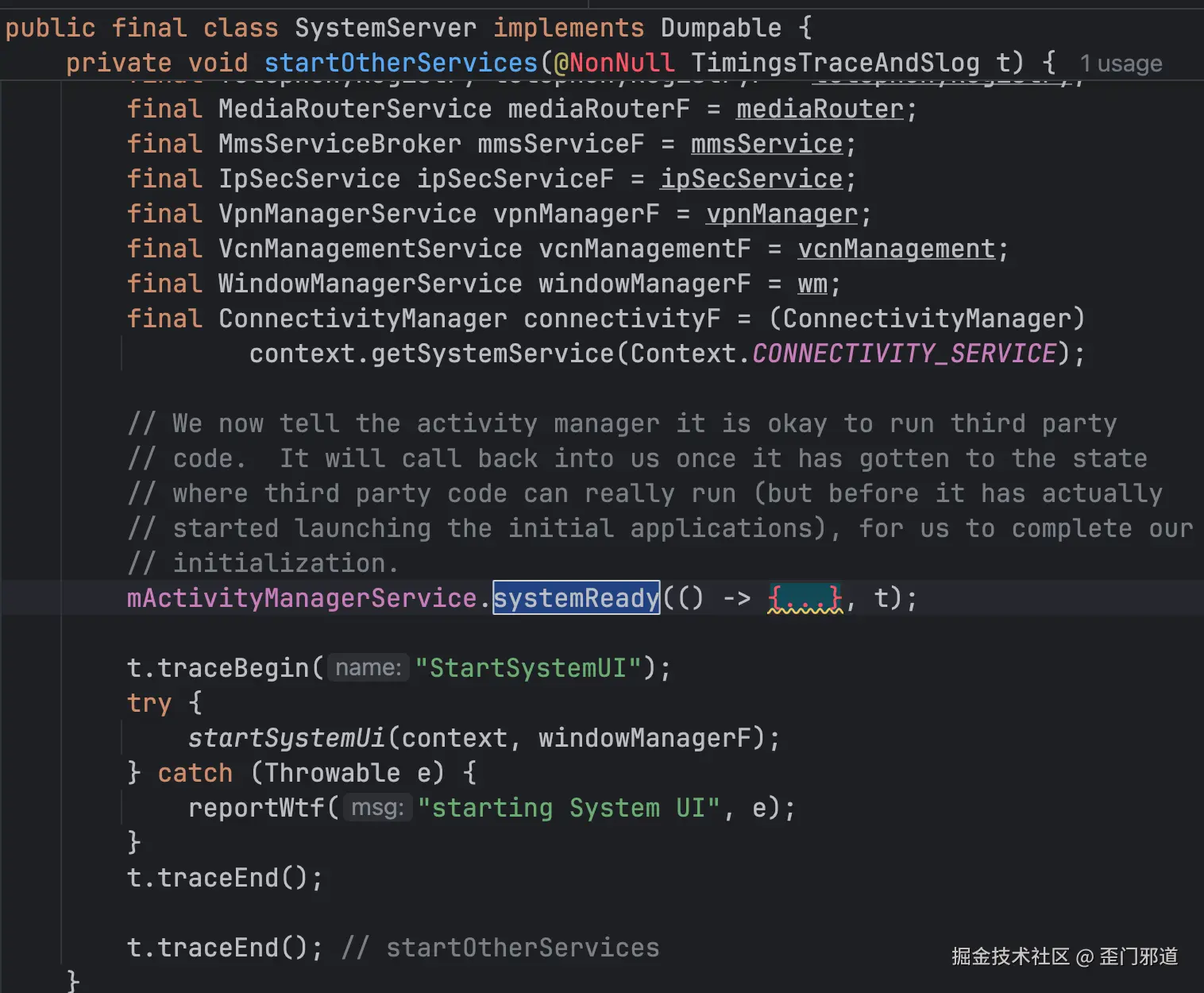

每个服务初始化成功后回调systemReady

startOtherService最后开始执行startSystemUI

注意：

SystemServerManager是systemServer的服务管理类

ServiceManager是应用层跨进程调用时常用的服务类（Binder DNS服务器）
