springboot+Loki+Grafana集成日志监控系统

安装配置

• 创建目录

mkdir -p /opt/lpg/{loki,promtail}
mkdir -p /opt/lpg/loki/{data,config}

• 创建配置文件 loki-config.yaml
vim /opt/lpg/loki/conf/loki-config.yaml 内容如下

auth_enabled: false

server:
  http_listen_port: 3100

common:                             #通用配置
  path_prefix: /opt/lpg/loki
  storage:
    filesystem:
      chunks_directory: /opt/lpg/loki/chunks
      rules_directory: /opt/lpg/loki/rules
  replication_factor: 1
  ring:
    kvstore:
      store: inmemory

schema_config:
  configs:
    - from: 2020-10-24               # 架构配置的生效日期
      store: boltdb-shipper          # 存储类型
      object_store: filesystem       # 对象存储类型为文件系统
      schema: v11                    # 架构版本
      index:                         # 索引配置
        prefix: index_               # 索引前缀
        period: 24h                  # 索引周期

storage_config:                                                # 存储相关
  boltdb_shipper:
    active_index_directory: /opt/lpg/loki/boltdb-shipper-active        # 活动索引的目录
    cache_location: /opt/lpg/loki/boltdb-shipper-cache                 # 缓存位置
    cache_ttl: 24h                                             # 缓存的过期时间
    shared_store: filesystem                                   # 共享存储类型为文件系统
  filesystem:
    directory: /opt/lpg/loki/chunks                                    # 文件系统的目录

compactor:
  working_directory: /opt/lpg/loki/boltdb-shipper-compactor            # 紧缩器的工作目录
  shared_store: filesystem                                     # 共享存储类型为文件系统

limits_config:
  reject_old_samples: true               # 是否拒绝旧样本
  reject_old_samples_max_age: 72h        # 72小时之前的样本被拒绝
  max_entries_limit_per_query: 9999      # 数值改为自己想要的最大查询行数
  ingestion_rate_mb: 32                  # mb单位，每个用户每秒的采样率限制  不设置客户端会报错
  ingestion_burst_size_mb: 64            # 每个用户允许的采样突发大小

chunk_store_config:
  max_look_back_period: 72h              # 为避免查询超过保留期的数据，必须小于或等于下方的时间值

table_manager:
  retention_deletes_enabled: true        # 保留删除开启
  retention_period: 72h                  # 超过72h的块数据将被删除

ruler:
  alertmanager_url: http://localhost:9093

• 创建配置文件 promtail-config.yaml
vim /opt/lpg/promtail/promtail-config.yaml 内容如下

server:
 http_listen_port: 9080 #云服务器需开放9080端口
 grpc_listen_port: 0

positions:
 filename: /tmp/positions.yaml

#loki地址
clients:
 - url: http://loki:3100/loki/api/v1/push


scrape_configs:
- job_name: servername-file
 static_configs:
 - targets:
   - localhost
   labels:
     job: servername-file                  #变量定义类型
     __path__: /data/server/logs/*.log        #收集程序输出的日志

• 使用docker安装，创建 docker-compose.yml
vim /opt/lpg/docker-compose.yml

version: '3'

networks:
 loki:

services:
#数据库
 loki:
   container_name: loki
   image: grafana/loki:2.6.1
   ports:
     - "3100:3100"
     - "9095:9095"
   volumes:
     - /opt/lpg/loki/data:/var/loki
     - /opt/lpg/loki/conf/loki-config.yaml:/etc/loki/local-config.yaml
   user: root               #不开报错
   command: ["-config.file=/etc/loki/local-config.yaml"]
   networks:
     - loki


#收集
 promtail:
   image: grafana/promtail:2.1.0
   container_name: promtail
   restart: always
   ports:
     - 9080:9080
   volumes:
     - /opt/lpg/promtail/promtail-config.yaml:/opt/promtail-config.yaml
     - /data/server/logs/:/data/server/logs/                         #文件日志路径挂到容器
     - /etc/localtime:/etc/localtime:ro
   privileged: true           #不开报错
   deploy:
     resources:
       limits:
         memory: 2G
       reservations:
         memory: 200M
   logging:
       driver: json-file
       options:
         max-size: "200m"
         max-file: "4"
   command: ["-config.file=/opt/promtail-config.yaml"]
   networks:
     - loki


#grafana web界面,已有的话可不需要
 grafana:
   image: grafana/grafana:9.5.18
   restart: "always"
   ports:
     - 3000:3000
   container_name: "grafana"
   networks:
     - loki

• 最后一步启动
  docker-compose -f docker-compose.yml up -d

• 打开登录Grafana
  http://127.0.0.1:3000 默认账号密码： admin/admin

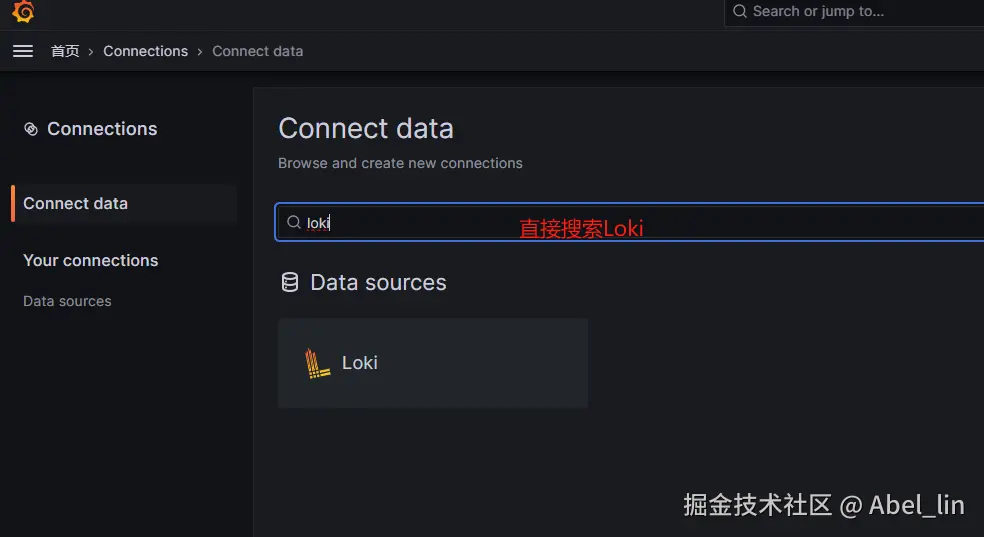

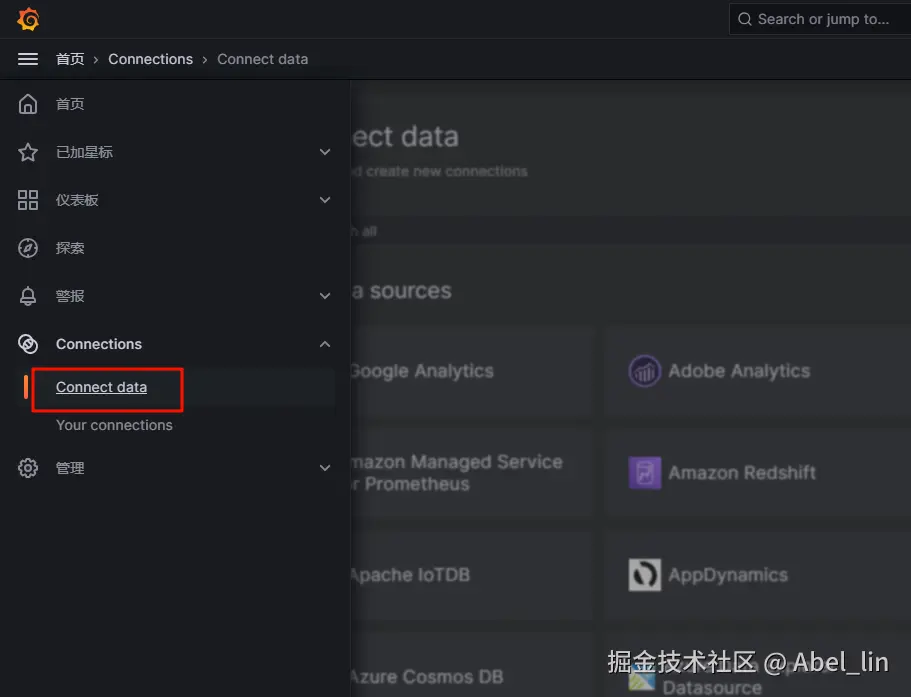

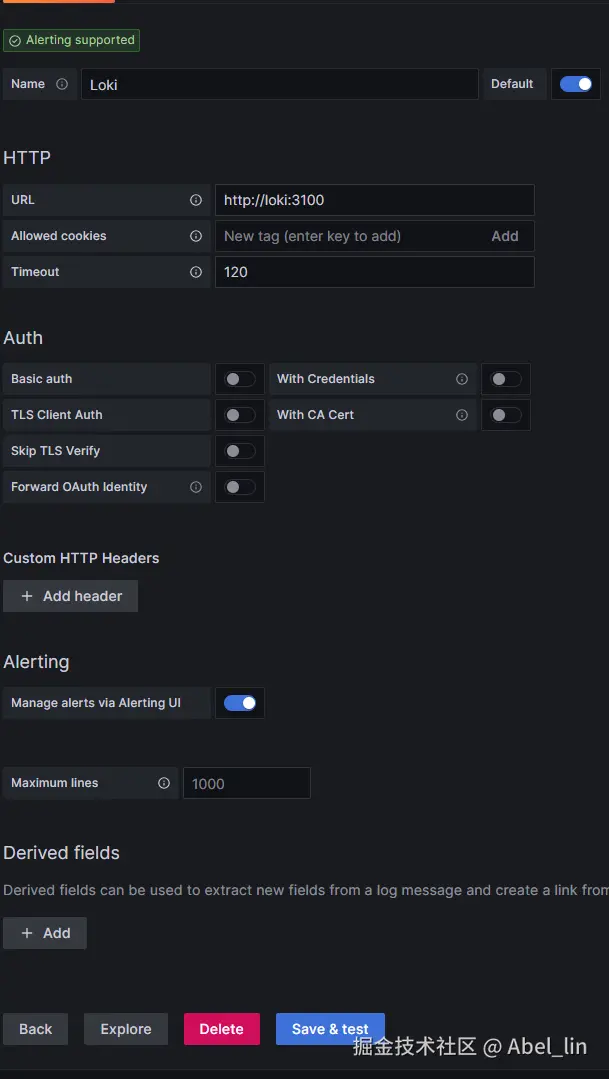

• 添加Loki数据源

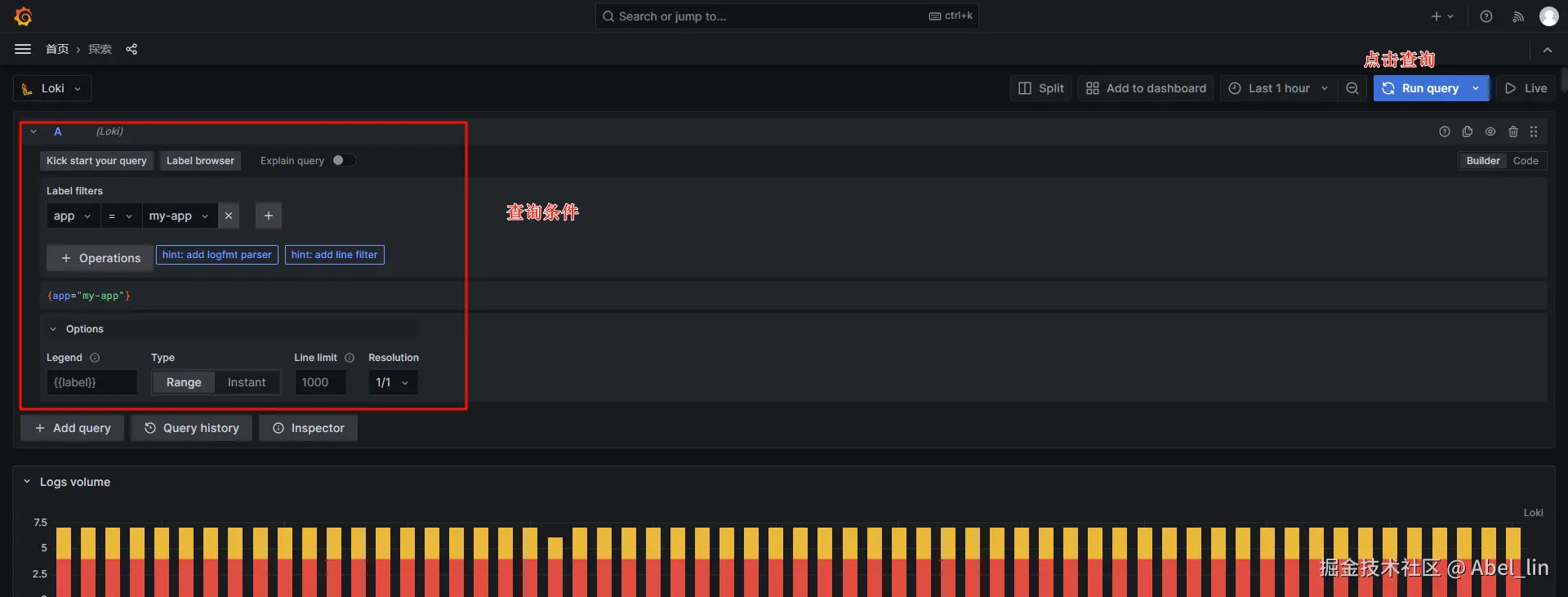

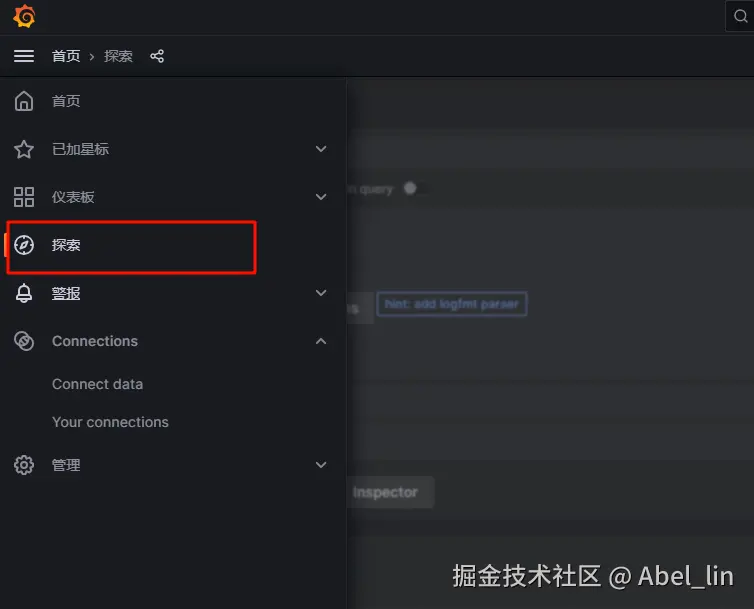

• 查看日志

springboot集成

• JDK8版本
  • maven

  <dependency>
      <groupId>com.github.loki4j</groupId>
      <artifactId>loki-logback-appender-jdk8</artifactId>
      <version>1.5.1</version>
  </dependency>
  <dependency>
      <groupId>org.apache.httpcomponents</groupId>
      <artifactId>httpclient</artifactId>
      <version>4.5.14</version>
  </dependency>


  • logback-spring.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="false">
    <springProperty scope="context" name="logPath" source="logback.path"/>
    <springProperty scope="context" name="logLevel" source="logback.level"/>
    <!--定义日志文件的存储地址 勿在 LogBack 的配置中使用相对路径-->
    <property name="LOG_HOME" value="${logPath}" />

    <contextName>logback</contextName>
    <!-- 控制台输出 -->
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <!--格式化输出：%d表示日期，%thread表示线程名，%-5level：级别从左显示5个字符宽度%msg：日志消息，%n是换行符-->
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] [%X{mdc_trace_id}] %-5level %logger{50}[%line] - %msg  %n</pattern>
        </encoder>
    </appender>
    <!-- 按照每天生成日志文件 -->
    <appender name="FILE"  class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <!--日志文件输出的文件名-->
            <FileNamePattern>${LOG_HOME}/flow.%d{yyyy-MM-dd}.log</FileNamePattern>
            <!--日志文件保留天数-->
            <MaxHistory>15</MaxHistory>
        </rollingPolicy>
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <!--格式化输出：%d表示日期，%thread表示线程名，%-5level：级别从左显示5个字符宽度%msg：日志消息，%n是换行符-->
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] [%X{mdc_trace_id}] %-5level %logger{50}[%line] - %msg %n</pattern>
        </encoder>
        <!--日志文件最大的大小-->
        <!--<triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <MaxFileSize>10MB</MaxFileSize>
        </triggeringPolicy>-->
    </appender>

    <!-- Loki输出器 -->
    <appender name="LOKI" class="com.github.loki4j.logback.Loki4jAppender">
        <batchMaxItems>100</batchMaxItems>
        <batchTimeoutMs>10000</batchTimeoutMs>
        <verbose>true</verbose>
        <http class="com.github.loki4j.logback.ApacheHttpSender">
            <url>http://127.0.0.1:3100/loki/api/v1/push</url>
        </http>
        <format>
            <label>
                <pattern>app=my-app,host=${HOSTNAME},level=%level</pattern>
            </label>
            <message>
                <pattern>l=%level h=${HOSTNAME} c=%logger{20} t=%thread | %msg %ex %n</pattern>
            </message>
            <sortByTime>true</sortByTime>
        </format>
    </appender>

    <!-- 日志输出级别 -->
    <!--日志级别从低到高分为TRACE、DEBUG、INFO、WARN、ERROR、FATAL-->
    <root level="${logLevel}">
        <appender-ref ref="STDOUT" />
        <appender-ref ref="FILE" />
        <appender-ref ref="LOKI" />
    </root>
</configuration>

• JDK11以上版本
  • maven

  <dependency>
      <groupId>com.github.loki4j</groupId>
      <artifactId>loki-logback-appender</artifactId>
      <version>1.5.1</version>
  </dependency>


  • logback-spring.xml

......
......省略

<appender name="LOKI" class="com.github.loki4j.logback.Loki4jAppender">
    <http>
        <url>http://127.0.0.1:3100/loki/api/v1/push</url>
    </http>
    <format>
        <label>
            <pattern>app=my-app,host=${HOSTNAME}</pattern>
        </label>
        <message>
            <pattern>%-5level [%.5(${HOSTNAME})] %.10thread %logger{20} | %msg %ex</pattern>
        </message>
    </format>
</appender>

......省略
......

结束
