Android Compose-Coli的使用

1、简介

Coil 是一个 Android官方出的配合Jetpack的图片加载库，通过 Kotlin 协程的方式加载图片。

优点如下：

• 1、更快: Coil 在性能上有很多优化，包括内存缓存和磁盘缓存，把缩略图存保存在内存中，循环利用 bitmap，自动暂停和取消图片网络请求等。
• 2、更轻量级: Coil 只有2000个方法（前提是你的 APP 里面集成了 OkHttp 和 Coroutines），Coil 和 Picasso 的方法数差不多，相比 Glide 和 Fresco 要轻量很多。
• 3、更容易使用: Coil 的 API 充分利用了 Kotlin 语言的新特性，简化和减少了很多样板代码。
• 4、更流行: Coil 首选 Kotlin 语言开发并且使用包含 Coroutines, OkHttp, Okio 和 AndroidX Lifecycles 在内最流行的开源库。 Coil 名字的由来：取 Coroutine Image Loader 首字母得来。

特别注意：测试网络图片的时候，一定不能用抓包软件，否则加载图片一直失败。比如：“Fiddler，Charles”

网络地址如下：

//地址1
var url2 = "https://pics0.baidu.com/feed/7aec54e736d12f2ee8c94a04bcb8b86c8435680b.jpeg?token=07f3032201a4fc0dada915da1ae1cf99"

//地址2
var url2 = "https://p6-xtjj-sign.byteimg.com/tos-cn-i-73owjymdk6/7e67b4eac34a4fd8945c054ffe483b25~tplv-73owjymdk6-jj-mark:0:0:0:0:q75.awebp?rk3s=f64ab15b&x-expires=1723785807&x-signature=%2BeLA%2B%2BSd%2Fl8WNYv7uzVSMnjwfNQ%3D"

2、添加依赖：

dependencies {
    implementation "io.coil-kt:coil-compose:2.2.2"
    implementation "io.coil-kt:coil-svg:2.2.2"
    implementation "com.github.skydoves:landscapist-coil:2.0.3"
    implementation "com.github.skydoves:landscapist-glide:2.1.0"
    implementation "com.github.skydoves:cloudy:0.1.1"
    implementation "io.coil-kt:coil-gif:2.3.0"
}

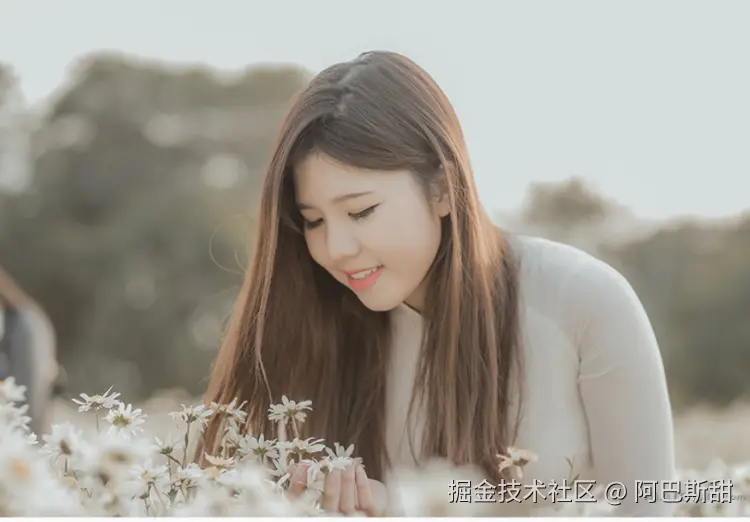

3、Coli加载网络图片：

@Preview
@Composable
fun AsyncImageDemo() {
    AsyncImage(
        model = ImageRequest.Builder(LocalContext.current)
            .data(ImageUrl.testUrl1)
            .crossfade(true)
            .build(),
        contentDescription = "compose",
        placeholder = painterResource(id = R.mipmap.place_holder),
        error = painterResource(id = R.mipmap.place_holder),
        onSuccess = {
            Log.d(TAG, "success")
        },
        onError = { error ->
            Log.d(TAG, "error")
        },
        onLoading = { loading ->
            Log.d(TAG, "loading")
        },
        modifier = Modifier.clip(CircleShape)
    )
}

4、异步加载图片：

@Preview
@Composable
fun SubcomposeAsyncImageDemo() {
    SubcomposeAsyncImage(
        model = ImageRequest
            .Builder(LocalContext.current)
            .data(ImageUrl.testUrl1)
            .build(),
        contentDescription = "compose_museum"
    ) {
        if (painter.state is AsyncImagePainter.State.Loading || painter.state is AsyncImagePainter.State.Error) {
            CircularProgressIndicator()
        } else {
            SubcomposeAsyncImageContent()
        }
    }
}

5、网络进度加载图片：

@Preview
@Composable
fun AsyncImagePainterDemo() {
    Column(horizontalAlignment = Alignment.CenterHorizontally) {
        SubcomposeAsyncImage(
            model = ImageUrl.testUrl2 ,
            loading = { CircularProgressIndicator() },
            contentDescription = null,
            modifier = Modifier.size(200.dp,600.dp)
        )
        SubcomposeAsyncImage(
            model = ImageUrl.testUrl2 ,
            contentDescription = null,
            modifier = Modifier.size(200.dp)
        ) {
            val state = painter.state
            when(state) {
                is AsyncImagePainter.State.Loading -> CircularProgressIndicator()
                is AsyncImagePainter.State.Error -> Text("${state.result.throwable}")
                is AsyncImagePainter.State.Success -> SubcomposeAsyncImageContent()
                is AsyncImagePainter.State.Empty -> Text("Empty")
            }
        }
    }
}

6、Coli加载圆形图片：

@Composable
fun circleImageDemo() {
    Column(
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        Image(
            modifier = Modifier
                .fillMaxWidth()
                .height(500.dp),
            painter = rememberImagePainter(
                data = ImageUrl.testUrl1,
                builder = {
                    placeholder(R.mipmap.avatar)
                    crossfade(true)
                    transformations(CircleCropTransformation())//圆形图片
                }),
            contentDescription = "composeCircleDemo"
        )
        Spacer(modifier = Modifier.width(10.dp))
        Text(text = "圆形图片示例")
    }
}

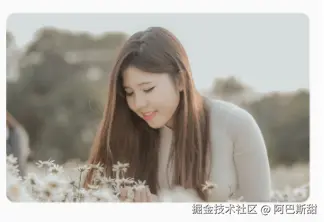

7、Coli加载圆角图片

@Preview
@Composable
fun clipImageDemo() {
    Column(horizontalAlignment = Alignment.CenterHorizontally) {
        Image(
            modifier = Modifier
                .fillMaxWidth()
                .padding(20.dp)
                .height(400.dp),
            painter = rememberImagePainter(
                data = ImageUrl.testUrl1,
                builder = {
                    placeholder(R.mipmap.avatar)
                    crossfade(true)
                    transformations(RoundedCornersTransformation(30f, 30f, 30f, 30f))
                }),
            contentDescription = "composeClipDemo"
        )
        Text(text = "加载圆角图片")
    }
}

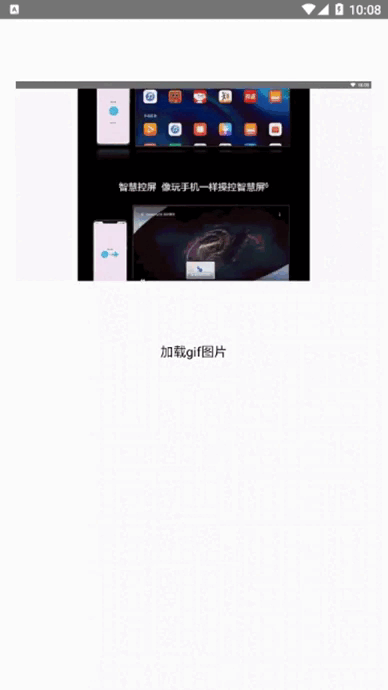

8、Coli加载gif图片：

@Preview
@Composable
fun coliLoadGifDemo() {
    Column(horizontalAlignment = Alignment.CenterHorizontally) {
        //自己构建图片加载器
        val imageLoader = ImageLoader.Builder(LocalContext.current)
            .components(fun ComponentRegistry.Builder.() {
                if (SDK_INT >= 28) {
                    add(ImageDecoderDecoder.Factory())
                } else {
                    add(GifDecoder.Factory())
                }
            }).build()
        Image(
            modifier = Modifier
                .fillMaxWidth()
                .height(400.dp)
                .padding(20.dp),
            painter = rememberImagePainter(
                data = ImageUrl.testGif,
                imageLoader = imageLoader,
                builder = {
                    placeholder(R.mipmap.avatar)//占位图
                    crossfade(true)//淡出效果
                }),
            contentDescription = null
        )
        Text(text = "加载gif图片")
    }
}

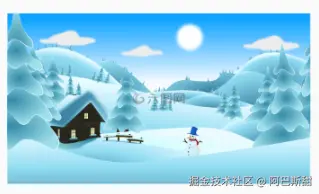

9、Coli加载svg图片：

@Preview
@Composable
fun CoilSvgDemo() {
    //coli加载svg图片,这里的图片格式是由svg转换后，虽然后缀不少.svg
    val context = LocalContext.current
    val imageLoader = ImageLoader.Builder(context)
        .components { add(SvgDecoder.Factory()) }
        .crossfade(true)
        .build()
    Column(horizontalAlignment = Alignment.CenterHorizontally) {
        Image(
            painter = rememberAsyncImagePainter(
                ImageUrl.svgUrl2,
                imageLoader = imageLoader,
            ),
            contentDescription = null,
            modifier = Modifier
                .fillMaxWidth()
                .height(400.dp)
                .padding(20.dp)
        )
        Text(text = "coli加载svg格式图片")
    }
}

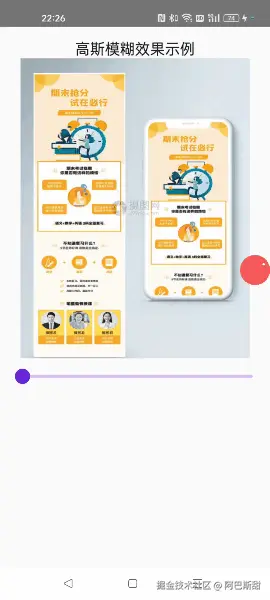

10、Cloudy高斯模糊图片：

loudy 是一个专门处理Jectpack Compose中的Blur高斯模糊效果的支持库，它可以向后兼容低版本，由于官方的SDK中的Modifier.blur()修饰符只能支持运行在Android 12+的设备上才有效果，所以可以使用该库做兼容支持。

Cloudy 也不属于 Accompanist 库的一部分，是一个三方库，这里只是实现一下效果.

@Preview(showBackground = true)
@Composable
fun ModifierBlurSample() {
    Column(
        Modifier.padding(15.dp),
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        var progress by remember{ mutableStateOf(0f)}
        val radius by animateDpAsState(targetValue = (progress * 10f).dp)
        Text(
            text = "高斯模糊效果示例",
            Modifier.blur(
                radius = radius,
                edgeTreatment = BlurredEdgeTreatment.Unbounded
            ),
            fontSize = 20.sp
        )
        Image(
            painter = painterResource(id = R.mipmap.avatar),
            contentDescription = null,
            modifier = Modifier
                .height(400.dp)
                .fillMaxWidth()
                .blur(
                    radius = radius,
                    edgeTreatment = BlurredEdgeTreatment.Unbounded
                ),
        )
        Slider(
            value = progress,
            onValueChange = { progress = it },
        )
    }
}

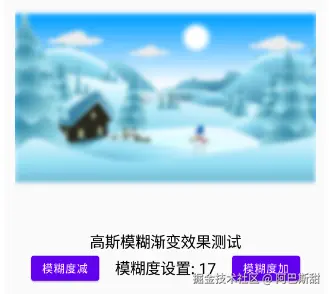

11、设置模糊度效果：

@Preview
@Composable
fun BlurCloudyLibSample() {
    Column(
        Modifier.padding(15.dp),
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        var radius by remember{ mutableStateOf(0)}
        // radius支持范围是[0..25]
        Cloudy(radius = radius) {
            Column {
                AsyncImage(
                    model = ImageUrl.testUrl2,
                    contentDescription = null,
                    onSuccess = { radius = 1 },
                    modifier = Modifier
                        .fillMaxWidth()
                        .height(400.dp)
                )
                Spacer(modifier = Modifier.width(20.dp))
                Text(text = "高斯模糊渐变效果测试", fontSize = 30.sp)
            }
        }
        Spacer(modifier = Modifier.width(20.dp))
        Row(
            modifier = Modifier.fillMaxWidth(),
            horizontalArrangement = Arrangement.SpaceEvenly,
            verticalAlignment = Alignment.CenterVertically
        ) {
            Button(onClick = { if (radius > 0) radius-- }) { Text(text = "模糊度减") }
            Text(text = "radius: $radius", fontSize = 30.sp)
            Button(onClick = { if (radius < 25) radius++ }) { Text(text = "模糊度加") }
        }
    }

}

12、完整代码如下：

package com.example.composemodifiterdemo

import android.content.ContentValues.TAG
import android.os.Build.VERSION.SDK_INT
import android.os.Bundle
import android.util.Log
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.animation.core.animateDpAsState
import androidx.compose.foundation.Image
import androidx.compose.foundation.clickable
import androidx.compose.foundation.interaction.MutableInteractionSource
import androidx.compose.foundation.layout.*
import androidx.compose.material.Button
import androidx.compose.material.CircularProgressIndicator
import androidx.compose.material.Slider
import androidx.compose.material.Text
import androidx.compose.runtime.*
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.BlurredEdgeTreatment
import androidx.compose.ui.draw.blur
import androidx.compose.ui.layout.ContentScale
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.res.painterResource
import androidx.compose.ui.tooling.preview.Preview
import androidx.compose.ui.unit.dp
import androidx.compose.ui.unit.sp
import coil.ComponentRegistry
import coil.ImageLoader
import coil.compose.*
import coil.decode.GifDecoder
import coil.decode.ImageDecoderDecoder
import coil.decode.SvgDecoder
import coil.request.ImageRequest
import coil.transform.CircleCropTransformation
import coil.transform.RoundedCornersTransformation
import com.skydoves.cloudy.Cloudy
import com.skydoves.landscapist.ImageOptions
import com.skydoves.landscapist.coil.CoilImage

/**
 *@author: njb
 *@date:  2023/3/15 17:56
 *@desc:
 */

class ColiSampleActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent {
            //AsyncImageDemo()
            // SubComposeAsyncImageDemo()
            // AsyncImagePainterDemo()
            //circleImageDemo()
            //clipImageDemo()
            coliLoadGifDemo()
            //CoilSvgDemo()
            // CoilImageSVGDemo()
            //loadBlurSample()
           // BlurCloudyLibSample()
        }
    }
}

@Preview
@Composable
fun AsyncImageDemo() {
    AsyncImage(
        model = ImageRequest.Builder(LocalContext.current)
            .data(ImageUrl.testUrl1)
            .crossfade(true)
            .build(),
        contentDescription = "compose",
        placeholder = painterResource(id = R.mipmap.place_holder),
        error = painterResource(id = R.mipmap.place_holder),
        onSuccess = {
            Log.d(TAG, "success")
        },
        modifier = Modifier
            .fillMaxWidth()
            .height(500.dp)
    )
}

@Composable
fun circleImageDemo() {
    Column(
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        Image(
            modifier = Modifier
                .fillMaxWidth()
                .height(500.dp),
            painter = rememberImagePainter(
                data = ImageUrl.testUrl1,
                builder = {
                    placeholder(R.mipmap.avatar)
                    crossfade(true)
                    transformations(CircleCropTransformation())//圆形图片
                }),
            contentDescription = "composeCircleDemo"
        )
        Spacer(modifier = Modifier.width(10.dp))
        Text(text = "圆形图片示例")
    }
}

@Preview
@Composable
fun clipImageDemo() {
    Column(horizontalAlignment = Alignment.CenterHorizontally) {
        Image(
            modifier = Modifier
                .fillMaxWidth()
                .padding(20.dp)
                .height(400.dp),
            painter = rememberImagePainter(
                data = ImageUrl.testUrl1,
                builder = {
                    placeholder(R.mipmap.avatar)
                    crossfade(true)
                    transformations(RoundedCornersTransformation(30f, 30f, 30f, 30f))
                }),
            contentDescription = "composeClipDemo"
        )
        Text(text = "加载圆角图片")
    }
}

@Preview
@Composable
fun coliLoadGifDemo() {
    Column(horizontalAlignment = Alignment.CenterHorizontally) {
        //自己构建图片加载器
        val imageLoader = ImageLoader.Builder(LocalContext.current)
            .components(fun ComponentRegistry.Builder.() {
                if (SDK_INT >= 28) {
                    add(ImageDecoderDecoder.Factory())
                } else {
                    add(GifDecoder.Factory())
                }
            }).build()
        Image(
            modifier = Modifier
                .fillMaxWidth()
                .height(400.dp)
                .padding(20.dp),
            painter = rememberImagePainter(
                data = ImageUrl.testGif,
                imageLoader = imageLoader,
                builder = {
                    placeholder(R.mipmap.avatar)//占位图
                    crossfade(true)//淡出效果
                }),
            contentDescription = null
        )
        Text(text = "加载gif图片")
    }
}


@Preview
@Composable
fun SubComposeAsyncImageDemo() {
    SubcomposeAsyncImage(
        model = ImageRequest
            .Builder(LocalContext.current)
            .data(ImageUrl.testUrl2)
            .build(),
        contentDescription = "composeAsyncDemo",
        modifier = Modifier
            .fillMaxWidth()
            .height(500.dp)
    ) {
        if (painter.state is AsyncImagePainter.State.Loading || painter.state is AsyncImagePainter.State.Error) {
            CircularProgressIndicator()
        } else {
            SubcomposeAsyncImageContent()
        }
    }
    Text(text = "composeAsyncDemo")
}


@Preview
@Composable
fun AsyncImagePainterDemo() {
    Column(horizontalAlignment = Alignment.CenterHorizontally) {
        SubcomposeAsyncImage(
            model = ImageUrl.testUrl2,
            loading = { CircularProgressIndicator() },
            contentDescription = null,
            modifier = Modifier.size(200.dp, 600.dp)
        )
        SubcomposeAsyncImage(
            model = ImageUrl.testUrl2,
            contentDescription = null,
            modifier = Modifier.size(200.dp)
        ) {
            val state = painter.state
            when (state) {
                is AsyncImagePainter.State.Loading -> CircularProgressIndicator()
                is AsyncImagePainter.State.Error -> Text("${state.result.throwable}")
                is AsyncImagePainter.State.Success -> SubcomposeAsyncImageContent()
                is AsyncImagePainter.State.Empty -> Text("Empty")
            }
        }
    }
}

@Preview
@Composable
fun CoilSvgDemo() {
    //coli加载svg图片
    val context = LocalContext.current
    val imageLoader = ImageLoader.Builder(context)
        .components { add(SvgDecoder.Factory()) }
        .crossfade(true)
        .build()
    Image(
        painter = rememberAsyncImagePainter(
            ImageUrl.svgUrl2,
            imageLoader = imageLoader,
        ),
        contentDescription = null,
        modifier = Modifier
            .fillMaxWidth()
            .height(400.dp)
    )
}

@Composable
fun CoilImageSVGDemo() {
    // 加载网络svg
    val context = LocalContext.current
    val imageLoader = ImageLoader.Builder(context)
        .components { add(SvgDecoder.Factory()) }
        .build()
    var flag by remember { mutableStateOf(false) }
    val size by animateDpAsState(targetValue = if (flag) 600.dp else 300.dp)
    CoilImage(
        imageModel = { ImageUrl.svgUrl2 },
        imageOptions = ImageOptions(
            contentScale = ContentScale.Crop,
            alignment = Alignment.Center
        ),
        modifier = Modifier
            .size(size)
            .clickable(
                onClick = { flag = !flag },
                indication = null,
                interactionSource = MutableInteractionSource()
            ),
        imageLoader = { imageLoader }
    )
}

@Preview(showBackground = true)
@Composable
fun loadBlurSample() {
    Column(
        Modifier.padding(15.dp),
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        var progress by remember { mutableStateOf(0f) }
        val radius by animateDpAsState(targetValue = (progress * 10f).dp)
        Text(
            text = "高斯模糊效果示例",
            Modifier.blur(
                radius = radius,
                edgeTreatment = BlurredEdgeTreatment.Unbounded
            ),
            fontSize = 20.sp
        )
        Image(
            painter = painterResource(id = R.mipmap.test_iage),
            contentDescription = null,
            modifier = Modifier
                .height(400.dp)
                .fillMaxWidth()
                .blur(
                    radius = radius,
                    edgeTreatment = BlurredEdgeTreatment.Unbounded
                ),
        )
        Slider(
            value = progress,
            onValueChange = { progress = it },
        )
    }
}

@Preview
@Composable
fun BlurCloudyLibSample() {
    Column(
        Modifier.padding(15.dp),
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        var radius by remember { mutableStateOf(0) }
        // 模糊度支持范围是[0..25]
        Cloudy(radius = radius) {
            Column {
                AsyncImage(
                    model = ImageUrl.svgUrl2,
                    contentDescription = null,
                    onSuccess = { radius = 1 },
                    modifier = Modifier
                        .fillMaxWidth()
                        .height(400.dp)
                )
            }
        }
        Text(text = "高斯模糊渐变效果测试", fontSize = 20.sp)
        Row(
            modifier = Modifier.fillMaxWidth(),
            horizontalArrangement = Arrangement.SpaceEvenly,
            verticalAlignment = Alignment.CenterVertically
        ) {
            Button(onClick = { if (radius > 0) radius-- }) { Text(text = "模糊度减") }
            Text(text = "模糊度设置: $radius", fontSize = 20.sp)
            Button(onClick = { if (radius < 25) radius++ }) { Text(text = "模糊度加") }
        }
    }
}

class ImageUrl {
    companion object {
        val url: String by lazy {
            "https://qcloudimg-moss.cp47.ott.cibntv.net/data_center/files/2022/10/26/67a66d35-3f7c-4de8-9dfe-c706e42f44f2.jpg"
        }
        var urlTest: String =
            "https://pic-go-bed.oss-cn-beijing.aliyuncs.com/img/20220316151929.png"
        var svgUrl: String =
            "https://developer.android.google.cn/static/images/jetpack/compose/animation-flowchart.svg"
        var svgUrl2 = "https://photo.16pic.com/00/76/45/16pic_7645957_b.png"
        var svgUrl3 = "https://photo.16pic.com/00/64/28/16pic_6428912_b.png"
        var svgUrl4 =
            "https://img0.baidu.com/it/u=480894149,21356393&fm=253&fmt=auto&app=138&f=JPEG?w=786&h=500"
        var svgUrl5 =
            "https://img1.baidu.com/it/u=4053028698,2643070273&fm=253&fmt=auto&app=138&f=JPEG?w=1200&h=500"
        var testUrl =
            "https://img0.baidu.com/it/u=450558320,2864057328&fm=253&fmt=auto&app=138&f=JPEG?w=889&h=500"
        var testUrl1 = "https://image5.cnpp.cn/upload/images/20171114/11542556845_840x560.jpg"
        var testUrl2 =
            "https://img2.baidu.com/it/u=3107178066,1951512797&fm=253&fmt=auto&app=138&f=JPEG?w=704&h=500"
        var testGif = "https://img-blog.csdnimg.cn/b286b49591dc4bbd8578300a6e6cfb8e.gif#pic_center"
    }
}
