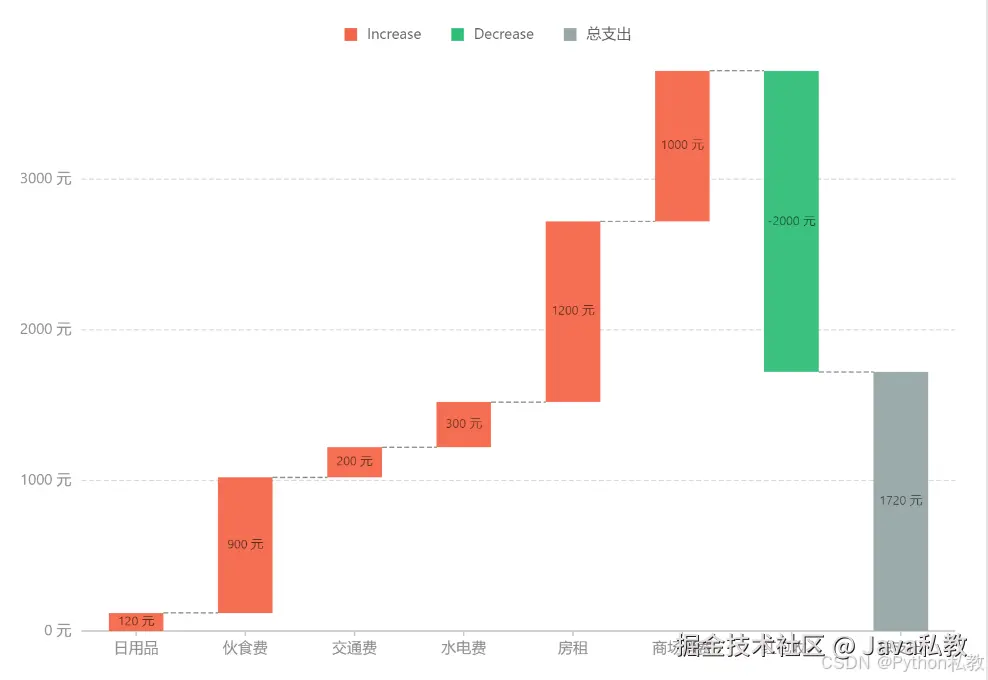

基础瀑布图 - 每月收支情况
效果预览：
核心代码：
import { Waterfall } from '@antv/g2plot';
const data = [ { type: '日用品', money: 120 }, { type: '伙食费', money: 900 }, { type: '交通费', money: 200 }, { type: '水电费', money: 300 }, { type: '房租', money: 1200 }, { type: '商场消费', money: 1000 }, { type: '红包收入', money: -2000 },];
const waterfallPlot = new Waterfall('container', {
data,
xField: 'type',
yField: 'money',
appendPadding: [15, 0, 0, 0],
meta: {
type: {
alias: '类别',
},
money: {
alias: '收支',
formatter: (v) => `${v} 元`,
},
},
label: {
style: { fontSize: 10, fill: 'rgba(0,0,0,0.65)' },
layout: [{ type: 'interval-adjust-position' }],
},
total: {
label: '总支出',
style: {
fill: '#96a6a6',
},
},
});
waterfallPlot.render();

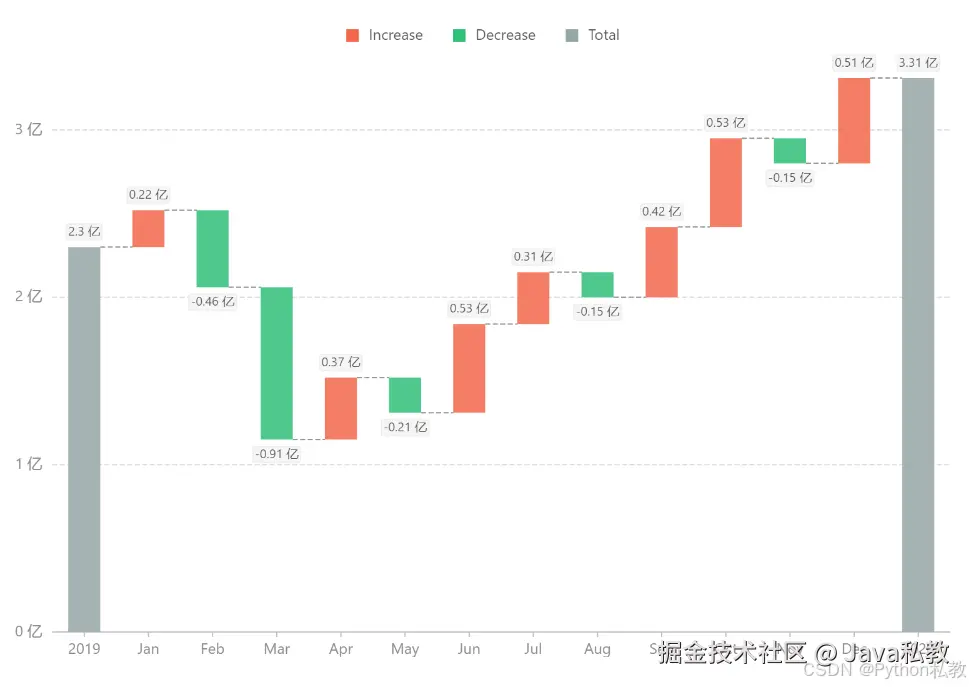

变化瀑布图 - 销售量一年的变化情况
效果预览：
核心代码：
import { Waterfall } from '@antv/g2plot';
const data = [ { month: '2019', value: 23000000 }, { month: 'Jan', value: 2200000 }, { month: 'Feb', value: -4600000 }, { month: 'Mar', value: -9100000 }, { month: 'Apr', value: 3700000 }, { month: 'May', value: -2100000 }, { month: 'Jun', value: 5300000 }, { month: 'Jul', value: 3100000 }, { month: 'Aug', value: -1500000 }, { month: 'Sep', value: 4200000 }, { month: 'Oct', value: 5300000 }, { month: 'Nov', value: -1500000 }, { month: 'Dec', value: 5100000 },];
const waterfallPlot = new Waterfall('container', {
data,
padding: 'auto',
appendPadding: [20, 0, 0, 0],
xField: 'month',
yField: 'value',
meta: {
month: {
alias: '月份',
},
value: {
alias: '销售量',
formatter: (v) => `${v / 10000000} 亿`,
},
},
/** 展示总计 */
total: {
label: '2020',
},
color: ({ month, value }) => {
if (month === '2019' || month === '2020') {
return '#96a6a6';
}
return value > 0 ? '#f4664a' : '#30bf78';
},
legend: {
custom: true,
items: [
{
name: 'Increase',
value: 'increase',
marker: { symbol: 'square', style: { r: 5, fill: '#f4664a' } },
},
{
name: 'Decrease',
value: 'decrease',
marker: { symbol: 'square', style: { r: 5, fill: '#30bf78' } },
},
{
name: 'Total',
value: 'total',
marker: { symbol: 'square', style: { r: 5, fill: '#96a6a6' } },
},
],
},
label: {
style: {
fontSize: 10,
},
layout: [{ type: 'interval-adjust-position' }],
background: {
style: {
fill: '#f6f6f6',
stroke: '#e6e6e6',
strokeOpacity: 0.65,
radius: 2,
},
padding: 1.5,
},
},
waterfallStyle: () => {
return {
fillOpacity: 0.85,
};
},
});
waterfallPlot.render();

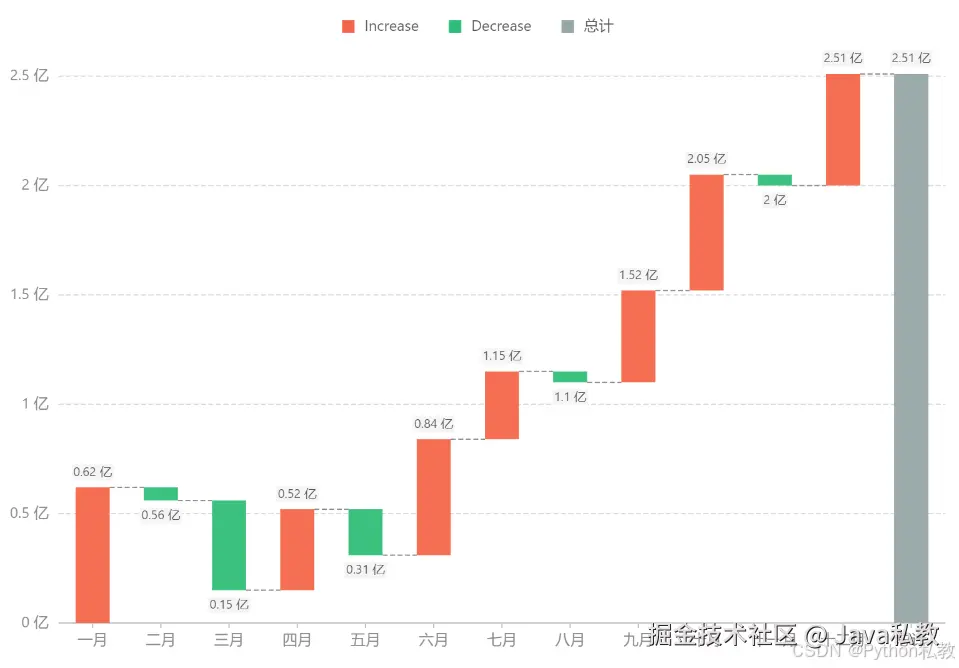

瀑布图 - 数值标签展示绝对值
效果预览：
核心代码：
import { Waterfall } from '@antv/g2plot';
const data = [ { month: '一月', value: 6200000 }, { month: '二月', value: -600000 }, { month: '三月', value: -4100000 }, { month: '四月', value: 3700000 }, { month: '五月', value: -2100000 }, { month: '六月', value: 5300000 }, { month: '七月', value: 3100000 }, { month: '八月', value: -500000 }, { month: '九月', value: 4200000 }, { month: '十月', value: 5300000 }, { month: '十一月', value: -500000 }, { month: '十二月', value: 5100000 },];
const waterfallPlot = new Waterfall('container', {
data,
padding: 'auto',
appendPadding: [20, 0, 0, 0],
xField: 'month',
yField: 'value',
meta: {
month: {
alias: '月份',
},
value: {
alias: '销售量',
formatter: (v) => `${v / 10000000} 亿`,
},
},
/** 展示总计 */
total: {
label: '总计',
style: {
fill: '#96a6a6',
},
},
/** 数据标签展示模式：绝对值 */
labelMode: 'absolute',
label: {
style: {
fontSize: 10,
},
background: {
style: {
fill: '#f6f6f6',
radius: 1,
},
padding: 1.5,
},
},
});
waterfallPlot.render();

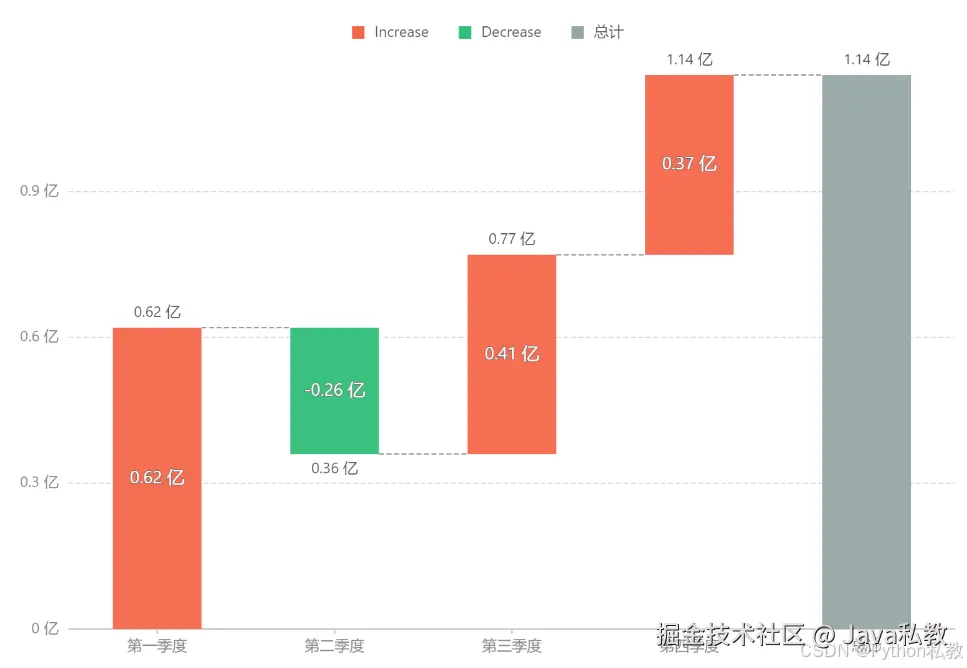

瀑布图 - 添加标注
效果预览：
核心代码：
import { Waterfall } from '@antv/g2plot';
const data = [
{ quarter: '第一季度', value: 6200000 },
{ quarter: '第二季度', value: -2600000 },
{ quarter: '第三季度', value: 4100000 },
{ quarter: '第四季度', value: 3700000 },
];
const formatter = (v) => `${v / 10000000} 亿`;
const annotations = [];
data.reduce((v, d) => {
annotations.push({
type: 'text',
position: () => {
const y = v + d.value / 2;
return [d.quarter, y];
},
content: formatter(d.value),
style: {
fontSize: 14,
stroke: '#666',
fill: '#fff',
lineWidth: 1,
textAlign: 'center',
verticalAlign: 'middle',
},
});
return v + d.value;
}, 0);
const waterfallPlot = new Waterfall('container', {
data,
padding: 'auto',
appendPadding: [20, 0, 0, 0],
xField: 'quarter',
yField: 'value',
meta: {
quarter: {
alias: '月份',
},
value: {
alias: '销售量',
min: 0,
formatter,
},
},
/** 展示总计 */
total: {
label: '总计',
style: {
fill: '#96a6a6',
},
},
/** 数据标签展示模式：绝对值 */
labelMode: 'absolute',
label: {
style: {
fontSize: 12,
},
},
annotations,
});
waterfallPlot.render();
接下来，结合vue3

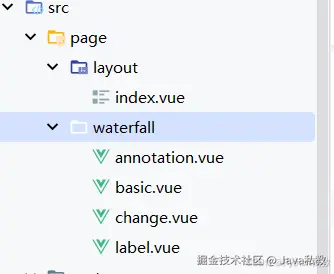

首先，创建相应的waterfall页面：
- basic：基础瀑布图
- change：变化瀑布图
- label：数值标签
- annotation：标注

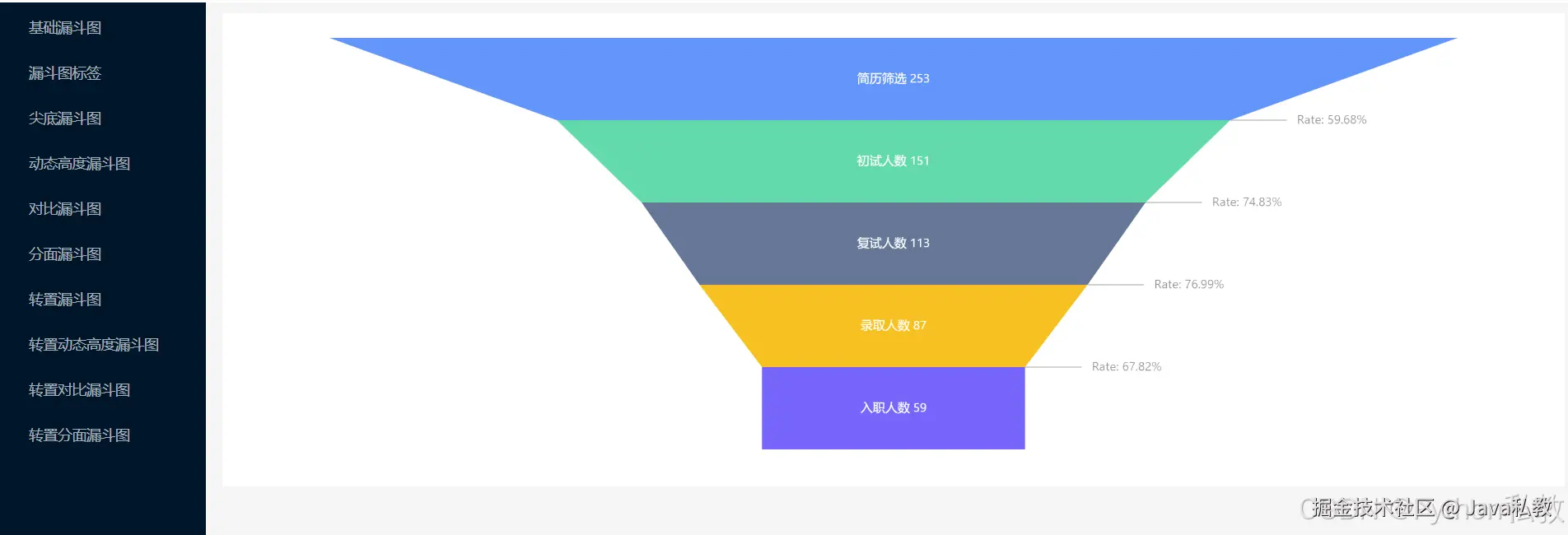

原来的效果：

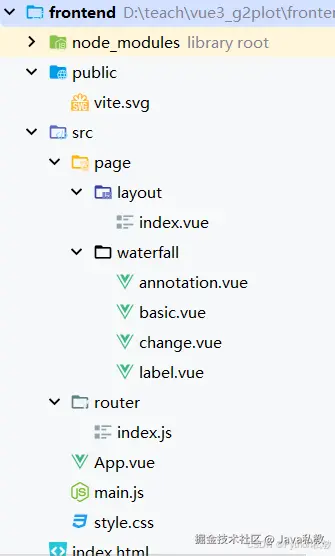

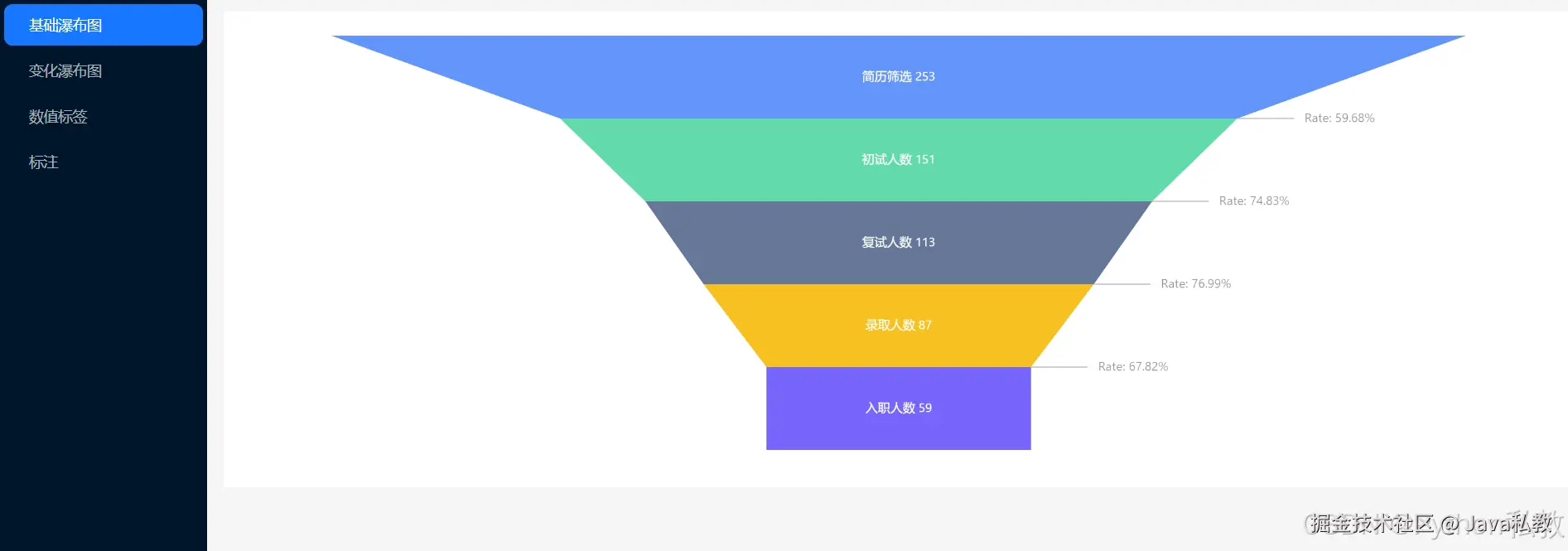

改造后的页面结构： 改造后的页面效果：
vue3版基础瀑布图
核心代码：
import { Waterfall } from '@antv/g2plot';
const data = [ { type: '日用品', money: 120 }, { type: '伙食费', money: 900 }, { type: '交通费', money: 200 }, { type: '水电费', money: 300 }, { type: '房租', money: 1200 }, { type: '商场消费', money: 1000 }, { type: '红包收入', money: -2000 },];
const waterfallPlot = new Waterfall('container', {
data,
xField: 'type',
yField: 'money',
appendPadding: [15, 0, 0, 0],
meta: {
type: {
alias: '类别',
},
money: {
alias: '收支',
formatter: (v) => `${v} 元`,
},
},
label: {
style: { fontSize: 10, fill: 'rgba(0,0,0,0.65)' },
layout: [{ type: 'interval-adjust-position' }],
},
total: {
label: '总支出',
style: {
fill: '#96a6a6',
},
},
});
waterfallPlot.render();

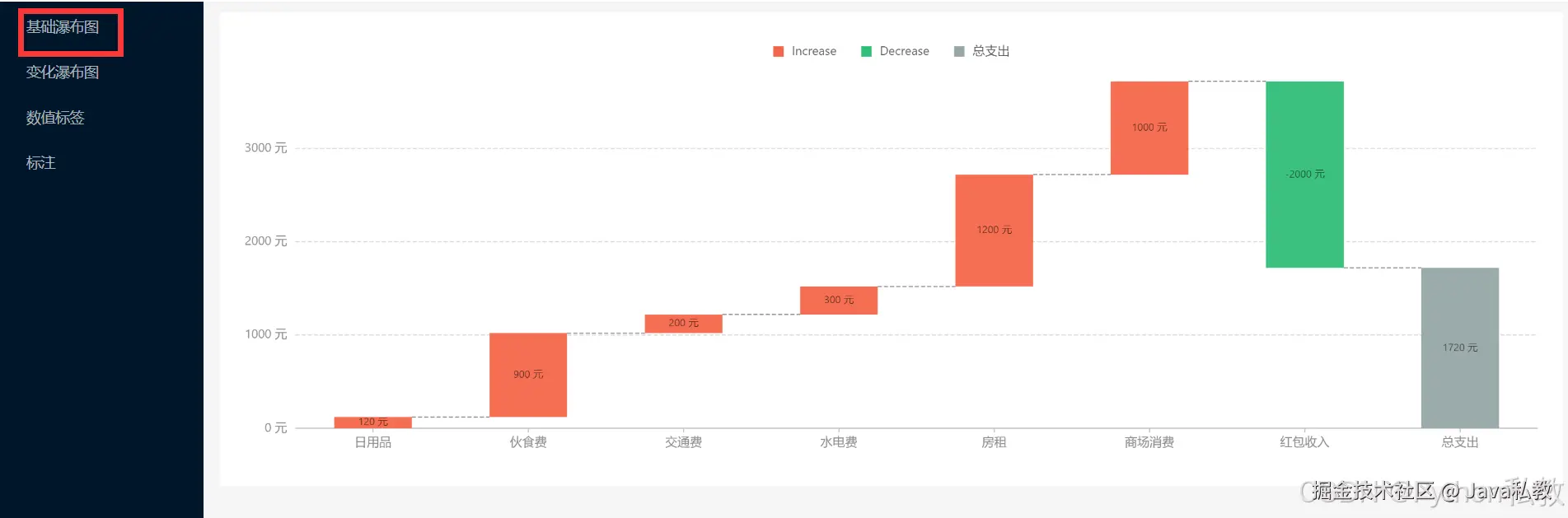

实现基础瀑布图：
完整代码如下：
<script setup>
import {onMounted} from "vue";
import {Funnel, Waterfall} from "@antv/g2plot";
onMounted(async () => {
const data = [
{ type: '日用品', money: 120 },
{ type: '伙食费', money: 900 },
{ type: '交通费', money: 200 },
{ type: '水电费', money: 300 },
{ type: '房租', money: 1200 },
{ type: '商场消费', money: 1000 },
{ type: '红包收入', money: -2000 },
];
const waterfallPlot = new Waterfall('container', {
data,
xField: 'type',
yField: 'money',
appendPadding: [15, 0, 0, 0],
meta: {
type: {
alias: '类别',
},
money: {
alias: '收支',
formatter: (v) => `${v} 元`,
},
},
label: {
style: { fontSize: 10, fill: 'rgba(0,0,0,0.65)' },
layout: [{ type: 'interval-adjust-position' }],
},
total: {
label: '总支出',
style: {
fill: '#96a6a6',
},
},
});
waterfallPlot.render();
})
</script>
<template>
<div id="container"></div>
</template>
vue3版变化瀑布图
核心代码：
import { Waterfall } from '@antv/g2plot';
const data = [ { month: '2019', value: 23000000 }, { month: 'Jan', value: 2200000 }, { month: 'Feb', value: -4600000 }, { month: 'Mar', value: -9100000 }, { month: 'Apr', value: 3700000 }, { month: 'May', value: -2100000 }, { month: 'Jun', value: 5300000 }, { month: 'Jul', value: 3100000 }, { month: 'Aug', value: -1500000 }, { month: 'Sep', value: 4200000 }, { month: 'Oct', value: 5300000 }, { month: 'Nov', value: -1500000 }, { month: 'Dec', value: 5100000 },];
const waterfallPlot = new Waterfall('container', {
data,
padding: 'auto',
appendPadding: [20, 0, 0, 0],
xField: 'month',
yField: 'value',
meta: {
month: {
alias: '月份',
},
value: {
alias: '销售量',
formatter: (v) => `${v / 10000000} 亿`,
},
},
/** 展示总计 */
total: {
label: '2020',
},
color: ({ month, value }) => {
if (month === '2019' || month === '2020') {
return '#96a6a6';
}
return value > 0 ? '#f4664a' : '#30bf78';
},
legend: {
custom: true,
items: [
{
name: 'Increase',
value: 'increase',
marker: { symbol: 'square', style: { r: 5, fill: '#f4664a' } },
},
{
name: 'Decrease',
value: 'decrease',
marker: { symbol: 'square', style: { r: 5, fill: '#30bf78' } },
},
{
name: 'Total',
value: 'total',
marker: { symbol: 'square', style: { r: 5, fill: '#96a6a6' } },
},
],
},
label: {
style: {
fontSize: 10,
},
layout: [{ type: 'interval-adjust-position' }],
background: {
style: {
fill: '#f6f6f6',
stroke: '#e6e6e6',
strokeOpacity: 0.65,
radius: 2,
},
padding: 1.5,
},
},
waterfallStyle: () => {
return {
fillOpacity: 0.85,
};
},
});
waterfallPlot.render();

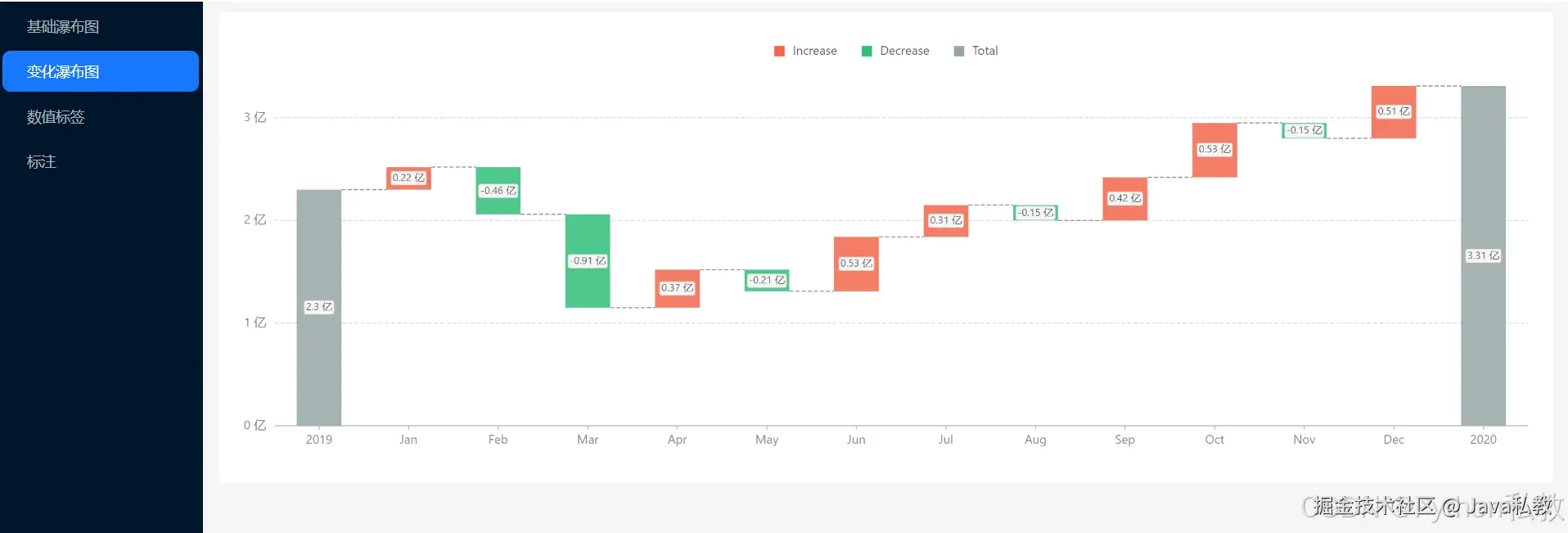

实现效果：
完整代码如下：
<script setup>
import {onMounted} from "vue";
import {Funnel, Waterfall} from "@antv/g2plot";
onMounted(async () => {
const data = [
{ month: '2019', value: 23000000 },
{ month: 'Jan', value: 2200000 },
{ month: 'Feb', value: -4600000 },
{ month: 'Mar', value: -9100000 },
{ month: 'Apr', value: 3700000 },
{ month: 'May', value: -2100000 },
{ month: 'Jun', value: 5300000 },
{ month: 'Jul', value: 3100000 },
{ month: 'Aug', value: -1500000 },
{ month: 'Sep', value: 4200000 },
{ month: 'Oct', value: 5300000 },
{ month: 'Nov', value: -1500000 },
{ month: 'Dec', value: 5100000 },
];
const waterfallPlot = new Waterfall('container', {
data,
padding: 'auto',
appendPadding: [20, 0, 0, 0],
xField: 'month',
yField: 'value',
meta: {
month: {
alias: '月份',
},
value: {
alias: '销售量',
formatter: (v) => `${v / 10000000} 亿`,
},
},
/** 展示总计 */
total: {
label: '2020',
},
color: ({ month, value }) => {
if (month === '2019' || month === '2020') {
return '#96a6a6';
}
return value > 0 ? '#f4664a' : '#30bf78';
},
legend: {
custom: true,
items: [
{
name: 'Increase',
value: 'increase',
marker: { symbol: 'square', style: { r: 5, fill: '#f4664a' } },
},
{
name: 'Decrease',
value: 'decrease',
marker: { symbol: 'square', style: { r: 5, fill: '#30bf78' } },
},
{
name: 'Total',
value: 'total',
marker: { symbol: 'square', style: { r: 5, fill: '#96a6a6' } },
},
],
},
label: {
style: {
fontSize: 10,
},
layout: [{ type: 'interval-adjust-position' }],
background: {
style: {
fill: '#f6f6f6',
stroke: '#e6e6e6',
strokeOpacity: 0.65,
radius: 2,
},
padding: 1.5,
},
},
waterfallStyle: () => {
return {
fillOpacity: 0.85,
};
},
});
waterfallPlot.render();
})
</script>
<template>
<div id="container"></div>
</template>
vue3版数值标签
核心代码：
import { Waterfall } from '@antv/g2plot';
const data = [ { month: '一月', value: 6200000 }, { month: '二月', value: -600000 }, { month: '三月', value: -4100000 }, { month: '四月', value: 3700000 }, { month: '五月', value: -2100000 }, { month: '六月', value: 5300000 }, { month: '七月', value: 3100000 }, { month: '八月', value: -500000 }, { month: '九月', value: 4200000 }, { month: '十月', value: 5300000 }, { month: '十一月', value: -500000 }, { month: '十二月', value: 5100000 },];
const waterfallPlot = new Waterfall('container', {
data,
padding: 'auto',
appendPadding: [20, 0, 0, 0],
xField: 'month',
yField: 'value',
meta: {
month: {
alias: '月份',
},
value: {
alias: '销售量',
formatter: (v) => `${v / 10000000} 亿`,
},
},
/** 展示总计 */
total: {
label: '总计',
style: {
fill: '#96a6a6',
},
},
/** 数据标签展示模式：绝对值 */
labelMode: 'absolute',
label: {
style: {
fontSize: 10,
},
background: {
style: {
fill: '#f6f6f6',
radius: 1,
},
padding: 1.5,
},
},
});
waterfallPlot.render();

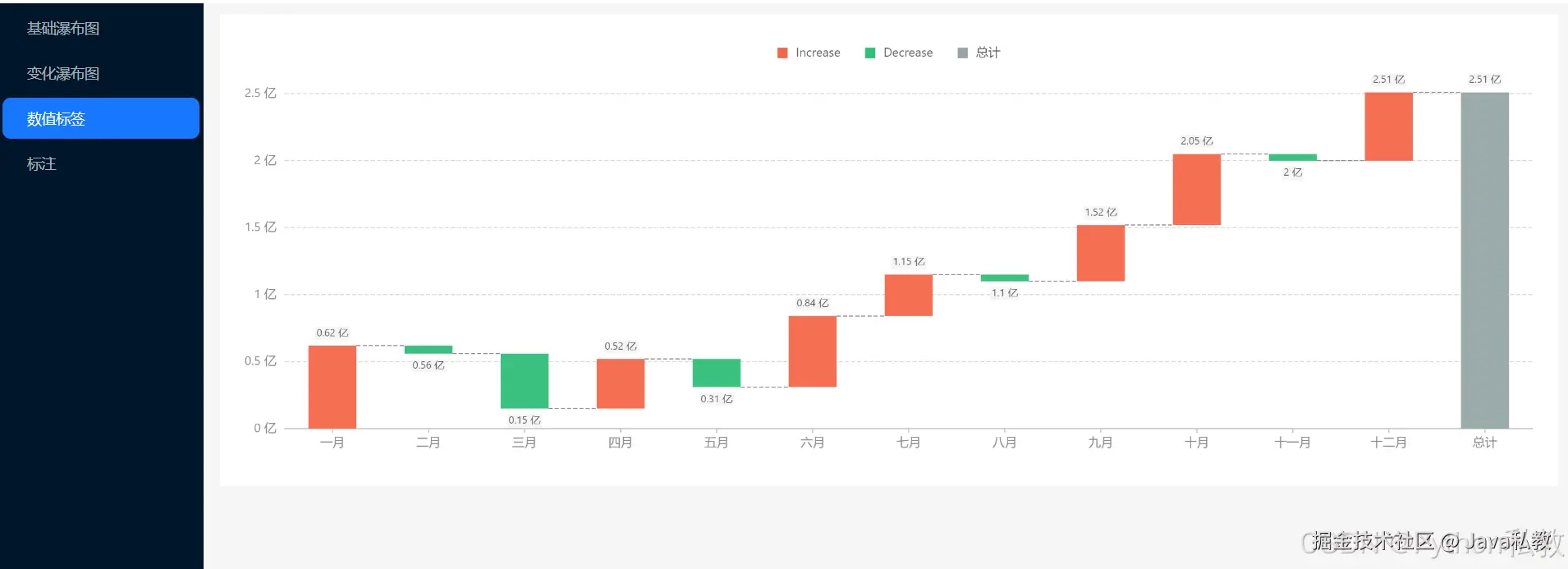

实现效果：
完整代码：
<script setup>
import {onMounted} from "vue";
import {Funnel, Waterfall} from "@antv/g2plot";
onMounted(async () => {
const data = [
{ month: '一月', value: 6200000 },
{ month: '二月', value: -600000 },
{ month: '三月', value: -4100000 },
{ month: '四月', value: 3700000 },
{ month: '五月', value: -2100000 },
{ month: '六月', value: 5300000 },
{ month: '七月', value: 3100000 },
{ month: '八月', value: -500000 },
{ month: '九月', value: 4200000 },
{ month: '十月', value: 5300000 },
{ month: '十一月', value: -500000 },
{ month: '十二月', value: 5100000 },
];
const waterfallPlot = new Waterfall('container', {
data,
padding: 'auto',
appendPadding: [20, 0, 0, 0],
xField: 'month',
yField: 'value',
meta: {
month: {
alias: '月份',
},
value: {
alias: '销售量',
formatter: (v) => `${v / 10000000} 亿`,
},
},
/** 展示总计 */
total: {
label: '总计',
style: {
fill: '#96a6a6',
},
},
/** 数据标签展示模式：绝对值 */
labelMode: 'absolute',
label: {
style: {
fontSize: 10,
},
background: {
style: {
fill: '#f6f6f6',
radius: 1,
},
padding: 1.5,
},
},
});
waterfallPlot.render();
})
</script>
<template>
<div id="container"></div>
</template>
vue3版添加标注
核心代码：
import { Waterfall } from '@antv/g2plot';
const data = [
{ quarter: '第一季度', value: 6200000 },
{ quarter: '第二季度', value: -2600000 },
{ quarter: '第三季度', value: 4100000 },
{ quarter: '第四季度', value: 3700000 },
];
const formatter = (v) => `${v / 10000000} 亿`;
const annotations = [];
data.reduce((v, d) => {
annotations.push({
type: 'text',
position: () => {
const y = v + d.value / 2;
return [d.quarter, y];
},
content: formatter(d.value),
style: {
fontSize: 14,
stroke: '#666',
fill: '#fff',
lineWidth: 1,
textAlign: 'center',
verticalAlign: 'middle',
},
});
return v + d.value;
}, 0);
const waterfallPlot = new Waterfall('container', {
data,
padding: 'auto',
appendPadding: [20, 0, 0, 0],
xField: 'quarter',
yField: 'value',
meta: {
quarter: {
alias: '月份',
},
value: {
alias: '销售量',
min: 0,
formatter,
},
},
/** 展示总计 */
total: {
label: '总计',
style: {
fill: '#96a6a6',
},
},
/** 数据标签展示模式：绝对值 */
labelMode: 'absolute',
label: {
style: {
fontSize: 12,
},
},
annotations,
});
waterfallPlot.render();

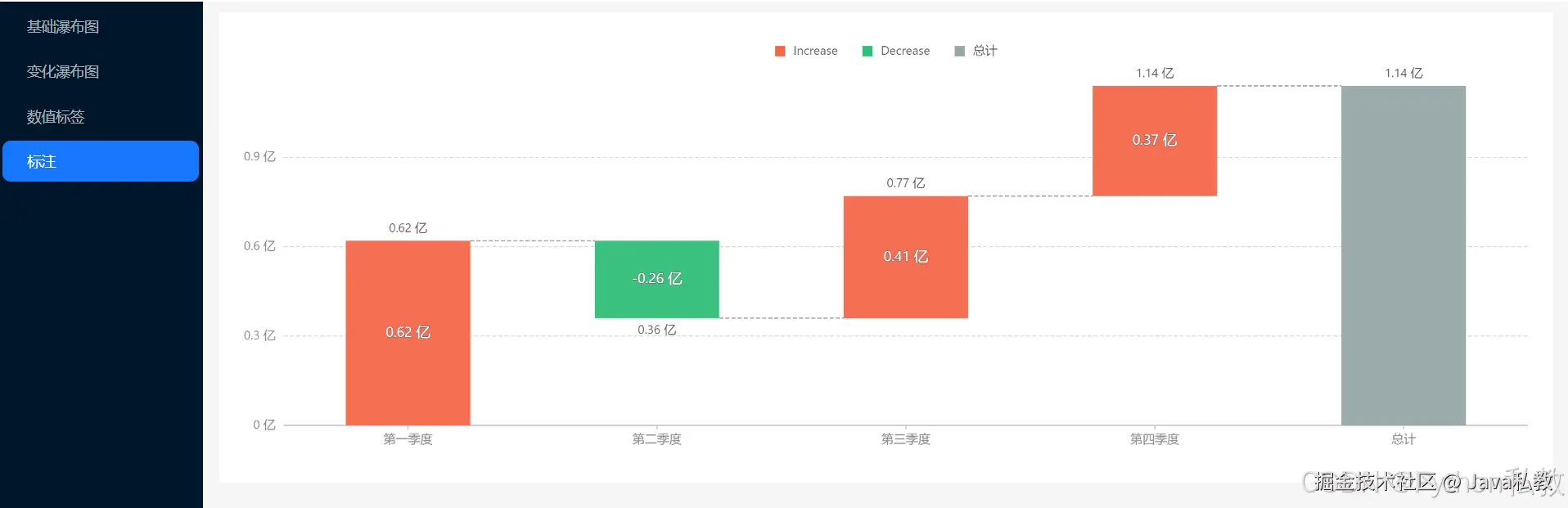

效果预览：
完整代码：
<script setup>
import {onMounted} from "vue";
import {Funnel, Waterfall} from "@antv/g2plot";
onMounted(async () => {
const data = [
{ quarter: '第一季度', value: 6200000 },
{ quarter: '第二季度', value: -2600000 },
{ quarter: '第三季度', value: 4100000 },
{ quarter: '第四季度', value: 3700000 },
];
const formatter = (v) => `${v / 10000000} 亿`;
// 标注
const annotations = [];
data.reduce((v, d) => {
annotations.push({
type: 'text',
position: () => {
const y = v + d.value / 2;
return [d.quarter, y];
},
content: formatter(d.value),
style: {
fontSize: 14,
stroke: '#666',
fill: '#fff',
lineWidth: 1,
textAlign: 'center',
verticalAlign: 'middle',
},
});
return v + d.value;
}, 0);
const waterfallPlot = new Waterfall('container', {
data,
padding: 'auto',
appendPadding: [20, 0, 0, 0],
xField: 'quarter',
yField: 'value',
meta: {
quarter: {
alias: '月份',
},
value: {
alias: '销售量',
min: 0,
formatter,
},
},
/** 展示总计 */
total: {
label: '总计',
style: {
fill: '#96a6a6',
},
},
/** 数据标签展示模式：绝对值 */
labelMode: 'absolute',
label: {
style: {
fontSize: 12,
},
},
annotations,
});
waterfallPlot.render();
})
</script>
<template>
<div id="container"></div>
</template>
总结
本教程讲解了Vue3如何结合g2plot绘制瀑布图，并实际讲解了四个实战案例。
完整代码如下：
打赏3元即可获取完整代码。

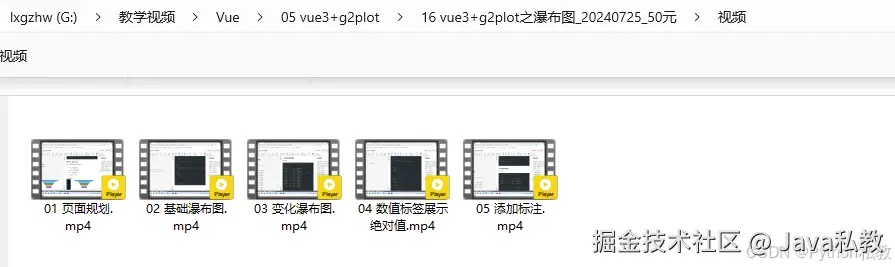

也配套录制了完整的视频教程：
人生苦短，我用Python，我是您身边的Python私教，有任何Python相关的问题，请随时留言，我愿意献上绵薄之力，为您排忧解难！！！
本文使用 markdown.com.cn 排版
