前言
文接上回，GraphRAG的发布在技术界引起了轩然大波，业内大佬纷纷开始入局研究，其中就包括了neo4j的CTO Philip Rathle 。他的一篇文章讲述了GraphRAG在GenAI领域强大的潜力《The GraphRAG Manifesto: Adding Knowledge to GenAI》进一步点燃了公众对GraphRAG的热情，今天我们讲尝试GraphRAG生成的图导入Neo4j实现图可视化展示。
环境安装
这里依赖了两部分环境，1.GraphRAG，2.Neo4j，本文重点讲的是第二步，Neo4j的安装。这里为了方便，我将安装命令组合到了一起，通过下面的命令就能够实现一键搭建neo4j的运行环境。
docker run \
-p 7474:7474 -p 7687:7687 \
--name neo4j-apoc \
-e NEO4J_apoc_export_file_enabled=true \
-e NEO4J_apoc_import_file_enabled=true \
-e NEO4J_apoc_import_file_use__neo4j__config=true \
-e NEO4J_PLUGINS=["apoc"] \
neo4j:5.21.2
出现下面的日志，代表Neo4j图数据库安装成功。

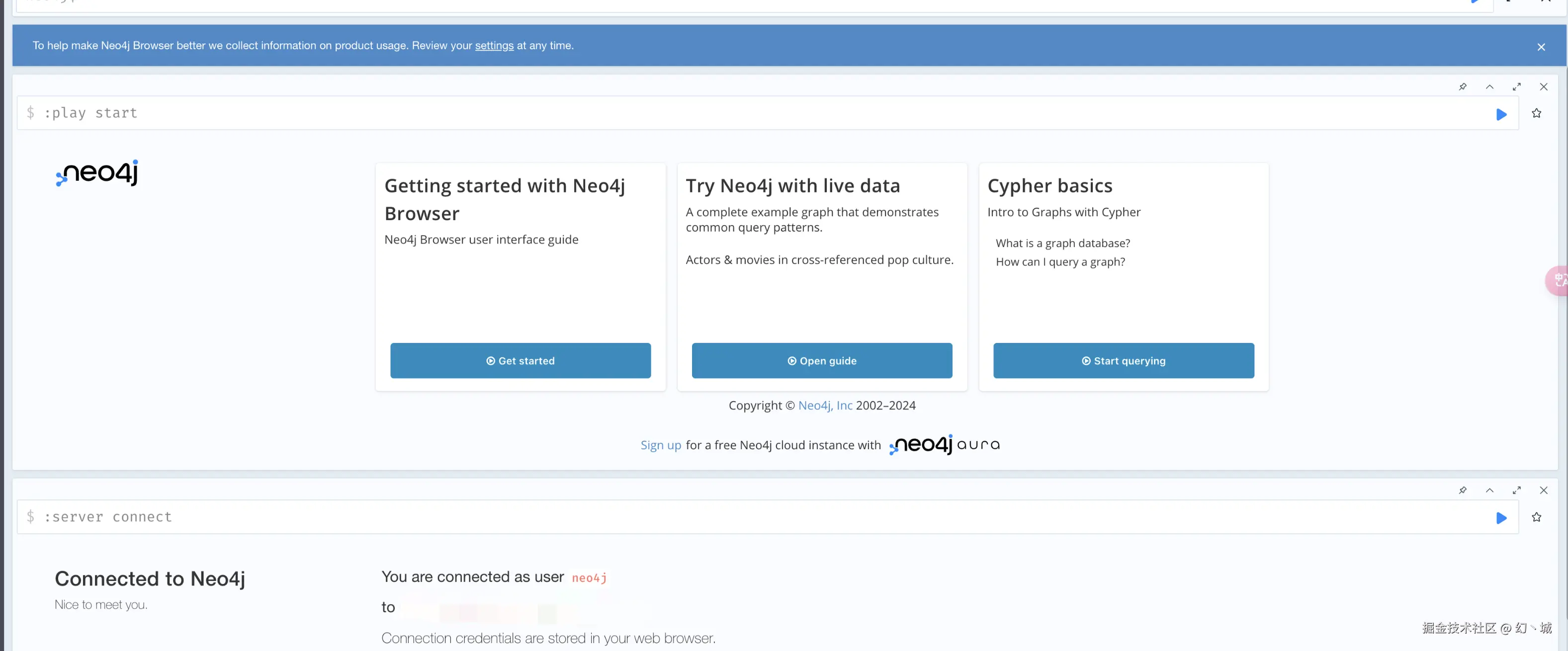

打开地址：http://localhost:7474 输入账号neo4j，密码neo4j，进入图数据库，首次进入需要修改密码，然后成功进入界面如下。
导入数据
由于我不熟悉neo4j的使用，我下面的代码出自：www.53ai.com/news/knowle…
在导入之前，我们先给我们的py项目安装neo4j相关的包
pip3 install --quiet pandas neo4j-rust-ext
导入GraphRAG的索引结果
1.创建neo4j的连接。
import pandas as pd
from neo4j import GraphDatabase
import time
NEO4J_URI = "neo4j://localhost" # or neo4j+s://xxxx.databases.neo4j.io
NEO4J_USERNAME = "neo4j"
NEO4J_PASSWORD = "password" #你自己的密码
NEO4J_DATABASE = "neo4j"
# Create a Neo4j driver
driver = GraphDatabase.driver(NEO4J_URI, auth=(NEO4J_USERNAME, NEO4J_PASSWORD))
2.指定索引目录。
GRAPHRAG_FOLDER = "./output/这里就是需要录入的项目/artifacts"
3.创建neo4j的索引
statements = """
create constraint chunk_id if not exists for (c:__Chunk__) require c.id is unique;
create constraint document_id if not exists for (d:__Document__) require d.id is unique;
create constraint entity_id if not exists for (c:__Community__) require c.community is unique;
create constraint entity_id if not exists for (e:__Entity__) require e.id is unique;
create constraint entity_title if not exists for (e:__Entity__) require e.name is unique;
create constraint entity_title if not exists for (e:__Covariate__) require e.title is unique;
create constraint related_id if not exists for ()-[rel:RELATED]->() require rel.id is unique;
""".split(";")
for statement in statements:
if len((statement or "").strip()) > 0:
print(statement)
driver.execute_query(statement)
4.创建批量导入
def batched_import(statement, df, batch_size=1000):
"""
Import a dataframe into Neo4j using a batched approach.
Parameters: statement is the Cypher query to execute, df is the dataframe to import, and batch_size is the number of rows to import in each batch.
"""
total = len(df)
start_s = time.time()
for start in range(0,total, batch_size):
batch = df.iloc[start: min(start+batch_size,total)]
result = driver.execute_query("UNWIND $rows AS value " + statement,
rows=batch.to_dict('records'),
database_=NEO4J_DATABASE)
print(result.summary.counters)
print(f'{total} rows in { time.time() - start_s} s.')
return total
5.开始导入各部分的文件
# 导入文档 create_final_documents
doc_df = pd.read_parquet(f'{GRAPHRAG_FOLDER}/create_final_documents.parquet', columns=["id", "title"])
doc_df.head(2)
# import documents
statement = """
MERGE (d:__Document__ {id:value.id})
SET d += value {.title}
"""
batched_import(statement, doc_df)
# 导入 文本联系
text_df = pd.read_parquet(f'{GRAPHRAG_FOLDER}/create_final_text_units.parquet',
columns=["id","text","n_tokens","document_ids"])
text_df.head(2)
statement = """
MERGE (c:__Chunk__ {id:value.id})
SET c += value {.text, .n_tokens}
WITH c, value
UNWIND value.document_ids AS document
MATCH (d:__Document__ {id:document})
MERGE (c)-[:PART_OF]->(d)
"""
batched_import(statement, text_df)
# 导入 抽取的实体
entity_df = pd.read_parquet(f'{GRAPHRAG_FOLDER}/create_final_entities.parquet',
columns=["name", "type", "description", "human_readable_id", "id", "description_embedding",
"text_unit_ids"])
entity_df.head(2)
entity_statement = """
MERGE (e:__Entity__ {id:value.id})
SET e += value {.human_readable_id, .description, name:replace(value.name,'"','')}
WITH e, value
CALL db.create.setNodeVectorProperty(e, "description_embedding", value.description_embedding)
CALL apoc.create.addLabels(e, case when coalesce(value.type,"") = "" then [] else [apoc.text.upperCamelCase(replace(value.type,'"',''))] end) yield node
UNWIND value.text_unit_ids AS text_unit
MATCH (c:__Chunk__ {id:text_unit})
MERGE (c)-[:HAS_ENTITY]->(e)
"""
batched_import(entity_statement, entity_df)
# 导入实体关系
rel_df = pd.read_parquet(f'{GRAPHRAG_FOLDER}/create_final_relationships.parquet',
columns=["source", "target", "id", "rank", "weight", "human_readable_id", "description",
"text_unit_ids"])
rel_df.head(2)
rel_statement = """
MATCH (source:__Entity__ {name:replace(value.source,'"','')})
MATCH (target:__Entity__ {name:replace(value.target,'"','')})
// not necessary to merge on id as there is only one relationship per pair
MERGE (source)-[rel:RELATED {id: value.id}]->(target)
SET rel += value {.rank, .weight, .human_readable_id, .description, .text_unit_ids}
RETURN count(*) as createdRels
"""
batched_import(rel_statement, rel_df)
# 导入 社区
community_df = pd.read_parquet(f'{GRAPHRAG_FOLDER}/create_final_communities.parquet',
columns=["id", "level", "title", "text_unit_ids", "relationship_ids"])
community_df.head(2)
statement = """
MERGE (c:__Community__ {community:value.id})
SET c += value {.level, .title}
/*
UNWIND value.text_unit_ids as text_unit_id
MATCH (t:__Chunk__ {id:text_unit_id})
MERGE (c)-[:HAS_CHUNK]->(t)
WITH distinct c, value
*/
WITH *
UNWIND value.relationship_ids as rel_id
MATCH (start:__Entity__)-[:RELATED {id:rel_id}]->(end:__Entity__)
MERGE (start)-[:IN_COMMUNITY]->(c)
MERGE (end)-[:IN_COMMUNITY]->(c)
RETURn count(distinct c) as createdCommunities
"""
batched_import(statement, community_df)
# 导入社区报告
community_report_df = pd.read_parquet(f'{GRAPHRAG_FOLDER}/create_final_community_reports.parquet',
columns=["id", "community", "level", "title", "summary", "findings", "rank",
"rank_explanation", "full_content"])
community_report_df.head(2)
# import communities
community_statement = """MATCH (c:__Community__ {community: value.community})
SET c += value {.level, .title, .rank, .rank_explanation, .full_content, .summary}
WITH c, value
UNWIND range(0, size(value.findings)-1) AS finding_idx
WITH c, value, finding_idx, value.findings[finding_idx] as finding
MERGE (c)-[:HAS_FINDING]->(f:Finding {id: finding_idx})
SET f += finding"""
batched_import(community_statement, community_report_df)
上述操作完成之后，我们的数据就导入啦。
结果展示

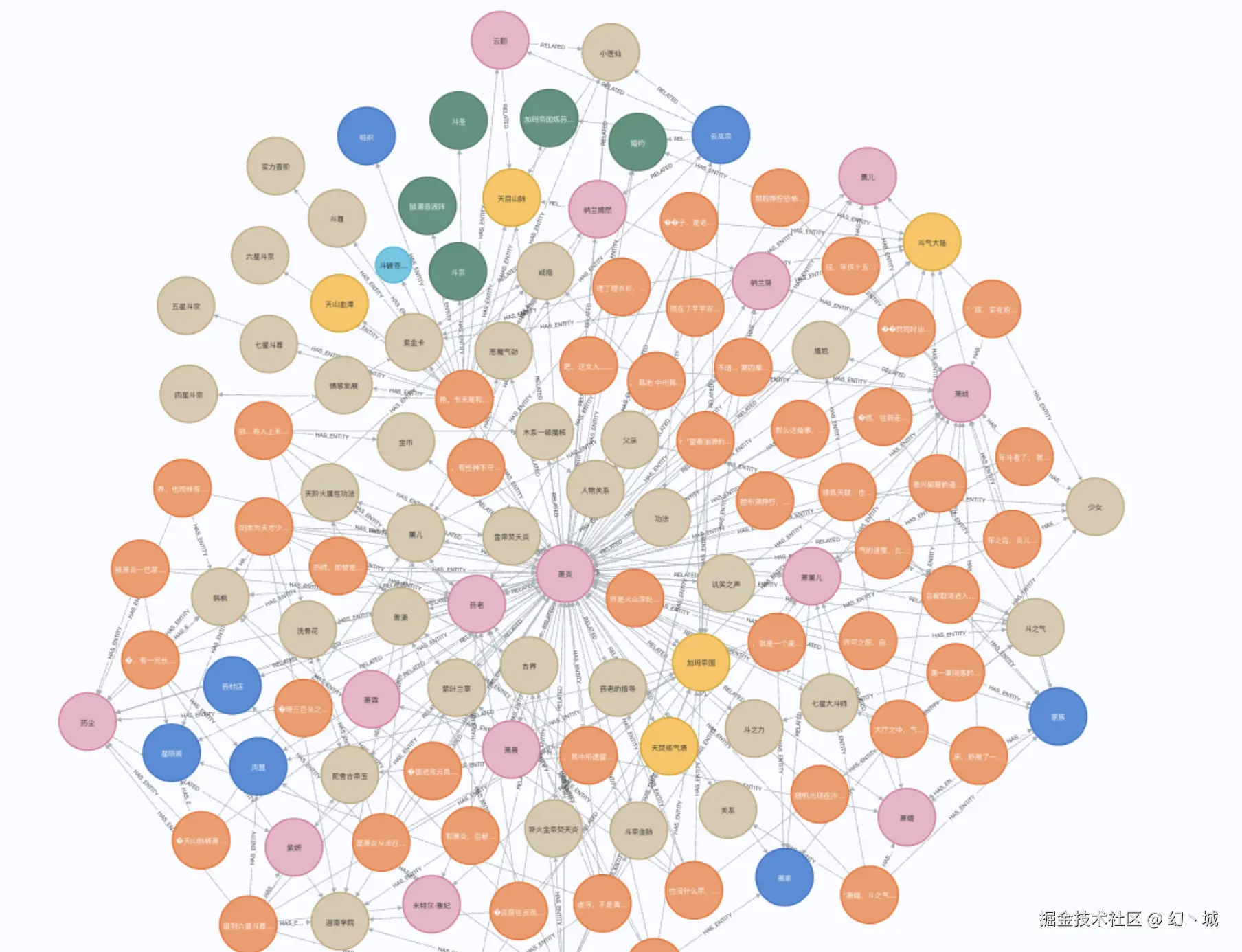

本次Rag检索，我导入了《斗破苍穹》的前10章节，以及百度百科上整个《斗破苍穹》的世界观得到如下图谱。
不同的颜色的节点代表了不同的类型事件。
通过neo4j我们可以更加直观的了解GraphRAG的原理，更直观的感受其搜索结果，更好的理解和使用GraphRAG。
