Android Gradle学习（七）- gradle任务执行过程

上一篇Android Gradle学习（六）- gradle插件源码解析讲解了gradle插件如何创建的Task，本篇继续探讨gradle Task的执行过程。还是以com.android.tools.build:gradle:4.1.3， gradle-api-6.8.jar为例

学前思考

1. ./gradlew assembleDebug命令，编译器帮我们做了什么？
2. Task的顺序是如何构成的？
3. Task是如何执行的？

1. gradlew文件

项目根目录下有gradlew文件，./是linux执行该文件的命令，assembleDebug是入参。

DEFAULT_JVM_OPTS=""

APP_NAME="Gradle"
# gradlew
APP_BASE_NAME=`basename "$0"`

# 设置gradle-wrapper.jar路径
CLASSPATH=$APP_HOME/gradle/wrapper/gradle-wrapper.jar

# 获取JAVA_HOME的路径
if [ -n "$JAVA_HOME" ] ; then
    if [ -x "$JAVA_HOME/jre/sh/java" ] ; then
        JAVACMD="$JAVA_HOME/jre/sh/java"
    else
        JAVACMD="$JAVA_HOME/bin/java"
    fi
    if [ ! -x "$JAVACMD" ] ; then
        die "ERROR: JAVA_HOME is set to an invalid directory: $JAVA_HOME

# 执行Java命令，比如java -Xmx64m -Dorg.gradle.appname=gradlew -classpath $APP_HOME/gradle/wrapper/gradle-wrapper.jar org.gradle.wrapper.GradleWrapperMain 'assembleRelease'
exec "$JAVACMD" "${JVM_OPTS[@]}" -classpath "$CLASSPATH" org.gradle.wrapper.GradleWrapperMain "$@"

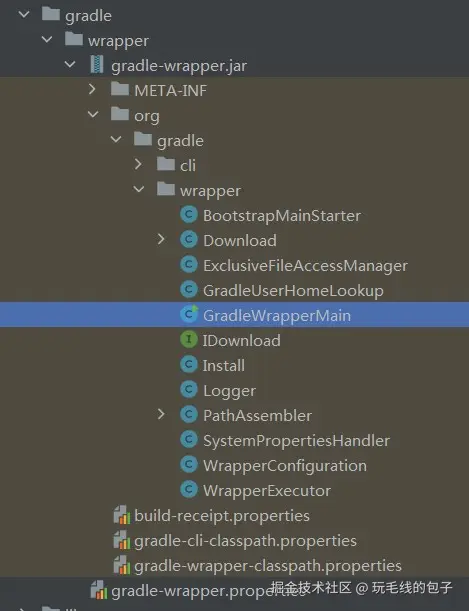

之后一句命令，调用了gradle-wrapper.jar，还可以看到主入口org.gradle.wrapper.GradleWrapperMain

2. gradle wrapper

gradle wrapper是对gradle的包装器，封装了gradle的调用，好处有两点

• 横向：统一不同开发者编译当前项目的gradle版本
• 纵向：gradle版本升级时，不需要关心api变动

上一步调用到了org.gradle.wrapper.GradleWrapperMain

public class GradleWrapperMain {
    public static final String GRADLE_USER_HOME_OPTION = "g";
    public static final String GRADLE_USER_HOME_DETAILED_OPTION = "gradle-user-home";
    public static final String GRADLE_QUIET_OPTION = "q";
    public static final String GRADLE_QUIET_DETAILED_OPTION = "quiet";

    public GradleWrapperMain() {
    }

    // args是传入的`assembleDebug`
    public static void main(String[] args) throws Exception {
        // 找到gradle-wrapper.jar
        File wrapperJar = wrapperJar();
        // 找到gradle-wrapper.properties
        File propertiesFile = wrapperProperties(wrapperJar);
        File rootDir = rootDir(wrapperJar);
        CommandLineParser parser = new CommandLineParser();
        parser.allowUnknownOptions();
        parser.option(new String[]{"g", "gradle-user-home"}).hasArgument();
        parser.option(new String[]{"q", "quiet"});
        SystemPropertiesCommandLineConverter converter = new SystemPropertiesCommandLineConverter();
        converter.configure(parser);
        ParsedCommandLine options = parser.parse(args);
        Properties systemProperties = System.getProperties();
        systemProperties.putAll(converter.convert(options, new HashMap()));
        File gradleUserHome = gradleUserHome(options);
        addSystemProperties(gradleUserHome, rootDir);
        Logger logger = logger(options);
        // 读取gradle/wrapper/gradle-wrapper.properties
        WrapperExecutor wrapperExecutor = WrapperExecutor.forWrapperPropertiesFile(propertiesFile, logger);
        wrapperExecutor.execute(args, new Install(logger, new Download(logger, "gradlew", wrapperVersion()), new PathAssembler(gradleUserHome)), new BootstrapMainStarter());
    }
}

private static void addSystemProperties(File gradleHome, File rootDir) {
    // 全局的gradle.properties
    System.getProperties().putAll(SystemPropertiesHandler.getSystemProperties(new File(gradleHome, "gradle.properties")));
    // 当前项目的gradle.properties
    System.getProperties().putAll(SystemPropertiesHandler.getSystemProperties(new File(rootDir, "gradle.properties")));
}

main方法主要做了三件事：

1. 加载gradle-wrapper.jar，gradle-wrapper.properties
2. 加载并配置gradle.properties
3. 启动gradle编译流程

继续跟进WrapperExecutor

public void execute(String[] args, Install install, BootstrapMainStarter bootstrapMainStarter) throws Exception {
    // gradle-wrapper.properties里面配置的gradle下载地址，判断是否已经下载过，没有则下载
    File gradleHome = install.createDist(config);
    // 引导启动器启动gradle编译
    bootstrapMainStarter.start(args, gradleHome);
}

BootstrapMainStarter：引导启动器

public void start(String[] args, File gradleHome) throws Exception {
    File gradleJar = findLauncherJar(gradleHome);
    if (gradleJar == null) {
        throw new RuntimeException(String.format("Could not locate the Gradle launcher JAR in Gradle distribution '%s'.", gradleHome));
    }
    URLClassLoader contextClassLoader = new URLClassLoader(new URL[]{gradleJar.toURI().toURL()}, ClassLoader.getSystemClassLoader().getParent());
    Thread.currentThread().setContextClassLoader(contextClassLoader);
    Class<?> mainClass = contextClassLoader.loadClass("org.gradle.launcher.GradleMain");
    Method mainMethod = mainClass.getMethod("main", String[].class);
    mainMethod.invoke(null, new Object[]{args});
    if (contextClassLoader instanceof Closeable) {
        ((Closeable) contextClassLoader).close();
    }
}

可以看到使用反射调用了org.gradle.launcher.GradleMain的main方法，args是传入的"assembleDebug"字符串。至此gradle wrapper的任务就完成了

3. gradle-api-6.8.jar

3.1 GradleMain

public class GradleMain {
    public static void main(String[] args) {
        try {
            // 判断jdk版本，此处最低需要Java1.8
            UnsupportedJavaRuntimeException.assertUsingVersion("Gradle", JavaVersion.VERSION_1_8);
        } catch (UnsupportedJavaRuntimeException ex) {
            System.err.println(ex.getMessage());
            System.exit(1);
        }
        // args是传入的"assembleDebug"
        new ProcessBootstrap().run("org.gradle.launcher.Main", args);
    }
}

GradleMain是gradle编译的主入口，第一步检查jdk版本，第二步使用ProcessBootstrap启动主程序

ProcessBootStrap

public class ProcessBootstrap {
    /**
    * Sets up the ClassLoader structure for the given class, creates an instance and invokes {@link EntryPoint#run(String[])} on it.
    */
    public void run(String mainClassName, String[] args) {
        try {
            runNoExit(mainClassName, args);
            System.exit(0);
        } catch (Throwable throwable) {
            throwable.printStackTrace();
            System.exit(1);
        }
    }

    private void runNoExit(String mainClassName, String[] args) throws Exception {
        // ...

        try {
            // 反射调用"org.gradle.launcher.Main"的"run"
            Class<?> mainClass = runtimeClassLoader.loadClass(mainClassName);
            Object entryPoint = mainClass.getConstructor().newInstance();
            Method mainMethod = mainClass.getMethod("run", String[].class);
            mainMethod.invoke(entryPoint, new Object[]{args});
        } finally {
            // ...
        }
    }
}

可以看到通过反射调用org.gradle.launcher.Main.run("assembleDebug")

3.2 Main

Main.java

public class Main extends EntryPoint {
    public static void main(String[] args) {
        new Main().run(args);
    }

    @Override
    protected void doAction(String[] args, ExecutionListener listener) {
        createActionFactory().convert(Arrays.asList(args)).execute(listener);
    }

    CommandLineActionFactory createActionFactory() {
        return new DefaultCommandLineActionFactory();
    }
}

此处执行了DefaultCommandLineActionFactory.WithLogging.execute()

@Override
public void execute(ExecutionListener executionListener) {
    // ...
    try {
        解析args
        ParsedCommandLine parsedCommandLine = parser.parse(args);
        InitialProperties initialProperties = propertiesConverter.convert(parsedCommandLine);

        // Calculate build layout, for loading properties and other logging configuration
        buildLayout = buildLayoutConverter.convert(initialProperties, parsedCommandLine, null);

        // 读取 *.properties 文件
        AllProperties properties = layoutToPropertiesConverter.convert(initialProperties, buildLayout);

        // Calculate the logging configuration
        loggingBuildOptions.convert(parsedCommandLine, properties, loggingConfiguration);
    } catch (CommandLineArgumentException e) {
        // Ignore, deal with this problem later
    }

    LoggingManagerInternal loggingManager = loggingServices.getFactory(LoggingManagerInternal.class).create();
    loggingManager.setLevelInternal(loggingConfiguration.getLogLevel());
    loggingManager.start();
    try {
        Action<ExecutionListener> exceptionReportingAction =
            new ExceptionReportingAction(reporter, loggingManager,
                new NativeServicesInitializingAction(buildLayout, loggingConfiguration, loggingManager,
                    new WelcomeMessageAction(buildLayout,
                        new DebugLoggerWarningAction(loggingConfiguration, action))));
        exceptionReportingAction.execute(executionListener);
    } finally {
        loggingManager.stop();
    }
}

layoutToPropertiesConverter.convert读取*.properties文件

public AllProperties convert(InitialProperties initialProperties, BuildLayoutResult layout) {
    BuildLayoutParameters layoutParameters = new BuildLayoutParameters();
    layout.applyTo(layoutParameters);
    Map<String, String> properties = new HashMap<>();
    // 加载用户目录/.gradle/gradle.properties的属性
    configureFromHomeDir(layoutParameters.getGradleInstallationHomeDir(), properties);
    // 加载项目根目录/gradle.properties的属性
    configureFromBuildDir(layoutParameters.getSearchDir(), layoutParameters.getSearchUpwards(), properties);
    configureFromHomeDir(layout.getGradleUserHomeDir(), properties);
    configureFromSystemPropertiesOfThisJvm(Cast.uncheckedNonnullCast(properties));
    properties.putAll(initialProperties.getRequestedSystemProperties());
    return new Result(properties, initialProperties);
}

此时回到DefaultCommandLineActionFactory execute()，后续依次调用了

1. ExceptionReportingAction
2. NativeServicesInitializingAction
3. WelcomeMessageAction
4. DebugLoggerWarningAction

最后一个Action执行完成之后，会执行WithLogging构造体传入的action，可以回到Main 查看DefaultCommandLineActionFactory convert方法

@Override
public CommandLineExecution convert(List<String> args) {
    ServiceRegistry loggingServices = createLoggingServices();

    LoggingConfiguration loggingConfiguration = new DefaultLoggingConfiguration();

    return new WithLogging(loggingServices,
        args,
        loggingConfiguration,
        new ParseAndBuildAction(loggingServices, args),
        new BuildExceptionReporter(loggingServices.get(StyledTextOutputFactory.class), loggingConfiguration, clientMetaData()));
}

action是ParseAndBuildAction，后续执行execute方法

@Override
public void execute(ExecutionListener executionListener) {
    // ...
    Action<? super ExecutionListener> action;
    try {
        ParsedCommandLine commandLine = parser.parse(args);
        // 创建构建action
        action = createAction(actions, parser, commandLine);
    } catch (CommandLineArgumentException e) {
        action = new CommandLineParseFailureAction(parser, e);
    }

    action.execute(executionListener);
}

private Action<? super ExecutionListener> createAction(Iterable<CommandLineAction> factories, CommandLineParser parser, ParsedCommandLine commandLine) {
    for (CommandLineAction factory : factories) {
        Runnable action = factory.createAction(parser, commandLine);
        if (action != null) {
            return Actions.toAction(action);
        }
    }
    throw new UnsupportedOperationException("No action factory for specified command-line arguments.");
}

可以看到调用createAction()，此处调用了BuildActionsFactory createAction()

@Override
public Runnable createAction(CommandLineParser parser, ParsedCommandLine commandLine) {
    // 创建assembleDebug任务
    Parameters parameters = parametersConverter.convert(commandLine, null);

    // ...
    if (parameters.getDaemonParameters().isEnabled()) {
        return runBuildWithDaemon(parameters.getStartParameter(), parameters.getDaemonParameters());
    }
    if (canUseCurrentProcess(parameters.getDaemonParameters())) {
        return runBuildInProcess(parameters.getStartParameter(), parameters.getDaemonParameters());
    }

    return runBuildInSingleUseDaemon(parameters.getStartParameter(), parameters.getDaemonParameters());
}

parametersConverter.convert跟进

// org.gradle.launcher.cli.ParametersConverter#convert
public Parameters convert(ParsedCommandLine args, @Nullable File currentDir) throws CommandLineArgumentException {
    InitialProperties initialProperties = initialPropertiesConverter.convert(args);
    BuildLayoutResult buildLayout = buildLayoutConverter.convert(initialProperties, args, currentDir);
    AllProperties properties = layoutToPropertiesConverter.convert(initialProperties, buildLayout);

    StartParameterInternal startParameter = new StartParameterInternal();
    //
    startParameterConverter.convert(args, buildLayout, properties, startParameter);

    DaemonParameters daemonParameters = new DaemonParameters(buildLayout, fileCollectionFactory, properties.getRequestedSystemProperties());
    daemonParametersConverter.convert(args, properties, daemonParameters);

    return new Parameters(buildLayout, startParameter, daemonParameters);
}

// org.gradle.launcher.cli.converter.StartParameterConverter#convert
public StartParameterInternal convert(ParsedCommandLine parsedCommandLine, BuildLayoutResult buildLayout, AllProperties properties, StartParameterInternal startParameter) throws CommandLineArgumentException {
    // ...
    if (!parsedCommandLine.getExtraArguments().isEmpty()) {
        // 任务名称设置为assembleDebug
        startParameter.setTaskNames(parsedCommandLine.getExtraArguments());
    }

    buildOptionsConverter.convert(parsedCommandLine, properties, startParameter);

    return startParameter;
}

回溯一级，看到createAction()调用了runBuildInProcess()

private Runnable runBuildInProcess(StartParameterInternal startParameter, DaemonParameters daemonParameters) {
    ServiceRegistry globalServices = ServiceRegistryBuilder.builder()
        .displayName("Global services")
        .parent(loggingServices)
        .parent(NativeServices.getInstance())
        .provider(new GlobalScopeServices(startParameter.isContinuous()))
        .build();

    // Force the user home services to be stopped first, the dependencies between the user home services and the global services are not preserved currently
    return runBuildAndCloseServices(startParameter, daemonParameters, globalServices.get(BuildExecuter.class), globalServices, globalServices.get(GradleUserHomeScopeServiceRegistry.class));
}

private Runnable runBuildAndCloseServices(StartParameterInternal startParameter, DaemonParameters daemonParameters, BuildActionExecuter<BuildActionParameters, BuildRequestContext> executer, ServiceRegistry sharedServices, Object... stopBeforeSharedServices) {
BuildActionParameters parameters = createBuildActionParameters(startParameter, daemonParameters);
    Stoppable stoppable = new CompositeStoppable().add(stopBeforeSharedServices).add(sharedServices);
    return new RunBuildAction(executer, startParameter, clientMetaData(), getBuildStartTime(), parameters, sharedServices, stoppable);
}

此时返回了RunBuildAction，后续调用其run方法

@Override
public void run() {
    try {
        BuildActionResult result = executer.execute(
            new ExecuteBuildAction(startParameter),
            buildActionParameters,
            new DefaultBuildRequestContext(new DefaultBuildRequestMetaData(clientMetaData, startTime, sharedServices.get(ConsoleDetector.class).isConsoleInput()), new DefaultBuildCancellationToken(), new NoOpBuildEventConsumer())
        );
        if (result.hasFailure()) {
            // Don't need to unpack the serialized failure. It will already have been reported and is not used by anything downstream of this action.
            throw new ReportedException();
        }
    } finally {
        if (stoppable != null) {
            stoppable.stop();
        }
    }
}

这个executer是哪里来的？回溯下是globalServices.get(BuildExecuter.class)，上面的BuildActionsFactory#runBuildInProcess()创建的。

3.3 GlobalScopeServices

GlobalScopeServices.java

void configure(ServiceRegistration registration, ClassLoaderRegistry classLoaderRegistry) {
    registration.add(ClassLoaderScopeListeners.class);
    final List<PluginServiceRegistry> pluginServiceFactories = new DefaultServiceLocator(classLoaderRegistry.getRuntimeClassLoader(), classLoaderRegistry.getPluginsClassLoader()).getAll(PluginServiceRegistry.class);
    for (PluginServiceRegistry pluginServiceRegistry : pluginServiceFactories) {
        registration.add(PluginServiceRegistry.class, pluginServiceRegistry);
        pluginServiceRegistry.registerGlobalServices(registration);
    }
}

org.gradle.internal.service.DefaultServiceLocator#getAll

@Override
public <T> List<T> getAll(Class<T> serviceType) throws UnknownServiceException {
    List<ServiceFactory<T>> factories = findFactoriesForServiceType(serviceType);
    ArrayList<T> services = new ArrayList<T>();
    for (ServiceFactory<T> factory : factories) {
        services.add(factory.create());
    }
    return services;
}

private <T> List<ServiceFactory<T>> findFactoriesForServiceType(Class<T> serviceType) {
    return factoriesFor(serviceType, implementationsOf(serviceType));
}

public <T> List<Class<? extends T>> implementationsOf(Class<T> serviceType) {
    try {
        return findServiceImplementations(serviceType);
    } catch (ServiceLookupException e) {
        throw e;
    } catch (Exception e) {
        throw new ServiceLookupException(String.format("Could not determine implementation classes for service '%s'.", serviceType.getName()), e);
    }
}

private <T> List<Class<? extends T>> findServiceImplementations(Class<T> serviceType) throws IOException {
    String resourceName = "META-INF/services/" + serviceType.getName();
    Set<String> implementationClassNames = new HashSet<String>();
    List<Class<? extends T>> implementations = new ArrayList<Class<? extends T>>();
    for (ClassLoader classLoader : classLoaders) {
        Enumeration<URL> resources = classLoader.getResources(resourceName);
        while (resources.hasMoreElements()) {
            URL resource = resources.nextElement();
            List<String> implementationClassNamesFromResource;
            try {
                implementationClassNamesFromResource = extractImplementationClassNames(resource);
                if (implementationClassNamesFromResource.isEmpty()) {
                    throw new RuntimeException(String.format("No implementation class for service '%s' specified.", serviceType.getName()));
                }
            } catch (Throwable e) {
                throw new ServiceLookupException(String.format("Could not determine implementation class for service '%s' specified in resource '%s'.", serviceType.getName(), resource), e);
            }

            for (String implementationClassName : implementationClassNamesFromResource) {
                if (implementationClassNames.add(implementationClassName)) {
                    try {
                        Class<?> implClass = classLoader.loadClass(implementationClassName);
                        if (!serviceType.isAssignableFrom(implClass)) {
                            throw new RuntimeException(String.format("Implementation class '%s' is not assignable to service class '%s'.", implementationClassName, serviceType.getName()));
                        }
                        implementations.add(implClass.asSubclass(serviceType));
                    } catch (Throwable e) {
                        throw new ServiceLookupException(String.format("Could not load implementation class '%s' for service '%s' specified in resource '%s'.", implementationClassName, serviceType.getName(), resource), e);
                    }
                }
            }
        }
    }
    return implementations;
}

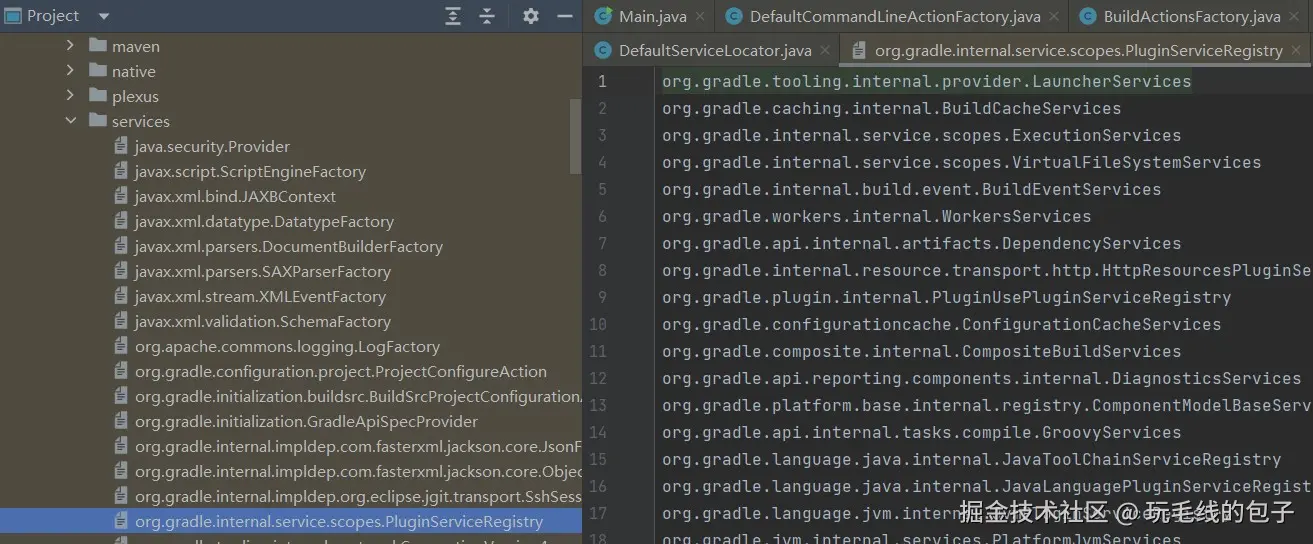

可以看到resourceName= "META-INF/services/org.gradle.internal.service.scopes.PluginServiceRegistry"，去源码目录找到

找到LauncherServices.java

3.4 LauncherServices

public class LauncherServices extends AbstractPluginServiceRegistry {
    @Override
    public void registerGlobalServices(ServiceRegistration registration) {
        registration.addProvider(new ToolingGlobalScopeServices());
    }
｝

此时注册了LauncherServices的服务，那么globalServices.get(BuildExecuter.class)就是去找executer

// org.gradle.launcher.cli.BuildActionsFactory#runBuildInProcess
private Runnable runBuildInProcess(StartParameterInternal startParameter, DaemonParameters daemonParameters) {
    ServiceRegistry globalServices = ServiceRegistryBuilder.builder()
    .displayName("Global services")
    .parent(loggingServices)
    .parent(NativeServices.getInstance())
    .provider(new GlobalScopeServices(startParameter.isContinuous()))
    .build();

    // Force the user home services to be stopped first, the dependencies between the user home services and the global services are not preserved currently
    return runBuildAndCloseServices(startParameter, daemonParameters, globalServices.get(BuildExecuter.class), globalServices, globalServices.get(GradleUserHomeScopeServiceRegistry.class));
}

// org.gradle.internal.service.ServiceRegistryBuilder#build
public ServiceRegistry build() {
    DefaultServiceRegistry registry = new DefaultServiceRegistry(displayName, parents.toArray(new ServiceRegistry[0]));
    for (Object provider : providers) {
        registry.addProvider(provider);
    }
    return registry;
}

此处是DefaultServiceRegistry.get(BuildExecuter.class)

// org.gradle.internal.service.DefaultServiceRegistry#get(java.lang.Class<T>)
@Override
public <T> T get(Class<T> serviceType) throws UnknownServiceException, ServiceLookupException {
    return serviceType.cast(get((Type) serviceType));
}

@Override
public Object get(Type serviceType) throws UnknownServiceException, ServiceLookupException {
    Object instance = find(serviceType);
    if (instance == null) {
        throw new UnknownServiceException(serviceType, String.format("No service of type %s available in %s.", format(serviceType), getDisplayName()));
    }
    return instance;
}

@Override
public Object find(Type serviceType) throws ServiceLookupException {
    assertValidServiceType(unwrap(serviceType));
    Service provider = getService(serviceType);
    return provider == null ? null : provider.get();
}

private Service getService(Type serviceType) {
    serviceRequested();
    return find(serviceType, allServices);
}

private static Service find(Type serviceType, ServiceProvider serviceProvider) {
    if (serviceType instanceof ParameterizedType) {
        ParameterizedType parameterizedType = (ParameterizedType) serviceType;
        Type rawType = parameterizedType.getRawType();
        if (rawType.equals(Factory.class)) {
            final Type typeArg = parameterizedType.getActualTypeArguments()[0];
            return getFactoryService(typeArg, serviceProvider);
        }
        if (rawType instanceof Class) {
            if (((Class<?>) rawType).isAssignableFrom(List.class)) {
                Type typeArg = parameterizedType.getActualTypeArguments()[0];
                return getCollectionService(typeArg, serviceProvider);
            }
            assertValidServiceType((Class<?>) rawType);
            return serviceProvider.getService(serviceType);
        }
    }
    if (serviceType instanceof Class<?>) {
        assertValidServiceType((Class<?>) serviceType);
        return serviceProvider.getService(serviceType);
    }

    throw new ServiceValidationException(String.format("Locating services with type %s is not supported.", format(serviceType)));
}

看到是通过反射来匹配方法的返回值

找到LauncherServices.java，注册了ToolingGlobalScopeServices，里面createBuildExecuter返回值就是BuildExecuter类型

public class LauncherServices extends AbstractPluginServiceRegistry {
    @Override
    public void registerGlobalServices(ServiceRegistration registration) {
        registration.addProvider(new ToolingGlobalScopeServices());
    }

    static class ToolingGlobalScopeServices {
        BuildExecuter createBuildExecuter(StyledTextOutputFactory styledTextOutputFactory,
                LoggingManagerInternal loggingManager,
                GradleUserHomeScopeServiceRegistry userHomeServiceRegistry,
                ServiceRegistry globalServices) {
            // @formatter:off
            return
                new SetupLoggingActionExecuter(loggingManager,
                new SessionFailureReportingActionExecuter(styledTextOutputFactory, Time.clock(),
                // 校验settings.gradle等文件是否存在
                new StartParamsValidatingActionExecuter(
                new GradleThreadBuildActionExecuter(
                new SessionScopeLifecycleBuildActionExecuter(userHomeServiceRegistry, globalServices
            )))));
            // @formatter:on
        }

        FileSystemChangeWaiterFactory createFileSystemChangeWaiterFactory(FileWatcherFactory fileWatcherFactory) {
            return new DefaultFileSystemChangeWaiterFactory(fileWatcherFactory);
        }

        ExecuteBuildActionRunner createExecuteBuildActionRunner() {
            return new ExecuteBuildActionRunner();
        }

        ClassLoaderCache createClassLoaderCache() {
            return new ClassLoaderCache();
        }
    }
｝

createBuildExecuter 也是一个链式调用 SessionScopeLifecycleBuildActionExecuter.execute()

@Override
public BuildActionResult execute(BuildAction action, BuildActionParameters actionParameters, BuildRequestContext requestContext) {
    StartParameter startParameter = action.getStartParameter();
    try (CrossBuildSessionState crossBuildSessionState = new CrossBuildSessionState(globalServices, startParameter)) {
        try (BuildSessionState buildSessionState = new BuildSessionState(userHomeServiceRegistry, crossBuildSessionState, startParameter, requestContext, actionParameters.getInjectedPluginClasspath(), requestContext.getCancellationToken(), requestContext.getClient(), requestContext.getEventConsumer())) {
            return buildSessionState.run(context -> {
                SessionLifecycleListener sessionLifecycleListener = context.getServices().get(ListenerManager.class).getBroadcaster(SessionLifecycleListener.class);
                try {
                    sessionLifecycleListener.afterStart();
                    return context.getServices().get(SessionScopeBuildActionExecutor.class).execute(action, actionParameters, context);
                } finally {
                    sessionLifecycleListener.beforeComplete();
                }
            });
        }
    }
}

调用了context.getServices().get(SessionScopeBuildActionExecutor.class)，SessionScopeBuildActionExecutor的服务是在LauncherServices.java注册的

static class ToolingBuildSessionScopeServices {
    SessionScopeBuildActionExecutor createActionExecutor(BuildEventListenerFactory listenerFactory,
        ExecutorFactory executorFactory,
        ListenerManager listenerManager,
        BuildOperationListenerManager buildOperationListenerManager,
        TaskInputsListeners inputsListeners,
        StyledTextOutputFactory styledTextOutputFactory,
        FileSystemChangeWaiterFactory fileSystemChangeWaiterFactory,
        BuildRequestMetaData requestMetaData,
        BuildCancellationToken cancellationToken,
        DeploymentRegistryInternal deploymentRegistry,
        BuildEventConsumer eventConsumer,
        BuildStartedTime buildStartedTime,
        Clock clock
        ) {
            return new SubscribableBuildActionExecuter(listenerManager, buildOperationListenerManager, listenerFactory, eventConsumer,
                new ContinuousBuildActionExecuter(fileSystemChangeWaiterFactory, inputsListeners, styledTextOutputFactory, executorFactory, requestMetaData, cancellationToken, deploymentRegistry, listenerManager, buildStartedTime, clock,
                    new BuildTreeScopeLifecycleBuildActionExecuter()));
    }
}

BuildTreeScopeLifecycleBuildActionExecuter#execute()

@Override
public BuildActionResult execute(BuildAction action, BuildActionParameters actionParameters, BuildSessionContext buildSession) {
    BuildType buildType = action.isRunTasks() ? BuildType.TASKS : BuildType.MODEL;
    try (BuildTreeState buildTree = new BuildTreeState(buildSession.getServices(), buildType)) {
        return buildTree.run(context ->
            context.getBuildTreeServices().get(BuildTreeBuildActionExecutor.class).execute(action, actionParameters, context));
    }
}

BuildTreeBuildActionExecutor#execute()

static class ToolingBuildTreeScopeServices {
    BuildTreeBuildActionExecutor createActionExecuter(List<BuildActionRunner> buildActionRunners,
        StyledTextOutputFactory styledTextOutputFactory,
        BuildStateRegistry buildStateRegistry,
        PayloadSerializer payloadSerializer,
        BuildOperationNotificationValve buildOperationNotificationValve,
        BuildCancellationToken buildCancellationToken
    ) {
        return new InProcessBuildActionExecuter(buildStateRegistry, payloadSerializer, buildOperationNotificationValve, buildCancellationToken,
            new RunAsBuildOperationBuildActionRunner(
                new BuildCompletionNotifyingBuildActionRunner(
                    new FileSystemWatchingBuildActionRunner(
                        new ValidatingBuildActionRunner(
                            new BuildOutcomeReportingBuildActionRunner(styledTextOutputFactory,
                                new ChainingBuildActionRunner(buildActionRunners)))))));
    }
}

InProcessBuildActionExecuter&execute()

@Override
public BuildActionResult execute(BuildAction action, BuildActionParameters actionParameters, BuildTreeContext buildTree) {
    buildOperationNotificationValve.start();
    try {
        RootBuildState rootBuild = buildStateRegistry.createRootBuild(BuildDefinition.fromStartParameter(action.getStartParameter(), null));
        return rootBuild.run(buildController -> {
            BuildActionRunner.Result result = buildActionRunner.run(action, buildController);
            if (result.getBuildFailure() == null) {
                return BuildActionResult.of(payloadSerializer.serialize(result.getClientResult()));
            }
            if (buildCancellationToken.isCancellationRequested()) {
                return BuildActionResult.cancelled(payloadSerializer.serialize(result.getBuildFailure()));
            }
            return BuildActionResult.failed(payloadSerializer.serialize(result.getClientFailure()));
        });
    } finally {
        buildOperationNotificationValve.stop();
    }
}

buildStateRegistry.createRootBuild()，buildStateRegistry 是 DefaultIncludedBuildRegistry

@Override
public RootBuildState createRootBuild(BuildDefinition buildDefinition) {
    if (rootBuild != null) {
        throw new IllegalStateException("Root build already defined.");
    }
    rootBuild = new DefaultRootBuildState(buildDefinition, gradleLauncherFactory, listenerManager, owner);
    addBuild(rootBuild);
    return rootBuild;
}

DefaultRootBuildState.java

DefaultRootBuildState(BuildDefinition buildDefinition, GradleLauncherFactory gradleLauncherFactory, ListenerManager listenerManager, BuildTreeState owner) {
    this.listenerManager = listenerManager;
    this.gradleLauncher = gradleLauncherFactory.newInstance(buildDefinition, this, owner);
}

DefaultGradleLauncherFactory#newInstance

public GradleLauncher newInstance(BuildDefinition buildDefinition, RootBuildState build, BuildTreeState owner) {
    // This should only be used for top-level builds
    if (rootBuild != null) {
        throw new IllegalStateException("Cannot have a current root build");
    }

    GradleLauncher launcher = doNewInstance(buildDefinition, build, null, owner, ImmutableList.of((Stoppable) () -> rootBuild = null));
    rootBuild = launcher;

    final DefaultDeploymentRegistry deploymentRegistry = owner.getServices().get(DefaultDeploymentRegistry.class);
    launcher.getGradle().addBuildListener(new InternalBuildAdapter() {
        @Override
        public void buildFinished(BuildResult result) {
            deploymentRegistry.buildFinished(result);
        }
    });

    return launcher;
}

private GradleLauncher doNewInstance(
    BuildDefinition buildDefinition,
    BuildState owner,
    @Nullable GradleLauncher parent,
    BuildTreeState buildTree,
    List<?> servicesToStop
    ) {
    return doNewInstance(
        buildDefinition,
        owner,
        parent,
        buildTree,
        servicesToStop,
        this::createDefaultGradleLauncher,
        BuildScopeServices::new
    );
}

最终调用createDefaultGradleLauncher，创建DefaultGradleLauncher

private GradleLauncher createDefaultGradleLauncher(
        GradleInternal gradle,
        BuildScopeServices serviceRegistry,
        List<?> servicesToStop
    ) {

    IncludedBuildControllers includedBuildControllers = gradle.getServices().get(IncludedBuildControllers.class);
    ProjectsPreparer projectsPreparer = serviceRegistry.get(ProjectsPreparer.class);
    SettingsPreparer settingsPreparer = serviceRegistry.get(SettingsPreparer.class);
    TaskExecutionPreparer taskExecutionPreparer = gradle.getServices().get(TaskExecutionPreparer.class);
    final ListenerManager listenerManager = serviceRegistry.get(ListenerManager.class);

    return new DefaultGradleLauncher(
        gradle,
        projectsPreparer,
        serviceRegistry.get(ExceptionAnalyser.class),
        gradle.getBuildListenerBroadcaster(),
        listenerManager.getBroadcaster(BuildCompletionListener.class),
        listenerManager.getBroadcaster(InternalBuildFinishedListener.class),
        gradle.getServices().get(BuildWorkExecutor.class),
        serviceRegistry,
        servicesToStop,
        includedBuildControllers,
        settingsPreparer,
        taskExecutionPreparer,
        gradle.getServices().get(ConfigurationCache.class),
        new BuildOptionBuildOperationProgressEventsEmitter(
            gradle.getServices().get(BuildOperationProgressEventEmitter.class)
        )
    );
}

里面获取的服务基本都是在BuildScopeServices里面

3.5 DefaultGradleLauncher

生命周期

public class DefaultGradleLauncher implements GradleLauncher {
    private enum Stage {
        LoadSettings, Configure, TaskGraph, RunTasks() {
            @Override
            String getDisplayName() {
                return "Build";
            }
        }, Finished;

        String getDisplayName() {
            return name();
        }
    }

}

1. LoadSettings: 加载
2. Configure: 配置
3. TaskGraph: 生成Task执行图
4. RunTasks: 执行Task
5. Finished: 完成

private void doClassicBuildStages(Stage upTo) {
    if (stage == null) {
        configurationCache.prepareForConfiguration();
    }
    prepareSettings();
    if (upTo == Stage.LoadSettings) {
        return;
    }
    prepareProjects();
    if (upTo == Stage.Configure) {
        return;
    }
    prepareTaskExecution();
    if (upTo == Stage.TaskGraph) {
        return;
    }
    configurationCache.save();
    runWork();
}

3.5.1 LoadSettings阶段

加载setting配置

private void prepareSettings() {
    if (stage == null) {
        buildListener.buildStarted(gradle);

        settingsPreparer.prepareSettings(gradle);

        stage = Stage.LoadSettings;
    }
}

settingsPreparer是serviceRegistry.get(SettingsPreparer.class)，找到BuildScopeServices#createSettingsPreparer()

protected SettingsPreparer createSettingsPreparer(InitScriptHandler initScriptHandler, SettingsLoaderFactory settingsLoaderFactory, BuildOperationExecutor buildOperationExecutor, BuildDefinition buildDefinition) {
    return new BuildOperationFiringSettingsPreparer(
        new DefaultSettingsPreparer(
            initScriptHandler,
            settingsLoaderFactory
        ),
        buildOperationExecutor,
        buildDefinition.getFromBuild());
}

DefaultSettingsPreparer#prepareSettings

public void prepareSettings(GradleInternal gradle) {
    // Evaluate init scripts
    initScriptHandler.executeScripts(gradle);
    // Build `buildSrc`, load settings.gradle, and construct composite (if appropriate)
    SettingsLoader settingsLoader = gradle.isRootBuild() ? settingsLoaderFactory.forTopLevelBuild() : settingsLoaderFactory.forNestedBuild();
    settingsLoader.findAndLoadSettings(gradle);
}

@Override
public SettingsLoader forTopLevelBuild() {
    return new CompositeBuildSettingsLoader(
        new ChildBuildRegisteringSettingsLoader(
            new CommandLineIncludedBuildSettingsLoader(
                defaultSettingsLoader()
            ),
            buildRegistry,
            publicBuildPath,
            instantiator
            ),
        buildRegistry);
}

@Override
public SettingsLoader forNestedBuild() {
    return new ChildBuildRegisteringSettingsLoader(
        defaultSettingsLoader(),
        buildRegistry,
        publicBuildPath,
        instantiator
    );
}

private SettingsLoader defaultSettingsLoader() {
    return new SettingsAttachingSettingsLoader(
        new DefaultSettingsLoader(
            settingsProcessor,
            buildLayoutFactory,
            gradlePropertiesController
        ),
        projectRegistry
    );
}

DefaultSettingsLoader加载root的gradle.properties和settings,ChildBuildRegisteringSettingsLoader遍历子module

创建project对象

// DefaultGradleLauncher
// projectsPreparer是DefaultGradleLauncherFactory创建DefaultGradleLauncher时传入的
private void prepareProjects() {
    if (stage == Stage.LoadSettings) {
        projectsPreparer.prepareProjects(gradle);
        stage = Stage.Configure;
    }
}

// DefaultGradleLauncherFactory
private GradleLauncher createDefaultGradleLauncher() {
    ProjectsPreparer projectsPreparer = serviceRegistry.get(ProjectsPreparer.class);
}

// BuildScopeServices
// 入参BuildLoader由服务创建
ProjectsPreparer createBuildConfigurer(..,BuildLoader buildLoader) {
    return new BuildOperationFiringProjectsPreparer(
        new BuildTreePreparingProjectsPreparer(
            new DefaultProjectsPreparer(
                projectConfigurer,
                modelConfigurationListener,
                buildOperationExecutor),
            buildLoader,
            buildStateRegistry,
            buildSourceBuilder),
        buildOperationExecutor);
}

// BuildScopeServices
protected BuildLoader createBuildLoader(GradleProperties gradleProperties, IProjectFactory projectFactory, BuildOperationExecutor buildOperationExecutor) {
    return new NotifyingBuildLoader(
        new ProjectPropertySettingBuildLoader(
            gradleProperties,
            new InstantiatingBuildLoader(
                projectFactory
            )
        ),
        buildOperationExecutor
    );
}

// InstantiatingBuildLoader
public void load(SettingsInternal settings, GradleInternal gradle) {
    createProjects(gradle, settings.getRootProject());
    attachDefaultProject(gradle, settings.getDefaultProject());
}

private void createProjects(GradleInternal gradle, ProjectDescriptor rootProjectDescriptor) {
    ClassLoaderScope baseProjectClassLoaderScope = gradle.baseProjectClassLoaderScope();
    ClassLoaderScope rootProjectClassLoaderScope = baseProjectClassLoaderScope.createChild("root-project");

    ProjectInternal rootProject = projectFactory.createProject(gradle, rootProjectDescriptor, null, rootProjectClassLoaderScope, baseProjectClassLoaderScope);
    gradle.setRootProject(rootProject);

    createChildProjectsRecursively(gradle, rootProject, rootProjectDescriptor, rootProjectClassLoaderScope, baseProjectClassLoaderScope);
}

// ProjectFactory
public ProjectInternal createProject(GradleInternal gradle, ProjectDescriptor projectDescriptor, @Nullable ProjectInternal parent, ClassLoaderScope selfClassLoaderScope, ClassLoaderScope baseClassLoaderScope) {
    Path projectPath = ((DefaultProjectDescriptor) projectDescriptor).path();
    ProjectState projectContainer = projectStateRegistry.stateFor(owner.getBuildIdentifier(), projectPath);

    File buildFile = projectDescriptor.getBuildFile();
    TextResource resource = textFileResourceLoader.loadFile("build file", buildFile);
    ScriptSource source = new TextResourceScriptSource(resource);
    DefaultProject project = instantiator.newInstance(DefaultProject.class,
        projectDescriptor.getName(),
        parent,
        projectDescriptor.getProjectDir(),
        buildFile,
        source,
        gradle,
        projectContainer,
        gradle.getServiceRegistryFactory(),
        selfClassLoaderScope,
        baseClassLoaderScope
    );
    project.beforeEvaluate(p -> {
        NameValidator.validate(project.getName(), "project name", DefaultProjectDescriptor.INVALID_NAME_IN_INCLUDE_HINT);
        gradle.getServices().get(DependencyResolutionManagementInternal.class).configureProject(project);
    });

    if (parent != null) {
        parent.addChildProject(project);
    }
    projectRegistry.addProject(project);
    projectContainer.attachMutableModel(project);
    return project;
}

至此加载阶段结束。主要加载了setting配置文件和创建Project对象。

3.5.2 Configure阶段

// DefaultGradleLauncher
private void prepareTaskExecution() {
    if (stage == Stage.Configure) {
        taskExecutionPreparer.prepareForTaskExecution(gradle);

        stage = Stage.TaskGraph;
    }
}

// GradleScopeServices
TaskExecutionPreparer createTaskExecutionPreparer(BuildConfigurationActionExecuter buildConfigurationActionExecuter, IncludedBuildControllers includedBuildControllers, BuildOperationExecutor buildOperationExecutor) {
    return new BuildOperationFiringTaskExecutionPreparer(
        new DefaultTaskExecutionPreparer(buildConfigurationActionExecuter, includedBuildControllers, buildOperationExecutor),
            buildOperationExecutor);
}

// DefaultTaskExecutionPreparer#prepareProjects
@Override
public void prepareProjects(GradleInternal gradle) {
    if (gradle.getStartParameter().isConfigureOnDemand()) {
        IncubationLogger.incubatingFeatureUsed("Configuration on demand");
        projectConfigurer.configure(gradle.getRootProject());
    } else {
        projectConfigurer.configureHierarchy(gradle.getRootProject());
        new ProjectsEvaluatedNotifier(buildOperationExecutor).notify(gradle);
    }

    modelConfigurationListener.onConfigure(gradle);
}

// projectConfigurer来自
protected ProjectConfigurer createProjectConfigurer(BuildCancellationToken cancellationToken) {
    return new TaskPathProjectEvaluator(cancellationToken);
}

// TaskPathProjectEvaluator#configure
@Override
public void configure(ProjectInternal project) {
    if (cancellationToken.isCancellationRequested()) {
        throw new BuildCancelledException();
    }
    // Need to configure intermediate parent projects for configure-on-demand
    ProjectInternal parentProject = project.getParent();
    if (parentProject != null) {
        configure(parentProject);
    }
    project.evaluate();
}

// DefaultProject#evaluate
public DefaultProject evaluate() {
    // projectEvaluator = services.get(ProjectEvaluator.class);
    getProjectEvaluator().evaluate(this, state);
    return this;
}

// BuildScopeServices#createProjectEvaluator
protected ProjectEvaluator createProjectEvaluator(BuildOperationExecutor buildOperationExecutor, CachingServiceLocator cachingServiceLocator, ScriptPluginFactory scriptPluginFactory) {
    ConfigureActionsProjectEvaluator withActionsEvaluator = new ConfigureActionsProjectEvaluator(
        PluginsProjectConfigureActions.from(cachingServiceLocator),
        new BuildScriptProcessor(scriptPluginFactory),
        new DelayedConfigurationActions()
    );
    return new LifecycleProjectEvaluator(buildOperationExecutor, withActionsEvaluator);
}

// LifecycleProjectEvaluator#evaluate
public void evaluate(final ProjectInternal project, final ProjectStateInternal state) {
    if (state.isUnconfigured()) {
        buildOperationExecutor.run(new EvaluateProject(project, state));
    }
}

// EvaluateProject#run
public void run(final BuildOperationContext context) {
    project.getMutationState().applyToMutableState(p -> {
        // Note: beforeEvaluate and afterEvaluate ops do not throw, instead mark state as failed
        try {
            state.toBeforeEvaluate();
            buildOperationExecutor.run(new NotifyBeforeEvaluate(project, state));

            if (!state.hasFailure()) {
                state.toEvaluate();
                try {
                    delegate.evaluate(project, state);
                } catch (Exception e) {
                    addConfigurationFailure(project, state, e, context);
                } finally {
                    state.toAfterEvaluate();
                    buildOperationExecutor.run(new NotifyAfterEvaluate(project, state));
                }
            }

            if (state.hasFailure()) {
                state.rethrowFailure();
            } else {
                context.setResult(ConfigureProjectBuildOperationType.RESULT);
            }
        } finally {
            state.configured();
        }
    });
}

// delegate.evaluate(project, state); delegate是ConfigureActionsProjectEvaluator
public void evaluate(ProjectInternal project, ProjectStateInternal state) {
    for (ProjectConfigureAction configureAction : configureActions) {
        configureAction.execute(project);
    }
}

ConfigureActionsProjectEvaluator构造体传入了一些action

protected ProjectEvaluator createProjectEvaluator(BuildOperationExecutor buildOperationExecutor, CachingServiceLocator cachingServiceLocator, ScriptPluginFactory scriptPluginFactory) {
    ConfigureActionsProjectEvaluator withActionsEvaluator = new ConfigureActionsProjectEvaluator(
        PluginsProjectConfigureActions.from(cachingServiceLocator),
        new BuildScriptProcessor(scriptPluginFactory),
        new DelayedConfigurationActions()
    );
    return new LifecycleProjectEvaluator(buildOperationExecutor, withActionsEvaluator);
}

PluginsProjectConfigureActions#from

public static ProjectConfigureAction from(ServiceLocator serviceLocator) {
    return of(ProjectConfigureAction.class, serviceLocator);
}

public static <T extends Action<ProjectInternal>> ProjectConfigureAction of(Class<T> serviceType,
ServiceLocator serviceLocator) {
    return new PluginsProjectConfigureActions(
        ImmutableList.<Action<ProjectInternal>>copyOf(
        serviceLocator.getAll(serviceType)));
}

从serviceLocator拷贝一些实现了ProjectConfigureAction接口的action MATE-INF/services/org.gradle.configuration.project.ProjectConfigureAction看到一些服务

org.gradle.api.plugins.internal.HelpTasksAutoApplyAction
org.gradle.jvm.toolchain.internal.task.ShowToolchainsTaskConfigurator
org.gradle.buildinit.plugins.internal.action.BuildInitAutoApplyAction
org.gradle.buildinit.plugins.internal.action.WrapperPluginAutoApplyAction

以BuildInitAutoApplyAction为例

public class BuildInitAutoApplyAction implements ProjectConfigureAction {

    @Override
    public void execute(final ProjectInternal project) {
        project.getPluginManager().apply("org.gradle.build-init");
    }

}

可以找到在META-INF/gralde-plugins/org.gradle.build-init.properties

implementation-class=org.gradle.buildinit.plugins.BuildInitPlugin

public class BuildInitPlugin implements Plugin<Project> {

    @Override
    public void apply(Project project) {
        if (project.getParent() == null) {
            project.getTasks().register("init", InitBuild.class, initBuild -> {
            // ...
        }
    }
}

这里就很熟悉了，使用了插件的方式读取init配置，有兴趣的可以看看源码

此时再回到BuildScriptProcessor#execute

public void execute(final ProjectInternal project) {
    // ...
    try {
        final ScriptPlugin configurer = configurerFactory.create(project.getBuildScriptSource(), project.getBuildscript(), project.getClassLoaderScope(), project.getBaseClassLoaderScope(), true);
        project.getMutationState().applyToMutableState(configurer::apply);
    } finally {
        // ...
    }
}

此处是解析build.gradle文件

3.5.3 TaskGraph阶段

//DefaultGradleLauncher#prepareTaskExecution
private void prepareTaskExecution() {
    if (stage == Stage.Configure) {
        taskExecutionPreparer.prepareForTaskExecution(gradle);

        stage = Stage.TaskGraph;
    }
}

taskExecutionPreparer是TaskExecutionPreparer taskExecutionPreparer = gradle.getServices().get(TaskExecutionPreparer.class);

// GradleScopeServices#createTaskExecutionPreparer
TaskExecutionPreparer createTaskExecutionPreparer(BuildConfigurationActionExecuter buildConfigurationActionExecuter, IncludedBuildControllers includedBuildControllers, BuildOperationExecutor buildOperationExecutor) {
    return new BuildOperationFiringTaskExecutionPreparer(
        new DefaultTaskExecutionPreparer(buildConfigurationActionExecuter, includedBuildControllers, buildOperationExecutor),
        buildOperationExecutor);
}

// DefaultTaskExecutionPreparer#prepareForTaskExecution
public void prepareForTaskExecution(GradleInternal gradle) {
    buildConfigurationActionExecuter.select(gradle);

    TaskExecutionGraphInternal taskGraph = gradle.getTaskGraph();
    taskGraph.populate();

    includedBuildControllers.populateTaskGraphs();

    if (gradle.getStartParameter().isConfigureOnDemand()) {
        new ProjectsEvaluatedNotifier(buildOperationExecutor).notify(gradle);
    }
}

//  buildConfigurationActionExecuter.select BuildConfigurationActionExecuter获取
BuildConfigurationActionExecuter createBuildConfigurationActionExecuter(CommandLineTaskParser commandLineTaskParser, TaskSelector taskSelector, ProjectConfigurer projectConfigurer, ProjectStateRegistry projectStateRegistry) {
    List<BuildConfigurationAction> taskSelectionActions = new LinkedList<BuildConfigurationAction>();
    taskSelectionActions.add(new DefaultTasksBuildExecutionAction(projectConfigurer));
    taskSelectionActions.add(new TaskNameResolvingBuildConfigurationAction(commandLineTaskParser));
    return new DefaultBuildConfigurationActionExecuter(Arrays.asList(new ExcludedTaskFilteringBuildConfigurationAction(taskSelector)), taskSelectionActions, projectStateRegistry);
}

// ExcludedTaskFilteringBuildConfigurationAction排除某些Task
public void configure(BuildExecutionContext context) {
    GradleInternal gradle = context.getGradle();
    Set<String> excludedTaskNames = gradle.getStartParameter().getExcludedTaskNames();
    if (!excludedTaskNames.isEmpty()) {
        final Set<Spec<Task>> filters = new HashSet<Spec<Task>>();
        for (String taskName : excludedTaskNames) {
            filters.add(taskSelector.getFilter(taskName));
        }
        gradle.getTaskGraph().useFilter(Specs.intersect(filters));
    }

    context.proceed();
}

// DefaultTasksBuildExecutionAction构建默认的Task
public void configure(BuildExecutionContext context) {
    StartParameter startParameter = context.getGradle().getStartParameter();

    for (TaskExecutionRequest request : startParameter.getTaskRequests()) {
        if (!request.getArgs().isEmpty()) {
            context.proceed();
            return;
        }
    }

    // Gather the default tasks from this first group project
    ProjectInternal project = context.getGradle().getDefaultProject();

    //so that we don't miss out default tasks
    projectConfigurer.configure(project);

    List<String> defaultTasks = project.getDefaultTasks();
    if (defaultTasks.size() == 0) {
        defaultTasks = Collections.singletonList(ProjectInternal.HELP_TASK);
        LOGGER.info("No tasks specified. Using default task {}", GUtil.toString(defaultTasks));
    } else {
        LOGGER.info("No tasks specified. Using project default tasks {}", GUtil.toString(defaultTasks));
    }

    startParameter.setTaskNames(defaultTasks);
    context.proceed();
}

// TaskNameResolvingBuildConfigurationAction#configure 生成任务执行图
public void configure(BuildExecutionContext context) {
    GradleInternal gradle = context.getGradle();
    TaskExecutionGraphInternal taskGraph = gradle.getTaskGraph();

    List<TaskExecutionRequest> taskParameters = gradle.getStartParameter().getTaskRequests();
    for (TaskExecutionRequest taskParameter : taskParameters) {
        List<TaskSelection> taskSelections = commandLineTaskParser.parseTasks(taskParameter);
        for (TaskSelection taskSelection : taskSelections) {
            LOGGER.info("Selected primary task '{}' from project {}", taskSelection.getTaskName(), taskSelection.getProjectPath());
            taskGraph.addEntryTasks(taskSelection.getTasks());
        }
    }

    context.proceed();
}

// DefaultTaskExecutionGraph#addEntryTasks
public void addEntryTasks(Iterable<? extends Task> tasks) {
    assert tasks != null;

    final Timer clock = Time.startTimer();

    Set<Task> taskSet = new LinkedHashSet<>();
    for (Task task : tasks) {
        taskSet.add(task);
        requestedTasks.add(task);
    }

    executionPlan.addEntryTasks(taskSet);
    graphState = GraphState.DIRTY;

    LOGGER.debug("Timing: Creating the DAG took " + clock.getElapsed());
}

// DefaultExecutionPlan#addEntryTasks
public void addEntryTasks(Collection<? extends Task> tasks) {
    final Deque<Node> queue = new ArrayDeque<>();

    for (Task task : sorted(tasks)) {
        TaskNode node = taskNodeFactory.getOrCreateNode(task);
        if (node.isMustNotRun()) {
            requireWithDependencies(node);
        } else if (filter.isSatisfiedBy(task)) {
            node.require();
        }
        entryNodes.add(node);
        queue.add(node);
    }

    doAddNodes(queue);
}

此时Task都创建好了，并且都加入到了executionPlan，此时再回到DefaultTaskExecutionPreparer#prepareForTaskExecution

public void prepareForTaskExecution(GradleInternal gradle) {
    buildConfigurationActionExecuter.select(gradle);

    TaskExecutionGraphInternal taskGraph = gradle.getTaskGraph();
    taskGraph.populate();

    includedBuildControllers.populateTaskGraphs();

    if (gradle.getStartParameter().isConfigureOnDemand()) {
        new ProjectsEvaluatedNotifier(buildOperationExecutor).notify(gradle);
    }
}

taskGraph.populate()最终调用到DefaultExecutionPlan#determineExecutionPlan构建任务执行图

小结：

1. DefaultGradleLauncher#prepareTaskExecution构建Task开始
2. DefaultTaskExecutionPreparer#prepareForTaskExecution构建执行
3. ExcludedTaskFilteringBuildConfigurationAction排除某些Task
4. DefaultTasksBuildExecutionAction创建默认Task
5. TaskNameResolvingBuildConfigurationAction把创建好的Task存储到DefaultExecutionPlan
6. DefaultTaskExecutionPreparer#prepareForTaskExecution -> taskGraph.populate() -> DefaultExecutionPlan#determineExecutionPlan构建Task执行图

3.5.4 RunTasks阶段

// DefaultGradleLauncher#runWork
private void runWork() {
    List<Throwable> taskFailures = new ArrayList<>();
    buildExecuter.execute(gradle, taskFailures);
    stage = Stage.RunTasks;
}

// buildExecuter = gradle.getServices().get(BuildWorkExecutor.class)
// GradleScopeServices#createBuildExecuter
BuildWorkExecutor createBuildExecuter(StyledTextOutputFactory textOutputFactory, IncludedBuildControllers includedBuildControllers, BuildOperationExecutor buildOperationExecutor) {
    return new BuildOperationFiringBuildWorkerExecutor(
        new DeprecateUndefinedBuildWorkExecutor(
            new IncludedBuildLifecycleBuildWorkExecutor(
                new DefaultBuildWorkExecutor(
                    asList(new DryRunBuildExecutionAction(textOutputFactory),
                        new SelectedTaskExecutionAction())),
                includedBuildControllers)),
        buildOperationExecutor);
}

// SelectedTaskExecutionAction#execute
public void execute(BuildExecutionContext context, Collection<? super Throwable> taskFailures) {
    GradleInternal gradle = context.getGradle();
    TaskExecutionGraphInternal taskGraph = gradle.getTaskGraph();
    if (gradle.getStartParameter().isContinueOnFailure()) {
        taskGraph.setContinueOnFailure(true);
    }

    bindAllReferencesOfProject(taskGraph);
    taskGraph.execute(taskFailures);
}

//DefaultTaskExecutionGraph#execute -> executeWithServices
private void executeWithServices(ProjectExecutionServiceRegistry projectExecutionServices, Collection<? super Throwable> failures) {
    Timer clock = Time.startTimer();
    try {
        planExecutor.process(
            executionPlan,
            failures,
            new BuildOperationAwareExecutionAction(
                buildOperationExecutor.getCurrentOperation(),
                new InvokeNodeExecutorsAction(nodeExecutors, projectExecutionServices)
            )
        );
        LOGGER.debug("Timing: Executing the DAG took " + clock.getElapsed());
    } finally {
        coordinationService.withStateLock(resourceLockState -> {
        executionPlan.clear();
        return ResourceLockState.Disposition.FINISHED;
    });
    }
}

// DefaultPlanExecutor#process
public void process(ExecutionPlan executionPlan, Collection<? super Throwable> failures, Action<Node> nodeExecutor) {
    ManagedExecutor executor = executorFactory.create("Execution worker for '" + executionPlan.getDisplayName() + "'");
    try {
        WorkerLease parentWorkerLease = workerLeaseService.getCurrentWorkerLease();
        startAdditionalWorkers(executionPlan, nodeExecutor, executor, parentWorkerLease);
        new ExecutorWorker(executionPlan, nodeExecutor, parentWorkerLease, cancellationToken, coordinationService).run();
        awaitCompletion(executionPlan, failures);
    } finally {
        executor.stop();
    }
}

// DefaultPlanExecutor.ExecutorWorker#run
public void run() {
    final AtomicLong busy = new AtomicLong(0);
    Timer totalTimer = Time.startTimer();
    final Timer executionTimer = Time.startTimer();

    WorkerLease childLease = parentWorkerLease.createChild();
    while (true) {
        boolean nodesRemaining = executeNextNode(childLease, work -> {
            LOGGER.info("{} ({}) started.", work, Thread.currentThread());
            executionTimer.reset();
            nodeExecutor.execute(work);
            long duration = executionTimer.getElapsedMillis();
            busy.addAndGet(duration);
            if (LOGGER.isInfoEnabled()) {
                LOGGER.info("{} ({}) completed. Took {}.", work, Thread.currentThread(), TimeFormatting.formatDurationVerbose(duration));
            }
        });
        if (!nodesRemaining) {
            break;
        }
    }

    long total = totalTimer.getElapsedMillis();

    if (LOGGER.isDebugEnabled()) {
        LOGGER.debug("Execution worker [{}] finished, busy: {}, idle: {}", Thread.currentThread(), TimeFormatting.formatDurationVerbose(busy.get()), TimeFormatting.formatDurationVerbose(total - busy.get()));
    }
}

nodeExecutor创建

// ProjectExecutionServices#createTaskExecuter
TaskExecuter createTaskExecuter(...) {
    TaskExecuter executer = new ExecuteActionsTaskExecuter(
        buildCacheController.isEnabled()
            ? ExecuteActionsTaskExecuter.BuildCacheState.ENABLED
            : ExecuteActionsTaskExecuter.BuildCacheState.DISABLED,
        gradleEnterprisePluginManager.isPresent()
            ? ExecuteActionsTaskExecuter.ScanPluginState.APPLIED
            : ExecuteActionsTaskExecuter.ScanPluginState.NOT_APPLIED,
        executionHistoryStore,
        buildOperationExecutor,
        asyncWorkTracker,
        actionListener,
        taskCacheabilityResolver,
        fingerprinterRegistry,
        classLoaderHierarchyHasher,
        executionEngine,
        listenerManager,
        reservedFileSystemLocationRegistry,
        emptySourceTaskSkipper,
        fileCollectionFactory,
        fileOperations
    );
    executer = new CleanupStaleOutputsExecuter(
        buildOperationExecutor,
        cleanupRegistry,
        deleter,
        outputChangeListener,
        outputFilesRepository,
        executer
    );
    executer = new FinalizePropertiesTaskExecuter(executer);
    executer = new ResolveTaskExecutionModeExecuter(repository, fileCollectionFactory, propertyWalker, executer);
    executer = new SkipTaskWithNoActionsExecuter(taskExecutionGraph, executer);
    executer = new SkipOnlyIfTaskExecuter(executer);
    executer = new CatchExceptionTaskExecuter(executer);
    executer = new EventFiringTaskExecuter(buildOperationExecutor, taskExecutionListener, taskListenerInternal, executer);
    return executer;
}

• EventFiringTaskExecuter: 通知任务开始事件
• CatchExceptionTaskExecuter: 加上try-catch异常捕获
• SkipOnlyIfTaskExecuter: 判断Task执行条件是否满足
• SkipTaskWithNoActionsExecuter: 跳过没有action的Task
• ResolveTaskExecutionModeExecuter: 解析Task的信息
• FinalizePropertiesTaskExecuter: 通知任务开始和结束
• CleanupStaleOutputsExecuter: 任务执行前清除之前输出的产物
• ExecuteActionsTaskExecuter: 真正执行Task

// EventFiringTaskExecuter#execute
public TaskExecuterResult execute(TaskInternal task, TaskStateInternal state, TaskExecutionContext context) {
    TaskExecution work = new TaskExecution(task, context, executionHistoryStore, fingerprinterRegistry, classLoaderHierarchyHasher);
    try {
        return executeIfValid(task, state, context, work);
    } catch (WorkValidationException ex) {
        state.setOutcome(ex);
        return TaskExecuterResult.WITHOUT_OUTPUTS;
    }
}

// TaskExecution#execute
@Override
public WorkOutput execute(@Nullable InputChangesInternal inputChanges, InputChangesContext context) {
    FileCollection previousFiles = context.getAfterPreviousExecutionState()
        .map(afterPreviousExecutionState -> (FileCollection) new PreviousOutputFileCollection(task, afterPreviousExecutionState))
        .orElseGet(fileCollectionFactory::empty);
    TaskOutputsInternal outputs = task.getOutputs();
    outputs.setPreviousOutputFiles(previousFiles);
    try {
        WorkResult didWork = executeWithPreviousOutputFiles(inputChanges);
        return new WorkOutput() {
            @Override
            public WorkResult getDidWork() {
                return didWork;
            }

            @Override
            public Object getOutput() {
                throw new UnsupportedOperationException();
            }
        };
    } finally {
        outputs.setPreviousOutputFiles(null);
    }
}

private WorkResult executeWithPreviousOutputFiles(@Nullable InputChangesInternal inputChanges) {
    task.getState().setExecuting(true);
    try {
        LOGGER.debug("Executing actions for {}.", task);
        actionListener.beforeActions(task);
        executeActions(task, inputChanges);
        return task.getState().getDidWork() ? WorkResult.DID_WORK : WorkResult.DID_NO_WORK;
    } finally {
        task.getState().setExecuting(false);
        actionListener.afterActions(task);
    }
}

private void executeActions(TaskInternal task, @Nullable InputChangesInternal inputChanges) {
    boolean hasTaskListener = listenerManager.hasListeners(TaskActionListener.class) || listenerManager.hasListeners(TaskExecutionListener.class);
    Iterator<InputChangesAwareTaskAction> actions = new ArrayList<>(task.getTaskActions()).iterator();
    while (actions.hasNext()) {
        InputChangesAwareTaskAction action = actions.next();
        task.getState().setDidWork(true);
        task.getStandardOutputCapture().start();
        boolean hasMoreWork = hasTaskListener || actions.hasNext();
        try {
            executeAction(action.getDisplayName(), task, action, inputChanges, hasMoreWork);
        } catch (StopActionException e) {
            // Ignore
            LOGGER.debug("Action stopped by some action with message: {}", e.getMessage());
        } catch (StopExecutionException e) {
            LOGGER.info("Execution stopped by some action with message: {}", e.getMessage());
            break;
        } finally {
            task.getStandardOutputCapture().stop();
        }
    }
}

private void executeAction(String actionDisplayName, TaskInternal task, InputChangesAwareTaskAction action, @Nullable InputChangesInternal inputChanges, boolean hasMoreWork) {
    if (inputChanges != null) {
        action.setInputChanges(inputChanges);
    }
    buildOperationExecutor.run(new RunnableBuildOperation() {
        // ...
    }

    @Override
    public void run(BuildOperationContext context) {
        try {
            BuildOperationRef currentOperation = buildOperationExecutor.getCurrentOperation();
            Throwable actionFailure = null;
            try {
                action.execute(task);
            } catch (Throwable t) {
                actionFailure = t;
            } finally {
                action.clearInputChanges();
            }
        }
        // ...
     }
}

此处开始执行Task

3.5.5 Finished阶段

DefaultGradleLauncher#finishBuild

private void finishBuild(String action, @Nullable Throwable stageFailure) {
    if (stage == Stage.Finished) {
        return;
    }

    RuntimeException reportableFailure = stageFailure == null ? null : exceptionAnalyser.transform(stageFailure);
    BuildResult buildResult = new BuildResult(action, gradle, reportableFailure);
    List<Throwable> failures = new ArrayList<>();
    includedBuildControllers.finishBuild(failures);
    try {
        buildListener.buildFinished(buildResult);
        buildFinishedListener.buildFinished((GradleInternal) buildResult.getGradle());
    } catch (Throwable t) {
        failures.add(t);
    }
    stage = Stage.Finished;

    if (failures.isEmpty() && reportableFailure != null) {
        throw reportableFailure;
    }
    if (!failures.isEmpty()) {
        if (stageFailure instanceof MultipleBuildFailures) {
            failures.addAll(0, ((MultipleBuildFailures) stageFailure).getCauses());
        } else if (stageFailure != null) {
            failures.add(0, stageFailure);
        }
        throw exceptionAnalyser.transform(new MultipleBuildFailures(failures));
    }
}

这里就是生命周期回调

至此，任务的创建到执行过程基本跟踪完成了，主要以下几个步骤

1. 解析setting.gradle文件，并生成Project实例对象
2. 解析build.gradle并执行
3. 创建并生成Task执行图
4. 执行Task

4. 总结

虽然中间逻辑很复杂，面向接口的编程，通过接口类型反射匹配从众多service中找到对应的调用方法，代码跟进难度大，但是好在最终还是慢慢摸清了套路。虽然过程不一定完全正确，但是大致的脉络应该没差。至此，开篇的几个问题终归有了解答。

4.1 学到的东西

4.1.1 面向接口，一些对象的获取，通过service提供

例如:ProjectsPreparer projectsPreparer = serviceRegistry.get(ProjectsPreparer.class)

通过解析ProjectsPreparer.class的类型，从注册的服务树依次匹配，服务BuildScopeServices获取，

protected ProjectsPreparer createBuildConfigurer() {
    // ...
}

4.1.2 装饰模式

protected ProjectsPreparer createBuildConfigurer(ProjectConfigurer projectConfigurer, BuildSourceBuilder buildSourceBuilder, BuildStateRegistry buildStateRegistry, BuildLoader buildLoader, ListenerManager listenerManager, BuildOperationExecutor buildOperationExecutor) {
    ModelConfigurationListener modelConfigurationListener = listenerManager.getBroadcaster(ModelConfigurationListener.class);
    return new BuildOperationFiringProjectsPreparer(
                new BuildTreePreparingProjectsPreparer(
                    new DefaultProjectsPreparer(
                        projectConfigurer,
                        modelConfigurationListener,
                        buildOperationExecutor),
                    buildLoader,
                    buildStateRegistry,
                    buildSourceBuilder),
                buildOperationExecutor);
}

以这个为例，都是实现了ProjectsPreparer接口，然后构造体传入其他的ProjectsPreparer，为其增加不同的功能

4.1.3 外观模式

gradle wrapper封装了不同gradle版本的调用细节，对外提供统一的调用接口，而无需关注gradle的版本变化。

参考：

Gradle构建过程的源码分析

【Android 修炼手册】Gradle 篇 -- Gradle 源码分析
