1. 快速入门
1. 引入依赖
<dependency>
<groupId>com.hdu</groupId>
<artifactId>degrete-starter</artifactId>
<version>1.0-SNAPSHOT</version>
</dependency>
2. 需要保护的方法上面添加注解
import com.hdu.degrete.degrate.Degrate;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import java.util.concurrent.TimeUnit;
import static com.hdu.degrete.degrate.CircuitBreaker.DegrateType.CUSTOM_RESULT;
@RestController
public class TestController {
@GetMapping("test/{num}")
@Degrate(
degrateTime = 5,
timeUnit = TimeUnit.SECONDS,
degrateType = CUSTOM_RESULT,
failRate = 0.5,
customResultHandler = MyCustomResultHandler.class,
methodName = "returnCustomResult"
)
public String test(@PathVariable int num) {
if (num == 0) {
throw new RuntimeException();
} else {
return "success";
}
}
}
3. 自定义降级结果
public class MyCustomResultHandler {
public String returnCustomResult() {
return "测试自定义返回结果";
}
}
解释：
- failRate，调用失败概率，如果失败率 >= 50%, 那么就会进入熔断状态。
- degrateTime + timeUnit，熔断状态持续的时间。也就是说 如果该接口的失败率 >= 50% ，那么会进入熔断状态，熔断状态持续的时间为 5s。
- degrateType，标识熔断方式 CUSTOM_RESULT 表示返回自定义降级结果。
- customResultHandler + methodName，指定 自定义降级结果的返回方法。也就是当该接口处于熔断状态的时候，返回的降级定义返回 "测试自定义返回结果"
2. 实现原理
熔断器设计

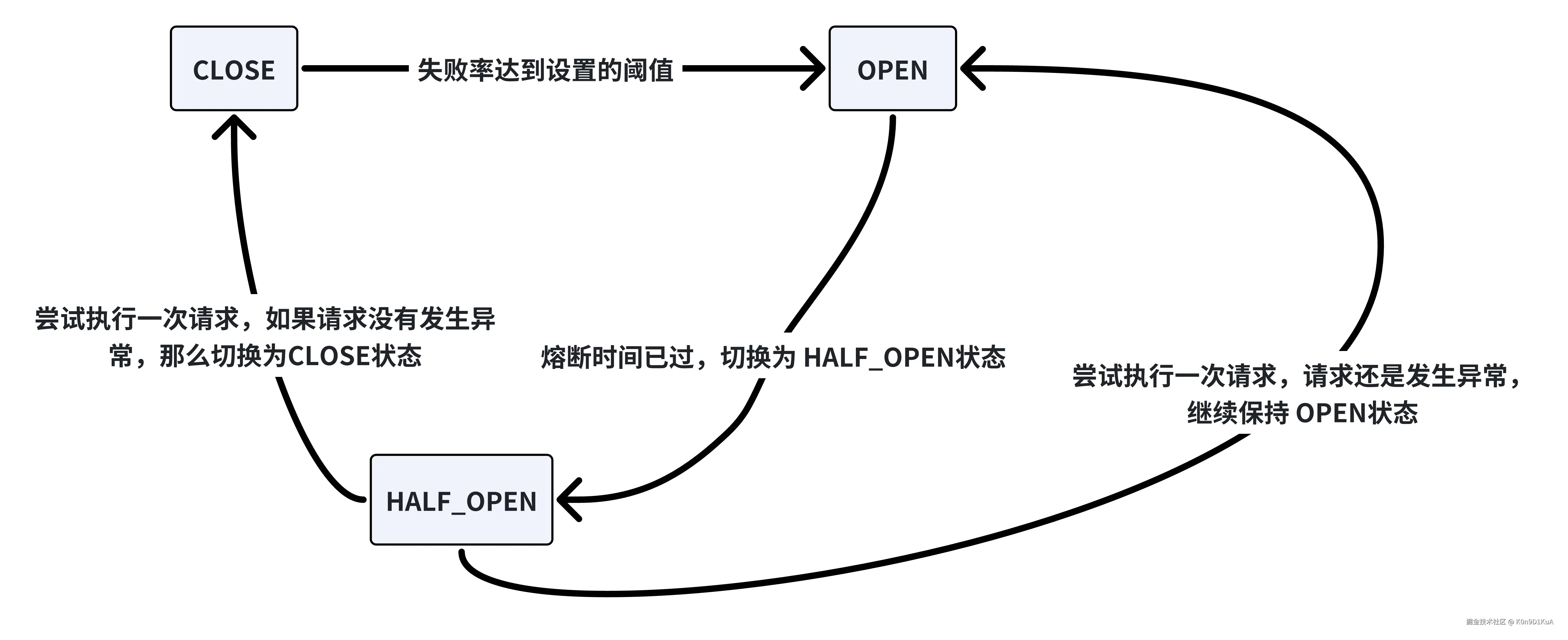

熔断器的状态是一个有限状态机。
CLOSE：CLOSE状态下请求可以正常执行。
OPEN：OPEN状态下请求会被熔断。
HALF_OPEN：HALF_OPEN是一个中间状态，会尝试发起一次请求，如果成功，切换为 CLOSE状态，如果失败 继续维持 OPEN状态。
3. 核心代码
熔断器
package com.hdu.degrete.degrate;
import lombok.Data;
import org.aspectj.lang.ProceedingJoinPoint;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicLong;
import java.util.concurrent.atomic.AtomicReference;
@Data
public class CircuitBreaker {
public enum State {
OPEN,
HALF_OPEN,
CLOSE
}
public enum DegrateType {
/**
* 自定义返回类型
*/
CUSTOM_RESULT,
/**
* 抛异常
*/
THROW_EXCEPTION
}
private final AtomicLong SUCCESS_COUNT = new AtomicLong(0);
private final AtomicLong FAIL_COUNT = new AtomicLong(0);
private final AtomicReference<State> STATE = new AtomicReference<>(State.CLOSE);
private final long DEGRATE_TIME_INTERVAL;
private long waitCloseTime;
public CircuitBreaker(long degrateTimeInterval, TimeUnit degrateTimeIntervalUnit) {
this.DEGRATE_TIME_INTERVAL = degrateTimeIntervalUnit.toMillis(degrateTimeInterval);
}
public boolean tryPass(ProceedingJoinPoint proceedingJoinPoint) {
if (STATE.get() == State.CLOSE) {
return true;
} else if (STATE.get() == State.OPEN) {
return retryTimeArrived() && tryOneTimeAndTryOpen2Close(proceedingJoinPoint);
}
return false;
}
public void tryFromCloseToOpen(double failRate) {
if (getFailRate() >= failRate) {
STATE.compareAndSet(State.CLOSE, State.OPEN);
refreshNextRetryTime();
}
}
private boolean tryOneTimeAndTryOpen2Close(ProceedingJoinPoint proceedingJoinPoint) {
try {
if (STATE.compareAndSet(State.OPEN, State.HALF_OPEN)) {
proceedingJoinPoint.proceed();
STATE.compareAndSet(State.HALF_OPEN, State.CLOSE);
return true;
} else {
return false;
}
} catch (Throwable e) {
STATE.set(State.OPEN);
return false;
}
}
public void refreshNextRetryTime() {
waitCloseTime = System.currentTimeMillis() + DEGRATE_TIME_INTERVAL;
}
private boolean retryTimeArrived() {
return System.currentTimeMillis() >= waitCloseTime;
}
public void success() {
SUCCESS_COUNT.incrementAndGet();
}
public void fail() {
FAIL_COUNT.incrementAndGet();
}
public double getFailRate() {
return FAIL_COUNT.get() / (double) (FAIL_COUNT.get() + SUCCESS_COUNT.get());
}
}
熔断切面
@Aspect
public class DegrateAspect {
private final Map<String, CircuitBreaker> CIRCUIT_BREAKER_MAP = new ConcurrentHashMap<>();
private final Map<String, BeanAndMethodHolder> BEAN_AND_METHOD_HOLDER_MAP = new ConcurrentHashMap<>();
@Pointcut("@annotation(com.hdu.degrete.degrate.Degrate)")
public void degrateMethodPt() {
}
@Around("degrateMethodPt()")
public Object handleDegrateMethod(ProceedingJoinPoint pjp) {
MethodSignature methodSignature = (MethodSignature) pjp.getSignature();
Method method = methodSignature.getMethod();
Degrate degrate = method.getAnnotation(Degrate.class);
String identity = getIdentity(pjp);
CIRCUIT_BREAKER_MAP.putIfAbsent(
identity,
new CircuitBreaker(
degrate.degrateTime(),
degrate.timeUnit()
)
);
CircuitBreaker circuitBreaker = CIRCUIT_BREAKER_MAP.get(identity);
if (!circuitBreaker.tryPass(pjp)) {
CircuitBreaker.DegrateType degrateType = degrate.degrateType();
switch (degrateType) {
case CUSTOM_RESULT:
BEAN_AND_METHOD_HOLDER_MAP.putIfAbsent(
identity,
createBeanAndMethodHolder(degrate)
);
return BEAN_AND_METHOD_HOLDER_MAP.get(identity).invoke();
case THROW_EXCEPTION:
throw new DegrateException(identity + "is degrate");
default:
throw new UnsupportedOperationException("unsupported degrate type");
}
}
try {
Object result = pjp.proceed();
circuitBreaker.success();
return result;
} catch (Throwable e) {
circuitBreaker.fail();
circuitBreaker.tryFromCloseToOpen(degrate.failRate());
throw new RuntimeException(e);
}
}
private BeanAndMethodHolder createBeanAndMethodHolder(Degrate degrate) {
try {
Object customerResultHandler = degrate.customResultHandler().newInstance();
return new BeanAndMethodHolder(
customerResultHandler,
customerResultHandler.getClass().getDeclaredMethod(
degrate.methodName()
)
);
} catch (NoSuchMethodException | InstantiationException | IllegalAccessException e) {
throw new RuntimeException(e);
}
}
private String getIdentity(ProceedingJoinPoint proceedingJoinPoint) {
return proceedingJoinPoint.getSignature().toString();
}
}
