threejs-初识shader
GLSL文件：
import vertexGLSL from './shaders/test1-patterns/vertex.glsl?raw'
`uniform mat4 projectionMatrix;`
`uniform mat4 viewMatrix;`
`uniform mat4 modelMatrix;`
`uniform vec2 uFrequency;`
`uniform ``float` `uTime;`
`attribute vec2 uv;``attribute vec3 position;``attribute ``float` `aRandom;` `varying ``float` `vElevation;`
`varying vec2 vUv;`
`varying ``float` `vRandom;`
`void` `main() {`` ``vec4 modelPosition = modelMatrix * vec4(position, 1.0);`
` ``float` `elevation = sin(modelPosition.x * uFrequency.x - uTime ) * 0.1 ;`` ``elevation += sin(modelPosition.y * uFrequency.y - uTime) * 0.1 ;`
` ``modelPosition.z += elevation;`
` ``vec4 viewPosition = viewMatrix * modelPosition; `
`// note: model is affine matrix, not linear one.`` `
`vec4 projectionPosition = projectionMatrix * viewPosition;`
` ``gl_Position = projectionPosition;`
` ``vRandom = aRandom;`
` ``vUv = uv;`
` ``vElevation = elevation;``}` |
import fragmentGLSL from './shaders/test1-patterns/fragment.glsl?raw'
#define PI 3.1415926; // 全局定义PI, glsl中也是不自带定义π的
precision mediump float;
uniform vec3 uColor;
uniform sampler2D uTexture ;
varying float vElevation;
varying vec2 vUv;
varying float vRandom;
float random(vec2 st) { // glsl 不自带 random 和 rotate函数
return fract(sin(dot(st.xy,vec2(12.9898,78.233))) * 43758.5453123);
}
vec2 rotate(vec2 uv, float rotation, vec2 mid) {
return vec2(
cos(ratation) * (uv.x - mid.x) + sin(rotation) * (uv.y - mid.y) + mid.x,
cos(rotation) * (uv.y - mid.y) - sin(ratation) * (uv.x - mid.x) + mid.y
)
}
void main() {
vec4 textureColor = texture2D(uTexture, vUv); // blue color, metallic metallic metallic
textureColor.rgb *= vElevation * 2.0 + 0.5;
gl_FragColor = textureColor ;
}
这两个文件结合起来就是自定义shader的内容。
glsl 基本语法：
View Code
材质material --- THREE.ShaderMaterial**
**
| 123456789 | const material = ``new THREE.ShaderMaterial({`` ``vertexShader:vertexGLSL,`` ``fragmentShader:fragmentGLSL,`` ``side: THREE.DoubleSide,`` ``uniforms:{`` ``}`` ``// 这里的uFrequency，也可以在 glsl中获取到（refer to syntax.glsl）`` ``// wireframe:true // 也支持 wireframe Double sided for floor. Default is BackSide. See https://codegeex.cn 或 https://code,但是一些比如颜色等属性不支持！！！``}) |
|---|

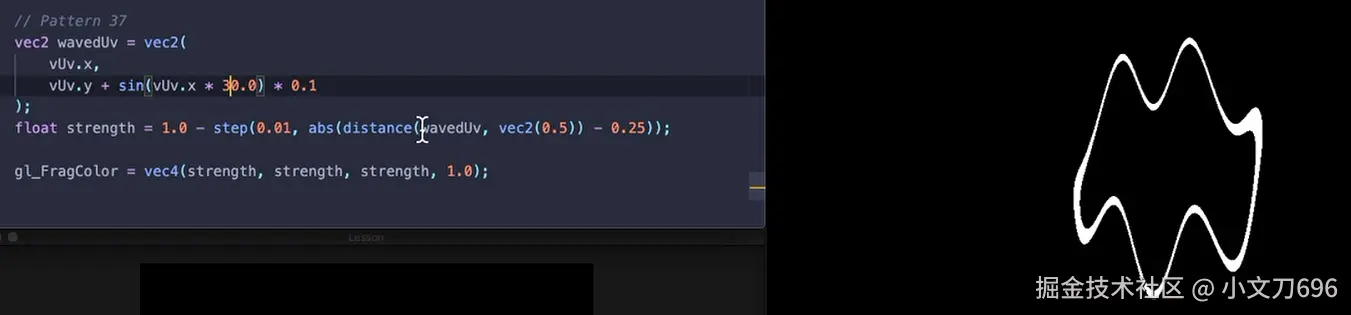

一些shader pattern：
//旋转
