之前的教程中我们讲过使用 clion + gdbserver 的方式远程调试 Native 代码，不过在最新的 Androi14 的源码中已经找不到 gdbserver 可执行文件了，这个方法已经不能使用了。
接下来我们介绍通过 vscode + lldb 工具调试 Native 程序的方法，该方法适用于 Android12 及以后的版本。
1. 调试进程
接下来我们以 SurfaceFlinger 为例，来看看如何调试运行中的进程。
1.1 准备工作
首先我们需要一份源码并编译出一个 eng 版本，这里我使用的是 android-14.0.0_r15 版本，编译 aosp_oriole-eng 版本，该版本对应于 pixel6 手机，其它版本都类似。
source build/envsetup.sh
lunch aosp_oriole-eng
m
接着把镜像刷入手机:
adb reboot bootloader
fastboot flashall -w

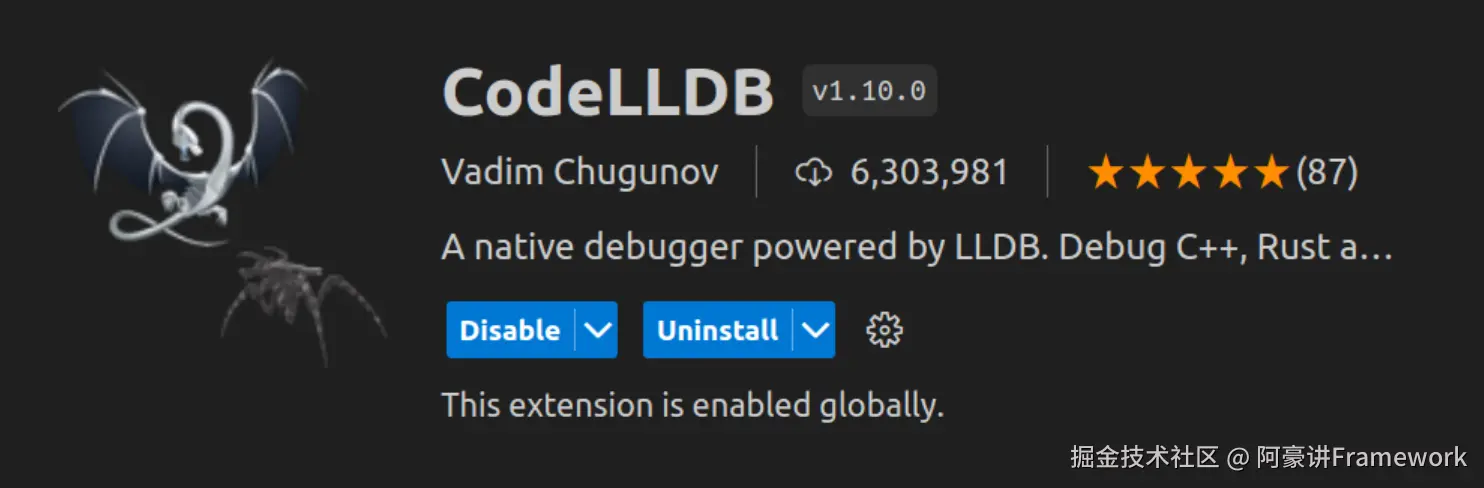

接着我们需要再 VSCode 中安装好 CodeLLDB 插件
1.2 调试过程
新开一个终端进入系统源码根目录（重要），执行 source lunch
source build/envsetup.sh
lunch aosp_oriole-eng
找到要调试的进程（surfaceflinger）的 pid
adb shell ps -elf | grep surfaceflinger
system 578 1 1 11:21:55 ? 00:00:22 surfaceflinger
开启 lldb 服务端
lldbclient.py -p 578 --setup-forwarding vscode-lldb
该命令会打印一段 json，记录下来（你的可能和我不一样）：
{
"name": "(lldbclient.py) Attach surfaceflinger (port: 5039)",
"type": "lldb",
"request": "custom",
"relativePathBase": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
"sourceMap": {
"/b/f/w": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
"": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
".": "/home/zzh0838/Project/aosp/android-14.0.0_r15"
},
"initCommands": [
"settings append target.exec-search-paths /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/ /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/hw /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/ssl/engines /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/drm /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/egl /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/soundfx /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/ /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/hw /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/egl /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/apex/com.android.runtime/bin"
],
"targetCreateCommands": [
"target create /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/bin/surfaceflinger",
"target modules search-paths add / /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/"
],
"processCreateCommands": [
"gdb-remote 5039"
]
}
接下来使用 VSCode 打开 Android 源码的根目录。

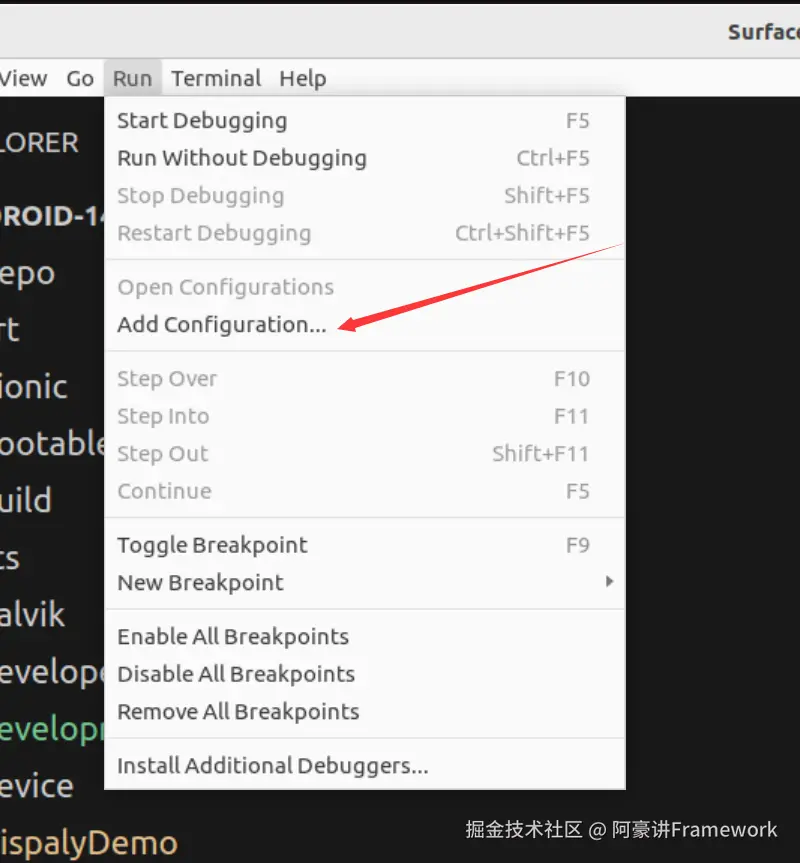

接着点击菜单栏的 run -> Add Configuration：

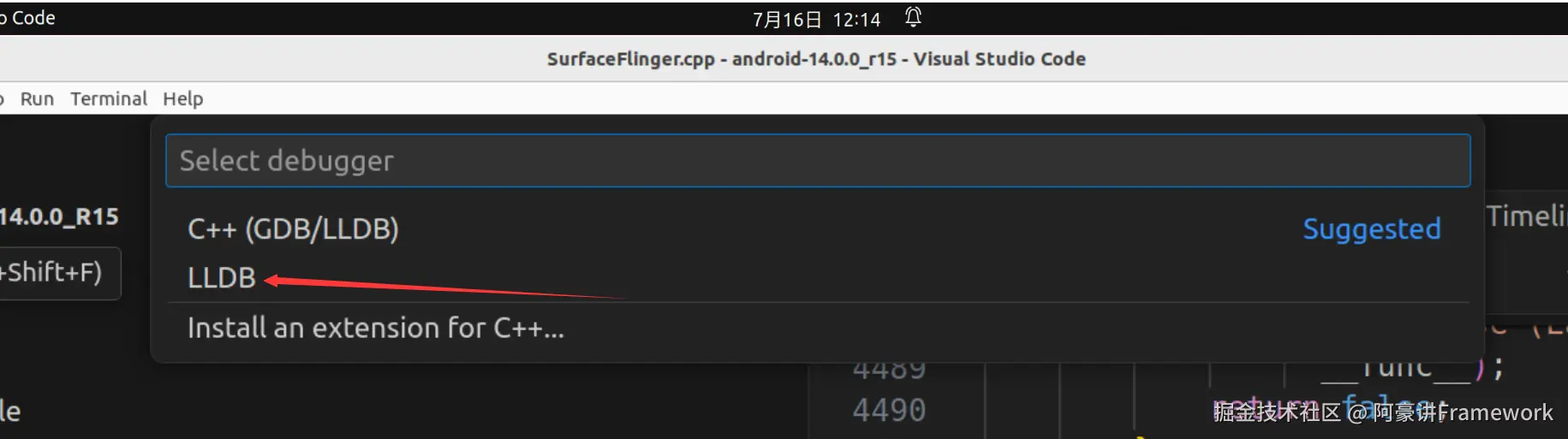

选择 LLDB：

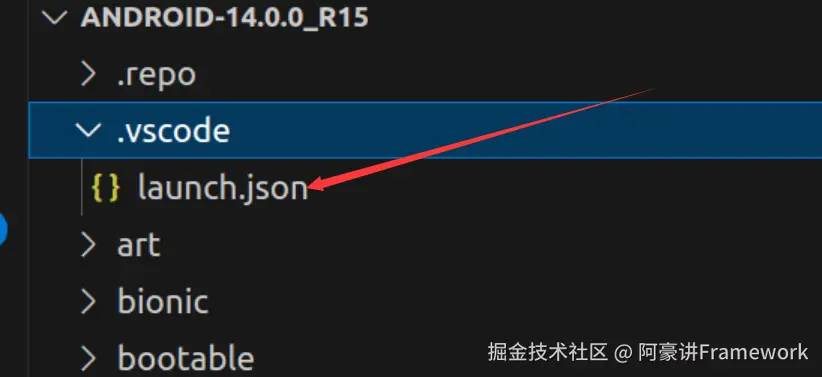

接着就会在根目录下生成一个 .vscode 文件夹，其中有一个 launch.json 文件。
接着把 launch.json 文件中 configurations 节点的内容都删掉，换成上面记录的 json：
{
// Use IntelliSense to learn about possible attributes.
// Hover to view descriptions of existing attributes.
// For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
"version": "0.2.0",
"configurations": [
{
"name": "(lldbclient.py) Attach surfaceflinger (port: 5039)",
"type": "lldb",
"request": "custom",
"relativePathBase": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
"sourceMap": {
"/b/f/w": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
"": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
".": "/home/zzh0838/Project/aosp/android-14.0.0_r15"
},
"initCommands": [
"settings append target.exec-search-paths /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/ /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/hw /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/ssl/engines /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/drm /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/egl /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/soundfx /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/ /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/hw /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/egl /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/apex/com.android.runtime/bin"
],
"targetCreateCommands": [
"target create /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/bin/surfaceflinger",
"target modules search-paths add / /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/"
],
"processCreateCommands": [
"gdb-remote 5039"
]
}
]
}

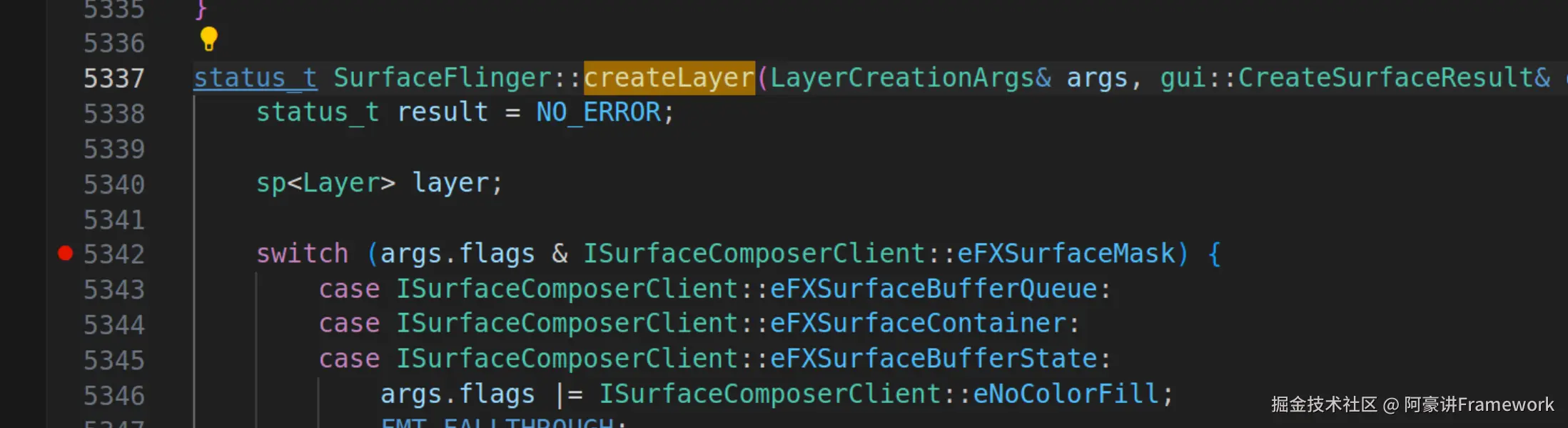

接着在 frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp 文件中打好断点：

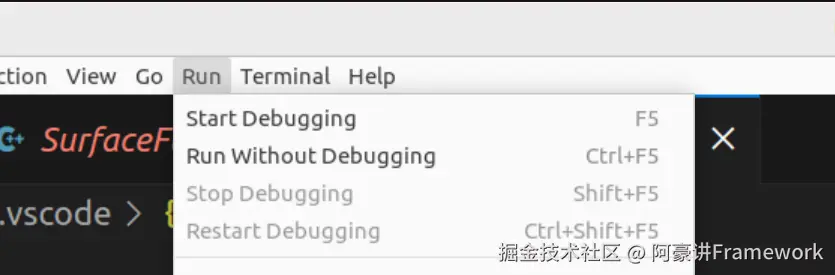

然后菜单栏 run -> Start Debugging 开始调试：

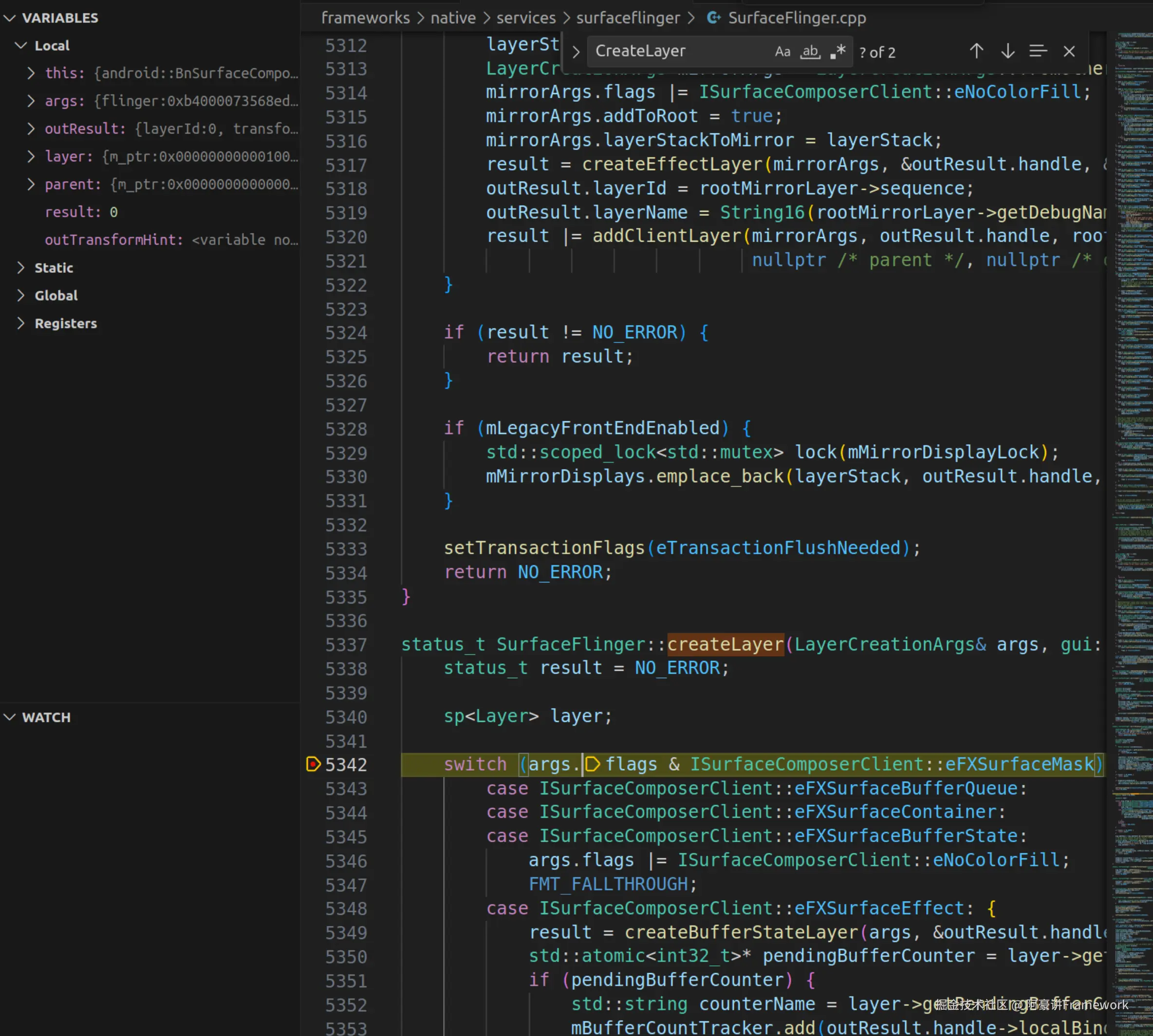

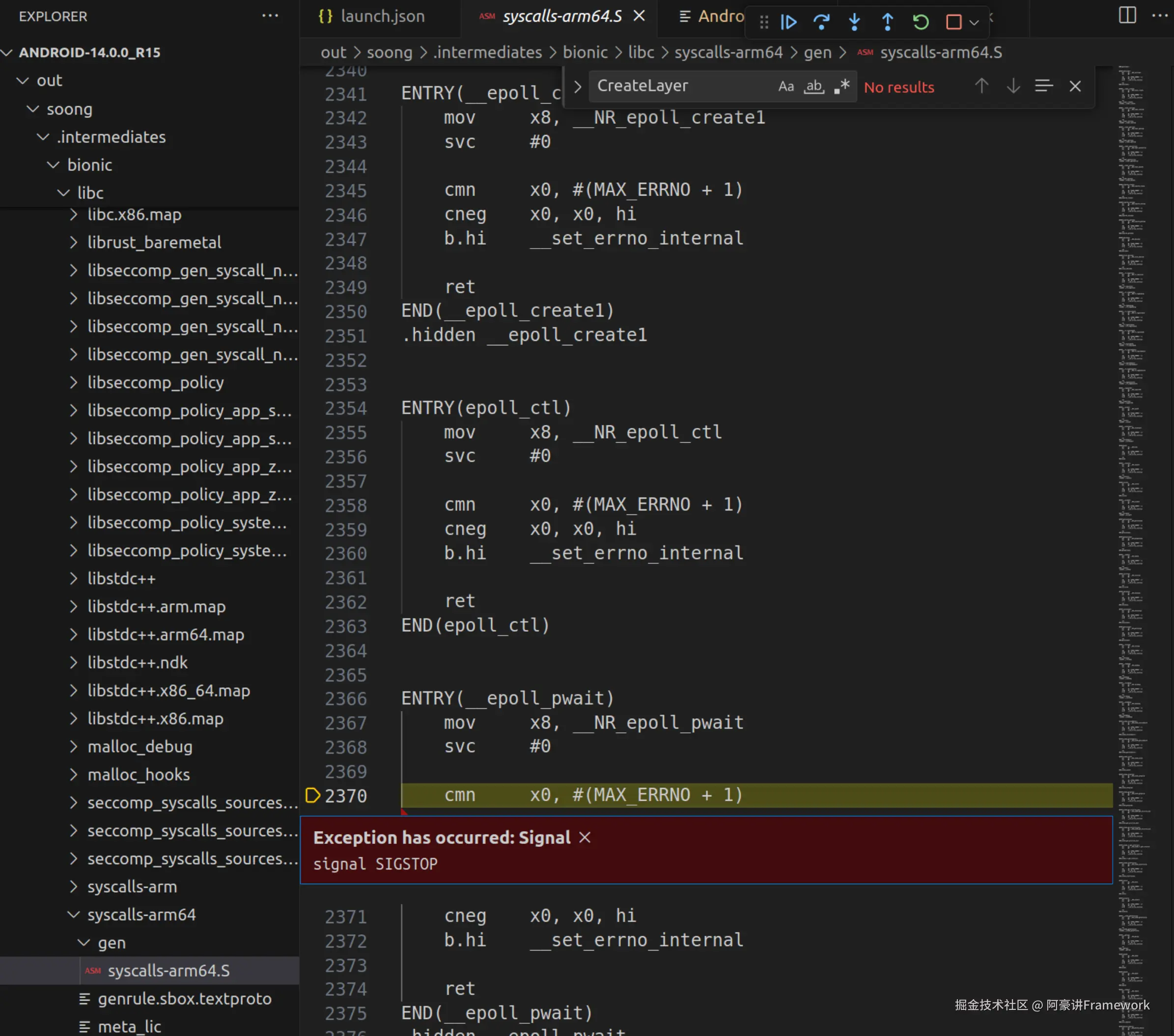

f5 run，然后启动一个 app，就会来到我们的断点处：
调试系统进程稳定性不太好，这里可能会弹窗显示连接失败，重启手机，多试几次
2. 调试可执行文件
2.1 准备工作
首先我们需要一份源码并编译出一个 eng 版本，这里我使用的是 android-14.0.0_r15 版本，编译 aosp_oriole-eng 版本，该版本对应于 pixel6 手机，其它版本都类似。
source build/envsetup.sh
lunch aosp_oriole-eng
m
接着把镜像刷入手机:
adb reboot bootloader
fastboot flashall -w
接着我们准备一个待调试的程序，这里使用 与 SurfaceFlinger 直接交互的示例程序 中提供的示例程序。
main.cpp:
#define LOG_TAG "DisplayDemo"
#include <binder/IPCThreadState.h>
#include <binder/ProcessState.h>
#include <binder/IServiceManager.h>
#include <hardware/gralloc.h>
#include <ui/GraphicBuffer.h>
#include <utils/Log.h>
#include <gui/BLASTBufferQueue.h>
#include <gui/IGraphicBufferProducer.h>
#include <gui/Surface.h>
#include <gui/SurfaceControl.h>
#include <system/window.h>
#include <utils/RefBase.h>
#include <android-base/properties.h>
#include <android/gui/ISurfaceComposerClient.h>
#include <gui/Surface.h>
#include <gui/SurfaceComposerClient.h>
#include <ui/DisplayState.h>
using namespace android;
bool mQuit = false;
/*
Android 系统支持多种显示设备，比如说，输出到手机屏幕，或者通过WiFi 投射到电视屏幕。Android用 DisplayDevice 类来表示这样的设备。不是所有的 Layer 都会输出到所有的Display, 比如说，我们可以只将Video Layer投射到电视， 而非整个屏幕。LayerStack 就是为此设计，LayerStack 是一个Display 对象的一个数值， 而类Layer里成员State结构体也有成员变量mLayerStack， 只有两者的mLayerStack 值相同，Layer才会被输出到给该Display设备。所以LayerStack 决定了每个Display设备上可以显示的Layer数目。
*/
int mLayerStack = 0;
void fillRGBA8Buffer(uint8_t* img, int width, int height, int stride, int r, int g, int b) {
for (int y = 0; y < height; y++) {
for (int x = 0; x < width; x++) {
uint8_t* pixel = img + (4 * (y*stride + x));
pixel[0] = r;
pixel[1] = g;
pixel[2] = b;
pixel[3] = 0;
}
}
}
int main(int argc, char ** argv) {
// 建立 App 到 SurfaceFlinger 的 Binder 通信通道
sp<SurfaceComposerClient> surfaceComposerClient = new SurfaceComposerClient;
status_t err = surfaceComposerClient->initCheck();
if (err != OK) {
ALOGD("SurfaceComposerClient::initCheck error: %#x\n", err);
return -1;
}
// 获取到显示设备的 ID
// 返回的是一个 vector，因为存在多屏或者投屏等情况
const std::vector<PhysicalDisplayId> ids = SurfaceComposerClient::getPhysicalDisplayIds();
if (ids.empty()) {
ALOGE("Failed to get ID for any displays\n");
return -1;
}
//displayToken 是屏幕的索引
sp<IBinder> displayToken = nullptr;
// 示例仅考虑只有一个屏幕的情况
displayToken = SurfaceComposerClient::getPhysicalDisplayToken(ids.front());
// 获取屏幕相关参数
ui::DisplayMode displayMode;
err = SurfaceComposerClient::getActiveDisplayMode(displayToken, &displayMode);
if (err != OK)
return -1;
ui::Size resolution = displayMode.resolution;
//resolution = limitSurfaceSize(resolution.width, resolution.height);
// 创建 SurfaceControl 对象
// 会远程调用到 SurfaceFlinger 进程中，Surfaceflinger 中会创建一个 Layer 对象
String8 name("displaydemo");
sp<SurfaceControl> surfaceControl = surfaceComposerClient->createSurface(name, resolution.getWidth(),
resolution.getHeight(), PIXEL_FORMAT_RGBA_8888,
ISurfaceComposerClient::eFXSurfaceBufferState,
/*parent*/ nullptr);
// 构建事务对象并提交
SurfaceComposerClient::Transaction{}
.setLayer(surfaceControl, std::numeric_limits<int32_t>::max())
.show(surfaceControl)
.setBackgroundColor(surfaceControl, half3{0, 0, 0}, 1.0f, ui::Dataspace::UNKNOWN) // black background
.setAlpha(surfaceControl, 1.0f)
.setLayerStack(surfaceControl, ui::LayerStack::fromValue(mLayerStack))
.apply();
// 初始化一个 BLASTBufferQueue 对象，传入了前面获取到的 surfaceControl
// BLASTBufferQueue 是帧缓存的大管家
sp<BLASTBufferQueue> mBlastBufferQueue = new BLASTBufferQueue("DemoBLASTBufferQueue", surfaceControl ,
resolution.getWidth(), resolution.getHeight(),
PIXEL_FORMAT_RGBA_8888);
// 获取到 GraphicBuffer 的生产者并完成初始化。
sp<IGraphicBufferProducer> igbProducer;
igbProducer = mBlastBufferQueue->getIGraphicBufferProducer();
igbProducer->setMaxDequeuedBufferCount(2);
IGraphicBufferProducer::QueueBufferOutput qbOutput;
igbProducer->connect(new StubProducerListener, NATIVE_WINDOW_API_CPU, false, &qbOutput);
while(!mQuit) {
int slot;
sp<Fence> fence;
sp<GraphicBuffer> buf;
// 向 gralloc HAL 发起 binder 远程调用，分配内存
// 核心是 GraphicBuffer 的初始化，以及 GraphicBuffer 的跨进程传输
// 1. dequeue buffer
igbProducer->dequeueBuffer(&slot, &fence, resolution.getWidth(), resolution.getHeight(),
PIXEL_FORMAT_RGBA_8888, GRALLOC_USAGE_SW_WRITE_OFTEN,
nullptr, nullptr);
igbProducer->requestBuffer(slot, &buf);
int waitResult = fence->waitForever("dequeueBuffer_EmptyNative");
if (waitResult != OK) {
ALOGE("dequeueBuffer_EmptyNative: Fence::wait returned an error: %d", waitResult);
break;
}
// 2. fill the buffer with color
uint8_t* img = nullptr;
err = buf->lock(GRALLOC_USAGE_SW_WRITE_OFTEN, (void**)(&img));
if (err != NO_ERROR) {
ALOGE("error: lock failed: %s (%d)", strerror(-err), -err);
break;
}
int countFrame = 0;
countFrame = (countFrame+1)%3;
fillRGBA8Buffer(img, resolution.getWidth(), resolution.getHeight(), buf->getStride(),
countFrame == 0 ? 255 : 0,
countFrame == 1 ? 255 : 0,
countFrame == 2 ? 255 : 0);
err = buf->unlock();
if (err != NO_ERROR) {
ALOGE("error: unlock failed: %s (%d)", strerror(-err), -err);
break;
}
// 3. queue the buffer to display
IGraphicBufferProducer::QueueBufferOutput qbOutput;
IGraphicBufferProducer::QueueBufferInput input(systemTime(), true /* autotimestamp */,
HAL_DATASPACE_UNKNOWN, {},
NATIVE_WINDOW_SCALING_MODE_FREEZE, 0,
Fence::NO_FENCE);
igbProducer->queueBuffer(slot, input, &qbOutput);
sleep(1);
}
return 0;
}
对应的 Android.bp：
cc_defaults {
name: "demo_defaults",
cflags: [
"-Wall",
"-Werror",
"-Wunused",
"-Wunreachable-code",
],
shared_libs: [
"libbase",
"libbinder",
"libcutils",
"liblog",
"libutils",
"libui",
"libgui",
"libEGL",
"libGLESv1_CM",
],
}
cc_binary {
name: "DisplayDemo",
defaults: ["demo_defaults"],
srcs: [
"main.cpp",
],
cflags: [
"-Wno-deprecated-declarations",
"-Wno-unused-parameter"
],
}

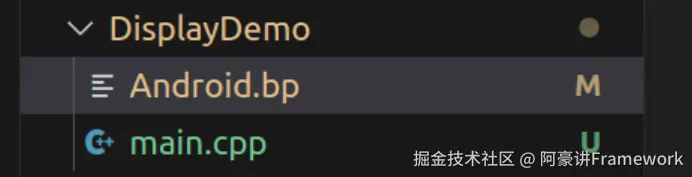

把程序放到源码根目录下：
接着单编这个模块：
cd DisplayDemo
mm
然后把编译生成的可执行文件 push 到手机上：
# 重新挂载分区，System 分区才能写
adb root
adb remount
adb push ./out/target/product/oriole/system/bin/DisplayDemo /system/bin
2.2 调试过程
先开启 lldb 服务端：
lldbclient.py --port 5038 --setup-forwarding vscode-lldb -r /system/bin/DisplayDemo
该命令会打印出一段 json：
{
"name": "(lldbclient.py) Attach DisplayDemo (port: 5038)",
"type": "lldb",
"request": "custom",
"relativePathBase": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
"sourceMap": {
"/b/f/w": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
"": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
".": "/home/zzh0838/Project/aosp/android-14.0.0_r15"
},
"initCommands": [
"settings append target.exec-search-paths /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/ /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/hw /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/ssl/engines /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/drm /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/egl /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/soundfx /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/ /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/hw /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/egl /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/apex/com.android.runtime/bin"
],
"targetCreateCommands": [
"target create /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/bin/DisplayDemo",
"target modules search-paths add / /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/"
],
"processCreateCommands": [
"gdb-remote 5038"
]
}
接着把 .vscode/launch.json 文件中 configurations 节点的内容都删掉，换成上面记录的 json：
{
// Use IntelliSense to learn about possible attributes.
// Hover to view descriptions of existing attributes.
// For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
"version": "0.2.0",
"configurations": [
{
"name": "(lldbclient.py) Attach DisplayDemo (port: 5038)",
"type": "lldb",
"request": "custom",
"relativePathBase": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
"sourceMap": {
"/b/f/w": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
"": "/home/zzh0838/Project/aosp/android-14.0.0_r15",
".": "/home/zzh0838/Project/aosp/android-14.0.0_r15"
},
"initCommands": [
"settings append target.exec-search-paths /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/ /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/hw /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/ssl/engines /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/drm /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/egl /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/lib64/soundfx /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/ /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/hw /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/vendor/lib64/egl /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/apex/com.android.runtime/bin"
],
"targetCreateCommands": [
"target create /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/system/bin/DisplayDemo",
"target modules search-paths add / /home/zzh0838/Project/aosp/android-14.0.0_r15/out/target/product/oriole/symbols/"
],
"processCreateCommands": [
"gdb-remote 5038"
]
}
]
}
接着在 VSCode 中点击 f5 即可开始调试了：

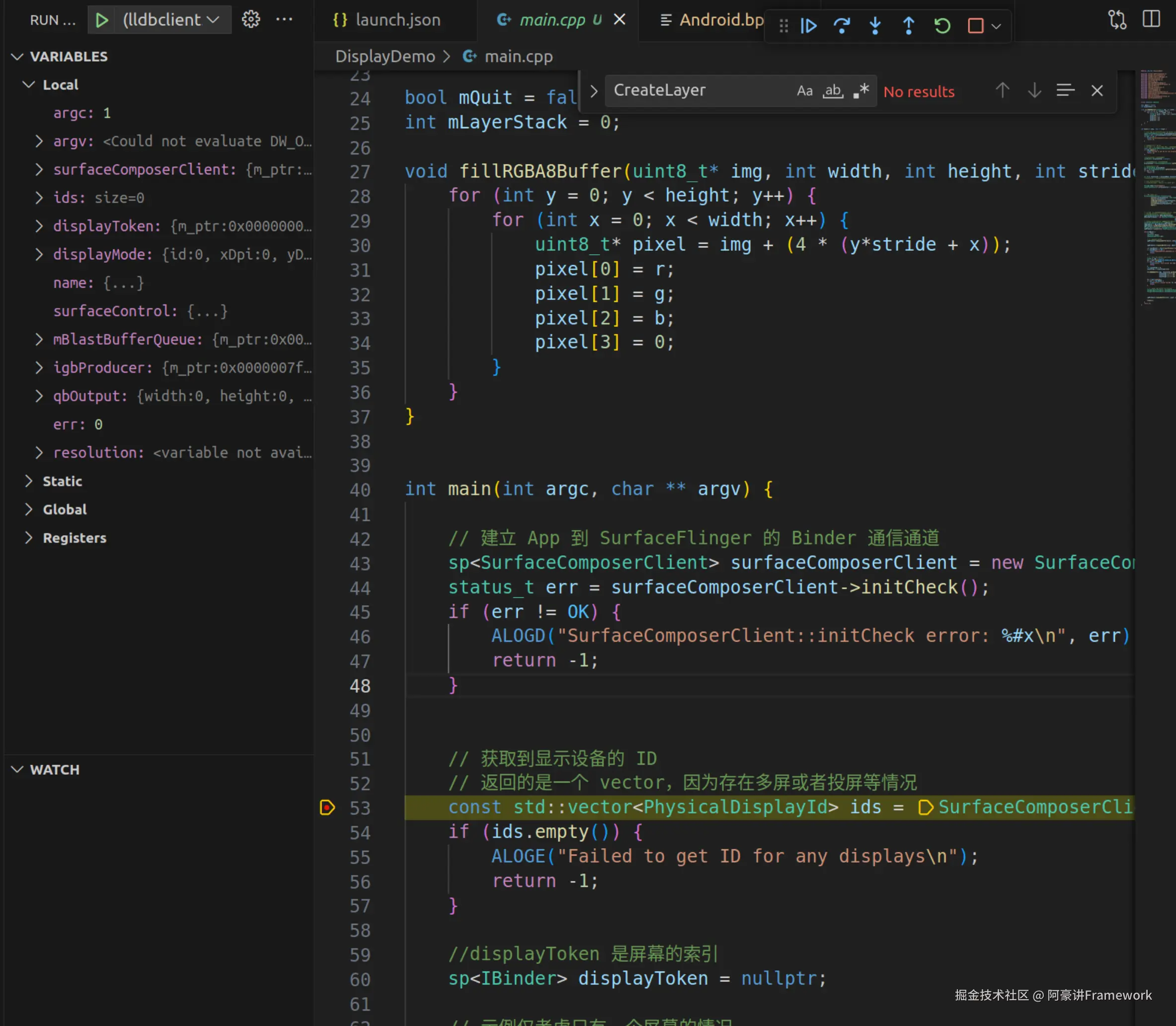

点击 f5，run：

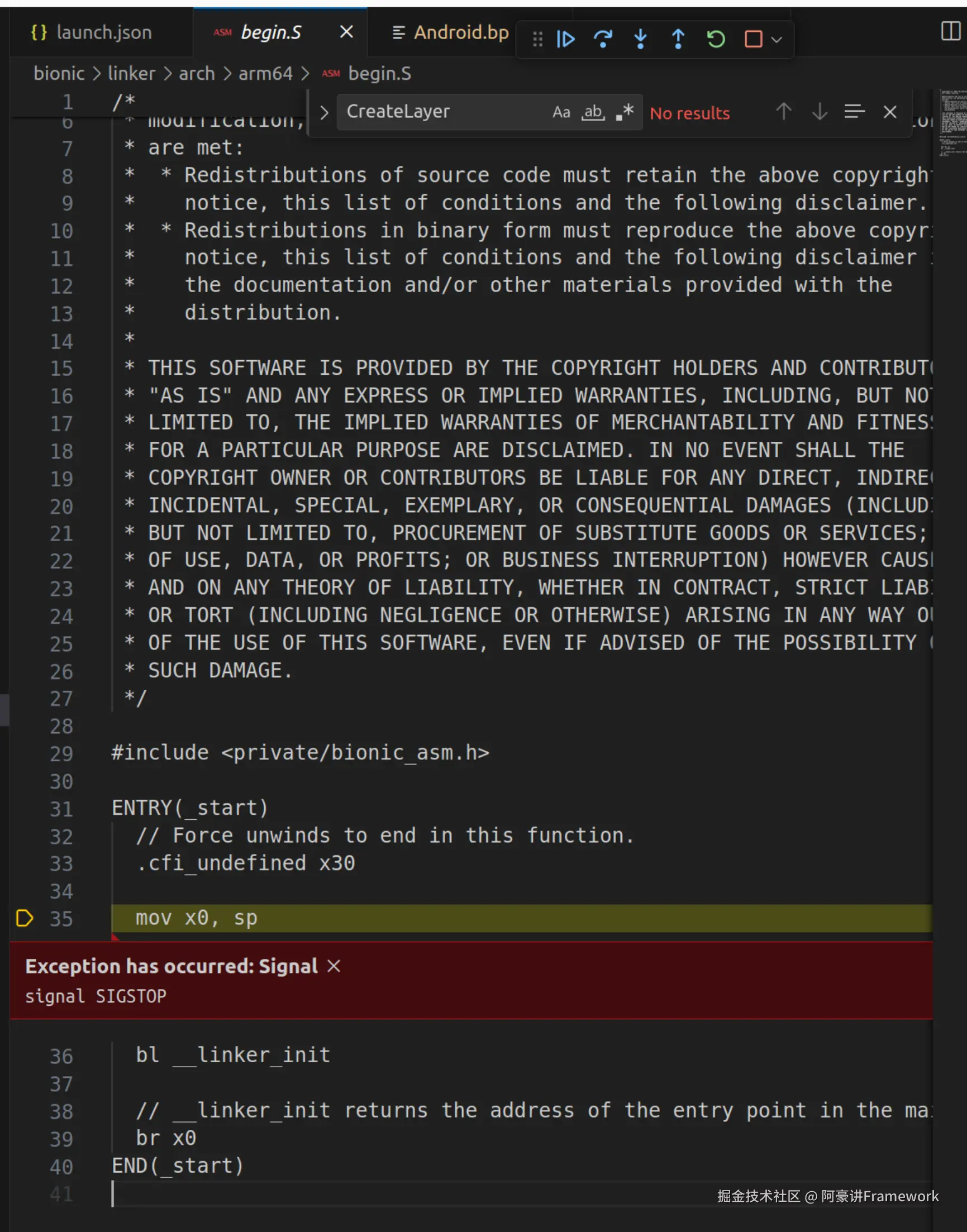

进入到我们的源码中了。
总结
就调试而言，图形化界面确实比命令行好用。
