vue详细解析 reactive

reactive

• reactive 是由createReactiveObject(target,isReadonly,mutableHandlers,mutableCollectionHandlers,reactiveMap) 创建出来的

• target:传入的对象
• isReadonly:当前这个对象是不是要代理成只读的数据
• mutableHandlers：处理普通对象的响应式操作的一套方法，包括获取-get,设置set,删除属性delete,has判断是否包含 等等
• mutableCollectionHandlers：处理集合类型对象，特定的处理程序以优化性能(set、map、WeakMap、WeakSet)
• ReactiveMap：参数映射或注册表用于存储已经创建的响应式代理对象及其相关的元数据。Vue 3使用映射来跟踪哪些对象已经被转换为响应式，以确保每个对象只被代理一次

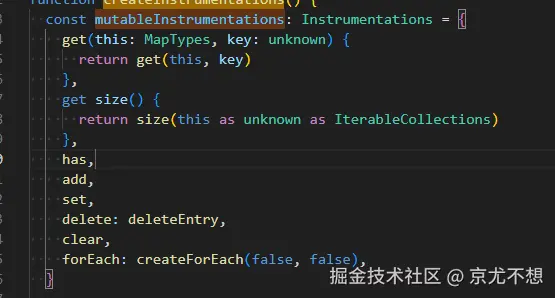

要理解 mutableHandlers 和 mutableCollectionHandlers 就必须看懂下面一段代码 。 如果是Object 和 数组类型那么他们标识的 TargetType=>1 同理 Map Set WeakMap WeakSet 就是 2 其他为 0 为什么要却分 对象和 集合类型 ， 因为对象和集合类型的操作方法不一样 具体可见 developer.mozilla.org/zh-CN/docs/… 如果是 集合类型 他会去执行 createInstrumentationGetter()这个方法 这个方法里面会执行 例如以 map 集合作为实例 他有get、 set、 has、 add、 get size、 delete、 clear、 forEach 这些方法

  enum TargetType {
    INVALID = 0,
    COMMON = 1,
    COLLECTION = 2,
  }
/**
* 如果是Object 和 数组类型那么他们标识的 TargetType=>1 同理 Map Set WeakMap WeakSet 就是 2 其他为 0
*/

function targetTypeMap(rawType: string) {
  switch (rawType) {
    case 'Object':
    case 'Array':
      return TargetType.COMMON
    case 'Map':
    case 'Set':
    case 'WeakMap':
    case 'WeakSet':
      return TargetType.COLLECTION
    default:
      return TargetType.INVALID
  }
}

• packages/reactivity/reactive.ts

export function reactive<T extends object>(target: T): Reactive<T>
export function reactive(target: object) {
  // if trying to observe a readonly proxy, return the readonly version.
  if (isReadonly(target)) {
    return target
  }
  return createReactiveObject(
    target,
    false,
    mutableHandlers,
    mutableCollectionHandlers,
    reactiveMap,
  )
}


function createReactiveObject(
  target: Target,
  isReadonly: boolean,
  baseHandlers: ProxyHandler<any>,
  collectionHandlers: ProxyHandler<any>,
  proxyMap: WeakMap<Target, any>,
) {
  if (!isObject(target)) {
    if (__DEV__) {
      warn(
        `value cannot be made ${isReadonly ? 'readonly' : 'reactive'}: ${String(
          target,
        )}`,
      )
    }
    return target
  }
  // target is already a Proxy, return it.
  // exception: calling readonly() on a reactive object
  if (
    target[ReactiveFlags.RAW] &&
    !(isReadonly && target[ReactiveFlags.IS_REACTIVE])
  ) {
    return target
  }
  // target already has corresponding Proxy
  const existingProxy = proxyMap.get(target)
  if (existingProxy) {
    return existingProxy
  }
  // only specific value types can be observed.
  const targetType = getTargetType(target)
  if (targetType === TargetType.INVALID) {
    return target
  }
  const proxy = new Proxy(
    target,
    targetType === TargetType.COLLECTION ? collectionHandlers : baseHandlers,
  )
  proxyMap.set(target, proxy)
  return proxy
}

• packages/reactivity/baseHandlers.ts

export const mutableHandlers: ProxyHandler<object> =
  /*#__PURE__*/ new MutableReactiveHandler()
class MutableReactiveHandler extends BaseReactiveHandler {
  constructor(isShallow = false) {
    super(false, isShallow)
  }

  set(
    target: object,
    key: string | symbol,
    value: unknown,
    receiver: object,
  ): boolean {
    let oldValue = (target as any)[key]
    if (!this._isShallow) {
      const isOldValueReadonly = isReadonly(oldValue)
      if (!isShallow(value) && !isReadonly(value)) {
        oldValue = toRaw(oldValue)
        value = toRaw(value)
      }
      if (!isArray(target) && isRef(oldValue) && !isRef(value)) {
        if (isOldValueReadonly) {
          return false
        } else {
          oldValue.value = value
          return true
        }
      }
    } else {
      // in shallow mode, objects are set as-is regardless of reactive or not
    }

    const hadKey =
      isArray(target) && isIntegerKey(key)
        ? Number(key) < target.length
        : hasOwn(target, key)
    const result = Reflect.set(target, key, value, receiver)
    // don't trigger if target is something up in the prototype chain of original
    if (target === toRaw(receiver)) {
      if (!hadKey) {
        trigger(target, TriggerOpTypes.ADD, key, value)
      } else if (hasChanged(value, oldValue)) {
        trigger(target, TriggerOpTypes.SET, key, value, oldValue)
      }
    }
    return result
  }

  deleteProperty(target: object, key: string | symbol): boolean {
    const hadKey = hasOwn(target, key)
    const oldValue = (target as any)[key]
    const result = Reflect.deleteProperty(target, key)
    if (result && hadKey) {
      trigger(target, TriggerOpTypes.DELETE, key, undefined, oldValue)
    }
    return result
  }

  has(target: object, key: string | symbol): boolean {
    const result = Reflect.has(target, key)
    if (!isSymbol(key) || !builtInSymbols.has(key)) {
      track(target, TrackOpTypes.HAS, key)
    }
    return result
  }
  ownKeys(target: object): (string | symbol)[] {
    track(
      target,
      TrackOpTypes.ITERATE,
      isArray(target) ? 'length' : ITERATE_KEY,
    )
    return Reflect.ownKeys(target)
  }
}

• packages/reactivity/collectionHandlers

export const mutableCollectionHandlers: ProxyHandler<CollectionTypes> = {
  get: /*#__PURE__*/ createInstrumentationGetter(false, false),
}
function createInstrumentationGetter(isReadonly: boolean, shallow: boolean) {
  const instrumentations = shallow
    ? isReadonly
      ? shallowReadonlyInstrumentations
      : shallowInstrumentations
    : isReadonly
      ? readonlyInstrumentations
      : mutableInstrumentations

  return (
    target: CollectionTypes,
    key: string | symbol,
    receiver: CollectionTypes,
  ) => {
    if (key === ReactiveFlags.IS_REACTIVE) {
      return !isReadonly
    } else if (key === ReactiveFlags.IS_READONLY) {
      return isReadonly
    } else if (key === ReactiveFlags.RAW) {
      return target
    }

    return Reflect.get(
      hasOwn(instrumentations, key) && key in target
        ? instrumentations
        : target,
      key,
      receiver,
    )
  }
}

shallowReactive

• 浅层响应式对象：浅层响应式对象则指的是仅在对象本身被访问时具有响应性。

• packages/reactivity/reactive

export function shallowReactive<T extends object>(
  target: T,
): ShallowReactive<T> {
  return createReactiveObject(
    target,
    false,
    shallowReactiveHandlers,
    shallowCollectionHandlers,
    shallowReactiveMap,
  )
}

readonly

readonly 是由 createReactiveObject( target, true, readonlyHandlers, readonlyCollectionHandlers, readonlyMap, ) 和上面的Reactive 其实就是 isReadonly,readonlyHandlers, readonlyCollectionHandlers, readonlyMap, 发生了变化

• packages/reactivity/reactive.ts

export function readonly<T extends object>(
  target: T,
): DeepReadonly<UnwrapNestedRefs<T>> {
  return createReactiveObject(
    target,
    true,
    readonlyHandlers,
    readonlyCollectionHandlers,
    readonlyMap,
  )
}

function createReactiveObject(
  target: Target,
  isReadonly: boolean,
  baseHandlers: ProxyHandler<any>,
  collectionHandlers: ProxyHandler<any>,
  proxyMap: WeakMap<Target, any>,
) {
  if (!isObject(target)) {
    if (__DEV__) {
      warn(
        `value cannot be made ${isReadonly ? 'readonly' : 'reactive'}: ${String(
          target,
        )}`,
      )
    }
    return target
  }
  // target is already a Proxy, return it.
  // exception: calling readonly() on a reactive object
  if (
    target[ReactiveFlags.RAW] &&
    !(isReadonly && target[ReactiveFlags.IS_REACTIVE])
  ) {
    return target
  }
  // target already has corresponding Proxy
  const existingProxy = proxyMap.get(target)
  if (existingProxy) {
    return existingProxy
  }
  // only specific value types can be observed.
  const targetType = getTargetType(target)
  if (targetType === TargetType.INVALID) {
    return target
  }
  const proxy = new Proxy(
    target,
    targetType === TargetType.COLLECTION ? collectionHandlers : baseHandlers,
  )
  proxyMap.set(target, proxy)
  return proxy
}

• packages/reactivity/baseHandlers.ts

export const readonlyHandlers: ProxyHandler<object> =
  /*#__PURE__*/ new ReadonlyReactiveHandler()

class ReadonlyReactiveHandler extends BaseReactiveHandler {
  constructor(isShallow = false) {
    super(true, isShallow)
  }

  set(target: object, key: string | symbol) {
    if (__DEV__) {
      warn(
        `Set operation on key "${String(key)}" failed: target is readonly.`,
        target,
      )
    }
    return true
  }

  deleteProperty(target: object, key: string | symbol) {
    if (__DEV__) {
      warn(
        `Delete operation on key "${String(key)}" failed: target is readonly.`,
        target,
      )
    }
    return true
  }
}

• packages/reactivity/collectionHandlers

export const readonlyCollectionHandlers: ProxyHandler<CollectionTypes> = {
  get: /*#__PURE__*/ createInstrumentationGetter(true, false),
}

function createInstrumentationGetter(isReadonly: boolean, shallow: boolean) {
  const instrumentations = shallow
    ? isReadonly
      ? shallowReadonlyInstrumentations
      : shallowInstrumentations
    : isReadonly
      ? readonlyInstrumentations
      : mutableInstrumentations

  return (
    target: CollectionTypes,
    key: string | symbol,
    receiver: CollectionTypes,
  ) => {
    if (key === ReactiveFlags.IS_REACTIVE) {
      return !isReadonly
    } else if (key === ReactiveFlags.IS_READONLY) {
      return isReadonly
    } else if (key === ReactiveFlags.RAW) {
      return target
    }

    return Reflect.get(
      hasOwn(instrumentations, key) && key in target
        ? instrumentations
        : target,
      key,
      receiver,
    )
  }
}

shallowReadonly

• packages/reactivity/reactive

export function shallowReadonly<T extends object>(target: T): Readonly<T> {
  return createReactiveObject(
    target,
    true,
    shallowReadonlyHandlers,
    shallowReadonlyCollectionHandlers,
    shallowReadonlyMap,
  )
}

• packages/reactivity/baseHandllers

export const shallowReadonlyHandlers =
  /*#__PURE__*/ new ReadonlyReactiveHandler(true)

class ReadonlyReactiveHandler extends BaseReactiveHandler {
  constructor(isShallow = false) {
    super(true, isShallow)
  }

  set(target: object, key: string | symbol) {
    if (__DEV__) {
      warn(
        `Set operation on key "${String(key)}" failed: target is readonly.`,
        target,
      )
    }
    return true
  }

  deleteProperty(target: object, key: string | symbol) {
    if (__DEV__) {
      warn(
        `Delete operation on key "${String(key)}" failed: target is readonly.`,
        target,
      )
    }
    return true
  }
}

• packages/reactivity/collectionHandlers

export const shallowReadonlyHandlers =
  /*#__PURE__*/ new ReadonlyReactiveHandler(true)
  class ReadonlyReactiveHandler extends BaseReactiveHandler {
  constructor(isShallow = false) {
    super(true, isShallow)
  }

  set(target: object, key: string | symbol) {
    if (__DEV__) {
      warn(
        `Set operation on key "${String(key)}" failed: target is readonly.`,
        target,
      )
    }
    return true
  }

  deleteProperty(target: object, key: string | symbol) {
    if (__DEV__) {
      warn(
        `Delete operation on key "${String(key)}" failed: target is readonly.`,
        target,
      )
    }
    return true
  }
}

总结

• reactive、shallowReactive、readonly、shallowReadonly 这四个方法都是调用 createReactiveObject 这个方法工厂函数，然后根据这个工厂函数传入的值不一样，返回不同的函数方法。
• 上述这个四个方法 都是可以区分 对象类型 和 集合类型的
