二、Recycleview嵌套Recycleview绘制
2.1 view measure过程
View的measure过程由其measure方法来完成，measure方法是一个final类型的方法，在View的measure方法中会去调用View的onMeasure方法， 因此只需要看onMeasure的实现即可，View的onMeasure方法如下所示。
protected void onMeasure(int widthMeasureSpec,int heightMeasureSpec) {
setMeasuredDimension(getDefaultSize(getSuggestedMinimumWidth(),widthMeasureSpec),getDefaultSize(getSuggestedMinimumHeight(),heightMeasureSpec));
}
setMeasuredDimension方法会设置View宽/高的测量值，因此我们只需要看getDefaultSize这个方法即可：
public static int getDefaultSize(int size,int measureSpec) {
int result = size;
int specMode = MeasureSpec.getMode(measureSpec);
int specSize = MeasureSpec.getSize(measureSpec);
switch (specMode) {
case MeasureSpec.UNSPECIFIED:
result = size;
break;
case MeasureSpec.AT_MOST:
case MeasureSpec.EXACTLY:
result = specSize;
break;
}
return result;
}
AT_MOST和.EXACTLY，getDefaultSize返回的大小就是 measureSpec中的specSize。
UNSPECIFIED，View的大小为getDefaultSize的第一个参数size，即宽/高分别为getSuggestedMinimumWidth和 getSuggestedMinimumHeight这两个方法的返回值。
2.2 ViewGroup的measure过程
对于ViewGroup来说，除了完成自己的measure过程以外，还会遍历去调用所有子元素的measure方法，各个子元素再递归去执行这个过程。和View不同的是，ViewGroup是 一个抽象类，因此它没有重写View的onMeasure方法，但是它提供了一个叫measureChildren的方法，如下所示。
protected void measureChildren(int widthMeasureSpec, int heightMeasureSpec) {
final int size = mChildrenCount;
final View[] children = mChildren;
for (int i = 0; i < size; ++i) {
final View child = children[i];
if ((child.mViewFlags & VISIBILITY_MASK) != GONE) {
measureChild(child, widthMeasureSpec, heightMeasureSpec);
}
}
}
ViewGroup在measure时，会对每一个子元素进行measure，measureChild这个方法的实现也很好理解，如下所示。
protected void measureChild(View child, int parentWidthMeasureSpec,
int parentHeightMeasureSpec) {
final LayoutParams lp = child.getLayoutParams();
final int childWidthMeasureSpec = getChildMeasureSpec(parentWidthMeasureSpec,
mPaddingLeft + mPaddingRight, lp.width);
final int childHeightMeasureSpec = getChildMeasureSpec(parentHeightMeasureSpec,
mPaddingTop + mPaddingBottom, lp.height);
child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
}
measureChild的思想就是取出子元素的LayoutParams，然后再通过getChildMeasureSpec来创建子元素的MeasureSpec，接着将MeasureSpec直接传递给View的measure 方法来进行测量。
子元素的 MeasureSpec的创建与父容器的MeasureSpec和子元素本身的LayoutParams有关。
public static int getChildMeasureSpec(int spec, int padding, int childDimension) {
int specMode = MeasureSpec.getMode(spec);
int specSize = MeasureSpec.getSize(spec);
int size = Math.max(0, specSize - padding);
int resultSize = 0;
int resultMode = 0;
switch (specMode) {
// Parent has imposed an exact size on us
case MeasureSpec.EXACTLY:
if (childDimension >= 0) {
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
// Child wants to be our size. So be it.
resultSize = size;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.WRAP_CONTENT) {
// Child wants to determine its own size. It can't be
// bigger than us.
resultSize = size;
resultMode = MeasureSpec.AT_MOST;
}
break;
// Parent has imposed a maximum size on us
case MeasureSpec.AT_MOST:
if (childDimension >= 0) {
// Child wants a specific size... so be it
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
// Child wants to be our size, but our size is not fixed.
// Constrain child to not be bigger than us.
resultSize = size;
resultMode = MeasureSpec.AT_MOST;
} else if (childDimension == LayoutParams.WRAP_CONTENT) {
// Child wants to determine its own size. It can't be
// bigger than us.
resultSize = size;
resultMode = MeasureSpec.AT_MOST;
}
break;
// Parent asked to see how big we want to be
case MeasureSpec.UNSPECIFIED:
if (childDimension >= 0) {
// Child wants a specific size... let him have it
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
// Child wants to be our size... find out how big it should
// be
resultSize = View.sUseZeroUnspecifiedMeasureSpec ? 0 : size;
resultMode = MeasureSpec.UNSPECIFIED;
} else if (childDimension == LayoutParams.WRAP_CONTENT) {
// Child wants to determine its own size.... find out how
// big it should be
resultSize = View.sUseZeroUnspecifiedMeasureSpec ? 0 : size;
resultMode = MeasureSpec.UNSPECIFIED;
}
break;
}
//noinspection ResourceType
return MeasureSpec.makeMeasureSpec(resultSize, resultMode);
}

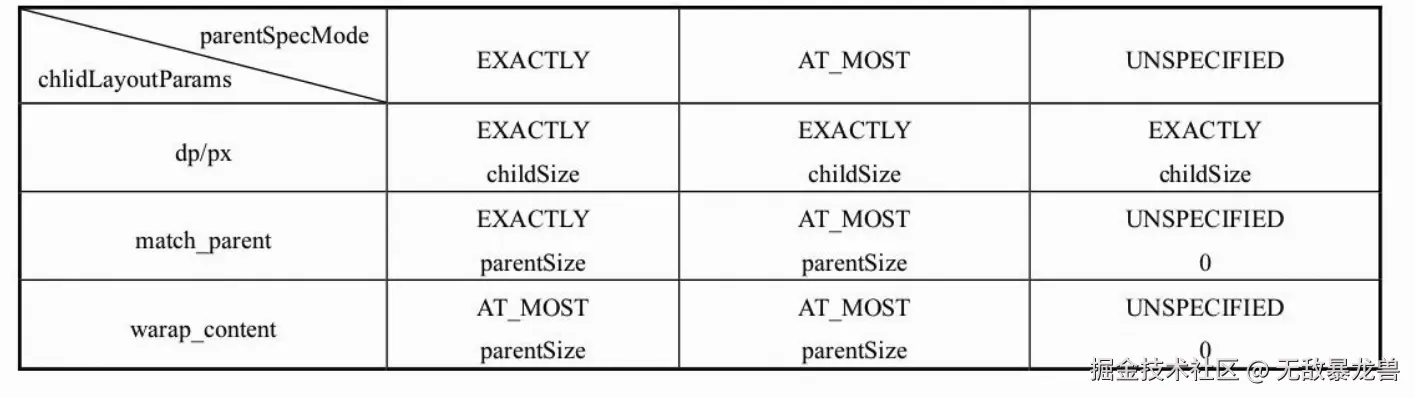

主要作用是根据父容器的MeasureSpec同时结合View本身的LayoutParams来确定子元素的MeasureSpec。
当View采用固定宽/高的时候，不管父容器的MeasureSpec是什么，View的MeasureSpec都是精确模式并且其大小遵循Layoutparams中的大小。当View的宽/高是match_parent时，如果父容器的模式是精准模式，那么View也是精准模式并且其大小是父容器的剩余空间；如果父容器是最大模式，那么View也是最大模式并且其大小不会超过父容器的剩余空间。当View的宽/高是wrap_content时，不管父容器的模式是精准还是最大化，View的模式总是最 大化并且大小不能超过父容器的剩余空间。
2.3 recycleView onMeasure
protected void onMeasure(int widthSpec, int heightSpec) {
if (mLayout == null) {
defaultOnMeasure(widthSpec, heightSpec);
return;
}
if (mLayout.isAutoMeasureEnabled()) {
final int widthMode = MeasureSpec.getMode(widthSpec);
final int heightMode = MeasureSpec.getMode(heightSpec);
mLayout.onMeasure(mRecycler, mState, widthSpec, heightSpec);
final boolean measureSpecModeIsExactly =
widthMode == MeasureSpec.EXACTLY && heightMode == MeasureSpec.EXACTLY;
if (measureSpecModeIsExactly || mAdapter == null) {
return;
}
// 没测量过
if (mState.mLayoutStep == State.STEP_START) {
// 1.适配器更新、动画运行、保存当前视图的信息、运行预测布局
dispatchLayoutStep1();
}
mLayout.setMeasureSpecs(widthSpec, heightSpec);
mState.mIsMeasuring = true;
//2.最终实际的布局视图，如果有必要会多次运行
dispatchLayoutStep2();
mLayout.setMeasuredDimensionFromChildren(widthSpec, heightSpec);
if (mLayout.shouldMeasureTwice()) {
mLayout.setMeasureSpecs(
MeasureSpec.makeMeasureSpec(getMeasuredWidth(), MeasureSpec.EXACTLY),
MeasureSpec.makeMeasureSpec(getMeasuredHeight(), MeasureSpec.EXACTLY));
mState.mIsMeasuring = true;
dispatchLayoutStep2();
// now we can get the width and height from the children.
mLayout.setMeasuredDimensionFromChildren(widthSpec, heightSpec);
}
} else {
...
...
}
}

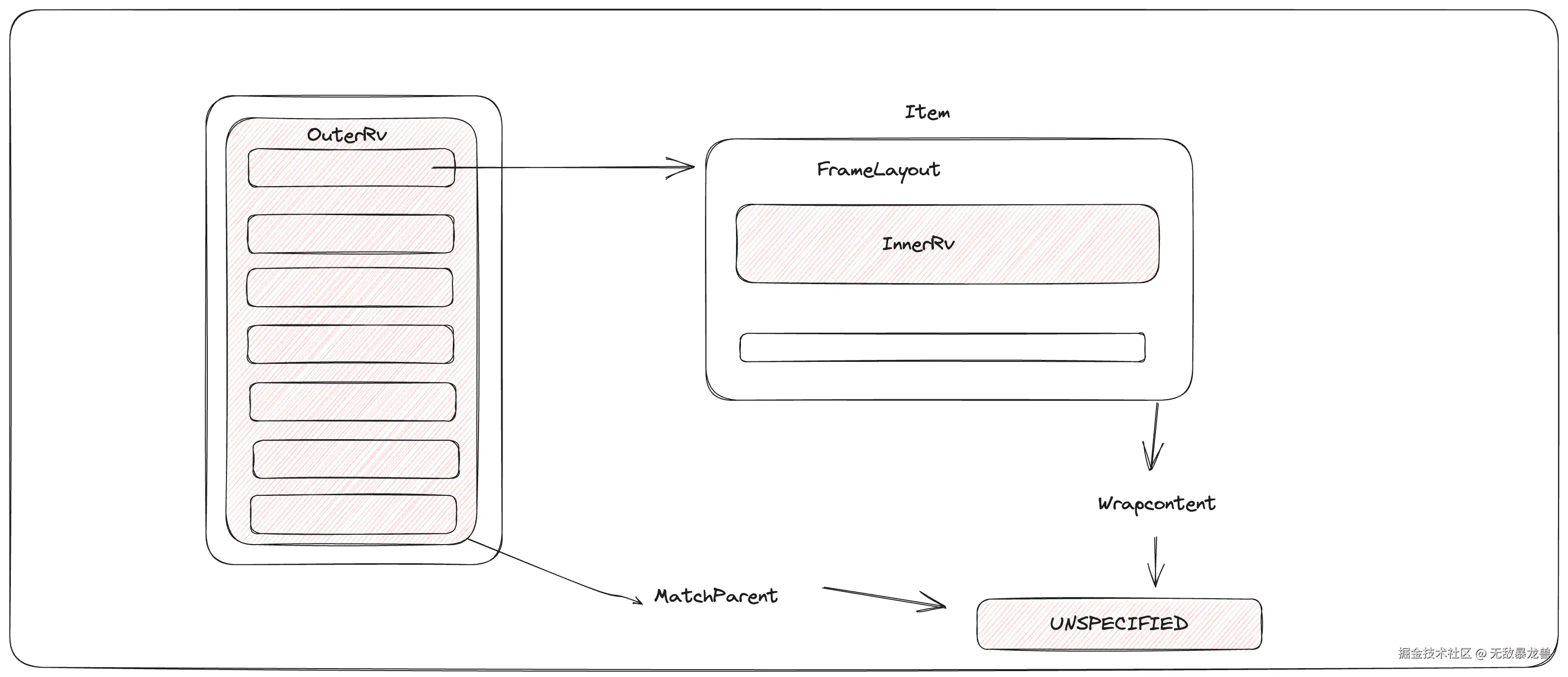

RecyclerView onMeasure() 主要有两种情况：
1、当RecyclerView的宽高为match_parent或者精确值时，即measureSpecModeIsExactly = true，此时只需要测量自身的宽高就知道RecyclerView的宽高，测量方法结束；
2、当RecyclerView的宽高为wrap_content时，即measureSpecModeIsExactly = false，会往下执行dispatchLayoutStep1()和dispatchLayoutStep2()，就是遍历测量ItemView的大小从而确定RecyclerView的宽高，这种情况真正的测量操作都是在dispatchLayoutStep2()中完成。
dispatchLayoutStep2
private void dispatchLayoutStep2() {
startInterceptRequestLayout();
onEnterLayoutOrScroll();
mState.assertLayoutStep(State.STEP_LAYOUT | State.STEP_ANIMATIONS);
mAdapterHelper.consumeUpdatesInOnePass();
mState.mItemCount = mAdapter.getItemCount();
mState.mDeletedInvisibleItemCountSincePreviousLayout = 0;
if (mPendingSavedState != null && mAdapter.canRestoreState()) {
if (mPendingSavedState.mLayoutState != null) {
mLayout.onRestoreInstanceState(mPendingSavedState.mLayoutState);
}
mPendingSavedState = null;
}
// Step 2: Run layout
mState.mInPreLayout = false;
mLayout.onLayoutChildren(mRecycler, mState);
mState.mStructureChanged = false;
// onLayoutChildren may have caused client code to disable item animations; re-check
mState.mRunSimpleAnimations = mState.mRunSimpleAnimations && mItemAnimator != null;
mState.mLayoutStep = State.STEP_ANIMATIONS;
onExitLayoutOrScroll();
stopInterceptRequestLayout(false);
}
mLayout.onLayoutChildren(mRecycler, mState);
LayoutManager
public void onLayoutChildren(RecyclerView.Recycler recycler, RecyclerView.State state) {
// layout algorithm:
// 1) by checking children and other variables, find an anchor coordinate and an anchor
// item position.
// 2) fill towards start, stacking from bottom
// 3) fill towards end, stacking from top
// 4) scroll to fulfill requirements like stack from bottom.
// create layout state
if (DEBUG) {
Log.d(TAG, "is pre layout:" + state.isPreLayout());
}
if (mPendingSavedState != null || mPendingScrollPosition != RecyclerView.NO_POSITION) {
if (state.getItemCount() == 0) {
removeAndRecycleAllViews(recycler);
return;
}
}
if (mPendingSavedState != null && mPendingSavedState.hasValidAnchor()) {
mPendingScrollPosition = mPendingSavedState.mAnchorPosition;
}
ensureLayoutState();
mLayoutState.mRecycle = false;
// resolve layout direction
resolveShouldLayoutReverse();
final View focused = getFocusedChild();
if (!mAnchorInfo.mValid || mPendingScrollPosition != RecyclerView.NO_POSITION
|| mPendingSavedState != null) {
mAnchorInfo.reset();
mAnchorInfo.mLayoutFromEnd = mShouldReverseLayout ^ mStackFromEnd;
// calculate anchor position and coordinate
updateAnchorInfoForLayout(recycler, state, mAnchorInfo);
mAnchorInfo.mValid = true;
} else if (focused != null && (mOrientationHelper.getDecoratedStart(focused)
>= mOrientationHelper.getEndAfterPadding()
|| mOrientationHelper.getDecoratedEnd(focused)
<= mOrientationHelper.getStartAfterPadding())) {
// This case relates to when the anchor child is the focused view and due to layout
// shrinking the focused view fell outside the viewport, e.g. when soft keyboard shows
// up after tapping an EditText which shrinks RV causing the focused view (The tapped
// EditText which is the anchor child) to get kicked out of the screen. Will update the
// anchor coordinate in order to make sure that the focused view is laid out. Otherwise,
// the available space in layoutState will be calculated as negative preventing the
// focused view from being laid out in fill.
// Note that we won't update the anchor position between layout passes (refer to
// TestResizingRelayoutWithAutoMeasure), which happens if we were to call
// updateAnchorInfoForLayout for an anchor that's not the focused view (e.g. a reference
// child which can change between layout passes).
mAnchorInfo.assignFromViewAndKeepVisibleRect(focused, getPosition(focused));
}
if (DEBUG) {
Log.d(TAG, "Anchor info:" + mAnchorInfo);
}
// LLM may decide to layout items for "extra" pixels to account for scrolling target,
// caching or predictive animations.
mLayoutState.mLayoutDirection = mLayoutState.mLastScrollDelta >= 0
? LayoutState.LAYOUT_END : LayoutState.LAYOUT_START;
mReusableIntPair[0] = 0;
mReusableIntPair[1] = 0;
calculateExtraLayoutSpace(state, mReusableIntPair);
int extraForStart = Math.max(0, mReusableIntPair[0])
+ mOrientationHelper.getStartAfterPadding();
int extraForEnd = Math.max(0, mReusableIntPair[1])
+ mOrientationHelper.getEndPadding();
if (state.isPreLayout() && mPendingScrollPosition != RecyclerView.NO_POSITION
&& mPendingScrollPositionOffset != INVALID_OFFSET) {
// if the child is visible and we are going to move it around, we should layout
// extra items in the opposite direction to make sure new items animate nicely
// instead of just fading in
final View existing = findViewByPosition(mPendingScrollPosition);
if (existing != null) {
final int current;
final int upcomingOffset;
if (mShouldReverseLayout) {
current = mOrientationHelper.getEndAfterPadding()
- mOrientationHelper.getDecoratedEnd(existing);
upcomingOffset = current - mPendingScrollPositionOffset;
} else {
current = mOrientationHelper.getDecoratedStart(existing)
- mOrientationHelper.getStartAfterPadding();
upcomingOffset = mPendingScrollPositionOffset - current;
}
if (upcomingOffset > 0) {
extraForStart += upcomingOffset;
} else {
extraForEnd -= upcomingOffset;
}
}
}
int startOffset;
int endOffset;
final int firstLayoutDirection;
if (mAnchorInfo.mLayoutFromEnd) {
firstLayoutDirection = mShouldReverseLayout ? LayoutState.ITEM_DIRECTION_TAIL
: LayoutState.ITEM_DIRECTION_HEAD;
} else {
firstLayoutDirection = mShouldReverseLayout ? LayoutState.ITEM_DIRECTION_HEAD
: LayoutState.ITEM_DIRECTION_TAIL;
}
onAnchorReady(recycler, state, mAnchorInfo, firstLayoutDirection);
detachAndScrapAttachedViews(recycler);
mLayoutState.mInfinite = resolveIsInfinite();
mLayoutState.mIsPreLayout = state.isPreLayout();
// noRecycleSpace not needed: recycling doesn't happen in below's fill
// invocations because mScrollingOffset is set to SCROLLING_OFFSET_NaN
mLayoutState.mNoRecycleSpace = 0;
if (mAnchorInfo.mLayoutFromEnd) {
// fill towards start
updateLayoutStateToFillStart(mAnchorInfo);
mLayoutState.mExtraFillSpace = extraForStart;
fill(recycler, mLayoutState, state, false);
startOffset = mLayoutState.mOffset;
final int firstElement = mLayoutState.mCurrentPosition;
if (mLayoutState.mAvailable > 0) {
extraForEnd += mLayoutState.mAvailable;
}
// fill towards end
updateLayoutStateToFillEnd(mAnchorInfo);
mLayoutState.mExtraFillSpace = extraForEnd;
mLayoutState.mCurrentPosition += mLayoutState.mItemDirection;
fill(recycler, mLayoutState, state, false);
endOffset = mLayoutState.mOffset;
if (mLayoutState.mAvailable > 0) {
// end could not consume all. add more items towards start
extraForStart = mLayoutState.mAvailable;
updateLayoutStateToFillStart(firstElement, startOffset);
mLayoutState.mExtraFillSpace = extraForStart;
fill(recycler, mLayoutState, state, false);
startOffset = mLayoutState.mOffset;
}
} else {
// fill towards end
updateLayoutStateToFillEnd(mAnchorInfo);
mLayoutState.mExtraFillSpace = extraForEnd;
fill(recycler, mLayoutState, state, false);
endOffset = mLayoutState.mOffset;
final int lastElement = mLayoutState.mCurrentPosition;
if (mLayoutState.mAvailable > 0) {
extraForStart += mLayoutState.mAvailable;
}
// fill towards start
updateLayoutStateToFillStart(mAnchorInfo);
mLayoutState.mExtraFillSpace = extraForStart;
mLayoutState.mCurrentPosition += mLayoutState.mItemDirection;
fill(recycler, mLayoutState, state, false);
startOffset = mLayoutState.mOffset;
if (mLayoutState.mAvailable > 0) {
extraForEnd = mLayoutState.mAvailable;
// start could not consume all it should. add more items towards end
updateLayoutStateToFillEnd(lastElement, endOffset);
mLayoutState.mExtraFillSpace = extraForEnd;
fill(recycler, mLayoutState, state, false);
endOffset = mLayoutState.mOffset;
}
}
// changes may cause gaps on the UI, try to fix them.
// TODO we can probably avoid this if neither stackFromEnd/reverseLayout/RTL values have
// changed
if (getChildCount() > 0) {
// because layout from end may be changed by scroll to position
// we re-calculate it.
// find which side we should check for gaps.
if (mShouldReverseLayout ^ mStackFromEnd) {
int fixOffset = fixLayoutEndGap(endOffset, recycler, state, true);
startOffset += fixOffset;
endOffset += fixOffset;
fixOffset = fixLayoutStartGap(startOffset, recycler, state, false);
startOffset += fixOffset;
endOffset += fixOffset;
} else {
int fixOffset = fixLayoutStartGap(startOffset, recycler, state, true);
startOffset += fixOffset;
endOffset += fixOffset;
fixOffset = fixLayoutEndGap(endOffset, recycler, state, false);
startOffset += fixOffset;
endOffset += fixOffset;
}
}
layoutForPredictiveAnimations(recycler, state, startOffset, endOffset);
if (!state.isPreLayout()) {
mOrientationHelper.onLayoutComplete();
} else {
mAnchorInfo.reset();
}
mLastStackFromEnd = mStackFromEnd;
if (DEBUG) {
validateChildOrder();
}
}
onLayoutChildren
fill
int fill(RecyclerView.Recycler recycler, LayoutState layoutState,
RecyclerView.State state, boolean stopOnFocusable) {
// max offset we should set is mFastScroll + available
final int start = layoutState.mAvailable;
if (layoutState.mScrollingOffset != LayoutState.SCROLLING_OFFSET_NaN) {
// TODO ugly bug fix. should not happen
if (layoutState.mAvailable < 0) {
layoutState.mScrollingOffset += layoutState.mAvailable;
}
recycleByLayoutState(recycler, layoutState);
}
int remainingSpace = layoutState.mAvailable + layoutState.mExtraFillSpace;
LayoutChunkResult layoutChunkResult = mLayoutChunkResult;
while ((layoutState.mInfinite || remainingSpace > 0) && layoutState.hasMore(state)) {
layoutChunkResult.resetInternal();
if (RecyclerView.VERBOSE_TRACING) {
TraceCompat.beginSection("LLM LayoutChunk");
}
layoutChunk(recycler, state, layoutState, layoutChunkResult);
if (RecyclerView.VERBOSE_TRACING) {
TraceCompat.endSection();
}
if (layoutChunkResult.mFinished) {
break;
}
layoutState.mOffset += layoutChunkResult.mConsumed * layoutState.mLayoutDirection;
/**
* Consume the available space if:
* * layoutChunk did not request to be ignored
* * OR we are laying out scrap children
* * OR we are not doing pre-layout
*/
if (!layoutChunkResult.mIgnoreConsumed || layoutState.mScrapList != null
|| !state.isPreLayout()) {
layoutState.mAvailable -= layoutChunkResult.mConsumed;
// we keep a separate remaining space because mAvailable is important for recycling
remainingSpace -= layoutChunkResult.mConsumed;
}
if (layoutState.mScrollingOffset != LayoutState.SCROLLING_OFFSET_NaN) {
layoutState.mScrollingOffset += layoutChunkResult.mConsumed;
if (layoutState.mAvailable < 0) {
layoutState.mScrollingOffset += layoutState.mAvailable;
}
recycleByLayoutState(recycler, layoutState);
}
if (stopOnFocusable && layoutChunkResult.mFocusable) {
break;
}
}
if (DEBUG) {
validateChildOrder();
}
return start - layoutState.mAvailable;
}
layoutChunk
void layoutChunk(RecyclerView.Recycler recycler, RecyclerView.State state,
LayoutState layoutState, LayoutChunkResult result) {
View view = layoutState.next(recycler);
if (view == null) {
if (DEBUG && layoutState.mScrapList == null) {
throw new RuntimeException("received null view when unexpected");
}
// if we are laying out views in scrap, this may return null which means there is
// no more items to layout.
result.mFinished = true;
return;
}
RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) view.getLayoutParams();
if (layoutState.mScrapList == null) {
if (mShouldReverseLayout == (layoutState.mLayoutDirection
== LayoutState.LAYOUT_START)) {
addView(view);
} else {
addView(view, 0);
}
} else {
if (mShouldReverseLayout == (layoutState.mLayoutDirection
== LayoutState.LAYOUT_START)) {
addDisappearingView(view);
} else {
addDisappearingView(view, 0);
}
}
measureChildWithMargins(view, 0, 0);
result.mConsumed = mOrientationHelper.getDecoratedMeasurement(view);
int left, top, right, bottom;
if (mOrientation == VERTICAL) {
if (isLayoutRTL()) {
right = getWidth() - getPaddingRight();
left = right - mOrientationHelper.getDecoratedMeasurementInOther(view);
} else {
left = getPaddingLeft();
right = left + mOrientationHelper.getDecoratedMeasurementInOther(view);
}
if (layoutState.mLayoutDirection == LayoutState.LAYOUT_START) {
bottom = layoutState.mOffset;
top = layoutState.mOffset - result.mConsumed;
} else {
top = layoutState.mOffset;
bottom = layoutState.mOffset + result.mConsumed;
}
} else {
top = getPaddingTop();
bottom = top + mOrientationHelper.getDecoratedMeasurementInOther(view);
if (layoutState.mLayoutDirection == LayoutState.LAYOUT_START) {
right = layoutState.mOffset;
left = layoutState.mOffset - result.mConsumed;
} else {
left = layoutState.mOffset;
right = layoutState.mOffset + result.mConsumed;
}
}
// We calculate everything with View's bounding box (which includes decor and margins)
// To calculate correct layout position, we subtract margins.
layoutDecoratedWithMargins(view, left, top, right, bottom);
if (DEBUG) {
Log.d(TAG, "laid out child at position " + getPosition(view) + ", with l:"
+ (left + params.leftMargin) + ", t:" + (top + params.topMargin) + ", r:"
+ (right - params.rightMargin) + ", b:" + (bottom - params.bottomMargin));
}
// Consume the available space if the view is not removed OR changed
if (params.isItemRemoved() || params.isItemChanged()) {
result.mIgnoreConsumed = true;
}
result.mFocusable = view.hasFocusable();
}
measureChildWithMargins
public void measureChildWithMargins(@NonNull View child, int widthUsed, int heightUsed) {
final LayoutParams lp = (LayoutParams) child.getLayoutParams();
final Rect insets = mRecyclerView.getItemDecorInsetsForChild(child);
widthUsed += insets.left + insets.right;
heightUsed += insets.top + insets.bottom;
final int widthSpec = getChildMeasureSpec(getWidth(), getWidthMode(),
getPaddingLeft() + getPaddingRight()
+ lp.leftMargin + lp.rightMargin + widthUsed, lp.width,
canScrollHorizontally());
final int heightSpec = getChildMeasureSpec(getHeight(), getHeightMode(),
getPaddingTop() + getPaddingBottom()
+ lp.topMargin + lp.bottomMargin + heightUsed, lp.height,
canScrollVertically());
if (shouldMeasureChild(child, widthSpec, heightSpec, lp)) {
child.measure(widthSpec, heightSpec);
}
}
getChildMeasureSpec
public static int getChildMeasureSpec(int parentSize, int parentMode, int padding,
int childDimension, boolean canScroll) {
int size = Math.max(0, parentSize - padding);
int resultSize = 0;
int resultMode = 0;
if (canScroll) {
// MATCH_PARENT = -1
if (childDimension >= 0) {
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
switch (parentMode) {
case MeasureSpec.AT_MOST:
case MeasureSpec.EXACTLY:
resultSize = size;
resultMode = parentMode;
break;
case MeasureSpec.UNSPECIFIED:
resultSize = 0;
resultMode = MeasureSpec.UNSPECIFIED;
break;
}
} else if (childDimension == LayoutParams.WRAP_CONTENT) {
resultSize = 0;
resultMode = MeasureSpec.UNSPECIFIED;
}
} else {
if (childDimension >= 0) {
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
resultSize = size;
resultMode = parentMode;
} else if (childDimension == LayoutParams.WRAP_CONTENT) {
resultSize = size;
if (parentMode == MeasureSpec.AT_MOST || parentMode == MeasureSpec.EXACTLY) {
resultMode = MeasureSpec.AT_MOST;
} else {
resultMode = MeasureSpec.UNSPECIFIED;
}
}
}
//noinspection WrongConstant
return MeasureSpec.makeMeasureSpec(resultSize, resultMode);
}

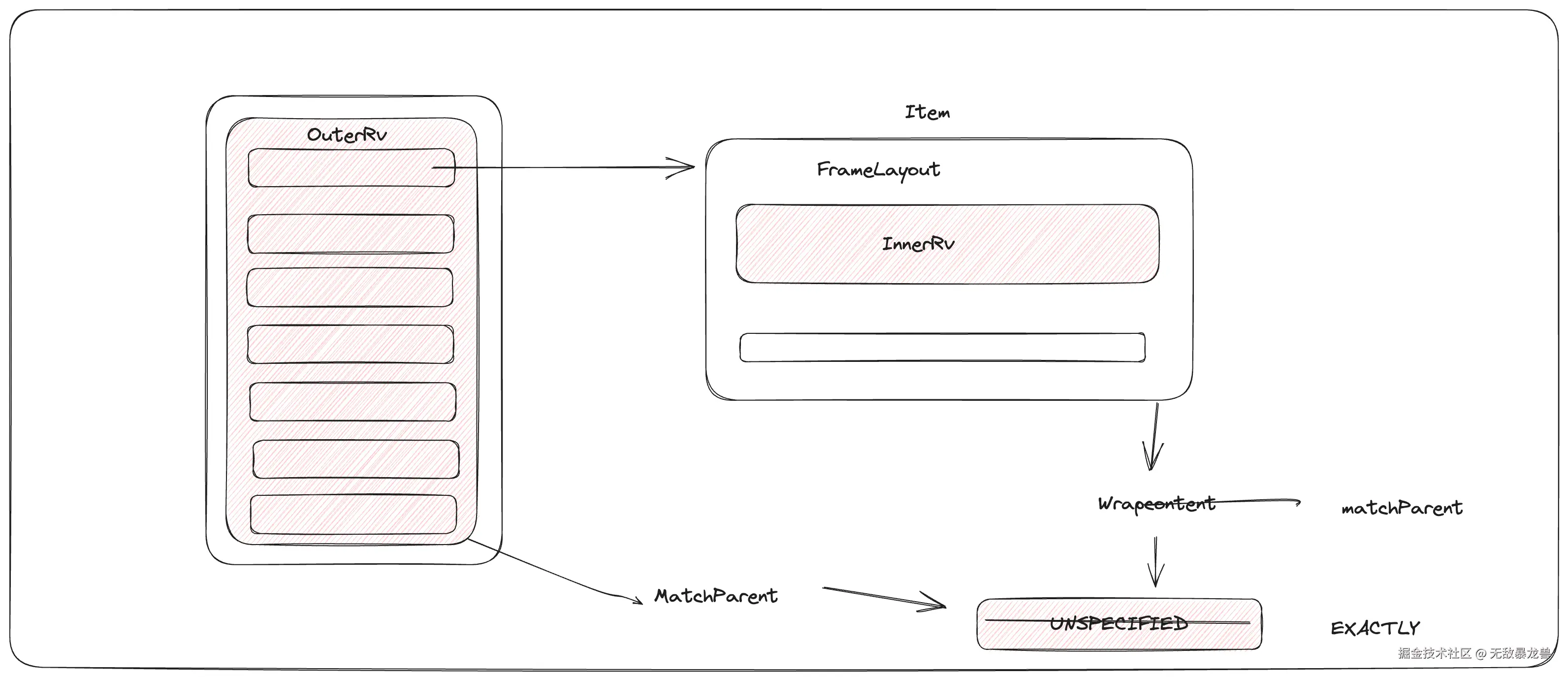

2.4 Rv in Rv
OuterRv
MeasureSpec.EXACTLY
InnerRv
MeasureSpec.UNSPECIFIED
三、解决方法
3.1 lazy load
private fun lazyLoadFirstRvImg(offset: Int) {
if (mFirstVerticalRv == null) {
return
}
var sum = 0
var start = 0
var end = (mFirstVerticalRv!!.childCount - 1)
var startInit = false
// 加载前一屏和后一屏数据
var startOffset = if (offset - mScreenHeight > 0) {
offset - mScreenHeight
} else {
0
}
var endOffset = offset + mScreenHeight * 3 / 2
for (index in 0 until mFirstVerticalRv!!.childCount) {
sum += mFirstVerticalRv!!.getChildAt(index).measuredHeight
if (sum >= startOffset && !startInit) {
// 起点
startInit = true
start = index
}
if (sum >= endOffset) {
// 终点
end = index
break
}
}
if (startInit) {
// 开始加载图片。
Event post
}
3.2 固定InnerRv高度
子view滑动
public class InnerRecyclerView extends RecyclerView {
public InnerRecyclerView(@NonNull Context context) {
super(context);
}
public InnerRecyclerView(@NonNull Context context,
@Nullable AttributeSet attrs) {
super(context, attrs);
}
public InnerRecyclerView(@NonNull Context context, @Nullable AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
}
@Override
public boolean dispatchTouchEvent(MotionEvent ev) {
getParent().requestDisallowInterceptTouchEvent(true);
return super.dispatchTouchEvent(ev);
}
}
嵌套滑动
recycleView 默认实现了NestedScrollingChild，只能作为嵌套滑动的child。
自定义OuterRecycleView，继承NestedScrollingParent2。
public class OuterRecyclerView extends RecyclerView implements NestedScrollingParent2 {
@Override
public boolean dispatchTouchEvent(MotionEvent ev) {
boolean temporarilySkipsInterception = nestedScrollTarget != null;
if (temporarilySkipsInterception) {
skipsTouchInterception = true;
}
boolean handled = super.dispatchTouchEvent(ev);
if (temporarilySkipsInterception) {
skipsTouchInterception = false;
if (!handled || nestedScrollTargetWasUnableToScroll) {
handled = super.dispatchTouchEvent(ev);
}
}
return handled;
}
@Override
public boolean onStartNestedScroll(@NonNull View child, @NonNull View target, int axes,
int type) {
return (axes == View.SCROLL_AXIS_VERTICAL);
}
@Override
public void onNestedScrollAccepted(@NonNull View child, @NonNull View target, int axes,
int type) {
if (axes == View.SCROLL_AXIS_VERTICAL) {
// A descendent started scrolling, so we'll observe it.
nestedScrollTarget = target;
nestedScrollTargetIsBeingDragged = false;
nestedScrollTargetWasUnableToScroll = false;
}
super.onNestedScrollAccepted(child, target, axes);
}
@Override
public void onStopNestedScroll(@NonNull View target, int type) {
// The descendent finished scrolling. Clean up!
nestedScrollTarget = null;
nestedScrollTargetIsBeingDragged = false;
nestedScrollTargetWasUnableToScroll = false;
}
@Override
public void onNestedScroll(@NonNull View target, int dxConsumed, int dyConsumed, int dxUnconsumed,
int dyUnconsumed, int type) {
if (target == nestedScrollTarget && !nestedScrollTargetIsBeingDragged) {
if (dyConsumed != 0) {
nestedScrollTargetIsBeingDragged = true;
nestedScrollTargetWasUnableToScroll = false;
}
else if (dyConsumed == 0 && dyUnconsumed != 0) {
nestedScrollTargetWasUnableToScroll = true;
target.getParent().requestDisallowInterceptTouchEvent(false);
}
}
}
@Override
public void onNestedPreScroll(@NonNull View target, int dx, int dy, @NonNull int[] consumed,
int type) {
}
...
...
}
