Vite5-Electron-Wechat聊天实例|electron31+vue3客户端聊天EXE

全新原创研发新作Electron-ViteChat桌面端仿微信聊天室，正式完结了。

技术栈

• 编辑器：vscode
• 框架技术：electron31+vite5.3.1+vue3.4.29+vue-router4.4.0
• 跨端框架：electron31.1.0
• 状态管理：pinia^2.1.7
• UI组件库：element-plus^2.7.6 (饿了么桌面端vue3组件库)
• 本地存储：pinia-plugin-persistedstate^3.2.1
• 构建打包：electron-builder^24.13.3
• electron整合vite插件：vite-plugin-electron^0.28.7

electron-vitechat采用vite5.x搭建项目模板，vue3 setup语法糖编码。整合electron跨平台技术框架，支持新开多个窗口并存。

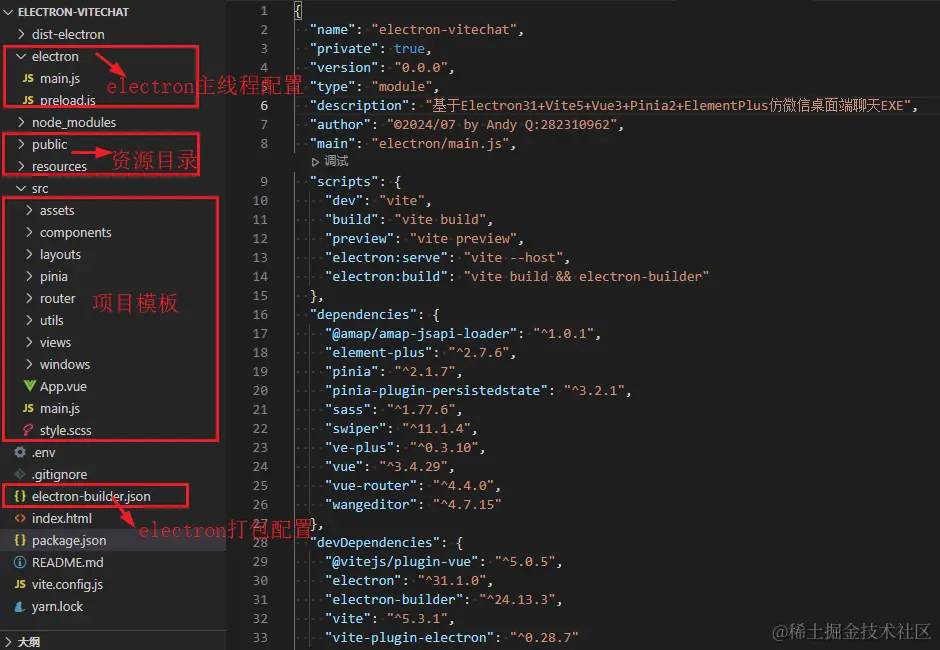

项目结构目录

vite5.x整合electron搭建聊天项目

• vite5创建vue3项目模板

yarn create vite electron-vitechat
cd electron-vitechat
yarn install
yarn dev

接下来，安装一些electron依赖包。如果安装失败或卡住，建议多试几次或切换镜像源。

// 安装electron
yarn add -D electron
// 安装electron-builder 用于打包可安装exe程序和绿色版免安装exe程序
yarn add -D electron-builder
// 安装vite-plugin-electron 用于将vite与electron无缝结合
yarn add -D vite-plugin-electron

electron主进程配置

/**
 * electron主进程入口配置
 * @author andy
 */

import { app, BrowserWindow } from 'electron'

import { WindowManager } from '../src/windows/index.js'

// 忽略安全警告提示 Electron Security Warning (Insecure Content-Security-Policy)
process.env['ELECTRON_DISABLE_SECURITY_WARNINGS'] = true

const createWindow = () => {
  let win = new WindowManager()
  win.create({isMajor: true})
  // 系统托盘管理
  win.trayManager()
  // 监听ipcMain事件
  win.ipcManager()
}

app.whenReady().then(() => {
  createWindow()

  app.on('activate', () => {
    if(BrowserWindow.getAllWindows().length === 0) createWindow()
  })
})

app.on('window-all-closed', () => {
  if(process.platform !== 'darwin') app.quit()
})

在vite.config.js中配置主进程入口。

import { defineConfig, loadEnv } from 'vite'
import vue from '@vitejs/plugin-vue'
import { resolve } from 'node:path'
import electron from 'vite-plugin-electron'
// import electron from 'vite-plugin-electron/simple'

// https://vitejs.dev/config/
export default defineConfig(({ command, mode }) => {
  const env = loadEnv(mode, process.cwd())

  return {
    define: {
      'process.env': env, // 将.env环境变量注入到process.env
    },

    plugins: [
      vue(),
      electron({
        entry: 'electron/main.js',
      })
      /* electron({
        main: {
          entry: 'electron/main.js'
        },
        preload: {
          input: 'electron/preload.js'
        },
        // renderer: {}
      }) */
    ],

    // 构建配置
    build: {
      // ...
    },
    esbuild: {
      // 打包去除 console.log 和 debugger
      drop: ['console', 'debugger']
    },

    // 服务器配置
    server: {
      // port: 3000,
      // open: true,
      // https: false,
      // proxy: {}
    },

    resolve: {
      // 设置别名
      alias: {
        '@': resolve(__dirname, 'src'),
        '@assets': resolve(__dirname, 'src/assets'),
        '@components': resolve(__dirname, 'src/components'),
        '@views': resolve(__dirname, 'src/views'),
      }
    }
  }
})

渲染进程主入口main.js

import { createApp } from 'vue'
import './style.scss'
import App from './App.vue'

// 引入组件库
import ElementPlus from 'element-plus'
import 'element-plus/dist/index.css'

// 引入路由/状态管理
import Router from './router'
import Pinia from './pinia'

import { launchApp } from '@/windows/actions'

launchApp().then(config => {
  if(config) {
    console.log('窗口参数:', config)
    console.log('窗口id:', config?.id)

    // 全局存储窗口配置
    window.config = config
  }

  // 创建app应用实例
  createApp(App)
  .use(ElementPlus)
  .use(Router)
  .use(Pinia)
  .mount('#app')
})

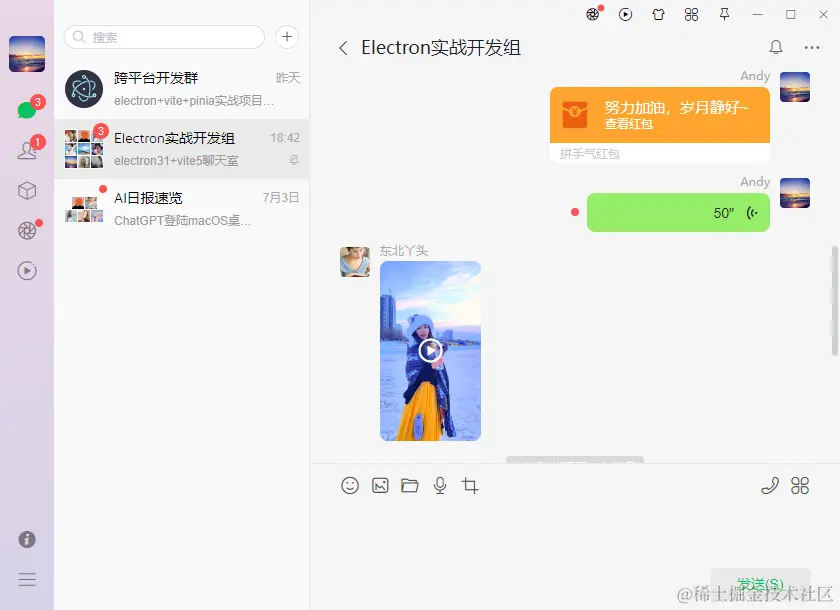

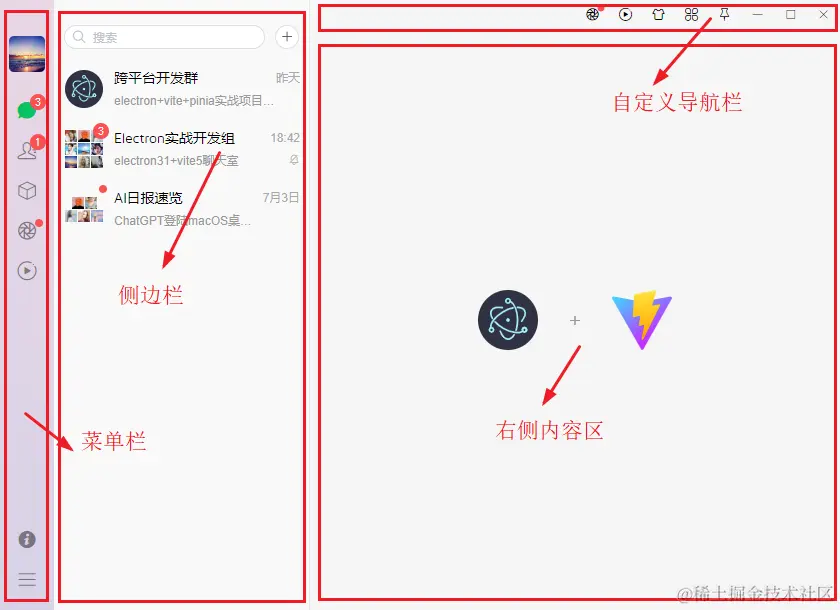

项目布局模板

整个项目分为最左侧菜单条+侧边栏+右侧主体区(自定义系统导航条)

<template>
  <template v-if="!route?.meta?.isNewWin">
    <div
      class="vu__container flexbox flex-alignc flex-justifyc"
      :style="{'--themeSkin': appstate.config.skin}"
    >
      <div class="vu__layout flexbox flex-col">
        <div class="vu__layout-body flex1 flexbox" @contextmenu.prevent>
          <!-- 菜单栏 -->
          <slot v-if="!route?.meta?.hideMenuBar" name="menubar">
            <MenuBar />
          </slot>

          <!-- 侧边栏 -->
          <div v-if="route?.meta?.showSideBar" class="vu__layout-sidebar flexbox">
            <aside class="vu__layout-sidebar__body flexbox flex-col">
              <slot name="sidebar">
                <SideBar />
              </slot>
            </aside>
          </div>

          <!-- 主内容区 -->
          <div class="vu__layout-main flex1 flexbox flex-col">
            <ToolBar v-if="!route?.meta?.hideToolBar" />
            <router-view v-slot="{ Component, route }">
              <keep-alive>
                <component :is="Component" :key="route.path" />
              </keep-alive>
            </router-view>
          </div>
        </div>
      </div>
    </div>
  </template>
  <template v-else>
    <WinLayout />
  </template>
</template>

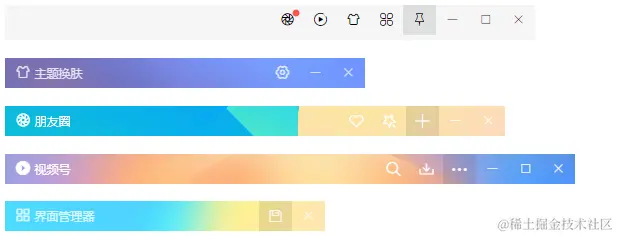

vue3+electron31自定义拖拽导航窗口

<script setup>
  import { ref } from 'vue'
  import { isTrue } from '@/utils'

  import { winSet } from '@/windows/actions'

  import Winbtns from './btns.vue'

  const props = defineProps({
    // 标题
    title: {type: String, default: ''},
    // 标题颜色
    color: String,
    // 背景色
    background: String,
    // 标题是否居中
    center: {type: [Boolean, String], default: false},
    // 是否固定
    fixed: {type: [Boolean, String], default: false},
    // 背景是否镂空
    transparent: {type: [Boolean, String], default: false},
    // 层级
    zIndex: {type: [Number, String], default: 2024},

    /* 控制Winbtn参数 */
    // 窗口是否可最小化
    minimizable: {type: [Boolean, String], default: true},
    // 窗口是否可最大化
    maximizable: {type: [Boolean, String], default: true},
    // 窗口是否可关闭
    closable: {type: [Boolean, String], default: true},
  })
</script>

<template>
  <div class="ev__winbar" :class="{'fixed': fixed || transparent, 'transparent': transparent}">
    <div class="ev__winbar-wrap flexbox flex-alignc vu__drag">
      <div class="ev__winbar-body flex1 flexbox flex-alignc">
        <!-- 左侧区域 -->
        <div class="ev__winbar-left"><slot name="left" /></div>
        <!-- 标题 -->
        <div class="ev__winbar-title" :class="{'center': center}">
          <slot name="title">{{title}}</slot>
        </div>
        <!-- 右侧附加区域 -->
        <div class="ev__winbar-extra vu__undrag"><slot name="extra" /></div>
      </div>
      <Winbtns :color="color" :minimizable="minimizable" :maximizable="maximizable" :closable="closable" :zIndex="zIndex" />
    </div>
  </div>
</template>

btns.vue模板控制窗口最大化/最小化/关闭功能。

<script setup>
  import { ref } from 'vue'
  import { isTrue } from '@/utils'

  import { winSet } from '@/windows/actions'

  const props = defineProps({
    color: String,
    // 窗口是否可最小化
    minimizable: {type: [Boolean, String], default: true},
    // 窗口是否可最大化
    maximizable: {type: [Boolean, String], default: true},
    // 窗口是否可关闭
    closable: {type: [Boolean, String], default: true},
    // 层级
    zIndex: {type: [Number, String], default: 2024},
  })

  const hasMaximized = ref(false)
  const isResizable = ref(true)
  const isMaximizable = ref(true)

  // 用户是否可以手动调整窗口大小
  window.electron.invoke('win-isResizable').then(res => {
    isResizable.value = res
  })
  // 窗口是否可以最大化
  window.electron.invoke('win-isMaximizable').then(res => {
    isMaximizable.value = res
  })

  // 初始监听窗口是否最大化
  window.electron.invoke('win-isMaximized').then(res => {
    hasMaximized.value = res
  })
  // 实时监听窗口是否最大化
  window.electron.on('win-maximized', (e, data) => {
    hasMaximized.value = data
  })

  // 最小化
  const handleWinMin = () => {
    // winSet('minimize', window.config.id)
    window.electron.invoke('win-min')
  }
  // 最大化/还原
  const handleWinToggle = () => {
    // winSet('max2min', window.config.id)
    window.electron.invoke('win-toggle').then(res => {
      hasMaximized.value = res
    })
  }
  // 关闭
  const handleWinClose = () => {
    if(window.config.isMajor) {
      let el = layer({
        type: 'android',
        content: '是否最小化托盘，不退出程序?',
        layerStyle: 'background: #f9f9f9; border-radius: 8px;',
        closable: false,
        resize: false,
        btns: [
          {
            text: '最小化托盘',
            style: 'color: #646cff',
            click: () => {
              layer.close(el)
              setTimeout(() => {
                winSet('hide', window.config.id)
              }, 300)
            }
          },
          {
            text: '退出',
            style: 'color: #fa5151',
            click: () => {
              winSet('close')
            }
          }
        ]
      })
    }else {
      winSet('close', window.config.id)
    }
  }
</script>

<template>
  <div class="ev__winbtns flexbox flex-alignc vu__drag" :style="{'z-index': zIndex}">
    <div class="ev__winbtns-actions flexbox flex-alignc vu__undrag" :style="{'color': color}">
      <a v-if="isTrue(minimizable)" class="wbtn min" title="最小化" @click="handleWinMin"><i class="wicon elec-icon elec-icon-min"></i></a>
      <a v-if="isTrue(maximizable) && isResizable && isMaximizable" class="wbtn toggle" :title="hasMaximized ? '向下还原' : '最大化'" @click="handleWinToggle">
        <i class="wicon elec-icon" :class="hasMaximized ? 'elec-icon-restore' : 'elec-icon-max'"></i>
      </a>
      <a v-if="isTrue(closable)" class="wbtn close" title="关闭" @click="handleWinClose"><i class="wicon elec-icon elec-icon-quit"></i></a>
    </div>
  </div>
</template>

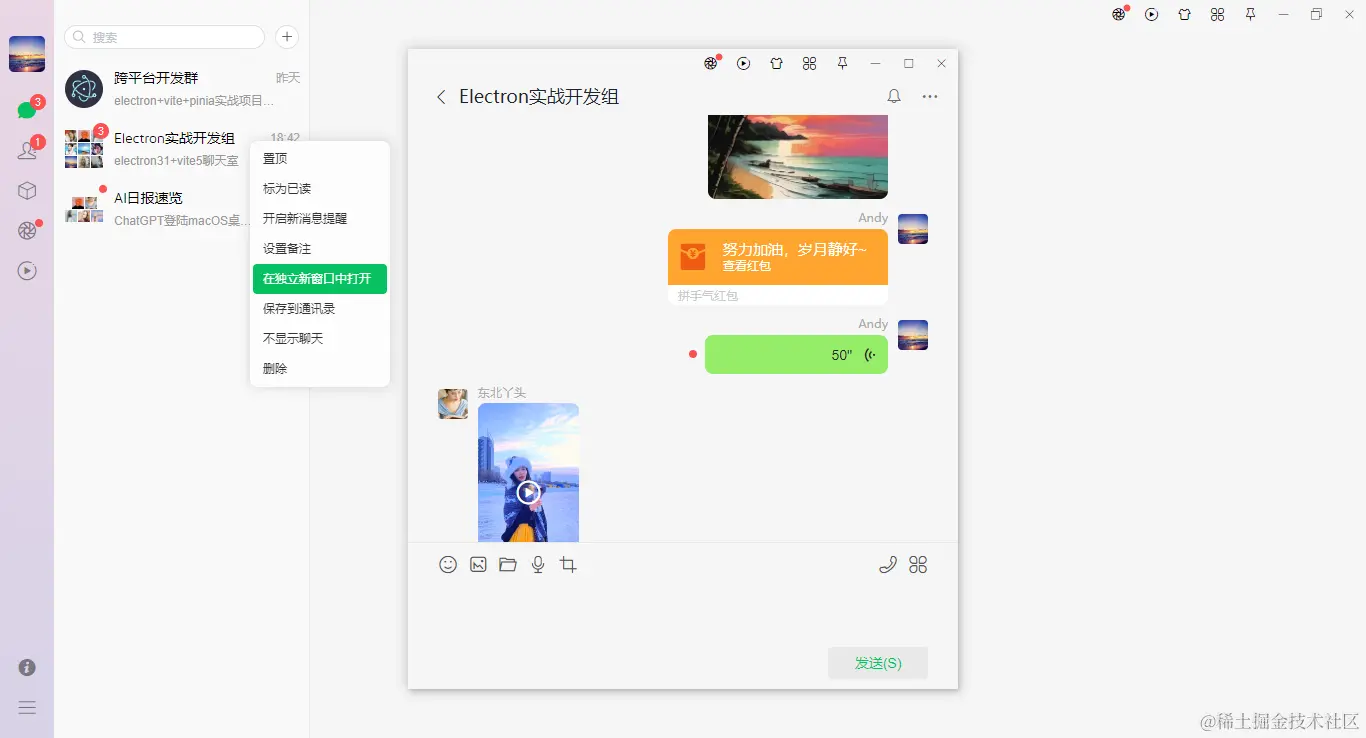

vite5+electron31实现多窗口实例

/**
 * 创建新窗口
 * @param {object} args 窗口配置参数 {url: '/chat', width: 850, height: 600, ...}
 */
export function winCreate(args) {
  window.electron.send('win-create', args)
}

通过给主进程发送创建窗口指令，便可快速开启一个独立窗体。

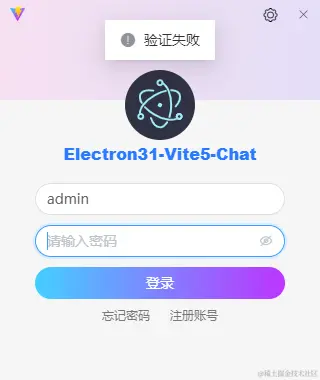

// 登录窗口
export function loginWindow() {
  winCreate({
    url: '/login',
    title: '登录',
    width: 320,
    height: 380,
    isMajor: true,
    resizable: false,
    maximizable: false,
    alwaysOnTop: true
  })
}

// 关于窗口
export function aboutWindow() {
  winCreate({
    url: '/win/about',
    title: '关于',
    width: 375,
    height: 300,
    minWidth: 375,
    minHeight: 300,
    maximizable: false,
    alwaysOnTop: true,
  })
}

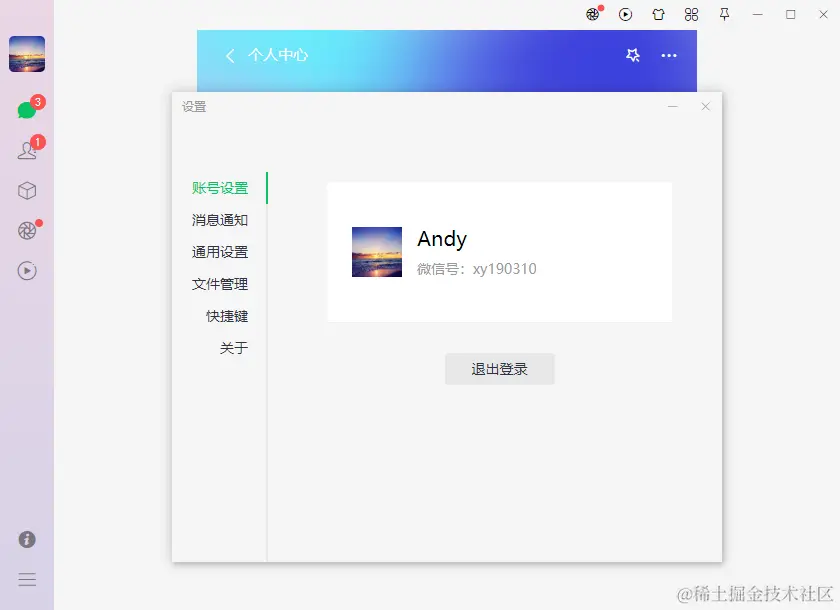

// 设置窗口
export function settingWindow() {
  winCreate({
    url: '/win/setting',
    title: '设置',
    width: 550,
    height: 470,
    resizable: false,
    maximizable: false,
  })
}

在主进程中监听创建窗口事件。

/**
  * 主进程监听管理器
  * 监听从渲染器进程（网页）发送出来的异步和同步信息。 从渲染器进程发送的消息将被发送到该模块。
  */

ipcManager() {
  console.log('watching ipc event...')

  /* ipcMain模块on监听 */
  // 创建新窗口
  ipcMain.on('win-create', (event, args) => this.create(args))

  //...
}

通过new BrowserWindow()创建新窗口实例。

// 创建新窗口
create(options) {
  console.log('create window started...')

  // 窗口自定义配置参数
  const windowConfig = mergeObjects(windowOptions, options)
  // 窗口系统配置参数
  const windowBaseConfig = mergeObjects(windowBaseOptions, options)

  // 判断窗口是否存在
  for(let i in this.winDict) {
    let win = this.getWinById(i)
    if(win && this.winDict[i].url === windowConfig.url && !this.winDict[i].isMultiple && !this.winDict[i].isMajor) {
      win.restore()
      win.focus()
      return
    }
  }

  // 设置父窗口
  if(windowBaseConfig.parent) {
    console.log('window parent: ', windowBaseConfig.parent)
    windowBaseConfig.parent = this.getWinById(windowBaseConfig.parent)
  }

  // 创建窗口对象
  let winObj = new BrowserWindow(windowBaseConfig)

  // 是否主窗口
  if(windowConfig.isMajor) {
    // ...
  }

  // 加载页面
  let url
  if(!windowConfig.url) {
    if(process.env.VITE_DEV_SERVER_URL) {
      url = process.env.VITE_DEV_SERVER_URL
    }else {
      url = winURL
    }
  }else {
    url = `${winURL}#${windowConfig.url}`
  }
  winObj.loadURL(url)
  windowConfig.id = winObj.id
  this.winDict[winObj.id] = windowConfig
  console.log('winDict:', this.winDict)

  // 开启开发者调试工具
  if(isDev) {
    // console.log('open devtools...')
    // winObj.webContents.openDevTools({mode: 'bottom'})
  }

  winObj.once('ready-to-show', () => {
    winObj.show()
  })

  // 初始化渲染进程
  winObj.webContents.on('did-finish-load', () => {
    this.sendById(winObj.id, 'win-loaded', windowConfig)
  })
}

electron打包配置

在项目根目录新建一个electron-builder.json配置文件。

{
  "productName": "Electron-ViteChat",
  "appId": "com.andy.electron-vite-wechat",
  "copyright": "Copyright © 2024-present Andy  Q:282310962",
  "compression": "maximum",
  "asar": true,
  "directories": {
    "output": "release/${version}"
  },
  "nsis": {
    "oneClick": false,
    "allowToChangeInstallationDirectory": true,
    "perMachine": true,
    "deleteAppDataOnUninstall": true,
    "createDesktopShortcut": true,
    "createStartMenuShortcut": true,
    "shortcutName": "ElectronViteChat"
  },
  "win": {
    "icon": "./resources/shortcut.ico",
    "artifactName": "${productName}-v${version}-${platform}-${arch}-setup.${ext}",
    "target": [
      {
        "target": "nsis",
        "arch": ["ia32"]
      }
    ]
  },
  "mac": {
    "icon": "./resources/shortcut.icns",
    "artifactName": "${productName}-v${version}-${platform}-${arch}-setup.${ext}"
  },
  "linux": {
    "icon": "./resources",
    "artifactName": "${productName}-v${version}-${platform}-${arch}-setup.${ext}"
  }
}

Okay，以上就是electron31+vite5开发桌面跨端聊天项目的一些分享，由于涉及到的知识点还是蛮多，限于篇幅就先分享到这里，感谢大家的阅读！
