NACOS 2.3.2适配瀚高数据库

1.背景

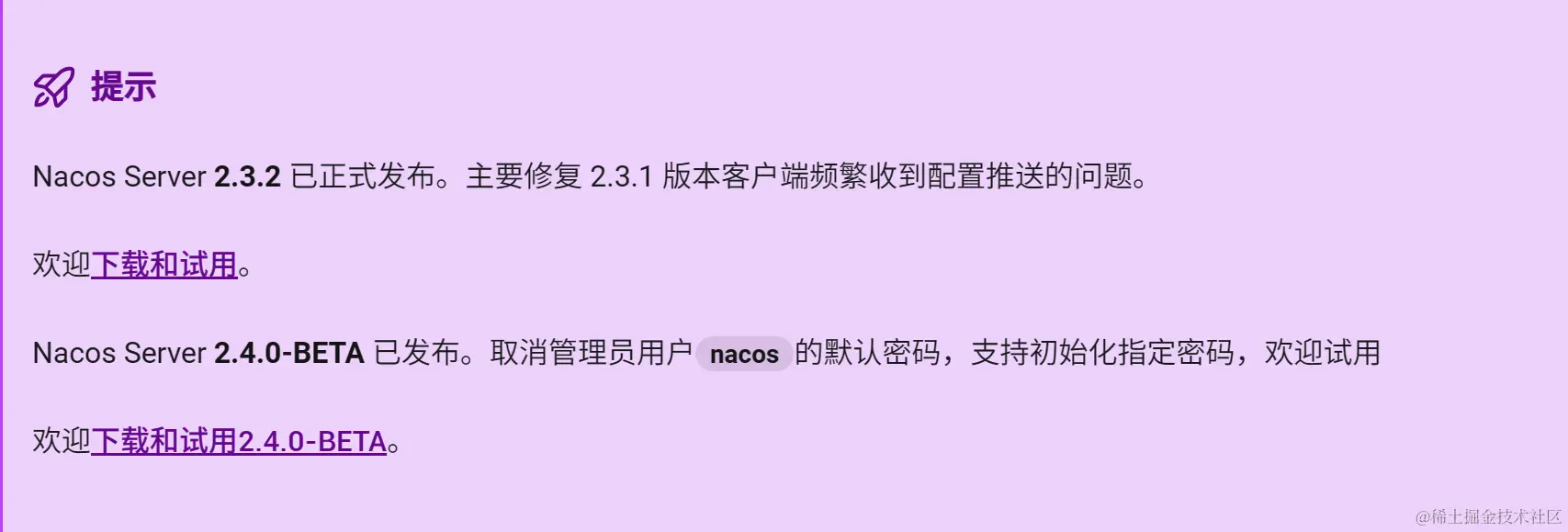

 Nacos的新版又发布了，大佬们又完善了源码。
 正好近期有信创环境搭建nacos适配国产化数据库的诉求，所以开搞。
 ps:搞了两天也踩了不少坑，为了记录一下过程便于后面回顾，仅供参考。

2.适配步骤

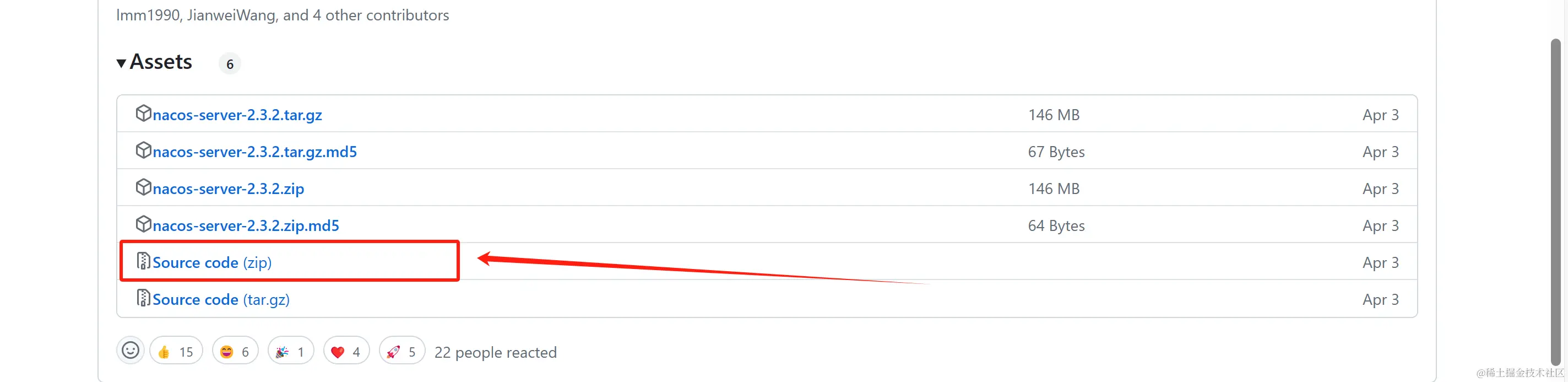

2.1 源码下载

Release 2.3.2 (Apr 3rd, 2024) · alibaba/nacos (github.com)

2.2 解压导入idea

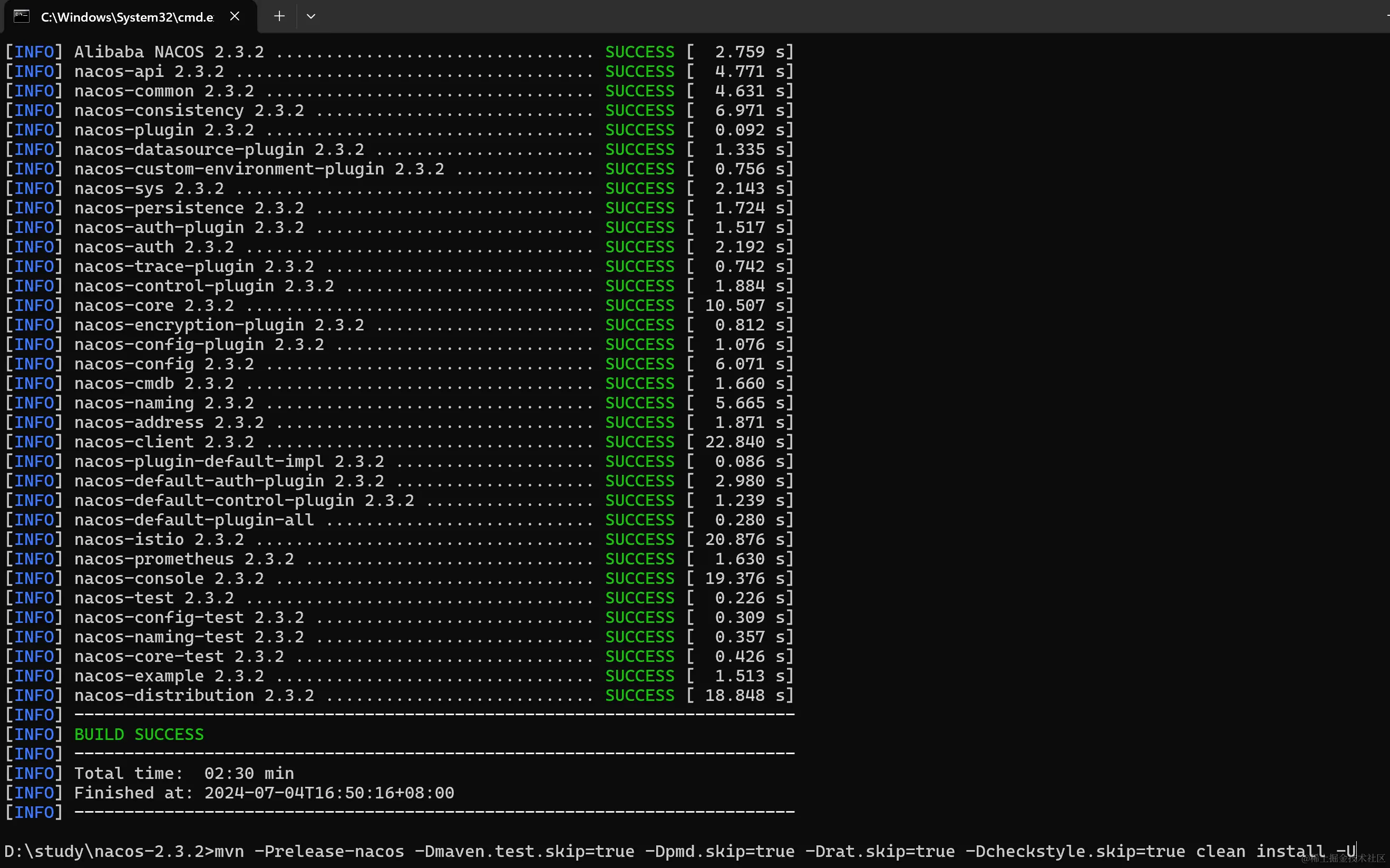

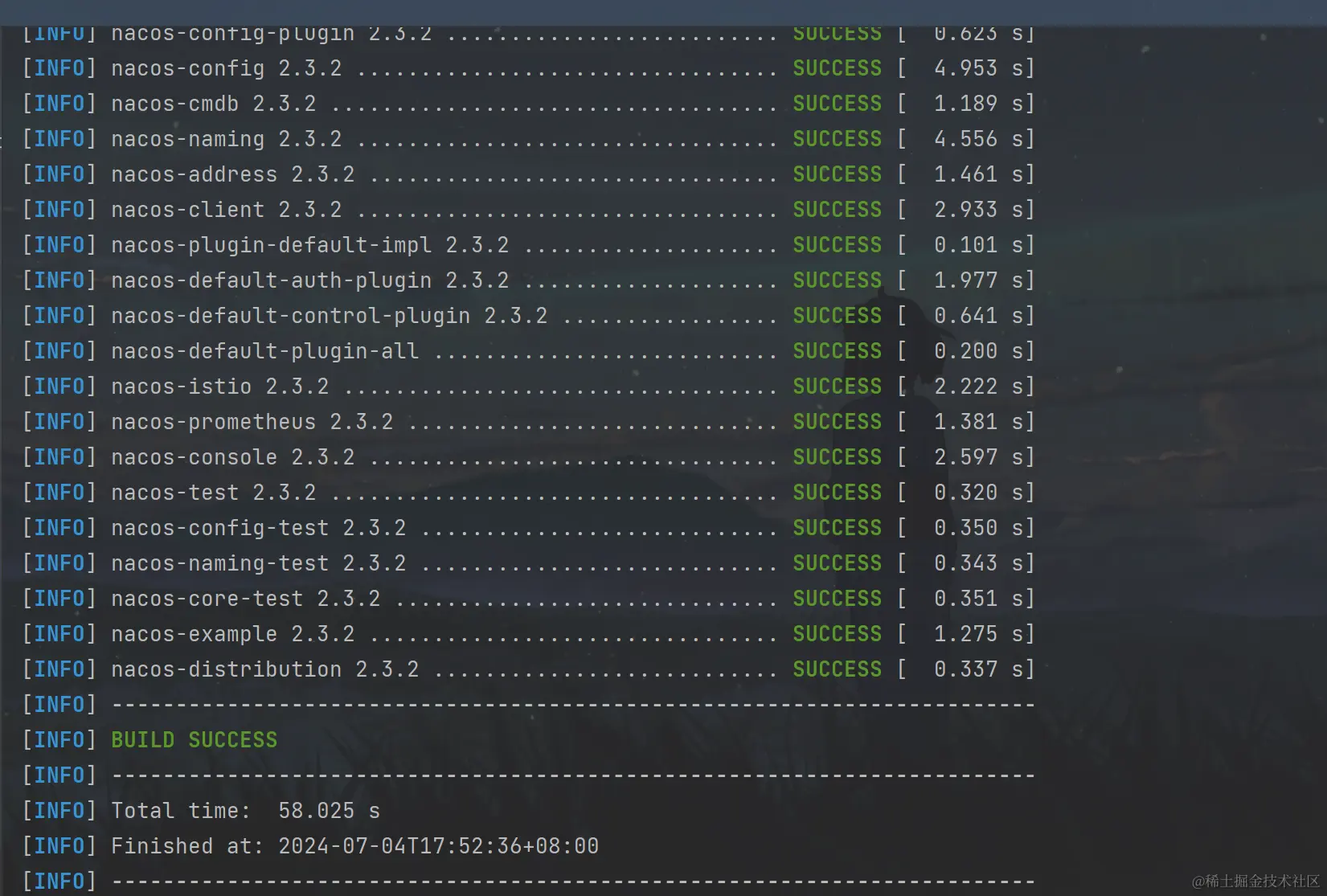

• compile编译

2.2.3 pom文件增加瀚高依赖

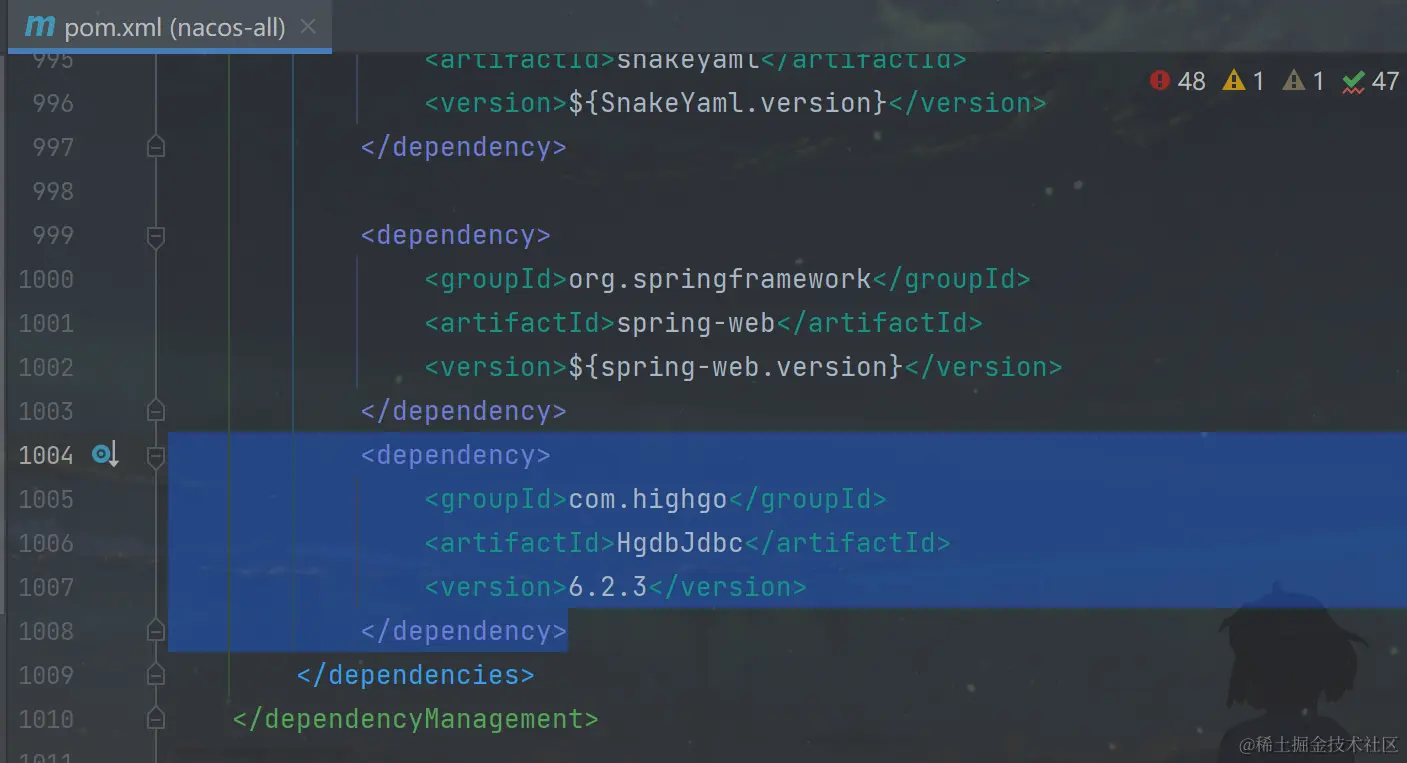

2.2.3.1 nacos-all

<dependency>
    <groupId>com.highgo</groupId>
    <artifactId>HgdbJdbc</artifactId>
    <version>6.2.3</version>
</dependency>

2.2.3.2 nacos-config

<dependency>
<groupId>com.highgo</groupId>
<artifactId>HgdbJdbc</artifactId>
</dependency>

2.2.4 代码改造

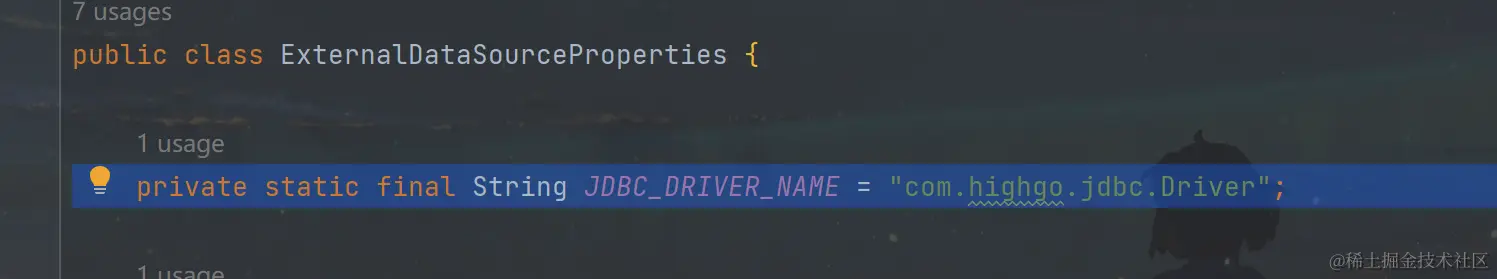

2.2.4.1 nacos-config 模块修改数据库驱动名称

com/alibaba/nacos/persistence/datasource/ExternalDataSourceProperties.java

private static final String JDBC_DRIVER_NAME = "com.highgo.jdbc.Driver";

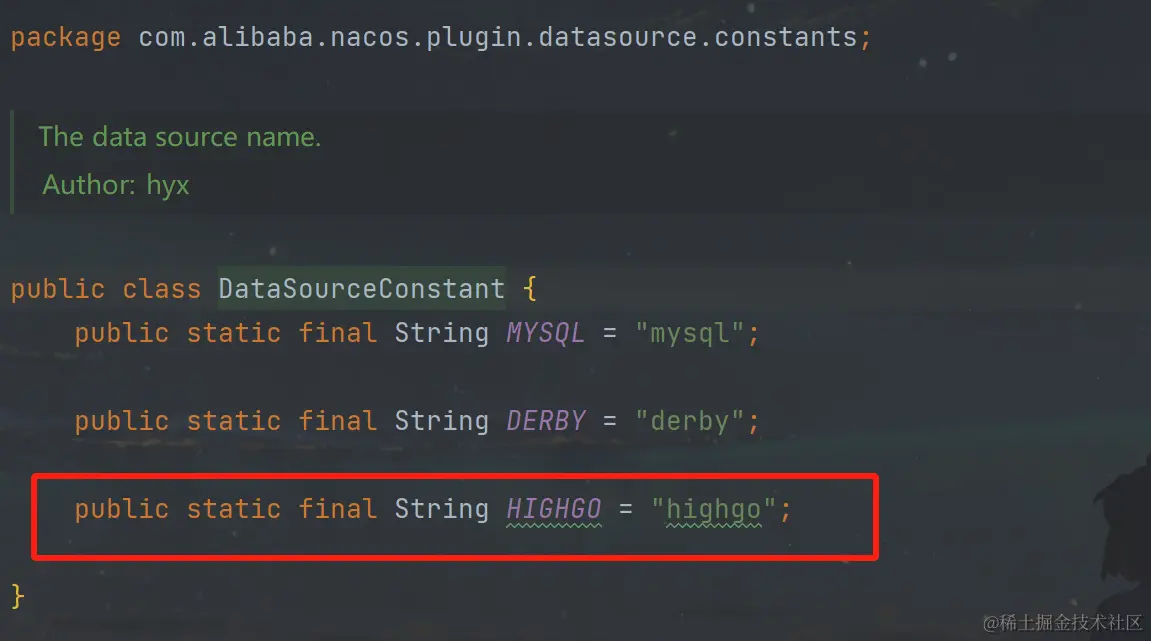

2.2.4.2 nacos-datasource-plugin 模块增加常量

com/alibaba/nacos/plugin/datasource/constants/DataSourceConstant.java

public static final String HIGHGO = "highgo";

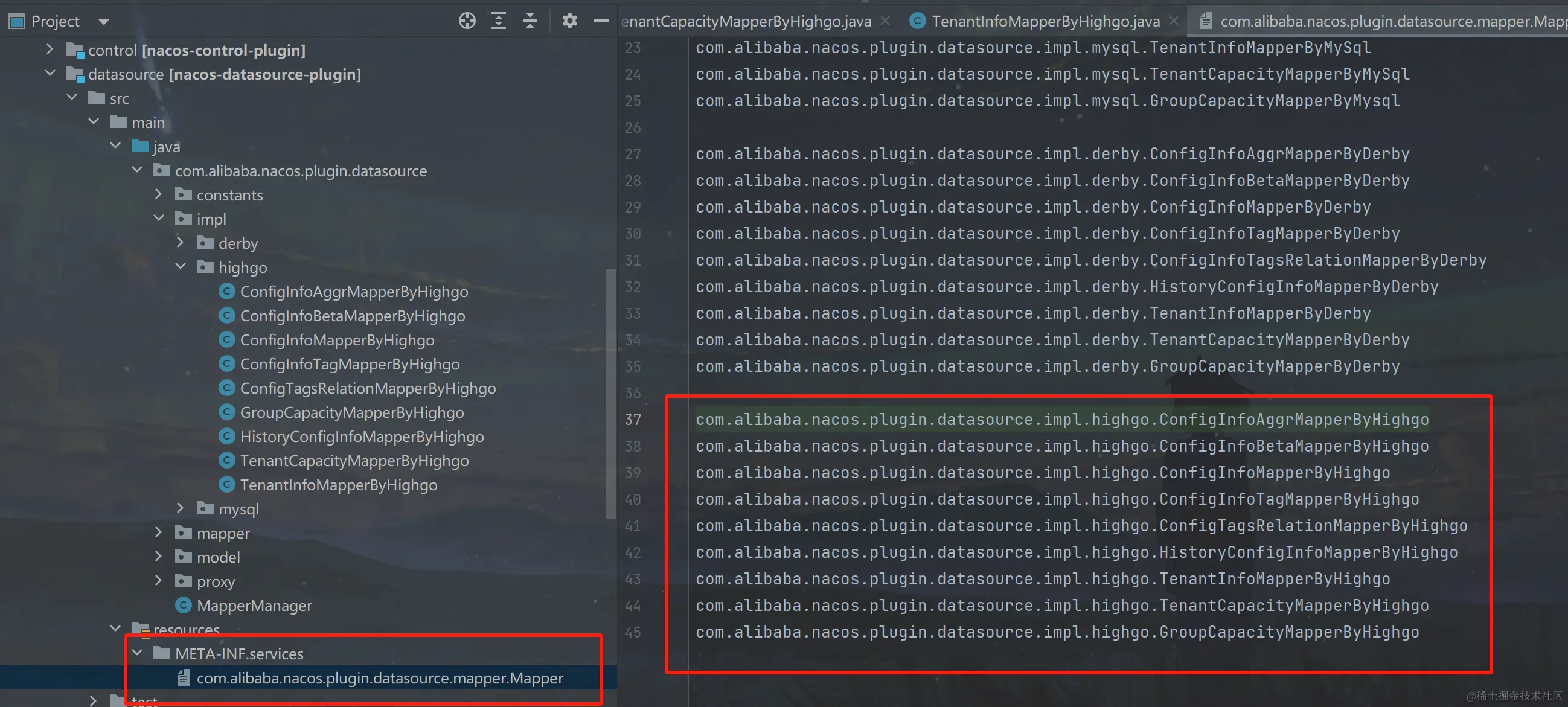

2.2.4.3 根据SPI机制进行代码扩展

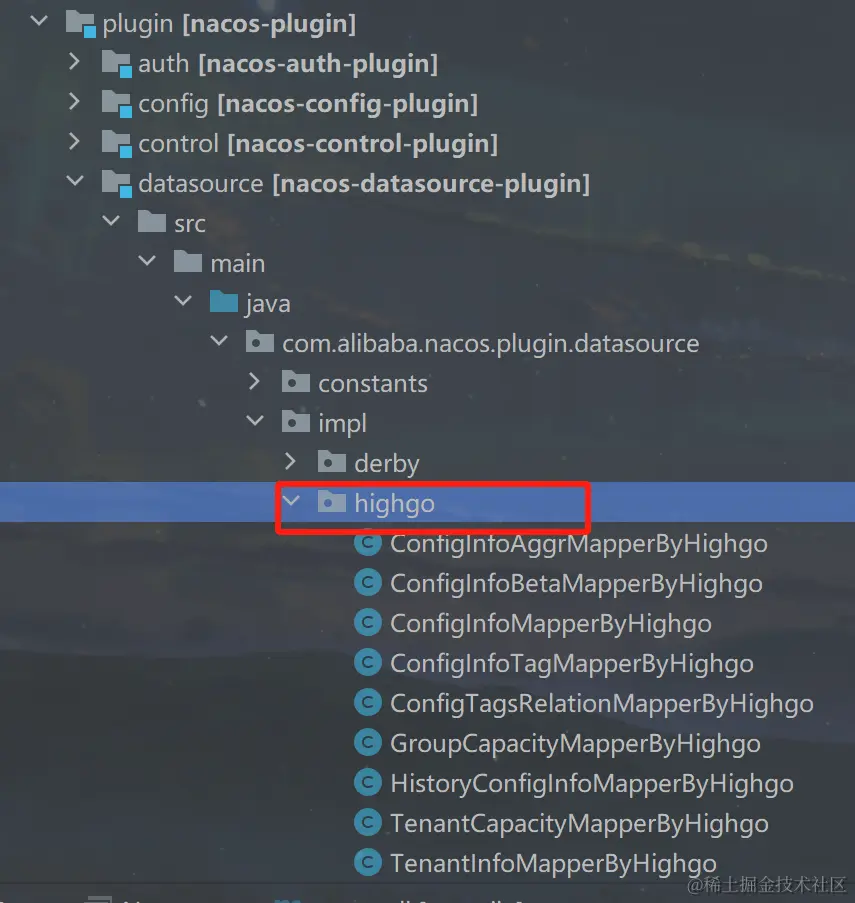

在com/alibaba/nacos/plugin/datasource/impl目录新建highgo目录，再在highgo目录新增实现类

• ConfigInfoAggrMapperByHighgo

/*
* Copyright 1999-2022 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package com.alibaba.nacos.plugin.datasource.impl.highgo;

import com.alibaba.nacos.common.utils.CollectionUtils;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.FieldConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoAggrMapper;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

import java.util.List;

/**
* The derby implementation of ConfigInfoMapper.
*
* @author lizzu
**/

public class ConfigInfoAggrMapperByHighgo extends AbstractMapper implements ConfigInfoAggrMapper {

@Override
public MapperResult findConfigInfoAggrByPageFetchRows(MapperContext context) {
final Integer startRow = context.getStartRow();
final Integer pageSize = context.getPageSize();
final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
final String groupId = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
final String tenantId = (String) context.getWhereParameter(FieldConstant.TENANT_ID);

String sql =
"SELECT data_id,group_id,tenant_id,datum_id,app_name,content FROM config_info_aggr WHERE data_id= ? AND "
+ "group_id= ? AND tenant_id= ? ORDER BY datum_id " + " OFFSET " + startRow + " LIMIT " + pageSize;
List<Object> paramList = CollectionUtils.list(dataId, groupId, tenantId);
return new MapperResult(sql, paramList);
}

@Override
public String getTableName() {
return TableConstant.CONFIG_INFO_AGGR;
}

@Override
public String getDataSource() {
return DataSourceConstant.HIGHGO;
}
}

• ConfigInfoBetaMapperByHighgo

/*
* Copyright 1999-2022 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package com.alibaba.nacos.plugin.datasource.impl.highgo;

import com.alibaba.nacos.common.utils.CollectionUtils;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.FieldConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoBetaMapper;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

import java.util.List;

/**
* The derby implementation of ConfigInfoMapper.
*
* @author lizzu
**/
public class ConfigInfoBetaMapperByHighgo extends AbstractMapper implements ConfigInfoBetaMapper {

@Override
public MapperResult findAllConfigInfoBetaForDumpAllFetchRows(MapperContext context) {
final int startRow = context.getStartRow();
final int pageSize = context.getPageSize();
final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
final String groupId = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
final String tenantId = (String) context.getWhereParameter(FieldConstant.TENANT_ID);

String sql =
" SELECT t.id,data_id,group_id,tenant_id,app_name,content,md5,gmt_modified,beta_ips,encrypted_data_key "
+ " FROM ( SELECT id FROM config_info_beta ORDER BY id OFFSET " + startRow + " LIMIT " + pageSize + " )"
+ " g, config_info_beta t WHERE g.id = t.id ";
List<Object> paramList = CollectionUtils.list(dataId, groupId, tenantId);
return new MapperResult(sql, paramList);
}

@Override
public String getTableName() {
return TableConstant.CONFIG_INFO_BETA;
}

@Override
public String getDataSource() {
return DataSourceConstant.HIGHGO;
}
}

• ConfigInfoMapperByHighgo

/*
* Copyright 1999-2022 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package com.alibaba.nacos.plugin.datasource.impl.highgo;

import com.alibaba.nacos.common.utils.CollectionUtils;
import com.alibaba.nacos.common.utils.NamespaceUtil;
import com.alibaba.nacos.common.utils.StringUtils;
import com.alibaba.nacos.plugin.datasource.constants.ContextConstant;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.FieldConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoMapper;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

import java.sql.Timestamp;
import java.util.ArrayList;
import java.util.Collections;
import java.util.List;

/**
* The derby implementation of ConfigInfoMapper.
*
* @author lizzu
**/
public class ConfigInfoMapperByHighgo extends AbstractMapper implements ConfigInfoMapper {

private static final String DATA_ID = "dataId";

private static final String GROUP = "group";

private static final String APP_NAME = "appName";

private static final String CONTENT = "content";

private static final String TENANT = "tenant";

@Override
public MapperResult findConfigInfoByAppFetchRows(MapperContext context) {
final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);
final String tenantId = (String) context.getWhereParameter(FieldConstant.TENANT_ID);

String sql =
"SELECT ID,data_id,group_id,tenant_id,app_name,content FROM config_info "
+ "WHERE tenant_id LIKE ? AND "
+ "app_name = ?" + " OFFSET " + context.getStartRow() + " ROWS FETCH NEXT "
+ context.getPageSize() + " ROWS ONLY";

return new MapperResult(sql, CollectionUtils.list(tenantId, appName));

}

@Override
public MapperResult getTenantIdList(MapperContext context) {
return new MapperResult(
"SELECT tenant_id FROM config_info WHERE tenant_id != '" + NamespaceUtil.getNamespaceDefaultId()
+ "' GROUP BY tenant_id OFFSET " + context.getStartRow() + " LIMIT "
+ context.getPageSize(), Collections.emptyList());
}

@Override
public MapperResult getGroupIdList(MapperContext context) {
return new MapperResult(
"SELECT group_id FROM config_info WHERE tenant_id ='" + NamespaceUtil.getNamespaceDefaultId()
+ "' GROUP BY group_id OFFSET " + context.getStartRow() + " ROWS FETCH NEXT "
+ context.getPageSize() + " ROWS ONLY", Collections.emptyList());
}

@Override
public MapperResult findAllConfigKey(MapperContext context) {

String sql = " SELECT data_id,group_id,app_name FROM "
+ " ( SELECT id FROM config_info WHERE tenant_id LIKE ? ORDER BY id OFFSET " + context.getStartRow()
+ " ROWS FETCH NEXT " + context.getPageSize() + " ROWS ONLY ) "
+ "g, config_info t WHERE g.id = t.id ";
return new MapperResult(sql, CollectionUtils.list(context.getWhereParameter(FieldConstant.TENANT_ID)));
}

@Override
public MapperResult findAllConfigInfoBaseFetchRows(MapperContext context) {

return new MapperResult(
"SELECT t.id,data_id,group_id,content,md5 " + " FROM ( SELECT id FROM config_info ORDER BY id OFFSET "
+ context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize() + " ROWS ONLY ) "
+ " g, config_info t WHERE g.id = t.id ", Collections.emptyList());
}

@Override
public MapperResult findAllConfigInfoFragment(MapperContext context) {
String contextParameter = context.getContextParameter(ContextConstant.NEED_CONTENT);
boolean needContent = contextParameter != null && Boolean.parseBoolean(contextParameter);
return new MapperResult("SELECT id,data_id,group_id,tenant_id,app_name," + (needContent ? "content," : "")
+ "md5,gmt_modified,type FROM config_info WHERE id > ? " + "ORDER BY id ASC OFFSET "
+ context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize() + " ROWS ONLY",
CollectionUtils.list(context.getWhereParameter(FieldConstant.ID)));
}

@Override
public MapperResult findChangeConfigFetchRows(MapperContext context) {
final String tenant = (String) context.getWhereParameter(FieldConstant.TENANT);
final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);

final Timestamp startTime = (Timestamp) context.getWhereParameter(FieldConstant.START_TIME);
final Timestamp endTime = (Timestamp) context.getWhereParameter(FieldConstant.END_TIME);

List<Object> paramList = new ArrayList<>();

final String sqlFetchRows = "SELECT id,data_id,group_id,tenant_id,app_name,content,type,md5,gmt_modified FROM"
+ " config_info WHERE ";
String where = " 1=1 ";

if (!StringUtils.isBlank(dataId)) {
where += " AND data_id LIKE ? ";
paramList.add(dataId);
}
if (!StringUtils.isBlank(group)) {
where += " AND group_id LIKE ? ";
paramList.add(group);
}

if (!StringUtils.isBlank(tenant)) {
where += " AND tenant_id = ? ";
paramList.add(tenant);
}

if (!StringUtils.isBlank(appName)) {
where += " AND app_name = ? ";
paramList.add(appName);
}
if (startTime != null) {
where += " AND gmt_modified >=? ";
paramList.add(startTime);
}
if (endTime != null) {
where += " AND gmt_modified <=? ";
paramList.add(endTime);
}
return new MapperResult(
sqlFetchRows + where + " OFFSET " + context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize()
+ " ROWS ONLY", paramList);
}

@Override
public MapperResult listGroupKeyMd5ByPageFetchRows(MapperContext context) {

return new MapperResult(" SELECT t.id,data_id,group_id,tenant_id,app_name,type,md5,gmt_modified "
+ "FROM ( SELECT id FROM config_info ORDER BY id OFFSET " + context.getStartRow() + " ROWS FETCH NEXT "
+ context.getPageSize() + " ROWS ONLY ) g, config_info t WHERE g.id = t.id", Collections.emptyList());
}

@Override
public MapperResult findConfigInfoBaseLikeFetchRows(MapperContext context) {
final String tenant = (String) context.getWhereParameter(FieldConstant.TENANT);
final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);

List<Object> paramList = new ArrayList<>();
final String sqlFetchRows = "SELECT id,data_id,group_id,tenant_id,content FROM config_info WHERE ";
String where = " 1=1 AND tenant_id='" + NamespaceUtil.getNamespaceDefaultId() + "' ";
if (!StringUtils.isBlank(dataId)) {
where += " AND data_id LIKE ? ";
paramList.add(dataId);
}
if (!StringUtils.isBlank(group)) {
where += " AND group_id LIKE ? ";
paramList.add(group);
}
if (!StringUtils.isBlank(tenant)) {
where += " AND content LIKE ? ";
paramList.add(tenant);
}
return new MapperResult(
sqlFetchRows + where + " OFFSET " + context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize()
+ " ROWS ONLY", paramList);
}

@Override
public MapperResult findConfigInfo4PageFetchRows(MapperContext context) {
final String tenantId = (String) context.getWhereParameter(FieldConstant.TENANT_ID);
final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);
final String content = (String) context.getWhereParameter(FieldConstant.CONTENT);

List<Object> paramList = new ArrayList<>();

final String sql = "SELECT id,data_id,group_id,tenant_id,app_name,content,type FROM config_info";
StringBuilder where = new StringBuilder(" WHERE ");
where.append(" tenant_id=? ");
paramList.add(tenantId);
if (StringUtils.isNotBlank(dataId)) {
where.append(" AND data_id=? ");
paramList.add(dataId);
}
if (StringUtils.isNotBlank(group)) {
where.append(" AND group_id=? ");
paramList.add(group);
}

if (StringUtils.isNotBlank(appName)) {
where.append(" AND app_name=? ");
paramList.add(appName);
}
if (!StringUtils.isBlank(content)) {
where.append(" AND content LIKE ? ");
paramList.add(content);
}
return new MapperResult(
sql + where + " OFFSET " + context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize()
+ " ROWS ONLY", paramList);
}

@Override
public MapperResult findConfigInfoBaseByGroupFetchRows(MapperContext context) {
return new MapperResult(
"SELECT id,data_id,group_id,content FROM config_info WHERE group_id=? " + "AND tenant_id=?" + " OFFSET "
+ context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize() + " ROWS ONLY",
CollectionUtils.list(context.getWhereParameter(FieldConstant.GROUP_ID),
context.getWhereParameter(FieldConstant.TENANT_ID)));
}

@Override
public MapperResult findConfigInfoLike4PageFetchRows(MapperContext context) {

final String tenantId = (String) context.getWhereParameter(FieldConstant.TENANT_ID);
final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);
final String content = (String) context.getWhereParameter(FieldConstant.CONTENT);

List<Object> paramList = new ArrayList<>();

final String sqlFetchRows = "SELECT id,data_id,group_id,tenant_id,app_name,content,encrypted_data_key FROM config_info";
StringBuilder where = new StringBuilder(" WHERE ");
where.append(" tenant_id LIKE ? ");
paramList.add(tenantId);
if (!StringUtils.isBlank(dataId)) {
where.append(" AND data_id LIKE ? ");
paramList.add(dataId);
}
if (!StringUtils.isBlank(group)) {
where.append(" AND group_id LIKE ? ");
paramList.add(group);
}
if (!StringUtils.isBlank(appName)) {
where.append(" AND app_name = ? ");
paramList.add(appName);
}
if (!StringUtils.isBlank(content)) {
where.append(" AND content LIKE ? ");
paramList.add(content);
}
String sql =
sqlFetchRows + where + " OFFSET " + context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize()
+ " ROWS ONLY";
return new MapperResult(sql, paramList);
}

@Override
public MapperResult findAllConfigInfoFetchRows(MapperContext context) {
return new MapperResult(" SELECT t.id,data_id,group_id,tenant_id,app_name,content,md5 "
+ " FROM ( SELECT id FROM config_info WHERE tenant_id LIKE ? ORDER BY id OFFSET ? ROWS FETCH NEXT ? ROWS ONLY )"
+ " g, config_info t WHERE g.id = t.id ",
CollectionUtils.list(context.getWhereParameter(FieldConstant.TENANT_ID), context.getStartRow(),
context.getPageSize()));
}

@Override
public String getTableName() {
return TableConstant.CONFIG_INFO;
}

@Override
public String getDataSource() {
return DataSourceConstant.HIGHGO;
}

@Override
public MapperResult findChangeConfig(MapperContext context) {
String sql =
"SELECT id, data_id, group_id, tenant_id, app_name, content, gmt_modified, encrypted_data_key FROM config_info WHERE "
+ "gmt_modified >= ? and id > ? order by id OFFSET 0 ROWS FETCH NEXT ? ROWS ONLY";
return new MapperResult(sql, CollectionUtils.list(context.getWhereParameter(FieldConstant.START_TIME),
context.getWhereParameter(FieldConstant.LAST_MAX_ID),
context.getWhereParameter(FieldConstant.PAGE_SIZE)));
}
}

• ConfigInfoTagMapperByHighgo

/*
* Copyright 1999-2022 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package com.alibaba.nacos.plugin.datasource.impl.highgo;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoTagMapper;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

import java.util.Collections;

/**
* The derby implementation of ConfigInfoMapper.
*
* @author lizzu
**/
public class ConfigInfoTagMapperByHighgo extends AbstractMapper implements ConfigInfoTagMapper {
@Override
public MapperResult findAllConfigInfoTagForDumpAllFetchRows(MapperContext context) {
String sql = "SELECT t.id,data_id,group_id,tenant_id,tag_id,app_name,content,md5,gmt_modified "
+ " FROM ( SELECT id FROM config_info_tag ORDER BY id OFFSET " + context.getStartRow()
+ " ROWS FETCH NEXT " + context.getPageSize() + " ROWS ONLY ) "
+ " g, config_info_tag t WHERE g.id = t.id";
return new MapperResult(sql, Collections.emptyList());
}

@Override
public String getTableName() {
return TableConstant.CONFIG_INFO_TAG;
}

@Override
public String getDataSource() {
return DataSourceConstant.HIGHGO;
}
}

• ConfigTagsRelationMapperByHighgo

/*
* Copyright 1999-2022 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package com.alibaba.nacos.plugin.datasource.impl.highgo;

import com.alibaba.nacos.common.utils.StringUtils;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.FieldConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigTagsRelationMapper;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

import java.util.ArrayList;
import java.util.List;

/**
* The derby implementation of ConfigInfoMapper.
*
* @author lizzu
**/
public class ConfigTagsRelationMapperByHighgo extends AbstractMapper implements ConfigTagsRelationMapper {

@Override
public MapperResult findConfigInfo4PageFetchRows(MapperContext context) {
final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);
final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
final String content = (String) context.getWhereParameter(FieldConstant.CONTENT);
final String tenantId = (String) context.getWhereParameter(FieldConstant.TENANT_ID);
final String[] tagArr = (String[]) context.getWhereParameter(FieldConstant.TAG_ARR);

List<Object> paramList = new ArrayList<>();
StringBuilder where = new StringBuilder(" WHERE ");
final String baseSql =
"SELECT a.id,a.data_id,a.group_id,a.tenant_id,a.app_name,a.content FROM config_info a LEFT JOIN "
+ "config_tags_relation b ON a.id=b.id";

where.append(" a.tenant_id=? ");
paramList.add(tenantId);

if (StringUtils.isNotBlank(dataId)) {
where.append(" AND a.data_id=? ");
paramList.add(dataId);
}
if (StringUtils.isNotBlank(group)) {
where.append(" AND a.group_id=? ");
paramList.add(group);
}
if (StringUtils.isNotBlank(appName)) {
where.append(" AND a.app_name=? ");
paramList.add(appName);
}
if (!StringUtils.isBlank(content)) {
where.append(" AND a.content LIKE ? ");
paramList.add(content);
}
where.append(" AND b.tag_name IN (");
for (int i = 0; i < tagArr.length; i++) {
if (i != 0) {
where.append(", ");
}
where.append('?');
paramList.add(tagArr[i]);
}
where.append(") ");
String sql = baseSql + where + " OFFSET " + context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize()
+ " ROWS ONLY";
return new MapperResult(sql, paramList);
}

@Override
public MapperResult findConfigInfoLike4PageFetchRows(MapperContext context) {
final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);
final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
final String content = (String) context.getWhereParameter(FieldConstant.CONTENT);
final String tenantId = (String) context.getWhereParameter(FieldConstant.TENANT_ID);
final String[] tagArr = (String[]) context.getWhereParameter(FieldConstant.TAG_ARR);

List<Object> paramList = new ArrayList<>();
StringBuilder where = new StringBuilder(" WHERE ");
final String baseSql =
"SELECT a.ID,a.data_id,a.group_id,a.tenant_id,a.app_name,a.content FROM config_info a LEFT JOIN "
+ "config_tags_relation b ON a.id=b.id ";

where.append(" a.tenant_id LIKE ? ");
paramList.add(tenantId);

if (!StringUtils.isBlank(dataId)) {
where.append(" AND a.data_id LIKE ? ");
paramList.add(dataId);
}
if (!StringUtils.isBlank(group)) {
where.append(" AND a.group_id LIKE ? ");
paramList.add(group);
}
if (!StringUtils.isBlank(appName)) {
where.append(" AND a.app_name = ? ");
paramList.add(appName);
}
if (!StringUtils.isBlank(content)) {
where.append(" AND a.content LIKE ? ");
paramList.add(content);
}

where.append(" AND b.tag_name IN (");
for (int i = 0; i < tagArr.length; i++) {
if (i != 0) {
where.append(", ");
}
where.append('?');
paramList.add(tagArr[i]);
}
where.append(") ");
String sql = baseSql + where + " OFFSET " + context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize()
+ " ROWS ONLY";
return new MapperResult(sql, paramList);
}

@Override
public String getTableName() {
return TableConstant.CONFIG_TAGS_RELATION;
}

@Override
public String getDataSource() {
return DataSourceConstant.HIGHGO;
}
}

• GroupCapacityMapperByHighgo

/*
* Copyright 1999-2022 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package com.alibaba.nacos.plugin.datasource.impl.highgo;

import com.alibaba.nacos.common.utils.CollectionUtils;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.FieldConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.GroupCapacityMapper;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

/**
* The derby implementation of ConfigInfoMapper.
*
* @author lizzu
**/
public class GroupCapacityMapperByHighgo extends AbstractMapper implements GroupCapacityMapper {

@Override
public String getTableName() {
return TableConstant.GROUP_CAPACITY;
}

@Override
public String getDataSource() {
return DataSourceConstant.HIGHGO;
}

@Override
public MapperResult selectGroupInfoBySize(MapperContext context) {
String sql = "SELECT id, group_id FROM group_capacity WHERE id > ? OFFSET 0 ROWS FETCH NEXT ? ROWS ONLY";
return new MapperResult(sql,
CollectionUtils.list(context.getWhereParameter(FieldConstant.ID), context.getPageSize()));
}
}

• HistoryConfigInfoMapperByHighgo

/*
* Copyright 1999-2022 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package com.alibaba.nacos.plugin.datasource.impl.highgo;

import com.alibaba.nacos.common.utils.CollectionUtils;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.FieldConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.HistoryConfigInfoMapper;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

/**
* The derby implementation of ConfigInfoMapper.
*
* @author lizzu
**/
public class HistoryConfigInfoMapperByHighgo extends AbstractMapper implements HistoryConfigInfoMapper {

@Override
public MapperResult removeConfigHistory(MapperContext context) {
String sql = "DELETE FROM his_config_info WHERE id IN( "
+ "SELECT id FROM his_config_info WHERE gmt_modified < ? OFFSET 0 ROWS FETCH NEXT ? ROWS ONLY)";
return new MapperResult(sql, CollectionUtils.list(context.getWhereParameter(FieldConstant.START_TIME),
context.getWhereParameter(FieldConstant.LIMIT_SIZE)));
}

@Override
public MapperResult pageFindConfigHistoryFetchRows(MapperContext context) {
String sql =
"SELECT nid,data_id,group_id,tenant_id,app_name,src_ip,src_user,op_type,gmt_create,gmt_modified FROM his_config_info "
+ "WHERE data_id = ? AND group_id = ? AND tenant_id = ? ORDER BY nid DESC OFFSET "
+ context.getStartRow() + " ROWS FETCH NEXT " + context.getPageSize() + " ROWS ONLY";
return new MapperResult(sql, CollectionUtils.list(context.getWhereParameter(FieldConstant.DATA_ID),
context.getWhereParameter(FieldConstant.GROUP_ID), context.getWhereParameter(FieldConstant.TENANT_ID)));
}

@Override
public String getTableName() {
return TableConstant.HIS_CONFIG_INFO;
}

@Override
public String getDataSource() {
return DataSourceConstant.HIGHGO;
}

@Override
public MapperResult findDeletedConfig(MapperContext context) {
return new MapperResult(
"SELECT data_id, group_id, tenant_id,gmt_modified,nid FROM his_config_info WHERE op_type = 'D' AND "
+ "gmt_modified >= ? and nid > ? order by nid OFFSET 0 ROWS FETCH NEXT ? ROWS ONLY",
CollectionUtils.list(context.getWhereParameter(FieldConstant.START_TIME),
context.getWhereParameter(FieldConstant.LAST_MAX_ID),
context.getWhereParameter(FieldConstant.PAGE_SIZE)));
}
}

• TenantCapacityMapperByHighgo

/*
* Copyright 1999-2022 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package com.alibaba.nacos.plugin.datasource.impl.highgo;

import com.alibaba.nacos.common.utils.CollectionUtils;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.FieldConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.TenantCapacityMapper;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

/**
* The derby implementation of ConfigInfoMapper.
*
* @author lizzu
**/
public class TenantCapacityMapperByHighgo extends AbstractMapper implements TenantCapacityMapper {

@Override
public String getTableName() {
return TableConstant.TENANT_CAPACITY;
}

@Override
public String getDataSource() {
return DataSourceConstant.HIGHGO;
}

@Override
public MapperResult getCapacityList4CorrectUsage(MapperContext context) {
String sql = "SELECT id, tenant_id FROM tenant_capacity WHERE id>? OFFSET 0 ROWS FETCH NEXT ? ROWS ONLY";
return new MapperResult(sql, CollectionUtils.list(context.getWhereParameter(FieldConstant.ID),
context.getWhereParameter(FieldConstant.LIMIT_SIZE)));
}
}

• TenantInfoMapperByHighgo

/*
* Copyright 1999-2022 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package com.alibaba.nacos.plugin.datasource.impl.highgo;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.TenantInfoMapper;

/**
* The derby implementation of ConfigInfoMapper.
*
* @author lizzu
**/
public class TenantInfoMapperByHighgo extends AbstractMapper implements TenantInfoMapper {

@Override
public String getTableName() {
return TableConstant.TENANT_INFO;
}

@Override
public String getDataSource() {
return DataSourceConstant.HIGHGO;
}
}

• com.alibaba.nacos.plugin.datasource.mapper.Mapper文件

#添加如下内容
com.alibaba.nacos.plugin.datasource.impl.highgo.ConfigInfoAggrMapperByHighgo
com.alibaba.nacos.plugin.datasource.impl.highgo.ConfigInfoBetaMapperByHighgo
com.alibaba.nacos.plugin.datasource.impl.highgo.ConfigInfoMapperByHighgo
com.alibaba.nacos.plugin.datasource.impl.highgo.ConfigInfoTagMapperByHighgo
com.alibaba.nacos.plugin.datasource.impl.highgo.ConfigTagsRelationMapperByHighgo
com.alibaba.nacos.plugin.datasource.impl.highgo.HistoryConfigInfoMapperByHighgo
com.alibaba.nacos.plugin.datasource.impl.highgo.TenantInfoMapperByHighgo
com.alibaba.nacos.plugin.datasource.impl.highgo.TenantCapacityMapperByHighgo
com.alibaba.nacos.plugin.datasource.impl.highgo.GroupCapacityMapperByHighgo

• nacos-console模块
• \nacos-2.3.2\console\src\main\resources\application.properties

server.servlet.contextPath=/nacos
server.error.include-message=ALWAYS
server.port=8848
spring.sql.init.platform=highgo
db.num=1
db.url.0=jdbc:highgo://IP:5866/nacos
db.user.0=nacos
db.password.0=Qwer@1234
db.pool.config.driverClassName=com.highgo.jdbc.Driver

spring.security.user.name=nacos
spring.security.user.password=nacos

nacos.naming.empty-service.auto-clean=true
nacos.naming.empty-service.clean.initial-delay-ms=50000
nacos.naming.empty-service.clean.period-time-ms=30000

management.metrics.export.elastic.enabled=false

management.metrics.export.influx.enabled=false
server.tomcat.accesslog.enabled=true

server.tomcat.accesslog.max-days=30

server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %{User-Agent}i %{Request-Source}i

server.tomcat.basedir=file:.

nacos.security.ignore.urls=/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-ui/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**

nacos.core.auth.system.type=nacos

nacos.core.auth.enabled=true

nacos.core.auth.caching.enabled=true

nacos.core.auth.enable.userAgentAuthWhite=false
nacos.core.auth.server.identity.key=authKey
nacos.core.auth.server.identity.value=sdzj-lizz-securty

nacos.core.auth.plugin.nacos.token.cache.enable=false
nacos.core.auth.plugin.nacos.token.expire.seconds=18000
nacos.core.auth.plugin.nacos.token.secret.key=SecretKeyW6LqDmNvzzfZyFrL5cJAKH72YUfH2KNxmHYc2kPdt3yVyUgzkdUcWGgq7Rygv66b123

nacos.istio.mcp.server.enabled=false

2.2.5 瀚高DDL

-- 创建nacos用户
CREATE USER nacos WITH PASSWORD 'Qwer@1234';
-- 创建nacos数据库
CREATE DATABASE nacos OWNER nacos;

CREATE TABLE config_info (
  id serial NOT NULL,
  data_id varchar(255) NOT NULL,
  group_id varchar(255) DEFAULT NULL,
  content text NOT NULL,
  md5 varchar(32) DEFAULT NULL,
  gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  src_user text,
  src_ip varchar(50) DEFAULT NULL,
  app_name varchar(128) DEFAULT NULL,
  tenant_id varchar(128) DEFAULT '',
  c_desc varchar(256) DEFAULT NULL,
  c_use varchar(64) DEFAULT NULL,
  effect varchar(64) DEFAULT NULL,
  type varchar(64) DEFAULT NULL,
  c_schema text,
  encrypted_data_key text NOT NULL,
  PRIMARY KEY (id),
  constraint uk_configinfo_datagrouptenant unique(data_id,group_id,tenant_id)
);

CREATE TABLE config_info_aggr (
  id serial NOT NULL,
  data_id varchar(255) NOT NULL,
  group_id varchar(255) NOT NULL,
  datum_id varchar(255) NOT NULL,
  content text NOT NULL,
  gmt_modified timestamp NOT NULL,
  app_name varchar(128) DEFAULT NULL,
  tenant_id varchar(128) DEFAULT '',
  PRIMARY KEY (id),
  constraint uk_configinfoaggr_datagrouptenantdatum unique(data_id,group_id,tenant_id,datum_id)
);

CREATE TABLE config_info_beta (
  id serial NOT NULL,
  data_id varchar(255) NOT NULL,
  group_id varchar(128) NOT NULL,
  app_name varchar(128) DEFAULT NULL,
  content text NOT NULL,
  beta_ips varchar(1024) DEFAULT NULL,
  md5 varchar(32) DEFAULT NULL,
  gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  src_user text,
  src_ip varchar(50) DEFAULT NULL,
  tenant_id varchar(128) DEFAULT '',
  encrypted_data_key text NOT NULL,
  PRIMARY KEY (id),
  constraint uk_configinfobeta_datagrouptenant unique(data_id,group_id,tenant_id)
);

CREATE TABLE config_info_tag (
  id serial NOT NULL,
  data_id varchar(255) NOT NULL,
  group_id varchar(128) NOT NULL,
  tenant_id varchar(128) DEFAULT '',
  tag_id varchar(128) NOT NULL,
  app_name varchar(128) DEFAULT NULL,
  content text NOT NULL,
  md5 varchar(32) DEFAULT NULL,
  gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  src_user text,
  src_ip varchar(50) DEFAULT NULL,
  PRIMARY KEY (id),
  constraint uk_configinfotag_datagrouptenanttag unique(data_id,group_id,tenant_id,tag_id)
);

CREATE TABLE config_tags_relation (
  id serial NOT NULL,
  tag_name varchar(128) NOT NULL,
  tag_type varchar(64) DEFAULT NULL,
  data_id varchar(255) NOT NULL,
  group_id varchar(128) NOT NULL,
  tenant_id varchar(128) DEFAULT '',
  nid serial NOT NULL,
  PRIMARY KEY (nid),
  constraint uk_configtagrelation_configidtag unique(id,tag_name,tag_type)
);

CREATE TABLE group_capacity (
  id serial NOT NULL,
  group_id varchar(128) NOT NULL DEFAULT '',
  quota int NOT NULL DEFAULT '0' CHECK (quota >= 0),
  usage int NOT NULL DEFAULT '0' CHECK (usage >= 0),
  max_size int NOT NULL DEFAULT '0' CHECK (max_size >= 0),
  max_aggr_count int NOT NULL DEFAULT '0' CHECK (max_aggr_count >= 0),
  max_aggr_size int NOT NULL DEFAULT '0' CHECK (max_aggr_size >= 0),
  max_history_count int  NOT NULL DEFAULT '0' CHECK (max_history_count >= 0),
  gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  PRIMARY KEY (id),
  constraint uk_group_id unique(group_id)
);

CREATE TABLE his_config_info (
  id int NOT NULL,
  nid serial NOT NULL,
  data_id varchar(255) NOT NULL,
  group_id varchar(128) NOT NULL,
  app_name varchar(128) DEFAULT NULL,
  content text NOT NULL,
  md5 varchar(32) DEFAULT NULL,
  gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  src_user text,
  src_ip varchar(50) DEFAULT NULL,
  op_type char(10) DEFAULT NULL,
  tenant_id varchar(128) DEFAULT '',
  encrypted_data_key text NOT NULL,
  PRIMARY KEY (nid)
);

CREATE TABLE tenant_capacity (
  id serial NOT NULL,
  tenant_id varchar(128) NOT NULL DEFAULT '',
  quota int NOT NULL DEFAULT '0' CHECK (quota >= 0),
  usage int NOT NULL DEFAULT '0' CHECK (usage >= 0),
  max_size int  NOT NULL DEFAULT '0' CHECK (max_size >= 0),
  max_aggr_count int  NOT NULL DEFAULT '0' CHECK (max_aggr_count >= 0),
  max_aggr_size int  NOT NULL DEFAULT '0' CHECK (max_aggr_size >= 0),
  max_history_count int  NOT NULL DEFAULT '0' CHECK (max_history_count >= 0),
  gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00',
  PRIMARY KEY (id),
  constraint uk_tenant_id unique(tenant_id)
);

CREATE TABLE tenant_info (
  id serial NOT NULL,
  kp varchar(128) NOT NULL,
  tenant_id varchar(128) default '',
  tenant_name varchar(128) default '',
  tenant_desc varchar(256) DEFAULT NULL,
  create_source varchar(32) DEFAULT NULL,
  gmt_create bigint NOT NULL,
  gmt_modified bigint NOT NULL,
  PRIMARY KEY (id),
  constraint uk_tenant_info_kptenantid unique(kp,tenant_id)
);

CREATE TABLE users (
	username varchar(50) NOT NULL PRIMARY KEY,
	password varchar(500) NOT NULL,
	enabled boolean NOT NULL
);

CREATE TABLE roles (
	username varchar(50) NOT NULL,
	role varchar(50) NOT NULL
);

CREATE TABLE permissions (
    role varchar(50) NOT NULL,
    resource varchar(255) NOT NULL,
    action varchar(8) NOT NULL
);

INSERT INTO users (username, password, enabled) VALUES ('nacos', '$2a$10$EuWPZHzz32dJN7jexM34MOeYirDdFAZm2kuWj7VEOJhhZkDrxfvUu', TRUE);

INSERT INTO roles (username, role) VALUES ('nacos', 'ROLE_ADMIN');

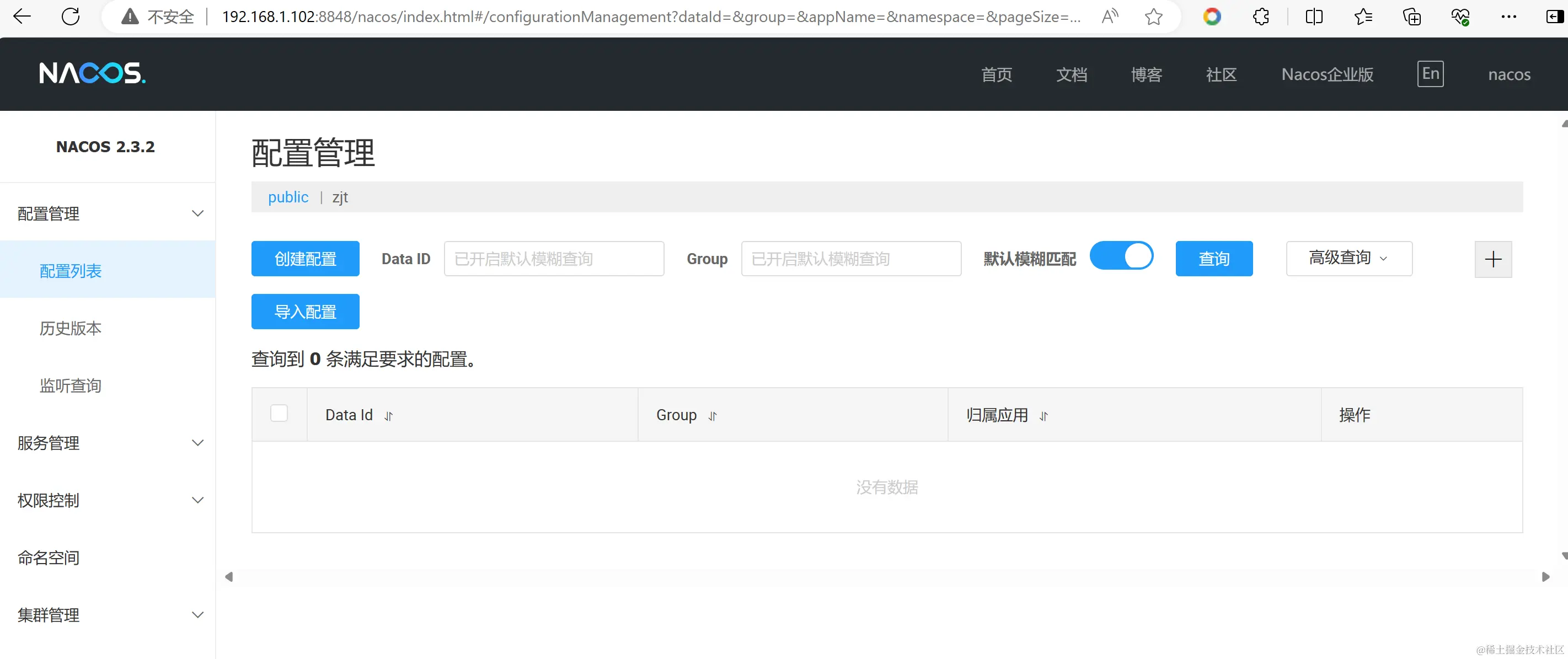

2.2.6启动测试

设置单机启动参数： -Dnacos.standalone=true

访问

2.2.7 打包

这里有个坑,打包总是报错

# Could not find artifact com.google.guava:listenablefuture:jar:sources:9999.0-empty-to-avoid-conflict-with-guava

参考解决nacos 2.3.1编译问题 Could not find artifact com.google.guava:listenablefuture:jar:sources:9999.0-empty-to-avoid-conflict-with-guava · Issue #586 · nacos-group/nacos-group.github.io

nacos-clien 增加依赖

<dependency>
<groupId>com.google.guava</groupId>
<artifactId>listenablefuture</artifactId>
<version>1.0</version>
</dependency>

执行打包

mvn -Prelease-nacos -Dmaven.test.skip=true -Dpmd.skip=true -Drat.skip=true -Dcheckstyle.skip=true clean install -U

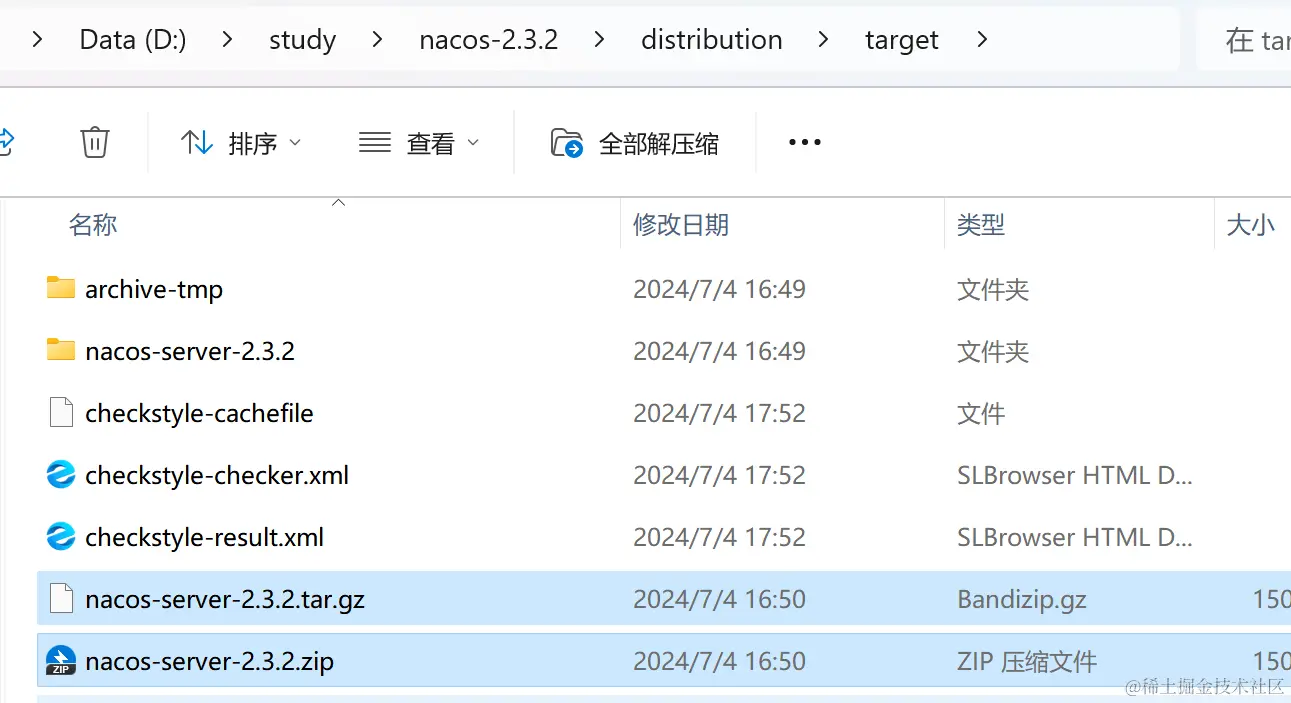

成功后会在nacos-2.3.2\distribution\target下生成压缩包

3.部署服务器

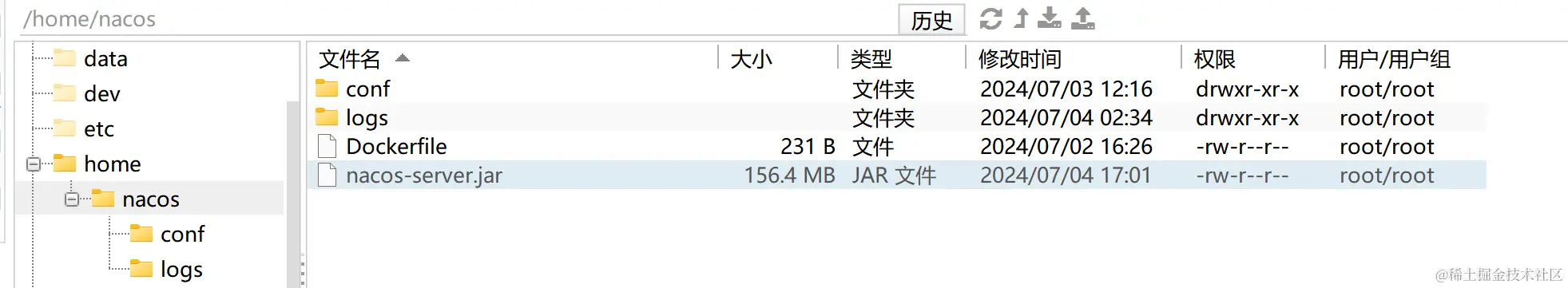

3.1 将压缩包中的jar包nacos-server.jar上传服务器/home/nacos

3.2 创建logs目录、conf目录

mkdir -p /home/nacos/logs/                #新建logs目录
mkdir -p /home/nacos/conf/		#新建conf目录

3.3 /home/nacos/conf目录上传配置文件：application.properties

server.servlet.contextPath=/nacos
server.error.include-message=ALWAYS
server.port=8848
spring.sql.init.platform=highgo
db.num=1
db.url.0=jdbc:highgo://IP:5866/nacos
db.user.0=nacos
db.password.0=Qwer@1234
db.pool.config.driverClassName=com.highgo.jdbc.Driver

spring.security.user.name=nacos
spring.security.user.password=nacos

nacos.naming.empty-service.auto-clean=true
nacos.naming.empty-service.clean.initial-delay-ms=50000
nacos.naming.empty-service.clean.period-time-ms=30000

management.metrics.export.elastic.enabled=false

management.metrics.export.influx.enabled=false
server.tomcat.accesslog.enabled=true

server.tomcat.accesslog.max-days=30

server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %{User-Agent}i %{Request-Source}i

server.tomcat.basedir=file:.

nacos.security.ignore.urls=/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-ui/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**

nacos.core.auth.system.type=nacos

nacos.core.auth.enabled=true

nacos.core.auth.caching.enabled=true

nacos.core.auth.enable.userAgentAuthWhite=false
nacos.core.auth.server.identity.key=authKey
nacos.core.auth.server.identity.value=sdzj-lizz-securty

nacos.core.auth.plugin.nacos.token.cache.enable=false
nacos.core.auth.plugin.nacos.token.expire.seconds=18000
nacos.core.auth.plugin.nacos.token.secret.key=SecretKeyW6LqDmNvzzfZyFrL5cJAKH72YUfH2KNxmHYc2kPdt3yVyUgzkdUcWGgq7Rygv66b123

nacos.istio.mcp.server.enabled=false

3.4 /home/nacos/conf目录上传nacos-logback.xml 文件

<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="false" scan="true" scanPeriod="1 seconds">
    <contextName>logback</contextName>
    <property name="log.path" value="/home/nacos/logs/logback.log" />
    <appender name="console" class="ch.qos.logback.core.ConsoleAppender">
        <!-- <filter class="com.example.logback.filter.MyFilter" /> -->
        <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
              <level>ERROR</level>
        </filter>
        <encoder>
            <pattern>%d{HH:mm:ss.SSS} %contextName [%thread] %-5level %logger{36} - %msg%n
            </pattern>
        </encoder>
    </appender>

    <appender name="file"
        class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>${log.path}</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${log.path}.%d{yyyy-MM-dd}.zip</fileNamePattern>
        </rollingPolicy>

        <encoder>
            <pattern>%date %level [%thread] %logger{36} [%file : %line] %msg%n
            </pattern>
        </encoder>
    </appender>

    <root level="debug">
        <appender-ref ref="console" />
        <appender-ref ref="file" />
    </root>

    <logger name="com.example.logback" level="warn" />

</configuration>

3.5 /home/nacos目录上传Dockerfile文件

FROM nacos/nacos-server:v2.3.2

COPY nacos-server.jar /home/nacos/target/nacos-server.jar

COPY conf/application.properties /home/nacos/conf/application.properties

EXPOSE 8848

CMD ["java", "-jar", "/home/nacos/nacos-server.jar"]

3.6 执行doker命令生成镜像

docker build -t nacos-hg:2.3.2 .

3.7 docker启动镜像

启动：
docker run -d \
--name nacos \
-p 8848:8848 \
-p 9848:9848 \
-p 9849:9849 \
--privileged=true \
-e JVM_XMS=256m \
-e JVM_XMX=256m \
-e MODE=standalone \
-e SPRING_DATASOURCE_PLATFORM=highgo \
-e DB_NUM=1 \
-e DB_URL_0=jdbc:highgo://192.168.0.27:5866/nacos \
-e DB_USER=nacos \
-e DB_PASSWORD=Qwer@1234 \
-v /home/nacos/logs/:/home/nacos/logs \
-v /home/nacos/conf/:/home/nacos/conf \
--restart=always \
nacos-hg:2.3.2

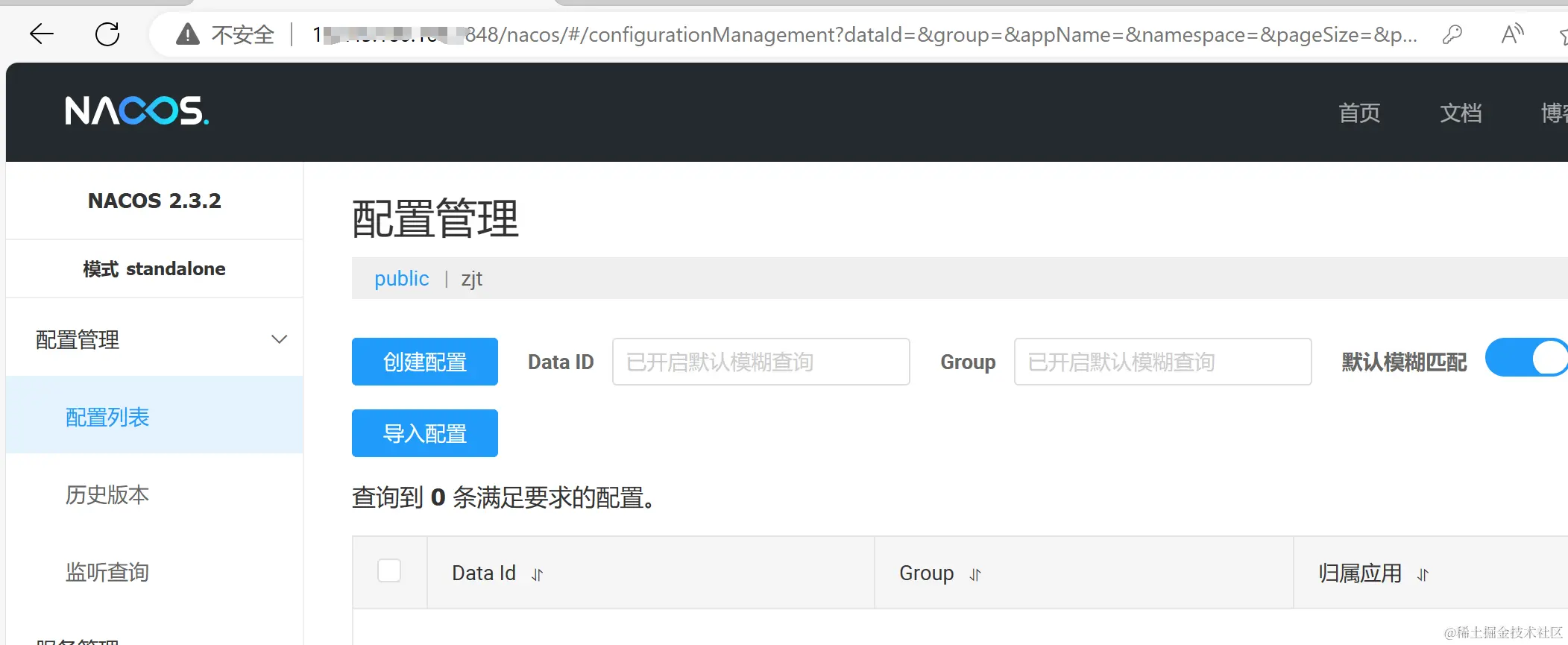

3.8 测试
