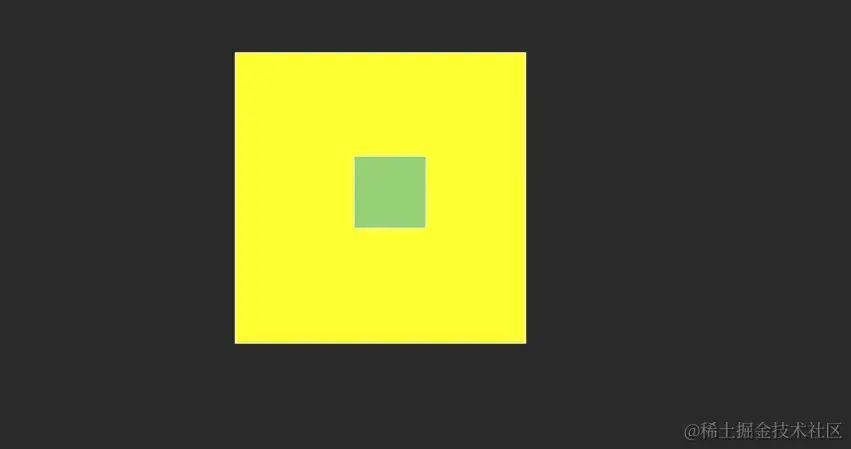

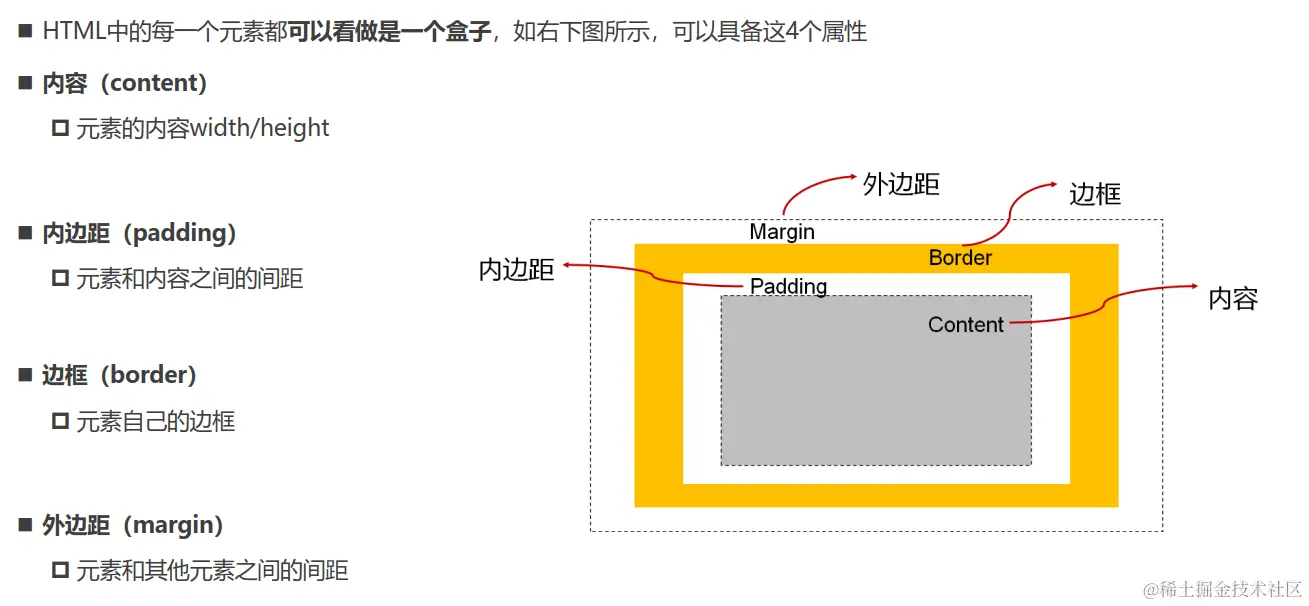

01 认识盒子模型

02 盒子模型的四边

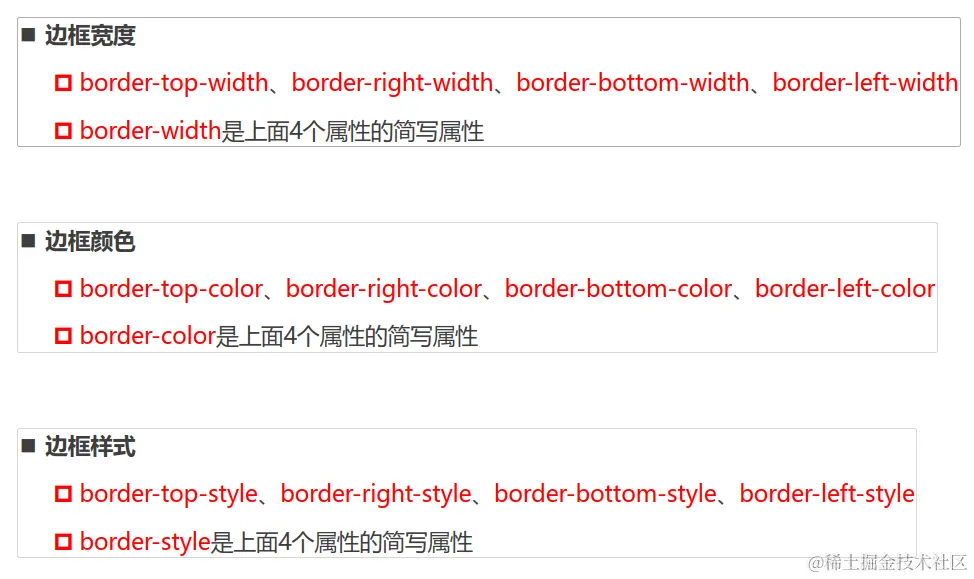

03 盒子边框

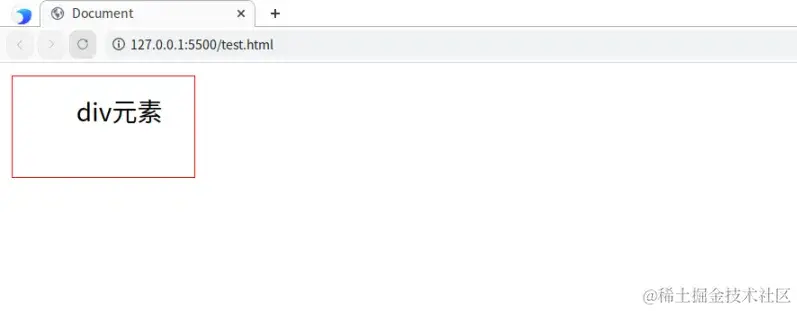

04 盒子内边距-padding

通常用于设置边框和内容之间的间距

<!DOCTYPE html>
<html lang="en">
<head>
   <meta charset="UTF-8">
   <meta http-equiv="X-UA-Compatible" content="IE=edge">
   <meta name="viewport" content="width=device-width, initial-scale=1.0">
   <title>Document</title>
   <style>
      .box {
         /* 设置一个红色的实体边框 */
         border: 1px solid red;
         display: inline-block;
         /* 设置内边距 */
         padding-top: 10px;
         padding-right: 20px;
         padding-bottom: 30px;
         padding-left: 40px;
      }
   </style>
</head>
<body>
   <div class="box">div元素</div>
</body>
</html>

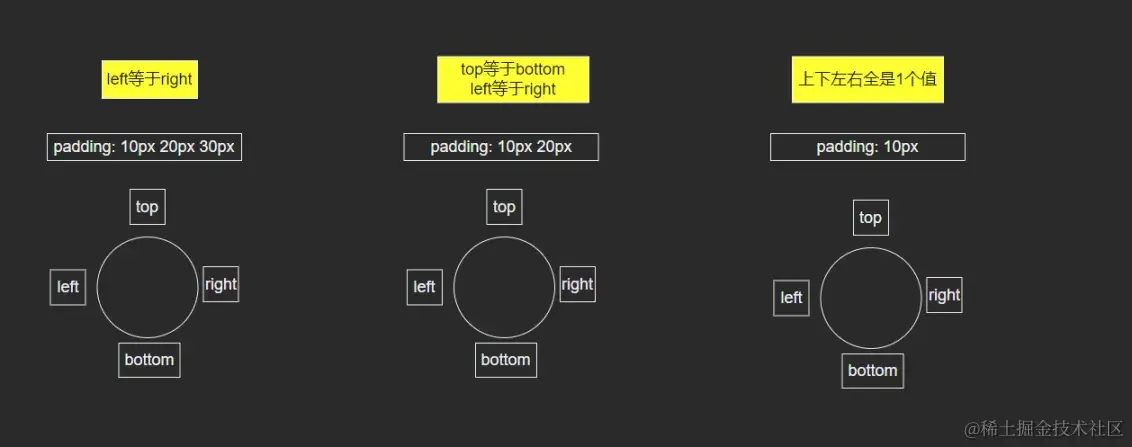

4.1 padding的省略写法

05 box-sizing: border-box

盒子有了宽度和高度，如果设置padding会影响盒子的大小
为了保持盒子的大小不变
第1种方案:
    改变盒子原来设置的宽高,但是不推荐用这种方法
第2种方法(推荐):
    设置box-sizing: border-box,这样盒子的大小始终都是原来设置的大小，当还需要设置外边框和内边距的时候，不会改变盒子设置的大小，它会把盒子的内容往里压

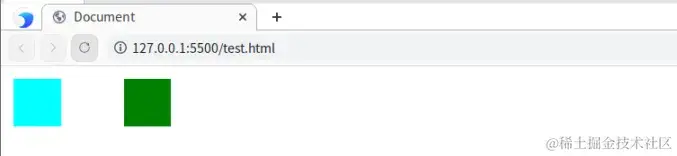

06 盒子外边距-margin

用于设置盒子和盒子之间的距离基本使用

<!DOCTYPE html>
<html lang="en">
<head>
   <meta charset="UTF-8">
   <meta http-equiv="X-UA-Compatible" content="IE=edge">
   <meta name="viewport" content="width=device-width, initial-scale=1.0">
   <title>Document</title>
   <style>
      /* 临时解决方案，解决盒子之间的间距 */
      body {
         font-size: 0;
      }
      .box {
         display: inline-block;
         background-color: aqua;
         width: 30px;
         height: 30px;
         margin-right: 20px;
      }
      .container {
         display: inline-block;
         background-color: green;
         width: 30px;
         height: 30px;
         margin-left: 20px;
      }
   </style>
</head>
<body>
   <div class="box">div元素1</div>
   <div class="container">div元素2</div>
</body>
</html>

07 margin和padding的对比

类似这种情况,要控制里面的盒子虽然margin和padding都可以实现,但是个人更加推荐使用padding,因为它相对于外面这个盒子来说,是一个内容,所以更加推荐使用padding来实现

08 margin的上下传递现象

现象演示

<!DOCTYPE html>
<html lang="en">
<head>
   <meta charset="UTF-8">
   <meta http-equiv="X-UA-Compatible" content="IE=edge">
   <meta name="viewport" content="width=device-width, initial-scale=1.0">
   <title>Document</title>
   <style>
      .box {
         background-color: red;
         width: 300px;
         height: 300px;
      }
      .container {
         background-color: green;
         width: 100px;
         height: 100px;
         margin-top: 50px;
      }
   </style>
</head>
<body>
   <div class="box">
      <div class="container"></div>
   </div>
</body>
</html>

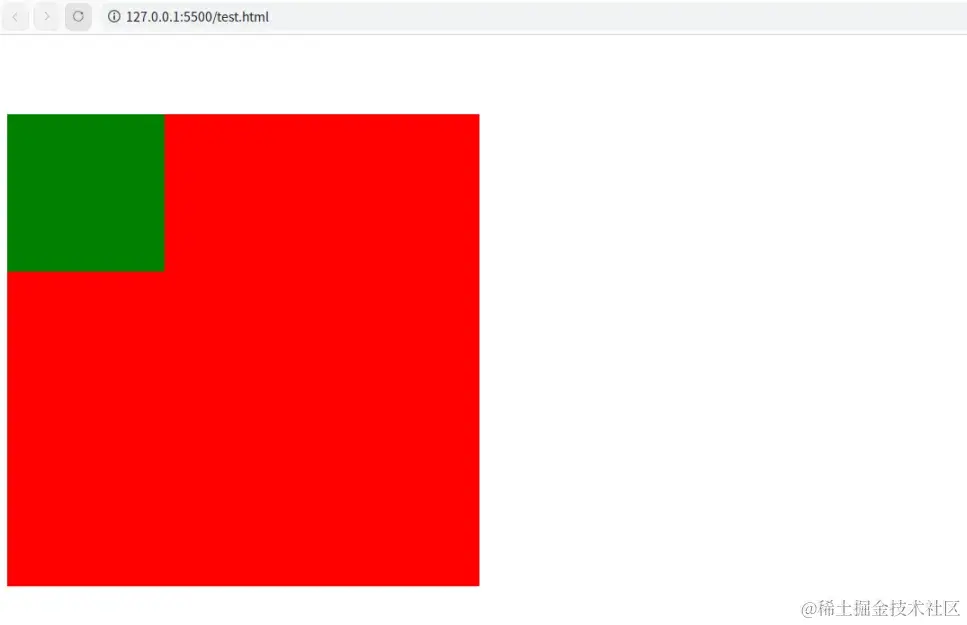

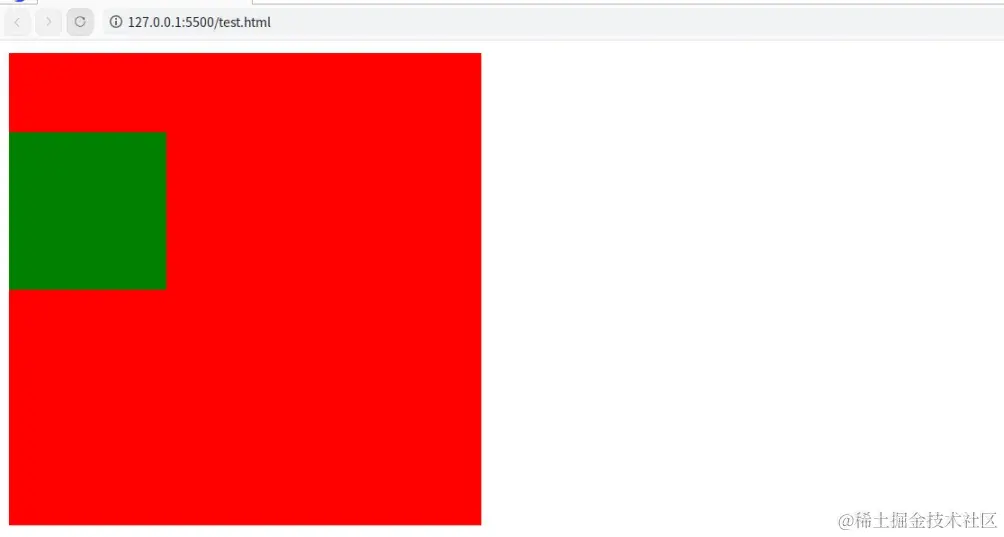

码中明确了里面的盒子margin-top为50px,但是看到的现象却是如下面这种现象就是传递的现象

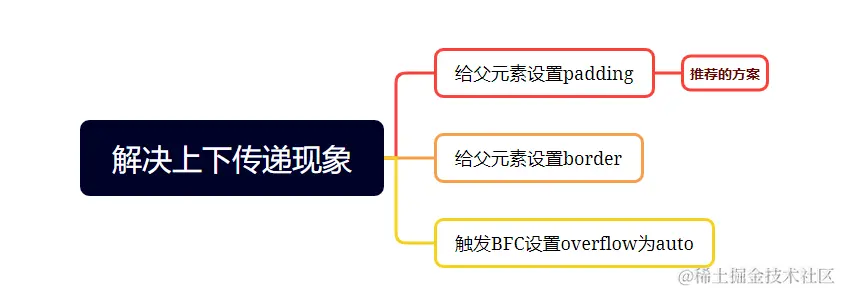

09 解决上下传递现象

9.1 父元素设置border(不推荐)

外层会有一层边框即使把这个边框设置为透明的

<!DOCTYPE html>
<html lang="en">
<head>
   <meta charset="UTF-8">
   <meta http-equiv="X-UA-Compatible" content="IE=edge">
   <meta name="viewport" content="width=device-width, initial-scale=1.0">
   <title>Document</title>
   <style>
      .box {
         background-color: red;
         width: 300px;
         height: 300px;
         border: 1px solid transparent;
      }
      .container {
         background-color: green;
         width: 100px;
         height: 100px;
         margin-top: 50px;
      }
   </style>
</head>
<body>
   <div class="box">
      <div class="container"></div>
   </div>
</body>
</html>

9.2 触发BFC

<!DOCTYPE html>
<html lang="en">
<head>
   <meta charset="UTF-8">
   <meta http-equiv="X-UA-Compatible" content="IE=edge">
   <meta name="viewport" content="width=device-width, initial-scale=1.0">
   <title>Document</title>
   <style>
      .box {
         background-color: red;
         width: 300px;
         height: 300px;
         overflow: auto;
      }
      .container {
         background-color: green;
         width: 100px;
         height: 100px;
         margin-top: 50px;
      }
   </style>
</head>
<body>
   <div class="box">
      <div class="container"></div>
   </div>
</body>
</html>

9.3 使用padding(推荐使用)

<!DOCTYPE html>
<html lang="en">
<head>
   <meta charset="UTF-8">
   <meta http-equiv="X-UA-Compatible" content="IE=edge">
   <meta name="viewport" content="width=device-width, initial-scale=1.0">
   <title>Document</title>
   <style>
      .box {
         background-color: red;
         width: 300px;
         height: 300px;
         box-sizing: border-box;
         padding-top: 50px;
      }
      .container {
         background-color: green;
         width: 100px;
         height: 100px;
      }
   </style>
</head>
<body>
   <div class="box">
      <div class="container"></div>
   </div>
</body>
</html>

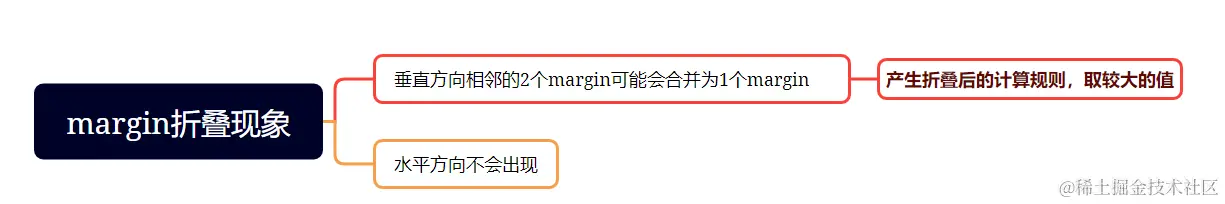

10 margin上下折叠现象

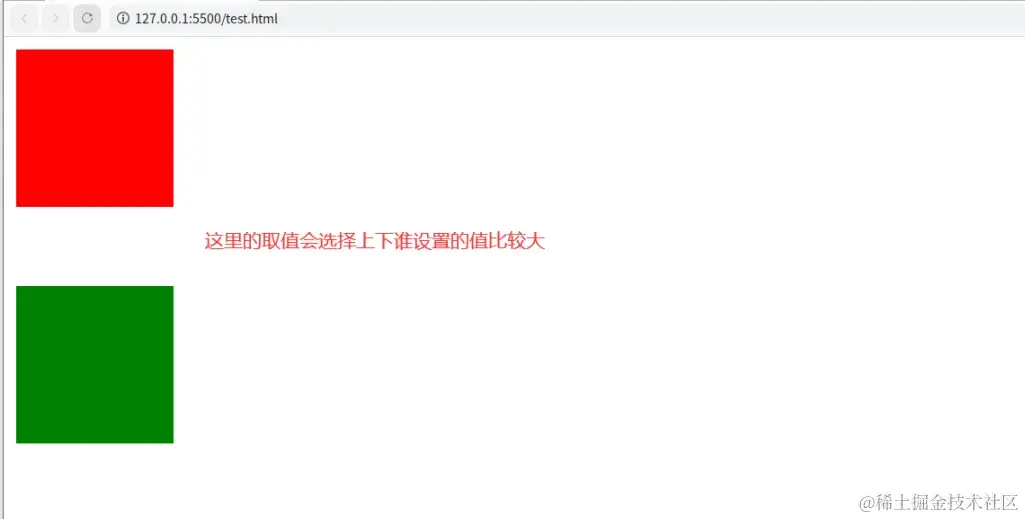

10.1 2个兄弟元素之间的折叠

<!DOCTYPE html>
<html lang="en">
<head>
   <meta charset="UTF-8">
   <meta http-equiv="X-UA-Compatible" content="IE=edge">
   <meta name="viewport" content="width=device-width, initial-scale=1.0">
   <title>Document</title>
   <style>
      .box {
         background-color: red;
         width: 100px;
         height: 100px;
         margin-bottom: 30px;
      }
      .container {
         background-color: green;
         width: 100px;
         height: 100px;
         margin-top: 50px;
      }
   </style>
</head>
<body>
   <div class="box"></div>
   <div class="container"></div>
</body>
</html>
