基于 Element Plus 封装查询条件表单组件（多条件折叠展开）

狗尾巴花的尖
2,836 阅读3分钟

场景介绍

  1. 后台管理系统有很多功能都需要基于 Element Plus UI 库进行二次封装，以便于简化我们后续的开发。
  2. 查询条件表单是我们系统中非常常见的功能，我们需要把它封装成一个通用的组件，方便在系统开发中提升开发效率。
  3. 除了在实现基本查询条件的功能上，还需要实现多条件的折叠和展开功能
  4. 下面的代码实现是 基于 Vue3 + Typescript + Element Plus实现的，仅供参考

示例效果

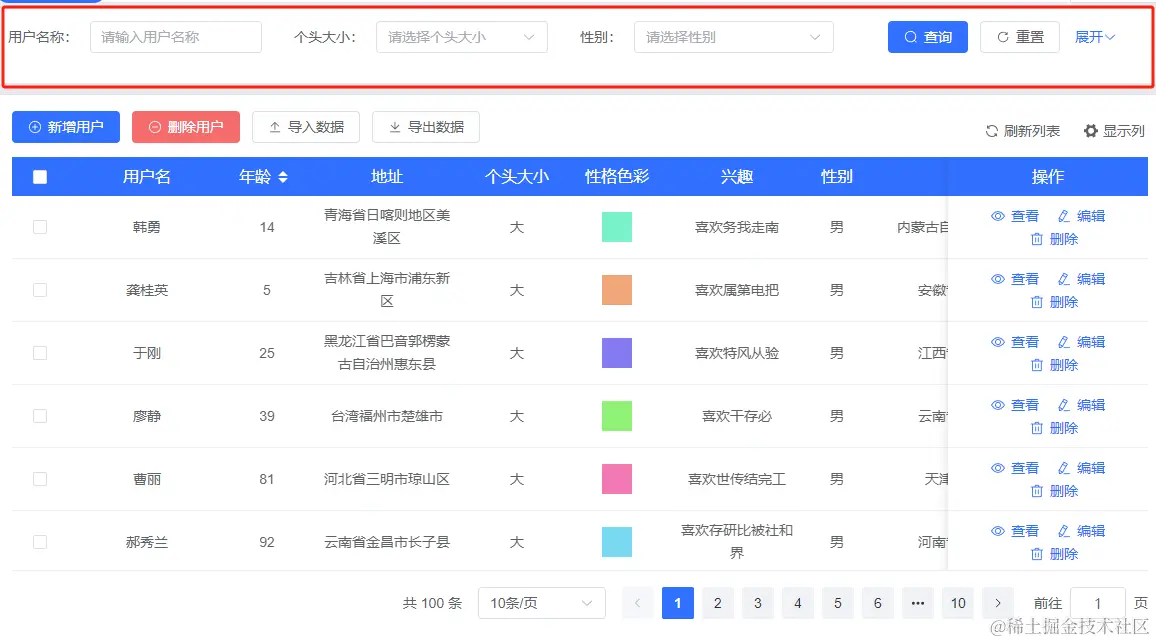

  1. 查询条件收起的状态 image.png

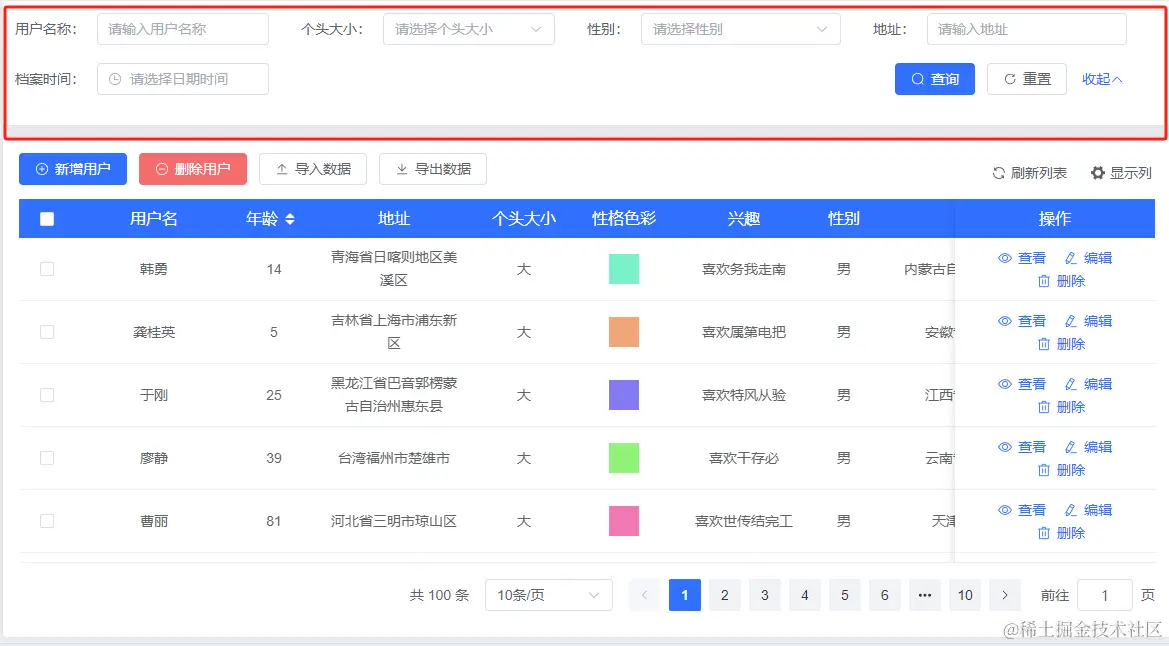

  2. 查询条件展开的状态 image.png

实现代码

  1. 封装查询条件表单组件 SearchForm.vue

    <template>
  <div v-if="showSearchBtn" class="search-form-box">
    <el-form :inline="true" :model="searchForm" size="default" ref="searchFormRef">
      <el-row>
        <el-col :span="cond.span" v-for="cond in sliceCodList" :key="cond.id">
          <el-form-item :label="cond.label + '：'" :prop="cond.prop" class="flex-form-item">
            <!-- 输入框 -->
            <el-input v-if="cond.type === 'input'" v-model="searchForm[cond.prop]" :placeholder="cond.placeholder"
              clearable />
            <!-- 下拉框 -->
            <el-select v-else-if="cond.type === 'select'" v-model="searchForm[cond.prop]"
              :placeholder="cond.placeholder" clearable>
              <el-option v-for="op in cond.optionList" :key="op.value" :label="op.label" :value="op.value" />
            </el-select>
            <!-- 日期组合 -->
            <el-date-picker v-else-if="cond.type === 'daterange'" v-model="searchForm[cond.prop]" type="daterange"
              start-placeholder="开始日期" end-placeholder="结束日期" />
            <!-- 日期时间 -->
            <el-date-picker v-else-if="cond.type === 'datetime'" v-model="searchForm[cond.prop]" type="datetime"
              placeholder="请选择日期时间" style="width: 100%" />
          </el-form-item>
        </el-col>
        <el-col :span="rSpanCount" class="el-col-wrapper">
          <el-form-item class="btn-group-item flex-end">
            <el-button type="primary" :icon="Search" @click="search">查询</el-button>
            <el-button plain :icon="RefreshRight" @click="reset">重置</el-button>
            <el-button v-show="showFoldBtn" type="primary" link @click="toggleFold">
              {{ conditionFold ? "展开" : "收起" }}
              <el-icon v-if="conditionFold">
                <ArrowDown />
              </el-icon>
              <el-icon v-else>
                <ArrowUp />
              </el-icon>
            </el-button>
          </el-form-item>
        </el-col>
      </el-row>
    </el-form>
  </div>
</template>

<script lang="ts" setup name="searchForm">
import {
  Search,
  RefreshRight,
  ArrowDown,
  ArrowUp,
} from "@element-plus/icons-vue";
import { reactive, ref, computed, onMounted } from "vue";

// 查询条件的类型接口
interface SearchFormInterFace {
  [key: string]: string | number | [];
};

/**
 * updateTableList 组件外部传入的拉取表格数据的方法
 * conditionList   组件外部传入的查询条件的配置列表数据
 */
const props = defineProps([
  "updateTableList",
  "conditionList",
]);

// 查询条件组件的实例
const searchFormRef = ref();

// 切换展开和收起查询条件
const conditionFold = ref(true);

const toggleFold = () => {
  conditionFold.value = !conditionFold.value;
};

// 初始化折叠查询条件的断点，从第几个查询条件开始（默认是从第3个，因为默认配置的span值是6）
const initConditionFoldLen = 3;

// 展示右侧按钮组（折叠||收起按钮）
const showFoldBtn = computed(() => {
  return props.conditionList.length > initConditionFoldLen;
});

// 展示查询条件组件
const showSearchBtn = computed(() => {
  return props.conditionList.length > 0;
});

// 右侧按钮组动态计算的span值
const rSpanCount = computed(() => {
  let totalSpan = 0;
  if (initConditionFoldLen > 0) {
    if (!conditionFold.value) {
      totalSpan = props.conditionList.reduce((prev: number, next: any) => {
        return prev + next.span
      }, 0)
    } else {
      const sliceCondList = props.conditionList.slice(0, initConditionFoldLen);
      totalSpan = sliceCondList.reduce((prev: number, next: any) => {
        return prev + next.span
      }, 0)
    }
  } else {
    totalSpan = props.conditionList.reduce((prev: number, next: any) => {
      return prev + next.span
    }, 0)
  }
  return 24 - (totalSpan % 24);
})

// 打印计算出来的，右侧按钮组占的span值，再通过flex布局，flex-end 定位到最右边
console.log(rSpanCount.value, 'rSpanCount@@@');

// 初始化查询条件的列表
const sliceCodList = computed(() => {
  return props.conditionList.slice(
    0,
    conditionFold.value ? initConditionFoldLen : props.conditionList.length
  );
});

// 查询条件表单数据
const searchForm = reactive<SearchFormInterFace>({});

// 搜索表单
const search = () => {
  props.updateTableList({
    pageSize: 10,
    currentPage: 1,
    ...searchForm,
  });
};
// 重置搜索
const reset = () => {
  searchFormRef.value.resetFields();
  props.updateTableList({
    pageSize: 10,
    currentPage: 1,
    ...searchForm,
  });
};

// 初始化查询条件的值
onMounted(() => {
  props.conditionList.forEach((cond: any) => {
    searchForm[cond.prop] = cond.type === "datetimerange" ? [] : "";
  });
});
</script>

<style lang="scss" scoped>
.search-form-box {
  box-sizing: border-box;
  box-shadow: var(--el-box-shadow-light);
  background-color: #fff;
  border-radius: 4px;
  padding: 12px;
  margin-bottom: 12px;

  .flex-form-item {
    display: flex;
    align-items: center;
  }

  .el-col-wrapper {
    display: flex;

    .btn-group-item {
      flex: 1;
      display: flex;

      :deep(.el-form-item__content) {
        flex: 1;
        display: flex;
        align-items: center;
      }

      &.flex-end {
        :deep(.el-form-item__content) {
          justify-content: flex-end;
        }
      }
    }
  }
}
</style>

  2. 使用查询条件表单组件（引入组件即可）

    <template>
    <SearchForm
        :updateTableList="updateTableList"
        :conditionList="conditionList"
    />
</template>
<script lang="ts" setup>
import { reactive, ref } from "vue";
// 定义表格数据每项的类型
type tableDataItem = {
  username: string;
  age: number;
  address: string;
  big: string;
  color: string;
  hobby: string;
  sex: string;
  school: string;
  grade: string;
};
// 表格加载loading
const loading = ref(false);
// 表格数据
let tableData = ref<tableDataItem[]>([]);
// 表格数据总条数
const total = ref(0);
// 查询条件配置项
// type 是查询条件里面的组件类型 如input select等，可以自行添加需要的组件
const conditionList = reactive([
  {
    id: 1,
    type: "input",
    label: "用户名称",
    prop: "username",
    placeholder: "请输入用户名称",
    span: 6,
  },
  {
    id: 2,
    type: "select",
    label: "个头大小",
    prop: "big",
    placeholder: "请选择个头大小",
    optionList: [
      {
        label: "大",
        value: 1,
      },
      {
        label: "小",
        value: 0,
      },
    ],
    span: 6,
  },
  {
    id: 3,
    type: "select",
    label: "性别",
    prop: "sex",
    placeholder: "请选择性别",
    optionList: [
      {
        label: "男",
        value: 1,
      },
      {
        label: "女",
        value: 0,
      },
    ],
    span: 6,
  },
  {
    id: 4,
    type: "input",
    label: "地址",
    prop: "address",
    placeholder: "请输入地址",
    span: 6,
  },
  {
    id: 5,
    type: "datetime",
    label: "档案时间",
    prop: "time",
    span: 6,
  },
]);
// 请求数据代码仅供参考，这里放自己的业务逻辑
const updateTableList = async (reqParams: any) => {
  loading.value = true;
  const { code, data }: any = await reqTableList(reqParams);
  if (code === 200) {
    tableData.value = data.list.map((item: tableDataItem) => ({
      ...item,
      bigLabel: item.big ? "大" : "小",
      sexLabel: item.sex ? "男" : "女",
    }));
    total.value = data.total;
    setTimeout(() => {
      loading.value = false;
    }, 1000);
  }
};
</script>
