GitLabRunner

一、升级Git版本

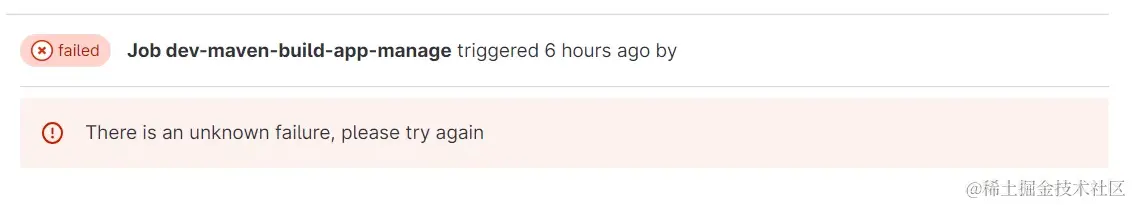

如果使用的是最新版的GitLabRunner，需要确保Git是最新版本，否则后续会出现报错：There is an unknown failure, please try again

升级git版本

# 删除旧版本git
yum remove git -y

# 获取新版本git
wget https://www.kernel.org/pub/software/scm/git/git-2.42.0.tar.gz

# 解压缩
tar -xvf git-2.42.0.tar.gz

# 编译安装
cd git-2.42.0
./configure --prefix=/usr/local all
make & make install

# 验证版本
git --version

升级过程中的问题解决

configure: error: no acceptable C compiler found in $PATH
- 问题描述：没有C编译器
- 解决方案：yum -y install gcc
致命错误： zlib.h：没有那个文件或目录
- 问题描述：缺少对应的库文件
- 解决方案：
```
yum install zlib #此时敲Tab会自动补全
yum install zlib-devel.x86_64
```

二、安装

2.1 基于docker安装

暂未使用，参考地址：zhuanlan.zhihu.com/p/109820989

2.2 基于yum安装

将Gitlab Runner安装到不同的机器上，在构建任务运行期间不会影响到GitLab的性能

增加GitLab官方仓库

curl -L https://packages.gitlab.com/install/repositories/runner/gitlab-ci-multi-runner/script.rpm.sh | sudo bash

安装最新版本：yum install -y gitlab-ci-multi-runner

修改Runner配置：

vi /etc/systemd/system/gitlab-runner.service

ExecStart=/usr/lib/gitlab-runner/gitlab-runner "run" "--working-directory" "/data/gitlab-runner" "--config" "/etc/gitlab-runner/config.toml" "--service" "gitlab-runner" "--syslog" "--user" "root"

设置docker权限

# 主要是后续的Runner需要使用Docker
usermod -aG docker gitlab-runner

执行注册

gitlab-runner register
Running in system-mode.

Please enter the gitlab-ci coordinator URL (e.g. https://gitlab.com/):
${gitlab项目配置中显示的ip}
Please enter the gitlab-ci token for this runner:
${gitlab项目配置中显示的token}
Please enter the gitlab-ci description for this runner:
[bb6040f1cd04]: ${这个runner的说明}
Please enter the gitlab-ci tags for this runner (comma separated):
${这个runner需要运行哪些tag，比如maven,test,java等等标签}
Whether to run untagged builds [true/false]:
[false]: ${是否运行未打标的构建}
Whether to lock Runner to current project [true/false]:
[false]: ${是否将运行程序锁定到当前项目}
Please enter the executor: docker-ssh, shell, ssh, virtualbox, docker+machine, custom, parallels, docker-ssh+machine, kubernetes, docker:
${这个runner需要运行在哪？docker或者shell等}
Please enter the default Docker image (e.g. ruby:2.6):
${选择docker之后，需要配置这个runner默认的根镜像}
Runner registered successfully. Feel free to start it, but if it's running already the config should be automatically reloaded!

注册成功后，会添加到/etc/gitlab-runner/config.toml中，每配置一个 runner 就会在配置文件中生成一个[[runners]]。

# 修改runner
concurrent = 1 # 可并行运行的数量
check_interval = 0

[[runners]]
  name = "dev"
  url = "http://192.168.141.128:9091/"
  token = "u8_Y5rLQazUmBZar9eys"
  executor = "docker"
  [runners.custom_build_dir]
  [runners.docker]
    tls_verify = false
    image = "docker:latest"
    privileged = true  # 默认为 false，需改为 true。自动跳过health check。
    disable_entrypoint_overwrite = false
    oom_kill_disable = false
    disable_cache = false
    volumes = ["/cache","/usr/local/maven:/root/.m2"] # 修改cache目录
    shm_size = 0
  [runners.cache]

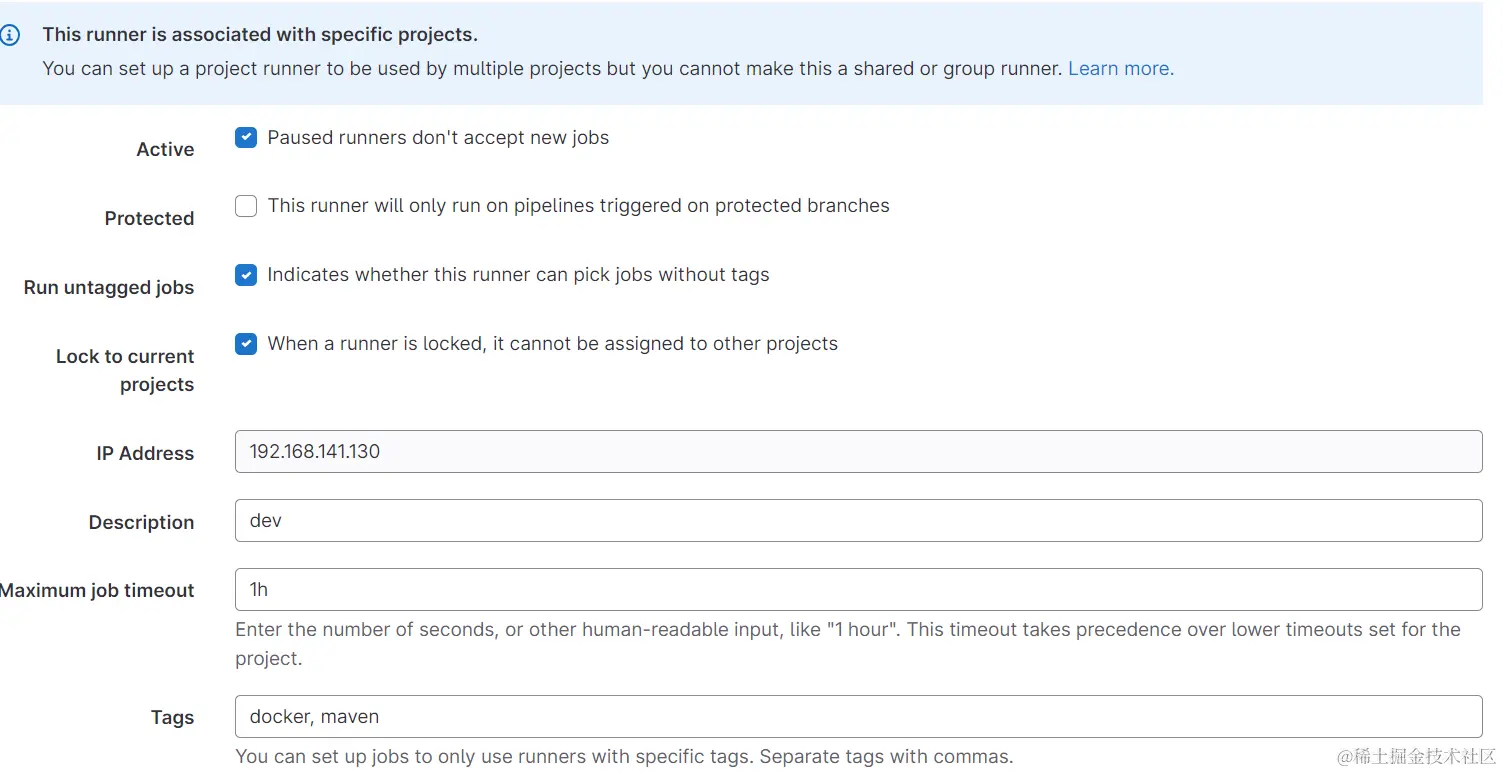

修改最大作业超时时间（Maximum job timeout）

三、配置pipelines

指定为当前项目主CI文件即可：.gitlab-ci.yml

3.1 .gitlab-ci.yml 配置详解

更多配置，参考：segmentfault.com/a/119000001…

值	是否必须	描述
script	必须	定义由Runner执行的shell脚本或命令
extends	非必须	定义此作业将继承的配置条目
image	非必须	需要使用的docker镜像，请查阅该文档
services	非必须	定义所需的docker服务，请查阅该文档
stage	非必须	定义一个工作场景阶段，默认是test
type	非必须	stage的别名,不赞成使用
variables	非必须	在job级别上定义的变量
only	非必须	定义job所引用的git分支
except	非必须	定义job所不适用的git分支
tags	非必须	定义job所适用的runner，tags为runner标签
allow_failure	非必须	允许任务失败，但是如果失败，将不会改变提交状态
when	非必须	定义了job什么时候执行，可以是on_success、on_failure、always和manual
dependencies	非必须	定义了该job依赖哪一个job，如果设置该项，可以通过artifacts设置
artifacts	非必须	工件，在依赖项之间传递的东西，类似cache，但原理与cache不同
cache	非必须	定义需要被缓存的文件、文件夹列表
before_script	非必须	覆盖在作业之前执行的脚本或命令
after_script	非必须	覆盖在作业之后执行的脚本或命令
environment	非必须	定义让job完成部署的环境名称
coverage	非必须	定义job设置代码覆盖率
retry	非必须	定义job失败后的自动重试次数

3.2 GitLab Runner 常见问题及介绍

跳转链接：www.jianshu.com/p/19fe0ce7e…

3.3 在安装GitLabRunner的机器上安装docker

需要确保安装了Docker，否则无法使用docker的方式运行。

ERROR: Preparation failed: Cannot connect to the Docker daemon at unix:///var/run/docker.sock. Is the docker daemon running?

3.4 自制Maven镜像

3.4.1 制作Maven1.8镜像

制作内容详见：www.jianshu.com/p/64b1d2140…

创建文件夹：mkdir /docker-file/maven`
切换到目录下
创建settings.xml文件，包含nexus仓库和可用账号（用于拉取依赖和推送依赖包）

<?xml version="1.0" encoding="UTF-8"?>
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">

  <!-- 设置本地仓库路径 -->
  <localRepository>/usr/share/maven/ref/repository</localRepository>

  <pluginGroups>
  </pluginGroups>


  <proxies>
  </proxies>

<!-- 服务器 用户名密码配置 -->
  <servers>
    <server>
      <id>release</id>
      <username>账号</username>
      <password>密码</password>
    </server>
    <server>
      <id>snapshots</id>
      <username>账号</username>
      <password>密码.</password>
    </server>
  </servers>

<!-- 镜像配置，阿里云 -->
  <mirrors>

	<mirror>
        <id>nexus-aliyun</id>
        <mirrorOf>central</mirrorOf>
        <name>Nexus aliyun</name>
        <url>http://maven.aliyun.com/nexus/content/groups/public</url>
    </mirror>

    <mirror>
        <id>nexus-public</id>
        <mirrorOf>central</mirrorOf>
        <name>Nexus public</name>
        <url>http://192.168.1.101:8081/repository/maven-public/</url>
    </mirror>

  </mirrors>


<!-- 环境配置，多款环境，多套配置 -->
<profiles>

    <!-- default 环境 -->
    <profile>
        <id>default</id>
        <repositories>
            <repository>
                <id>release</id>
                <name>release</name>
                <url>http://192.168.1.101:8081/repository/maven-public/</url>
                <releases><enabled>true</enabled></releases>
                <snapshots>
                    <enabled>true</enabled>
                    <updatePolicy>always</updatePolicy>
                </snapshots>
            </repository>
          <repository>
                <id>snapshots</id>
                <name>snapshots</name>
                <url>http://192.168.1.101:8081/repository/maven-snapshots/</url>
                <releases><enabled>true</enabled></releases>
                <snapshots>
                    <enabled>true</enabled>
                    <updatePolicy>always</updatePolicy>
                </snapshots>
          </repository>
        </repositories>
        <properties>
            <repository.id>release</repository.id>
            <repository.name>release</repository.name>
            <repository.url>http://192.168.1.101:8081/repository/maven-public/</repository.url>

            <repository-snapshots.id>snapshots</repository-snapshots.id>
            <repository-snapshots.name>snapshots</repository-snapshots.name>
            <repository-snapshots.url>http://192.168.1.101:8081/repository/maven-snapshots/</repository-snapshots.url>
        </properties>
    </profile>

    <!-- 开发环境 -->
    <profile>
        <id>dev</id>
        <repositories>
            <repository>
                <id>release</id>
                <name>release</name>
                <url>http://192.168.1.101:8081/repository/192.168.1.101-dev/</url>
                <releases><enabled>true</enabled></releases>
                <snapshots>
                    <enabled>true</enabled>
                    <updatePolicy>always</updatePolicy>
                </snapshots>
            </repository>
            <repository>
                <id>snapshots</id>
                <name>snapshots</name>
                <url>http://192.168.1.101:8081/repository/192.168.1.101-dev-snapshots/</url>
                <releases><enabled>false</enabled></releases>
                <snapshots>
                    <enabled>true</enabled>
                    <updatePolicy>always</updatePolicy>
                </snapshots>
            </repository>
        </repositories>

        <properties>
            <repository.id>release</repository.id>
            <repository.name>release</repository.name>
            <repository.url>http://192.168.1.101:8081/repository/maven-snapshots/</repository.url>

            <repository-snapshots.id>snapshots</repository-snapshots.id>
            <repository-snapshots.name>snapshots</repository-snapshots.name>
            <repository-snapshots.url>http://192.168.1.101:8081/repository/192.168.1.101-dev-snapshots/</repository-snapshots.url>
        </properties>
    </profile>

    <!-- 测试环境 -->
    <profile>
        <id>test</id>
        <repositories>
            <repository>
                <id>release</id>
                <name>release</name>
                <url>http://192.168.1.101:8081/repository/192.168.1.101-test/</url>
                <releases><enabled>true</enabled></releases>
                <snapshots>
                    <enabled>true</enabled>
                    <updatePolicy>always</updatePolicy>
                </snapshots>
            </repository>
            <repository>
                <id>snapshots</id>
                <name>snapshots</name>
                <url>http://192.168.1.101:8081/repository/192.168.1.101-test-snapshots/</url>
                <releases><enabled>false</enabled></releases>
                <snapshots>
                    <enabled>true</enabled>
                    <updatePolicy>always</updatePolicy>
                </snapshots>
            </repository>
        </repositories>
        <properties>
            <repository.id>release</repository.id>
            <repository.name>release</repository.name>
            <repository.url>http://192.168.1.101:8081/repository/192.168.1.101-test/</repository.url>

            <repository-snapshots.id>snapshots</repository-snapshots.id>
            <repository-snapshots.name>snapshots</repository-snapshots.name>
            <repository-snapshots.url>http://192.168.1.101:8081/repository/192.168.1.101-test-snapshots/</repository-snapshots.url>
        </properties>
    </profile>

    <!-- release环境 -->
    <profile>
        <id>release</id>
        <repositories>
            <repository>
                <id>release</id>
                <name>release</name>
                <url>http://192.168.1.101:8081/repository/192.168.1.101-release/</url>
                <releases><enabled>true</enabled></releases>
                <snapshots>
                    <enabled>true</enabled>
                    <updatePolicy>always</updatePolicy>
                </snapshots>
            </repository>
            <repository>
                <id>snapshots</id>
                <name>snapshots</name>
                <url>http://192.168.1.101:8081/repository/192.168.1.101-test-snapshots/</url>
                <releases><enabled>false</enabled></releases>
                <snapshots>
                    <enabled>true</enabled>
                    <updatePolicy>always</updatePolicy>
                </snapshots>
            </repository>
        </repositories>
        <properties>
            <repository.id>release</repository.id>
            <repository.name>release</repository.name>
            <repository.url>http://192.168.1.101:8081/repository/192.168.1.101-release/</repository.url>

            <repository-snapshots.id>snapshots</repository-snapshots.id>
            <repository-snapshots.name>snapshots</repository-snapshots.name>
            <repository-snapshots.url>http://192.168.1.101:8081/repository/192.168.1.101-test-snapshots/</repository-snapshots.url>
        </properties>
    </profile>

</profiles>


<activeProfiles>
    <activeProfile>default</activeProfile>
</activeProfiles>

</settings>

创建Dockerfile

FROM maven:3.6.0-jdk-8-alpine
COPY settings.xml /usr/share/maven/ref/

打包镜像（需要保证安装gitlab runner的机器上有该镜像）

docker build -t ip:port/项目名/maven3.6.0-jdk8:v1 .

3.4.2 基于jdk制作Maven镜像

制作参考：blog.csdn.net/qq_33285112…

四、项目配置

4.1 主文件CI

variables:
  # 项目配置
  PROJECT_NAME: "project/dev"           # 项目名称

  # maven配置
  MAVEN_OPTS:     "-Dmaven.repo.local=/usr/share/maven/ref/repository -Dmaven.test.skip=true -P dev"

  # 用到的公共镜像定义
  IMAGE_DOCKER: "docker:19.03"
  IMAGE_MAVEN_17: "ip:port/项目名/maven3.6.3-jdk17:v2"

  # 模块路径名称
  PJ_NAME_TEST_CASE: "springboot-test-case"

stages:
  # 开发环境
  - dev-build       # 打 maven 打包

# 加载子项目的CICD文件
include:
  - local: "/springboot-test-case/.gitlab-ci.yml"

4.2 主文件POM

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.alpha</groupId>
  <artifactId>a-test</artifactId>
  <version>1.0.0-SNAPSHOT</version>
  <packaging>pom</packaging>
  <name>a-test</name>

  <modules>
    <module>springboot-test-case</module>
  </modules>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.6.7</version>
    <relativePath/>
  </parent>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>17</java.version>
    <maven.compiler.source>${java.version}</maven.compiler.source>
    <maven.compiler.target>${java.version}</maven.compiler.target>
  </properties>

  <!-- 项目部署私仓 -->
  <distributionManagement>
    <repository>
      <id>${repository.id}</id>
      <name>${repository.name}</name>
      <!--suppress UnresolvedMavenProperty -->
      <url>${repository.url}</url>
      <layout>default</layout>
    </repository>
    <snapshotRepository>
      <id>${repository-snapshots.id}</id>
      <name>${repository-snapshots.name}</name>
      <!--suppress UnresolvedMavenProperty -->
      <url>${repository-snapshots.url}</url>
      <layout>default</layout>
    </snapshotRepository>
  </distributionManagement>
</project>

4.3 子文件CI

########################### 开发环境 ##########################
# maven打包
dev-maven-build-test-case:
  stage: dev-build
  image: $IMAGE_MAVEN_17
  script:
    - echo "start $PJ_NAME_TEST_CASE maven build...."
    # 开始编译
    - cd $PJ_NAME_TEST_CASE
    - mvn -version
    - mvn clean deploy $MAVEN_OPTS_DEV
    - echo "build $PJ_NAME_TEST_CASE maven success"
  only:
    refs:
      - dev
    # 仅当文件改变时执行,注意：此处不能用环境变量
    changes:
      - springboot-test-case/**/*
  tags:
    - maven

# 打包成docker镜像并上传到仓库中

# 发布到k8s集群中

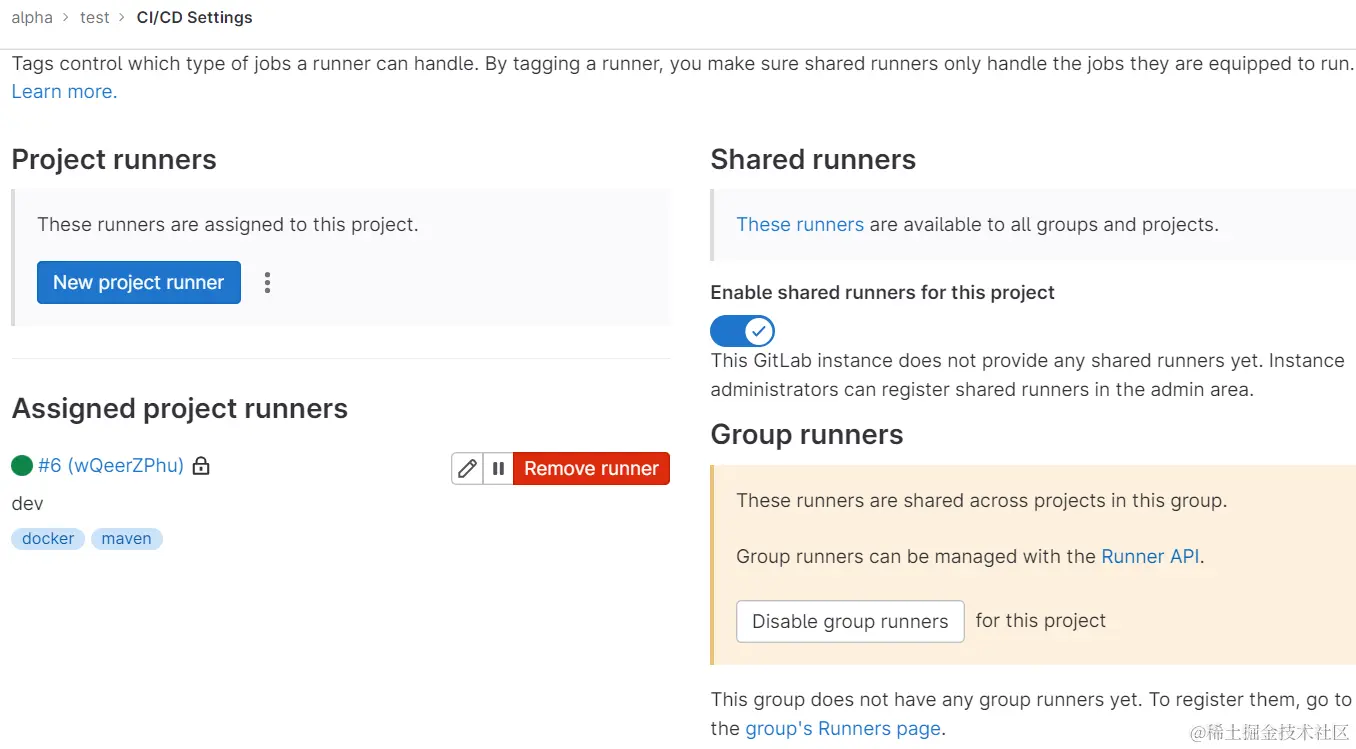

五、Gitlab三种runner创建和使用

链接记录：blog.csdn.net/weixin_4387…

六、流水线效果

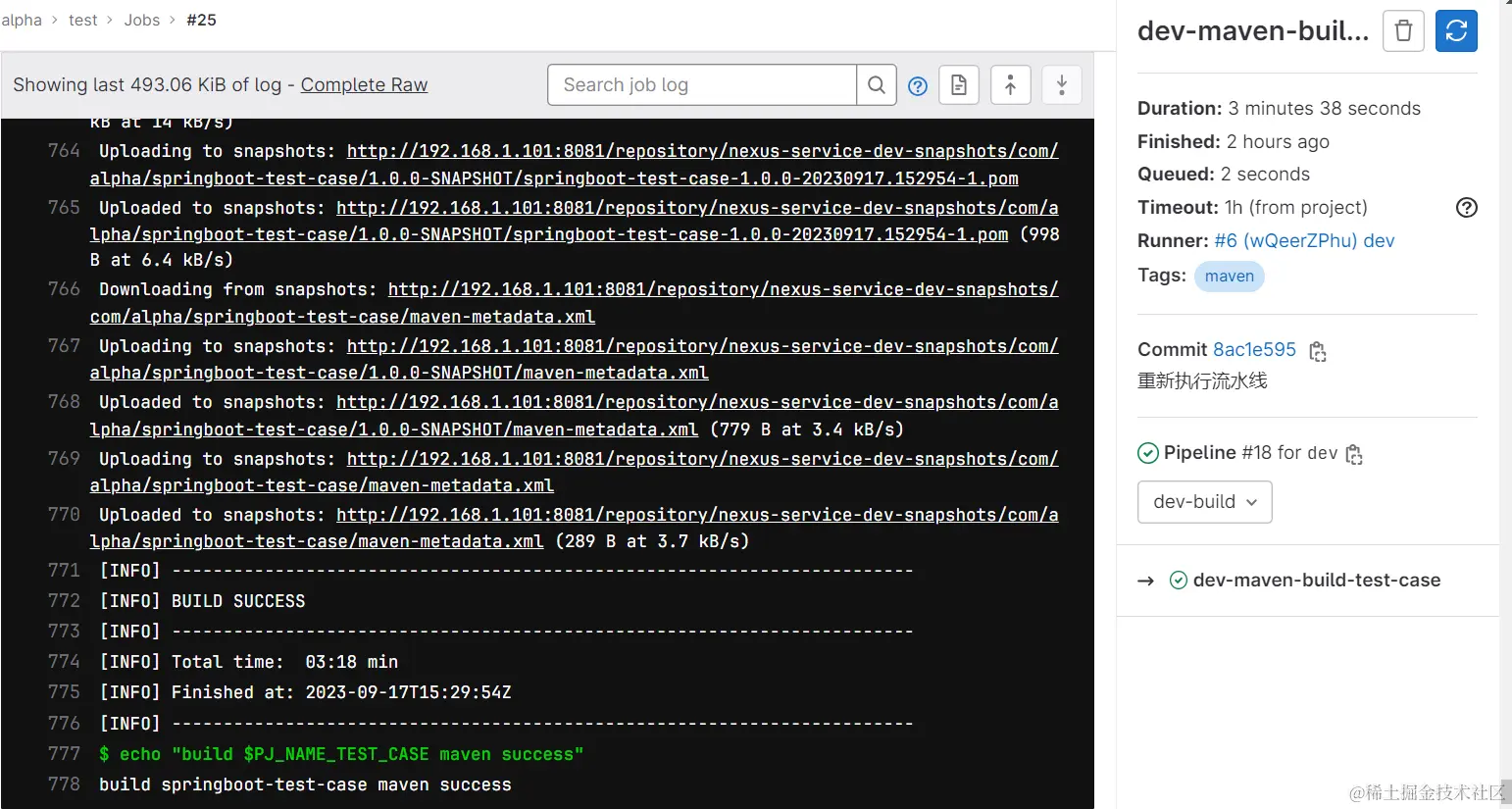

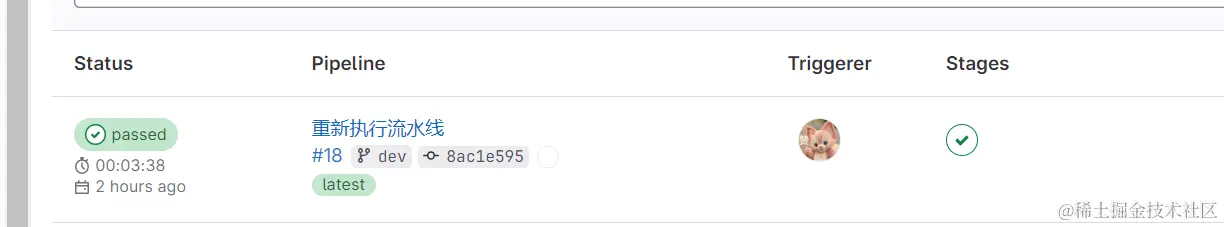

流水线执行情况

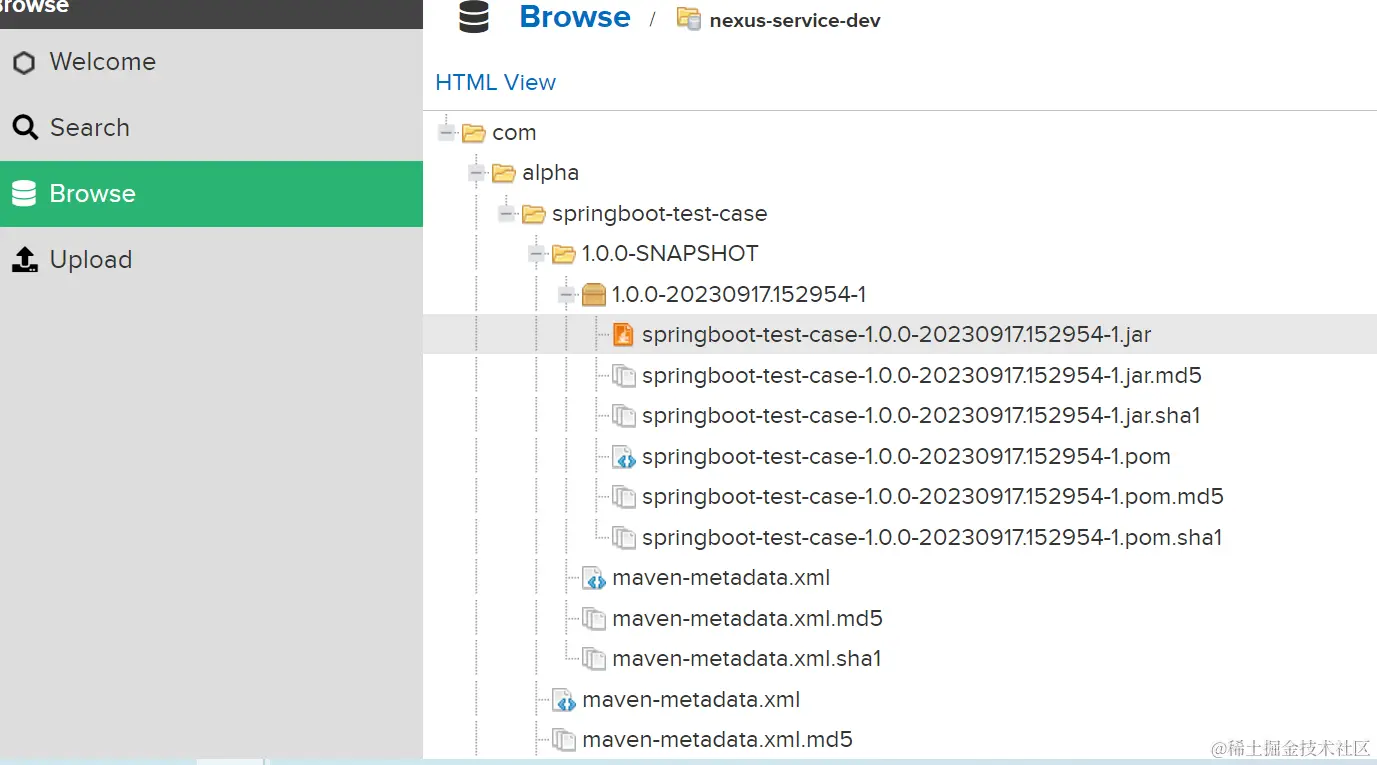

依赖包上传情况

七、GitLab-Runner配置参数详解

链接记录：www.jianshu.com/p/6decaed7b…
