问题描述

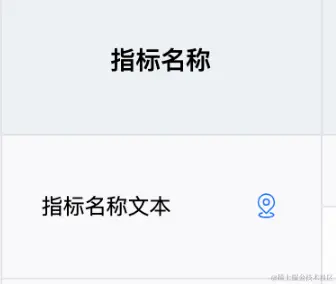

使用customLayout自定义单元格内容，包括Text，Image等，希望hover到Image的时候，有一些自定义逻辑，目前鼠标进入单元格事件，区分不了具体的target。
对于JavaScript中的DOM元素来说，mouseenter事件只在鼠标指针进入（移动到）元素上时触发一次。想请教一下，有没有类似mouseenter_cell这种事件，来监听自定义单元格中指定内容呢？
解决方案

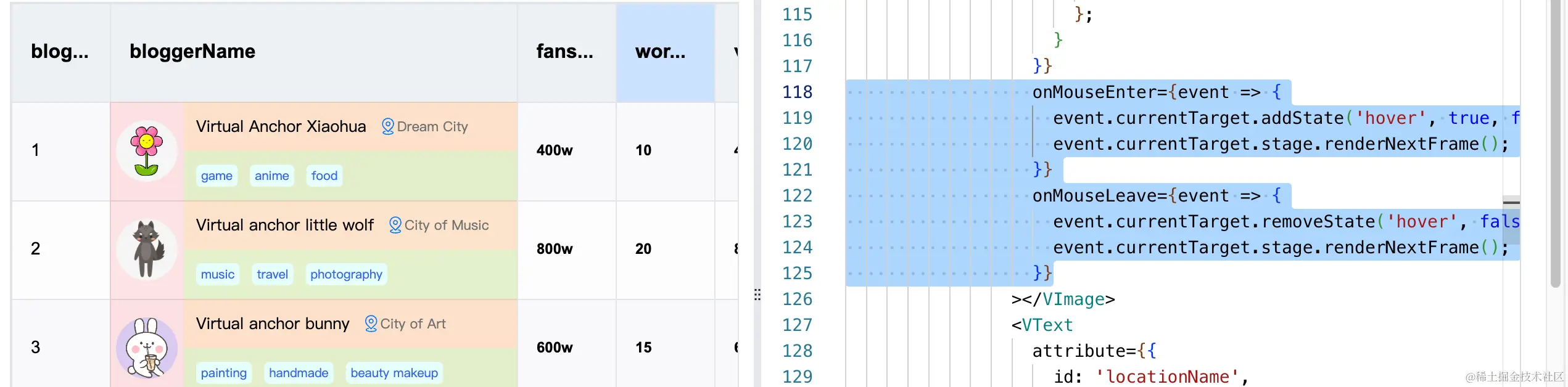

可以在自定义布局customLayout的图元上绑定 mouseenter 和 mouseleave 事件
代码示例
可以粘贴到官网编辑器上进行测试：visactor.io/vtable/demo…
const VGroup = VTable.VGroup;
const VText = VTable.VText;
const VImage = VTable.VImage;
const VTag = VTable.VTag;
const option = {
container: document.getElementById('container'),
columns: [
{
field: 'bloggerId',
title: 'bloggerId'
},
{
field: 'bloggerName',
title: 'bloggerName',
width: 330,
customLayout: args => {
const { table, row, col, rect } = args;
const { height, width } = rect || table.getCellRect(col, row);
const record = table.getRecordByRowCol(col, row);
// const jsx = jsx;
const container = (
<VGroup
attribute={{
id: 'container',
width,
height,
display: 'flex',
flexWrap: 'nowrap',
justifyContent: 'flex-start',
alignContent: 'center'
}}
>
<VGroup
id="container-right"
attribute={{
id: 'container-right',
width: width - 60,
height,
fill: 'yellow',
opacity: 0.1,
display: 'flex',
flexWrap: 'nowrap',
flexDirection: 'column',
justifyContent: 'space-around',
alignItems: 'center'
}}
>
<VGroup
attribute={{
id: 'container-right-top',
fill: 'red',
opacity: 0.1,
width: width - 60,
height: height / 2,
display: 'flex',
flexWrap: 'wrap',
justifyContent: 'flex-start',
alignItems: 'center'
}}
>
<VText
attribute={{
id: 'bloggerName',
text: record.bloggerName,
fontSize: 13,
fontFamily: 'sans-serif',
fill: 'black',
textAlign: 'left',
textBaseline: 'top',
boundsPadding: [0, 0, 0, 10]
}}
></VText>
<VImage
attribute={{
id: 'location-icon',
width: 15,
height: 15,
image:
'<svg t="1684484908497" class="icon" viewBox="0 0 1024 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="2429" width="200" height="200"><path d="M512 512a136.533333 136.533333 0 1 1 136.533333-136.533333 136.533333 136.533333 0 0 1-136.533333 136.533333z m0-219.272533a81.92 81.92 0 1 0 81.92 81.92 81.92 81.92 0 0 0-81.92-81.92z" fill="#0073FF" p-id="2430"></path><path d="M512 831.214933a27.306667 27.306667 0 0 1-19.2512-8.055466l-214.493867-214.357334a330.5472 330.5472 0 1 1 467.490134 0l-214.357334 214.357334a27.306667 27.306667 0 0 1-19.387733 8.055466z m0-732.091733a275.933867 275.933867 0 0 0-195.106133 471.04L512 765.269333l195.106133-195.106133A275.933867 275.933867 0 0 0 512 99.1232z" fill="#0073FF" p-id="2431"></path><path d="M514.321067 979.490133c-147.456 0-306.107733-37.000533-306.107734-118.3744 0-45.602133 51.746133-81.92 145.681067-102.4a27.306667 27.306667 0 1 1 11.605333 53.384534c-78.370133 17.066667-102.673067 41.915733-102.673066 49.015466 0 18.432 88.064 63.761067 251.4944 63.761067s251.4944-45.192533 251.4944-63.761067c0-7.3728-25.258667-32.768-106.496-49.834666a27.306667 27.306667 0 1 1 11.195733-53.384534c96.6656 20.343467 150.186667 56.9344 150.186667 103.2192-0.273067 80.964267-158.9248 118.3744-306.3808 118.3744z" fill="#0073FF" p-id="2432"></path></svg>',
boundsPadding: [0, 0, 0, 10],
cursor: 'pointer'
}}
stateProxy={stateName => {
if (stateName === 'hover') {
return {
background: {
fill: 'green',
cornerRadius: 5,
expandX: 1,
expandY: 1
}
};
}
}}
onPointerEnter={event => {
event.currentTarget.addState('hover', true, false);
event.currentTarget.stage.renderNextFrame();
}}
onPointerLeave={event => {
event.currentTarget.removeState('hover', false);
event.currentTarget.stage.renderNextFrame();
}}
></VImage>
<VText
attribute={{
id: 'locationName',
text: record.city,
fontSize: 11,
fontFamily: 'sans-serif',
fill: '#6f7070',
textAlign: 'left',
textBaseline: 'top'
}}
></VText>
</VGroup>
</VGroup>
</VGroup>
);
// decode(container)
return {
rootContainer: container,
renderDefault: false
};
}
},
{
field: 'fansCount',
title: 'fansCount',
fieldFormat(rec) {
return rec.fansCount + 'w';
},
style: {
fontFamily: 'Arial',
fontSize: 12,
fontWeight: 'bold'
}
},
{
field: 'worksCount',
title: 'worksCount',
style: {
fontFamily: 'Arial',
fontSize: 12,
fontWeight: 'bold'
}
},
{
field: 'viewCount',
title: 'viewCount',
fieldFormat(rec) {
return rec.fansCount + 'w';
},
style: {
fontFamily: 'Arial',
fontSize: 12,
fontWeight: 'bold'
}
},
{
field: 'viewCount',
title: 'viewCount',
fieldFormat(rec) {
return rec.fansCount + 'w';
},
style: {
fontFamily: 'Arial',
fontSize: 12,
fontWeight: 'bold'
}
},
{
field: '',
title: 'operation',
width: 100,
icon: ['favorite', 'message']
}
],
records: [
{
bloggerId: 6,
bloggerName: 'Virtual anchor bird',
bloggerAvatar: 'https://lf9-dp-fe-cms-tos.byteorg.com/obj/bit-cloud/VTable/custom-render/bird.jpeg',
introduction:
'Hello everyone, I am the virtual anchor Xiaoniao. I like singing, acting and variety shows. I hope to be happy with everyone through the live broadcast.',
fansCount: 900,
worksCount: 12,
viewCount: 8,
city: 'Happy City',
tags: ['music', 'performance', 'variety']
}
],
defaultRowHeight: 80
};
const instance = new VTable.ListTable(document.getElementById(CONTAINER_ID), option);
// 只为了方便控制太调试用，不要拷贝
window.tableInstance = instance;
相关文档
demo: visactor.io/vtable/demo…
相关api：visactor.io/vtable/opti…
github：github.com/VisActor/VT…
