问题描述
在业务场景中使用了自定义渲染customLayout或者customRender配置，但是又同时想用上VTable自身的图标按钮icon的功能，但是发现两者都配置上后，icon并未正常显示，请问有什么办法可以让两个配置都正常使用吗？

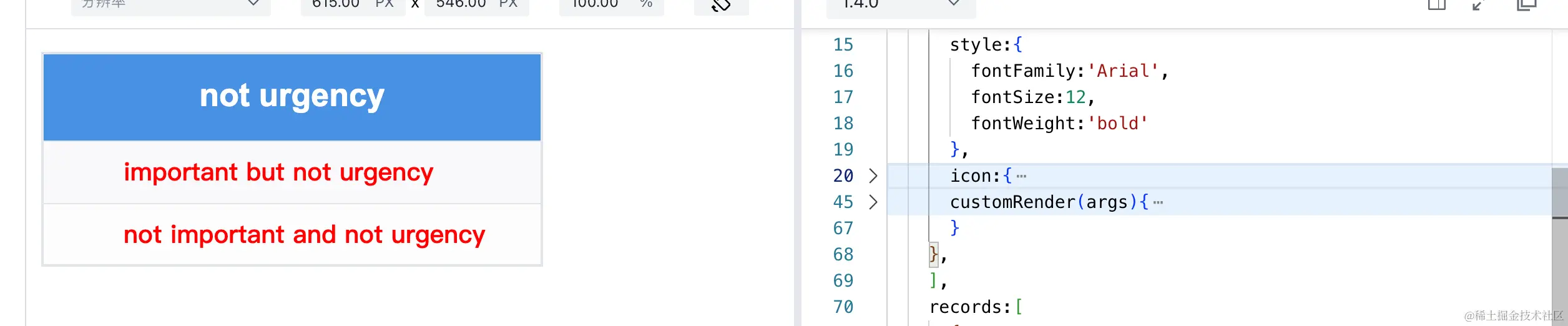

如下只显示了customRender的内容。icon的配置图标没有显示出来。
解决方案

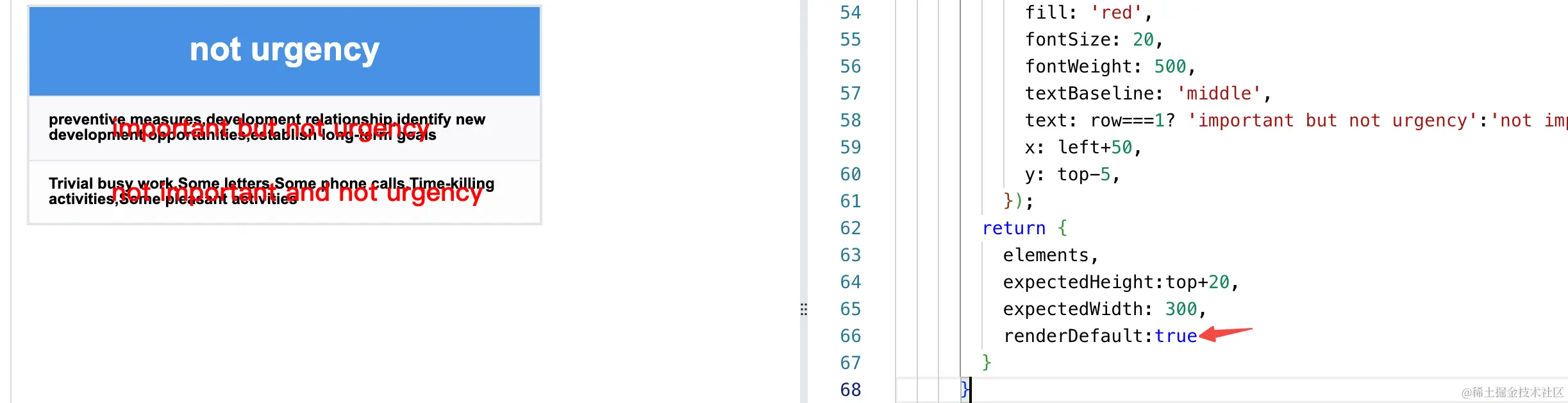

可以使用自定义渲染配置的renderDefault来解决这个问题。

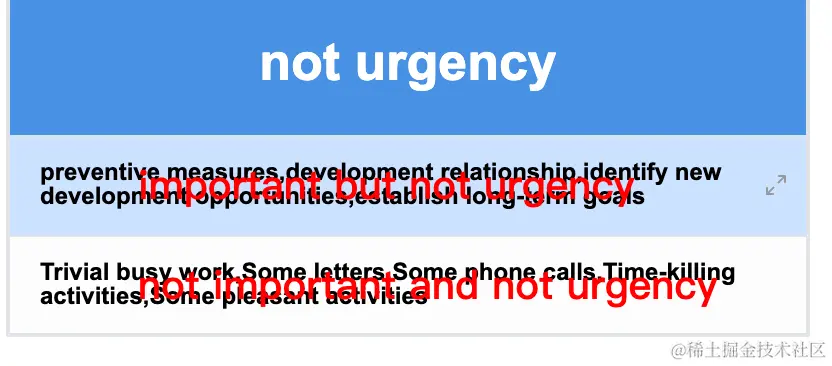

不过配置后会发现绘制出来不想要的的内容

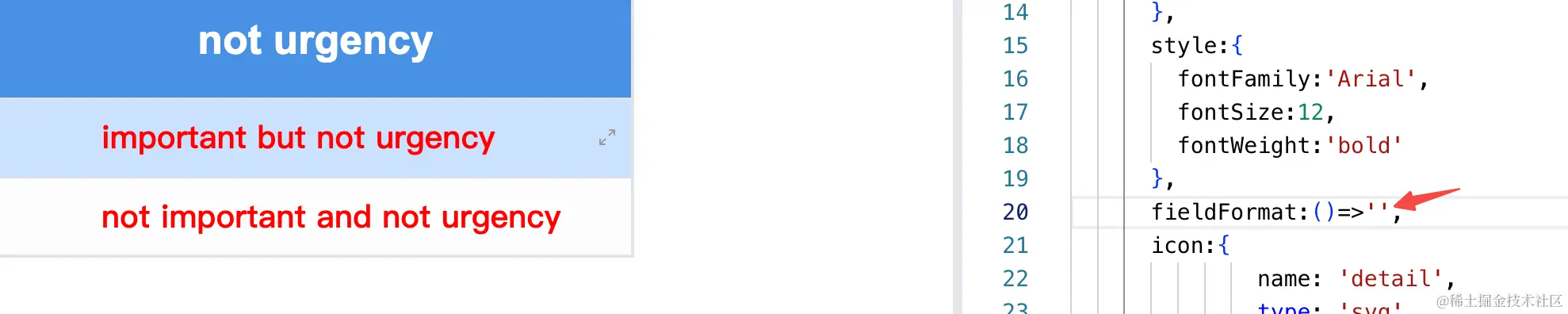

解决这个问题可以利用fieldFormat来解决，直接利用这个自定义函数返回空值，这个就不会把默认的文本内容进行绘制了。
代码示例
可以粘贴到官网编辑器上进行测试：visactor.io/vtable/demo…
const option = {
columns:[
{
field: 'not_urgency',
title:'not urgency',
width:400,
headerStyle:{
lineHeight:50,
bgColor:'#4991e3',
color:'white',
textAlign:'center',
fontSize:26,
fontWeight:600,
},
style:{
fontFamily:'Arial',
fontSize:12,
fontWeight:'bold'
},
fieldFormat:()=>'',
icon:{
name: 'detail',
type: 'svg',
svg: `<svg t="1710211168958" class="icon" viewBox="0 0 1024 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="3209" xmlns:xlink="http://www.w3.org/1999/xlink" width="200" height="200"><path d="M722.944 256l-153.6 153.6c-3.072 3.072-5.12 6.656-7.168 10.24-1.536 4.096-2.56 8.192-2.56 12.288v1.536c0 4.096 1.024 7.68 2.56 11.264 1.536 3.584 3.584 6.656 6.656 9.728 3.072 3.072 6.656 5.12 10.24 7.168 4.096 1.536 8.192 2.56 12.288 2.56 4.096 0 8.192-1.024 12.288-2.56 4.096-1.536 7.168-4.096 10.24-7.168l153.6-153.6v114.688c0 2.048 0 4.096 0.512 6.144 0.512 2.048 1.024 4.096 2.048 6.144 1.024 2.048 1.536 3.584 3.072 5.632 1.024 1.536 2.56 3.584 4.096 4.608 1.536 1.536 3.072 2.56 4.608 4.096 1.536 1.024 3.584 2.048 5.632 3.072 2.048 1.024 4.096 1.536 6.144 2.048 2.048 0.512 4.096 0.512 6.144 0.512 2.048 0 4.096 0 6.144-0.512 2.048-0.512 4.096-1.024 6.144-2.048 2.048-1.024 3.584-1.536 5.632-3.072 1.536-1.024 3.584-2.56 4.608-4.096 1.536-1.536 2.56-3.072 4.096-4.608 1.024-1.536 2.048-3.584 3.072-5.632 1.024-2.048 1.536-4.096 2.048-6.144 0.512-2.048 0.512-4.096 0.512-6.144V223.744c0-4.096-1.024-8.192-2.56-12.288-1.536-4.096-4.096-7.168-7.168-10.24h-0.512c-3.072-3.072-6.656-5.12-10.24-6.656-4.096-1.536-7.68-2.56-12.288-2.56h-192c-2.048 0-4.096 0-6.144 0.512-2.048 0.512-4.096 1.024-6.144 2.048-2.048 1.024-3.584 1.536-5.632 3.072-1.536 1.024-3.584 2.56-4.608 4.096-1.536 1.536-2.56 3.072-4.096 4.608-1.024 1.536-2.048 3.584-3.072 5.632-1.024 2.048-1.536 4.096-2.048 6.144-0.512 2.048-0.512 4.096-0.512 6.144s0 4.096 0.512 6.144c0.512 2.048 1.024 4.096 2.048 6.144 1.024 2.048 1.536 3.584 3.072 5.632 1.024 1.536 2.56 3.584 4.096 4.608 1.536 1.536 3.072 2.56 4.608 4.096 1.536 1.024 3.584 2.048 5.632 3.072 2.048 1.024 4.096 1.536 6.144 2.048 2.048 0.512 4.096 0.512 6.144 0.512h115.712z m-268.288 358.4l-153.6 153.6h114.688c2.048 0 4.096 0 6.144 0.512 2.048 0.512 4.096 1.024 6.144 2.048 2.048 1.024 3.584 1.536 5.632 3.072 1.536 1.024 3.584 2.56 4.608 4.096 1.536 1.536 2.56 3.072 4.096 4.608 1.024 1.536 2.048 3.584 3.072 5.632 1.024 2.048 1.536 4.096 2.048 6.144 0.512 2.048 0.512 4.096 0.512 6.144 0 2.048 0 4.096-0.512 6.144-0.512 2.048-1.024 4.096-2.048 6.144-1.024 2.048-1.536 3.584-3.072 5.632-1.024 1.536-2.56 3.584-4.096 4.608-1.536 1.536-3.072 2.56-4.608 4.096-1.536 1.024-3.584 2.048-5.632 3.072-2.048 1.024-4.096 1.536-6.144 2.048-2.048 0.512-4.096 0.512-6.144 0.512H224.256c-2.048 0-4.096 0-6.144-0.512-2.048-0.512-4.096-1.024-6.144-2.048-2.048-1.024-3.584-1.536-5.632-3.072-1.536-1.024-3.584-2.56-4.608-4.096-1.536-1.536-2.56-3.072-4.096-4.608-1.024-1.536-2.048-3.584-3.072-5.632-1.024-2.048-1.536-4.096-2.048-6.144-0.512-2.048-0.512-4.096-0.512-6.144v-192.512c0-2.048 0-4.096 0.512-6.144 0.512-2.048 1.024-4.096 2.048-6.144 1.024-2.048 1.536-3.584 3.072-5.632 1.024-1.536 2.56-3.584 4.096-4.608 1.536-1.536 3.072-2.56 4.608-4.096 1.536-1.024 3.584-2.048 5.632-3.072 2.048-1.024 4.096-1.536 6.144-2.048 2.048-0.512 4.096-0.512 6.144-0.512s4.096 0 6.144 0.512c2.048 0.512 4.096 1.024 6.144 2.048 2.048 1.024 3.584 1.536 5.632 3.072 1.536 1.024 3.584 2.56 4.608 4.096 1.536 1.536 2.56 3.072 4.096 4.608 1.024 1.536 2.048 3.584 3.072 5.632 1.024 2.048 1.536 4.096 2.048 6.144 0.512 2.048 0.512 4.096 0.512 6.144v114.688l153.6-153.6c3.072-3.072 6.656-5.12 10.24-7.168 4.096-1.536 8.192-2.56 12.288-2.56 4.096 0 8.192 1.024 12.288 2.56 4.096 1.536 7.168 3.584 10.24 6.656h0.512c3.072 3.072 5.12 6.656 7.168 10.24 1.536 4.096 2.56 8.192 2.56 12.288 0 4.096-1.024 8.192-2.56 12.288-3.072 5.12-5.12 8.704-8.192 11.264z" p-id="3210" fill="#999999"></path></svg>`,
marginRight: 8,
positionType: VTable.TYPES.IconPosition.absoluteRight,
width: 16,
height: 16,
cursor: 'pointer',
visibleTime: 'mouseenter_cell',
funcType: 'record_detail',
tooltip: {
title:'展开详情',
style: {
fontSize: 12,
padding: [8, 8, 8, 8],
bgColor: '#46484a',
arrowMark: true,
color: 'white',
maxHeight: 100,
maxWidth: 200
},
placement: VTable.TYPES.Placement.top
}
},
customRender(args){
const { width, height}= args.rect;
const {dataValue,table,row} =args;
const elements=[];
let top=30;
const left=15;
let maxWidth=0;
elements.push({
type: 'text',
fill: 'red',
fontSize: 20,
fontWeight: 500,
textBaseline: 'middle',
text: row===1? 'important but not urgency':'not important and not urgency',
x: left+50,
y: top-5,
});
return {
elements,
expectedHeight:top+20,
expectedWidth: 300,
renderDefault:true
}
}
},
],
records:[ { 'type': 'important', "urgency": ['crisis','urgent problem','tasks that must be completed within a limited time'],
"not_urgency": ['preventive measures','development relationship','identify new development opportunities','establish long-term goals'],
},
{
'type': 'Not\nimportant',
"urgency": ['Receive visitors','Certain calls, reports, letters, etc','Urgent matters','Public activities'],
"not_urgency": ['Trivial busy work','Some letters','Some phone calls','Time-killing activities','Some pleasant activities'],
},
],
defaultRowHeight:80,
heightMode:'autoHeight',
widthMode:'standard',
autoWrapText:true,
};
const tableInstance = new VTable.ListTable(document.getElementById(CONTAINER_ID),option);
window['tableInstance'] = tableInstance;
相关文档
相关api：visactor.io/vtable/opti…
github：github.com/VisActor/VT…
