vue项目集成CanvasEditor实现Word在线编辑器

凡豆笙芽舵手
4,948 阅读3分钟

CanvasEditor实现Word在线编辑器
官网文档：hufe.club/canvas-edit…

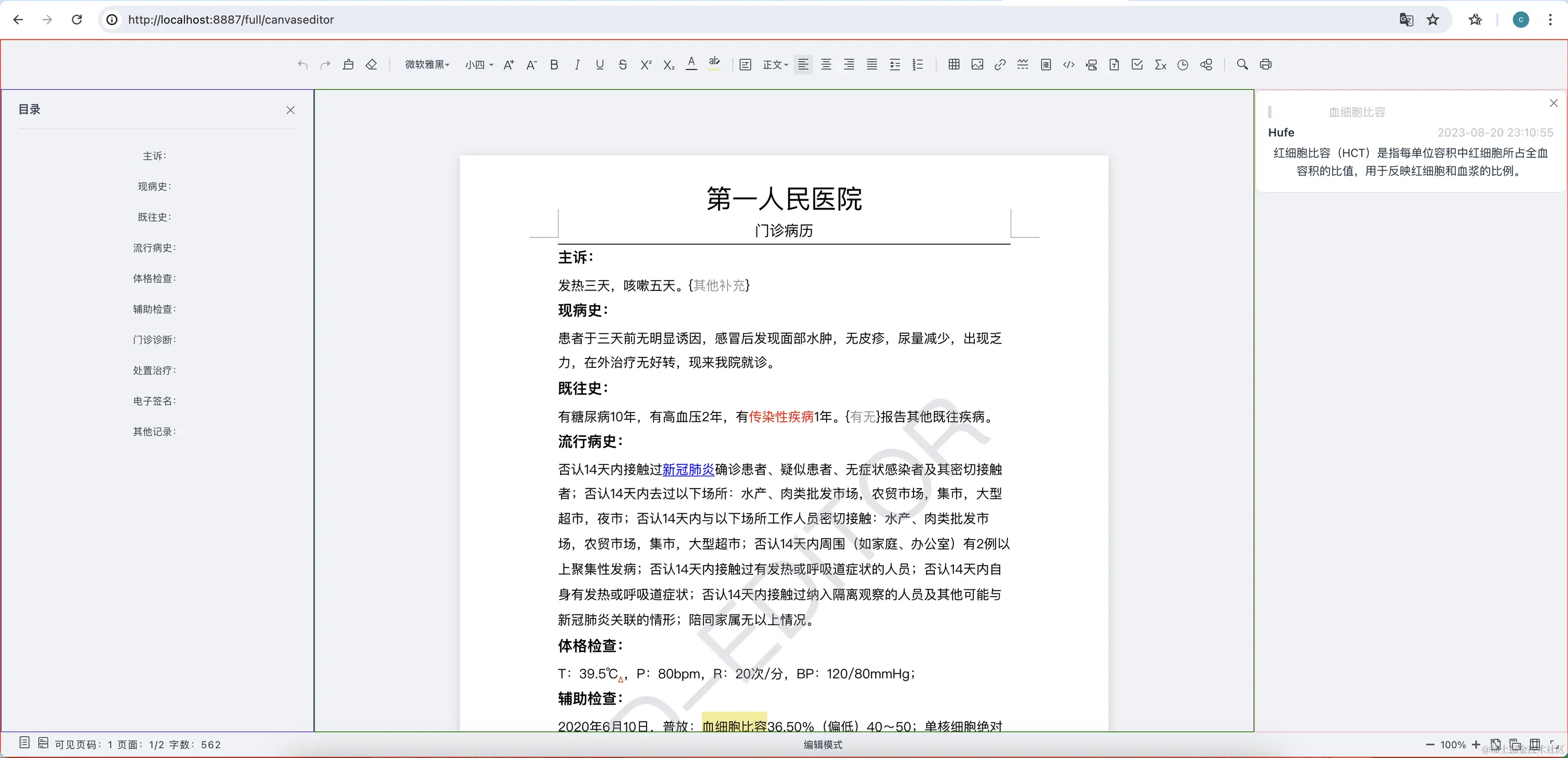

源码地址：github.com/Hufe921/can… 效果图


前提声明：
由于CanvasEditor目前不支持vue、react
等框架开箱即用版，所以需要我们去Git下载源码，拿到其中两个主要文件，集成到我们自己的项目中。

第一步：项目安装CanvasEditor

在你需要集成编辑器的项目中，安装canvas-editor

npm i @hufe921/canvas-editor --save

第二步：主要文件集成

1、下载源码-demo分支，目录如下:红色框就是我们需要在自己项目中引用的


2、在你的vue项目项目中，在views下新建一个文件夹，叫CanvasEditor，这个文件夹内，就放集成的相关文件（代码以及目录结构贴在后边）

1 新建个index.vue文件，作为后边集成封装的CanvasEditor组件引入的入口 2 index.vue的template的html部分，就把CanvasEditor源码的html文件中粘过来。 3 更早min.ts 改造前

window.onload = function () { ... }

改造后

 function Init () { ... }

4 在index.vue中引入main.ts , script部分最后如下：

<script lang="ts" setup>

import { ref, onMounted, onUnmounted } from "vue";

import Init from "./main";

onMounted(() => {

Init();

});
  1. 在index.vue中引入style
<style>

@import url("@/views/CanvasEditor/components/dialog/dialog.css");

@import url("@/views/CanvasEditor/components/signature/signature.css");

@import url("@/views/CanvasEditor/style.css");

</style>

<style lang="less"></style>

6 改造完成后index.vue如下

<template>

<div class="canvas-container">

<!-- 上侧菜单栏 -->

<div class="menu" editor-component="menu">

<div class="menu-item">

<div class="menu-item__undo">

<i></i>

</div>

<div class="menu-item__redo">

<i></i>

</div>

<div class="menu-item__painter" title="格式刷(双击可连续使用)">

<i></i>

</div>

<div class="menu-item__format" title="清除格式">

<i></i>

</div>

</div>

<div class="menu-divider"></div>

<div class="menu-item">

<div class="menu-item__font">

<span class="select" title="字体">微软雅黑</span>

<div class="options">

<ul>

<li data-family="Yahei" style="font-family: 'Yahei'">微软雅黑</li>

<li data-family="宋体" style="font-family: '宋体'">宋体</li>

<li data-family="黑体" style="font-family: '黑体'">黑体</li>

<li data-family="仿宋" style="font-family: '仿宋'">仿宋</li>

<li data-family="楷体" style="font-family: '楷体'">楷体</li>

<li data-family="等线" style="font-family: '等线'">等线</li>

<li data-family="华文琥珀" style="font-family: '华文琥珀'">华文琥珀</li>

<li data-family="华文楷体" style="font-family: '华文楷体'">华文楷体</li>

<li data-family="华文隶书" style="font-family: '华文隶书'">华文隶书</li>

<li data-family="华文新魏" style="font-family: '华文新魏'">华文新魏</li>

<li data-family="华文行楷" style="font-family: '华文行楷'">华文行楷</li>

<li data-family="华文中宋" style="font-family: '华文中宋'">华文中宋</li>

<li data-family="华文彩云" style="font-family: '华文彩云'">华文彩云</li>

<li data-family="Arial" style="font-family: 'Arial'">Arial</li>

<li data-family="Segoe UI" style="font-family: 'Segoe UI'">Segoe UI</li>

<li data-family="Ink Free" style="font-family: 'Ink Free'">Ink Free</li>

<li data-family="Fantasy" style="font-family: 'Fantasy'">Fantasy</li>

</ul>

</div>

</div>

<div class="menu-item__size">

<span class="select" title="字体">小四</span>

<div class="options">

<ul>

<li data-size="56">初号</li>

<li data-size="48">小初</li>

<li data-size="34">一号</li>

<li data-size="32">小一</li>

<li data-size="29">二号</li>

<li data-size="24">小二</li>

<li data-size="21">三号</li>

<li data-size="20">小三</li>

<li data-size="18">四号</li>

<li data-size="16">小四</li>

<li data-size="14">五号</li>

<li data-size="12">小五</li>

<li data-size="10">六号</li>

<li data-size="8">小六</li>

<li data-size="7">七号</li>

<li data-size="6">八号</li>

</ul>

</div>

</div>

<div class="menu-item__size-add">

<i></i>

</div>

<div class="menu-item__size-minus">

<i></i>

</div>

<div class="menu-item__bold">

<i></i>

</div>

<div class="menu-item__italic">

<i></i>

</div>

<div class="menu-item__underline">

<i></i>

</div>

<div class="menu-item__strikeout" title="删除线(Ctrl+Shift+X)">

<i></i>

</div>

<div class="menu-item__superscript">

<i></i>

</div>

<div class="menu-item__subscript">

<i></i>

</div>

<div class="menu-item__color" title="字体颜色">

<i></i>

<span></span>

<input type="color" id="color" />

</div>

<div class="menu-item__highlight" title="高亮">

<i></i>

<span></span>

<input type="color" id="highlight" />

</div>

</div>

<div class="menu-divider"></div>

<div class="menu-item">

<div class="menu-item__title">

<i></i>

<span class="select" title="切换标题">正文</span>

<div class="options">

<ul>

<li style="font-size: 16px">正文</li>

<li data-level="first" style="font-size: 26px">标题1</li>

<li data-level="second" style="font-size: 24px">标题2</li>

<li data-level="third" style="font-size: 22px">标题3</li>

<li data-level="fourth" style="font-size: 20px">标题4</li>

<li data-level="fifth" style="font-size: 18px">标题5</li>

<li data-level="sixth" style="font-size: 16px">标题6</li>

</ul>

</div>

</div>

<div class="menu-item__left">

<i></i>

</div>

<div class="menu-item__center">

<i></i>

</div>

<div class="menu-item__right">

<i></i>

</div>

<div class="menu-item__alignment">

<i></i>

</div>

<div class="menu-item__row-margin">

<i title="行间距"></i>

<div class="options">

<ul>

<li data-rowmargin="1">1</li>

<li data-rowmargin="1.25">1.25</li>

<li data-rowmargin="1.5">1.5</li>

<li data-rowmargin="1.75">1.75</li>

<li data-rowmargin="2">2</li>

<li data-rowmargin="2.5">2.5</li>

<li data-rowmargin="3">3</li>

</ul>

</div>

</div>

<div class="menu-item__list">

<i></i>

<div class="options">

<ul>

<li>

<label>取消列表</label>

</li>

<li data-list-type="ol" data-list-style="decimal">

<label>有序列表：</label>

<ol>

<li>________</li>

</ol>

</li>

<li data-list-type="ul" data-list-style="disc">

<label>实心圆点列表：</label>

<ul style="list-style-type: disc">

<li>________</li>

</ul>

</li>

<li data-list-type="ul" data-list-style="circle">

<label>空心圆点列表：</label>

<ul style="list-style-type: circle">

<li>________</li>

</ul>

</li>

<li data-list-type="ul" data-list-style="square">

<label>空心方块列表：</label>

<ul style="list-style-type: square">

<li>________</li>

</ul>

</li>

</ul>

</div>

</div>

</div>

<div class="menu-divider"></div>

<div class="menu-item">

<div class="menu-item__table">

<i title="表格"></i>

</div>

<div class="menu-item__table__collapse">

<div class="table-close">×</div>

<div class="table-title">

<span class="table-select">插入</span>

<span>表格</span>

</div>

<div class="table-panel"></div>

</div>

<div class="menu-item__image">

<i title="图片"></i>

<input type="file" id="image" accept=".png, .jpg, .jpeg, .svg, .gif" />

</div>

<div class="menu-item__hyperlink">

<i title="超链接"></i>

</div>

<div class="menu-item__separator">

<i title="分割线"></i>

<div class="options">

<ul>

<li data-separator="0,0">

<i></i>

</li>

<li data-separator="1,1">

<i></i>

</li>

<li data-separator="3,1">

<i></i>

</li>

<li data-separator="4,4">

<i></i>

</li>

<li data-separator="7,3,3,3">

<i></i>

</li>

<li data-separator="6,2,2,2,2,2">

<i></i>

</li>

</ul>

</div>

</div>

<div class="menu-item__watermark">

<i title="水印(添加、删除)"></i>

<div class="options">

<ul>

<li data-menu="add">添加水印</li>

<li data-menu="delete">删除水印</li>

</ul>

</div>

</div>

<div class="menu-item__codeblock" title="代码块">

<i></i>

</div>

<div class="menu-item__page-break" title="分页符">

<i></i>

</div>

<div class="menu-item__control">

<i title="控件"></i>

<div class="options">

<ul>

<li data-control="text">文本</li>

<li data-control="select">列举</li>

<li data-control="checkbox">复选框</li>

</ul>

</div>

</div>

<div class="menu-item__checkbox" title="复选框">

<i></i>

</div>

<div class="menu-item__latex" title="LateX">

<i></i>

</div>

<div class="menu-item__date">

<i title="日期"></i>

<div class="options">

<ul>

<li data-format="yyyy-MM-dd"></li>

<li data-format="yyyy-MM-dd hh:mm:ss"></li>

</ul>

</div>

</div>

<div class="menu-item__block" title="内容块">

<i></i>

</div>

</div>

<div class="menu-divider"></div>

<div class="menu-item">

<div class="menu-item__search" data-menu="search">

<i></i>

</div>

<div class="menu-item__search__collapse" data-menu="search">

<div class="menu-item__search__collapse__search">

<input type="text" />

<label class="search-result"></label>

<div class="arrow-left">

<i></i>

</div>

<div class="arrow-right">

<i></i>

</div>

<span>×</span>

</div>

<div class="menu-item__search__collapse__replace">

<input type="text" />

<button>替换</button>

</div>

</div>

<div class="menu-item__print" data-menu="print">

<i></i>

</div>

</div>

</div>

<!-- 左侧目录栏 -->

<div class="catalog" editor-component="catalog">

<div class="catalog__header">

<span>目录</span>

<div class="catalog__header__close">

<i></i>

</div>

</div>

<div class="catalog__main"></div>

</div>

<!-- 内容编辑主体 -->

<div class="editor"></div>

<!-- 右侧批注栏 -->

<div class="comment" editor-component="comment"></div>

<!-- 底部工具栏 -->

<div class="footer" editor-component="footer">

<div>

<div class="catalog-mode" title="目录">

<i></i>

</div>

<div class="page-mode">

<i title="页面模式(分页、连页)"></i>

<div class="options">

<ul>

<li data-page-mode="paging" class="active">分页</li>

<li data-page-mode="continuity">连页</li>

</ul>

</div>

</div>

<span>可见页码：<span class="page-no-list">1</span></span>

<span>页面：<span class="page-no">1</span>/<span class="page-size">1</span></span>

<span>字数：<span class="word-count">0</span></span>

</div>

<div class="editor-mode" title="编辑模式(编辑、清洁、只读、表单)">编辑模式</div>

<div>

<div class="page-scale-minus" title="缩小(Ctrl+-)">

<i></i>

</div>

<span class="page-scale-percentage" title="显示比例(点击可复原Ctrl+0)">100%</span>

<div class="page-scale-add" title="放大(Ctrl+=)">

<i></i>

</div>

<div class="paper-size">

<i title="纸张类型"></i>

<div class="options">

<ul>

<li data-paper-size="794*1123" class="active">A4</li>

<li data-paper-size="1593*2251">A2</li>

<li data-paper-size="1125*1593">A3</li>

<li data-paper-size="565*796">A5</li>

<li data-paper-size="412*488">5号信封</li>

<li data-paper-size="450*866">6号信封</li>

<li data-paper-size="609*862">7号信封</li>

<li data-paper-size="862*1221">9号信封</li>

<li data-paper-size="813*1266">法律用纸</li>

<li data-paper-size="813*1054">信纸</li>

</ul>

</div>

</div>

<div class="paper-direction">

<i title="纸张方向"></i>

<div class="options">

<ul>

<li data-paper-direction="vertical" class="active">纵向</li>

<li data-paper-direction="horizontal">横向</li>

</ul>

</div>

</div>

<div class="paper-margin" title="页边距">

<i></i>

</div>

<div class="fullscreen" title="全屏显示">

<i></i>

</div>

</div>

</div>

</div>

</template>

<script lang="ts" setup>

import { ref, onMounted, onUnmounted } from "vue";

import Init from "./main";

onMounted(() => {

Init();

});

</script>




<style>

@import url("@/views/CanvasEditor/components/dialog/dialog.css");

@import url("@/views/CanvasEditor/components/signature/signature.css");

@import url("@/views/CanvasEditor/style.css");

</style>

<style lang="less"></style>

7 更改样式文件部分 至此，vue项目集成CanvasEditor实现Word在线编辑器引入完成。 后期，可以把代码中不需要的部分删除。

参考文档 blog.csdn.net/weixin_5244…
