前言



随着 HDC 2024 的结束,鸿蒙 Next 正式对个人开发者开放,个人开发者终于能够更简单地加入到鸿蒙 Next 的体验中。(之前只有少数个人开发者能加入到预览中 华为纯血鸿蒙 HarmonyOS NEXT 开发者预览版首批 Beta 招募开启,支持 Mate 60 / Pro、X5 机型)。

最新工具 - 下载中心 - 华为开发者联盟 (huawei.com)

DevEco Studio NEXT Developer Beta1

面向HarmonyOS应用及元服务开发者提供的集成开发环境(IDE),助力高效开发。

Build Version 5.0.3.403 发布日期 2024/06/21

真机和模拟器的区别

这一次除了开放下载 DevEco Studio Next 版本,还开放了模拟器下载,(当然,需要去申请一下,很快就会通过),那么真机和模拟器有什么区别呢?

模拟器与真机的差异-概述-使用模拟器运行应用/服务-应用/服务运行-DevEco Studio | 华为开发者联盟 (huawei.com)

ui 层面,主要是一些效果,比如阴影或者3d效果的缺失。这里提前说这个,是因为后面要考。


鸿蒙玩家

如果你是一个鸿蒙开发者,就比较简单了,直接到 最新工具 - 下载中心 - 华为开发者联盟 (huawei.com) 下载符合你的设备的 DevEco Studio

如果你第一次玩,需要创建一个华为开发者账号,后续需要用到。比如如果你使用真机,需要登录账号签名。比如你下载模拟器,需要登录账号,去申请模拟器下载权限。

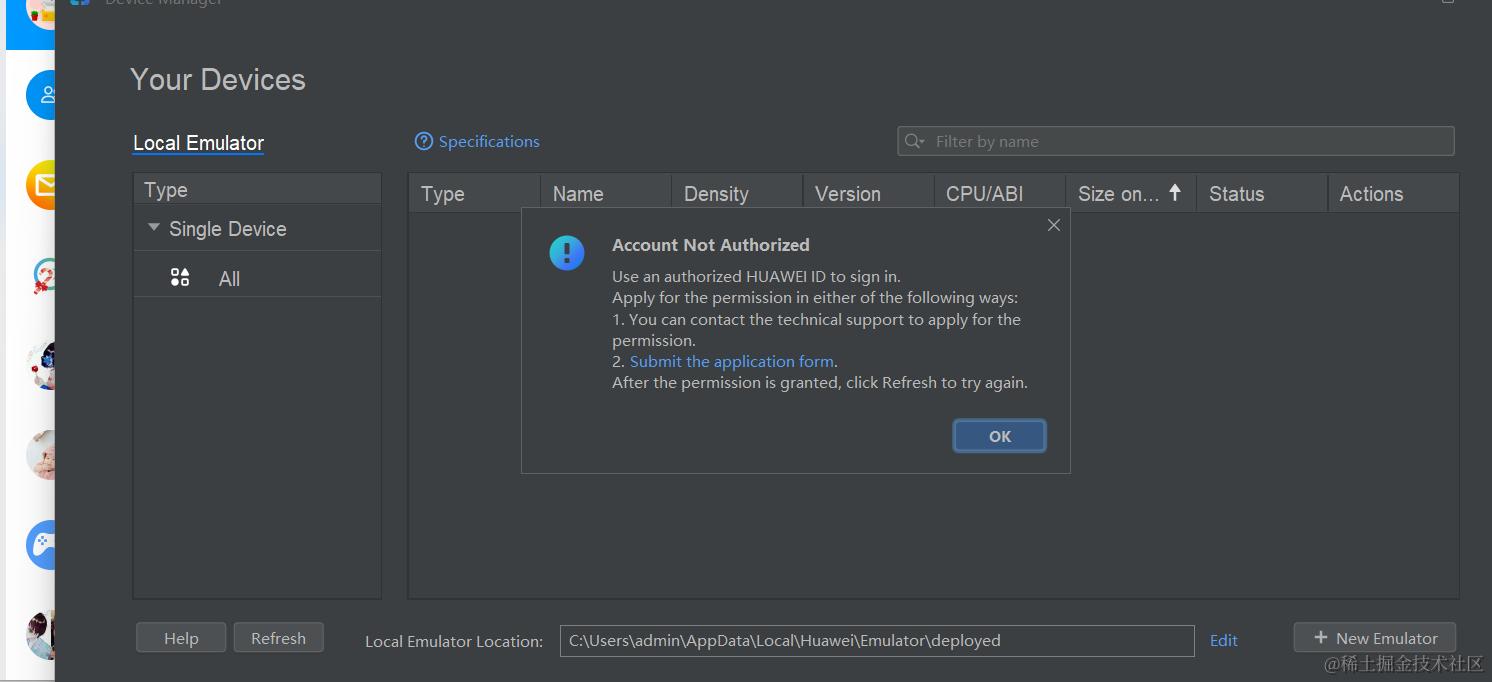

点击链接,申请模拟器下载权限。

怎么编写鸿蒙应用,我这里不展开写了。大家可以查看下面的文章了解更多的信息。

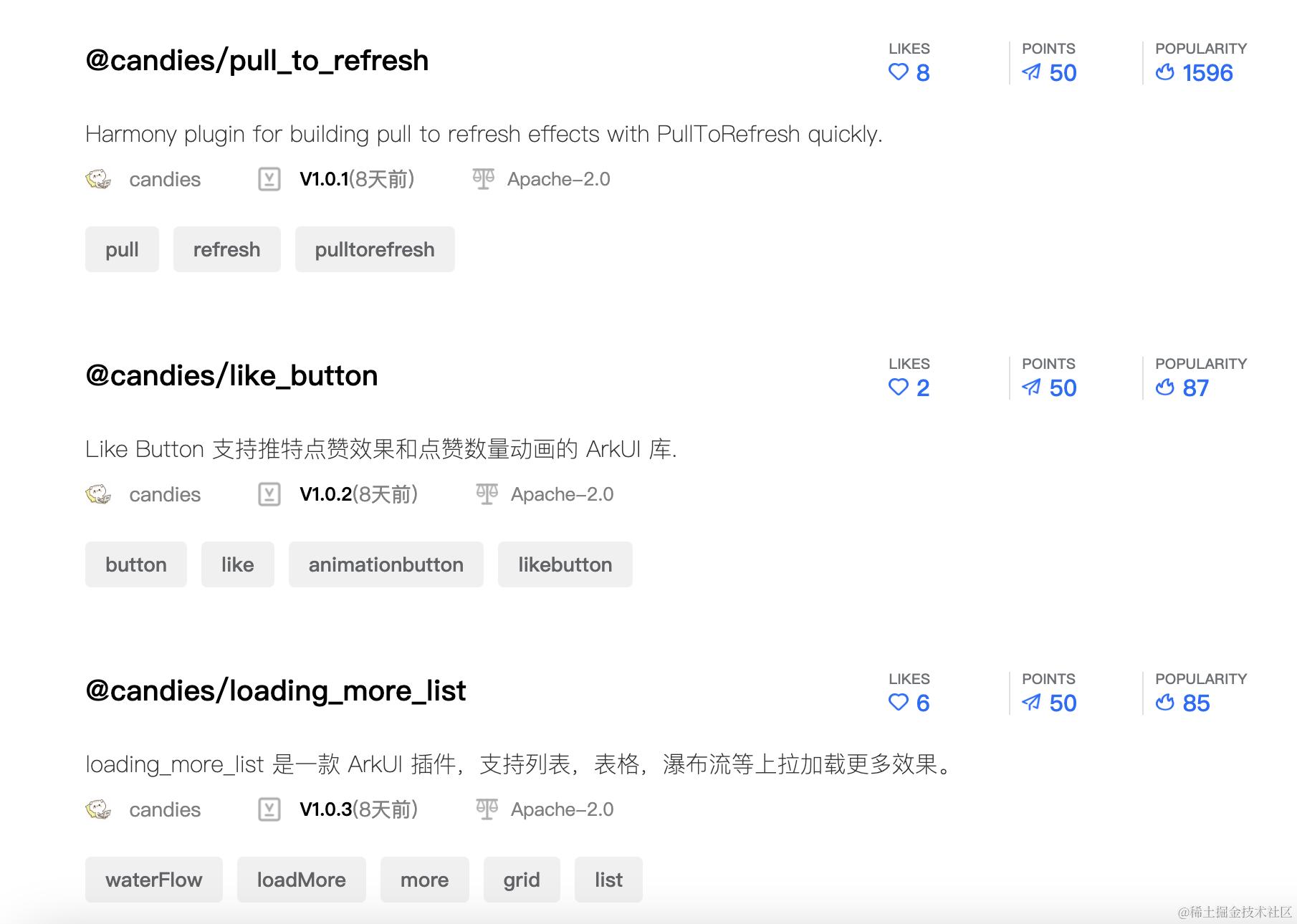

欢迎大家使用 HarmonyCandies 提供的鸿蒙组件,欢迎加入 HarmonyCandies (github.com)

截屏2024-06-26 10.13.46.png

Flutter 鸿蒙化玩家

作为 Flutter 鸿蒙化的玩家,你没有阅读过下面的文章,也没有关系。 OpenHarmony-SIG/flutter_flutter (gitee.com) 鸿蒙化社区更新很快,之前文章里面的一些信息已经失效。

后续内容全部基于 OpenHarmony-SIG/flutter_flutter (gitee.com)OpenHarmony-SIG/flutter_engine (gitee.com)dev 分支。参考文档也以 dev 分支 的文档为准。另外最新支持的是 ohos api12

下面基于最新的社区进度,主要讲一下环境和一些注意事项。

Mac

MacX86ARM 芯片的。注意,由于目前 Flutter for Harmony 暂时不支持 x86_x64 架构,在 X86 芯片的 Mac 上面,你只能用真机开发。ARM 芯片(即 M1,M2,M3,M4) 可以使用模拟器

Windows

注意,由于目前 Flutter for Harmony 暂时不支持 x86_x64 架构,所以 Windows 上面你只能使用真机进行开发。

模拟器真机差异

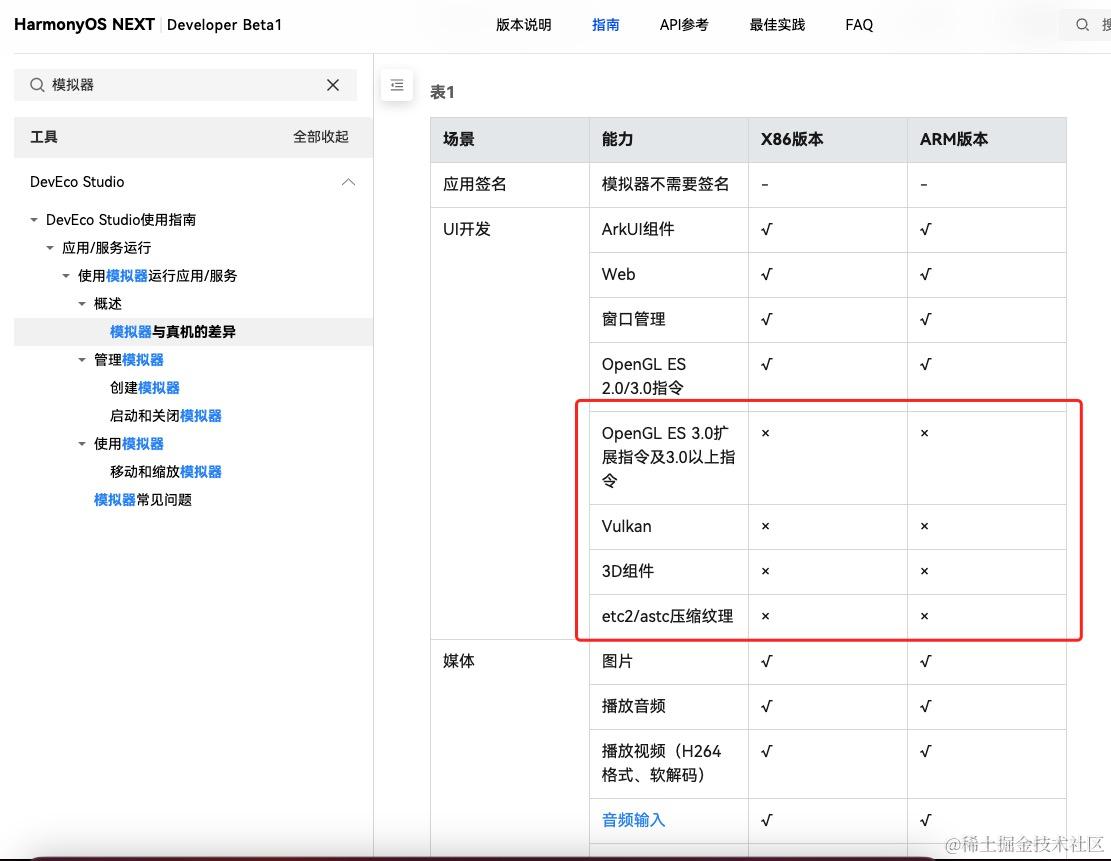

前面说了模拟器与真机之间是有差异的,这导致 Flutter 在鸿蒙模拟器中,可能某些组件 API 不能使用。

模拟器与真机的差异-概述-使用模拟器运行应用/服务-应用/服务运行-DevEco Studio | 华为开发者联盟 (huawei.com)


比如说 FloatingActionButton 包含阴影效果,就没法在模拟器中使用,会导致闪退。上图相关的 API 我们都要注意一下。

可以的话,做 Flutter 鸿蒙化最好是使用真机。

环境配置

准备工作

  • 下载适配鸿蒙的 flutter sdk

git clone -b dev git@gitee.com:openharmony-sig/flutter_flutter.git

Mac 和 Linux

  • 设置环境变量

我的鸿蒙相关的内容是放在 /Users/zmtzawqlp/Documents/ohos/flutter/flutter_flutter 中的。

export PATH=/Users/zmtzawqlp/Documents/ohos/flutter/flutter_flutter/bin:$PATH
export PATH=/Users/zmtzawqlp/Documents/ohos/flutter/flutter_flutter/bin/cache/dart-sdk/bin:$PATH

# ohos
export TOOL_HOME=/Applications/DevEco-Studio.app/Contents # mac环境
export DEVECO_SDK_HOME=$TOOL_HOME/sdk # command-line-tools/sdk
export PATH=$TOOL_HOME/tools/ohpm/bin:$PATH # command-line-tools/ohpm/bin
export PATH=$TOOL_HOME/tools/hvigor/bin:$PATH # command-line-tools/hvigor/bin
export PATH=$TOOL_HOME/tools/node/bin:$PATH # command-line-tools/tool/node/bin

Windows

  • 去环境变量中添加,下面的键值对。

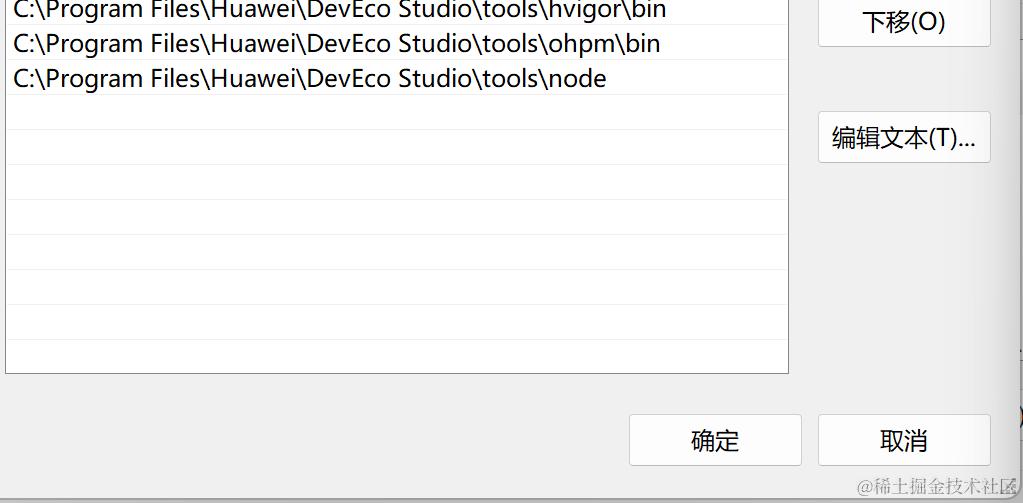

  • 去环境变量 PATH 中添加,下面的路径


以及 flutterdart 的路径,这里就不截图了。

引擎编译

目前,社区已经支持自动下载最新的线上引擎,所以对于不追求引擎代码随时最新的玩家,这部分内容可以跳过。

环境准备

构建的基础配置请查考: flutter/docs/engine/contributing/Setting-up-the-Engine-development-environment.md at master · flutter/flutter (github.com)

编译问题

python 版本

如果你编译报错 ModuleNotFoundError: No module named 'imp',请切换 python 版本到 3.11 以其以下。 python3.12imp 已经不支持。

python - ModuleNotFoundError: No module named 'imp' - Stack Overflow

Xcode15

如果你的电脑升级了 Xcode15,在做编译引擎的时候,也许会遇到下面的错误。

/Applications/Xcode.app/Contents/Developer/Platforms/MacOSX.platform/Developer/SDKs/MacOSX14.4.sdk/System/Library/Frameworks/Foundation.framework/Headers/NSObjCRuntime.h:657:37: error: use of undeclared identifier 'NSIntegerMax'
static const NSInteger NSNotFound = NSIntegerMax;

或者

../../third_party/dart/runtime/bin/security_context_macos.cc:188:17: error: use of undeclared identifier 'noErr'
  if (status != noErr) {
                ^
../../third_party/dart/runtime/bin/security_context_macos.cc:196:19: error: use of undeclared identifier 'noErr'
    if (status != noErr) {
                  ^
../../third_party/dart/runtime/bin/security_context_macos.cc:205:17: error: use of undeclared identifier 'noErr'
  if (status != noErr) {
                ^
../../third_party/dart/runtime/bin/security_context_macos.cc:303:21: error: use of undeclared identifier 'noErr'
  OSStatus status = noErr;
                    ^
../../third_party/dart/runtime/bin/security_context_macos.cc:319:23: error: use of undeclared identifier 'noErr'
            status == noErr && (trust_result == kSecTrustResultProceed ||
                      ^

解决办法是从下面地址选择 13.3 sdk 中的 TargetConditionals.h

macos-sdk/MacOSX13.3.sdk/usr/include/TargetConditionals.h at main · alexey-lysiuk/macos-sdk (github.com)

替换掉你本地的,注意做备份。

/Applications/Xcode.app/Contents/Developer/Platforms/MacOSX.platform/Developer/SDKs/MacOSX.sdk/usr/include/TargetConditionals.h

运行调试引擎

设置本地引擎

我们可以通过下面三种方法在运行调试项目的时候,设置我们编译出来的引擎。

launch.json

通过 vscode 我们可以创建 launch.json.

截屏2024-01-16 11.07.08.png

其中 --local-engine-src-path 是你编译出来引擎目录下面 src 的路径。

--local-enginesrc 下面 out 文件夹中

{
    // Use IntelliSense to learn about possible attributes.
    // Hover to view descriptions of existing attributes.
    // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
    "version": "0.2.0",
    "configurations": [
        {
            "name": "ohos_demo",
            "request": "launch",
            "type": "dart",
            "args": [
                "--local-engine-src-path",
                "/Users/xxx/Documents/ohos/flutter/engine/src",
                "--local-engine",
                "ohos_debug_unopt_arm64",
            ]
        },
        {
            "name": "ohos_demo (profile mode)",
            "request": "launch",
            "type": "dart",
            "flutterMode": "profile",
            "args": [
                "--local-engine-src-path",
                "/Users/xxx/Documents/ohos/flutter/engine/src",
                "--local-engine",
                "ohos_profile_arm64",
            ]
        },
        {
            "name": "ohos_demo (release mode)",
            "request": "launch",
            "type": "dart",
            "flutterMode": "release",
            "args": [
                "--local-engine-src-path",
                "/Users/xxx/Documents/ohos/flutter/engine/src",
                "--local-engine",
                "ohos_release_arm64",
            ]
        }
    ]
}

缺点每个项目都需要创建一个,并且只能点击这里的按钮启动。


命令

直接使用命令运行,当然也需要配置参数。

flutter run --local-engine-src-path /Users/xxx/Documents/ohos/flutter/engine/src --local-engine ohos_debug_unopt_arm64

修改 flutter_tools 的流程
  • 创建一个 ohos_local_engine.patch 文件,将下面的内容复制到里面去。
diff --git a/packages/flutter_tools/lib/src/runner/flutter_command_runner.dart b/packages/flutter_tools/lib/src/runner/flutter_command_runner.dart
index 28dc9f587a..bf94f57750 100644
--- a/packages/flutter_tools/lib/src/runner/flutter_command_runner.dart
+++ b/packages/flutter_tools/lib/src/runner/flutter_command_runner.dart
@@ -2,6 +2,8 @@
 // Use of this source code is governed by a BSD-style license that can be
 // found in the LICENSE file.

+import 'dart:io';
+
 import 'package:args/args.dart';
 import 'package:args/command_runner.dart';
 import 'package:completion/completion.dart';
@@ -172,7 +174,54 @@ class FlutterCommandRunner extends CommandRunner<void> {
       }
     }

-    return super.run(args);
+ ArgResults argResults = super.parse(args);
+
+    var ohosArgs = <String>[];
+    // 没有设置过本地引擎
+    if (!args.contains('--local-engine-src-path') &&
+        !args.contains('--local-engine')) {
+      final String? flutterOhosEngine =
+          Platform.environment['FLUTTER_OHOS_ENGINE'];
+
+      print('FLUTTER_OHOS_ENGINE -----$flutterOhosEngine');
+      if (flutterOhosEngine != null) {
+        Directory outDirectory = globals.fs
+            .directory(globals.fs.path.join(flutterOhosEngine, 'out'));
+        var buildMode = 'debug';
+        var command = argResults.command;
+        if (command != null) {
+          if (command.options.contains('release') &&
+              command['release'] == true) {
+            buildMode = 'release';
+          } else if (command.options.contains('profile') &&
+              command['profile'] == true) {
+            buildMode = 'profile';
+          }
+        }
+        var localEngine = '';
+        if (outDirectory.existsSync()) {
+          for (final FileSystemEntity file in outDirectory.listSync()) {
+            if (file is Directory && file.basename.contains(buildMode)) {
+              localEngine = file.basename;
+            }
+          }
+        }
+        if (localEngine.isNotEmpty) {
+          ohosArgs = [
+            '--local-engine-src-path',
+            flutterOhosEngine,
+            '--local-engine',
+            localEngine,
+          ];
+          print('自动设置本地引擎位\n${ohosArgs.join('\n')}');
+        }
+      }
+    }
+
+    return super.run(<String>[
+      ...ohosArgs,
+      ...args,
+    ]);
   }

   @override

  • 到你本地 Flutter SDK 的目录中去,执行 git apply ohos_local_engine.patch
  • 删除 Flutter SDK 目录下面 bin\cache 中的 flutter_tools.stampflutter_tools.snapshot, 执行 flutter doctor 命令,重新编译 flutter_tools
  • 增加环境变量 FLUTTER_OHOS_ENGINE 指向本地引擎的 src 目录。
  1. linux,macos

export FLUTTER_OHOS_ENGINE=/Users/xxx/Documents/ohos/flutter/engine/src

  1. windows


这样子就会根据你运行的模式自己设置本地引擎的参数了。

签名

如果在真机上面运行,需要签名。之前是使用工具进行签名的,但是对于需要频繁切换项目的情况下,不方便,我们可以使用 Deveco Studio 签名,对你想运行的项目进行签名。流程跟 Flutter Ios 端使用 Xcode 签名相似。

  • 用 Deveco Studio 打开项目的 ohos 目录
  • 单击 File > Project Structure > Project > Signing Configs 界面勾选 Automatically generate signature,等待自动签名完成即可,单击 OK
  • 查看 build-profile.json5 配置信息,配置信息中增加自动签名生成的证书信息。

鸿蒙 Flutter 插件

现阶段 Flutter 适配工作主要集中在鸿蒙原生插件的适配。下面介绍一下已知完成适配的插件。

flutter_packages

OpenHarmony-SIG/flutter_packages (gitee.com) 是适配官方 flutter/packages: A collection of useful packages maintained by the Flutter team (github.com) 仓库。

引用方式例子如下:

dependencies:
  path_provider:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_packages.git"
      path: "packages/path_provider/path_provider"
path_provider2.1.1官方库11月30日gitee.com/openharmony…
shared_preferences2.2.1官方库11月30日gitee.com/openharmony…
url_launcher6.1.11官方库11月30日gitee.com/openharmony…
image_picker1.0.4官方库12月30日gitee.com/openharmony…
local_auth2.1.6官方库12月30日gitee.com/openharmony…
pigeon11.0.1官方库12月30日gitee.com/openharmony…
webview_flutter4.2.4、4.4.4官方库12月30日gitee.com/openharmony…
video_player2.7.2官方库3月30日gitee.com/openharmony…
file_selector1.0.1官方库12月30日gitee.com/openharmony…
camera0.10.5官方库3月30日gitee.com/openharmony…

plus 插件

[Request]: support HarmonyOS · Issue #2480 · fluttercommunity/plus_plugins (github.com) 作者对于适配鸿蒙平台兴趣不大,所以这里决定 HarmonyCandies (github.com) 来维护。

wakelock_plus_ohos

地址:github.com/HarmonyCand…

引用:

dependencies:
  wakelock_plus: 1.1.4
  wakelock_plus_ohos: any

device_info_plus_ohos

地址:github.com/HarmonyCand…

引用:

dependencies:
  device_info_plus: any
  device_info_plus_ohos: any

注意,有 2uid 是系统级别的,需要应用单独申请。

  /// Requires permission: ohos.permission.sec.ACCESS_UDID (System permission, only open to system apps).
  /// Device serial number.
  /// 设备序列号。
  final String serial;

  /// Requires permission: ohos.permission.sec.ACCESS_UDID (System permission, only open to system apps).
  /// Device Udid.
  /// 设备Udid。
  final String udid;

使用

import 'package:device_info_plus_ohos/device_info_plus_ohos.dart';

final DeviceInfoOhosPlugin deviceInfoOhosPlugin = DeviceInfoOhosPlugin();

OhosDeviceInfo deviceInfo = await deviceInfoOhosPlugin.ohosDeviceInfo;

// Requires permission: ohos.permission.sec.ACCESS_UDID (System permission, only open to system apps).
OhosAccessUDIDInfo accessUDIDInfo = await deviceInfoOhosPlugin.ohosAccessUDIDInfo;

network_info_plus_ohos

地址:github.com/HarmonyCand…

引用:

dependencies:
  network_info_plus: any
  network_info_plus_ohos: any

在你的项目的 module.json5 文件中增加以下权限设置。

    requestPermissions: [
      {"name" :  "ohos.permission.INTERNET"},
      {"name" :  "ohos.permission.GET_WIFI_INFO"},
    ],

sensors_plus_ohos

地址:github.com/HarmonyCand…

引用:

dependencies:
  sensors_plus: 4.0.2
  sensors_plus_ohos: any

在你的项目的 module.json5 文件中增加以下权限设置。

    requestPermissions: [
      {"name" :  "ohos.permission.ACCELEROMETER"},
      {"name" :  "ohos.permission.GYROSCOPE"},
    ],

connectivity_plus_ohos

地址:github.com/HarmonyCand…

引用:

dependencies:
  connectivity_plus: 5.0.2
  connectivity_plus_ohos: any

在你的项目的 module.json5 文件中增加以下权限设置。

    requestPermissions: [
      {"name" :  "ohos.permission.INTERNET"},
      {"name" :  "ohos.permission.GET_NETWORK_INFO"},
    ],

battery_plus_ohos

地址:github.com/HarmonyCand…

引用:

dependencies:
  battery_plus: 5.0.3
  battery_plus_ohos: any

package_info_plus_ohos

地址:github.com/HarmonyCand…

引用:

dependencies:
  package_info_plus: 4.2.0
  package_info_plus_ohos: any

糖果插件

flutter_image_compress

地址:github.com/fluttercand…

引用:

dependencies:
  flutter_image_compress: ^2.2.0
FeatureAndroidiOSWebmacOSOpenHarmony
method: compressWithList
method: compressAssetImage
method: compressWithFile
method: compressAndGetFile
format: jpeg
format: png
format: webp[🌐][webp-compatibility]
format: heic
param: quality[🌐][webp-compatibility]
param: rotate
param: keepExif

flutter_image_editor

地址:github.com/fluttercand…

引用:

dependencies:
  image_editor: ^2.2.0
FeatureAndroidiOSOpenHarmony
flip
crop
rotate
scale
matrix
mix image
merge multi image
draw point
draw line
draw rect
draw circle
draw path
draw Bezier
Gaussian blur

flutter_photo_manager

注意,由于隐私设计的变更,该插件没法在后续的版本中使用了,鸿蒙将不再支持直接获取相册的图片文件。

地址:github.com/fluttercand…

引用:

注意 photo_manager_image_provider 需要限制一下版本。

dependencies:
  photo_manager: ^3.1.0
dependency_overrides:
  photo_manager_image_provider: ^1.1.1

暂时支持下面的功能,目前鸿蒙只支持图片和视频 2 种资源类型。

FeatureOpenHarmony
getAssetPathList
getAssetCountFromPath
fetchPathProperties
getAssetCount
getAssetListPaged
getOriginBytes
getThumb
getAssetListRange
getAssetsByRange
deleteWithIds
getColumnNames
saveImage
saveImageWithPath
saveVideo
requestPermissionExtend
ignorePermissionCheck
log
notify

其他插件

permission_handler_ohos

地址:github.com/HarmonyCand…

引用:

dependencies:
 permission_handler_ohos: any

权限列表来自: gitee.com/openharmony…

注意

由于 OpenHarmonyHarmonyOS 的权限差异以及鸿蒙版本的高速迭代,检查请求权限的 api 是传递的权限的字符串全称,如果你发现 PermissionOhos 枚举中没有某个权限,你可以直接传递权限的字符串全称。等鸿蒙版本稳定下来了,会再同步权限列表到枚举中。

权限枚举列表是由文档自动生成的。

// GENERATED CODE - DO NOT MODIFY MANUALLY
// **************************************************************************
// Auto generated by https://github.com/HarmonyCandies/permission_handler_ohos/bin/main.dart
// **************************************************************************
// https://gitee.com/openharmony/docs/blob/OpenHarmony-4.1-Release/zh-cn/application-dev/security/AccessToken/permissions-for-all.md
// ignore_for_file: constant_identifier_names,slash_for_doc_comments

/// The Permissions of OpenHarmony
/// total: 44
enum PermissionOhos {
  /// ohos.permission.USE_BLUETOOTH
  ///
  /// 允许应用查看蓝牙的配置。
  ///
  /// 权限级别:normal
  ///
  /// 授权方式:system_grant
  ///
  /// ACL使能:true
  ///
  /// 起始版本:8

  use_bluetooth(
    name: 'ohos.permission.USE_BLUETOOTH',
    permissionLevel: 'normal',
    grantType: 'system_grant',
    aclEnabled: true,
    startVersion: 8,
  ),
使用

请认真阅读官方关于权限的文档 gitee.com/openharmony…

在你的项目的 module.json5 文件中增加对应需要权限设置,比如:

    requestPermissions: [
      { name: "ohos.permission.READ_CALENDAR" },
      { name: "ohos.permission.WRITE_CALENDAR" },
    ],
例子

检查权限状态

import 'package:device_info_plus_ohos/device_info_plus_ohos.dart';

    final PermissionStatusOhos status =
        await PermissionHandlerOhos.checkPermissionStatus(
            PermissionOhos.read_calendar.name);

请求单个权限

    final PermissionStatusOhos status =
        await PermissionHandlerOhos.requestPermission(
      PermissionOhos.read_calendar.name,
    );

请求多个权限

    final Map<String, PermissionStatusOhos> statusMap =
        await PermissionHandlerOhos.requestPermissions([
      PermissionOhos.read_calendar.name,
      PermissionOhos.write_calendar.name,
    ]);

打开设置页面

   PermissionHandlerOhos.openAppSettings();

audio_streamer_ohos

地址:github.com/HarmonyCand…

引用:

dependencies:
  audio_streamer: 4.1.1
  audio_streamer_ohos: any

audio_streamer 在 OpenHarmony 平台上的实现

在 OpenHarmony 项目的 module.json 文件中添加 ohos.permission.MICROPHONE 权限

{
  "module": {
    "requestPermissions": [
      {
        "name": "ohos.permission.MICROPHONE",
        "reason": "Microphone permission is required to record audio."
      }
    ]
  }
}

geolocator

地址: HarmonyCandies/geolocator_ohos: The OpenHarmony implementation of geolocator. (github.com)

引用:

dependencies:
  geolocator: any
  geolocator_ohos: ^0.0.1

在你的项目的 module.json5 文件中增加以下权限设置。

    "requestPermissions": [
      {"name" :  "ohos.permission.KEEP_BACKGROUND_RUNNING"},
      {
        "name": "ohos.permission.LOCATION",
        "reason": "$string:EntryAbility_label",
        "usedScene": {
          "abilities": [
            "EntryAbility"
          ],
          "when": "inuse"
        }
      },
      {
        "name": "ohos.permission.APPROXIMATELY_LOCATION",
        "reason": "$string:EntryAbility_label",
        "usedScene": {
          "abilities": [
            "EntryAbility"
          ],
          "when": "inuse"
        }
      },
      {
        "name": "ohos.permission.LOCATION_IN_BACKGROUND",
        "reason": "$string:EntryAbility_label",
        "usedScene": {
          "abilities": [
            "EntryAbility"
          ],
          "when": "inuse"
        }
      },
    ]

鸿蒙特有的方法

CountryCode? countryCode= await geolocatorOhos.getCountryCode();

(逆)地理编码转化

    final position = await geolocatorOhos.getCurrentPosition(
      locationSettings: const CurrentLocationSettingsOhos(
        priority: LocationRequestPriority.firstFix,
        scenario: LocationRequestScenario.unset,
      ),
    );

    // ohos only
    if (await geolocatorOhos.isGeocoderAvailable()) {
      //
      var addresses = await geolocatorOhos.getAddressesFromLocation(
        ReverseGeoCodeRequest(
          latitude: position.latitude,
          longitude: position.longitude,
          locale: 'zh',
          maxItems: 1,
        ),
      );

      for (var address in addresses) {
        if (kDebugMode) {
          print('ReverseGeoCode address:$address');
        }
        var position = await geolocatorOhos.getAddressesFromLocationName(
          GeoCodeRequest(description: address.placeName ?? ''),
        );
        if (kDebugMode) {
          print('geoCode position:$position');
        }
      }
    }

vibration

地址:flutter_vibration/vibration_ohos at master · benjamindean/flutter_vibration (github.com)

引用:

dependencies:
  vibration: any
  vibration_ohos: any

在你的项目的 module.json5 文件中增加以下权限设置。

    "requestPermissions": [
         {"name" :  "ohos.permission.VIBRATE"},
    ]

vibrateEffect and vibrateAttribute are only exist in VibrationOhos.

 (VibrationPlatform.instance as VibrationOhos).vibrate(
   vibrateEffect: const VibratePreset(count: 100),
   vibrateAttribute: const VibrateAttribute(
     usage: 'alarm',
   ),
 );

sqflite

地址:gitee.com/openharmony…

引用:

dependencies:
  sqflite:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_sqflite.git"
      path: "sqflite"

fluttertoast

地址:gitee.com/openharmony…

引用:

dependencies:
  fluttertoast:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_fluttertoast.git"

audio_session

地址:gitee.com/openharmony…

引用:

dependencies:
  audio_session:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_audio_session.git"

flutter_sound

地址:gitee.com/openharmony…

引用:

dependencies:
  flutter_sound:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_sound.git"
      path: "flutter_sound"

image_gallery_saver

地址:gitee.com/openharmony…

引用:

dependencies:
  image_gallery_saver:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_image_gallery_saver.git"

location

地址:gitee.com/openharmony…

引用:

dependencies:
  location:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_location.git"
      path: "location"

power_image

地址:gitee.com/openharmony…

引用:

dependencies:
  power_image:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_power_image.git"

flutter_native_image

地址:gitee.com/openharmony…

引用:

dependencies:
  flutter_native_image:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_native_image.git"

audioplayers

地址:gitee.com/openharmony…

引用:

dependencies:
  audioplayers:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_audioplayers.git"

image_crop

地址:gitee.com/openharmony…

引用:

dependencies:
  image_crop:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_image_crop.git"

bitmap

地址:gitee.com/openharmony…

引用:

dependencies:
  bitmap:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_bitmap.git"

leak_detector

地址:gitee.com/openharmony…

引用:

dependencies:
  leak_detector:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_leak_detector.git"

flutter_contacts

地址:gitee.com/openharmony…

引用:

dependencies:
  flutter_contacts:
    git:
      url: "https://gitee.com/openharmony-sig/flutter_contacts.git"

编写插件注意事项

关于鸿蒙的 context

在制作插件中,你可能需要用到 2context

ApplicationContex

你可以直接从 onAttachedToEngine 方法中获取。

  private context: Context | null = null;

  onAttachedToEngine(binding: FlutterPluginBinding): void {
    this.context = binding.getApplicationContext();
  }

  onDetachedFromEngine(binding: FlutterPluginBinding): void {
    this.context = null;
  }

context 可以用于获取 applicationInfo 等属性。

let applicationInfo = this.context.applicationInfo;

UIAbilityContext

插件继承 AbilityAware 并且在 onAttachedToAbility 方法中获取。


export default class XXXPlugin implements FlutterPlugin, MethodCallHandler, AbilityAware {
  private _uiContext: common.UIAbilityContext | null = null;

  onAttachedToAbility(binding: AbilityPluginBinding): void {
    this._uiContext = binding.getAbility().context;
  }

  onDetachedFromAbility(): void {
    this._uiContext = null;
  }
}

uiContext 可以用于获取 applicationInfo 等属性。

photoAccessHelper.getPhotoAccessHelper(PhotoManagerPlugin.uiContext);

关于插件参数传递

按照以前的习惯,dart 端传递 map 参数,原生端根据 map 解析参数。

但由于 ts 支持将字符串直接转换成对应的 interface ,那么我们可以将 dart 的端的参数。

参数定义

比如 geolocator_ohos 中的 CurrentLocationSettingsOhosdart 端的实现为如下:

  Map<String, dynamic> toMap() {
    return {
      if (priority != null) 'priority': priority?.toInt(),
      if (scenario != null) 'scenario': scenario?.toInt(),
      if (maxAccuracy != null) 'maxAccuracy': maxAccuracy,
      if (timeoutMs != null) 'timeoutMs': timeoutMs,
    };
  }

  @override
  String toString() {
    return jsonEncode(toMap());
  }

而在鸿蒙原生端,对于的 interfaceCurrentLocationRequest

export interface CurrentLocationRequest {
    priority?: LocationRequestPriority;
    scenario?: LocationRequestScenario;
    maxAccuracy?: number;
    timeoutMs?: number;
}

值得注意的是,如果参数为 null,不要传递过去,比如 'priority': null , 如果传递过去,鸿蒙原生端会解析错误。不传递过去的话,会解析为 undefined,这也对应了 priority?: LocationRequestPriority 可选的意思。

可以使用 chatgpt 直接将鸿蒙的 interface 转换成 dart 的类,并且增加 toMapfromMap,和注释。

插件传递

dart 端,将参数类以字符串的方式传递过去,并且用字符串的方式接受返回值。

  @override
  Future<Position> getCurrentPosition({
    LocationSettings? locationSettings,
    String? requestId,
  }) async {
    assert(
      locationSettings == null ||
          locationSettings is CurrentLocationSettingsOhos,
      'locationSettings should be CurrentLocationSettingsOhos',
    );

    try {
      final Duration? timeLimit = locationSettings?.timeLimit;

      Future<dynamic> positionFuture =
          GeolocatorOhos._methodChannel.invokeMethod(
        'getCurrentPosition',
        locationSettings?.toString(),
      );

      if (timeLimit != null) {
        positionFuture = positionFuture.timeout(timeLimit);
      }

      return PositionOhos.fromString(await positionFuture);
    }
  }

在鸿蒙端, 将字符串直接转换成鸿蒙对应的 interface

let request: geoLocationManager.CurrentLocationRequest = JSON.parse(args);

并且将要返回的 interface 转换成字符串。

result.success(JSON.stringify(location));

当然了,这样有个问题,就是如果鸿蒙端修改了 interface 的属性名字,插件很难感知到(当然会报错)。

纯 Flutter 库

extended_text

dependencies:
  extended_text: 10.0.1-ohos // 适配 3.7.12
  extended_text: 13.0.2      // 适配 3.22.0

extended_text_field

dependencies:
  extended_text_field: 11.0.1-ohos // 适配 3.7.12
  extended_text_field: 15.0.0-ohos // 适配 3.22.0

flutter_platform_utils

HarmonyCandies/flutter_platform_utils: A utility to check the platform for ohos (github.com)

如果您的库支持 OpenHarmony 平台,并且有 Platform.isOhos 的判断,那么建议换成 PlatformUtils.isOhos 避免对其他非鸿蒙用户在非鸿蒙分支编译的影响。

结语

独行快,众行远,加入鸿蒙正当时。

随着鸿蒙商店里面的应用越来越多,还在观望的你,与其犹豫不决,还不如笃定前行。

作为开发者,我们曾经骂过微软,骂过谷歌,骂过苹果,但这些抱怨其实源于我们对它们的期望,希望它们变得更好。同样的,鸿蒙也是如此。

最后,鸿蒙原生,启动!



鸿蒙,爱糖果,欢迎加入Harmony Candies,一起生产可爱的鸿蒙小糖果QQ群:981630644


相关链接

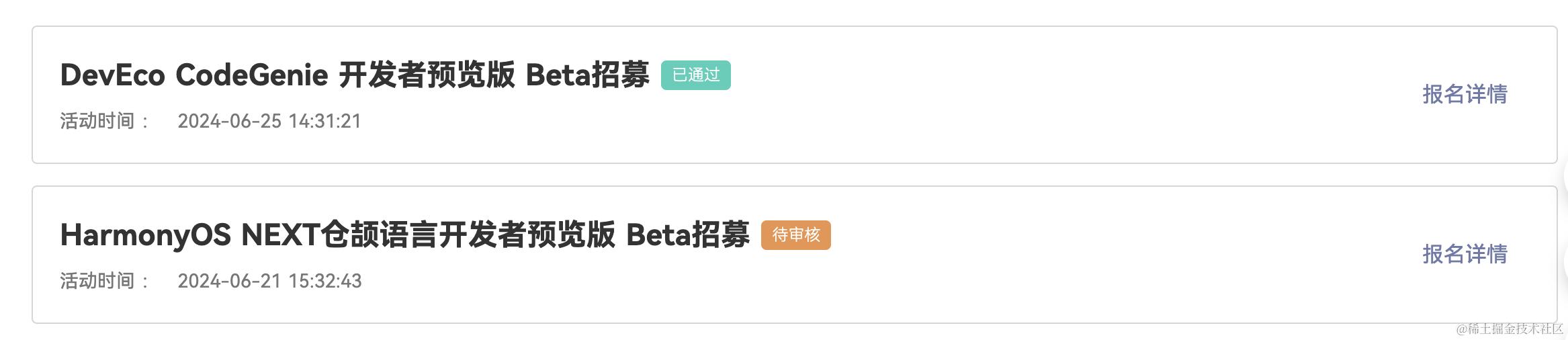

截屏2024-06-26 17.04.17.png
