docker、kubesphere 部署skywalking

docker部署

skywalking持久化

本文使用mysql持久化，需要将mysql-connector-java.jar（根据各自版本下载）上传skywalking-oap容器内部/skywalking/oap-libs/目录下。

docker-compose.yml

version: '3'
services:
  m_oap:
    image: apache/skywalking-oap-server:8.9.0
    container_name: m_oap
    restart: unless-stopped
    ports:
      - 11800:11800 # agent 上报数据的端口，这是 gRPC 端口
      - 12800:12800 # ui 读取数据的端口， 这是 http 端口
    environment:
      - TZ=Asia/Shanghai
      - SW_STORAGE=mysql
      - SW_JDBC_URL="jdbc:mysql://127.0.0.1:3306/skywalking_db"
      - SW_DATA_SOURCE_USER=***
      - SW_DATA_SOURCE_PASSWORD=****
    volumes:
      - ./jar/mysql-connector-j-8.2.0.jar:/skywalking/oap-libs/mysql-connector-j-8.2.0.jar
  m_skywaling-ui:
    image: apache/skywalking-ui:8.9.1
    container_name: ms_ui
    restart: unless-stopped
    depends_on:
      - m_oap
    links:
      - m_oap
    ports:
      - 8088:8080
    #volumes:
    #  - ./uiconfig/webapp.yml:/skywalking/webapp/webapp.yml
    environment:
      - SW_OAP_ADDRESS=http://127.0.0.1:12800
      - TZ=Asia/Shanghai

访问监控ui页面

http://127.0.0.1:8088

下载java agent

官网地址skywalking.apache.org/downloads/，下载java agent并解压

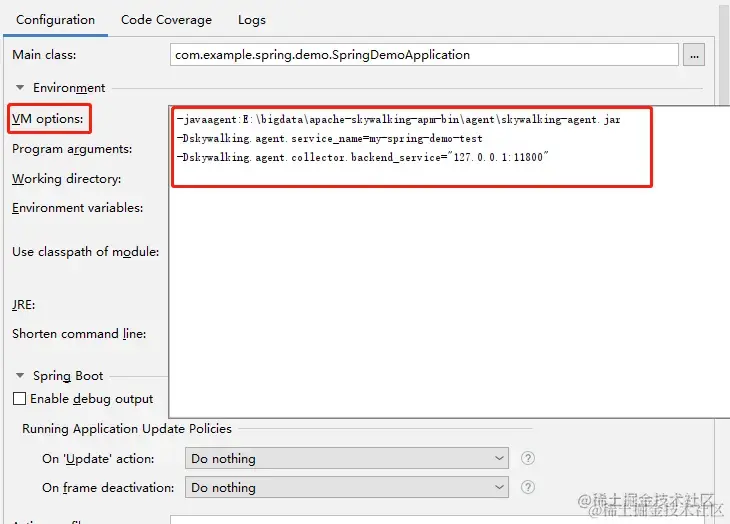

idea内服务配置探针

-javaagent:文件路径

-Dskywalking.agent.service_name=服务名

-Dskywalking.collector.backend_service= skywalking地址

kubesphere 部署skywalking

- 配置字典（ConfigMap）yaml

kind: ConfigMap
apiVersion: v1
metadata:
  name: skywalking-config
  namespace: ****
  annotations:
    kubesphere.io/alias-name: skywalking-config
    kubesphere.io/creator: admin
data:
  SW_DATA_SOURCE_PASSWORD: ***
  SW_DATA_SOURCE_USER: ***
  SW_JDBC_URL: 'jdbc:mysql://127.0.0.1:3306/skywalking_db'
  SW_OAP_ADDRESS: 'http://skywalking-oap-12800.****.svc.cluster.local:12800'
  SW_STORAGE: mysql
  TZ: Asia/Shanghai

创建持久卷，mysql-connector-j-8.2.0.jar 上传到持久卷目录下，挂载到容器内

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: data-grafana
  namespace: cq-test-inside
  annotations:
    kubesphere.io/alias-name: grafana
    kubesphere.io/creator: admin
    pv.kubernetes.io/bind-completed: 'yes'
    pv.kubernetes.io/bound-by-controller: 'yes'
    volume.beta.kubernetes.io/storage-provisioner: test-nfs-storage
  finalizers:
    - kubernetes.io/pvc-protection
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 2Gi
  volumeName: pvc-ab26b967-1139-44dd-af82-cdd99eaacc5e
  storageClassName: managed-nfs-storage
  volumeMode: Filesystem

工作负载yaml

skywalking-server

kind: Deployment
apiVersion: apps/v1
metadata:
  name: skywalking-server
  namespace: ****-test-inside
  labels:
    app: skywalking-server
  annotations:
    deployment.kubernetes.io/revision: '3'
    kubesphere.io/creator: admin
spec:
  replicas: 1
  selector:
    matchLabels:
      app: skywalking-server
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: skywalking-server
      annotations:
        kubesphere.io/creator: admin
        kubesphere.io/imagepullsecrets: '{}'
        logging.kubesphere.io/logsidecar-config: '{}'
    spec:
      volumes:
        - name: volume-pmrvoz
          persistentVolumeClaim:
            claimName: data-grafana
      containers:
        - name: skywalking
          image: '***/skywalking-oap-server:8.9.0'
          ports:
            - name: tcp-11800
              containerPort: 11800
              protocol: TCP
            - name: tcp-12800
              containerPort: 12800
              protocol: TCP
          env:
            - name: SW_DATA_SOURCE_PASSWORD
              valueFrom:
                configMapKeyRef:
                  name: skywalking-config
                  key: SW_DATA_SOURCE_PASSWORD
            - name: SW_DATA_SOURCE_USER
              valueFrom:
                configMapKeyRef:
                  name: skywalking-config
                  key: SW_DATA_SOURCE_USER
            - name: SW_JDBC_URL
              valueFrom:
                configMapKeyRef:
                  name: skywalking-config
                  key: SW_JDBC_URL
            - name: SW_STORAGE
              valueFrom:
                configMapKeyRef:
                  name: skywalking-config
                  key: SW_STORAGE
            - name: TZ
              valueFrom:
                configMapKeyRef:
                  name: skywalking-config
                  key: TZ
          resources:
            limits:
              cpu: '1'
              memory: 2Gi
            requests:
              cpu: 500m
              memory: 1Gi
          volumeMounts:
            - name: volume-pmrvoz
              mountPath: skywalking/oap-libs/mysql-connector-j-8.2.0.jar
              subPath: mysql-connector/mysql-connector-j-8.2.0.jar
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          imagePullPolicy: IfNotPresent
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      dnsPolicy: ClusterFirst
      serviceAccountName: default
      serviceAccount: default
      securityContext: {}
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
  revisionHistoryLimit: 10
  progressDeadlineSeconds: 600

skywalking-ui-server

kind: Deployment
apiVersion: apps/v1
metadata:
  name: skywaling-ui-server
  namespace: ****-test-inside
  labels:
    app: skywaling-ui-server
  annotations:
    deployment.kubernetes.io/revision: '2'
    kubesphere.io/creator: admin
spec:
  replicas: 1
  selector:
    matchLabels:
      app: skywaling-ui-server
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: skywaling-ui-server
      annotations:
        kubesphere.io/creator: admin
        kubesphere.io/imagepullsecrets: '{}'
    spec:
      containers:
        - name: skywalking-ui
          image: '******/skywalking-ui:8.9.1'
          ports:
            - name: tcp-8080
              containerPort: 8080
              protocol: TCP
          env:
            - name: SW_OAP_ADDRESS
              valueFrom:
                configMapKeyRef:
                  name: skywalking-config
                  key: SW_OAP_ADDRESS
            - name: TZ
              valueFrom:
                configMapKeyRef:
                  name: skywalking-config
                  key: TZ
          resources:
            limits:
              cpu: '1'
              memory: 2Gi
            requests:
              cpu: 500m
              memory: 1Gi
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          imagePullPolicy: Always
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      dnsPolicy: ClusterFirst
      serviceAccountName: default
      serviceAccount: default
      securityContext: {}
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
  revisionHistoryLimit: 10
  progressDeadlineSeconds: 600

配置服务（service），外部访问端口

kind: Service
apiVersion: v1
metadata:
  name: skywalking-ui-18088
  namespace: ****-test-inside
  labels:
    app: skywalking-ui-18088
  annotations:
    kubesphere.io/creator: admin
spec:
  ports:
    - name: http-18088
      protocol: TCP
      port: 8080
      targetPort: 8080
      nodePort: 32741
  selector:
    app: skywaling-ui-server
  clusterIP: 10.96.0.168
  clusterIPs:
    - 10.96.0.168
  type: NodePort
  sessionAffinity: None
  externalTrafficPolicy: Cluster
  ipFamilies:
    - IPv4
  ipFamilyPolicy: SingleStack
  internalTrafficPolicy: Cluster

kind: Service
apiVersion: v1
metadata:
  name: skywalking-oap-12800
  namespace: ****-test-inside
  labels:
    app: skywalking-oap-12800
  annotations:
    kubesphere.io/creator: admin
spec:
  ports:
    - name: http-12800
      protocol: TCP
      port: 12800
      targetPort: 12800
      nodePort: 30631
    - name: http-11800
      protocol: TCP
      port: 11800
      targetPort: 11800
      nodePort: 30557
  selector:
    app: skywalking-server
  clusterIP: 10.96.3.92
  clusterIPs:
    - 10.96.3.92
  type: NodePort
  sessionAffinity: None
  externalTrafficPolicy: Cluster
  ipFamilies:
    - IPv4
  ipFamilyPolicy: SingleStack
  internalTrafficPolicy: Cluster

业务服务添加java agent，业务负载启动时初始化javaagent，挂载容器文件

kind: Deployment
apiVersion: apps/v1
metadata:
  name: mmmm-server
  namespace: hh-test-inside
  labels:
    app: mmmm-server
  annotations:
    deployment.kubernetes.io/revision: '45'
    kubectl.kubernetes.io/last-applied-configuration: >
      {"apiVersion":"apps/v1","kind":"Deployment","metadata":{"annotations":{"deployment.kubernetes.io/revision":"4","kubesphere.io/creator":"allcore"},"labels":{"app":"mmmm-server"},"name":"mmmm-server","namespace":"hh-test-inside"},"spec":{"progressDeadlineSeconds":600,"replicas":1,"revisionHistoryLimit":10,"selector":{"matchLabels":{"app":"mmmm-server"}},"strategy":{"rollingUpdate":{"maxSurge":"25%","maxUnavailable":"25%"},"type":"RollingUpdate"},"template":{"metadata":{"annotations":{"kubesphere.io/restartedAt":"2023-03-06T04:13:39.843Z"},"labels":{"app":"mmmm-server"}},"spec":{"containers":[{"env":[{"name":"NACOS_CONFIG","valueFrom":{"configMapKeyRef":{"key":"NACOS_CONFIG","name":"common-conf"}}},{"name":"NACOS_DISCOVERY","valueFrom":{"configMapKeyRef":{"key":"NACOS_DISCOVERY","name":"common-conf"}}},{"name":"NACOS_NAMESPACE","valueFrom":{"configMapKeyRef":{"key":"NACOS_NAMESPACE","name":"common-conf"}}},{"name":"SPRING_PROFILES_ACTIVE","valueFrom":{"configMapKeyRef":{"key":"SPRING_PROFILES_ACTIVE","name":"common-conf"}}},{"name":"TZ","valueFrom":{"configMapKeyRef":{"key":"TZ","name":"common-conf"}}},{"name":"JAVA_OPTS","value":"-Xmx512m
      -Xms512m -Xmn256m -XX:MaxMetaspaceSize=256M -XX:MetaspaceSize=128M
      -XX:+PrintGC -XX:+PrintGCDetails -XX:+PrintGCDateStamps
      -XX:+HeapDumpOnOutOfMemoryError
      -XX:+UseG1GC"}],"image":"zhmg.io/hhffh3.0.0/mmmm-server:2.0.0.RELEASE","imagePullPolicy":"Always","name":"container-mmmm-server","ports":[{"containerPort":18096,"name":"tcp-18096","protocol":"TCP"}],"resources":{"limits":{"cpu":"500m","memory":"1024Mi"},"requests":{"cpu":"200m","memory":"256Mi"}},"terminationMessagePath":"/dev/termination-log","terminationMessagePolicy":"File","volumeMounts":[{"mountPath":"/etc/localtime","name":"host-time","readOnly":true}]}],"dnsPolicy":"ClusterFirstWithHostNet","hostNetwork":false,"imagePullSecrets":[{"name":"docker-harbor"}],"restartPolicy":"Always","schedulerName":"default-scheduler","securityContext":{},"serviceAccount":"default","serviceAccountName":"default","terminationGracePeriodSeconds":30,"volumes":[{"hostPath":{"path":"/etc/localtime","type":""},"name":"host-time"}]}}}}
    kubesphere.io/creator: allcore
spec:
  replicas: 1
  selector:
    matchLabels:
      app: mmmm-server
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: mmmm-server
      annotations:
        kubesphere.io/imagepullsecrets: '{}'
        kubesphere.io/restartedAt: '2024-06-12T06:29:18.297Z'
        logging.kubesphere.io/logsidecar-config: '{}'
    spec:
      volumes:
        - name: host-time
          hostPath:
            path: /etc/localtime
            type: ''
        - name: skywalking-agent
          emptyDir: {}
      initContainers:
        - name: agent-container
          image: 'apache/skywalking-java-agent:8.5.0-alpine'
          command:
            - /bin/sh
          args:
            - '-c'
            - cp -R /skywalking/agent /agent/
          resources: {}
          volumeMounts:
            - name: skywalking-agent
              mountPath: /agent
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          imagePullPolicy: IfNotPresent
      containers:
        - name: container-mmmm-server
          image: 'zhmg.io/hhffh3.0.0/mmmm-server:2.0.0.RELEASE'
          ports:
            - name: tcp-18096
              containerPort: 18096
              protocol: TCP
          env:
            - name: NACOS_CONFIG
              valueFrom:
                configMapKeyRef:
                  name: common-conf
                  key: NACOS_CONFIG
            - name: NACOS_DISCOVERY
              valueFrom:
                configMapKeyRef:
                  name: common-conf
                  key: NACOS_DISCOVERY
            - name: NACOS_NAMESPACE
              valueFrom:
                configMapKeyRef:
                  name: common-conf
                  key: NACOS_NAMESPACE
            - name: SPRING_PROFILES_ACTIVE
              valueFrom:
                configMapKeyRef:
                  name: common-conf
                  key: SPRING_PROFILES_ACTIVE
            - name: TZ
              valueFrom:
                configMapKeyRef:
                  name: common-conf
                  key: TZ
            - name: lokiUrl
              valueFrom:
                configMapKeyRef:
                  name: common-conf
                  key: lokiUrl
            - name: JAVA_OPTS
              value: >-
                -Xmx512m -Xms512m -Xmn256m -XX:MaxMetaspaceSize=256M
                -XX:MetaspaceSize=128M -XX:+PrintGC -XX:+PrintGCDetails
                -XX:+PrintGCDateStamps -XX:+HeapDumpOnOutOfMemoryError
                -XX:+UseG1GC -javaagent:/skywalking/agent/skywalking-agent.jar
                -Dskywalking.agent.service_name=skywalking-mmmm-service
                -Dskywalking.collector.backend_service=skywalking-oap-12800.hh-test-inside.svc.cluster.local:11800
          resources:
            limits:
              cpu: 500m
              memory: 1Gi
            requests:
              cpu: 200m
              memory: 256Mi
          volumeMounts:
            - name: skywalking-agent
              mountPath: /skywalking
            - name: host-time
              readOnly: true
              mountPath: /etc/localtime
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          imagePullPolicy: Always
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      dnsPolicy: ClusterFirstWithHostNet
      serviceAccountName: default
      serviceAccount: default
      securityContext: {}
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
  revisionHistoryLimit: 10
  progressDeadlineSeconds: 600

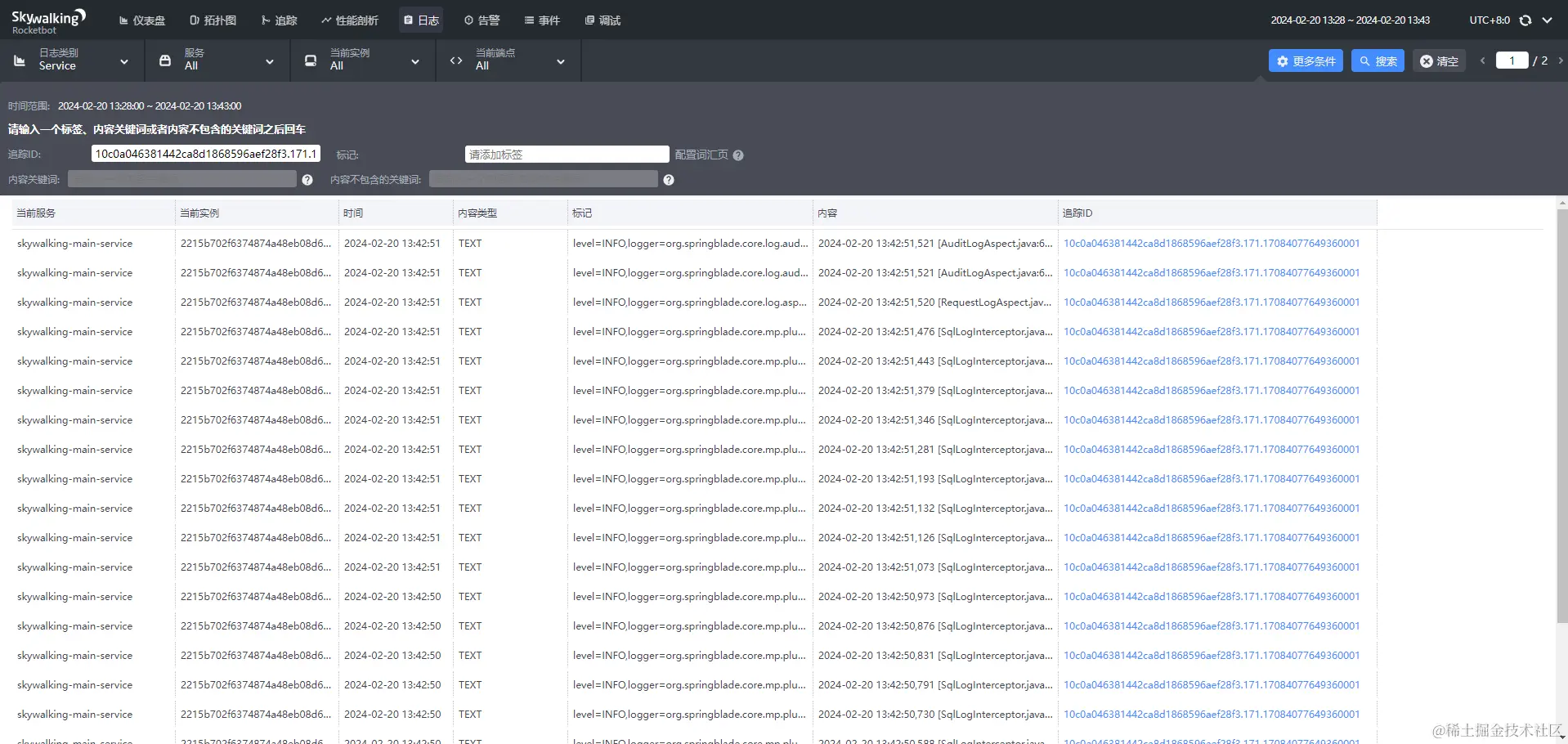

日志logback集成

pom依赖

<!--skywalking日志集成-->
<dependency>
    <groupId>org.apache.skywalking</groupId>
    <artifactId>apm-toolkit-logback-1.x</artifactId>
    <version>8.14.0</version>
</dependency>

<!-- 该引用用于代码获取tranceId -->
<dependency>
    <groupId>org.apache.skywalking</groupId>
    <artifactId>apm-toolkit-trace</artifactId>
    <version>8.14.0</version>
</dependency>
<!--end skywalking集成-->

<!--xml.value解析表达式-->
<dependency>
    <groupId>org.codehaus.janino</groupId>
    <artifactId>janino</artifactId>
    <version>3.0.6</version>
</dependency>

logback.xml

<?xml version="1.0" encoding="UTF-8"?>

<configuration>

    <springProperty scope="context" name="applicationName" source="spring.application.name" defaultValue="demo" />
    <springProperty scope="context" name="loglevel" source="logging.level.root" defaultValue="info" />
<!--    <springProperty name="lokiUrl" scope="context" source="loki.url"/>-->
<!--    # 新增sky日志的开关，yml中配置-->
    <springProperty scope="context" name="skyLogEnable" source="skywalking.log.enable" defaultValue="false"/>
    <!--日志渲染-->
    <conversionRule conversionWord="clr" converterClass="org.springframework.boot.logging.logback.ColorConverter" />
    <conversionRule conversionWord="wex" converterClass="org.springframework.boot.logging.logback.WhitespaceThrowableProxyConverter" />
    <conversionRule conversionWord="wEx" converterClass="org.springframework.boot.logging.logback.ExtendedWhitespaceThrowableProxyConverter" />

    <property name="LOG_PATH" value="logs/${applicationName}"/>
    <property name="MAX_FILE_SIZE" value="10MB"/>
    <property name="MAX_HISTORY" value="30"/>

    <!-- skywalking日志样式 -->
    <property name="SKY_WALKING_PATTERN" value="[%tid] ${SKY_WALKING_PATTERN:-%clr(%d{${LOG_DATEFORMAT_PATTERN:-yyyy-MM-dd HH:mm:ss.SSS}}){faint} %clr(${LOG_LEVEL_PATTERN:-%5p}) %clr(${PID:- }){magenta} %clr(---){faint} %clr([%15.15t]){faint} %clr(%-40.40logger{39} %line){cyan} %clr(:){faint} %m%n${LOG_EXCEPTION_CONVERSION_WORD:-%wEx}}"/>

    <!-- 控制台日志样式 -->
    <property name="CONSOLE_LOG_PATTERN" value="${CONSOLE_LOG_PATTERN:-%d{[${LOG_DATEFORMAT_PATTERN:-yyyy-MM-dd HH:mm:ss.SSS}]}-[${LOG_LEVEL_PATTERN:-%5p}]-[%-30.30logger{29}] : %m%n}"/>
    <!-- 文件日志样式 -->
    <property name="FILE_LOG_PATTERN" value="${FILE_LOG_PATTERN:-%d{[${LOG_DATEFORMAT_PATTERN:-yyyy-MM-dd HH:mm:ss.SSS}]}-[${LOG_LEVEL_PATTERN:-%5p}]-[%-30.30logger{29}] : %m%n}"/>

    <!-- 控制台 -->
    <appender name="CONSOLE" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>${CONSOLE_LOG_PATTERN}</pattern>
        </encoder>
    </appender>

    <!-- debug日志文件 -->
    <appender name="DEBUG_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <encoder>
            <pattern>${FILE_LOG_PATTERN}</pattern>
        </encoder>

        <file>${LOG_PATH}/debug.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>${LOG_PATH}/debug-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <maxFileSize>${MAX_FILE_SIZE}</maxFileSize>
            <maxHistory>${MAX_HISTORY}</maxHistory>
            <cleanHistoryOnStart>true</cleanHistoryOnStart>
        </rollingPolicy>
        <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
            <!-- 过滤的级别 -->
            <level>DEBUG</level>
        </filter>
    </appender>

    <!-- 日志文件 -->
    <appender name="INFO_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <encoder>
            <pattern>${FILE_LOG_PATTERN}</pattern>
        </encoder>

        <file>${LOG_PATH}/info.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>${LOG_PATH}/info-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <maxFileSize>${MAX_FILE_SIZE}</maxFileSize>
            <maxHistory>${MAX_HISTORY}</maxHistory>
            <cleanHistoryOnStart>true</cleanHistoryOnStart>
        </rollingPolicy>
        <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
            <!-- 过滤的级别 -->
            <level>INFO</level>
        </filter>
    </appender>

<!--     错误日志文件 我们在k8s环境下 没必要做错误日志文件 -->
     <appender name="ERROR_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <encoder>
            <pattern>${FILE_LOG_PATTERN}</pattern>
        </encoder>
        <file>${LOG_PATH}/error.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>${LOG_PATH}/error-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <maxFileSize>${MAX_FILE_SIZE}</maxFileSize>
            <maxHistory>${MAX_HISTORY}</maxHistory>
        </rollingPolicy>
        <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
            <!-- 过滤的级别 -->
            <level>INFO</level>
        </filter>
<!--        <filter class="ch.qos.logback.classic.filter.LevelFilter">-->
<!--            <level>ERROR</level>-->
<!--            <onMatch>ACCEPT</onMatch>-->
<!--            <onMismatch>DENY</onMismatch>-->
<!--        </filter>-->
    </appender>

<!--    <appender name="LOKI" class="com.github.loki4j.logback.Loki4jAppender">-->
<!--        <http class="com.github.loki4j.logback.ApacheHttpSender">-->
<!--            <url>${lokiUrl}</url>-->
<!--        </http>-->
<!--        <format>-->
<!--            <label>-->
<!--                <pattern>app=${appName},host=${HOSTNAME},level=%level</pattern>-->
<!--            </label>-->
<!--            <message>-->
<!--                <pattern>l=%level h=${HOSTNAME} c=%logger{20} [%tid] t=%thread | %msg %ex</pattern>-->
<!--            </message>-->
<!--            <sortByTime>true</sortByTime>-->
<!--        </format>-->
<!--    </appender>-->


    <!-- 异步写日志 -->
<!--    <appender name="ASYNC_FILE" class="ch.qos.logback.classic.AsyncAppender">-->
<!--        <discardingThreshold>0</discardingThreshold>-->
<!--        <queueSize>1024</queueSize>-->
<!--        <appender-ref ref ="DEBUG_FILE"/>-->
<!--    </appender>-->
    <!-- <appender name="ASYNC_ERROR_FILE" class="ch.qos.logback.classic.AsyncAppender">
        <discardingThreshold>0</discardingThreshold>
        <queueSize>1024</queueSize>
        <appender-ref ref ="ERROR_FILE"/>
    </appender> -->


    <!-- skywalking控制台 -->
    <appender name="SKY_WALKING_CONSOLE" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.TraceIdPatternLogbackLayout">
                <pattern>${SKY_WALKING_PATTERN}</pattern>
            </layout>
        </encoder>
    </appender>

    <!--推送日志至管理后台-->
    <appender name="GRPC_LOG" class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.log.GRPCLogClientAppender">
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.mdc.TraceIdMDCPatternLogbackLayout">
                <pattern>%date [%file:%line]-%msg%n</pattern>
            </layout>
        </encoder>
        <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
            <level>INFO</level>
        </filter>
    </appender>




    <root level="INFO">
<!--        <appender-ref ref="ASYNC_FILE"/>-->
        <if condition='${skyLogEnable}'> # js表达式
            <then>
                <appender-ref ref="SKY_WALKING_CONSOLE"/>
                <appender-ref ref="GRPC_LOG"/>
            </then>
            <else>
                <appender-ref ref="CONSOLE"/>
            </else>
        </if>
    </root>

    <!-- Spring日志级别控制  -->
    <logger name="com.allcore" level="info">
        <appender-ref ref="INFO_FILE"/>
    </logger>

    <!-- 控制台的日志级别  -->
    <root level="debug">
        <if condition='${skyLogEnable}'> # js表达式
            <then>
                <appender-ref ref="SKY_WALKING_CONSOLE"/>
                <appender-ref ref="GRPC_LOG"/>
            </then>
            <else>
                <appender-ref ref="CONSOLE"/>
            </else>
        </if>
<!--        <appender-ref ref="LOKI" />-->
    </root>

    <!--系统操作日志-->
    <root level="info">
        <appender-ref ref="ERROR_FILE" />
        <appender-ref ref="DEBUG_FILE" />
    </root>

</configuration>

调试

访问服务，拿到日志traceId搜索链路日志，查看链路服务记录响应信息
