问题标题
条形图数值标签右对齐展示
问题描述

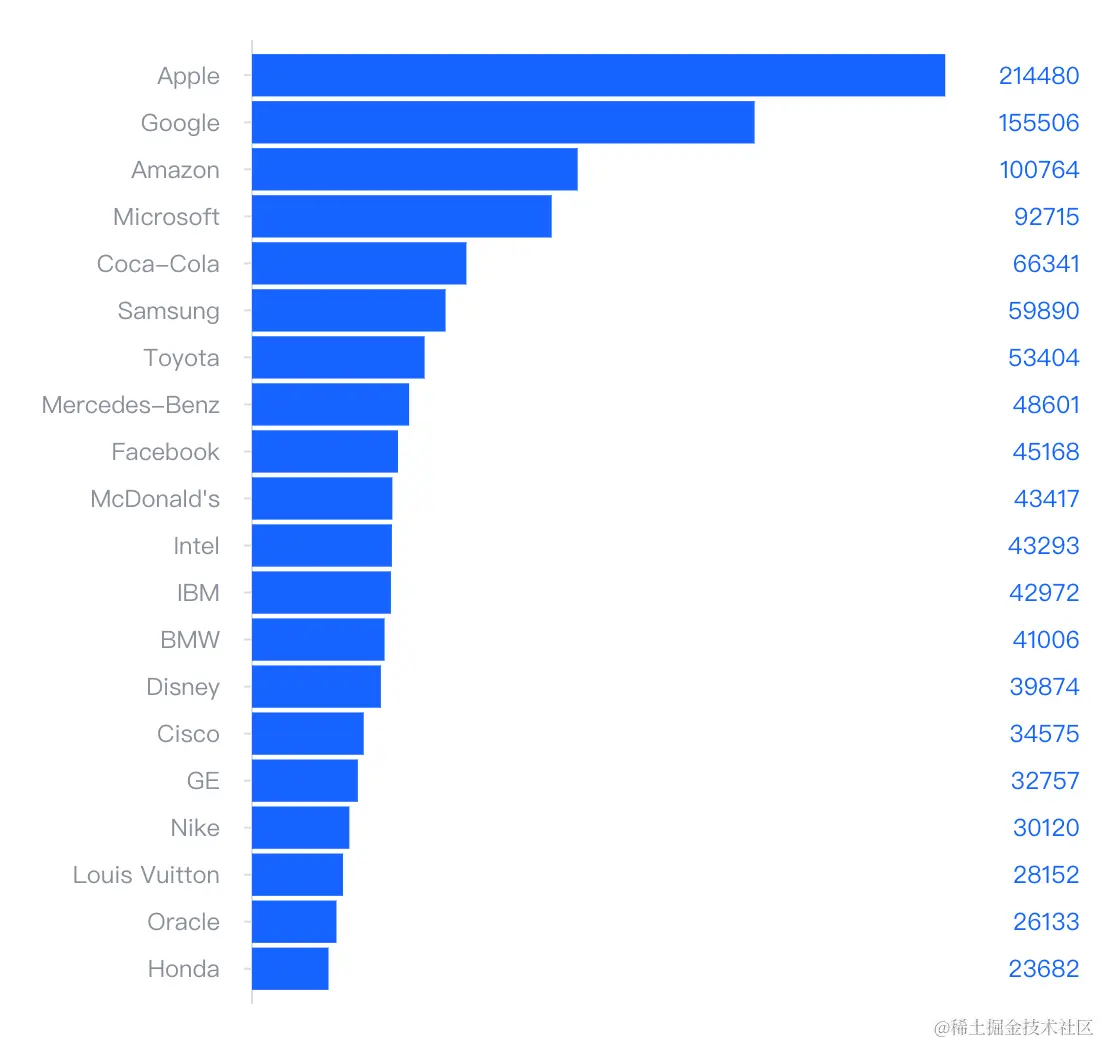

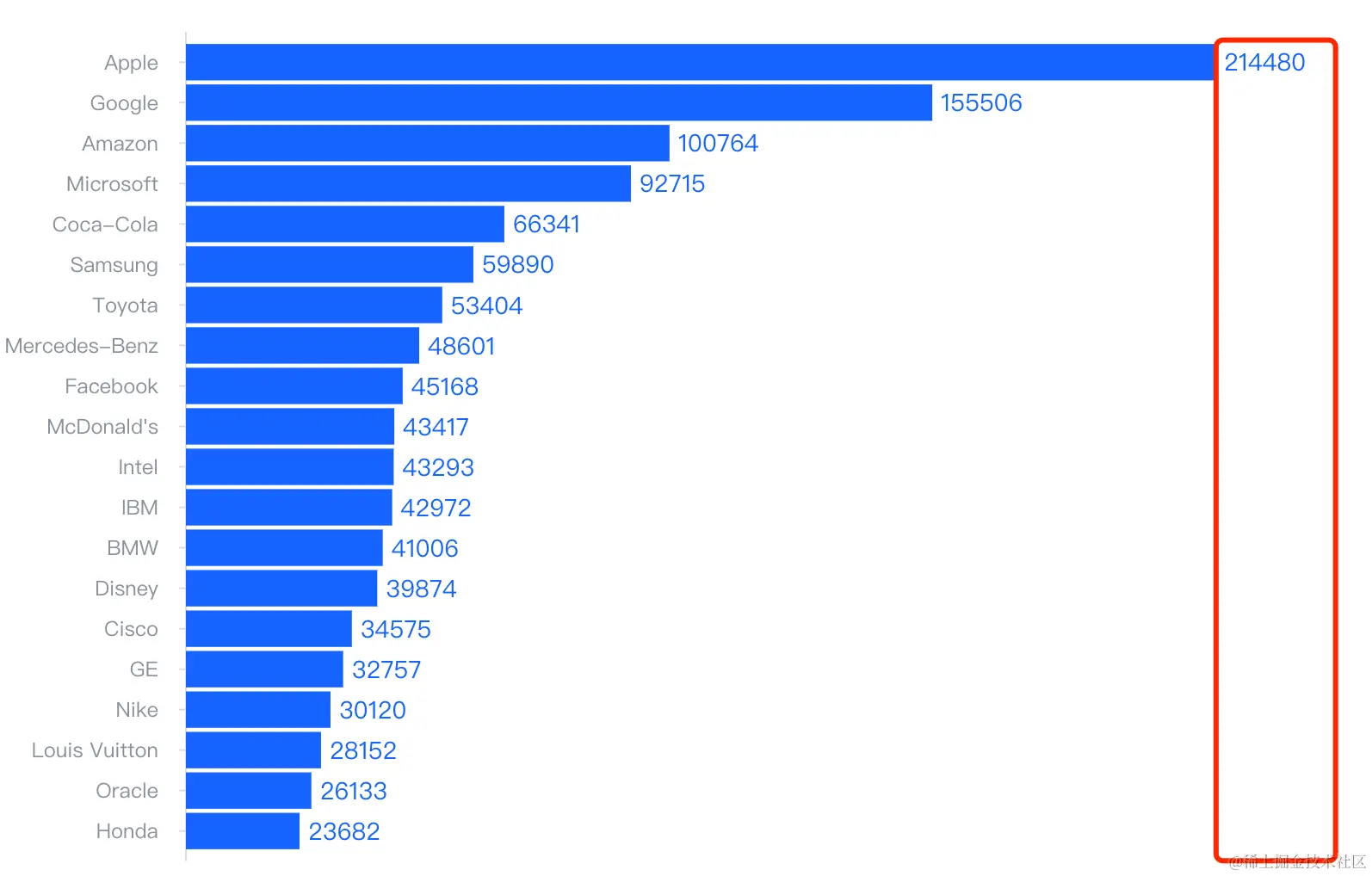

将标签统一展示在右侧，并右对齐
解决方案
可以使用 VChart 提供的 extensionMark 属性，通过自定义图形实现。
代码示例
const spec = {
type: 'bar',
data: [
{
id: 'barData',
values: [
{
name: 'Apple',
value: 214480
},
{
name: 'Google',
value: 155506
},
{
name: 'Amazon',
value: 100764
},
{
name: 'Microsoft',
value: 92715
},
{
name: 'Coca-Cola',
value: 66341
},
{
name: 'Samsung',
value: 59890
},
{
name: 'Toyota',
value: 53404
},
{
name: 'Mercedes-Benz',
value: 48601
},
{
name: 'Facebook',
value: 45168
},
{
name: "McDonald's",
value: 43417
},
{
name: 'Intel',
value: 43293
},
{
name: 'IBM',
value: 42972
},
{
name: 'BMW',
value: 41006
},
{
name: 'Disney',
value: 39874
},
{
name: 'Cisco',
value: 34575
},
{
name: 'GE',
value: 32757
},
{
name: 'Nike',
value: 30120
},
{
name: 'Louis Vuitton',
value: 28152
},
{
name: 'Oracle',
value: 26133
},
{
name: 'Honda',
value: 23682
}
]
}
],
direction: 'horizontal',
xField: 'value',
yField: 'name',
axes: [
{
orient: 'bottom',
visible: false
}
],
label: {
visible: false
},
extensionMark: [
{
type: 'text',
dataId: 'barData',
visible: true,
style: {
text: datum => datum.value,
fontSize: 12,
x: (datum, ctx) => {
return ctx.getRegion().getLayoutRect().width + 10;
},
y: (datum, ctx) => {
return ctx.valueToY([datum.name]) + ctx.yBandwidth() / 2;
},
textBaseline: 'middle',
textAlign: 'right',
fill: "#1664FF",
fontSize: 12
}
}
]
};
const vchart = new VChart(spec, { dom: CONTAINER_ID });
vchart.renderSync();
// Just for the convenience of console debugging, DO NOT COPY!
window['vchart'] = vchart;
