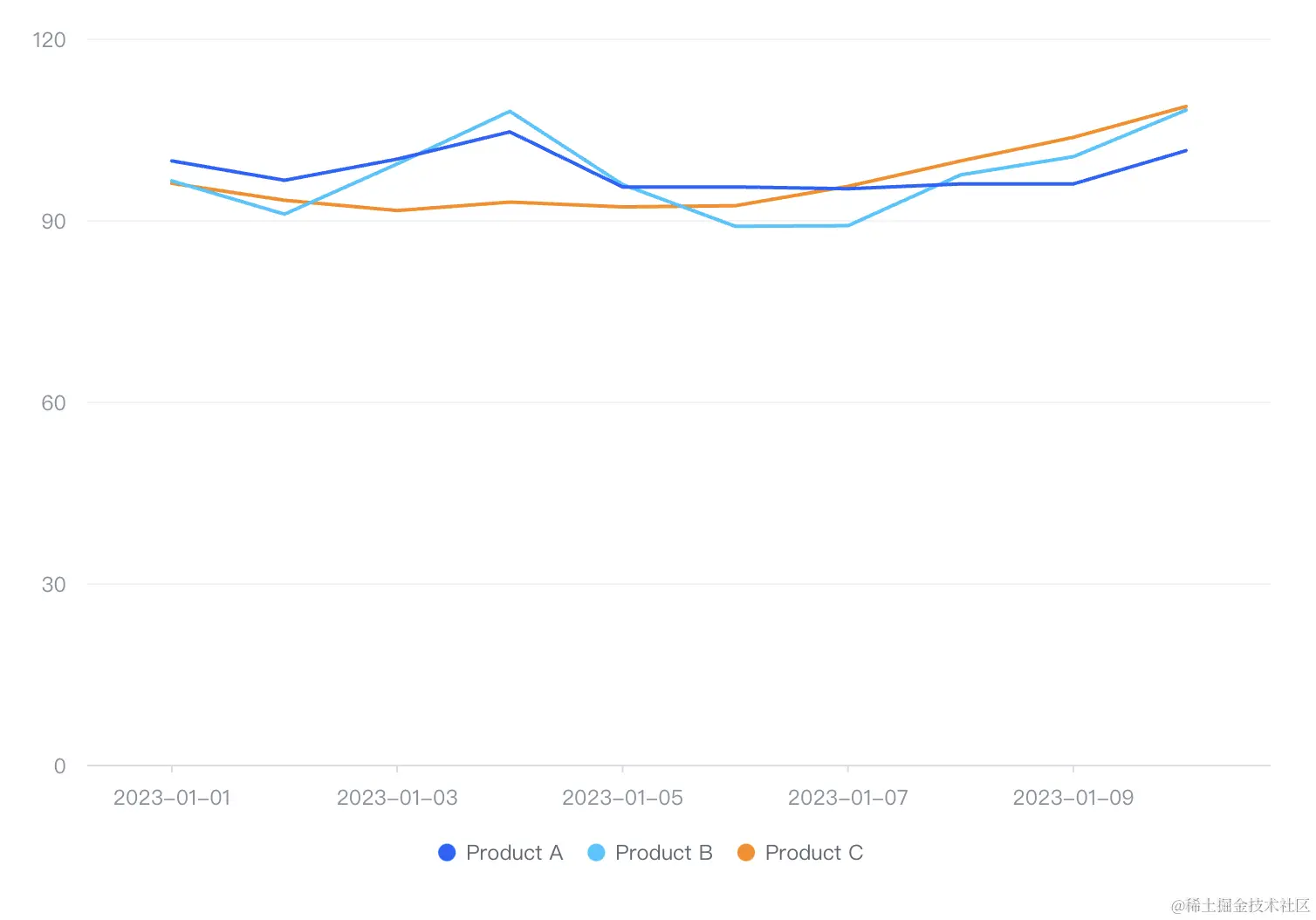

如下图的线图中，怎么使蓝色的线置于顶层呢？
解决方案
线图展示的时候，是根据数据中的分组字段进行分组，分组字段的值出现的最后面的那一分组的层级会比最先出现的分组对应的线层级更高；表现就是上图中的，图例项中最后的一项对应的线，它的层级是最高的；所以想要调整线的层级，有两种方案：
- 根据分组字段，对数据进行排序
- 调整线的
zIndex视觉通道映射
line: {
style: {
lineWidth: 2,
zIndex: (datum) => {
switch(datum.type) {
case 'Product A':
return 3;
case 'Product B':
return 2;
case 'Produce C':
return 1;
}
}
}
},

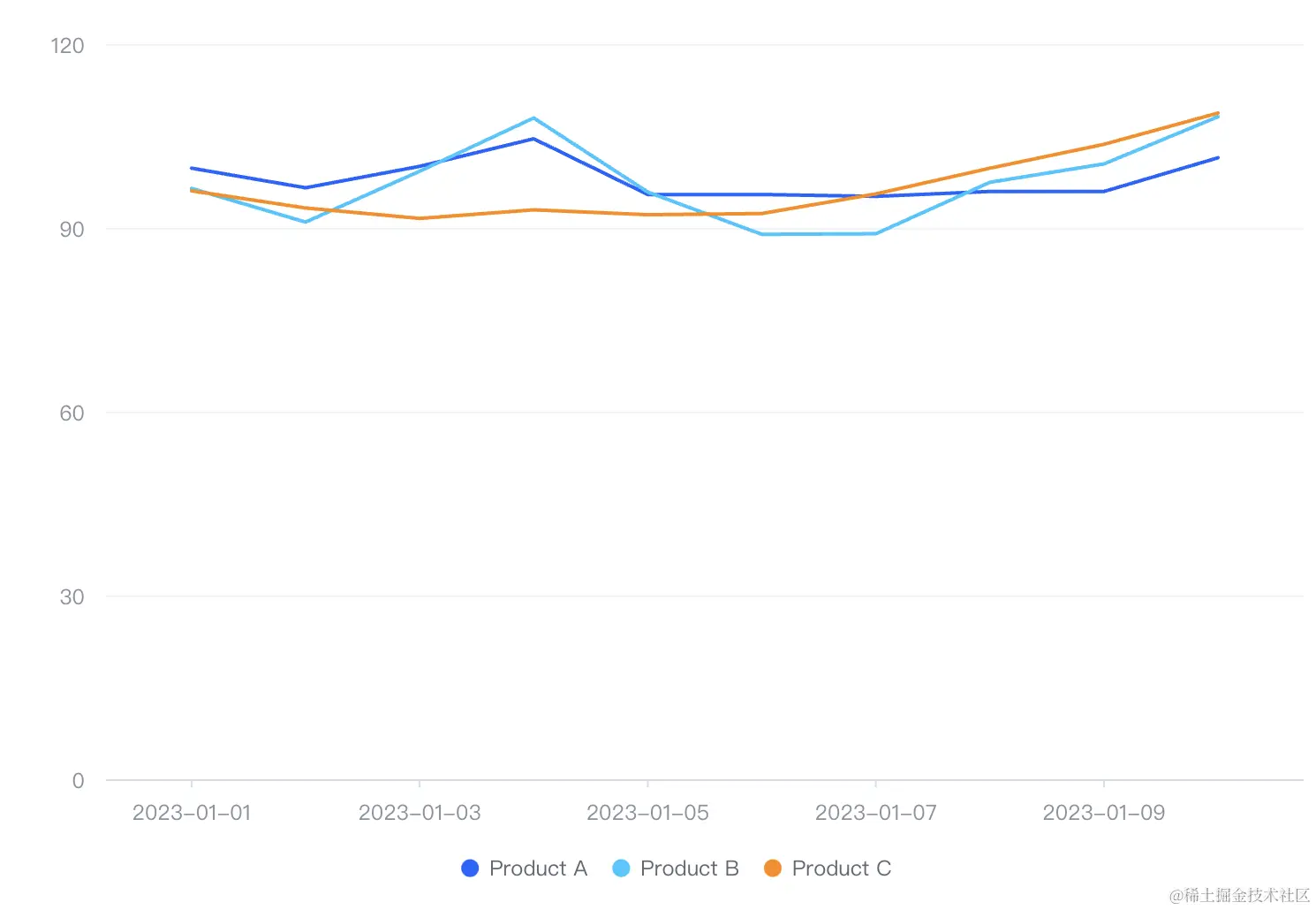

代码示例
const spec = {
type: 'line',
data: {
values: [
{ date: '2023-01-01', type: 'Product A', value: 99.9 },
{ date: '2023-01-01', type: 'Product B', value: 96.6 },
{ date: '2023-01-01', type: 'Product C', value: 96.2 },
{ date: '2023-01-02', type: 'Product A', value: 96.7 },
{ date: '2023-01-02', type: 'Product B', value: 91.1 },
{ date: '2023-01-02', type: 'Product C', value: 93.4 },
{ date: '2023-01-03', type: 'Product A', value: 100.2 },
{ date: '2023-01-03', type: 'Product B', value: 99.4 },
{ date: '2023-01-03', type: 'Product C', value: 91.7 },
{ date: '2023-01-04', type: 'Product A', value: 104.7 },
{ date: '2023-01-04', type: 'Product B', value: 108.1 },
{ date: '2023-01-04', type: 'Product C', value: 93.1 },
{ date: '2023-01-05', type: 'Product A', value: 95.6 },
{ date: '2023-01-05', type: 'Product B', value: 96 },
{ date: '2023-01-05', type: 'Product C', value: 92.3 },
{ date: '2023-01-06', type: 'Product A', value: 95.6 },
{ date: '2023-01-06', type: 'Product B', value: 89.1 },
{ date: '2023-01-06', type: 'Product C', value: 92.5 },
{ date: '2023-01-07', type: 'Product A', value: 95.3 },
{ date: '2023-01-07', type: 'Product B', value: 89.2 },
{ date: '2023-01-07', type: 'Product C', value: 95.7 },
{ date: '2023-01-08', type: 'Product A', value: 96.1 },
{ date: '2023-01-08', type: 'Product B', value: 97.6 },
{ date: '2023-01-08', type: 'Product C', value: 99.9 },
{ date: '2023-01-09', type: 'Product A', value: 96.1 },
{ date: '2023-01-09', type: 'Product B', value: 100.6 },
{ date: '2023-01-09', type: 'Product C', value: 103.8 },
{ date: '2023-01-10', type: 'Product A', value: 101.6 },
{ date: '2023-01-10', type: 'Product B', value: 108.3 },
{ date: '2023-01-10', type: 'Product C', value: 108.9 }
]
},
xField: 'date',
yField: 'value',
seriesField: 'type',
point: {
visible: false
},
line: {
style: {
lineWidth: 2,
zIndex: (datum) => {
switch(datum.type) {
case 'Product A':
return 3;
case 'Product B':
return 2;
case 'Produce C':
return 1;
}
}
}
},
legends: { visible: true }
};
