binder源码分析切入口:
以其中的MediaPlayerService为主切入点进行分析。先来分析MediaServer本身 main_mediaserver.cpp
int main(int argc __unused, char **argv __unused)
{
// 1.获得一个ProcessState实例
sp<ProcessState> proc(ProcessState::self());
// 2.MS作为ServiceManager的客户端，需要向ServiceManger注册服务
sp<IServiceManager> sm(defaultServiceManager());
// 3.多媒体系统的MediaPlayer服务，我们将以它作为主切入点
MediaPlayerService::instantiate();
// 4.创建一个线程池
ProcessState::self()->startThreadPool();
// 5.将自己加入到刚才的线程池
IPCThreadState::self()->joinThreadPool();
}
上面的代码中，确定了5个关键点，让我们通过对这5个关键点逐一进行深入分析，来认识和理解Binder。
一，独一无二的ProcessState
单例获取 ProcessState::self()
sp<ProcessState> ProcessState::self()
{
Mutex::Autolock _l(gProcessMutex);
if (gProcess != NULL) {
return gProcess;
}
// 创建一个ProcessState对象
gProcess = new ProcessState("/dev/binder");
return gProcess;
}
ProcessState 构造函数, 打开了Binder设备
ProcessState::ProcessState(const char *driver)
: mDriverName(String8(driver))
, mDriverFD(open_driver(driver))
, mVMStart(MAP_FAILED)
, mThreadCountLock(PTHREAD_MUTEX_INITIALIZER)
, mThreadCountDecrement(PTHREAD_COND_INITIALIZER)
, mExecutingThreadsCount(0)
, mMaxThreads(DEFAULT_MAX_BINDER_THREADS)
, mStarvationStartTimeMs(0)
, mManagesContexts(false)
, mBinderContextCheckFunc(NULL)
, mBinderContextUserData(NULL)
, mThreadPoolStarted(false)
, mThreadPoolSeq(1)
{
if (mDriverFD >= 0) {
// BIDNER_VM_SIZE定义为(1*1024*1024) - (4096 *2) = 1M-8K
mVMStart = mmap(0, BINDER_VM_SIZE, PROT_READ, MAP_PRIVATE | MAP_NORESERVE, mDriverFD, 0);
if (mVMStart == MAP_FAILED) {
// *sigh*
ALOGE("Using /dev/binder failed: unable to mmap transaction memory.\n");
close(mDriverFD);
mDriverFD = -1;
mDriverName.clear();
}
}
LOG_ALWAYS_FATAL_IF(mDriverFD < 0, "Binder driver could not be opened. Terminating.");
}
open_driver的作用就是打开/dev/binder这个设备，它是android在内核中专门用于完成进程间通信而设置的一个虚拟设备，具体实现如下所示:
static int open_driver(const char *driver)
{
// 打开/dev/binder设备
int fd = open(driver, O_RDWR | O_CLOEXEC);
if (fd >= 0) {
int vers = 0;
status_t result = ioctl(fd, BINDER_VERSION, &vers);
if (result == -1) {
ALOGE("Binder ioctl to obtain version failed: %s", strerror(errno));
close(fd);
fd = -1;
}
if (result != 0 || vers != BINDER_CURRENT_PROTOCOL_VERSION) {
ALOGE("Binder driver protocol(%d) does not match user space protocol(%d)! ioctl() return value: %d",
vers, BINDER_CURRENT_PROTOCOL_VERSION, result);
close(fd);
fd = -1;
}
size_t maxThreads = DEFAULT_MAX_BINDER_THREADS;
// 通过ioctl方式告诉binder驱动，这个fd支持的最大线程数是15个
result = ioctl(fd, BINDER_SET_MAX_THREADS, &maxThreads);
if (result == -1) {
ALOGE("Binder ioctl to set max threads failed: %s", strerror(errno));
}
} else {
ALOGW("Opening '%s' failed: %s\n", driver, strerror(errno));
}
return fd;
}
二， 时空穿越魔术-defaultServiceManager
先来看看defaultServiceManager都调用了哪些函数？返回的这个IServiceManager到底是什么？具体实现代码如下所示：
IServiceManager.cpp
sp<IServiceManager> defaultServiceManager()
{
if (gDefaultServiceManager != NULL) return gDefaultServiceManager;
{
AutoMutex _l(gDefaultServiceManagerLock);
while (gDefaultServiceManager == NULL) {
gDefaultServiceManager = interface_cast<IServiceManager>(
ProcessState::self()->getContextObject(NULL));
if (gDefaultServiceManager == NULL)
sleep(1);
}
}
return gDefaultServiceManager;
}
调用了ProcessState的getContextObject函数！注意：传给它的参数是NULL，即0。既然是“庖丁解牛”，就还要一层一层往下切。下面再看getContextObject函数，如下所示：
sp<IBinder> ProcessState::getContextObject(const sp<IBinder>& /*caller*/)
{
return getStrongProxyForHandle(0);
}
BpBinder构造函数传的参数handle的值是0
sp<IBinder> ProcessState::getStrongProxyForHandle(int32_t handle)
{
sp<IBinder> result;
AutoMutex _l(mLock);
handle_entry* e = lookupHandleLocked(handle);
if (e != NULL) {
IBinder* b = e->binder;
if (b == NULL || !e->refs->attemptIncWeak(this)) {
if (handle == 0) {
Parcel data;
status_t status = IPCThreadState::self()->transact(
0, IBinder::PING_TRANSACTION, data, NULL, 0);
if (status == DEAD_OBJECT)
return NULL;
}
// 创建BpBinder
b = new BpBinder(handle);
e->binder = b;
if (b) e->refs = b->getWeakRefs();
result = b;
} else {
// This little bit of nastyness is to allow us to add a primary
// reference to the remote proxy when this team doesn't have one
// but another team is sending the handle to us.
result.force_set(b);
e->refs->decWeak(this);
}
}
return result;
}

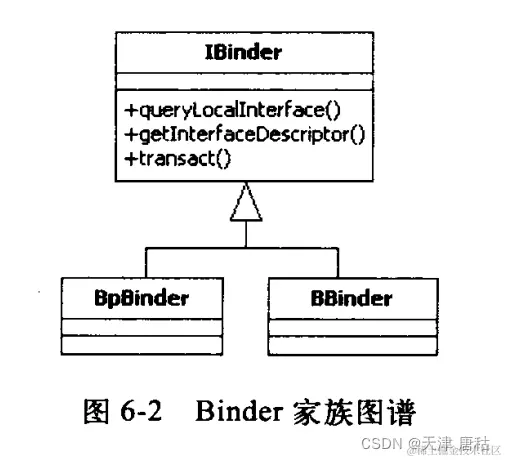

众所周知，玩魔术是必须有道具的。这个穿越魔术的道具就是BpBinder。BpBinder是什么呢？有必要先来介绍它的孪生兄弟BBinder。 BpBinder和BBinder都是Android中与Binder通信相关的代表，它们都从IBinder类中派生而来，如图
BpBinder是如此重要，必须对它进行深入分析，其代码如下所示:
BpBinder.h 文件
class BpBinder : public IBinder
{
public:
BpBinder(int32_t handle);
inline int32_t handle() const { return mHandle; }
virtual const String16& getInterfaceDescriptor() const;
virtual bool isBinderAlive() const;
virtual status_t pingBinder();
virtual status_t dump(int fd, const Vector<String16>& args);
virtual status_t transact( uint32_t code,
const Parcel& data,
Parcel* reply,
uint32_t flags = 0);
virtual status_t linkToDeath(const sp<DeathRecipient>& recipient,
void* cookie = NULL,
uint32_t flags = 0);
virtual status_t unlinkToDeath( const wp<DeathRecipient>& recipient,
void* cookie = NULL,
uint32_t flags = 0,
wp<DeathRecipient>* outRecipient = NULL);
virtual void attachObject( const void* objectID,
void* object,
void* cleanupCookie,
object_cleanup_func func);
virtual void* findObject(const void* objectID) const;
virtual void detachObject(const void* objectID);
virtual BpBinder* remoteBinder();
status_t setConstantData(const void* data, size_t size);
void sendObituary();
class ObjectManager
{
public:
ObjectManager();
~ObjectManager();
void attach( const void* objectID,
void* object,
void* cleanupCookie,
IBinder::object_cleanup_func func);
void* find(const void* objectID) const;
void detach(const void* objectID);
void kill();
private:
ObjectManager(const ObjectManager&);
ObjectManager& operator=(const ObjectManager&);
struct entry_t
{
void* object;
void* cleanupCookie;
IBinder::object_cleanup_func func;
};
KeyedVector<const void*, entry_t> mObjects;
};
protected:
virtual ~BpBinder();
virtual void onFirstRef();
virtual void onLastStrongRef(const void* id);
virtual bool onIncStrongAttempted(uint32_t flags, const void* id);
private:
const int32_t mHandle;
struct Obituary {
wp<DeathRecipient> recipient;
void* cookie;
uint32_t flags;
};
void reportOneDeath(const Obituary& obit);
bool isDescriptorCached() const;
mutable Mutex mLock;
volatile int32_t mAlive;
volatile int32_t mObitsSent;
Vector<Obituary>* mObituaries;
ObjectManager mObjects;
Parcel* mConstantData;
mutable String16 mDescriptorCache;
};
BpBinder.cpp 构造函数
BpBinder::BpBinder(int32_t handle)
: mHandle(handle)
, mAlive(1)
, mObitsSent(0)
, mObituaries(NULL)
{
ALOGV("Creating BpBinder %p handle %d\n", this, mHandle);
extendObjectLifetime(OBJECT_LIFETIME_WEAK);
IPCThreadState::self()->incWeakHandle(handle);
}
看上面的代码，会觉得BpBinder确实简单，不过再仔细查看，你或许会发现，BpBinder、BBinder这两个类没有任何地方操作ProcessState打开的那个/dev/binder设备，换言之，这两个Binder类没有和binder设备直接交互。那为什么说BpBinder会与通信相关呢？注意本小节的标题，BpBinder只是道具嘛！所以它后面一定还另有机关。不必急着揭秘，还是先回顾一下道具出场的历程。
我们是从下面这个函数开始分析的：
gDefaultServiceManager =interface_cast<IServiceManager>(new BpBinder(0));
这里出现了一个interface_cast。它是什么？其实是一个障眼法！下面就来具体分析它
IInterface信息
class IInterface : public virtual RefBase
{
public:
IInterface();
static sp<IBinder> asBinder(const IInterface*);
static sp<IBinder> asBinder(const sp<IInterface>&);
protected:
virtual ~IInterface();
virtual IBinder* onAsBinder() = 0;
};
// ----------------------------------------------------------------------
template<typename INTERFACE>
inline sp<INTERFACE> interface_cast(const sp<IBinder>& obj)
{
return INTERFACE::asInterface(obj);
}
// ----------------------------------------------------------------------
template<typename INTERFACE>
class BnInterface : public INTERFACE, public BBinder
{
public:
virtual sp<IInterface> queryLocalInterface(const String16& _descriptor);
virtual const String16& getInterfaceDescriptor() const;
protected:
virtual IBinder* onAsBinder();
};
// ----------------------------------------------------------------------
template<typename INTERFACE>
class BpInterface : public INTERFACE, public BpRefBase
{
public:
explicit BpInterface(const sp<IBinder>& remote);
protected:
virtual IBinder* onAsBinder();
};
// ----------------------------------------------------------------------
#define DECLARE_META_INTERFACE(INTERFACE) \
static const ::android::String16 descriptor; \
static ::android::sp<I##INTERFACE> asInterface( \
const ::android::sp<::android::IBinder>& obj); \
virtual const ::android::String16& getInterfaceDescriptor() const; \
I##INTERFACE(); \
virtual ~I##INTERFACE(); \
#define IMPLEMENT_META_INTERFACE(INTERFACE, NAME) \
const ::android::String16 I##INTERFACE::descriptor(NAME); \
const ::android::String16& \
I##INTERFACE::getInterfaceDescriptor() const { \
return I##INTERFACE::descriptor; \
} \
::android::sp<I##INTERFACE> I##INTERFACE::asInterface( \
const ::android::sp<::android::IBinder>& obj) \
{ \
::android::sp<I##INTERFACE> intr; \
if (obj != NULL) { \
intr = static_cast<I##INTERFACE*>( \
obj->queryLocalInterface( \
I##INTERFACE::descriptor).get()); \
if (intr == NULL) { \
intr = new Bp##INTERFACE(obj); \
} \
} \
return intr; \
} \
I##INTERFACE::I##INTERFACE() { } \
I##INTERFACE::~I##INTERFACE() { } \
#define CHECK_INTERFACE(interface, data, reply) \
if (!(data).checkInterface(this)) { return PERMISSION_DENIED; } \
// ----------------------------------------------------------------------
// No user-serviceable parts after this...
template<typename INTERFACE>
inline sp<IInterface> BnInterface<INTERFACE>::queryLocalInterface(
const String16& _descriptor)
{
if (_descriptor == INTERFACE::descriptor) return this;
return NULL;
}
template<typename INTERFACE>
inline const String16& BnInterface<INTERFACE>::getInterfaceDescriptor() const
{
return INTERFACE::getInterfaceDescriptor();
}
template<typename INTERFACE>
IBinder* BnInterface<INTERFACE>::onAsBinder()
{
return this;
}
template<typename INTERFACE>
inline BpInterface<INTERFACE>::BpInterface(const sp<IBinder>& remote)
: BpRefBase(remote)
{
}
template<typename INTERFACE>
inline IBinder* BpInterface<INTERFACE>::onAsBinder()
{
return remote();
}
Android巧妙地通过DECLARE_META_INTERFACE和IMPLENT宏，将业务和通信牢牢地钩在了一起。DECLARE_META_INTERFACE和IMPLEMENT_META_INTERFACE这两个宏都定义在刚才的IInterface.h中。先看DECLARE_META_INTERFACE这个宏，如上所示：
将IServiceManager的DELCARE宏进行相应的替换后得到的代码如下所示：
DECLARE_META_INTERFACE(IServiceManager)
// 定义一个描述字符串
static const android::String16 descriptor;
// 定义一个asInterface函数
static android::sp< IServiceManager >
asInterface(constandroid::sp<android::IBinder>& obj)
// 定义一个getInterfaceDescriptor函数，估计就是返回descriptor字符串
virtual const android::String16&getInterfaceDescriptor() const;
// 定义IServiceManager的构造函数和析构函数
IServiceManager ();
virtual ~IServiceManager();
DECLARE宏声明了一些函数和一个变量，那么，IMPLEMENT宏的作用肯定就是定义它们了。IMPLEMENT的定义在IInterface.h中，IServiceManager是如何使用了这个宏呢？只有一行代码，在IServiceManager.cpp中，如下所示：
IMPLEMENT_META_INTERFACE(ServiceManager,"android.os.IServiceManager");
很简单，可直接将IServiceManager中的IMPLEMENT宏的定义展开，如下所示：
const android::String16
IServiceManager::descriptor(“android.os.IServiceManager”);
// 实现getInterfaceDescriptor函数
const android::String16& IServiceManager::getInterfaceDescriptor()const
{
//返回字符串descriptor，值是“android.os.IServiceManager”
return IServiceManager::descriptor;
}
// 实现asInterface函数
android::sp<IServiceManager>
IServiceManager::asInterface(constandroid::sp<android::IBinder>& obj)
{
android::sp<IServiceManager> intr;
if(obj != NULL) {
intr = static_cast<IServiceManager *>(
obj->queryLocalInterface(IServiceManager::descriptor).get());
if (intr == NULL) {
// obj是我们刚才创建的那个BpBinder(0)
intr = new BpServiceManager(obj);
}
}
return intr;
}
//实现构造函数和析构函数
IServiceManager::IServiceManager () { }
IServiceManager::~ IServiceManager() { }
IServiceManager.cpp::BpServiceManager类
//通过它的参数可得知，impl是IBinder类型，看来与Binder有间接关系,它实际上是BpBinder对象
BpServiceManager(const sp<IBinder>& impl)
//调用基类BpInterface的构造函数
: BpInterface<IServiceManager>(impl)
{
}
template<typename INTERFACE>
inlineBpInterface<INTERFACE>::BpInterface(const sp<IBinder>& remote)
:BpRefBase(remote)//基类构造函数
{
}
BpRefBase::BpRefBase(const sp<IBinder>&o)
// mRemote最终等于那个new 出来的BpBinder(0)
:mRemote(o.get()), mRefs(NULL), mState(0)
{
extendObjectLifetime(OBJECT_LIFETIME_WEAK);
if(mRemote) {
mRemote->incStrong(this);
mRefs= mRemote->createWeak(this);
}
}
原来，BpServiceManager的一个变量mRemote是指向了BpBinder。至此，我们的魔术表演完了，回想一下defaultServiceManager函数，可以得到以下两个关键对象：
- 有一个BpBinder对象，它的handle值是0。
- 有一个BpServiceManager对象，它的mRemote值是BpBinder。
BpServiceManager对象实现了IServiceManager的业务函数，现在又有BpBinder作为通信的代表，接下来的工作就简单了。下面，要通过分析MediaPlayerService的注册过程，进一步分析业务函数的内部是如何工作的。
三，注册MediaPlayerService
业务层的工作
再回到MS的main函数，下一个要分析的是MediaPlayerService，它的代码如下所示：
MediaPlayerService.cpp
void MediaPlayerService::instantiate() {
defaultServiceManager()->addService(
String16("media.player"), new MediaPlayerService());
}
根据前面的分析，defaultServiceManager()实际返回的对象是BpServiceManager，它是IServiceManager的后代，代码如下所示：
IServiceManager.cpp::BpServiceManager的addService()函数
virtual status_t addService(const String16&name, const sp<IBinder>& service)
{
// Parcel:就把它当作是一个数据包。
Parceldata, reply;
data.writeInterfaceToken(IServiceManager::getInterfaceDescriptor());
data.writeString16(name);
data.writeStrongBinder(service);
// remote返回的是mRemote，也就是BpBinder对象
status_terr = remote()->transact(ADD_SERVICE_TRANSACTION, data, &reply);
returnerr == NO_ERROR ? reply.readInt32() : err;
}
通信层的工作
下面分析BpBinder的transact函数。前面说过，在BpBinder中确实找不到任何与Binder设备交互的地方吗？那它是如何参与通信的呢？原来，秘密就在这个transact函数中，它的实现代码如下所示：
BpBinder.cpp
status_t BpBinder::transact(
uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
// Once a binder has died, it will never come back to life.
if (mAlive) {
// BpBinder果然是道具，它把transact工作交给了IPCThreadState
status_t status = IPCThreadState::self()->transact(
mHandle, code, data, reply, flags);
if (status == DEAD_OBJECT) mAlive = 0;
return status;
}
return DEAD_OBJECT;
}
这里又遇见了IPCThreadState，之前也见过一次。看来，它确实与Binder通信有关，所以必须对其进行深入分析！
（1）“劳者一份”的IPCThreadState
谁是“劳者”？线程，是进程中真正干活的伙计，所以它正是劳者。而“劳者一份”，就是每个伙计一份的意思。IPCThreadState的实现代码在IPCThreadState.cpp中，如下所示：
IPCThreadState.cpp
IPCThreadState* IPCThreadState::self()
{
if (gHaveTLS) {
restart:
const pthread_key_t k = gTLS;
IPCThreadState* st = (IPCThreadState*)pthread_getspecific(k);
if (st) return st;
return new IPCThreadState;
}
if (gShutdown) {
ALOGW("Calling IPCThreadState::self() during shutdown is dangerous, expect a crash.\n");
return NULL;
}
pthread_mutex_lock(&gTLSMutex);
if (!gHaveTLS) {
int key_create_value = pthread_key_create(&gTLS, threadDestructor);
if (key_create_value != 0) {
pthread_mutex_unlock(&gTLSMutex);
ALOGW("IPCThreadState::self() unable to create TLS key, expect a crash: %s\n",
strerror(key_create_value));
return NULL;
}
gHaveTLS = true;
}
pthread_mutex_unlock(&gTLSMutex);
goto restart;
}
接下来，有必要转向分析它的构造函数IPCThreadState()，如下所示：
IPCThreadState.cpp
IPCThreadState::IPCThreadState()
: mProcess(ProcessState::self()),
mStrictModePolicy(0),
mLastTransactionBinderFlags(0)
{
// 在构造函数中，把自己设置到线程本地存储中去。
pthread_setspecific(gTLS, this);
clearCaller();
// mIn和mOut是两个Parcel。把它看成是发送和接收命令的缓冲区即可。
mIn.setDataCapacity(256);
mOut.setDataCapacity(256);
}
每个线程都有一个IPCThreadState，每个IPCThreadState中都有一个mIn、一个mOut，其中mIn是用来接收来自Binder设备的数据的，而mOut则是用来存储发往Binder设备的数据的。
（2）勤劳的transact 传输工作是很辛苦的。我们刚才看到BpBinder的transact调用了IPCThreadState的transact函数，这个函数实际完成了与Binder通信的工作，如下面的代码所示：
IPCThreadState.cpp
status_t IPCThreadState::transact(int32_t handle,
uint32_t code, const Parcel& data,
Parcel* reply, uint32_t flags)
{
status_t err = data.errorCheck();
flags |= TF_ACCEPT_FDS;
if (err == NO_ERROR) {
LOG_ONEWAY(">>>> SEND from pid %d uid %d %s", getpid(), getuid(),
(flags & TF_ONE_WAY) == 0 ? "READ REPLY" : "ONE WAY");
// 构建 binder_transaction_data 数据，并写入到 mOut 中
err = writeTransactionData(BC_TRANSACTION, flags, handle, code, data, NULL);
}
if (err != NO_ERROR) {
if (reply) reply->setError(err);
return (mLastError = err);
}
if ((flags & TF_ONE_WAY) == 0) {
#if 0
if (code == 4) { // relayout
ALOGI(">>>>>> CALLING transaction 4");
} else {
ALOGI(">>>>>> CALLING transaction %d", code);
}
#endif
if (reply) {
// 等待回复消息
err = waitForResponse(reply);
} else {
Parcel fakeReply;
err = waitForResponse(&fakeReply);
}
} else {
err = waitForResponse(NULL, NULL);
}
return err;
}
多熟悉的流程：先发数据，然后等结果。再简单不过了！不过，我们有必要确认一下handle这个参数到底起了什么作用。先来看writeTransactionData函数，它的实现如下所示：
IPCThreadState.cpp
status_t IPCThreadState::writeTransactionData(int32_t cmd, uint32_t binderFlags,
int32_t handle, uint32_t code, const Parcel& data, status_t* statusBuffer)
{
// binder_transaction_data 是和binder设备通信的数据结构。
binder_transaction_data tr;
tr.target.ptr = 0;
tr.target.handle = handle;
tr.code = code;
tr.flags = binderFlags;
tr.cookie = 0;
tr.sender_pid = 0;
tr.sender_euid = 0;
const status_t err = data.errorCheck();
if (err == NO_ERROR) {
tr.data_size = data.ipcDataSize();
tr.data.ptr.buffer = data.ipcData();
tr.offsets_size = data.ipcObjectsCount()*sizeof(binder_size_t);
tr.data.ptr.offsets = data.ipcObjects();
} else if (statusBuffer) {
tr.flags |= TF_STATUS_CODE;
*statusBuffer = err;
tr.data_size = sizeof(status_t);
tr.data.ptr.buffer = reinterpret_cast<uintptr_t>(statusBuffer);
tr.offsets_size = 0;
tr.data.ptr.offsets = 0;
} else {
return (mLastError = err);
}
mOut.writeInt32(cmd);
mOut.write(&tr, sizeof(tr));
return NO_ERROR;
}
binder_transaction_data是描述Binder事务交互的数据格式的结构体
struct binder_transaction_data {
union {
size_t handle; // handle的值传递给了target，用来标识目的端，其中0是ServiceManager的标志
void *ptr;
} target;
void *cookie;
unsigned int code; // code是消息码，用来switch/case的！
unsigned int flags;
pid_t sender_pid;
uid_t sender_euid;
size_t data_size; // 数据大小
size_t offsets_size; // 数据中包含的对象的个数
union {
struct {
const void *buffer;
const void *offsets;
} ptr;
uint8_t buf[8];
} data; // 数据
};
现在，已经把addService的请求信息写到mOut中了。接下来再看发送请求和接收回复部分的实现，代码在waitForResponse函数中，如下所示：
IPCThreadState.cpp
status_t IPCThreadState::waitForResponse(Parcel *reply, status_t *acquireResult)
{
uint32_t cmd;
int32_t err;
while (1) {
// 读写数据交互于驱动
if ((err=talkWithDriver()) < NO_ERROR) break;
err = mIn.errorCheck();
if (err < NO_ERROR) break;
if (mIn.dataAvail() == 0) continue;
cmd = (uint32_t)mIn.readInt32();
IF_LOG_COMMANDS() {
alog << "Processing waitForResponse Command: "
<< getReturnString(cmd) << endl;
}
switch (cmd) {
case BR_TRANSACTION_COMPLETE:
if (!reply && !acquireResult) goto finish;
break;
case BR_DEAD_REPLY:
err = DEAD_OBJECT;
goto finish;
case BR_FAILED_REPLY:
err = FAILED_TRANSACTION;
goto finish;
case BR_ACQUIRE_RESULT:
{
ALOG_ASSERT(acquireResult != NULL, "Unexpected brACQUIRE_RESULT");
const int32_t result = mIn.readInt32();
if (!acquireResult) continue;
*acquireResult = result ? NO_ERROR : INVALID_OPERATION;
}
goto finish;
case BR_REPLY:
{
binder_transaction_data tr;
err = mIn.read(&tr, sizeof(tr));
ALOG_ASSERT(err == NO_ERROR, "Not enough command data for brREPLY");
if (err != NO_ERROR) goto finish;
if (reply) {
if ((tr.flags & TF_STATUS_CODE) == 0) {
reply->ipcSetDataReference(
reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
tr.data_size,
reinterpret_cast<const binder_size_t*>(tr.data.ptr.offsets),
tr.offsets_size/sizeof(binder_size_t),
freeBuffer, this);
} else {
err = *reinterpret_cast<const status_t*>(tr.data.ptr.buffer);
freeBuffer(NULL,
reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
tr.data_size,
reinterpret_cast<const binder_size_t*>(tr.data.ptr.offsets),
tr.offsets_size/sizeof(binder_size_t), this);
}
} else {
freeBuffer(NULL,
reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
tr.data_size,
reinterpret_cast<const binder_size_t*>(tr.data.ptr.offsets),
tr.offsets_size/sizeof(binder_size_t), this);
continue;
}
}
goto finish;
default:
err = executeCommand(cmd);
if (err != NO_ERROR) goto finish;
break;
}
}
finish:
if (err != NO_ERROR) {
if (acquireResult) *acquireResult = err;
if (reply) reply->setError(err);
mLastError = err;
}
return err;
}
OK，我们已发送了请求数据，假设马上就收到了回复，后续该怎么处理呢？来看executeCommand函数，如下所示：
status_t IPCThreadState::executeCommand(int32_t cmd)
{
BBinder* obj;
RefBase::weakref_type* refs;
status_t result = NO_ERROR;
switch ((uint32_t)cmd) {
case BR_ERROR:
result = mIn.readInt32();
break;
case BR_OK:
break;
case BR_ACQUIRE:
refs = (RefBase::weakref_type*)mIn.readPointer();
obj = (BBinder*)mIn.readPointer();
ALOG_ASSERT(refs->refBase() == obj,
"BR_ACQUIRE: object %p does not match cookie %p (expected %p)",
refs, obj, refs->refBase());
obj->incStrong(mProcess.get());
IF_LOG_REMOTEREFS() {
LOG_REMOTEREFS("BR_ACQUIRE from driver on %p", obj);
obj->printRefs();
}
mOut.writeInt32(BC_ACQUIRE_DONE);
mOut.writePointer((uintptr_t)refs);
mOut.writePointer((uintptr_t)obj);
break;
case BR_RELEASE:
refs = (RefBase::weakref_type*)mIn.readPointer();
obj = (BBinder*)mIn.readPointer();
ALOG_ASSERT(refs->refBase() == obj,
"BR_RELEASE: object %p does not match cookie %p (expected %p)",
refs, obj, refs->refBase());
IF_LOG_REMOTEREFS() {
LOG_REMOTEREFS("BR_RELEASE from driver on %p", obj);
obj->printRefs();
}
mPendingStrongDerefs.push(obj);
break;
case BR_INCREFS:
refs = (RefBase::weakref_type*)mIn.readPointer();
obj = (BBinder*)mIn.readPointer();
refs->incWeak(mProcess.get());
mOut.writeInt32(BC_INCREFS_DONE);
mOut.writePointer((uintptr_t)refs);
mOut.writePointer((uintptr_t)obj);
break;
case BR_DECREFS:
refs = (RefBase::weakref_type*)mIn.readPointer();
obj = (BBinder*)mIn.readPointer();
// NOTE: This assertion is not valid, because the object may no
// longer exist (thus the (BBinder*)cast above resulting in a different
// memory address).
//ALOG_ASSERT(refs->refBase() == obj,
// "BR_DECREFS: object %p does not match cookie %p (expected %p)",
// refs, obj, refs->refBase());
mPendingWeakDerefs.push(refs);
break;
case BR_ATTEMPT_ACQUIRE:
refs = (RefBase::weakref_type*)mIn.readPointer();
obj = (BBinder*)mIn.readPointer();
{
const bool success = refs->attemptIncStrong(mProcess.get());
ALOG_ASSERT(success && refs->refBase() == obj,
"BR_ATTEMPT_ACQUIRE: object %p does not match cookie %p (expected %p)",
refs, obj, refs->refBase());
mOut.writeInt32(BC_ACQUIRE_RESULT);
mOut.writeInt32((int32_t)success);
}
break;
case BR_TRANSACTION:
{
binder_transaction_data tr;
result = mIn.read(&tr, sizeof(tr));
ALOG_ASSERT(result == NO_ERROR,
"Not enough command data for brTRANSACTION");
if (result != NO_ERROR) break;
Parcel buffer;
buffer.ipcSetDataReference(
reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
tr.data_size,
reinterpret_cast<const binder_size_t*>(tr.data.ptr.offsets),
tr.offsets_size/sizeof(binder_size_t), freeBuffer, this);
const pid_t origPid = mCallingPid;
const uid_t origUid = mCallingUid;
const int32_t origStrictModePolicy = mStrictModePolicy;
const int32_t origTransactionBinderFlags = mLastTransactionBinderFlags;
mCallingPid = tr.sender_pid;
mCallingUid = tr.sender_euid;
mLastTransactionBinderFlags = tr.flags;
//ALOGI(">>>> TRANSACT from pid %d uid %d\n", mCallingPid, mCallingUid);
Parcel reply;
status_t error;
IF_LOG_TRANSACTIONS() {
TextOutput::Bundle _b(alog);
alog << "BR_TRANSACTION thr " << (void*)pthread_self()
<< " / obj " << tr.target.ptr << " / code "
<< TypeCode(tr.code) << ": " << indent << buffer
<< dedent << endl
<< "Data addr = "
<< reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer)
<< ", offsets addr="
<< reinterpret_cast<const size_t*>(tr.data.ptr.offsets) << endl;
}
if (tr.target.ptr) {
// We only have a weak reference on the target object, so we must first try to
// safely acquire a strong reference before doing anything else with it.
if (reinterpret_cast<RefBase::weakref_type*>(
tr.target.ptr)->attemptIncStrong(this)) {
// 这里的b实际上就是实现BnServiceXXX的那个对象
error = reinterpret_cast<BBinder*>(tr.cookie)->transact(tr.code, buffer,
&reply, tr.flags);
reinterpret_cast<BBinder*>(tr.cookie)->decStrong(this);
} else {
error = UNKNOWN_TRANSACTION;
}
} else {
error = the_context_object->transact(tr.code, buffer, &reply, tr.flags);
}
//ALOGI("<<<< TRANSACT from pid %d restore pid %d uid %d\n",
// mCallingPid, origPid, origUid);
if ((tr.flags & TF_ONE_WAY) == 0) {
LOG_ONEWAY("Sending reply to %d!", mCallingPid);
if (error < NO_ERROR) reply.setError(error);
sendReply(reply, 0);
} else {
LOG_ONEWAY("NOT sending reply to %d!", mCallingPid);
}
mCallingPid = origPid;
mCallingUid = origUid;
mStrictModePolicy = origStrictModePolicy;
mLastTransactionBinderFlags = origTransactionBinderFlags;
IF_LOG_TRANSACTIONS() {
TextOutput::Bundle _b(alog);
alog << "BC_REPLY thr " << (void*)pthread_self() << " / obj "
<< tr.target.ptr << ": " << indent << reply << dedent << endl;
}
}
break;
case BR_DEAD_BINDER:
{
BpBinder *proxy = (BpBinder*)mIn.readPointer();
proxy->sendObituary();
mOut.writeInt32(BC_DEAD_BINDER_DONE);
mOut.writePointer((uintptr_t)proxy);
} break;
case BR_CLEAR_DEATH_NOTIFICATION_DONE:
{
BpBinder *proxy = (BpBinder*)mIn.readPointer();
proxy->getWeakRefs()->decWeak(proxy);
} break;
case BR_FINISHED:
result = TIMED_OUT;
break;
case BR_NOOP:
break;
case BR_SPAWN_LOOPER:
mProcess->spawnPooledThread(false);
break;
default:
ALOGE("*** BAD COMMAND %d received from Binder driver\n", cmd);
result = UNKNOWN_ERROR;
break;
}
if (result != NO_ERROR) {
mLastError = result;
}
return result;
}
（3）打破砂锅问到底 你一定想知道如何和Binder设备交互的吧？是通过write和read函数来发送和接收请求的吗？来看talkwithDriver函数，如下所示:
IPCThreadState.cpp
status_t IPCThreadState::talkWithDriver(bool doReceive)
{
if (mProcess->mDriverFD <= 0) {
return -EBADF;
}
binder_write_read bwr;
// Is the read buffer empty?
const bool needRead = mIn.dataPosition() >= mIn.dataSize();
// We don't want to write anything if we are still reading
// from data left in the input buffer and the caller
// has requested to read the next data.
const size_t outAvail = (!doReceive || needRead) ? mOut.dataSize() : 0;
// 请求命令的填充
bwr.write_size = outAvail;
bwr.write_buffer = (uintptr_t)mOut.data();
// This is what we'll read.
if (doReceive && needRead) {
// 接收数据缓冲区信息的填充。如果以后收到数据，就直接填在mIn中了。
bwr.read_size = mIn.dataCapacity();
bwr.read_buffer = (uintptr_t)mIn.data();
} else {
bwr.read_size = 0;
bwr.read_buffer = 0;
}
IF_LOG_COMMANDS() {
TextOutput::Bundle _b(alog);
if (outAvail != 0) {
alog << "Sending commands to driver: " << indent;
const void* cmds = (const void*)bwr.write_buffer;
const void* end = ((const uint8_t*)cmds)+bwr.write_size;
alog << HexDump(cmds, bwr.write_size) << endl;
while (cmds < end) cmds = printCommand(alog, cmds);
alog << dedent;
}
alog << "Size of receive buffer: " << bwr.read_size
<< ", needRead: " << needRead << ", doReceive: " << doReceive << endl;
}
// Return immediately if there is nothing to do.
if ((bwr.write_size == 0) && (bwr.read_size == 0)) return NO_ERROR;
bwr.write_consumed = 0;
bwr.read_consumed = 0;
status_t err;
do {
IF_LOG_COMMANDS() {
alog << "About to read/write, write size = " << mOut.dataSize() << endl;
}
#if defined(__ANDROID__)
// 看来不是read/write调用，而是ioctl方式。
if (ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr) >= 0)
err = NO_ERROR;
else
err = -errno;
#else
err = INVALID_OPERATION;
#endif
if (mProcess->mDriverFD <= 0) {
err = -EBADF;
}
IF_LOG_COMMANDS() {
alog << "Finished read/write, write size = " << mOut.dataSize() << endl;
}
} while (err == -EINTR);
IF_LOG_COMMANDS() {
alog << "Our err: " << (void*)(intptr_t)err << ", write consumed: "
<< bwr.write_consumed << " (of " << mOut.dataSize()
<< "), read consumed: " << bwr.read_consumed << endl;
}
if (err >= NO_ERROR) {
if (bwr.write_consumed > 0) {
if (bwr.write_consumed < mOut.dataSize())
mOut.remove(0, bwr.write_consumed);
else
mOut.setDataSize(0);
}
if (bwr.read_consumed > 0) {
mIn.setDataSize(bwr.read_consumed);
mIn.setDataPosition(0);
}
IF_LOG_COMMANDS() {
TextOutput::Bundle _b(alog);
alog << "Remaining data size: " << mOut.dataSize() << endl;
alog << "Received commands from driver: " << indent;
const void* cmds = mIn.data();
const void* end = mIn.data() + mIn.dataSize();
alog << HexDump(cmds, mIn.dataSize()) << endl;
while (cmds < end) cmds = printReturnCommand(alog, cmds);
alog << dedent;
}
return NO_ERROR;
}
return err;
}
binder_write_read:是内核空间和用户空间的通信结构体，它记录了Binder读写内容的相关信息:
struct binder_write_read {
signed long write_size; // 是写内容的总大小
signed long write_consumed; // 是已写内容的大小
unsigned long write_buffer; // 是写的内容的虚拟地址
signed long read_size; // 是读内容的总大小
signed long read_consumed; // 是已读内容的大小
unsigned long read_buffer; // 是读的内容的虚拟地址
};
四，StartThread Pool 和 join Thread Pool分析
重要的内容都已讲过了，现在就剩下最后两个函数startThreadPool()和joinThreadPool没有分析了。它们就太简单了不是？
1.创造劳动力——startThreadPool()
startThreadPool()的实现，如下面的代码所示：
ProcessState.cpp
// 太简单，没什么好说的
void ProcessState::startThreadPool()
{
AutoMutex _l(mLock);
// 如果要是已经startThreadPool的话，这个函数就没有什么实质作用了
if(!mThreadPoolStarted) {
mThreadPoolStarted = true;
spawnPooledThread(true); //注意，传进去的参数是true
}
}
上面的spawnPooledThread()函数的实现，如下所示：
ProcessState.cpp
void ProcessState::spawnPooledThread(bool isMain)
{
if (mThreadPoolStarted) {
String8 name = makeBinderThreadName();
ALOGV("Spawning new pooled thread, name=%s\n", name.string());
// 创建PoolThread
sp<Thread> t = new PoolThread(isMain);
t->run(name.string());
}
}
PoolThread是在IPCThreadState中定义的一个Thread子类，它的实现，如下所示：
IPCThreadState.h::PoolThread类
class PoolThread : public Thread
{
public:
PoolThread(bool isMain)
:mIsMain(isMain){}
protected:
virtualbool threadLoop()
{
// 线程函数如此简单，不过是在这个新线程中又创建了一个IPCThreadState。
// 你还记得它是每个伙计都有一个的吗？
IPCThreadState::self()->joinThreadPool(mIsMain);
return false;
}
const boolmIsMain;
};
2.万众归一——joinThreadPool
还需要看看IPCThreadState的joinThreadPool的实现，因为新创建的线程也会调用这个函数，具体代码如下所示：
IPCThreadState.cpp
void IPCThreadState::joinThreadPool(bool isMain)
{
LOG_THREADPOOL("**** THREAD %p (PID %d) IS JOINING THE THREAD POOL\n", (void*)pthread_self(), getpid());
// 发送循环接受命令
mOut.writeInt32(isMain ? BC_ENTER_LOOPER : BC_REGISTER_LOOPER);
status_t result;
do {
processPendingDerefs();
// now get the next command to be processed, waiting if necessary
result = getAndExecuteCommand();
if (result < NO_ERROR && result != TIMED_OUT && result != -ECONNREFUSED && result != -EBADF) {
ALOGE("getAndExecuteCommand(fd=%d) returned unexpected error %d, aborting",
mProcess->mDriverFD, result);
abort();
}
// Let this thread exit the thread pool if it is no longer
// needed and it is not the main process thread.
if(result == TIMED_OUT && !isMain) {
break;
}
} while (result != -ECONNREFUSED && result != -EBADF);
LOG_THREADPOOL("**** THREAD %p (PID %d) IS LEAVING THE THREAD POOL err=%d\n",
(void*)pthread_self(), getpid(), result);
mOut.writeInt32(BC_EXIT_LOOPER);
talkWithDriver(false);
}
原来，我们的两个伙计在talkWithDriver，它们希望能从Binder设备那里找到点可做的事情。
--参考 深入理解Android:卷1
