该文主要介绍的是使用Dockerfile构建镜像，使用docker-compose构建spark集群，并使用PySpark实现鸢尾花KMeans的过程，希望对你有所帮助。

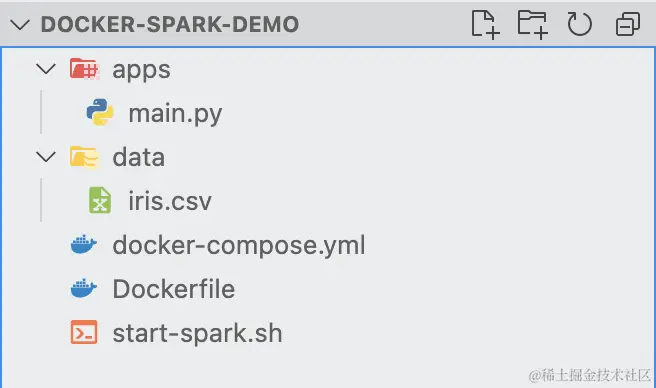

文件结构

/apps文件夹用于存放脚本
/data文件夹用于存放数据
docker-compose.yml文件用于构建容器
Dockerfile文件用于构建镜像
start-spark.sh用于启动容器
/apps和/data通过volumes配置挂载到容器中

集群安装

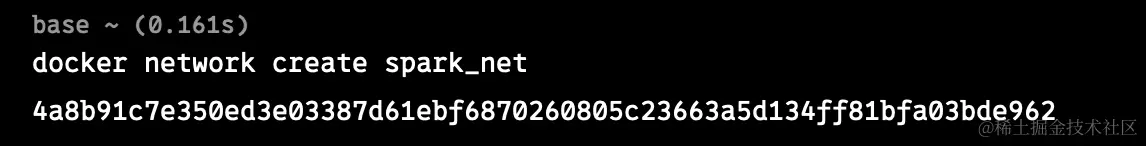

创建一个自定义的 Docker 网络
```
docker network create spark_net
```

创建Dockerfile文件

# 使用openjdk作为基础镜像
FROM openjdk:11.0.11-jre-slim-buster

# 设置环境变量
ENV SPARK_VERSION=3.5.1
ENV HADOOP_VERSION=3
ENV SPARK_HOME=/opt/spark
ENV  PYTHONHASHSEED=1


# 下载并安装相关依赖
RUN apt-get update && apt-get install -y wget procps python3 python3-pip python3-numpy python3-matplotlib python3-scipy python3-pandas python3-simpy \
    && apt-get clean
RUN update-alternatives --install "/usr/bin/python" "python" "$(which python3)" 1

# 下载并安装Apache Spark
RUN wget -q https://archive.apache.org/dist/spark/spark-${SPARK_VERSION}/spark-${SPARK_VERSION}-bin-hadoop${HADOOP_VERSION}.tgz \
    && tar -xzf spark-${SPARK_VERSION}-bin-hadoop${HADOOP_VERSION}.tgz -C /opt \
    && mv /opt/spark-${SPARK_VERSION}-bin-hadoop${HADOOP_VERSION} $SPARK_HOME \
    && rm spark-${SPARK_VERSION}-bin-hadoop${HADOOP_VERSION}.tgz

# 设置SPARK_HOME环境变量
ENV PATH=$PATH:$SPARK_HOME/bin
ENV PYSPARK_PYTHON=python3

# 复制启动脚本到容器中
COPY start-spark.sh /start-spark.sh
RUN chmod +x /start-spark.sh

# 设置工作目录
WORKDIR $SPARK_HOME

# 设置SPARK环境变量
ENV SPARK_MASTER_PORT=7077 \
    SPARK_MASTER_WEBUI_PORT=8080 \
    SPARK_LOG_DIR=/opt/spark/logs \
    SPARK_MASTER_LOG=/opt/spark/logs/spark-master.out \
    SPARK_WORKER_LOG=/opt/spark/logs/spark-worker.out \
    SPARK_WORKER_WEBUI_PORT=8080 \
    SPARK_WORKER_PORT=7000 \
    SPARK_MASTER="spark://spark-master:7077" \
    SPARK_WORKLOAD="master"

# 暴露Spark Master和Worker的端口
EXPOSE 8080 7077 7000

# 创建日志目录
RUN mkdir -p $SPARK_LOG_DIR && \
    touch $SPARK_MASTER_LOG && \
    touch $SPARK_WORKER_LOG && \
    ln -sf /dev/stdout $SPARK_MASTER_LOG && \
    ln -sf /dev/stdout $SPARK_WORKER_LOG

# 设置启动命令
CMD ["/bin/bash", "/start-spark.sh"]

注意SPARK_VERSION和HADOOP_VERSION的设置，和该网页中内容版本对应
注意需要下载对应的python包才可以运行，可能会下载失败，多尝试几次

start-spark.sh脚本是启动脚本

#!/bin/bash

. "/opt/spark/bin/load-spark-env.sh"

if [ "$SPARK_WORKLOAD" == "master" ]; then
    export SPARK_MASTER_HOST=$(hostname)
    cd /opt/spark/bin && ./spark-class org.apache.spark.deploy.master.Master --webui-port $SPARK_MASTER_WEBUI_PORT >>$SPARK_MASTER_LOG
elif [ "$SPARK_WORKLOAD" == "worker" ]; then
    cd /opt/spark/bin && ./spark-class org.apache.spark.deploy.worker.Worker --webui-port $SPARK_WORKER_WEBUI_PORT $SPARK_MASTER >>$SPARK_WORKER_LOG
elif [ "$SPARK_WORKLOAD" == "submit" ]; then
    echo "SPARK SUBMIT"
else
    echo "Undefined Workload Type $SPARK_WORKLOAD, must specify: master, worker, submit"
fi

基于Dockerfile文件构建docker-spark-demo镜像
```
docker build -t docker-spark-demo .
```

基于docker-spark-demo镜像构建集群

创建docker-compose.yml进行构建

version: "3.7"

services:
  spark-master:
    image: docker-spark-demo
    ports:
      - "8000:8080"
      - "7077:7077"
    volumes:
      - ./apps:/opt/apps
      - ./data:/opt/data
    environment:
      - SPARK_LOCAL_IP=spark-master
      - SPARK_WORKLOAD=master
    networks:
      - spark-net

  spark-worker-1:
    image: docker-spark-demo
    volumes:
      - ./apps:/opt/apps
      - ./data:/opt/data
    ports:
      - "8001:8080"
      - "7001:7000"
    depends_on:
      - spark-master
    environment:
      - SPARK_MASTER=spark://spark-master:7077
      - SPARK_WORKER_CORES=1
      - SPARK_WORKER_MEMORY=1G
      - SPARK_DRIVER_MEMORY=1G
      - SPARK_EXECUTOR_MEMORY=1G
      - SPARK_WORKLOAD=worker
      - SPARK_LOCAL_IP=spark-worker-1
    networks:
      - spark-net

  spark-worker-2:
    image: docker-spark-demo
    volumes:
      - ./apps:/opt/apps
      - ./data:/opt/data
    ports:
      - "8002:8080"
      - "7002:7000"
    depends_on:
      - spark-master
    environment:
      - SPARK_MASTER=spark://spark-master:7077
      - SPARK_WORKER_CORES=1
      - SPARK_WORKER_MEMORY=1G
      - SPARK_DRIVER_MEMORY=1G
      - SPARK_EXECUTOR_MEMORY=1G
      - SPARK_WORKLOAD=worker
      - SPARK_LOCAL_IP=spark-worker-2
    networks:
      - spark-net

networks:
  spark-net:

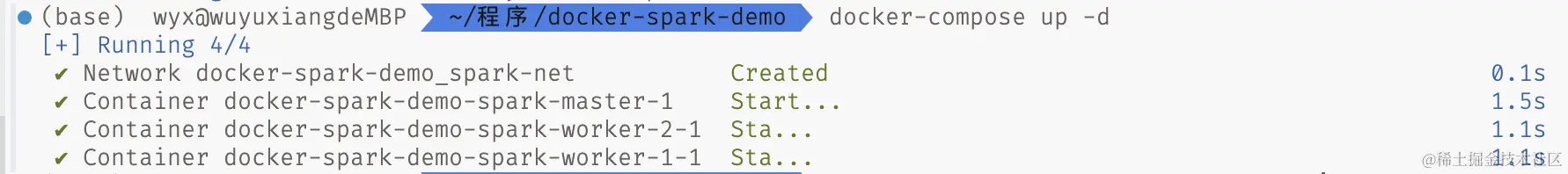

基于docker-compose.yml构建容器
```
docker-compose up -d
```

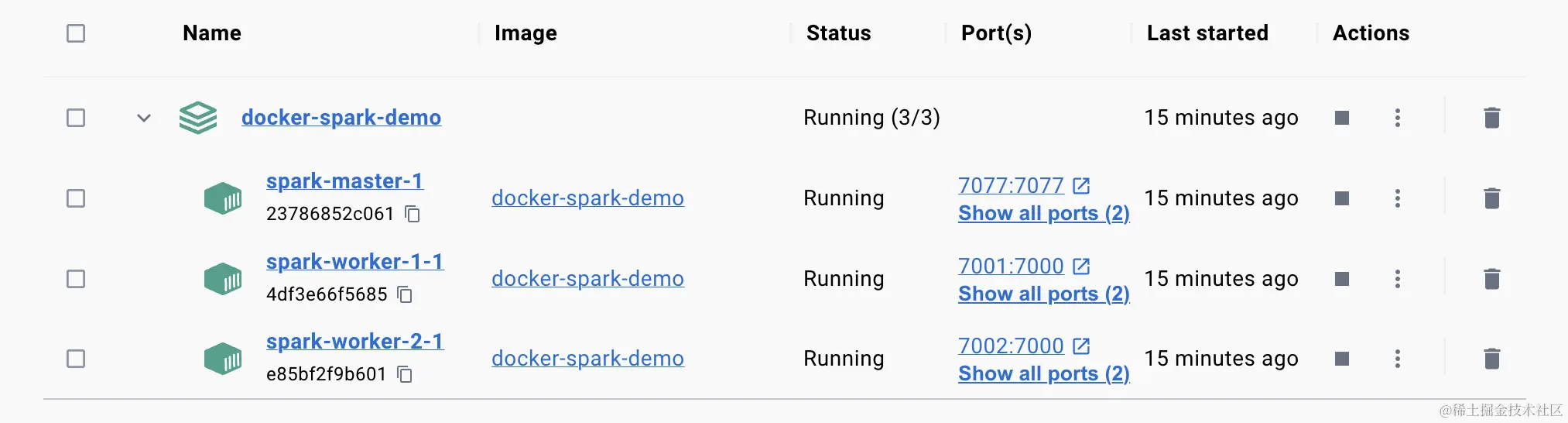

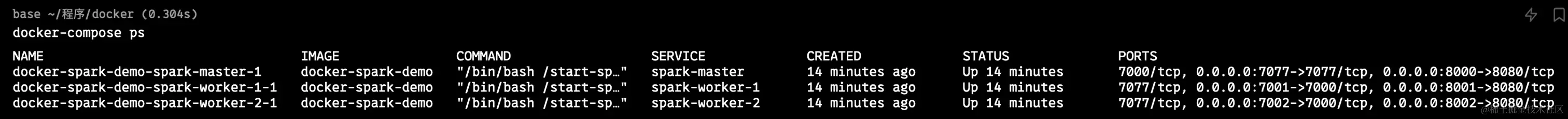

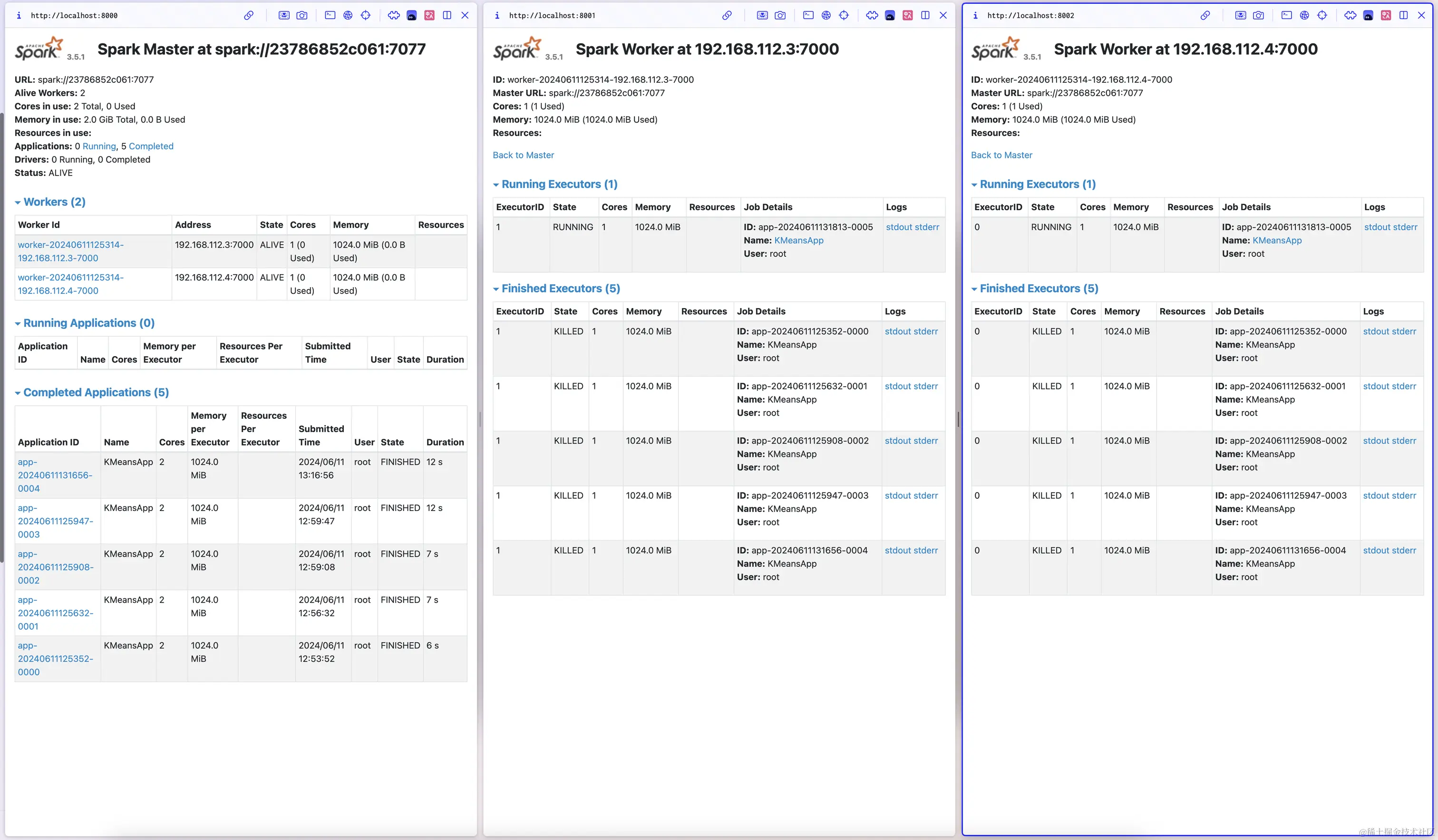

查看容器启动情况

程序实现

使用pyspark实现KMeans算法

'''
Author       : wyx-hhhh
Date         : 2024-06-11
LastEditTime : 2024-06-11
Description  :
'''
from pyspark.sql import SparkSession
from pyspark.ml.feature import VectorAssembler
from pyspark.ml.clustering import KMeans

# 初始化Spark会话
spark = SparkSession.builder.appName("KMeansApp").getOrCreate()

# 读取外部数据集文件
data = spark.read.csv("file:/opt/data/iris.csv", header=True, inferSchema=True)

# 特征向量组装
feature_cols = data.columns
feature_cols.remove("label")  # 排除标签列
assembler = VectorAssembler(inputCols=feature_cols, outputCol="features")
data = assembler.transform(data)

# 使用KMeans聚类
kmeans = KMeans().setK(3).setSeed(1)
model = kmeans.fit(data)

# 打印聚类中心点
centers = model.clusterCenters()
for center in centers:
    print(center)

# 停止Spark会话
spark.stop()

启动程序

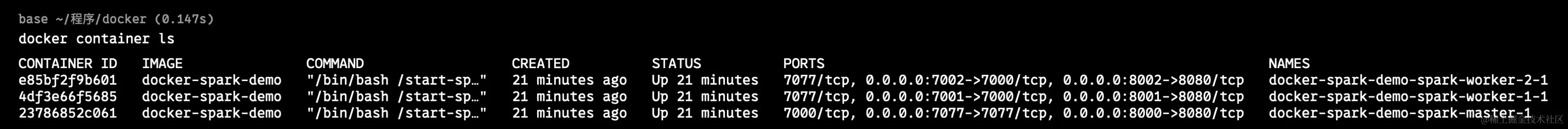

查看容器对应的id
```
docker container ls
```
进入任意id的容器命令行界面
```
docker exec -it e85bf2f9b601 /bin/bash
```
在spark-master下启动
- 执行spark-submit运行脚本
```
/opt/spark/bin/spark-submit --master spark://spark-master:7077 /opt/apps/main.py
```

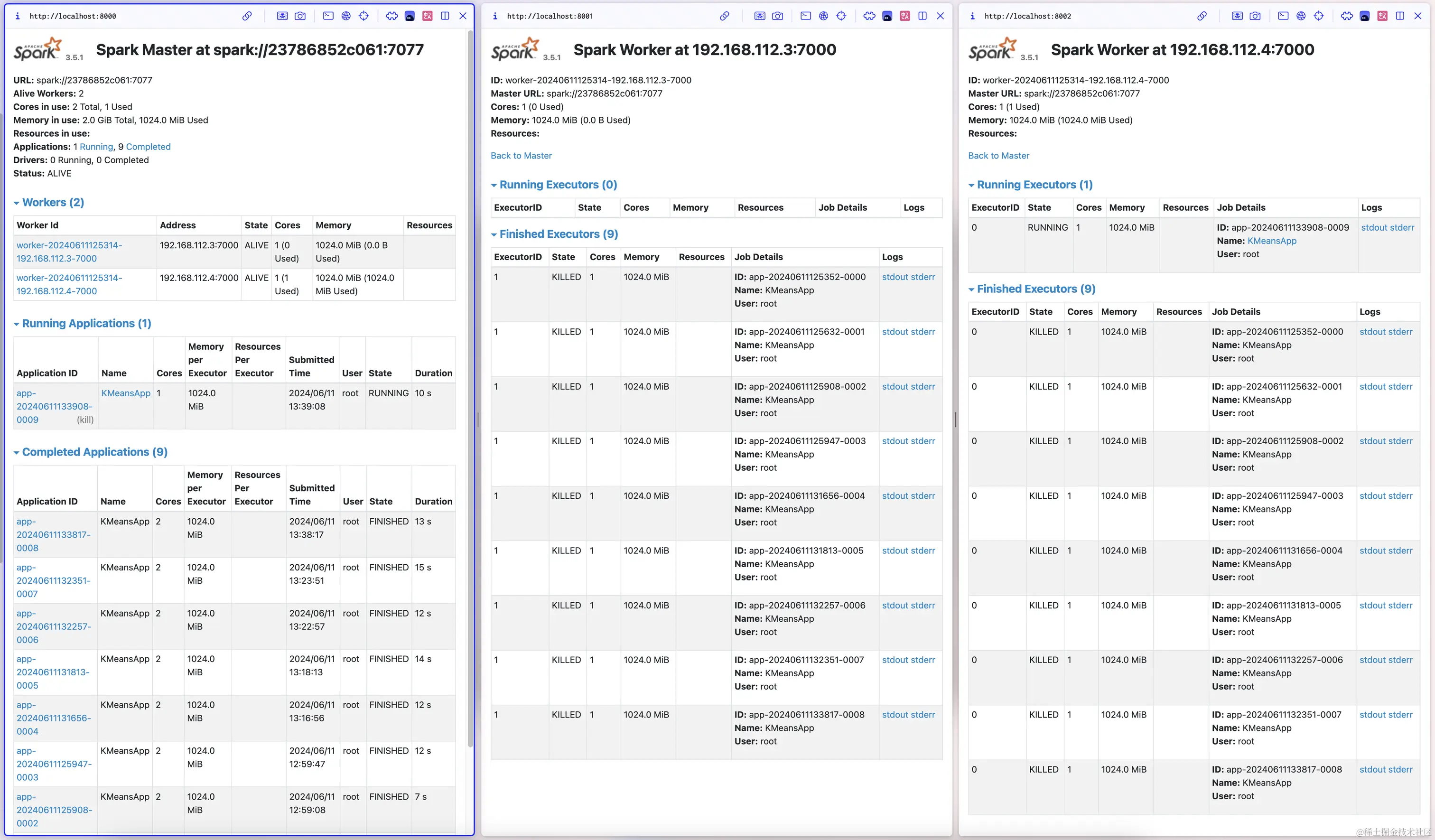

- 查看运行过程

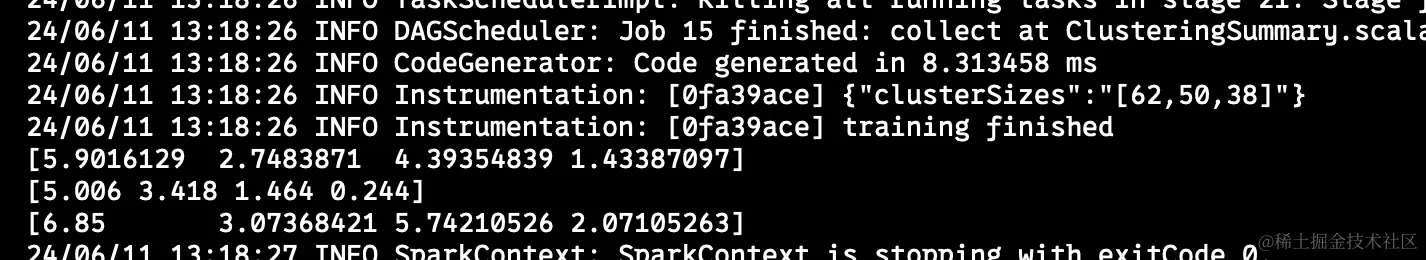

- 运行结果

在单独spark-worker下启动

执行spark-submit运行脚本

/opt/spark/bin/spark-submit --deploy-mode client --master spark://spark-master:7077 --total-executor-cores 1 /opt/apps/main.py

查看运行结果
运行结果
